一、背景
包的形式有各种各样的包，如 xx.apk、xxx.jar、xx.so。PMS作为包的管理中心，管理Android中各种各样的包。
而管理是需要在内存中才能进行的，因此，如何把静态形式的数据转变为内存中对应的数据结构，这就需要通过扫描来完成。
二、 包的扫描过程
我们关心apk的扫描过程。本质我们关心从静态apk文件 转变成内存中的数据结构是什么样的！
不管是 system/framework分区 还是 data/分区。都会调用这个方法来进行扫描。
2.1 scanDirTracedLI()
xxxLI结尾的方法表明需要 mInstaller 锁。 xxxLP结尾的方法表明需要 mPackages 锁。
private void scanDirTracedLI(File scanDir, final int parseFlags, int scanFlags, long currentTime) {
Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "scanDir [" + scanDir.getAbsolutePath() + "]");
try {
scanDirLI(scanDir, parseFlags, scanFlags, currentTime);
} finally {
Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
}
}
这个方法仅仅追加了trace日志。
private void scanDirLI(File scanDir, int parseFlags, int scanFlags, long currentTime) {
final File[] files = scanDir.listFiles();
.......
try (ParallelPackageParser parallelPackageParser = new ParallelPackageParser(
mSeparateProcesses, mOnlyCore, mMetrics, mCacheDir,
mParallelPackageParserCallback)) {
// Submit files for parsing in parallel
int fileCount = 0;
// 遍历文件
for (File file : files) {
final boolean isPackage = (isApkFile(file) || file.isDirectory())
&& !PackageInstallerService.isStageName(file.getName());
if (!isPackage) {
// Ignore entries which are not packages
continue;
}
//1 解析
parallelPackageParser.submit(file, parseFlags);
fileCount++;
}
// Process results one by one 2 解析完成后，处理结果
for (; fileCount > 0; fileCount--) {
ParallelPackageParser.ParseResult parseResult = parallelPackageParser.take();
Throwable throwable = parseResult.throwable;
int errorCode = PackageManager.INSTALL_SUCCEEDED;
if (throwable == null) {
// TODO(toddke): move lower in the scan chain
// Static shared libraries have synthetic package names
if (parseResult.pkg.applicationInfo.isStaticSharedLibrary()) {
renameStaticSharedLibraryPackage(parseResult.pkg);
}
try {
scanPackageChildLI(parseResult.pkg, parseFlags, scanFlags,
currentTime, null);
} catch (PackageManagerException e) {
errorCode = e.error;
Slog.w(TAG, "Failed to scan " + parseResult.scanFile + ": " + e.getMessage());
}
} else if (throwable instanceof PackageParser.PackageParserException) {
PackageParser.PackageParserException e = (PackageParser.PackageParserException)
throwable;
errorCode = e.error;
Slog.w(TAG, "Failed to parse " + parseResult.scanFile + ": " + e.getMessage());
} else {
throw new IllegalStateException("Unexpected exception occurred while parsing "
+ parseResult.scanFile, throwable);
}
// Delete invalid userdata apps
if ((scanFlags & SCAN_AS_SYSTEM) == 0 &&
errorCode != PackageManager.INSTALL_SUCCEEDED) {
logCriticalInfo(Log.WARN,
"Deleting invalid package at " + parseResult.scanFile);
removeCodePathLI(parseResult.scanFile);
}
}
}
}
遍历给到目录下文件，开始解析。我们看看 ParallelPackageParse 类的submit()方法。
2.2 ParallelPackageParse.submit()
public void submit(File scanFile, int parseFlags) {
//mService是线程池
mService.submit(() -> {
ParseResult pr = new ParseResult();
Trace.traceBegin(TRACE_TAG_PACKAGE_MANAGER, "parallel parsePackage [" + scanFile + "]");
try {
// 1
PackageParser pp = new PackageParser();
pp.setSeparateProcesses(mSeparateProcesses);
pp.setOnlyCoreApps(mOnlyCore);
pp.setDisplayMetrics(mMetrics);
pp.setCacheDir(mCacheDir);
pp.setCallback(mPackageParserCallback);
pr.scanFile = scanFile; // 解析的文件
// 2
pr.pkg = parsePackage(pp, scanFile, parseFlags);
} catch (Throwable e) {
pr.throwable = e;
} finally {
Trace.traceEnd(TRACE_TAG_PACKAGE_MANAGER);
}
try {
mQueue.put(pr); // 3
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
// Propagate result to callers of take().
// This is helpful to prevent main thread from getting stuck waiting on
// ParallelPackageParser to finish in case of interruption
mInterruptedInThread = Thread.currentThread().getName();
}
});
}
- 构建解析对象，设置解析参数
- 解析得到 package 对象 ，赋值给result返回
- 把解析结果加入队列
具体看看第二步的解析过程，如何得到package对象的。
@VisibleForTesting
protected PackageParser.Package parsePackage(PackageParser packageParser, File scanFile,
int parseFlags) throws PackageParser.PackageParserException {
return packageParser.parsePackage(scanFile, parseFlags, true /* useCaches */);
}
最终调用了 packageParser类的 parsePackage()方法。
@UnsupportedAppUsage
public Package parsePackage(File packageFile, int flags, boolean useCaches)
throws PackageParserException {
// 如果useCaches=true，优先获取缓存
Package parsed = useCaches ? getCachedResult(packageFile, flags) : null;
if (parsed != null) {
return parsed;
}
long parseTime = LOG_PARSE_TIMINGS ? SystemClock.uptimeMillis() : 0;
if (packageFile.isDirectory()) {
// cluster 多个splits apk 情况
parsed = parseClusterPackage(packageFile, flags);
} else {
// monolithic 完整包。只要一个apk
parsed = parseMonolithicPackage(packageFile, flags);
}
long cacheTime = LOG_PARSE_TIMINGS ? SystemClock.uptimeMillis() : 0;
cacheResult(packageFile, flags, parsed);
if (LOG_PARSE_TIMINGS) {
parseTime = cacheTime - parseTime;
cacheTime = SystemClock.uptimeMillis() - cacheTime;
if (parseTime + cacheTime > LOG_PARSE_TIMINGS_THRESHOLD_MS) {
Slog.i(TAG, "Parse times for '" + packageFile + "': parse=" + parseTime
+ "ms, update_cache=" + cacheTime + " ms");
}
}
return parsed;
}
如果是文件夹，则对应的是splits包，否则是完整包。
splits包： 对应一个baseApk和一个或多个的aplits apk。
完整包，就是单个完整的apk文件。
先看完整包的解析。
2.2 parseMonolithicPackage()
PackageLite：单个包轻量级的信息 Lightweight parsed details about a single package.ApkLite：单个apk文件的一些简单的信息 Lightweight parsed details about a single APK file.
public Package parseMonolithicPackage(File apkFile, int flags) throws PackageParserException {
// 1
final PackageLite lite = parseMonolithicPackageLite(apkFile, flags);
if (mOnlyCoreApps) {
if (!lite.coreApp) {
throw new PackageParserException(INSTALL_PARSE_FAILED_MANIFEST_MALFORMED,
"Not a coreApp: " + apkFile);
}
}
final SplitAssetLoader assetLoader = new DefaultSplitAssetLoader(lite, flags);
try {// 2
final Package pkg = parseBaseApk(apkFile, assetLoader.getBaseAssetManager(), flags);
pkg.setCodePath(apkFile.getCanonicalPath());
pkg.setUse32bitAbi(lite.use32bitAbi);
return pkg;
} catch (IOException e) {
throw new PackageParserException(INSTALL_PARSE_FAILED_UNEXPECTED_EXCEPTION,
"Failed to get path: " + apkFile, e);
} finally {
IoUtils.closeQuietly(assetLoader);
}
}
- 解析清单文件，得到 PackageLite 对象，它包含了一些包的轻量级的信息。如 安装位置、代码路径、ApkLite的基本信息等。
- 最终调用 核心接口
parseBaseApk()，得到Package对象。
2.2.1 parseBaseApk()
private Package parseBaseApk(File apkFile, AssetManager assets, int flags)
throws PackageParserException {
final String apkPath = apkFile.getAbsolutePath();
......
// 1
parser = assets.openXmlResourceParser(cookie, ANDROID_MANIFEST_FILENAME);
// 2
final Resources res = new Resources(assets, mMetrics, null);
final String[] outError = new String[1];
// 3
final Package pkg = parseBaseApk(apkPath, res, parser, flags, outError);
// 4
pkg.setVolumeUuid(volumeUuid);
pkg.setApplicationVolumeUuid(volumeUuid);
pkg.setBaseCodePath(apkPath);
pkg.setSigningDetails(SigningDetails.UNKNOWN);
return pkg;
}
- 通过
AssetManager得到清单文件的解析器 parser - 新建一个 resources 资源对象
- 调用重载方法同名方法
parseBaseApk() - 赋值pkg一些信息
2.2.2 parseBaseApk() 重名方法
private Package parseBaseApk(String apkPath, Resources res, XmlResourceParser parser, int flags,
String[] outError) throws XmlPullParserException, IOException {
final String splitName;
final String pkgName;
try {
Pair<String, String> packageSplit = parsePackageSplitNames(parser, parser);
pkgName = packageSplit.first;
splitName = packageSplit.second;
if (!TextUtils.isEmpty(splitName)) { //1
outError[0] = "Expected base APK, but found split " + splitName;
mParseError = PackageManager.INSTALL_PARSE_FAILED_BAD_PACKAGE_NAME;
return null;
}
} catch (PackageParserException e) {
mParseError = PackageManager.INSTALL_PARSE_FAILED_BAD_PACKAGE_NAME;
return null;
}
......
// 2
final Package pkg = new Package(pkgName);
TypedArray sa = res.obtainAttributes(parser,
com.android.internal.R.styleable.AndroidManifest);
pkg.mVersionCode = sa.getInteger(
com.android.internal.R.styleable.AndroidManifest_versionCode, 0);
pkg.mVersionCodeMajor = sa.getInteger(
com.android.internal.R.styleable.AndroidManifest_versionCodeMajor, 0);
pkg.applicationInfo.setVersionCode(pkg.getLongVersionCode());
pkg.baseRevisionCode = sa.getInteger(
com.android.internal.R.styleable.AndroidManifest_revisionCode, 0);
pkg.mVersionName = sa.getNonConfigurationString(
com.android.internal.R.styleable.AndroidManifest_versionName, 0);
if (pkg.mVersionName != null) {
pkg.mVersionName = pkg.mVersionName.intern();
}
......
pkg.mCompileSdkVersion = sa.getInteger(
com.android.internal.R.styleable.AndroidManifest_compileSdkVersion, 0);
pkg.applicationInfo.compileSdkVersion = pkg.mCompileSdkVersion;
pkg.mCompileSdkVersionCodename = sa.getNonConfigurationString(
com.android.internal.R.styleable.AndroidManifest_compileSdkVersionCodename, 0);
if (pkg.mCompileSdkVersionCodename != null) {
pkg.mCompileSdkVersionCodename = pkg.mCompileSdkVersionCodename.intern();
}
pkg.applicationInfo.compileSdkVersionCodename = pkg.mCompileSdkVersionCodename;
sa.recycle();
// 3
return parseBaseApkCommon(pkg, null, res, parser, flags, outError);
}
- 这里只解析 baseApk，如果是splitApk，则返回
- 创建package 对象，并赋值基础的信息
- 调用
parseBaseApkCommon()
2.2.3 parseBaseApkCommon()
private Package parseBaseApkCommon(Package pkg, Set<String> acceptedTags, Resources res,
XmlResourceParser parser, int flags, String[] outError) throws XmlPullParserException,
IOException {
......
// 1
while ((type = parser.next()) != XmlPullParser.END_DOCUMENT
&& (type != XmlPullParser.END_TAG || parser.getDepth() > outerDepth)) {
if (type == XmlPullParser.END_TAG || type == XmlPullParser.TEXT) {
continue;
}
String tagName = parser.getName();
......
if (tagName.equals(TAG_APPLICATION)) {
......
foundApp = true;
// 2
if (!parseBaseApplication(pkg, res, parser, flags, outError)) {
return null;
}
} else if (tagName.equals(TAG_KEY_SETS)) {
if (!parseKeySets(pkg, res, parser, outError)) {
return null;
}
// 3
} else if (tagName.equals(TAG_PERMISSION_GROUP)) { //权限组
if (!parsePermissionGroup(pkg, flags, res, parser, outError)) {
return null;
}
} else if (tagName.equals(TAG_PERMISSION)) { //权限
if (!parsePermission(pkg, res, parser, outError)) {
return null;
}
} else if (tagName.equals(TAG_PERMISSION_TREE)) { //权限相关
if (!parsePermissionTree(pkg, res, parser, outError)) {
return null;
}
} else if (tagName.equals(TAG_USES_PERMISSION)) {//用户权限
if (!parseUsesPermission(pkg, res, parser)) {
return null;
}
} else if (tagName.equals(TAG_PROTECTED_BROADCAST)) {
......
}
return
}
遍历清单文件的xml节点- 解析
application标签节点 - 解析权限相关的节点
- 其他节点
方法很长，我们只关注重点部分： application标签的解析。
2.2.4 parseBaseApplication()
private boolean parseBaseApplication(Package owner, Resources res,
XmlResourceParser parser, int flags, String[] outError)
throws XmlPullParserException, IOException {
final ApplicationInfo ai = owner.applicationInfo;
final String pkgName = owner.applicationInfo.packageName;
TypedArray sa = res.obtainAttributes(parser,
com.android.internal.R.styleable.AndroidManifestApplication);
......
int type;
boolean hasActivityOrder = false;
boolean hasReceiverOrder = false;
boolean hasServiceOrder = false;
while ((type = parser.next()) != XmlPullParser.END_DOCUMENT
&& (type != XmlPullParser.END_TAG || parser.getDepth() > innerDepth)) {
if (type == XmlPullParser.END_TAG || type == XmlPullParser.TEXT) {
continue;
}
String tagName = parser.getName();
// 1
if (tagName.equals("activity")) {
Activity a = parseActivity(owner, res, parser, flags, outError, cachedArgs, false,
owner.baseHardwareAccelerated);
if (a == null) {
mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
return false;
}
hasActivityOrder |= (a.order != 0);
owner.activities.add(a);
// 2
} else if (tagName.equals("receiver")) {
Activity a = parseActivity(owner, res, parser, flags, outError, cachedArgs,
true, false);
if (a == null) {
mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
return false;
}
hasReceiverOrder |= (a.order != 0);
owner.receivers.add(a);
// 3
} else if (tagName.equals("service")) {
Service s = parseService(owner, res, parser, flags, outError, cachedArgs);
if (s == null) {
mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
return false;
}
hasServiceOrder |= (s.order != 0);
owner.services.add(s);
// 4
} else if (tagName.equals("provider")) {
Provider p = parseProvider(owner, res, parser, flags, outError, cachedArgs);
if (p == null) {
mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
return false;
}
owner.providers.add(p);
} else if (tagName.equals("activity-alias")) {
Activity a = parseActivityAlias(owner, res, parser, flags, outError, cachedArgs);
if (a == null) {
mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
return false;
}
hasActivityOrder |= (a.order != 0);
owner.activities.add(a);
} else if (parser.getName().equals("meta-data")) {
// note: application meta-data is stored off to the side, so it can
// remain null in the primary copy (we like to avoid extra copies because
// it can be large)
if ((owner.mAppMetaData = parseMetaData(res, parser, owner.mAppMetaData,
outError)) == null) {
mParseError = PackageManager.INSTALL_PARSE_FAILED_MANIFEST_MALFORMED;
return false;
}
}else
......
}
}
retur true;
}
- 解析得到 Activity标签对应的内存中
Activity对象。 Activity a = new Activity(cachedArgs.mActivityArgs, new ActivityInfo()); - 解析 receiver标签，
- 解析 service 标签，得到 Service s = new Service(cachedArgs.mServiceArgs, new ServiceInfo());
- 解析 provider 标签，得到 Provider p = new Provider(cachedArgs.mProviderArgs, new ProviderInfo());
- 解析 meta-data、activity-alias等标签
至此，我们得到了 application和四大组件在内存中的信息。 至于在内存中的数据结构是怎么样的，放到最后总结。
再看看splits包的解析。
2.3 parseClusterPackage()
private Package parseClusterPackage(File packageDir, int flags) throws PackageParserException {
final PackageLite lite = parseClusterPackageLite(packageDir, 0); // 1
if (mOnlyCoreApps && !lite.coreApp) {
throw new PackageParserException(INSTALL_PARSE_FAILED_MANIFEST_MALFORMED,
"Not a coreApp: " + packageDir);
}
// Build the split dependency tree.
SparseArray<int[]> splitDependencies = null;
final SplitAssetLoader assetLoader;
if (lite.isolatedSplits && !ArrayUtils.isEmpty(lite.splitNames)) {
try {
splitDependencies = SplitAssetDependencyLoader.createDependenciesFromPackage(lite);
assetLoader = new SplitAssetDependencyLoader(lite, splitDependencies, flags);
} catch (SplitAssetDependencyLoader.IllegalDependencyException e) {
throw new PackageParserException(INSTALL_PARSE_FAILED_BAD_MANIFEST, e.getMessage());
}
} else {
assetLoader = new DefaultSplitAssetLoader(lite, flags);
}
try {
final AssetManager assets = assetLoader.getBaseAssetManager();
final File baseApk = new File(lite.baseCodePath);
// 2
final Package pkg = parseBaseApk(baseApk, assets, flags);
if (pkg == null) {
throw new PackageParserException(INSTALL_PARSE_FAILED_NOT_APK,
"Failed to parse base APK: " + baseApk);
}
if (!ArrayUtils.isEmpty(lite.splitNames)) {
final int num = lite.splitNames.length;
pkg.splitNames = lite.splitNames;
pkg.splitCodePaths = lite.splitCodePaths;
pkg.splitRevisionCodes = lite.splitRevisionCodes;
pkg.splitFlags = new int[num];
pkg.splitPrivateFlags = new int[num];
pkg.applicationInfo.splitNames = pkg.splitNames;
pkg.applicationInfo.splitDependencies = splitDependencies;
pkg.applicationInfo.splitClassLoaderNames = new String[num];
for (int i = 0; i < num; i++) {
final AssetManager splitAssets = assetLoader.getSplitAssetManager(i);
// 3
parseSplitApk(pkg, i, splitAssets, flags);
}
}
pkg.setCodePath(packageDir.getCanonicalPath());
pkg.setUse32bitAbi(lite.use32bitAbi);
return pkg;
} catch (IOException e) {
throw new PackageParserException(INSTALL_PARSE_FAILED_UNEXPECTED_EXCEPTION,
"Failed to get path: " + lite.baseCodePath, e);
} finally {
IoUtils.closeQuietly(assetLoader);
}
}
- 也是先解析得到包的轻量级信息 packageLite,里面包含了一个 apkLite对象。
- 解析
baseApk，流程跟解析完整包一样 - 解析
splits apk，内部也是通过解析清单文件来构建内存中对应的数据结构
综上， 包扫描的最终目的就是得到内存中包对应的数据结构，那么这些数据结构是什么关系呢？
三、解析后的数据结构
3.1 Package
PackageParser 中的内部类。Package 对象在内存中表示一个完整apk文件。
- 包含一个baseApk以及0个或者多个splits Apks。
- 包含了所有四大组件的集合。
- 其他基础信息
此外还有
PackageLite、ApkLite等值包含轻量级信息(如 包名、版本号、代码路径等)的对象。
public final static class Package implements Parcelable {
@UnsupportedAppUsage
public String packageName;
public String manifestPackageName;
/** Names of any split APKs, ordered by parsed splitName */
public String[] splitNames;
// TODO: work towards making these paths invariant
public String volumeUuid;
/**
* Path where this package was found on disk. For monolithic packages
* this is path to single base APK file; for cluster packages this is
* path to the cluster directory.
*/
public String codePath;
/** Path of base APK */
public String baseCodePath;
/** Paths of any split APKs, ordered by parsed splitName */
public String[] splitCodePaths;
/** Revision code of base APK */
public int baseRevisionCode;
/** Revision codes of any split APKs, ordered by parsed splitName */
public int[] splitRevisionCodes;
/** Flags of any split APKs; ordered by parsed splitName */
public int[] splitFlags;
/**
* Private flags of any split APKs; ordered by parsed splitName.
*
* {@hide}
*/
public int[] splitPrivateFlags;
public boolean baseHardwareAccelerated;
// For now we only support one application per package.
@UnsupportedAppUsage
public ApplicationInfo applicationInfo = new ApplicationInfo();
@UnsupportedAppUsage
public final ArrayList<Permission> permissions = new ArrayList<Permission>(0);
@UnsupportedAppUsage
public final ArrayList<PermissionGroup> permissionGroups = new ArrayList<PermissionGroup>(0);
@UnsupportedAppUsage
public final ArrayList<Activity> activities = new ArrayList<Activity>(0);
@UnsupportedAppUsage
public final ArrayList<Activity> receivers = new ArrayList<Activity>(0);
@UnsupportedAppUsage
public final ArrayList<Provider> providers = new ArrayList<Provider>(0);
@UnsupportedAppUsage
public final ArrayList<Service> services = new ArrayList<Service>(0);
@UnsupportedAppUsage
public final ArrayList<Instrumentation> instrumentation = new ArrayList<Instrumentation>(0);
@UnsupportedAppUsage
public final ArrayList<String> requestedPermissions = new ArrayList<String>();
/** Permissions requested but not in the manifest. */
public final ArrayList<String> implicitPermissions = new ArrayList<>();
@UnsupportedAppUsage
public ArrayList<String> protectedBroadcasts;
......
}

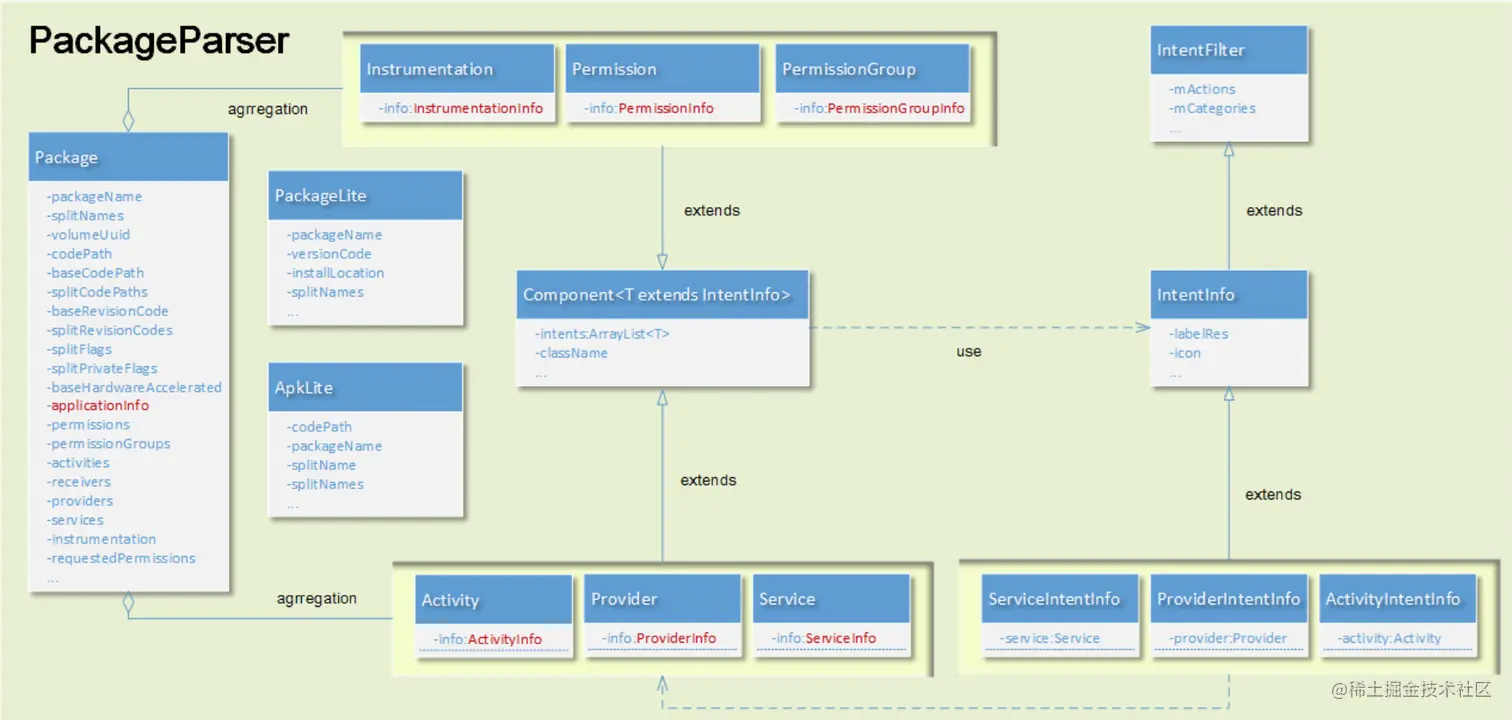

3.2 Component
PackageParser 中的内部类。 这是一个抽象类，具体的子类为四大组件以及权限。如 Activity、Service、Permission等。
注意： 这里的 Activity、Service等也是 PackageParser 的内部类结构。跟 app层的Activity不是同一个东西！！
每个组件子类 都有一个info成员变量，对应一个ComponentInfo结构。 组件中真正的数据存放在info中。此外，每个组件可能还配置有一个或多个 IntentFilter 信息，因此，内部有一个intents 集合，对应内存中 IntentInfo。
3.3 ComponentInfo
PackageParser中的内部类。 真正存放数据的地方。 ActivityInfo、ServiceInfo等。
3.4 IntentInfo
PackageParser中的内部类。Component中有个 intents 成员集合，用来存放intent相关的信息。如：ActivityIntentInfo、ServiceIntentInfo
和ProviderIntentInfo。
四、总结
静态包的文件形式，通过 PackageParser 解析最终得以转变为内存中的数据结构 Package，它包含了整个apk包的信息，如 Application、Activity、Service等。至此，PMS就可以愉快的管理起来了！
