9.flex 布局

71 阅读1分钟

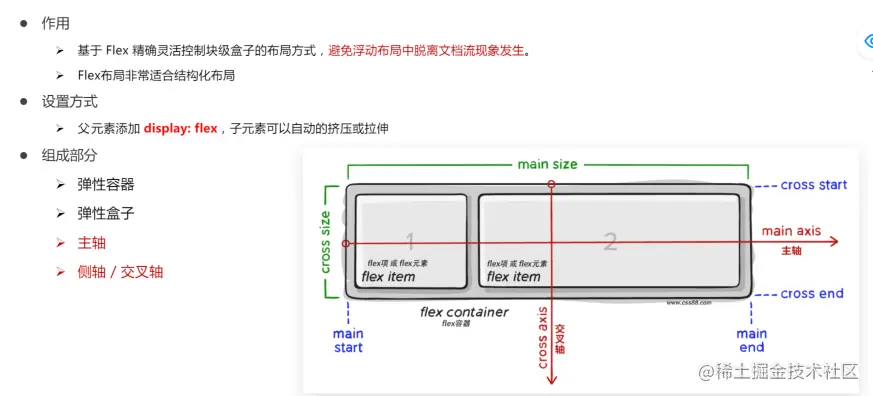

1.弹性布局

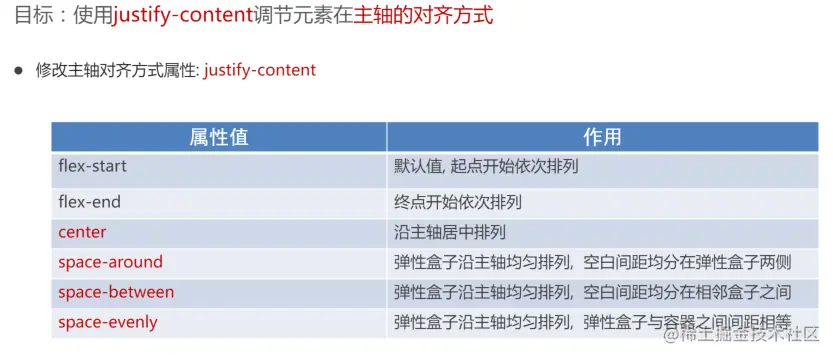

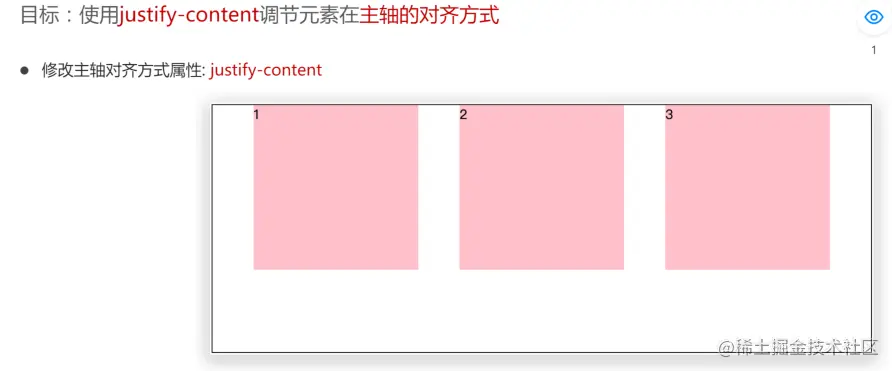

2.主轴对齐模式

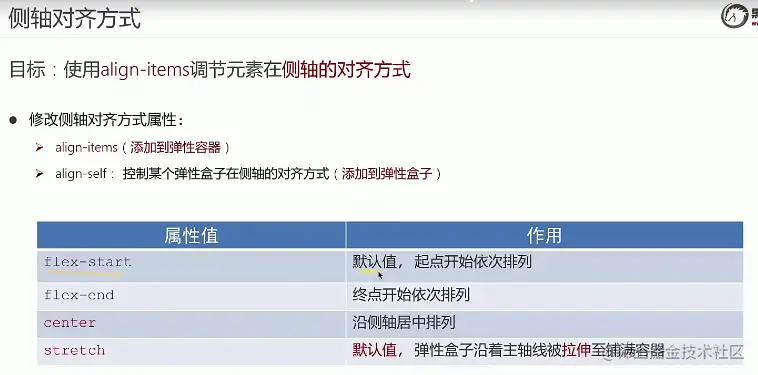

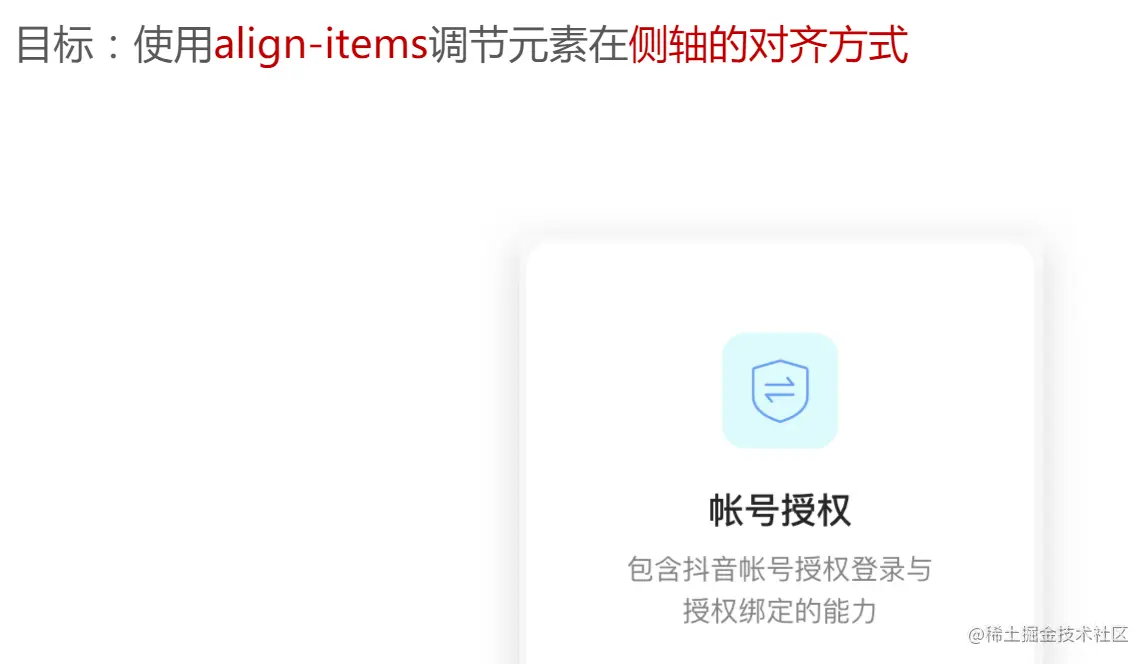

3.修改侧轴对齐方式


4.弹性特点

   1.子集如果没有写高度  会自动拉伸高度

   2.子集如果没有宽度    宽度会跟着内容来

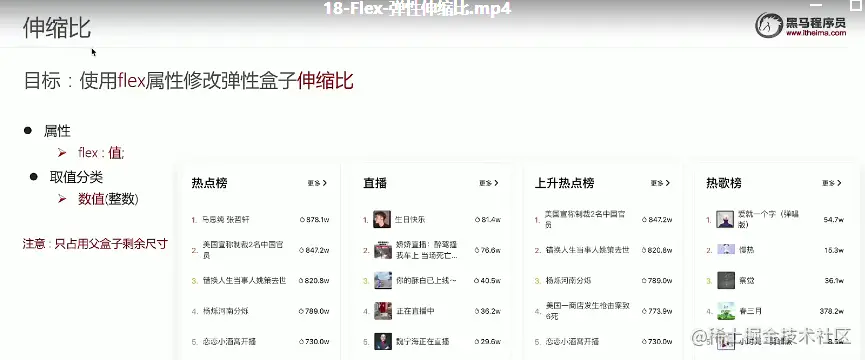

5.弹性伸缩比

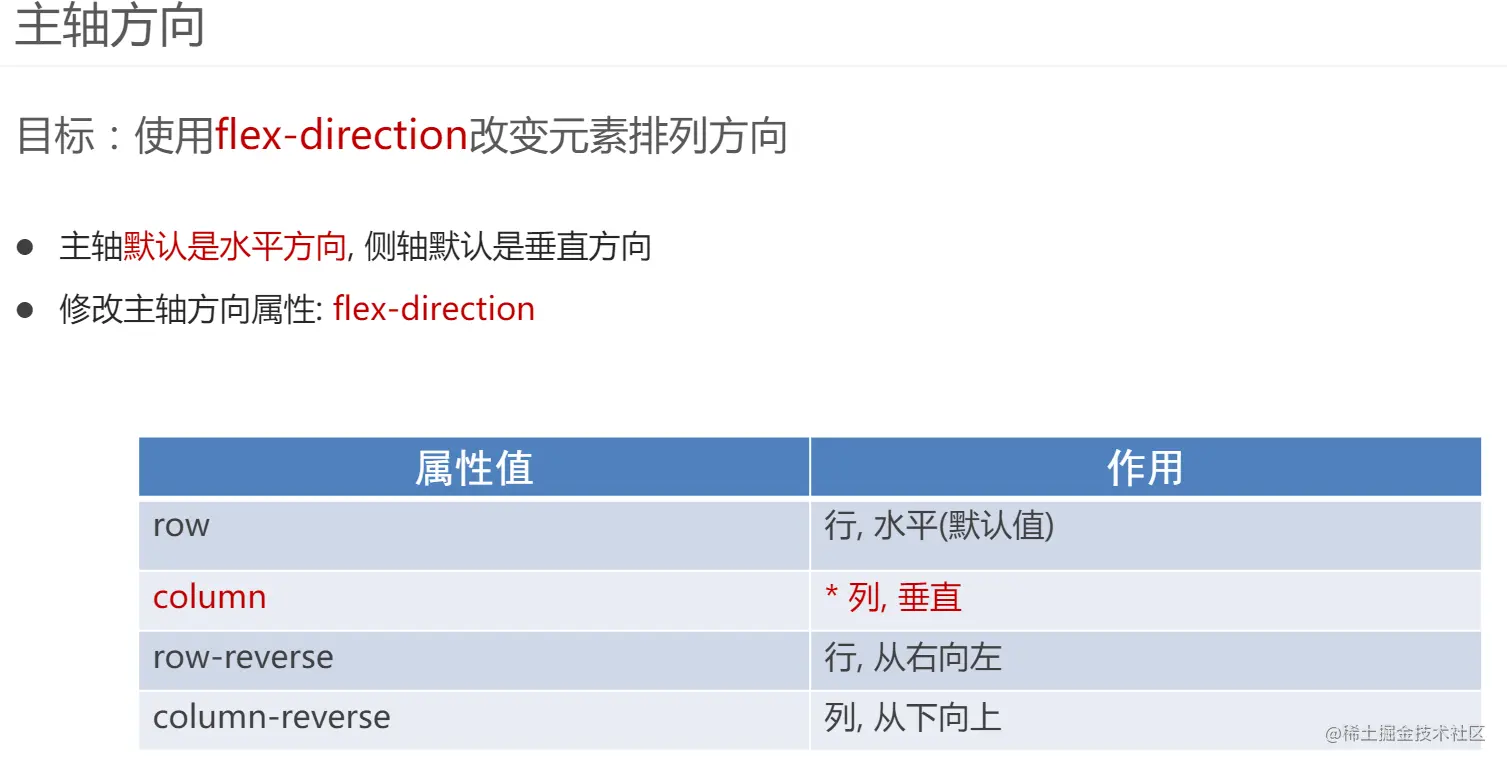

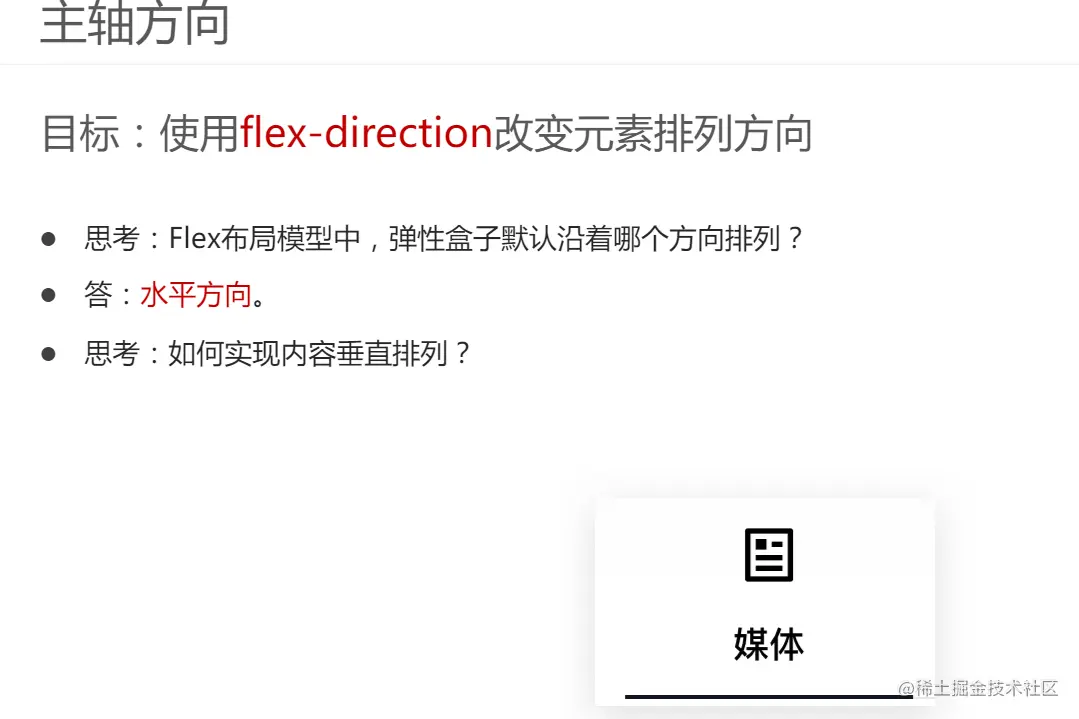

  1. flex-direction属性

flex-direction属性决定主轴的方向(即项目的排列方向)。

.box{flex-direction:row|row-reverse|column|column-reverse;}

它可能有4个值。

row(默认值):主轴为水平方向,起点在左端。

row-reverse:主轴为水平方向,起点在右端。

column:主轴为垂直方向,起点在上沿。

column-reverse:主轴为垂直方向,起点在下沿。

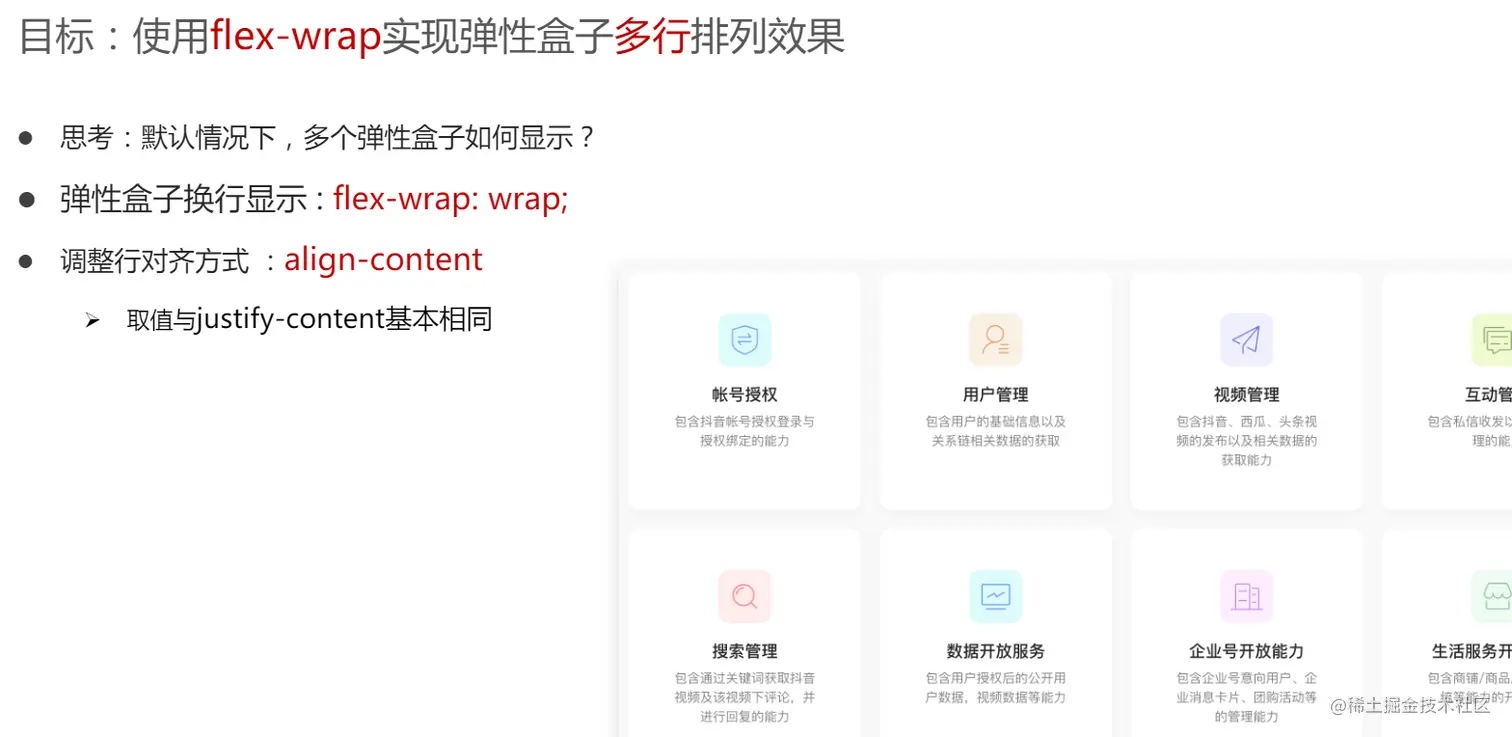

7.flex-wrap属性

默认情况下,项目都排在一条线(又称”轴线”)上。flex-wrap属性定义,如果一条轴线排不下,如何换行。

.box{flex-wrap:nowrap|wrap|wrap-reverse;}

它可能取三个值。

(1)nowrap(默认):不换行。

(2)wrap:换行,第一行在上方。

(3)wrap-reverse:换行,第一行在下方。

8.案例一 flex设置元素垂直居中对齐

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Document</title>
  <link rel="stylesheet" href="iconfont.css">
  <style>
    .big{
      display: flex;

      width: 800px;height: 300px;
      margin: 0 auto;
      background-color: blue;
      border: 1px solid black;
       /* 水平居中 */
       justify-content: center;
      /* 垂直居中 */
      align-items: center;

    }
    .one{
      background-color: purple;
      width: 100px; height: 100px;

    }

  </style>
</head>
<body>
  <div class="big">
    <div class="one">1</div>

  </div>

</body>
</html>

案例:用flex布局制作导航栏

<!DOCTYPE html>
<html lang="ch-ZN">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>用flex布局制作导航栏</title>
  <link rel="stylesheet" href="iconfont.css">
  <style>
    ul{
      display: flex;


    }
    li{
      flex: 1;
      height: 100px;
      text-align: center;

    }

  </style>
</head>
<body>
  <ul>
    <li>音乐</li>
    <li>旅游</li>
    <li>电信</li>
  </ul>

</body>
</html>
