vue + ts中的shims-vue.d.ts文件的作用,在ts中引入vue-echarts等vue文件

2,881 阅读11分钟

shims-vue.d.ts是为了 typescript 做的适配定义文件,因为.vue 文件不是一个常规的文件类型,ts 是不能理解 vue 文件是干嘛的,
加这一段是是告诉 ts,vue 文件是这种类型的。
这一段删除,会发现 import 的所有 vue 类型的文件都会报错。

/**
 * shims-vue.d.ts的作用
 * 为了 typescript 做的适配定义文件,因为.vue 文件不是一个常规的文件类型,ts 是不能理解 vue 文件是干嘛的,
 * 加这一段是是告诉 ts,vue 文件是这种类型的。
 * 可以把这一段删除,会发现 import 的所有 vue 类型的文件都会报错。
 */

declare module '*.vue' { //declare声明宣告, 声明一个ambient module(即:没有内部实现的 module声明)
  import Vue from 'vue'
  export default Vue
}

declare module 'vue-echarts'  // 引入vue-echarts
<script lang="ts">
    /* eslint-disable @typescript-eslint/camelcase */
    import { Vue, Component, Watch } from 'vue-property-decorator'
    import ECharts from 'vue-echarts' //报错,按上面的方法在shims-vue.d.ts文件中引入即可
    import 'echarts/lib/chart/line'
    import 'echarts/lib/chart/pie'
    import 'echarts/lib/component/tooltip'
</script>
  • TypeScript的文档看起来比较让人匪夷所思



    TS是从2012年就开始的项目,那时ES6的模块化还没有成为继定标准,所以今天来看TS中一些名词让人匪夷所思,其实都是历史遗留问题



    比如namespace 原来也叫module,是internal module, 而module被称为external module,



    随着时间推移和es6模块化标准的问世, 内部模块被改名为了namespace... 官方的handbook没有提一些历史遗留的问题,很多东西需要自己自己上网查资料



    或许 这就是微软把  财大气粗技术强,随意造火箭..







    研究一下用vue-cli初始化ts项目生成的shims-vue.d.ts:



    // shims-vue.d.ts



    declare module '*.vue' {

      import Vue from 'vue';  // 引用了type和value

    (// value是Vue构造器 type是Vue interface)

      export default Vue;

    }



    这句话的意思是 声明一个ambient module(即:没有内部实现的 module声明)

    使用了Wildcard module declarations

    具体参见: www.typescriptlang.org/docs/handbo…





    在TypeScript编译器解析 import ‘aaa’ from xxx.vue的时候



    拿到node_modules/vue/目录下 index.d.ts 中export default出来的type和value,



    type是Vue接口

    value是 const Vue,这个常量的类型是VueConstructor



    (图中是从'vue'中import中得到的type和 value)



    一个import 能同时import到两个东西,import了一种type 还import了一个value

    具体参见:www.typescriptlang.org/docs/handbo…







    (当我引用一个vue组件的时候,也拿到了type 和 value)

    这里value是TemplateSearch,类型是Vue构造器



    使用value:   TemplateSearch. 当点(.) 的时候就能拿到他一些属性,因为这个值是VueConstructor类型

    使用type:     let a:TemplateSearch 就能使用type 这个type是interface Vue

















    上面说拿到了node_modules/vue/目录下index.d.ts中export default出来的type 和 value,那么我们来看一下这个东东是什么:

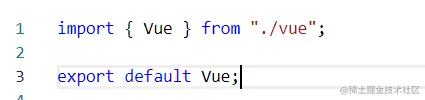

    在index.d.ts下:

    export default的东西是从当前vue.d.ts下导出的Vue

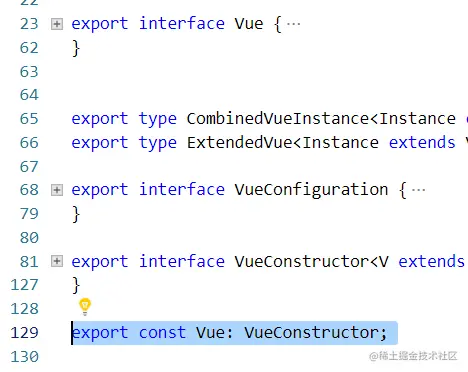

     我们来看vue.d.ts:



    23行导出了type Vue, 129行导出了 value Vue 这两个东西都被export default出来了 当你import的时候 就拿到了这两个东西,并且改成了你import的名字。

    收起

  • vue中引入typescript开发使用vue.extend()和vue.class-component

    2020-12-20 12:44:04

    最近尝试了一下 TypeScript,试着把一个 Vue 项目改成了 TypeScript 的,感觉还不错

    目前 Vue 和 TypeScript 的配合还不算很完美,Vuex 和 TypeScript 的配合挺糟糕的,尝试需要谨慎

    如果想体验一下的话,强烈建议你用 vue-cli 3 直接生成项目目录,这样会少挺多配置,比如配 tsconfig 什么的,在用 vue-cli 的时候选择 TypeScript 就好

    如果想自己体验从 0 开始配置请参考这个文档 TypeScript-Vue-Starter

    初始配置

    这里不提初始配置,因为 vue-cli 已经默认配置好了,在根目录下,有个 tsconfig.json 的文件,在 src 的文件夹下面,有 shims-tsx.d.ts, shims-vue.d.ts 文件

    shims-vue.d.ts 这个文件,主要用于 TypeScript 识别.vue 文件,Ts 默认并不支持导入 vue 文件,这个文件告诉 ts 导入.vue 文件都按VueConstructor处理,因此导入 vue 文件必须写.vue 后缀,但是这样同样的也会造成,就算你写的导入的 .vue 文件的路径就算是错的,静态检测也不会检测到错误,如果你把鼠标放上面你会看到错误的路径就是指向这个文件,因为你定义了这个模块是所有 .vue 后缀的导入都会指向到这个文件,但是如果你的路径是对的,ts 能读出正确的 module。

    说那么多可能没用,看一下下面两张图就懂了

    导入地址是正确的

    导入地址是错误的

    shims-tsx.d.ts 文件,这个文件主要是方便你使用在 ts 中使用 jsx 语法的,如果不使用 jsx 语法,可以无视这个,但是强烈建议使用 jsx 语法,毕竟模板是没法获得静态类型提示的,当然,如果你境界高的话,直接用 vue render function。想要使用 jsx 语法的话,配合 babel-plugin-jsx-v-model,这个插件,体验更佳,这个插件在 jsx 语法中实现了 v-model。

    编辑器支持

    推荐使用 Visual Studio Code 和 Vetur 插件,如果用的是 IDE,推荐使用 WebStorm

    使用 TypeScript 编写 Vue 的时候,主要有两种方法Vue.extend() 和 vue-class-component

    Vue.extend():使用基础 Vue 构造器,创建一个“子类”。 这种方式最接近 Vue 的单文件组件的写法,如果一个完善 Vue 项目从 JS 改成 TS,用这种方法很快,只要加上 lang=ts和一些必要的变量类型就好了,然后用Vue.extend()包裹就好。请看下面的例子:

    JavaScript

    TypeScript

    vue-class-component:通常和vue-property-decorator一起搭配使用,实际使用只使用vue-property-decorator就好了,vue-property-decorator是在vue-class-component上扩展来的,并且提供了很多修饰器比如 @Prop和

    TypeScript

    可以看出变化真的很大

    这两种编写方式风格有很大的不同,下面具体说一下两种方式的具体实现

    组件 props

    Vue.extend()实现 props 其实和 JavaScript 没有任何差别,但是如果你需要有 Object 变量类型提示,那就有点不一样了

    vue-class-component实现 props, 需要从 vue-property-decorator 引入 Prop 这个修饰符,使用起来也非常方便,还是用上面的例子

    // JavaScript

    props: ['isVisible', 'title', 'item', 'count', 'items']

    // 如果加入了prop验证,这样写

    props: {

    isVisible: {

    type: Boolean,

    required: true

    },

    title: {

    type: [String, Number]

    },

    item: {

    type: Object

    },

    items: {

    type: Array,

    }

    count: {

    count: Number

    }

    }

    // TypeScript

    /* 这种写法没有任何改变,但是这样没有任何类型提示,这些变量能被TS识别,但是会全部被识别成any,和没类型检查一样 */

    props: ['isVisible', 'title', 'item', 'count', 'items']

    /* 当加入prop验证之后,TS就会提示prop类型了,如果是对象的话,还能有对象的成员提示,写法和JS写法差不多,只是对象类型(包括对象,数组和函数)的有点差别,这样写的话。*/

    // 假设item对象的结构是

    interface Item {

    key: string

    val: string

    num: number

    }

    props: {

    isVisible: {

    type: Boolean,

    required: true

    },

    title: {

    type: [String, Number]

    },

    item: {

    // 注意这里不是

    // Object as Item

    type: Object as () => Item

    },

    itmes: {

    // 注意这里不是

    // Array as Array

    type: Array as () => Array

    }

    count: {

    count: Number

    }

    }

    // vue-class-component方式

    import { Vue, Component, Prop } from 'vue-property-decorator'

    // 注意要加非空断言符 ! 不然会报,当然,你定义成any类型当我没说

    /* [non-null-assertion-operator](github.com/Microsoft/T…

    /What's-new-in-TypeScript#non-null-assertion-operator) 关于非空断言可以参考这个 */

    @Prop({

    required: true

    }) isVisible!: boolean

    @Prop() title!: string | number

    @Prop() item!: Item

    @Prop() items!: Array

    @Prop() count!: number

    组件 data computed methods watch

    Vue.extend()实现 data 其实和 JavaScript 没有任何差别,computed 的话,也没什么大的改变,但是有 this 参与运算的必须标明返回值类型,不然会报错, methods 的处理方式和 computed 的一样,有 this 参与运算的必须标明返回值类型,watch 也是一样

    vue-class-component实现 data 的话,直接在类里面写变量就好,computed 的话,写法类似 getter 和 setter,methods 处理方式就是直接在里面写方法,watch 需要从 vue-property-decorator 引入 Watch 这个修饰符

    //一个简单的例子

    // Vue.extend()

    import Vue from 'vue'

    export default Vue.extend({

    data() {

    return {

    count: 1,

    item: {

    c: '',

    n: ''

    }

    }

    },

    computed: {

    // 需要标注有 this 参与运算的返回值类型

    num(): number {

    return this.count

    },

    name: {

    // 需要标注有 this 参与运算的返回值类型

    get(): string {

    return this.item.n

    },

    set(val: string) {

    this.item.n = val

    }

    }

    },

    watch: {

    count(newVal: number, oldVal: number): void {

    console.log(newVal)

    },

    'item.n'(newVal: string, oldVal: string): void {

    console.log(newVal)

    },

    item: {

    handler(newV, oldVal) {

    console.log(oldVal)

    },

    deep: true

    }

    },

    methods: {

    reset(): void {

    this.$emit('reset')

    },

    getKey(): string {

    return this.item.c

    }

    }

    })

    // vue-class-component

    import { Vue, Component, Watch } from 'vue-property-decorator'

    interface KeyValue {

    c: string

    n: string

    }

    @Component

    export default class Test extends Vue {

    // data

    count: number = 1

    item: KeyValue = {

    c: '',

    n: ''

    }

    // computed

    get num(): number {

    return this.count

    }

    get name(): string {

    return this.item.n

    }

    // 注意,这里不能标返回值类型,就算写void也不行

    set name(val: string) {

    this.item.n = val

    }

    // watch

    @Watch('count')

    watchCount(newVal: number, oldVal: number): void {

    console.log(newVal)

    }

    @Watch('item.n')

    watchName(newVal: string, oldVal: string): void {

    console.log(newVal)

    }

    @Watch('item', { deep: true })

    watchItem(newVal: KeyValue, oldVal: KeyValue): void {

    console.log(newVal)

    }

    // methods

    reset(): void {

    this.$emit('reset')

    },

    getKey(): string {

    return this.item.c

    }

    }

    组件 components

    Vue.extend() components 和 JavaScript 写法完全一致

    vue-class-component 需要把导入的组件写在修饰器@Components({})里面

    // Vue.extend

    import Vue from 'vue'

    import MainHeader from './header.vue'

    import MainContent from './content.vue'

    export default Vue.extend({

    components: {

    MainHeader,

    MainContent

    }

    })

    // vue-class-component

    import { Vue, Component } from 'vue-property-decorator'

    import MainHeader from './header.vue'

    import MainContent from './content.vue'

    @Component({

    components: {

    MainHeader,

    MainContent

    }

    })

    export default class extends Vue {}

    组件 mixins

    Vue.extend() 并不能完全实现 mixins 多混入的效果,只能混入一个。不推荐混入用这种方式写,无法实现多继承。如果你非要尝试这种写法,可以看看这个Issue,我没有尝试过这种写法,不过有人写了个例子,可以作为参考,但是我尝试了没成功 // ExampleMixin.vue

    export default Vue.extend({

    data () {

    return {

    testValue: 'test'

    }

    }

    })

    // other.vue

    export default Vue.extend({

    mixins: [ExampleMixin],

    created () {

    this.testValue // error, testValue 不存在!

    }

    })

    我们需要稍作修改:

    // other.vue

    export default ExampleMixin.extend({

    mixins: [ExampleMixin],

    created () {

    this.testValue // 编译通过

    }

    })

    vue-class-component 能够实现多混入,写法类似类继承 // mixin1.ts

    import Vue from 'vue'

    export default Vue.extend({

    data () {

    return {

    valFromMixin1: 'test'

    }

    }

    })

    // 不能是

    // 这种写法会报 Mixin1 is not a constructor function type

    export default {

    data () {

    return {

    valFromMixin1: 'test'

    }

    }

    }

    // mixin2.ts

    import { Component, Vue } from 'vue-property-decorator'

    @Component

    export default class Mixin2 extends Vue {

    methodFromMixin2() {}

    }

    // test.ts

    import Mixin1 from './mixin1'

    import Mixin2 from './mixin2'

    import { Component, Mixins } from 'vue-property-decorator'

    export default class Test extends Mixins(Mixin1, Mixin2) {

    test() {

    this.methodFromMixin2()

    console.log(this.valFromMixin1)

    }

    }

    // 如果只混入一个的话,可以这样写

    export default class Test extends Mixin1 {}

    export default class Test extends Mixin2 {}

    这样写不仅不会报错,而且编辑器还有提示

    这张图可以看出,setWatch 是 BookingWatcher 里面的方法,实际上,Test 这个类并没有自身的属性,都是从 Vue,BookingWatcher 还有 TestMixins 继承过来的

    函数式组件

    这个只能用 Vue.extends(),Vue-class-component 无能为力,可以看看这个 Issue

    这里提供一个函数式组件的例子

    这部分资料参考

    开发中遇到的一些问题总结

    $refs 报错

    $refs 报错这个问题相信基本都遇到,除非你真没用到这个,如图:

    报错信息是

    Property 'blur' does not exist on type 'Vue | Element | Vue[] | Element[]'.

    Property 'blur' does not exist on type 'Vue'.

    解决方案:把上图报错部分改成 // 把这个变量改成定义成HTMLInputElement就好,这里需要用到类型断言

    test() {

    let inputBox: HTMLInputElement = this.$refs.inputBox as HTMLInputElement

    inputBox.blur()

    }

    如果引用的比较多,并且引用里面有自己的组件的话,可以这样写:

    $refs: {}

    这样编辑器还会提示组件里面有什么方法,当你打出 this.$refs.header.时候,编辑器有提示 Header 这个组件里面的属性和方法

    收起

  • vue项目引入ts步骤(小结)

    2020-12-13 12:53:18

    最近考虑到老项目代码的可维护...ts. xcatliu.com/ typescript.bootcss.com/ 2. 安装依赖包 cnpm i typescript ts-loader --save-dev 3. 添加tsconfig.json文件 在项目根目录下添加 tsconfig.json 文件。tsconfig.jso

  • 配置vue.config.js文件

    2021-11-07 18:06:14

    配置vue.config.js文件

    项目结构

    vue3-ts-cms
    ├─ .browserslistrc
    ├─ .editorconfig
    ├─ .eslintrc.js
    ├─ .gitignore
    ├─ .prettierignore
    ├─ .prettierrc
    ├─ babel.config.js
    ├─ package-lock.json
    ├─ package.json
    ├─ public
    │  ├─ favicon.ico
    │  └─ index.html
    ├─ README.md
    ├─ src
    │  ├─ App.vue
    │  ├─ assets
    │  │  └─ logo.png
    │  ├─ components
    │  ├─ main.ts
    │  ├─ shims-vue.d.ts
    ├─ tsconfig.json
    ├─ vue.config.js


    创建vue.config.js文件

    在项目根目录下创建 vue.config.js 文件

    vue.config.js有三种配置方式:

    • 方式一:直接通过CLI提供给我们的选项来配置:

      • 比如publicPath:配置应用程序部署的子目录(默认是 /,相当于部署在 https://www.my-app.com/);
      • 比如outputDir:修改输出的文件夹;
    • 方式二:通过configureWebpack修改webpack的配置:

      • 可以是一个对象,直接会被合并;
      • 可以是一个函数,会接收一个config,可以通过config来修改配置;
    • 方式三:通过chainWebpack修改webpack的配置:

      • 是一个函数,会接收一个基于 webpack-chain 的config对象,可以对配置进行修改;
    module.exports = {
      outputDir: './dist',
      // publicPath: './',
      devServer: {
        // 代理
        proxy: {
          '^/api': {
            target: 'https://www.fastmock.site/mock/89efb181f2e22e0b4044eee348889b6e/kjhs',
            pathRewrite: {
              '^/api': ''
            },
            changeOrigin: true
          }
        }
      }

      // 方式二
      // configureWebpack: {
      //   resolve: {
      //     alias: {
      //       views: '@/components'
      //     }
      //   }
      // }
      // configureWebpack: (config) => {
      //   config.resolve.alias = {
      //     '@': path.resolve(__dirname, 'src'),
      //     views: '@/views'
      //   }
      // }

      // 方式三
      // chainWebpack: (config) => {
      //   config.resolve.alias.set('@', path.resolve(__dirname, 'src')).set('components', '@/components')
      // }
    }


    解释tsconfig.json文件

    {
      "compilerOptions": {
        // 目标代码(ts -> js(es5/6/7))
        "target": "esnext",
        // 目标代码需要使用的模块化方案(commonjs require/module.exports/es module import/export)
        "module": "esnext",
        // 严格一些严格的检查(any)
        "strict": true,
        // 对jsx进行怎么样的处理
        "jsx": "preserve",
        // 辅助的导入功能
        "importHelpers": true,
        // 按照node的方式去解析模块 import "/index.node"
        "moduleResolution": "node",
        // 跳过一些库的类型检测 (axios -> 类型/ lodash -> @types/lodash / 其他的第三方)
        // import { Person } from 'axios'
        "skipLibCheck": true,
        // export default/module.exports = {}
        // es module 和 commonjs
        "esModuleInterop": true,
        "allowSyntheticDefaultImports": true,
        // 要不要生成映射文件(ts -> js)
        "sourceMap": true,
        // 文件路径在解析时, 基本url
        "baseUrl": ".",
        // 指定具体要解析使用的类型
        "types": ["webpack-env"],
        // 路径解析(类似于webpack alias)
        "paths": {
          "@/*": ["src/*"],
          "components/*": ["src/components/*"]
        },
        // 可以指定在项目中可以使用哪里库的类型(Proxy/Window/Document)
        "lib": ["esnext", "dom", "dom.iterable", "scripthost"]
      },
      "include": [
        "src/**/*.ts",
        "src/**/*.tsx",
        "src/**/*.vue",
        "tests/**/*.ts",
        "tests/**/*.tsx"
      ],
      "exclude": ["node_modules"]
    }
