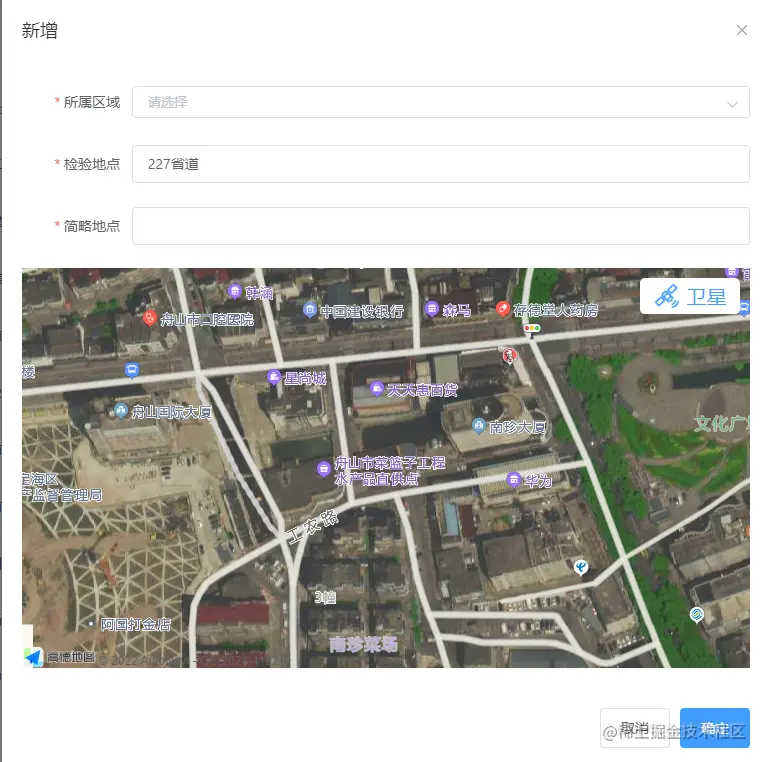

卫星图层样式
1.loadMap.js
/**
* 动态加载高德地图
*
* @export
* @param {*} key 高德地图key
* @param {*} plugins 高德地图插件
* @param {string} [v="1.4.14"] 高德地图版本
* @returns
*/
/* eslint-disable */
// export default function loadMap(key, plugins, v = "1.4.14") {
export default function loadMap(key, plugins, v = "2.0") {
return new Promise(function(resolve, reject) {
if (typeof AMap !== "undefined") {
console.log('AMap', AMap)
// eslint-disable-next-line no-undef
resolve(AMap)
return true
}
window.onCallback = function() {
// eslint-disable-next-line no-undef
resolve(AMap)
}
let script = document.createElement("script")
script.type = "text/javascript"
script.src = `https://webapi.amap.com/maps?v=${v}&key=${key}&plugin=${plugins}&callback=onCallback`
script.onerror = reject
document.head.appendChild(script)
})
}
/* eslint-enable */
2.map.js
export default {
data () {
return {
inputContent: '',
GDMap: null,
plugins: [
'AMap.Autocomplete',
'AMap.PlaceSearch',
'AMap.OverView',
'AMap.MouseTool',
'AMap.PolyEditor',
'AMap.RectangleEditor',
'AMap.DistrictLayer',
'AMap.CustomLayer',
'AMap.MouseTool',
'AMap.PlaceSearch',
'AMap.AutoComplete',
],
key: '申请的key',
v: '2.0',
}
},
methods: {
},
}
3.使用
<template>
<el-dialog
:title="modalTitle"
:visible.sync="visible" @close="handleCancel" width="40%">
<el-row>
<el-form ref="ExamineAreaEdit" :model="req" label-width="110px">
<el-col :span="24">
<el-form-item label="所属区域" prop="deptName" :rules="[rules.required]">
<el-select v-model="req.deptName" clearable size="small" @change="onDeptNameChange">
<el-option :label="item.name" :value="item.name"
v-for="(item, index) in deptTreeList"
:key="`deptTreeList-${index}`"></el-option>
</el-select>
</el-form-item>
</el-col>
<el-col :span="24">
<el-form-item label="检验地点" prop="name" :rules="[rules.required]">
<el-input id="tipinput" placeholder="请输入关键字" v-model="req.name" class="amap-page-container" @keyup.native.enter="handelSearch"></el-input>
</el-form-item>
<el-form-item label="简略地点" prop="simpleArea" :rules="[rules.required]">
<el-input v-model="req.simpleArea" :readonly="readonly"></el-input>
</el-form-item>
<div @click="changeWX" class="GDwx" :style="{color:isWx?'#409EFF': '#909399'}">
<div v-if="isWx" class="GDwx_active"></div>
<div v-else class="GDwx_icon">
</div>
<div>卫星</div>
</div>
<div id="GDMap" style="height:400px;margin-top: 20px"></div>
<div id="panel"></div>
</el-col>
</el-form>
</el-row>
<div slot="footer" class="dialog-footer">
<el-button @click="handleCancel">取消</el-button>
<el-button type="primary" @click="handleSure" :loading="isLoading" v-if="status">确定</el-button>
</div>
</el-dialog>
</template>
<script>
import loadMap from '@/util/loadMap'
import map from '@/mixins/map.js'
import {validateObj} from '@/util/validate'
import {
adminDeptTree,
examine_placeAdd,
examine_placePut,
examine_placeById,
} from '@/api/fishInspection/examinePlace'
export default {
name: 'ExamineAreaEdit',
mixins: [map],
props: {
// 表单id
id: {
type: String,
default: '',
},
// 弹窗状态
status: {
type: Number,
},
// 弹框状态
value: {
type: Boolean,
default: false,
},
// 弹框状态
show: {
type: Boolean,
default: false,
},
},
data () {
return {
visible: this.show,
// 参数
req: {
id: this.id,
simpleArea: null, // 简略地点
name: null, // 检验地点名称
lon: '', // 经度
lat: '', // 纬度
deptId: null, // 所属区域id
deptName: null, // deptName
deptPath: null, // 所属区域路径
adcode: null,
},
// 归属地列表
deptTreeList: [],
// 规则
rules: {
required: {
required: true,
validator: validateObj.default,
message: '该项不可为空',
trigger: 'change',
},
},
mapOptions: {
searchOption: {
city: '全国',
citylimit: false,
},
mapCenter: [121.59996, 31.197646],
marker: [121.59996, 31.197646],
plugin: [],
},
// 是否受理
isLoading: false,
marker: null,
isWx: false, // 高德卫星
}
},
computed: {
// eslint-disable-next-line vue/return-in-computed-property
modalTitle () {
if (this.status === 0) return '查看'
if (this.status === 1) return '新增'
if (this.status === 2) return '编辑'
},
// 是否只读 (0=>查看，1=>新增，2=>编辑)
readonly () {
return !this.status
},
},
watch: {
show (newVal) {
this.visible = newVal
if (newVal) {
this.initLoad()
} else {
this.handleReset()
}
},
},
methods: {
changeWX () {
this.isWx = !this.isWx
if (!this.id) return this.initLoadMap()
this.initLoadMap([this.req.lon, this.req.lat])
},
//清点生成点方法
getNewMarker (e, _this, type) {
//区分是打点还是拖拽 1是地图 2 搜索点传参
if (_this.marker) {
_this.GDMap.remove(_this.marker)
}
// eslint-disable-next-line
_this.marker = new AMap.Marker({
position: type == 2 ? [e.poi.location.lng, e.poi.location.lat] : [e.lnglat.lng, e.lnglat.lat],
map: _this.GDMap,
draggable: true,
})
if (type == 2) {
let location = e.poi.location
_this.req.lat = location.lat
_this.req.lon = location.lng
_this.req.name = e.poi.name
_this.req.adcode = e.poi.adcode
}else{
let location=e.lnglat
_this.req.lat = location.lat
_this.req.lon = location.lng
}
_this.markerMove(_this)
},
markerMove (_this) {
/* eslint-disable */
//点拖动事件
_this.marker.on('dragend', function (e) {
//拖拽获取地点 根据经纬度获取地点信息
let lngLat = [e.lnglat.lng, e.lnglat.lat]
AMap.plugin('AMap.Geocoder', function () {
var geocoder = new AMap.Geocoder({
// city 指定进行编码查询的城市，支持传入城市名、adcode 和 citycode
city: '全国',
})
geocoder.getAddress(lngLat, function (status, result) {
if (status === 'complete' && result.info === 'OK') {
// result为对应的地理位置详细信息
console.log(result)
let location = e.lnglat
_this.req.lat = location.lat
_this.req.lon = location.lng
_this.req.name = result.regeocode.formattedAddress
_this.req.adcode = result.regeocode.adcode
}
})
})
})
},
handleReset () {
this.req = this.$options.data().req
this.$refs.ExamineAreaEdit.resetFields()
},
onDeptNameChange (value) {
let target = this.deptTreeList.find(item => item.name === value)
this.req.deptId = target.id
this.req.deptPath = target.deptPath
},
handleCancel () {
this.visible = false
this.$emit('input', false)
this.$emit('update:show', false)
},
initLoad () {
this.loadData()
this.loadDeptTree()
},
onSearchResult (pois) {
this.mapOptions.mapCenter = [pois[0].lng, pois[0].lat]
this.mapOptions.marker = [pois[0].lng, pois[0].lat]
},
// 加载高德地图
initLoadMap (val) {
let _this = this
var layers = []
if (this.isWx) {
layers = [
// 卫星
new AMap.TileLayer.Satellite(),
// 路网
new AMap.TileLayer.RoadNet()
]
} else {
layers = []
}
/* eslint-disable */
loadMap(this.key, this.plugins, this.v)
.then(AMap => {
console.log("地图加载complete！");
this.GDMap = new AMap.Map("GDMap", {
zoom: 18,
center: val || [122.106691, 30.015136],
layers: layers,
});
if (val) {
this.marker = new AMap.Marker({
position: val,
map: _this.GDMap,
draggable: true
})
this.markerMove(this)
}
this.GDMap.on("complete", () => {
console.log("地图加载complete！");
AMap.plugin(['AMap.Autocomplete', 'AMap.PlaceSearch'], () => {
let auto = new AMap.Autocomplete({
input: "tipinput",
});
let placeSearch = new AMap.PlaceSearch({
map: this.GDMap
}); //构造地点查询类
// console.log('this.mapAuto', this.mapAuto)
console.log('this.placeSearch', placeSearch)
auto.on("select", select);//注册监听，当选中某条记录时会触发
function select(e) {
placeSearch.setCity(e.poi.adcode);
placeSearch.search(e.poi.name, () => {
_this.GDMap.clearMap()
_this.getNewMarker(e, _this, 2)
}); //关键字查询查询
}
})
});
//地图打点
this.GDMap.on('click', function (e) {
_this.getNewMarker(e, _this, 1)
})
})
.catch(() => {
console.log("地图加载失败！");
});
},
// 加载所属区域
loadDeptTree() {
adminDeptTree().then(({data}) => {
this.deptTreeList = data.data
})
},
// 加载数据
loadData() {
this.isWx = false
this.initLoadMap([this.req.lon, this.req.lat])
},
// 按钮触发检索
handelSearch(e) {
this.mapAuto.on("select", select);//注册监听，当选中某条记录时会触发
function select(e) {
console.log('e', e)
placeSearch.setCity(e.poi.adcode);
placeSearch.search(e.poi.name); //关键字查询查询
}
},
handleSure() {
this.$refs.ExamineAreaEdit.validate((valid) => {
if (valid) {
this.isLoading = true
let Api = this.req.id ? examine_placePut : examine_placeAdd
let params = JSON.parse(JSON.stringify(this.req))
}
})
}
},
mounted() {
this.initLoad()
}
}
</script>
<style scoped>
</style>
<style>
.amap-page-container {
position: relative;
}
.amap-logo {
display: none;
}
.amap-sug-result {
z-index: 9999999999;
}
.GDwx{
width: 100px;
height: 36px;
background: #fff;
border-radius: 5px;
font-size: 20px;
position: absolute;
z-index: 9;
right: 10px;
margin-top: 10px;
line-height: 26px;
display: flex;
align-content: center;
justify-content: space-around;
padding: 5px 10px;
}
.GDwx_active{
width: 26px;
height: 26px;
background-image: url('/img/icons/icon-active.png');
background-repeat: no-repeat;
background-size: 100% 100%;
}
.GDwx_icon{
width: 26px;
height: 26px;
background-image: url('/img/icons/icon-wx.png');
background-repeat: no-repeat;
background-size: 100% 100%;
}
</style>
