1. 上拉刷新下拉加载

效果图：

///上拉刷新下拉加载
Widget refresh() {
  return StatefulBuilder(
    builder: (BuildContext context, void Function(void Function()) setState) {
      RefreshController refreshController = RefreshController();
      return SmartRefresher(
          enablePullDown: true,
          enablePullUp: true,
          header: const WaterDropHeader(),
          footer: const ClassicFooter(),
          controller: refreshController,
          onRefresh: () => Future.delayed(const Duration(seconds: 2),
              () => refreshController.refreshToIdle()),
          onLoading: () => Future.delayed(const Duration(seconds: 2),
              () => refreshController.loadComplete()),
          child: const SingleChildScrollView(),
          );
    },
  );
}

dependencies:
pull_to_refresh: ^2.0.0

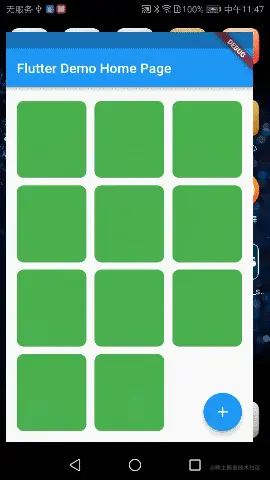

2. 网格布局GridView

效果图：

///网格布局
Widget gridView() {
  return Padding(
    padding: const EdgeInsets.all(16),
    child: GridView.builder(
      gridDelegate: const SliverGridDelegateWithFixedCrossAxisCount(
          crossAxisSpacing: 12.0,//竖轴item间隔
          mainAxisSpacing: 11.0,//横轴item间隔
          childAspectRatio: 0.9,//item宽高比例
          crossAxisCount: 3 //列数
      ),
      itemBuilder: (BuildContext context, int index) {
        return Container(
          decoration: const BoxDecoration(
            borderRadius: BorderRadius.all(Radius.circular(10)),
            color: Colors.green
          ),
        );
      },
      itemCount: 20,
    ),
  );

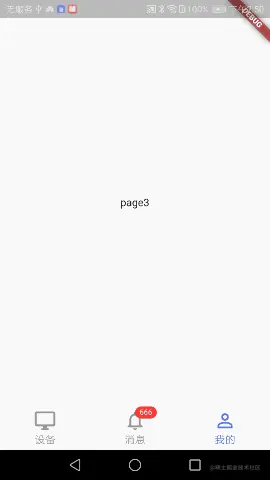

3. 效仿BottomNavigationBar自定义底部菜单栏，支持未读消息角标显示

效果图：

这里菜单项点击时还可以添加点击放大动画效果，增加体验性，有兴趣的同学可自行扩展添加。

3.1 使用DefaultTabController结合IndexedStack，实现菜单页切换效果

class BottomNavigationBarView extends StatefulWidget {
  const BottomNavigationBarView({Key? key}) : super(key: key);

  @override
  State<StatefulWidget> createState() => _BottomNavigationBarViewState();
}

class _BottomNavigationBarViewState<BottomNavigationBarView> extends State {
  //初始化当前页
  int _selectedIndex = 0;
  //菜单页
  final List<Widget> _widgetOptions = [
    const Center(
      child: Text('page1'),
    ),
    const Center(
      child: Text('page2'),
    ),
    const Center(
      child: Text('page3'),
    ),
  ];
  @override
  Widget build(BuildContext context) {
    return DefaultTabController(
      length: _widgetOptions.length,
      child: Scaffold(
          body: IndexedStack(
            index: _selectedIndex,
            children: _widgetOptions,
          ),
          bottomNavigationBar: Builder(builder: (context) {
            return CusBottomNavigationBar(
              items: [
                CusBottomNavigationBarItem(
                  iconData: Icons.desktop_windows,
                  title: '设备',
                ),
                CusBottomNavigationBarItem(
                  iconData: Icons.notifications_outlined,
                  title: '消息',
                  unreadMsgCount: 666,
                ),
                CusBottomNavigationBarItem(
                    iconData: Icons.person_outline, title: '我的'),
              ],
              onTap: _onItemTapped,
              currentIndex: _selectedIndex,
            );
          })),
    );
  }

  ///点击底部菜单切换页面
  void _onItemTapped(int index) {
    setState(() {
      _selectedIndex = index;
    });
  }
}

3.2 自定义导航栏菜单

3.2.1 属性介绍

items: 子菜单列表，可根据实际需求自行增减
onTap: 点击菜单回调
selectedColor: 菜单选中颜色
unselectedColor：菜单没选择颜色
currentIndex：用于初始化当前菜单页下标

3.2.2 未读消息数角标显示

个位数使用圆形角标展示，使用ClipOval裁剪圆形图标
两位数及两位数以上的数字显示，使用带圆角矩形展示

///根据角标显示的数字大小选取合适大小的角标
Widget _subscript(int count) {
  Widget subscript;
  if (count > 0 && count < 10) {//个位数显示
    subscript = ClipOval(
      child: Container(
        width: 16,
        height: 16,
        color: const Color(0xffff3b3b),
      ),
    );
  } else if (count >= 10 && count < 100) {//两位数显示
    subscript = Container(
      width: 22,
      height: 16,
      decoration: const BoxDecoration(
          borderRadius: BorderRadius.all(Radius.circular(8)),
          color: Color(0xffff3b3b)),
    );
  } else {//三位数及以上显示
    subscript = Container(
      width: 29,
      height: 16,
      decoration: const BoxDecoration(
          borderRadius: BorderRadius.all(Radius.circular(8)),
          color: Color(0xffff3b3b)),
    );
  }
  return subscript;
}

3.2.3 导航栏菜单控件完整代码

///自定义底部导航菜单Bar
class CusBottomNavigationBar extends StatefulWidget {
  const CusBottomNavigationBar(
      {Key? key,
      required this.items,
      this.onTap,
      this.selectedColor,
      this.unselectedColor,
      this.currentIndex = 0})
      : super(key: key);

  //菜单列表
  final List<CusBottomNavigationBarItem> items;
  //点击item回调
  final ValueChanged<int>? onTap;
  //点击选中颜色
  final Color? selectedColor;
  //没选中颜色
  final Color? unselectedColor;
  //初始化当前所属菜单下标
  final int? currentIndex;
  @override
  State<StatefulWidget> createState() => _CusBottomNavigationBarState();
}

class _CusBottomNavigationBarState extends State<CusBottomNavigationBar> {
  int? _currentIndex;

  @override
  void initState() {
    super.initState();
    _currentIndex = widget.currentIndex;
  }

  @override
  Widget build(BuildContext context) {
    return Container(
      height: 60,
      color: Colors.white,
      child: Row(
        children: _items(),
      ),
    );
  }

  ///添加子item
  List<Widget> _items() {
    List<Widget> items = [];
    for (int i = 0; i < widget.items.length; i++) {
      var item = widget.items.elementAt(i);
      items.add(_CusBottomNavigationBarTile(
        iconData: item.iconData,
        title: item.title,
        unreadMsgCount: item.unreadMsgCount,
        select: _currentIndex == i ? true : false,
        onTap: () {
          setState(() {
            _currentIndex = i;
          });
          widget.onTap?.call(i);
        },
      ));
    }
    return items;
  }
}

class CusBottomNavigationBarItem {
  CusBottomNavigationBarItem(
      {this.unreadMsgCount, required this.iconData, required this.title});
  final int? unreadMsgCount;
  final IconData iconData;
  final String title;
}

///导航菜单子item布局
class _CusBottomNavigationBarTile extends StatefulWidget {
  const _CusBottomNavigationBarTile(
      {Key? key,
      this.unreadMsgCount,
      required this.iconData,
      required this.title,
      this.unselectedColor = const Color(0xff969799),
      this.selectedColor = const Color(0xff5974f4),
      this.onTap,
      required this.select})
      : super(key: key);

  //显示的未读消息数量
  final int? unreadMsgCount;
  //菜单icon
  final IconData iconData;
  //菜单标题
  final String title;
  final GestureTapCallback? onTap;
  final Color? selectedColor;
  final Color? unselectedColor;
  final bool select;
  @override
  State<StatefulWidget> createState() => _CusBottomNavigationBarTileState();
}

class _CusBottomNavigationBarTileState
    extends State<_CusBottomNavigationBarTile> {
  @override
  Widget build(BuildContext context) {
    return Expanded(
        child: InkWell(
      onTap: () {
        widget.onTap?.call();
      },
      child: Column(
        // mainAxisAlignment: MainAxisAlignment.center,
        children: [
          Expanded(
            child: Stack(
              children: [
                Column(
                  mainAxisAlignment: MainAxisAlignment.center,
                  children: [
                    SizedBox(
                      width: 60,
                      height: 30,
                      child: Icon(
                        widget.iconData,
                        size: 30,
                        color: widget.select
                            ? widget.selectedColor
                            : widget.unselectedColor,
                      ),
                    ),
                    Text(widget.title,
                        style: TextStyle(
                            fontSize: 14,
                            color: widget.select
                                ? widget.selectedColor
                                : widget.unselectedColor))
                  ],
                ),
                if (widget.unreadMsgCount != null && widget.unreadMsgCount != 0)
                  Positioned(
                    top: 2,
                    left: 30,
                    child: Stack(
                      alignment: Alignment.center,
                      children: [
                        _subscript(widget.unreadMsgCount!),
                        Text(
                          '${widget.unreadMsgCount}',
                          style: const TextStyle(
                              fontSize: 10, color: Colors.white),
                        )
                      ],
                    ),
                  ),
              ],
            ),
          )
        ],
      ),
    ));
  }

  ///根据角标显示的数字大小选取合适大小的角标
  Widget _subscript(int count) {
    Widget subscript;
    if (count > 0 && count < 10) {//个位数显示
      subscript = ClipOval(
        child: Container(
          width: 16,
          height: 16,
          color: const Color(0xffff3b3b),
        ),
      );
    } else if (count >= 10 && count < 100) {//两位数显示
      subscript = Container(
        width: 22,
        height: 16,
        decoration: const BoxDecoration(
            borderRadius: BorderRadius.all(Radius.circular(8)),
            color: Color(0xffff3b3b)),
      );
    } else {//三位数及以上显示
      subscript = Container(
        width: 29,
        height: 16,
        decoration: const BoxDecoration(
            borderRadius: BorderRadius.all(Radius.circular(8)),
            color: Color(0xffff3b3b)),
      );
    }
    return subscript;
  }
}

4. 自定义高度的AppBar

属性详解：

title：标题
leading：布尔值类型，是否展示回退按钮
onPressed：点击回退按钮回调
backgroundColor：背景颜色
actions: 右侧导航菜单集
shadowColor：边缘阴影颜色
elevation： double类型，阴影立体效果参数，数值越大，阴影立体感越强
bottom：底部菜单栏
height：appBar总高度

///统一自定义高度AppBar
PreferredSizeWidget universalAppBar(
    //标题
    String title,
    //是否展示回退图标
    bool leading,
    //回退按钮点击回调
    {VoidCallback? onPressed,
      //背景颜色
    Color? backgroundColor = const Color(0xe6ffffff),
      //右侧导航菜单
    List<Widget>? actions,
      //阴影颜色
    Color? shadowColor = const Color(0x0d000000),
      //立体效果参数
    double? elevation = 0,
      //底部菜单栏
    PreferredSizeWidget? bottom,
      //appbar总高度
    Size? height}) {
  return CusHeightAppBar(
    appBar: AppBar(
      backgroundColor: backgroundColor,
      centerTitle: true,
      title: Text(
        title,
        style: const TextStyle(color: Color(0xff000000), fontSize: 17.0),
      ),
      elevation: elevation,
      shadowColor: shadowColor,
      leading: leading
          ? Builder(
              builder: (BuildContext context) {
                return IconButton(
                  icon: const Icon(
                    Icons.navigate_before,
                    color: Color(0xe6000000),
                  ),
                  onPressed: onPressed,
                  tooltip:
                      MaterialLocalizations.of(context).openAppDrawerTooltip,
                );
              },
            )
          : null,
      actions: actions,
      bottom: bottom,
    ),
    height: height,
  );
}

///可设置高度和自定义下底部阴影的AppBar，
///去除阴影需[AppBar]的elevation值为0，[shadow]为false
class CusHeightAppBar extends StatelessWidget implements PreferredSizeWidget {
  final AppBar appBar;
  //是否展示阴影效果
  final bool shadow;
  const CusHeightAppBar(
      {Key? key, required this.appBar, this.shadow = true, this.height})
      : super(key: key);
  final Size? height;
  @override
  Widget build(BuildContext context) {
    return shadow
        ? Container(
            decoration: const BoxDecoration(boxShadow: [
              BoxShadow(
                  color: Color(0x0d000000),
                  blurRadius: 15.0,
                  offset: Offset(0, 2))
            ]),
            child: appBar,
          )
        : appBar;
  }

  @override
  Size get preferredSize => height ?? const Size.fromHeight(50);
}

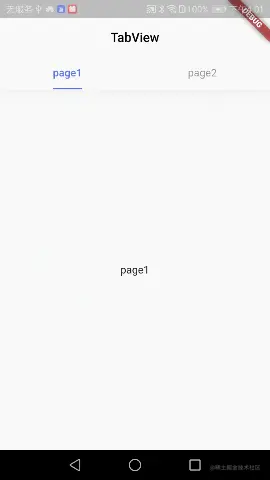

5. TabBarView使用

效果图：

这里做了一个禁止左右滑动切换页面的操作，只能通过点击菜单切换页面。
原因是TabBarView没有对外提供页面切换实时回调处理函数，页面左右滑动切换时无法及时做页面数据处理；
如果需要支持左右滑动切换页面，可以考虑使用PageView实现同样效果；PageView提供页面切换实时监听函数，可同时作数据处理；

class CusTabBarView extends StatelessWidget {
  CusTabBarView({Key? key}) : super(key: key);

  final List<String> tabTitles = ["page1", "page2"];
  @override
  Widget build(BuildContext context) {
    return DefaultTabController(
      length: tabTitles.length,
      child: Scaffold(
        appBar: universalAppBar("TabView", false,
            bottom: PreferredSize(
              preferredSize: const Size.fromHeight(45),
              child: Material(
                color: Colors.white,
                child: TabBar(
                  tabs: tabTitles
                      .map((e) => Padding(
                          padding: const EdgeInsets.only(top: 13, bottom: 12),
                          child: Text(e)))
                      .toList(),
                  labelColor: const Color(0xff5974f4),
                  labelStyle: const TextStyle(
                      fontSize: 14, fontWeight: FontWeight.w500),
                  unselectedLabelColor: const Color(0xff969799),
                  unselectedLabelStyle: const TextStyle(fontSize: 14),
                  indicatorSize: TabBarIndicatorSize.label,
                  indicatorColor: const Color(0xff5974f4),
                  onTap: (index) {
                    //点击切换页面时，在此初始化数据逻辑
                  },
                ),
              ),
            ),
            height: const Size.fromHeight(95)),
        body: const TabBarView(
          //禁止左右滑动页面
          physics: NeverScrollableScrollPhysics(),
          children: [
            Center(
              child: Text('page1'),
            ),
            Center(
              child: Text('page2'),
            )
          ],
        ),
      ),
    );
  }
}

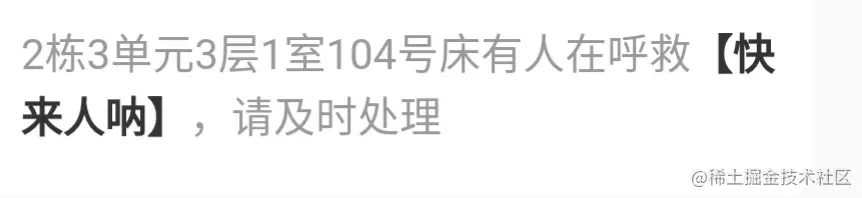

6. 多样式富文本展示

效果图：

RichText(
    text: TextSpan(
      text: '${msg.position}有人在呼救',
      style: const TextStyle(
          fontSize: 14,
          color: Color(0xff999999)),
      children: <TextSpan>[
        TextSpan(
            text: '【${msg.alarmContent}】',
            style: const TextStyle(
                fontSize: 14,
                color: Color(0xff333333),
                fontWeight:
                    FontWeight.bold)),
        const TextSpan(
            text: '，请及时处理',
            style: TextStyle(
                fontSize: 14,
                color: Color(0xff999999))),
      ],
    ),
  )

7. ElevatedButton按钮的使用

效果图：

ElevatedButton(
  child: const Text(
    "退出登录",
    style: TextStyle(fontSize: 16, color: Colors.white),
  ),
  style: OutlinedButton.styleFrom(
    padding: const EdgeInsets.only(top: 10, bottom: 10),
    backgroundColor: const Color(0xff5974f4),
    shape: RoundedRectangleBorder(borderRadius: BorderRadius.circular(22)),
  ),
  onPressed: () {},
);

8. 仿IOS苹果弹窗dialog，各种弹窗

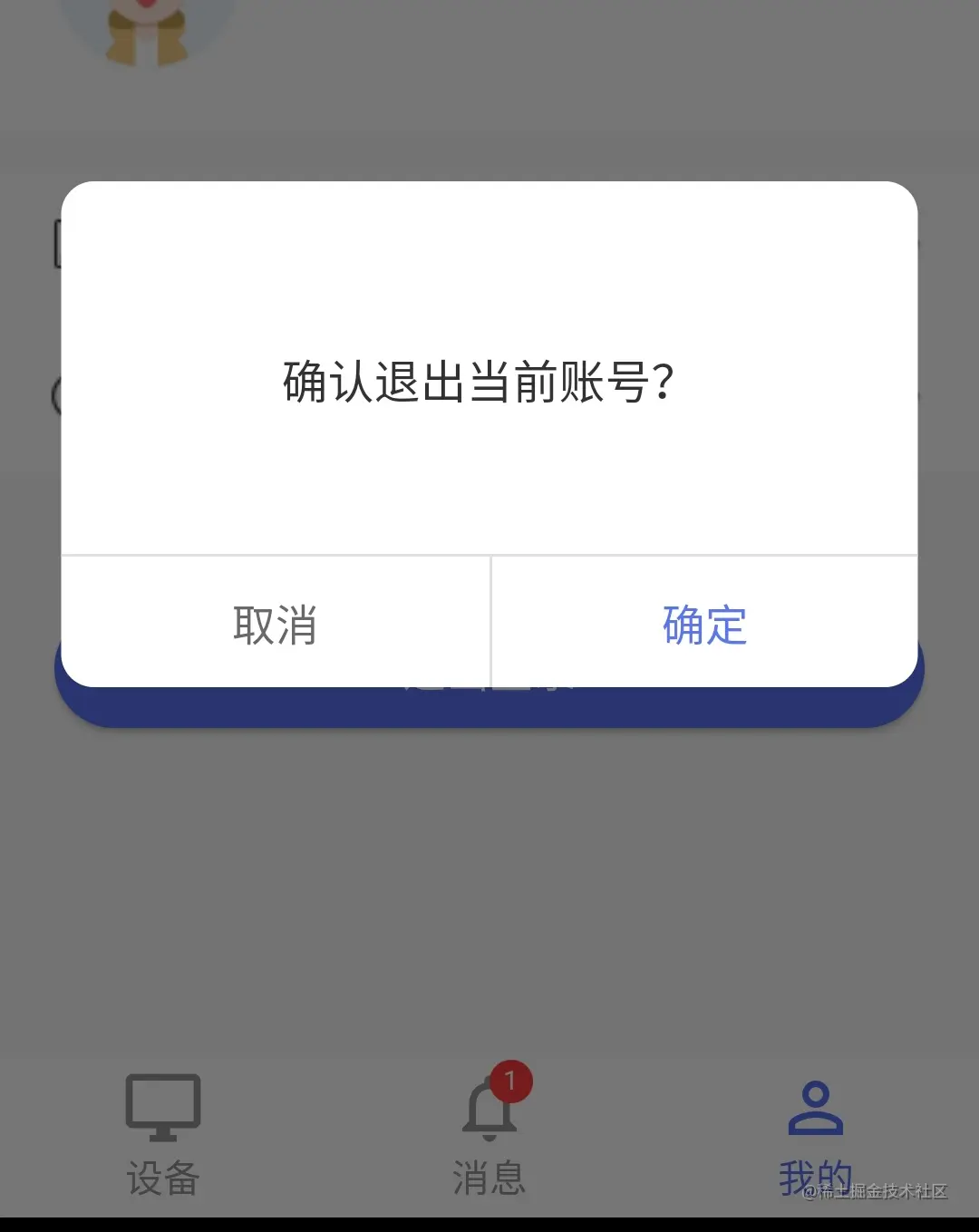

8.1 简单确认窗

效果图：

///退出当前账户
class ExitAppDialog extends Dialog {
  const ExitAppDialog({Key? key, required this.content, this.onPressed})
      : super(key: key);

  final String content;

  final VoidCallback? onPressed;

  @override
  Widget build(BuildContext context) {
    return Center(
      child: Container(
        width: 315,
        decoration: BoxDecoration(
            borderRadius: BorderRadius.circular(12), color: Colors.white),
        child: Column(
          mainAxisSize: MainAxisSize.min,
          children: [
            const SizedBox(
              height: 60,
            ),
            Text(
              content,
              style: const TextStyle(
                fontSize: 17,
                color: Color(0xff323233),
              ),
            ),
            const SizedBox(
              height: 52,
            ),
            SizedBox(
              height: 1,
              child: Container(
                color: const Color(0xffe1e1e1),
              ),
            ),
            Row(
              children: [
                Expanded(
                    child: TextButton(
                  onPressed: () {
                    Navigator.pop(context);
                  },
                  child: const Text(
                    "取消",
                    style: TextStyle(fontSize: 16, color: Color(0xff69696c)),
                  ),
                  style: ButtonStyle(
                      padding: MaterialStateProperty.all(
                          const EdgeInsets.only(top: 10, bottom: 10))),
                )),
                Expanded(
                    child: Container(
                  decoration: const BoxDecoration(
                      border: Border(
                          left:
                              BorderSide(width: 1, color: Color(0xffe1e1e1)))),
                  child: TextButton(
                    onPressed: onPressed,
                    child: const Text(
                      "确定",
                      style: TextStyle(fontSize: 16, color: Color(0xff5974f4)),
                    ),
                    style: ButtonStyle(
                        padding: MaterialStateProperty.all(
                            const EdgeInsets.only(top: 10, bottom: 10))),
                  ),
                ))
              ],
            )
          ],
        ),
      ),
    );
  }
}

调用方式：

showDialog(
    context: context,
    builder: (BuildContext context) => ExitAppDialog(
          content: "确认退出当前账号？",
          onPressed: () {},
        )),

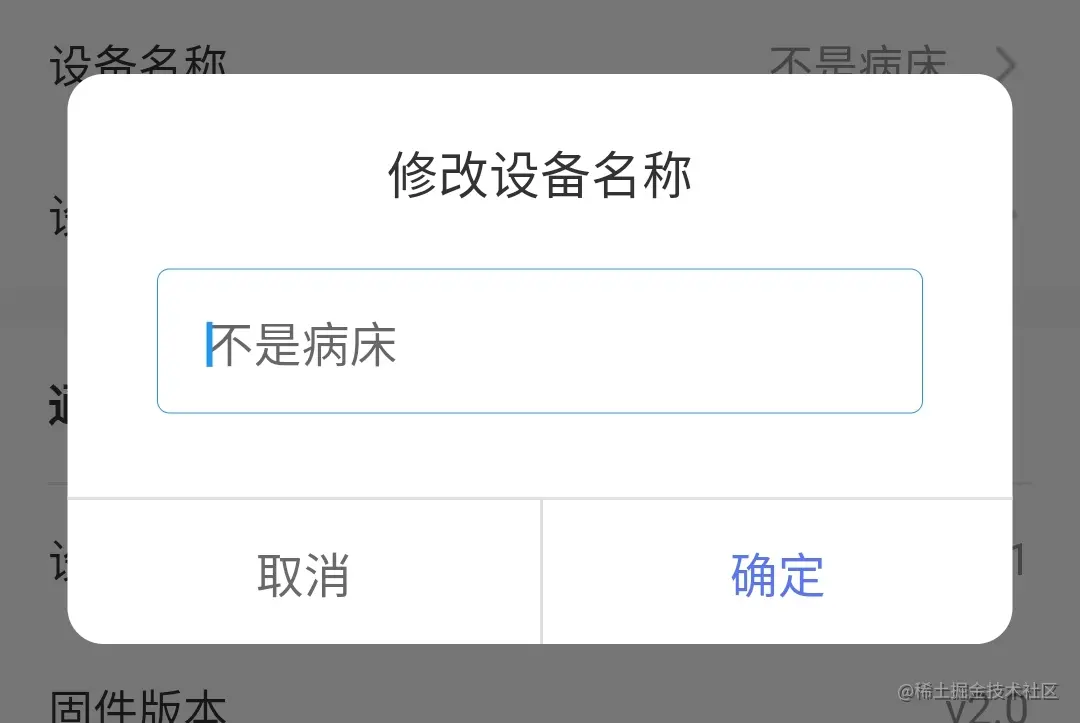

8.2 带有输入框的弹窗

效果图：

//输入框数据回传
typedef OnPositive<T> = void Function(T value);

///单输入框dialog
class SingleEditDialog extends Dialog {
  const SingleEditDialog(this.deviceName, {Key? key, this.onPositive})
      : super(key: key);
  final String deviceName;
  final OnPositive? onPositive;
  @override
  Widget build(BuildContext context) {
    String? currentName;
    return Center(
      child: Container(
        width: 315,
        decoration: BoxDecoration(
            borderRadius: BorderRadius.circular(12), color: Colors.white),
        child: Column(
          mainAxisSize: MainAxisSize.min,
          children: [
            const SizedBox(
              height: 20,
            ),
            const Text(
              "修改设备名称",
              style: TextStyle(fontSize: 17, color: Color(0xff323233)),
            ),
            const SizedBox(
              height: 20,
            ),
            Padding(
              padding: const EdgeInsets.only(left: 30, right: 30),
              child: TextField(
                style: const TextStyle(fontSize: 16, color: Color(0xff323233)),
                decoration: InputDecoration(
                    contentPadding: const EdgeInsets.only(
                        top: 12, bottom: 12, left: 16, right: 16),
                    isCollapsed: true,
                    hintText: deviceName,
                    border: const OutlineInputBorder(
                        borderSide: BorderSide(
                      color: Color(0xffe1e1e1),
                    ))),
                onChanged: (v) {
                  currentName = v;
                },
              ),
            ),
            const SizedBox(
              height: 28,
            ),
            SizedBox(
              height: 1,
              child: Container(
                color: const Color(0xffe1e1e1),
              ),
            ),
            Row(
              children: [
                Expanded(
                    child: TextButton(
                  onPressed: () {
                    Navigator.pop(context);
                  },
                  child: const Text(
                    "取消",
                    style: TextStyle(fontSize: 16, color: Color(0xff69696c)),
                  ),
                  style: ButtonStyle(
                      padding: MaterialStateProperty.all(
                          const EdgeInsets.only(top: 10, bottom: 10))),
                )),
                Expanded(
                    child: Container(
                  decoration: const BoxDecoration(
                      border: Border(
                          left:
                              BorderSide(width: 1, color: Color(0xffe1e1e1)))),
                  child: TextButton(
                    onPressed: () {
                      Navigator.pop(context);
                      if (currentName != null) {
                        onPositive?.call(currentName);
                      }
                    },
                    child: const Text(
                      "确定",
                      style: TextStyle(fontSize: 16, color: Color(0xff5974f4)),
                    ),
                    style: ButtonStyle(
                        padding: MaterialStateProperty.all(
                            const EdgeInsets.only(top: 10, bottom: 10))),
                  ),
                ))
              ],
            )
          ],
        ),
      ),
    );
  }
}

8.3 自定义转轮式选择弹窗，底部弹窗，CupertinoPicker

效果图：

8.3.1 使用showCupertinoModalPopup从底部显示弹窗

///选择年龄底部弹窗
void showYearPicker(
        {required BuildContext context, OnSelectValue? onSelectValue}) =>
    showCupertinoModalPopup(
        context: context,
        builder: (_) => DatePicker(
              start: 1920,
              onSelectValue: onSelectValue,
            ));

8.3.2 使用CupertinoPicker选择器展示日期选择

CupertinoPicker属性解析：
diameterRatio：转轮曲率，值越小，越凸显；
magnification：当前选择栏缩放系数；大于1放大，小于1缩小；
squeeze：菜单栏之间间距，值越大，菜单越紧凑；
useMagnifier：布尔值，是否使用放大显示；实测下来，该值并没起作用。
itemExtent：当前选择栏高度；
onSelectedItemChanged：选择的数据回传
selectionOverlay：当前选择栏widget自定义；
完整代码：

///年份选择
class DatePicker extends StatefulWidget {
  DatePicker({Key? key, required this.start, this.onSelectValue})
      : super(key: key);
  //开始年份
  final int start;
  //结束年份
  final int end = DateTime.now().year;
  //选择的数据回传
  final OnSelectValue? onSelectValue;

  @override
  State<StatefulWidget> createState() => _DataPickerState();
}

class _DataPickerState extends State<DatePicker> {
  FixedExtentScrollController? _scrollController;
  late int value;
  late int length;
  @override
  void initState() {
    super.initState();
    length = widget.end - widget.start + 1;
    var initialItem = length ~/ 2;
    value = widget.start + initialItem;
    _scrollController = FixedExtentScrollController(initialItem: initialItem);
  }

  @override
  Widget build(BuildContext context) {
    return Container(
        color: Colors.white,
        height: 325,
        child: Column(
          children: [
            SizedBox(
              width: double.infinity,
              height: 56,
              child: Stack(
                children: [
                  Align(
                    alignment: Alignment.centerLeft,
                    child: TextButton(
                      onPressed: () {
                        Navigator.pop(context);
                      },
                      child: const Text("取消",
                          style: TextStyle(
                              fontSize: 16, color: Color(0xff969799))),
                    ),
                  ),
                  const Align(
                    alignment: Alignment.center,
                    child: Text(
                      "出生年份",
                      style: TextStyle(fontSize: 16, color: Color(0xff323233)),
                    ),
                  ),
                  Align(
                    alignment: Alignment.centerRight,
                    child: TextButton(
                      onPressed: () {
                        //返回年龄
                        widget.onSelectValue?.call(widget.end - value);
                        Navigator.pop(context);
                      },
                      child: const Text("确定",
                          style: TextStyle(
                              fontSize: 16, color: Color(0xff5974f4))),
                    ),
                  ),
                ],
              ),
            ),
            Expanded(
              child: CupertinoPicker(
                scrollController: _scrollController,
                diameterRatio: 2,
                magnification: 1.3,
                squeeze: 0.9,
                useMagnifier: true,
                itemExtent: 49,
                onSelectedItemChanged: (int value) {
                  this.value = widget.start + value;
                },
                children: List.generate(length, (index) {
                  return Center(
                    child: Text(
                      (widget.start + index).toString(),
                      style: const TextStyle(
                          fontSize: 18, color: Color(0xff323233)),
                    ),
                  );
                }),
                selectionOverlay: Container(
                  decoration: const BoxDecoration(
                      border: Border(
                    top: BorderSide(width: 1, color: Color(0xffebebeb)),
                    bottom: BorderSide(width: 1, color: Color(0xffebebeb)),
                  )),
                ),
              ),
            )
          ],
        ));
  }
}

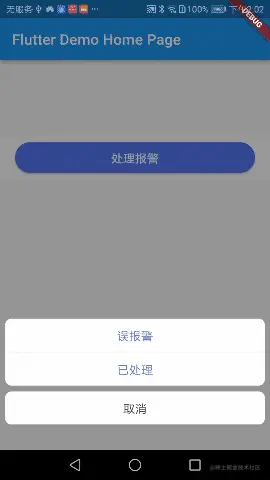

8.4 仿ios底部弹出菜单

效果图：

///仿ios底部pop弹窗
Widget bottomPop(BuildContext context) {
  return Padding(
    padding: const EdgeInsets.only(top: 100),
    child: Row(
      children: [
        Expanded(
            child: Container(
          color: Colors.white,
          padding:
              const EdgeInsets.only(left: 20, right: 20, top: 6, bottom: 6),
          child: ElevatedButton(
            onPressed: () {
              showCupertinoModalPopup(
                  barrierColor: const Color(0x66000000),
                  context: context,
                  builder: (context) {
                    return Material(
                      color: const Color(0x00FFFFFF),
                      child: Container(
                        padding: const EdgeInsets.only(right: 7, left: 7),
                        height: 175,
                        child: Column(
                          children: [
                            Expanded(
                              child: Container(
                                decoration: const BoxDecoration(
                                    borderRadius:
                                        BorderRadius.all(Radius.circular(8)),
                                    color: Colors.white),
                                child: Column(
                                  children: [
                                    Expanded(
                                        child: InkWell(
                                      onTap: () {
                                        //点击菜单处理
                                        Navigator.pop(context);
                                      },
                                      child: const SizedBox(
                                        child: Center(
                                          child: Text(
                                            '误报警',
                                            style: TextStyle(
                                                fontSize: 16,
                                                color: Color(0xff5974f4)),
                                          ),
                                        ),
                                      ),
                                    )),
                                    Container(
                                      height: 1,
                                      color: const Color(0xffebebeb),
                                    ),
                                    Expanded(
                                        child: InkWell(
                                      onTap: () {
                                        //点击菜单处理
                                        Navigator.pop(context);
                                      },
                                      child: const SizedBox(
                                        child: Center(
                                          child: Text(
                                            '已处理',
                                            style: TextStyle(
                                                fontSize: 16,
                                                color: Color(0xff5974f4)),
                                          ),
                                        ),
                                      ),
                                    )),
                                  ],
                                ),
                              ),
                            ),
                            const SizedBox(
                              height: 8,
                            ),
                            InkWell(
                              onTap: () => Navigator.pop(context),
                              child: Container(
                                decoration: const BoxDecoration(
                                    borderRadius:
                                        BorderRadius.all(Radius.circular(8)),
                                    color: Colors.white),
                                height: 44,
                                child: const Center(
                                  child: Text(
                                    '取消',
                                    style: TextStyle(
                                        fontSize: 16, color: Color(0xff323233)),
                                  ),
                                ),
                              ),
                            ),
                            const SizedBox(
                              height: 34,
                            ),
                          ],
                        ),
                      ),
                    );
                  });
            },
            child: const Text(
              '处理报警',
              style: TextStyle(fontSize: 16, color: Colors.white),
            ),
            style: OutlinedButton.styleFrom(
              padding: const EdgeInsets.only(top: 10, bottom: 10),
              backgroundColor: const Color(0xff5974f4),
              shape: RoundedRectangleBorder(
                  borderRadius: BorderRadius.circular(22)),
            ),
          ),
        ))
      ],
    ),
  );
}

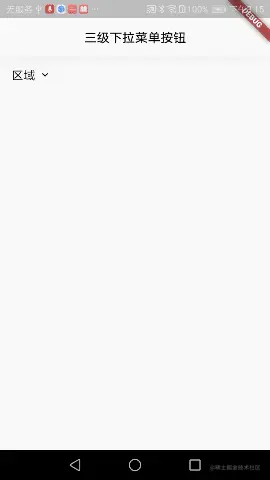

9. 仿DropdownButton pop弹出下拉菜单按钮，三级级联菜单

效果图：

9.1 三级菜单数据

模拟数据以本地json文件的形式存储，保存在config/location_data.json文件中，

{
  "code": 200,
  "success": true,
  "message": "操作成功",
  "result": [
    {
      "level": 1,
      "location": "1",
      "children": [
        {
          "level": 2,
          "location": "1",
          "children": [
            {
              "level": 3,
              "location": "1",
              "children": []
            },
            {
              "level": 3,
              "location": "2",
              "children": []
            }
          ]
        },
        {
          "level": 2,
          "location": "2",
          "children": [
            {
              "level": 3,
              "location": "1",
              "children": []
            }
          ]
        }
      ]
    },
    {
      "level": 1,
      "location": "2",
      "children": [
        {
          "level": 2,
          "location": "1",
          "children": [
            {
              "level": 3,
              "location": "1",
              "children": []
            },
            {
              "level": 3,
              "location": "2",
              "children": []
            }
          ]
        },
        {
          "level": 2,
          "location": "3",
          "children": [
            {
              "level": 3,
              "location": "3",
              "children": []
            }
          ]
        },
        {
          "level": 2,
          "location": "2",
          "children": [
            {
              "level": 3,
              "location": "1",
              "children": []
            }
          ]
        }
      ]
    },
    {
      "level": 1,
      "location": "3",
      "children": [
        {
          "level": 2,
          "location": "2",
          "children": [
            {
              "level": 3,
              "location": "1",
              "children": []
            }
          ]
        }
      ]
    }
  ]
}

加载本地json数据

///位置级联菜单模拟数据实体类
class LocationData {
  int? code;
  bool? success;
  String? message;
  List<Result>? result;

  LocationData({this.code, this.success, this.message, this.result});

  LocationData.fromJson(Map<String, dynamic> json) {
    code = json['code'];
    success = json['success'];
    message = json['message'];
    if (json['result'] != null) {
      result = <Result>[];
      json['result'].forEach((v) {
        result!.add(Result.fromJson(v));
      });
    }
  }

  Map<String, dynamic> toJson() {
    final Map<String, dynamic> data = <String, dynamic>{};
    data['code'] = code;
    data['success'] = success;
    data['message'] = message;
    if (result != null) {
      data['result'] = result!.map((v) => v.toJson()).toList();
    }
    return data;
  }
}

class Result {
  int? level;
  String? location;
  List<Result>? children;

  Result({this.level, this.location, this.children});

  Result.fromJson(Map<String, dynamic> json) {
    level = json['level'];
    location = json['location'];
    if (json['children'] != null) {
      children = <Result>[];
      json['children'].forEach((v) {
        children!.add(Result.fromJson(v));
      });
    }
  }

  Map<String, dynamic> toJson() {
    final Map<String, dynamic> data = <String, dynamic>{};
    data['level'] = level;
    data['location'] = location;
    if (children != null) {
      data['children'] = children!.map((v) => v.toJson()).toList();
    }
    return data;
  }
}

///加载json
rootBundle.loadString('config/location_data.json').then((value) {
  setState(() {
    _jsonData = LocationData.fromJson(jsonDecode(value));
  });
});

9.2 相关动画详解

主要分为：按钮标题颜色及小箭头颜色变化动画、按钮小箭头翻转动画、下拉菜单展出动画、背景层颜色透明度变换动画。
这里主要使用AnimatedBuilder来构建动画widget

标题颜色变化及小箭头翻转动画

颜色变化使用ColorTween补间动画实现，

_colorAnimation = ColorTween(begin: widget.normalColor, end: widget.selectColor)
        .animate(curvedAnimation);
//标题颜色
AnimatedBuilder(
  animation: _animationController,
  builder: (BuildContext context, Widget? child) {
    return Text(
      widget.title,
      style: TextStyle(
          color: _colorAnimation.value,
          fontSize: widget.titleFontSize),
    );
  },
),

小箭头翻转动画这里使用Matrix4矩阵结合Transform组件，实现小箭头在三维空间上沿x轴翻转变化；
Matrix4矩阵很强大，能够实现x轴、y轴及z轴上的动画变换，可以实现立体空间上的翻转、缩放、深度视觉变化等。

//下拉按钮翻转动画
late final Animation _rotationAnimation;

//Transform实现翻转及颜色变化组合动画
AnimatedBuilder(
    animation: _animationController,
    builder: (BuildContext context, Widget? child) {
      return Transform(
        alignment: FractionalOffset.center,
        transform: Matrix4.identity()
          ..rotateX(pi * _rotationAnimation.value),
        child: Icon(
          widget.expandIcon,
          size: widget.expandIconSize,
          color: _colorAnimation.value,
        ),
      );
    }),

下拉菜单展出动画
使用Tween补间动画实现下拉菜单高度从0到目标高度的变化；

_animation =
    Tween(begin: 0.0, end: widget.expandHeight).animate(curvedAnimation);

ClipRect实现动画平滑展出

AnimatedBuilder(
  animation: _animationController,
  builder: (BuildContext context, Widget? child) {
    return ClipRect(
      clipper: _ClipperPath(_animation.value),
      clipBehavior: Clip.antiAlias,
      child: child,
    );
  },
  child: Container(
    decoration: const BoxDecoration(
        color: Colors.white,
        border: Border(
            top: BorderSide(color: Color(0xffebebeb), width: 1))),
    child: Container(),
)

//下拉伸展菜单展开时，裁剪尺寸计算
class _ClipperPath extends CustomClipper<Rect> {
  _ClipperPath(this.value);
  double value;
  @override
  Rect getClip(Size size) {
    return Rect.fromLTRB(0, 0, size.width, value);
  }

  @override
  bool shouldReclip(CustomClipper<Rect> oldClipper) {
    return true;
  }
}

背景遮盖层透明度变化动画
Opacity实现透明度变化

//颜色补间数据
_backgroundColorAnimation =
    Tween(begin: 0.0, end: 0.5).animate(curvedAnimation);

AnimatedBuilder(
  animation: _animationController,
  builder: (BuildContext context, Widget? child) {
    return Opacity(
      opacity: _backgroundColorAnimation.value,
      child: child,
    );
  },
  child: Container(),
),

9.3 下拉菜单页展示

下拉菜单页作为一个遮盖层覆盖到当前窗口之上，这里需要计算遮盖层弹出相对位置；这里以标题button按钮作为参照物，遮盖层位于button按钮下方；

计算标题button位置

//获取button的渲染对象
final RenderBox button = context.findRenderObject() as RenderBox;
//获取button所在的根overlay
final RenderBox overlay =
    Navigator.of(context).overlay!.context.findRenderObject()! as RenderBox;
//计算button的相对位置，即button在当前窗口所在位置
final RelativeRect position = RelativeRect.fromRect(
  Rect.fromPoints(
    button.localToGlobal(widget.offset, ancestor: overlay),
    button.localToGlobal(
        button.size.bottomRight(Offset.zero) + widget.offset,
        ancestor: overlay),
  ),
  Offset.zero & overlay.size,
);

根据标题button按钮位置，计算遮盖层菜单页弹出位置

///弹出菜单位置计算
class _PopupMenuRouteLayoutDelegate extends SingleChildLayoutDelegate {
  _PopupMenuRouteLayoutDelegate({
    required this.position,
    required this.padding,
    required this.textDirection,
  });
  //参照物位置
  final RelativeRect position;
  final EdgeInsets padding;
  // 菜单内容展示方向
  final TextDirection textDirection;
  @override
  bool shouldRelayout(_PopupMenuRouteLayoutDelegate oldDelegate) {
    return position != oldDelegate.position || padding != oldDelegate.padding;
  }

   ///尺寸大小限制范围
  @override
  BoxConstraints getConstraintsForChild(BoxConstraints constraints) {
    return BoxConstraints.loose(constraints.biggest).deflate(
      padding,
    );
  }

  @override
  Offset getPositionForChild(Size size, Size childSize) {
    // size: 遮盖层尺寸
    // childSize: 菜单完全打开时的大小，由 getConstraintsForChild 确定。

    final double buttonHeight = size.height - position.top - position.bottom;
    // 菜单层y轴位置
    double y = position.top + buttonHeight;
    // 菜单层X轴位置
    double x;
    if (position.left > position.right) {
      // 菜单按钮更靠近右边缘，因此向左增长，与右边缘对齐。
      x = size.width - position.right - childSize.width;
    } else if (position.left < position.right) {
      // 菜单按钮更靠近左边缘，因此向右增长，与左边缘对齐。
      x = position.left;
    } else {
      // 菜单按钮与两个边缘等距，因此在文字阅读方向上延申。
      switch (textDirection) {
        case TextDirection.rtl:
          x = size.width - position.right - childSize.width;
          break;
        case TextDirection.ltr:
          x = position.left;
          break;
      }
    }

    // 避免在每个方向上超出屏幕边缘像素的矩形区域。
    // if (x < _kMenuScreenPadding + padding.left) {
    //   x = _kMenuScreenPadding + padding.left;
    // } else if (x + childSize.width >
    //     size.width - _kMenuScreenPadding - padding.right) {
    //   x = size.width - childSize.width - _kMenuScreenPadding - padding.right;
    // }
    // if (y < _kMenuScreenPadding + padding.top) {
    //   y = _kMenuScreenPadding + padding.top;
    // } else if (y + childSize.height >
    //     size.height - _kMenuScreenPadding - padding.bottom) {
    //   y = size.height - padding.bottom - _kMenuScreenPadding - childSize.height;
    // }

    return Offset(x, y);
  }
}

创建弹出菜单页遮盖层，插入到当前窗口上面

//创建遮盖层
overlayEntry = OverlayEntry(builder: (context) {
  return CustomSingleChildLayout(
    delegate: _PopupMenuRouteLayoutDelegate(
        textDirection: TextDirection.ltr,
        position: position,
        padding: EdgeInsets.zero),
    child: Container();
  );
});
//插入遮盖层
Overlay.of(context)!.insert(overlayEntry!);

完整代码

///数据回调
typedef PopupWindowMenuItemSelected<T> = void Function(T value);

///下拉弹出菜单按钮
class PopupWindowButton extends StatefulWidget {
  const PopupWindowButton(
      {Key? key,
      this.offset = Offset.zero,
      required this.title,
      required this.menuData,
      this.titleFontSize = 16.0,
      this.expandIcon = Icons.expand_more,
      this.expandIconSize = 16.0,
      this.normalColor = Colors.black,
      this.selectColor = const Color(0xff5974f4),
      this.duration = const Duration(milliseconds: 200),
      this.expandHeight = 352.0,
      this.padding = const EdgeInsets.only(left: 15, top: 15, bottom: 15),
      this.onSelected,
      this.onFinished})
      : super(key: key);
  final Offset offset;
  //标题
  final String title;
  //标题字体尺寸
  final double titleFontSize;
  //下拉图标
  final IconData expandIcon;
  //下拉图标大小
  final double expandIconSize;
  //正常颜色
  final Color normalColor;
  //展开选中颜色
  final Color selectColor;
  //动画时间
  final Duration duration;
  //下拉菜单展开高度
  final double expandHeight;
  //按钮内边距
  final EdgeInsetsGeometry padding;
  //菜单所有数据
  final LocationDataModel menuData;
  //选择数据后回调
  final PopupWindowMenuItemSelected<String>? onSelected;
  //清空数据时回调
  final VoidCallback? onFinished;
  @override
  State<StatefulWidget> createState() => _PopupWindowButtonState();
}

class _PopupWindowButtonState extends State<PopupWindowButton>
    with SingleTickerProviderStateMixin {
  //遮盖层展示动画控制器
  late final AnimationController _animationController;
  //遮盖层展示动画
  late final Animation _animation;
  //下拉按钮翻转动画
  late final Animation _rotationAnimation;
  //背景层颜色透明度变换动画
  late final Animation _backgroundColorAnimation;
  //主体部分按钮、字体颜色变换动画
  late final Animation _colorAnimation;
  AnimationStatus _currentAnimationStatus = AnimationStatus.dismissed;
  //遮盖层，即弹出层
  OverlayEntry? overlayEntry;
  bool show = false;

  ///展示伸展菜单
  void showPopupMenuLayout() {
    _animationController.forward();
    final RenderBox button = context.findRenderObject() as RenderBox;
    final RenderBox overlay =
        Navigator.of(context).overlay!.context.findRenderObject()! as RenderBox;
    final RelativeRect position = RelativeRect.fromRect(
      Rect.fromPoints(
        button.localToGlobal(widget.offset, ancestor: overlay),
        button.localToGlobal(
            button.size.bottomRight(Offset.zero) + widget.offset,
            ancestor: overlay),
      ),
      Offset.zero & overlay.size,
    );
    overlayEntry = OverlayEntry(builder: (context) {
      return CustomSingleChildLayout(
        delegate: _PopupMenuRouteLayoutDelegate(
            textDirection: TextDirection.ltr,
            position: position,
            padding: EdgeInsets.zero),
        child: Stack(
          children: [
            //背景阴影层
            AnimatedBuilder(
              animation: _animationController,
              builder: (BuildContext context, Widget? child) {
                return Opacity(
                  opacity: _backgroundColorAnimation.value,
                  child: child,
                );
              },
              child: Material(
                child: InkWell(
                  onTap: () {
                    //点击外部背景层时，反向动画
                    if (_currentAnimationStatus == AnimationStatus.completed) {
                      _animationController.reverse();
                    }
                  },
                  child: Container(
                    color: Colors.black,
                  ),
                ),
              ),
            ),
            //菜单部件
            AnimatedBuilder(
              animation: _animationController,
              builder: (BuildContext context, Widget? child) {
                return ClipRect(
                  clipper: _ClipperPath(_animation.value),
                  clipBehavior: Clip.antiAlias,
                  child: child,
                );
              },
              child: Container(
                decoration: const BoxDecoration(
                    color: Colors.white,
                    border: Border(
                        top: BorderSide(color: Color(0xffebebeb), width: 1))),
                child: _Cascade(
                    currentTitle: widget.title,
                    deviceSearchConfig: widget.menuData,
                    onSelected: (floor) {
                      //结束动画
                      if (_animationController.status ==
                          AnimationStatus.completed) {
                        _animationController.reverse();
                      }
                      widget.onSelected?.call(floor);
                    },
                    onFinished: () {
                      //结束动画
                      if (_animationController.status ==
                          AnimationStatus.completed) {
                        _animationController.reverse();
                      }
                      widget.onFinished?.call();
                    }),
              ),
            )
          ],
        ),
      );
    });
    Overlay.of(context)!.insert(overlayEntry!);
  }

  void dismissPopupMenuLayout() {
    if (overlayEntry != null) {
      overlayEntry!.remove();
      overlayEntry = null;
    }
  }

  @override
  void initState() {
    super.initState();
    _animationController =
        AnimationController(vsync: this, duration: widget.duration);
    _animationController.addStatusListener((status) {
      _currentAnimationStatus = status;
      if (status == AnimationStatus.dismissed) {
        Future.delayed(const Duration(milliseconds: 200), () {
          if (mounted) {
            dismissPopupMenuLayout();
          }
        });
      }
    });
    CurvedAnimation curvedAnimation =
        CurvedAnimation(parent: _animationController, curve: Curves.linear);
    _animation =
        Tween(begin: 0.0, end: widget.expandHeight).animate(curvedAnimation);
    _rotationAnimation = Tween(begin: 0.0, end: 1.0).animate(curvedAnimation);
    _backgroundColorAnimation =
        Tween(begin: 0.0, end: 0.5).animate(curvedAnimation);
    _colorAnimation =
        ColorTween(begin: widget.normalColor, end: widget.selectColor)
            .animate(curvedAnimation);
  }

  @override
  Widget build(BuildContext context) {
    return InkWell(
      onTap: () {
        if (_currentAnimationStatus == AnimationStatus.completed) {
          _animationController.reverse();
        } else if (_currentAnimationStatus == AnimationStatus.dismissed) {
          showPopupMenuLayout();
        }
      },
      child: Padding(
        padding: widget.padding,
        child: Row(
          mainAxisSize: MainAxisSize.min,
          children: [
            AnimatedBuilder(
              animation: _animationController,
              builder: (BuildContext context, Widget? child) {
                return Text(
                  widget.title,
                  style: TextStyle(
                      color: _colorAnimation.value,
                      fontSize: widget.titleFontSize),
                );
              },
            ),
            const SizedBox(
              width: 5,
            ),
            AnimatedBuilder(
                animation: _animationController,
                builder: (BuildContext context, Widget? child) {
                  return Transform(
                    alignment: FractionalOffset.center,
                    transform: Matrix4.identity()
                      ..rotateX(pi * _rotationAnimation.value),
                    child: Icon(
                      widget.expandIcon,
                      size: widget.expandIconSize,
                      color: _colorAnimation.value,
                    ),
                  );
                }),
          ],
        ),
      ),
    );
  }

  @override
  void dispose() {
    _animationController.dispose();
    dismissPopupMenuLayout();
    super.dispose();
  }
}

///弹出菜单位置计算
class _PopupMenuRouteLayoutDelegate extends SingleChildLayoutDelegate {
  _PopupMenuRouteLayoutDelegate({
    required this.position,
    required this.padding,
    required this.textDirection,
  });
  final RelativeRect position;
  final EdgeInsets padding;
  // 菜单内容展示方向
  final TextDirection textDirection;
  @override
  bool shouldRelayout(_PopupMenuRouteLayoutDelegate oldDelegate) {
    return position != oldDelegate.position || padding != oldDelegate.padding;
  }

  @override
  BoxConstraints getConstraintsForChild(BoxConstraints constraints) {
    return BoxConstraints.loose(constraints.biggest).deflate(
      padding,
    );
  }

  @override
  Offset getPositionForChild(Size size, Size childSize) {
    // size: 遮盖层尺寸
    // childSize: 菜单完全打开时的大小，由 getConstraintsForChild 确定。

    final double buttonHeight = size.height - position.top - position.bottom;
    // 菜单层y轴位置
    double y = position.top + buttonHeight;
    // 菜单层X轴位置
    double x;
    if (position.left > position.right) {
      // 菜单按钮更靠近右边缘，因此向左增长，与右边缘对齐。
      x = size.width - position.right - childSize.width;
    } else if (position.left < position.right) {
      // 菜单按钮更靠近左边缘，因此向右增长，与左边缘对齐。
      x = position.left;
    } else {
      // 菜单按钮与两个边缘等距，因此在文字阅读方向上延申。
      switch (textDirection) {
        case TextDirection.rtl:
          x = size.width - position.right - childSize.width;
          break;
        case TextDirection.ltr:
          x = position.left;
          break;
      }
    }

    // 避免在每个方向上超出屏幕边缘像素的矩形区域。
    // if (x < _kMenuScreenPadding + padding.left) {
    //   x = _kMenuScreenPadding + padding.left;
    // } else if (x + childSize.width >
    //     size.width - _kMenuScreenPadding - padding.right) {
    //   x = size.width - childSize.width - _kMenuScreenPadding - padding.right;
    // }
    // if (y < _kMenuScreenPadding + padding.top) {
    //   y = _kMenuScreenPadding + padding.top;
    // } else if (y + childSize.height >
    //     size.height - _kMenuScreenPadding - padding.bottom) {
    //   y = size.height - padding.bottom - _kMenuScreenPadding - childSize.height;
    // }

    return Offset(x, y);
  }
}

//下拉伸展菜单展开时，裁剪尺寸计算
class _ClipperPath extends CustomClipper<Rect> {
  _ClipperPath(this.value);
  double value;
  @override
  Rect getClip(Size size) {
    return Rect.fromLTRB(0, 0, size.width, value);
  }

  @override
  bool shouldReclip(CustomClipper<Rect> oldClipper) {
    return true;
  }
}

///三级级联菜单
class _Cascade extends StatefulWidget {
  const _Cascade(
      {required this.deviceSearchConfig,
      required this.onSelected,
      required this.onFinished,
      required this.currentTitle});
  final LocationDataModel deviceSearchConfig;
  final PopupWindowMenuItemSelected<String> onSelected;
  final VoidCallback onFinished;
  //当前按钮标题
  final String currentTitle;
  @override
  State<StatefulWidget> createState() => _CascadeState();
}

class _CascadeState extends State<_Cascade> {
  //是否显示第三级菜单
  bool show = false;
  //已选择楼栋
  int selectBuildingIndex = 0;
  //已选择单元
  int selectUnitIndex = 0;
  //已选择楼层
  int selectFloorIndex = 0;
  //所有楼栋
  late List<String> buildings;
  //已选楼的所有单元
  late List<String> units;
  //已选单元的所有楼层
  List<String>? floors;
  @override
  void initState() {
    super.initState();
    selectBuildingIndex =
        widget.deviceSearchConfig.initBuildingIndex(widget.currentTitle);
    buildings = widget.deviceSearchConfig.getBuilding();
    units = widget.deviceSearchConfig
        .getUnit(buildings.elementAt(selectBuildingIndex));
  }

  @override
  Widget build(BuildContext context) {
    return Column(
      children: [
        SizedBox(
          height: 307,
          child: Row(
            children: [
              Container(
                decoration: const BoxDecoration(
                    border: Border(
                        right: BorderSide(color: Color(0xffebebeb), width: 1))),
                width: 100,
                child: ListView.builder(
                  //第一级菜单
                  padding: EdgeInsets.zero,
                  itemBuilder: (BuildContext context, int index) {
                    var name = buildings.elementAt(index);
                    return Material(
                      child: InkWell(
                        onTap: () {
                          if (selectBuildingIndex != index) {
                            setState(() {
                              selectBuildingIndex = index;
                              //清除第二第三级菜单数据
                              selectUnitIndex = 0;
                              selectFloorIndex = 0;
                              units.clear();
                              show = false;
                              floors?.clear();
                              //重置二级菜单数据
                              units = widget.deviceSearchConfig.getUnit(name);
                            });
                          }
                        },
                        child: Container(
                          color: selectBuildingIndex == index
                              ? const Color(0xfff2f6ff)
                              : null,
                          alignment: Alignment.center,
                          padding: const EdgeInsets.only(top: 12, bottom: 12),
                          child: Text(
                            '$name栋',
                            style: TextStyle(
                                color: selectBuildingIndex == index
                                    ? const Color(0xff5974f4)
                                    : const Color(0xff969696),
                                fontSize: 14),
                          ),
                        ),
                      ),
                    );
                  },
                  itemCount: widget.deviceSearchConfig.getBuilding().length,
                ),
              ),
              Expanded(
                child: Container(
                  decoration: show
                      ? const BoxDecoration(
                          border: Border(
                              right: BorderSide(
                                  color: Color(0xffebebeb), width: 1)))
                      : null,
                  child: ListView.builder(
                    //第二级菜单
                    padding: EdgeInsets.zero,
                    itemBuilder: (BuildContext context, int index) {
                      String unit;
                      if (index == 0) {
                        unit = units.elementAt(index);
                      } else {
                        unit = units.elementAt(index) + '单元';
                      }
                      return Material(
                        child: InkWell(
                          onTap: () {
                            if (selectUnitIndex != index) {
                              setState(() {
                                selectUnitIndex = index;
                                if (selectUnitIndex == 0) {
                                  show = false;
                                  //清除第三级菜单数据
                                  selectFloorIndex = 0;
                                  floors?.clear();
                                } else {
                                  show = true;
                                  floors = widget.deviceSearchConfig.getFloor(
                                      buildings.elementAt(selectBuildingIndex),
                                      units.elementAt(selectUnitIndex));
                                }
                              });
                            }
                          },
                          child: Container(
                            color: selectUnitIndex == index
                                ? const Color(0xfff2f6ff)
                                : null,
                            alignment: Alignment.center,
                            padding: const EdgeInsets.only(top: 12, bottom: 12),
                            child: Text(
                              unit,
                              style: TextStyle(
                                  color: selectUnitIndex == index
                                      ? const Color(0xff5974f4)
                                      : const Color(0xff969696),
                                  fontSize: 14),
                            ),
                          ),
                        ),
                      );
                    },
                    itemCount: units.length,
                  ),
                ),
              ),
              if (show)
                Expanded(
                  child: ListView.builder(
                    padding: EdgeInsets.zero,
                    itemBuilder: (BuildContext context, int index) {
                      String floor;
                      if (index == 0) {
                        floor = floors!.elementAt(index);
                      } else {
                        floor = floors!.elementAt(index) + '层';
                      }
                      return Material(
                        child: InkWell(
                          onTap: () {
                            if (selectFloorIndex != index) {
                              setState(() {
                                selectFloorIndex = index;
                              });
                            }
                          },
                          child: Container(
                            color: selectFloorIndex == index
                                ? const Color(0xfff2f6ff)
                                : null,
                            alignment: Alignment.center,
                            padding: const EdgeInsets.only(top: 12, bottom: 12),
                            child: Text(
                              floor,
                              style: TextStyle(
                                  color: selectFloorIndex == index
                                      ? const Color(0xff5974f4)
                                      : const Color(0xff969696),
                                  fontSize: 14),
                            ),
                          ),
                        ),
                      );
                    },
                    itemCount: floors!.length,
                  ),
                )
            ],
          ),
        ),
        Container(
          height: 1,
          color: const Color(0xffebebeb),
        ),
        Row(
          children: [
            Expanded(
              child: Material(
                child: InkWell(
                  onTap: widget.onFinished,
                  child: const SizedBox(
                    height: 43,
                    child: Center(
                      child: Text("清空",
                          style:
                              TextStyle(fontSize: 16, color: Color(0xff69696c))),
                    ),
                  ),
                ),
              ),
            ),
            Expanded(
              child: Material(
                child: InkWell(
                  onTap: () {
                    //选择的菜单数据回调
                    widget.onSelected.call('');
                  },
                  child: Container(
                    color: const Color(0xff5974f4),
                    height: 43,
                    child: const Center(
                        child: Text(
                      "确认",
                      style: TextStyle(fontSize: 16, color: Colors.white),
                    )),
                  ),
                ),
              ),
            ),
          ],
        )
      ],
    );
  }
}


//控件调用示例
Scaffold(
  appBar: universalAppBar('三级下拉菜单按钮', false),
  body: PopupWindowButton(
    title: "区域",
    menuData: LocationDataModel(_jsonData),
    onSelected: (value) {
      // 选择菜单数据回调
    },
    onFinished: () {
      // 点击重置按钮回调
    },
  ),
);

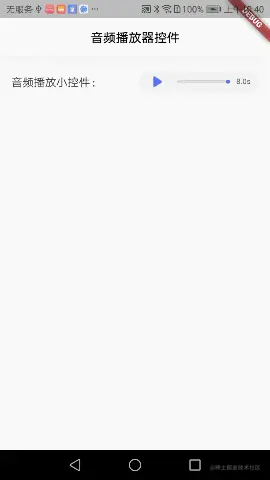

10. 自定义音频播放器小部件

效果图：

添加依赖库：

video_player: ^2.2.17
///播放进度条
flutter_neumorphic: ^3.2.0

由于flutter官方并没有推出音频播放专用播放器AudioPlayer,这里使用官方推出的视频播放器VideoPlayer实现音频播放器。

播放器代码

///录音播放器
class AudioPlayerView extends StatefulWidget {
  const AudioPlayerView(
      {Key? key, this.width, this.height, required this.alarmAudioUrl})
      : super(key: key);
  //宽
  final double? width;
  //高
  final double? height;
  //音频网络地址
  final String alarmAudioUrl;

  @override
  State<StatefulWidget> createState() => _AudioPlayerViewState();
}

class _AudioPlayerViewState extends State<AudioPlayerView> {
  VideoPlayerController? _controller;
  bool _initializing = true;
  @override
  void initState() {
    super.initState();
    //播放器初始化
    _controller = VideoPlayerController.network(widget.alarmAudioUrl)
      ..initialize().then((value) {
        if (mounted) {
          setState(() {
            _initializing = false;
          });
        }
      });
    _controller?.addListener(() {
      //刷新当前进度条
      if (mounted) {
        setState(() {});
      }
    });
  }

  @override
  Widget build(BuildContext context) {
    return _initializing
        ? const Text('正在下载录音...',
            style: TextStyle(
                fontSize: 15,
                color: Color(0xff323233),
                fontWeight: FontWeight.w600))
        : Container(
            width: widget.width,
            height: widget.height,
            padding:
                const EdgeInsets.only(left: 10, right: 10, top: 8, bottom: 8),
            decoration: const BoxDecoration(
                color: Color(0xfff3f3f3),
                borderRadius: BorderRadius.all(Radius.circular(15))),
            child: _controller == null || !_controller!.value.isInitialized
                ? Container()
                : Row(
                    children: [
                      InkWell(
                          onTap: () {
                            //点击播放、暂停按钮
                            if (_controller!.value.isPlaying) {
                              _controller?.pause().then((value) {
                                if (mounted) {
                                  setState(() {});
                                }
                              });
                            } else {
                              _controller?.play().then((value) {
                                if (mounted) {
                                  setState(() {});
                                }
                              });
                            }
                          },
                          child: _controller!.value.isPlaying
                              ? Image.asset(
                                  'images/icon_stop_record.png',
                                  width: 30,
                                  height: 30,
                                )
                              : Image.asset(
                                  'images/icon_start_record.png',
                                  width: 30,
                                  height: 30,
                                )),
                      const SizedBox(width: 8),
                      Expanded(
                        child: NeumorphicSlider(//进度条
                          height: 4,
                          min: 0,
                          max: _controller!.value.duration.inMilliseconds
                              .toDouble(),
                          value: _controller!.value.position.inMilliseconds
                              .toDouble(),
                          thumb: ClipOval(//进度游标
                            child: Container(
                              width: 6,
                              height: 5,
                              color: const Color(0xff5974f4),
                            ),
                          ),
                          style: const SliderStyle(
                            // variant: Colors.white,
                            // accent: Colors.white,
                            variant: Color(0xffd9d9d9),
                            accent: Color(0xffd9d9d9),
                          ),
                          onChanged: (value) {},
                        ),
                      ),
                      const SizedBox(width: 8),
                      Text(
                          "${_controller!.value.duration.inSeconds.toDouble()}s",
                          style: const TextStyle(
                              color: Color(0xcc333333), fontSize: 10)),
                    ],
                  ),
          );
  }

  @override
  void dispose() {
    //释放控制器
    _controller?.dispose();
    super.dispose();
  }
}

调用示例

Scaffold(
  appBar: universalAppBar('音频播放器控件', false),
  body: Padding(
    padding: const EdgeInsets.only(left: 15, right: 15, top: 20),
    child: Column(
      children: [
        Row(
          children: const [
            SizedBox(
              child: Text(
                '音频播放小控件：',
                style: TextStyle(
                    fontSize: 15, color: Color(0xff323233)),
              ),
            ),
            Expanded(
              child: Align(
                alignment: Alignment.centerRight,
                child:  AudioPlayerView(//播放器控件
                  width: 160,
                  height: 30,
                  alarmAudioUrl: 'http://121.40.242.110:8401/aispeech/ota/6285e81ce4b05c7c8ef04b291652942876549.wav',
                ),
              ),
            )
          ],
        ),
      ],
    ),
  )
)

11. 视频播放器（暂缓）

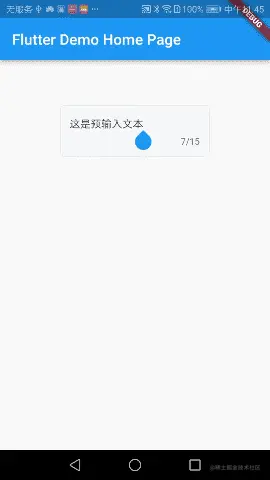

12. 自适应高度输入框，支持字符限定，支持预输入文本

效果图：

///自适应输入框
///支持高度自适应，自动换行，
///支持限定最大字数
///支持展示预输入文本
Widget autoAdjustInputBox() {
  String text = '这是预输入文本';
  return StatefulBuilder(builder: (context, setState) {
    return Padding(
      padding: const EdgeInsets.only(right: 80, left: 80, top: 60),
      child: Container(
        padding: const EdgeInsets.all(12),
        decoration: BoxDecoration(
            borderRadius: const BorderRadius.all(Radius.circular(6)),
            color: const Color(0xfff7f8fa),
            border: Border.all(
                color: const Color(0xffebebeb),
                width: 1,
                style: BorderStyle.solid)),
        child: TextField(
          controller: text.isEmpty ? null : TextEditingController(text: text),
          style: const TextStyle(
              fontSize: 14, color: Color(0xff323233), height: 1.5),
          maxLines: null,
          maxLength: 15,
          keyboardType: TextInputType.multiline,
          decoration: InputDecoration.collapsed(
            hintText: '请输入内容...',
            hintStyle: text.isEmpty
                ? const TextStyle(fontSize: 14, color: Color(0xffcccccc))
                : const TextStyle(
                    fontSize: 14, color: Color(0xff323233), height: 1.5),
          ),
          onChanged: (value) {
            if (value.isEmpty) {
              setState.call(() {
                text = value;
              });
            } else {
              text = value;
            }
          },
        ),
      ),
    );
  });
}

flutter UI控件集锦

1. 上拉刷新下拉加载

2. 网格布局GridView

3. 效仿BottomNavigationBar自定义底部菜单栏，支持未读消息角标显示

3.1 使用DefaultTabController结合IndexedStack，实现菜单页切换效果

3.2 自定义导航栏菜单

3.2.1 属性介绍

3.2.2 未读消息数角标显示

3.2.3 导航栏菜单控件完整代码

4. 自定义高度的AppBar

5. TabBarView使用

6. 多样式富文本展示

7. ElevatedButton按钮的使用

8. 仿IOS苹果弹窗dialog，各种弹窗

8.1 简单确认窗

8.2 带有输入框的弹窗

8.3 自定义转轮式选择弹窗，底部弹窗，CupertinoPicker

8.3.1 使用showCupertinoModalPopup从底部显示弹窗

8.3.2 使用CupertinoPicker选择器展示日期选择

8.4 仿ios底部弹出菜单

9. 仿DropdownButton pop弹出下拉菜单按钮，三级级联菜单

9.1 三级菜单数据

9.2 相关动画详解

9.3 下拉菜单页展示

10. 自定义音频播放器小部件

11. 视频播放器（暂缓）

12. 自适应高度输入框，支持字符限定，支持预输入文本
