kafka connector

Kafka Connect 是一个可扩展、可靠的在Kafka和其他系统之间流传输的数据工具。它可以通过connectors（连接器）简单、快速的将大集合数据导入和导出kafka。

1. 安装配置

1.1 下载并配置kafka

我们使用的是kafka_2.13-2.8.0.tgz 您可以自行下载

解压到目录 D:\soft\kafka_2.13-2.8.0 这是我的根目录

修改 D:\soft\kafka_2.13-2.8.0\config 文件夹以下文件内容

zookeeper.properties 需要修改的地方：

dataDir=D:/soft/kafka_2.13-2.8.0/data/zookeeper

server.properties 需要修改的地方：

log.dirs=D:/soft/kafka_2.13-2.8.0/data/kafka-logs

在D:\soft\kafka_2.13-2.8.0\bin\windows 下我们新建一个 a.bat 文件内容如下

start zookeeper-server-start.bat ../../config/zookeeper.properties
rem -E 如果sleep命令不可用可以用 ping -n 10 127.0.0.1>nul
sleep 5
start kafka-server-start.bat  ../../config/server.properties

这个命令会先启动 zookeeper 等zookeeper启动5秒后再启动 kafka

1.2 下载图形管理界面 kafka-map

官方 kafka-map: 一个美观简洁且强大的kafka web管理工具。

下载地址 github.com/dushixiang/…

解压到 D:\soft\kafka_2.13-2.8.0\kafka-map

在 D:\soft\kafka_2.13-2.8.0\kafka-map 新建 startKafkaMap.bat 内容如下：

java -jar kafka-map.jar

1.3 启动验证

启动 a.bat

启动 startKafkaMap.bat

访问 http://localhost:8080/ ，账户和密码默认都是 admin

看到如下页面就是成功了

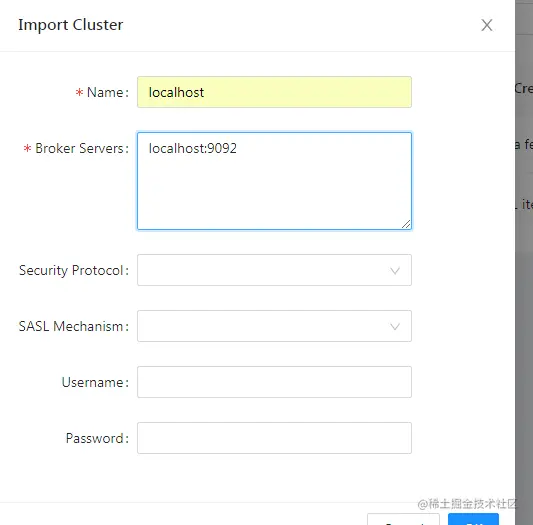

添加集群

2. kafka connector入门样例

我们先运行一下官方提供的一个例子，这个例子中会把server.properties 用FileStreamSource 读取然后保存到kafka 队列

然后用FileStreamSink 消费队列并保存到 server.properties1 中

2.1 配置connector

D:\soft\kafka_2.13-2.8.0\config\connect-distributed.properties

bootstrap.servers=localhost:9092

2.2 启动 connector

在 D:\soft\kafka_2.13-2.8.0\bin\windows 目录下先创建一个aConnect.bat 内容如下：

start zookeeper-server-start.bat ../../config/zookeeper.properties
sleep 5
start kafka-server-start.bat  ../../config/server.properties
sleep 5
start connect-distributed.bat  ../../config/connect-distributed.properties

2.3 检查环境

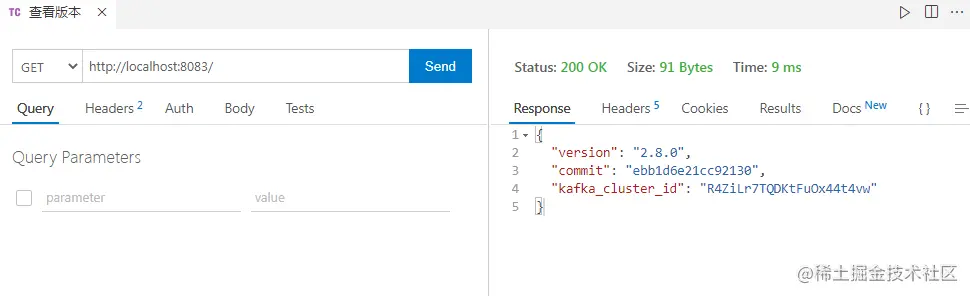

发送 GET 请求到 http://localhost:8083/ 查看状态

查看所有插件 http://localhost:8083/connector-plugins

2.3 配置 file connector source 端

FileStreamSource 会把 "D:/soft/kafka_2.13-2.8.0/config/server.properties" 这个文件逐行读取后保存到 "kafka-config-topic" 这个队列中

http://localhost:8083/connectors

{
    "name":"load-kafka-config",
    "config":{
        "connector.class":"FileStreamSource",
        "file":"D:/soft/kafka_2.13-2.8.0/config/server.properties",
        "topic":"kafka-config-topic"
    }
}

接口返回结果截图如下

查看状态

http://localhost:8083/connectors/load-kafka-config/status

在kafka-map中点击箭头所指内容

查看topic 内容

2.4 配置 file connector sink端

FileStreamSink 会消费 "kafka-config-topic" 这个队列并把内容保存到 "D:/soft/kafka_2.13-2.8.0/config/server.properties1"

http://localhost:8083/connectors

{
    "name":"dump-kafka-config",
    "config":{
        "connector.class":"FileStreamSink",
        "file":"D:/soft/kafka_2.13-2.8.0/config/server.properties1",
        "topics":"kafka-config-topic"
    }
}

接口返回结果如下;

运行完成后会发现 D:\soft\kafka_2.13-2.8.0\config 目录下多了一个server.properties1 文件，而且文件内容和 server.properties 一样

2.5 查看当前活跃的 connector

http://localhost:8083/connectors

2.6 删除connector

DELETE http://localhost:8083/connectors/load-kafka-config

DELETE http://localhost:8083/connectors/dump-kafka-config

查看活跃的connetor，发现结果已经为空

3. 集成 debezium mysql connector

在这个例子中我们会用 debezium mysql connector 监控mysql binlog 并把变更内容保存到kafka 队列中

3.1 mysql 准备

为了简单专门用于复制的用户我们就不创建了，我们直接用root 用户

必须配置以下参数

[mysqld]
server-id = 8023
port=8023
log-bin=D:/soft/mysql/mysql8023/data1/8023/binlog/mysql-bin
transaction-isolation= READ-COMMITTED
binlog_format = ROW
gtid_mode =ON
enforce_gtid_consistency = ON
default-time-zone = '+8:00'

还有一些可选的优化参数请参考官方文档

debezium.io/documentati…

准备好后就可以启动mysql了，在此我们用的mysql版本为8.0.29

准备一个测试库和一个测试表

CREATE DATABASE `test1` ;

CREATE TABLE `demo` (
    `id` INT(10) NOT NULL,
    `name` VARCHAR(50) NULL DEFAULT NULL ,
    PRIMARY KEY (`id`) USING BTREE
);

-- 插入测试数据
INSERT INTO `demo` (`id`, `name`) VALUES (111, '222');

3.2 debezium 准备

下载 debezium 集成kafka connect 插件

repo1.maven.org/maven2/io/d…

或者查找自己的需要的版本 repo1.maven.org/maven2/io/d…

把文件debezium-connector-mysql-2.0.0.Alpha1-plugin.tar.gz 解压到 D:\soft\kafka_2.13-2.8.0\plugin

在 connect-distributed.properties 配置如下参数，注意路径不要包含 debezium-connector-mysql

plugin.path=D:/soft/kafka_2.13-2.8.0/plugin/

添加完成后需要重启kafka 和 connect

查看启动日志是否已经加载插件

[2022-05-11 16:09:48,408] INFO Registered loader: PluginClassLoader{pluginLocation=file:/D:/soft/kafka_2.13-2.8.0/plugin/debezium-connector-mysql/} (org.apache.kafka.connect.runtime.isolation.DelegatingClassLoader:269)
[2022-05-11 16:09:48,410] INFO Added plugin 'io.debezium.connector.mysql.MySqlConnector' (org.apache.kafka.connect.runtime.isolation.DelegatingClassLoader:198)

查看可用的插件

3.3 安装connnector

发送 POST 给 http://localhost:8083/connectors

请求正文为 connector 配置参数

{
  "name": "conn-8023",
  "config": {
    "connector.class": "io.debezium.connector.mysql.MySqlConnector",
    "database.hostname": "localhost",
    "database.port": "8023",
    "database.user": "root",
    "database.password": "123456",
    "database.server.id": "8023",
    "database.server.name": "local8023",
    "database.include.list": "test1",
    "database.history.kafka.bootstrap.servers": "localhost:9092",
    "database.history.kafka.topic": "dbhistory.local8023",
    "include.schema.changes": "true"
  }
}

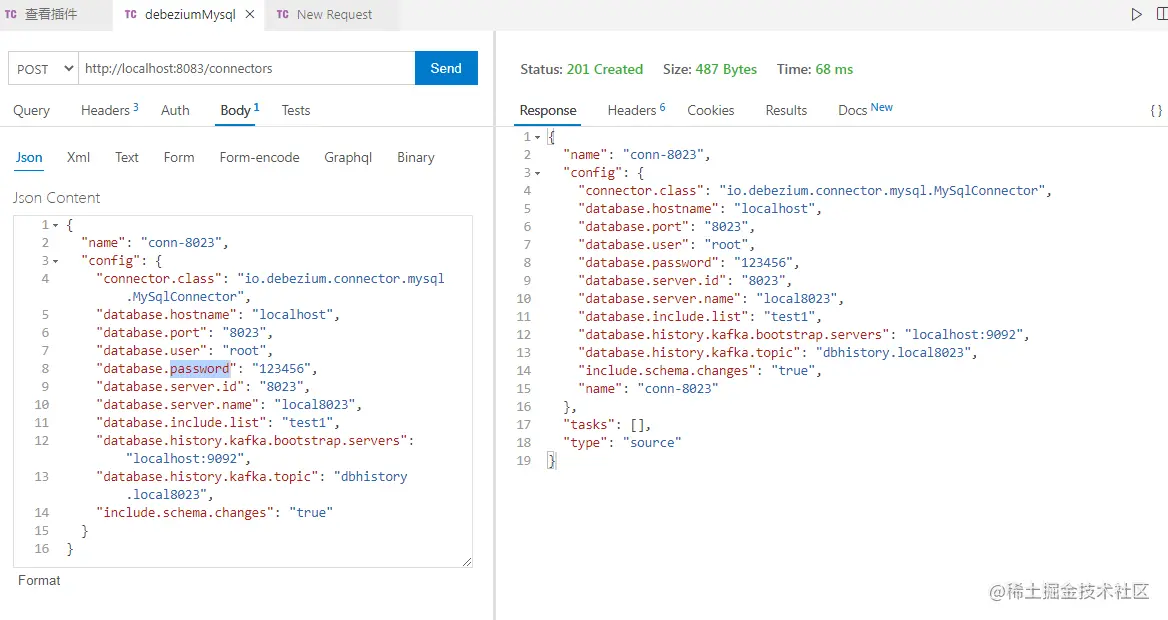

参考图片

最新版本 debezium-core-2.0.0.Final 出现了错误

2022-11-23 11:31:30,326] INFO [conn-8023|task-0] No previous offsets found (io.debezium.connector.common.BaseSourceTask:339)
[2022-11-23 11:31:30,329] ERROR [conn-8023|task-0] The 'schema.history.internal.kafka.topic' value is invalid: A value is required (io.debezium.storage.kafka.history.KafkaSchemaHistory:1906)
[2022-11-23 11:31:30,330] ERROR [conn-8023|task-0] The 'schema.history.internal.kafka.bootstrap.servers' value is invalid: A value is required (io.debezium.storage.kafka.history.KafkaSchemaHistory:1906)

原因是：多了一个参数 "topic.prefix" 且以下两个参数换了名称 "schema.history.internal.kafka.topic": "dbhistory.local8023", "schema.history.internal.kafka.bootstrap.servers": "localhost:9092"

{
  "name": "conn-8023",
  "config": {
    "connector.class": "io.debezium.connector.mysql.MySqlConnector",
    "database.hostname": "localhost",
    "database.port": "8023",
    "database.user": "root",
    "database.password": "123456",
    "database.server.id": "8023",
    "database.server.name": "local8023",
    "include.schema.changes": "true",
    "database.include.list": "test",
    "topic.prefix": "test_",
    "schema.history.internal.kafka.topic": "dbhistory.local8023",
    "schema.history.internal.kafka.bootstrap.servers": "localhost:9092"
  }
}

返回的响应如下

{
  "name": "conn-8023",
  "config": {
    "connector.class": "io.debezium.connector.mysql.MySqlConnector",
    "database.hostname": "localhost",
    "database.port": "8023",
    "database.user": "root",
    "database.password": "123456",
    "database.server.id": "8023",
    "database.server.name": "local8023",
    "include.schema.changes": "true",
    "database.include.list": "test",
    "topic.prefix": "test_",
    "schema.history.internal.kafka.topic": "dbhistory.local8023",
    "schema.history.internal.kafka.bootstrap.servers": "localhost:9092",
    "name": "conn-8023"
  },
  "tasks": [],
  "type": "source"
}

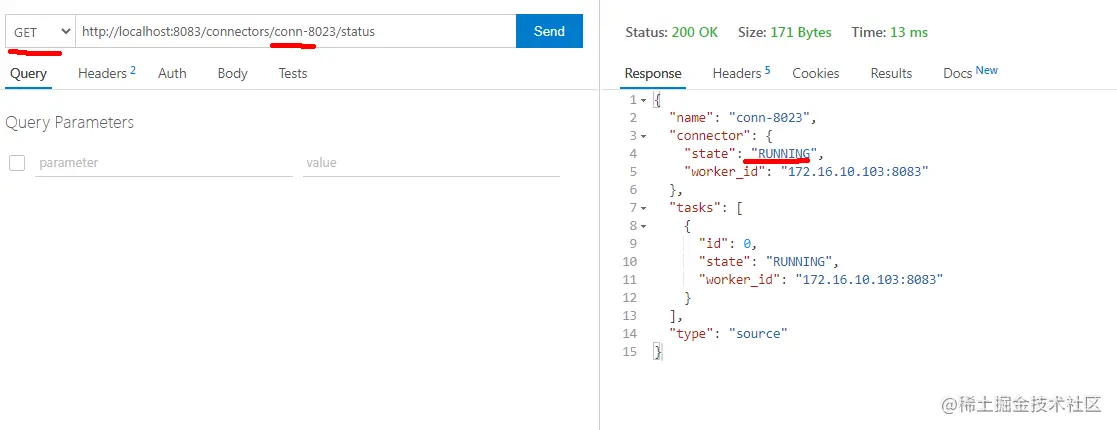

查询状态


http://localhost:8083/connectors/conn-8023/status
返回

{
	"name" : "conn-8023",
	"connector" : {
		"state" : "RUNNING",
		"worker_id" : "172.19.64.1:8083"
	},
	"tasks" : [{
			"id" : 0,
			"state" : "RUNNING",
			"worker_id" : "172.19.64.1:8083"
		}
	],
	"type" : "source"
}

3.4 查看运行状态

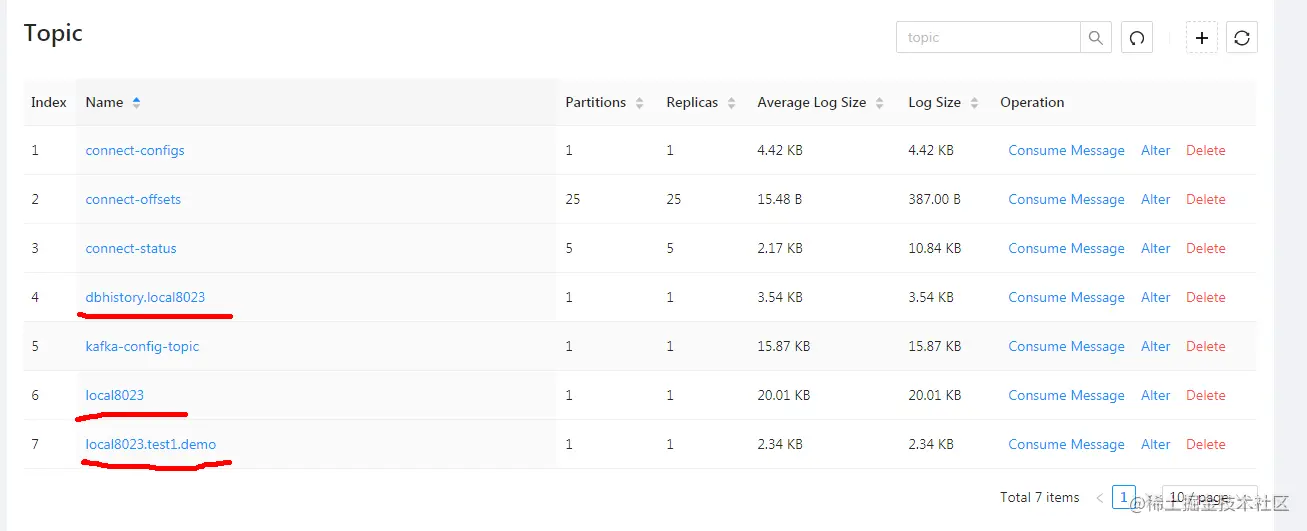

用kafka-map 查看数据

查看 local8023.test1.demo 的数据

{
    "schema": {
        ...
    },
    "payload": {
        "before": null,
        "after": {
            "id": 111,
            "name": "222"
        },
        "source": {
            ...
        },
        "op": "r",
        "ts_ms": 1652258099933,
        "transaction": null
    }
}

再执行一些sql测试一下

-- 插入测试数据
INSERT INTO `demo` (`id`, `name`) VALUES (222, '新数据222');
update demo set name='111修改后' where id=111;
DELETE FROM demo WHERE id=222;

插入事件

"payload": {
        "before": null,
        "after": {
            "id": 222,
            "name": "新数据222"
        },
        "source": {
            ...
        },
        "op": "c",
        "ts_ms": 1652258788884,
        "transaction": null
    }

修改事件

"payload": {
        "before": {
            "id": 111,
            "name": "222"
        },
        "after": {
            "id": 111,
            "name": "111修改后"
        },
        "source": {
            ...
        },
        "op": "u",
        "ts_ms": 1652258788887,
        "transaction": null
    }

删除事件

"payload": {
        "before": {
            "id": 222,
            "name": "新数据222"
        },
        "after": null,
        "source": {
            ...
        },
        "op": "d",
        "ts_ms": 1652258985267,
        "transaction": null
    }

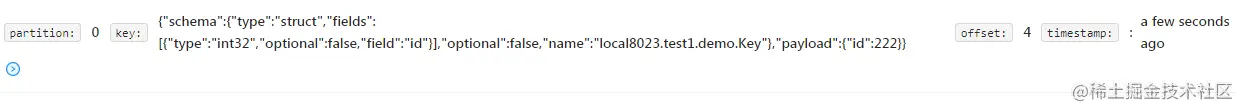

删除后的墓碑事件
