之前我们讲解了cache_t的数据结构以及扩容规则，知道cache_t的作用就是缓存方法，目的就是为了当这个方法再次被调用时能够更快得进行响应。那么，是如何从cache_t中读取数据的呢？今天我们来探索一下。

objc_msgSend objc_msgSendSuper 解析

 *
 * Cache readers (PC-checked by collecting_in_critical())
 * objc_msgSend*
 * cache_getImp
 *

首先看一下代码

#import "AppDelegate.h"
#import <objc/runtime.h>
#import <objc/message.h>

@interface LGPerson : NSObject

- (void)study;
- (void)happy;

@end

@implementation LGPerson

- (void)study{
    NSLog(@"%s",__func__);
}

- (void)happy{
    NSLog(@"%s",__func__);
}

@end

int main(int argc, char * argv[]) {
    NSString * appDelegateClassName;
    @autoreleasepool {
        // Setup code that might create autoreleased objects goes here.
        appDelegateClassName = NSStringFromClass([AppDelegate class]);

        LGPerson *p = [LGPerson alloc];
        [p study];
        [p happy];

    }
    return UIApplicationMain(argc, argv, nil, appDelegateClassName);
}

cd main.m 文件所在的文件夹
xcrun -sdk iphonesimulator clang -rewrite-objc main.m

int main(int argc, char * argv[]) {
    NSString * appDelegateClassName;
    /* @autoreleasepool */ { __AtAutoreleasePool __autoreleasepool;
        appDelegateClassName = NSStringFromClass(((Class (*)(id, SEL))(void *)objc_msgSend)((id)objc_getClass("AppDelegate"), sel_registerName("class")));
        LGPerson *p = ((LGPerson *(*)(id, SEL))(void *)objc_msgSend)((id)objc_getClass("LGPerson"), sel_registerName("alloc"));
        ((void (*)(id, SEL))(void *)objc_msgSend)((id)p, sel_registerName("study"));
        ((void (*)(id, SEL))(void *)objc_msgSend)((id)p, sel_registerName("happy"));
    }
    return UIApplicationMain(argc, argv, __null, appDelegateClassName);
}

在main.cpp文件里我们可以看到下面的代码

__OBJC_RW_DLLIMPORT void objc_msgSend(void);
__OBJC_RW_DLLIMPORT void objc_msgSendSuper(void);
__OBJC_RW_DLLIMPORT void objc_msgSend_stret(void);
__OBJC_RW_DLLIMPORT void objc_msgSendSuper_stret(void);
__OBJC_RW_DLLIMPORT void objc_msgSend_fpret(void);

接下来我们就看一下objc_msgSend与objc_msgSendSuper的区别

看下面的代码

#import "LGPerson.h"

NS_ASSUME_NONNULL_BEGIN

@interface LGTeacher : LGPerson

@end

NS_ASSUME_NONNULL_END

#import "LGTeacher.h"
#import <objc/message.h>

@implementation LGTeacher

-(instancetype)init {
    if (self = [super init]) {
        NSLog(@"%@",[self class]);
        NSLog(@"%@",[super class]);
    }
    return self;
}

@end

LGTeacher继承LGPerson 在LGTeacher.m内重写init方法 分别打印[self class] [super class] 看一下打印结果：

2022-05-01 12:50:57.456129+0800 002--objc_msgSendSuper[53554:1619027] LGTeacher
2022-05-01 12:50:57.456257+0800 002--objc_msgSendSuper[53554:1619027] LGTeacher

我们看到打印的结果都是LGTeacher，这是为什么呢？ 先看一下.cpp文件

static instancetype _I_LGTeacher_init(LGTeacher * self, SEL _cmd) {
    if (self = ((LGTeacher *(*)(__rw_objc_super *, SEL))(void *)objc_msgSendSuper)((__rw_objc_super){(id)self, (id)class_getSuperclass(objc_getClass("LGTeacher"))}, sel_registerName("init"))) {
        NSLog((NSString *)&__NSConstantStringImpl__var_folders_55_v0dk5ypx4c1frzh0fjm9y28h0000gn_T_LGTeacher_007eea_mi_0,((Class (*)(id, SEL))(void *)objc_msgSend)((id)self, sel_registerName("class")));
        NSLog((NSString *)&__NSConstantStringImpl__var_folders_55_v0dk5ypx4c1frzh0fjm9y28h0000gn_T_LGTeacher_007eea_mi_1,((Class (*)(__rw_objc_super *, SEL))(void *)objc_msgSendSuper)((__rw_objc_super){(id)self, (id)class_getSuperclass(objc_getClass("LGTeacher"))}, sel_registerName("class")));
    }
    return self;
}

通过.cpp文件我们可以清晰地看到 当我们通过[self class] 的时候编译成为 objc_msgSend函数，当我们通过[super class]时候编译成为objc_msgSendSuper函数。

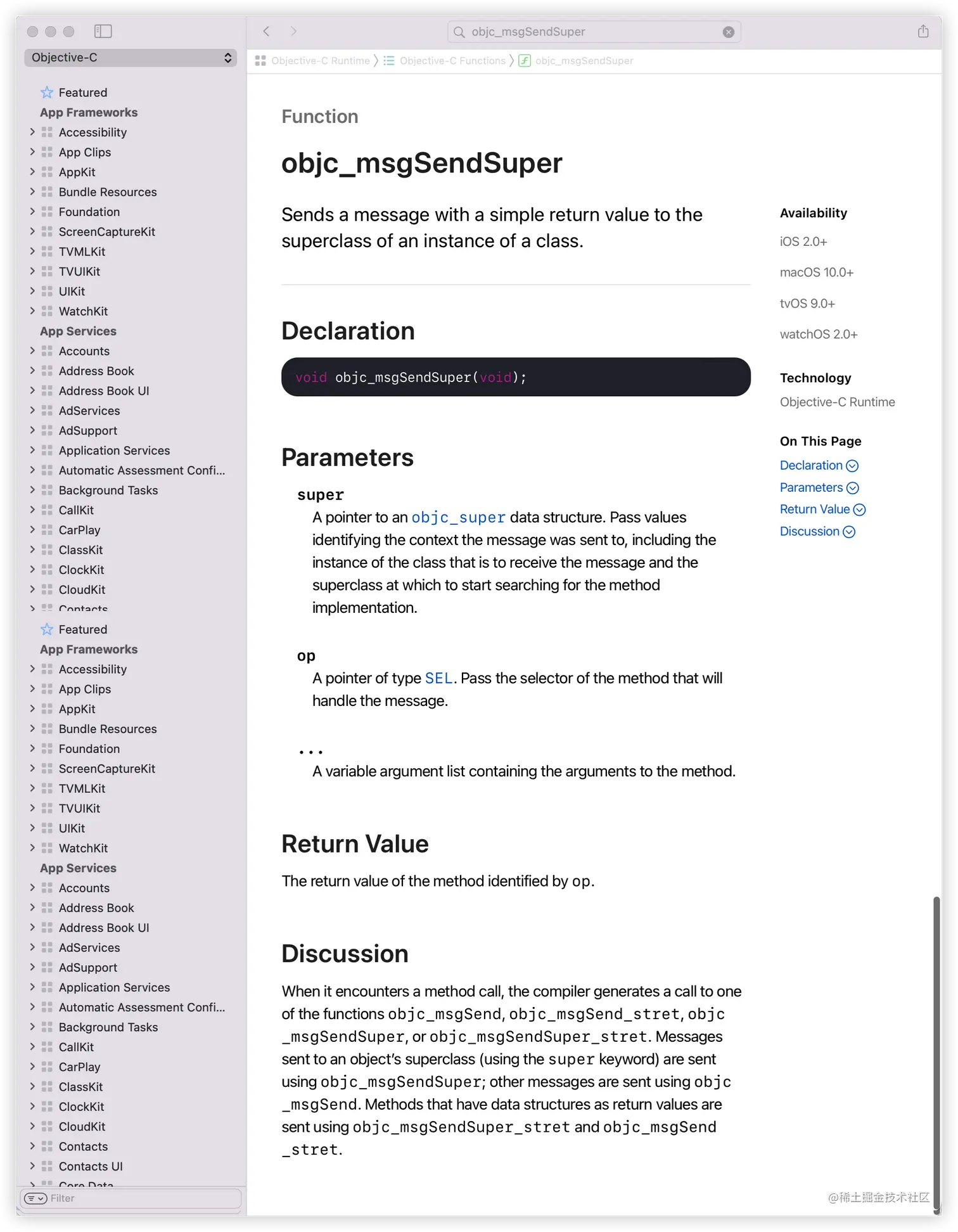

我们通过xcode->help->Developer Documentation->search objc_msgSendSuper可以看到关于objc_msgSendSuper的描述以及参数。

对于objc_msgSendSuper的描述：
意思就是当方法调用时，编译器会生成对objc_msgSend、objc_msgsend_street、objc_msgSendSuper或objc_msgsendsuper_street函数之一的调用。如果使用关键字super 发送到对象的超类的消息时使用objc_msgSendSuper发送，其他消息使用objc_msgSend发送。

对于objc_msgSendSuper参数的描述：
objc_super结构体指针，包括要接收消息的类的实例和开始搜索方法实现的超类。

struct objc_super {
    /// Specifies an instance of a class.
    __unsafe_unretained _Nonnull id receiver;

    /// Specifies the particular superclass of the instance to message.
#if !defined(__cplusplus)  &&  !__OBJC2__
    /* For compatibility with old objc-runtime.h header */
    __unsafe_unretained _Nonnull Class class;
#else
    __unsafe_unretained _Nonnull Class super_class;
#endif
    /* super_class is the first class to search */
};

结合上面的.cpp文件的代码，我们可以总结出无论是[self class] 还是[super class]，消息接受者都是LGTeacher，不同的地方就是找方法的初始位置不一样，[super class]要从其父类开始找。

方法的快速查找流程

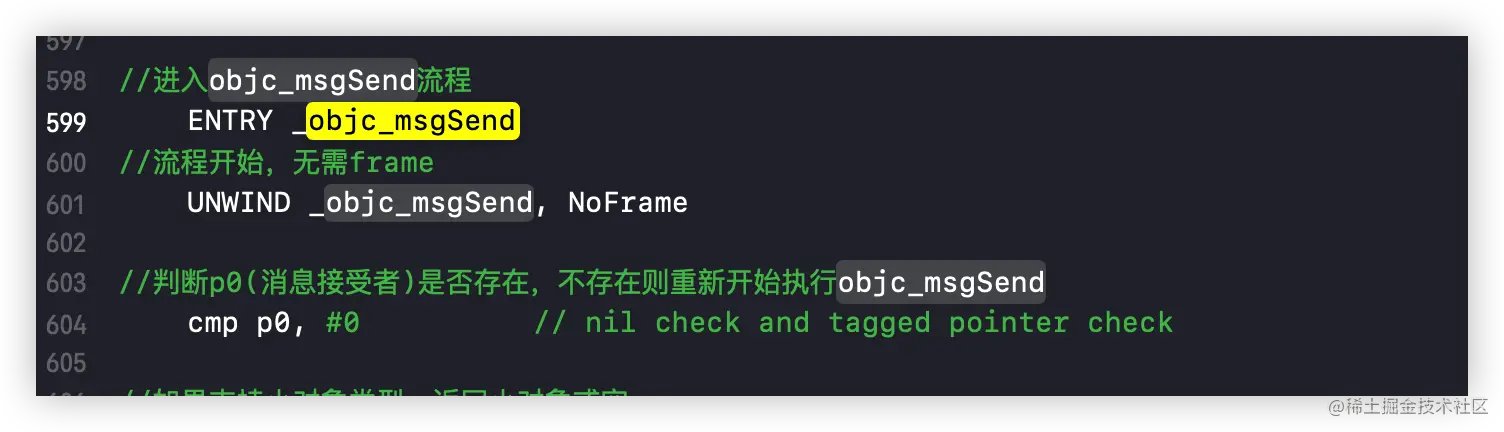

首先我们在源码中搜索objc_msgSend,在objc-msg-arm64中找到ENTRY _objc_msgSend，会发现 objc_msgSend是用汇编写的

分析并可以得到以下结论:

objc_msgSend(receiver,sel...) 1.判断receiver(消息的接受者)是否存在

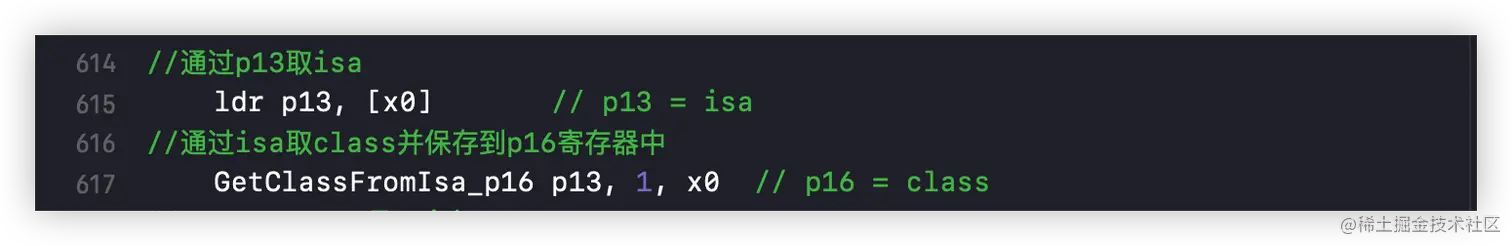

2.根据receiver的isa指针&掩码得到class

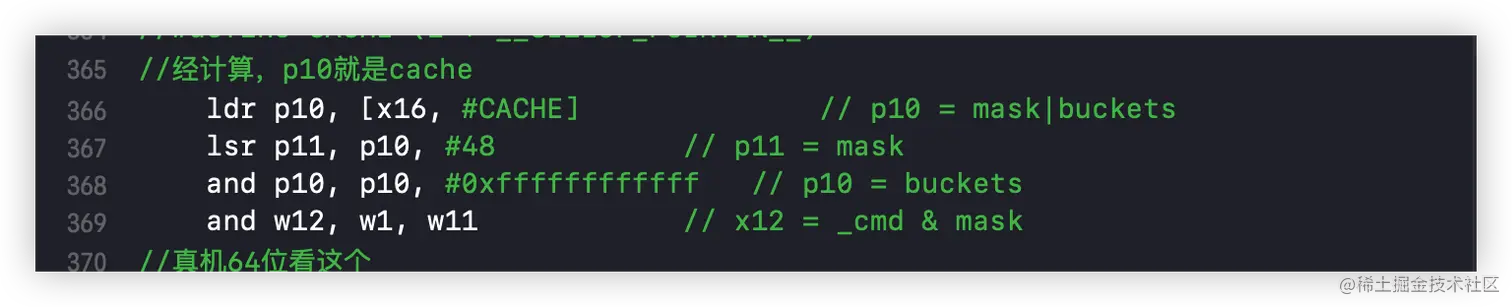

3.class内存平移16字节得到cache_t
4.调用cache_t的buckets() 方法获取buckets
5.遍历buckets ，对比sel，在缓存中有没有我们要找的sel

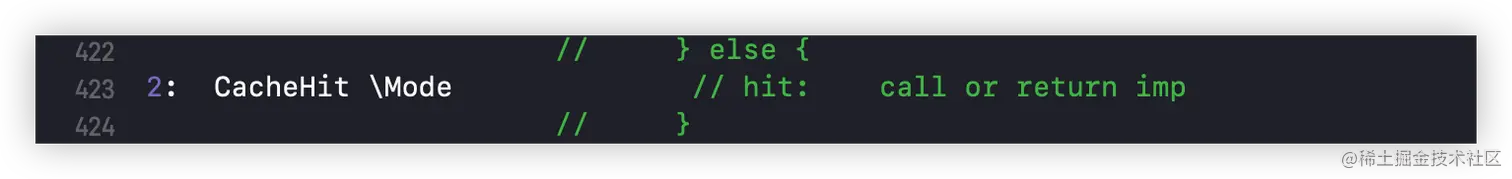

6.如果bucket(sel,imp)对比sel 相等 -->cacheHit-->调用imp

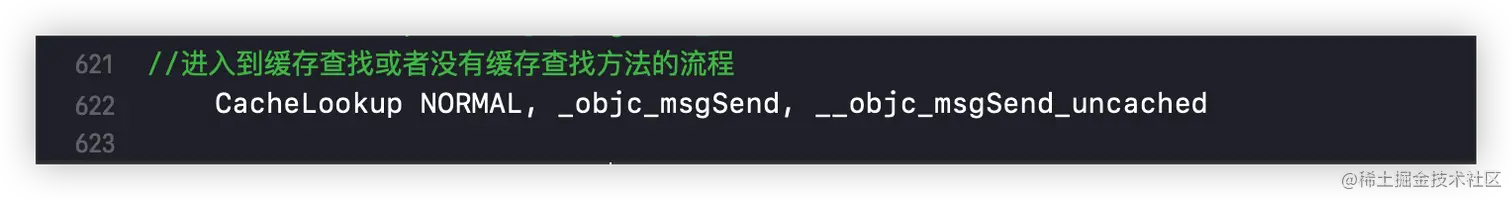

7.如果cache里面没有找到对应的sel，调用_objc_msgSend_uncached

方法的慢速查找算法

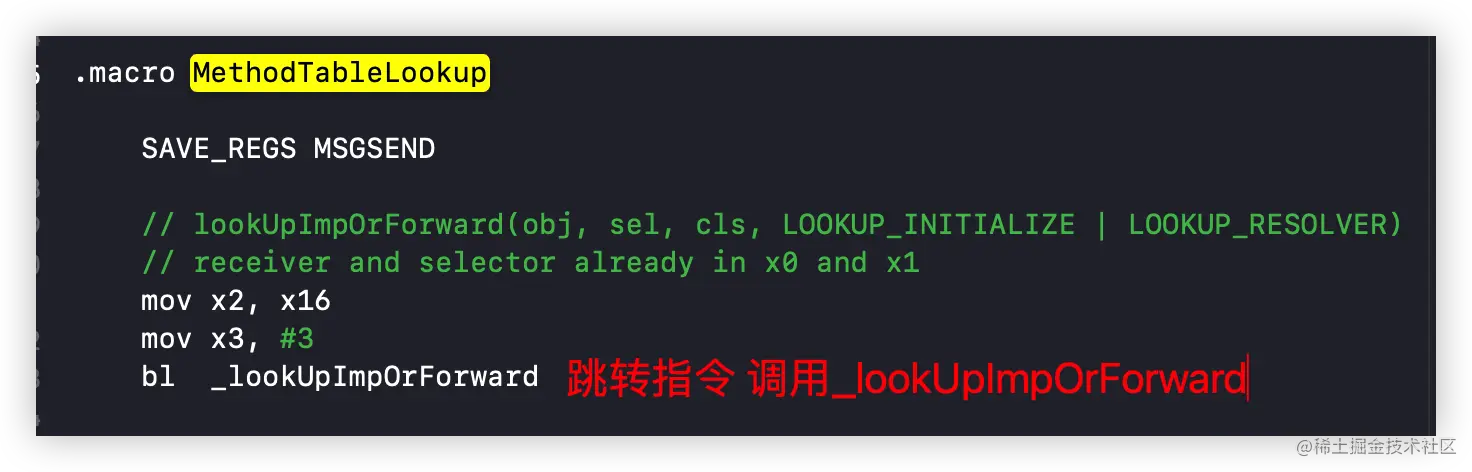

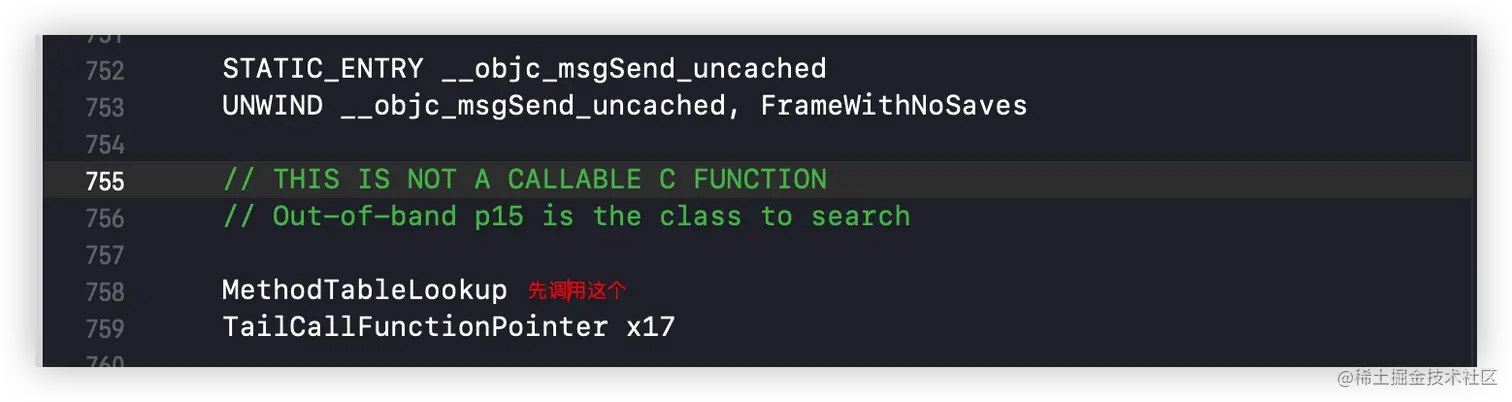

消息的快速查找也就是在cache中没有找到对应的方法，就会调用_objc_msgSend_uncached这个函数，接下来我们就来研究一下_objc_msgSend_uncached

lookUpImpOrForward方法实现代码

IMP lookUpImpOrForward(id inst, SEL sel, Class cls, int behavior)
{
    ...

    for (unsigned attempts = unreasonableClassCount();;) {
        if (curClass->cache.isConstantOptimizedCache(/* strict */true)) {
#if CONFIG_USE_PREOPT_CACHES
            imp = cache_getImp(curClass, sel);
            if (imp) goto done_unlock;
            curClass = curClass->cache.preoptFallbackClass();
#endif
        } else {
            // curClass method list.
            method_t *meth = getMethodNoSuper_nolock(curClass, sel);
            if (meth) {
                imp = meth->imp(false);
                goto done;
            }

            if (slowpath((curClass = curClass->getSuperclass()) == nil)) {
                // No implementation found, and method resolver didn't help.
                // Use forwarding.
                imp = forward_imp;
                break;
            }
        }

        // Halt if there is a cycle in the superclass chain.
        if (slowpath(--attempts == 0)) {
            _objc_fatal("Memory corruption in class list.");
        }

        // Superclass cache.
        imp = cache_getImp(curClass, sel);
        if (slowpath(imp == forward_imp)) {
            // Found a forward:: entry in a superclass.
            // Stop searching, but don't cache yet; call method
            // resolver for this class first.
            break;
        }
        if (fastpath(imp)) {
            // Found the method in a superclass. Cache it in this class.
            goto done;
        }
    }

    // No implementation found. Try method resolver once.

    if (slowpath(behavior & LOOKUP_RESOLVER)) {
        behavior ^= LOOKUP_RESOLVER;
        return resolveMethod_locked(inst, sel, cls, behavior);
    }

 done:
    if (fastpath((behavior & LOOKUP_NOCACHE) == 0)) {
#if CONFIG_USE_PREOPT_CACHES
        while (cls->cache.isConstantOptimizedCache(/* strict */true)) {
            cls = cls->cache.preoptFallbackClass();
        }
#endif
        log_and_fill_cache(cls, imp, sel, inst, curClass);
    }
 done_unlock:
    runtimeLock.unlock();
    if (slowpath((behavior & LOOKUP_NIL) && imp == forward_imp)) {
        return nil;
    }
    return imp;
}

从当前类的方法列表查找流程

static method_t *
getMethodNoSuper_nolock(Class cls, SEL sel)
{
    runtimeLock.assertLocked();

    ASSERT(cls->isRealized());
    // fixme nil cls?
    // fixme nil sel?

    auto const methods = cls->data()->methods();
    for (auto mlists = methods.beginLists(),
              end = methods.endLists();
         mlists != end;
         ++mlists)
    {
        // <rdar://problem/46904873> getMethodNoSuper_nolock is the hottest
        // caller of search_method_list, inlining it turns
        // getMethodNoSuper_nolock into a frame-less function and eliminates
        // any store from this codepath.
        method_t *m = search_method_list_inline(*mlists, sel);
        if (m) return m;
    }

    return nil;
}

ALWAYS_INLINE static method_t *
search_method_list_inline(const method_list_t *mlist, SEL sel)
{
    int methodListIsFixedUp = mlist->isFixedUp();
    int methodListHasExpectedSize = mlist->isExpectedSize();

    if (fastpath(methodListIsFixedUp && methodListHasExpectedSize)) {
        return findMethodInSortedMethodList(sel, mlist);
    } else {
        // Linear search of unsorted method list
        if (auto *m = findMethodInUnsortedMethodList(sel, mlist))
            return m;
    }

#if DEBUG
    // sanity-check negative results
    if (mlist->isFixedUp()) {
        for (auto& meth : *mlist) {
            if (meth.name() == sel) {
                _objc_fatal("linear search worked when binary search did not");
            }
        }
    }
#endif

    return nil;
}

二分查找算法

template<class getNameFunc>
ALWAYS_INLINE static method_t *
findMethodInSortedMethodList(SEL key, const method_list_t *list, const getNameFunc &getName)
{
    ASSERT(list);

    auto first = list->begin();
    auto base = first;
    decltype(first) probe;

    uintptr_t keyValue = (uintptr_t)key;
    uint32_t count;

    for (count = list->count; count != 0; count >>= 1) {
        probe = base + (count >> 1);

        uintptr_t probeValue = (uintptr_t)getName(probe);

        if (keyValue == probeValue) {
            // `probe` is a match.
            // Rewind looking for the *first* occurrence of this value.
            // This is required for correct category overrides.
            while (probe > first && keyValue == (uintptr_t)getName((probe - 1))) {
                probe--;
            }
            return &*probe;
        }

        if (keyValue > probeValue) {
            base = probe + 1;
            count--;
        }
    }

    return nil;
}

总结：当快速查找没有找到时，会在当前类的方法列表中进行二分查找。
