1. Image
Flutter 中的图片控件是Image ，支持下面几种类型的构造函数：
Image从ImageProvider获取图片
Image.asset使用key从AssetBundle获取图片
Image.network从网络获取图片
Image.file本地文件获取图片
Image.memory从Uint8List获取图片
支持的图片类型：JPEG, PNG, GIF, Animated GIF, WebP, Animated WebP, BMP, WBMP
2.加载网络图片
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: Image.network('http://www.devio.org/img/avatar.png'),
);
}
}
3.加载静态图片
在 pubspec.yaml 文件中声明图片资源路径；
使用 AssetImage 加载该图片；

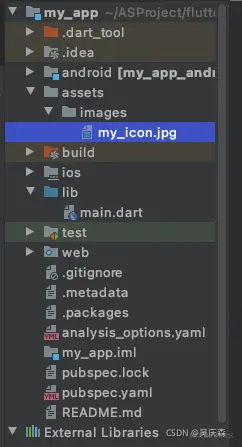

首先把图片放到指定目录下面，assets文件夹要在根目录下：
然后在 pubspec.yaml 文件中指定目录：
flutter:
uses-material-design: true
assets:
- assets/images/my_icon.jpg
最后代码中添加：
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: Image(height: 100,width: 100,
image: AssetImage('assets/images/my_icon.jpg'),),
);
}
}
另一种方法通过 Image.asset 加载：
home: Image.asset('assets/images/my_icon.jpg',width: 100,height: 100)
4.加载本地图片
加载手机中的图片
Image.file(File('/storage/emulated/0/Download/test.jpg'),width: 100,height: 100)
加载手机中的图片，有一些别的问题，添加权限获取授权，然后再进行显示图片，这里代码较多，所以写到另一篇文章中，下面链接文章最后有完整代码：
5.设置 Placeholder
transparent_image 插件加载图片，可以显示进度条，逐渐透明显示出来加载的图片：
pubspec.yaml 添加：
transparent_image: ^2.0.0
添加包：
import 'package:transparent_image/transparent_image.dart';
添加代码：
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: Stack(
children: [
//进度条
Center(child: CircularProgressIndicator(),),
Center(
//网络加载时渐变出现
child: FadeInImage.memoryNetwork(
// Placeholder
placeholder: kTransparentImage,
image: "https://www.devio.org/img/avatar.png",
),
)
],
),
);
}
}
加载本地资源图片，先显示我们的gif进度条，然后再显示加载成功的图片：
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: Stack(
children: [
// 进度条
Center(
// 网络加载时渐变出现
child: FadeInImage.assetNetwork(
// Placeholder
placeholder: 'assets/images/my_icon.gif',
image: "https://www.devio.org/img/avatar.png",
),
)
],
),
);
}
extra: blurhash模糊placeholder
利用flutter_blurhash 插件模糊图片：
pubspec.yaml 添加：
flutter_blurhash: ^0.7.0
添加包：
import 'package:flutter_blurhash/flutter_blurhash.dart';
添加代码：
class BlurHashApp extends StatelessWidget {
const BlurHashApp({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) => MaterialApp(
home: Scaffold(
appBar: AppBar(title: const Text("BlurHash")),
body: const SizedBox.expand(
child: Center(
child: AspectRatio(
aspectRatio: 1.6,
child: BlurHash(hash: "L5H2EC=PM+yV0g-mq.wG9c010J}I"),
),
),
),
),
);
}

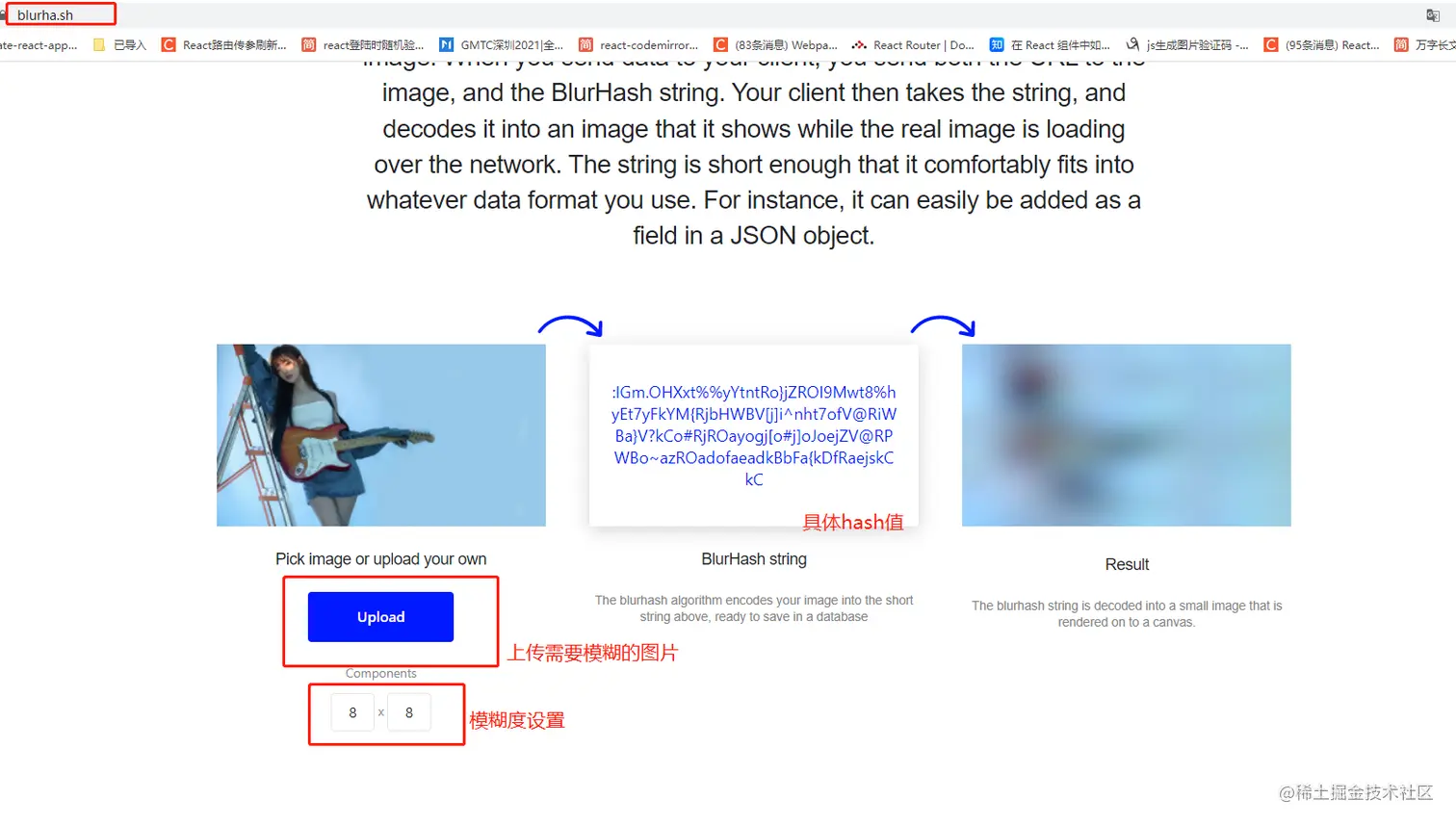

具体的blurhash值可通过网站blurha.sh/获取
6.配置图片缓存
利用cached_network_image 插件加载网络图片，缓存到本地：
pubspec.yaml 添加：
cached_network_image: ^3.2.0
添加包：
import 'package:cached_network_image/cached_network_image.dart'; 添加代码：
home: Scaffold(
appBar: AppBar(
title: Text('title'),
),
body: Center(
child: CachedNetworkImage(
// Placeholder
placeholder: (context, url) => CircularProgressIndicator(),
imageUrl: "https://www.devio.org/img/avatar.png",
errorWidget: (context, url, error) => new Icon(Icons.error),
),
),
)
官方实例：
import 'package:cached_network_image/cached_network_image.dart';
import 'package:flutter/material.dart';
import 'package:flutter/widgets.dart';
import 'package:baseflow_plugin_template/baseflow_plugin_template.dart';
import 'package:flutter_blurhash/flutter_blurhash.dart';
void main() {
CachedNetworkImage.logLevel = CacheManagerLogLevel.debug;
runApp(BaseflowPluginExample(
pluginName: 'CachedNetworkImage',
githubURL: 'https://github.com/Baseflow/flutter_cache_manager',
pubDevURL: 'https://pub.flutter-io.cn/packages/flutter_cache_manager',
pages: [
BasicContent.createPage(),
ListContent.createPage(),
GridContent.createPage(),
],
));
}
/// Demonstrates a [StatelessWidget] containing [CachedNetworkImage]
class BasicContent extends StatelessWidget {
const BasicContent({Key? key}) : super(key: key);
static ExamplePage createPage() {
return ExamplePage(Icons.image, (context) => const BasicContent());
}
@override
Widget build(BuildContext context) {
return SingleChildScrollView(
child: Center(
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: <Widget>[
_blurHashImage(),
_sizedContainer(
const Image(
image: CachedNetworkImageProvider(
'https://via.placeholder.com/350x150',
),
),
),
_sizedContainer(
CachedNetworkImage(
progressIndicatorBuilder: (context, url, progress) => Center(
child: CircularProgressIndicator(
value: progress.progress,
),
),
imageUrl:
'https://images.unsplash.com/photo-1532264523420-881a47db012d?ixlib=rb-1.2.1&ixid=eyJhcHBfaWQiOjEyMDd9',
),
),
_sizedContainer(
CachedNetworkImage(
placeholder: (context, url) =>
const CircularProgressIndicator(),
imageUrl: 'https://via.placeholder.com/200x150',
),
),
_sizedContainer(
CachedNetworkImage(
imageUrl: 'https://via.placeholder.com/300x150',
imageBuilder: (context, imageProvider) => Container(
decoration: BoxDecoration(
image: DecorationImage(
image: imageProvider,
fit: BoxFit.cover,
colorFilter: const ColorFilter.mode(
Colors.red,
BlendMode.colorBurn,
),
),
),
),
placeholder: (context, url) =>
const CircularProgressIndicator(),
errorWidget: (context, url, error) => const Icon(Icons.error),
),
),
CachedNetworkImage(
imageUrl: 'https://via.placeholder.com/300x300',
placeholder: (context, url) => const CircleAvatar(
backgroundColor: Colors.amber,
radius: 150,
),
imageBuilder: (context, image) => CircleAvatar(
backgroundImage: image,
radius: 150,
),
),
_sizedContainer(
CachedNetworkImage(
imageUrl: 'https://notAvalid.uri',
placeholder: (context, url) =>
const CircularProgressIndicator(),
errorWidget: (context, url, error) => const Icon(Icons.error),
),
),
_sizedContainer(
CachedNetworkImage(
imageUrl: 'not a uri at all',
placeholder: (context, url) =>
const CircularProgressIndicator(),
errorWidget: (context, url, error) => const Icon(Icons.error),
),
),
_sizedContainer(
CachedNetworkImage(
maxHeightDiskCache: 10,
imageUrl: 'https://via.placeholder.com/350x200',
placeholder: (context, url) =>
const CircularProgressIndicator(),
errorWidget: (context, url, error) => const Icon(Icons.error),
fadeOutDuration: const Duration(seconds: 1),
fadeInDuration: const Duration(seconds: 3),
),
),
],
),
),
);
}
Widget _blurHashImage() {
return SizedBox(
width: double.infinity,
child: CachedNetworkImage(
placeholder: (context, url) => const AspectRatio(
aspectRatio: 1.6,
child: BlurHash(hash: 'LEHV6nWB2yk8pyo0adR*.7kCMdnj'),
),
imageUrl: 'https://blurha.sh/assets/images/img1.jpg',
fit: BoxFit.cover,
),
);
}
Widget _sizedContainer(Widget child) {
return SizedBox(
width: 300.0,
height: 150.0,
child: Center(child: child),
);
}
}
/// Demonstrates a [ListView] containing [CachedNetworkImage]
class ListContent extends StatelessWidget {
const ListContent({Key? key}) : super(key: key);
static ExamplePage createPage() {
return ExamplePage(Icons.list, (context) => const ListContent());
}
@override
Widget build(BuildContext context) {
return ListView.builder(
itemBuilder: (BuildContext context, int index) => Card(
child: Column(
children: <Widget>[
CachedNetworkImage(
imageUrl: 'https://loremflickr.com/320/240/music?lock=$index',
placeholder: (BuildContext context, String url) => Container(
width: 320,
height: 240,
color: Colors.purple,
),
),
],
),
),
itemCount: 250,
);
}
}
/// Demonstrates a [GridView] containing [CachedNetworkImage]
class GridContent extends StatelessWidget {
const GridContent({Key? key}) : super(key: key);
static ExamplePage createPage() {
return ExamplePage(Icons.grid_on, (context) => const GridContent());
}
@override
Widget build(BuildContext context) {
return GridView.builder(
itemCount: 250,
gridDelegate:
const SliverGridDelegateWithFixedCrossAxisCount(crossAxisCount: 3),
itemBuilder: (BuildContext context, int index) => CachedNetworkImage(
imageUrl: 'https://loremflickr.com/100/100/music?lock=$index',
placeholder: _loader,
errorWidget: _error,
),
);
}
Widget _loader(BuildContext context, String url) {
return const Center(
child: CircularProgressIndicator(),
);
}
Widget _error(BuildContext context, String url, dynamic error) {
return const Center(child: Icon(Icons.error));
}
}
7.加载 Icon
使用 Flutter 内置的 material_fonts ：
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
theme: ThemeData(
primarySwatch: Colors.blue,
),
home: Scaffold(
appBar: AppBar(
title: Text('title'),
),
body: Center(
child: new Icon(Icons.android,size:100),
),
),
);
}
\
