SpringBoot搭配Quartz实现动态定时任务

本文已参与「新人创作礼」活动，一起开启掘金创作之路。

前面2篇文章讲述了如何实现简单的定时任务，不过由于执行周期是写在配置文件里的，如果想要修改周期或者暂停任务都是比较麻烦的事情，那么能不能在不修改代码和暂停服务的情况下动态修改定时任务周期或者手动暂停任务？

通过Quartz是可以实现这一目标的，本文参考了GitHub上的文章，写了个动态定时任务的demo，特此记录。

参考链接：spring-boot-demo/demo-task-quartz at master · xkcoding/spring-boot-demo · GitHub

首先引入需要的jar包：

<dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>3.8.1</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!--集成mysql数据库-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.1.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
        </dependency>
        <!-- spring boot 2.3版本后，如果需要使用校验，需手动导入validation包-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-validation</artifactId>
        </dependency>
        <!-- Spring Swagger -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-boot-starter</artifactId>
            <version>3.0.0</version>
        </dependency>
        <!-- mybatis-plus -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.4.1</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
            <version>3.4.1</version>
        </dependency>
        <dependency>
            <groupId>org.freemarker</groupId>
            <artifactId>freemarker</artifactId>
            <version>2.3.30</version>
        </dependency>
        <!--springboot中的redis依赖-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!-- lettuce pool 缓存连接池-->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>
		<!-- 分页插件 pagehelper -->
        <dependency>
            <groupId>commons-lang</groupId>
            <artifactId>commons-lang</artifactId>
            <version>2.6</version>
        </dependency>
        <!--处理JSON格式-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.3</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.20</version>
        </dependency>
        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
            <version>1.3.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <exclusions><!-- 去掉springboot默认配置 -->
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-logging</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <!-- 引入log4j2依赖 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-log4j2</artifactId>
        </dependency>
        <!-- rabbitmq -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>
        <!-- quartz -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-quartz</artifactId>
        </dependency>
    </dependencies>

application.yml配置（只列出跟quartz有关的）：

spring:
    quartz:
    job-store-type: jdbc
    # 是否等待任务执行完毕后，容器才会关闭
    wait-for-jobs-to-complete-on-shutdown: true
    scheduler-name: SpringBootDemoScheduler
    properties:
      org:
        quartz:
          threadPool:
            # 线程数量
            threadCount: 5
            # 线程优先级
            threadPriority: 5
            # 线程池中线程名称的前缀
            threadNamePrefix: test-thread
            # 加载任务代码的ClassLoader是否从外部继承
            threadsInheritContextClassLoaderOfInitializingThread: true
          jobStore:
            # 最大能忍受的触发超时时间，如果超时则认为“失误”
            misfireThreshold: 5000
            # 选择JDBC的存储方式
            class: org.quartz.impl.jdbcjobstore.JobStoreTX
            # 类似于Hibernate的dialect，用于处理DB之间的差异，StdJDBCDelegate能满足大部分的DB（授权）
            driverDelegateClass: org.quartz.impl.jdbcjobstore.StdJDBCDelegate
            # 在调度流程的第一步，也就是拉取待即将触发的triggers时，是上锁的状态，即不会同时存在多个线程拉取到相同的trigger的情况，也就避免的重复调度的危险。参考：https://segmentfault.com/a/1190000015492260
            acquireTriggersWithinLock: true

另外，搭配Quartz需要事先创建相关的数据库表：

#
# In your Quartz properties file, you'll need to set
# org.quartz.jobStore.driverDelegateClass = org.quartz.impl.jdbcjobstore.StdJDBCDelegate
#
#
# By: Ron Cordell - roncordell
#  I didn't see this anywhere, so I thought I'd post it here. This is the script from Quartz to create the tables in a MySQL database, modified to use INNODB instead of MYISAM.

DROP TABLE IF EXISTS QRTZ_FIRED_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_PAUSED_TRIGGER_GRPS;
DROP TABLE IF EXISTS QRTZ_SCHEDULER_STATE;
DROP TABLE IF EXISTS QRTZ_LOCKS;
DROP TABLE IF EXISTS QRTZ_SIMPLE_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_SIMPROP_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_CRON_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_BLOB_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_JOB_DETAILS;
DROP TABLE IF EXISTS QRTZ_CALENDARS;

CREATE TABLE QRTZ_JOB_DETAILS(
SCHED_NAME VARCHAR(120) NOT NULL,
JOB_NAME VARCHAR(200) NOT NULL,
JOB_GROUP VARCHAR(200) NOT NULL,
DESCRIPTION VARCHAR(250) NULL,
JOB_CLASS_NAME VARCHAR(250) NOT NULL,
IS_DURABLE VARCHAR(1) NOT NULL,
IS_NONCONCURRENT VARCHAR(1) NOT NULL,
IS_UPDATE_DATA VARCHAR(1) NOT NULL,
REQUESTS_RECOVERY VARCHAR(1) NOT NULL,
JOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,JOB_NAME,JOB_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
JOB_NAME VARCHAR(200) NOT NULL,
JOB_GROUP VARCHAR(200) NOT NULL,
DESCRIPTION VARCHAR(250) NULL,
NEXT_FIRE_TIME BIGINT(13) NULL,
PREV_FIRE_TIME BIGINT(13) NULL,
PRIORITY INTEGER NULL,
TRIGGER_STATE VARCHAR(16) NOT NULL,
TRIGGER_TYPE VARCHAR(8) NOT NULL,
START_TIME BIGINT(13) NOT NULL,
END_TIME BIGINT(13) NULL,
CALENDAR_NAME VARCHAR(200) NULL,
MISFIRE_INSTR SMALLINT(2) NULL,
JOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
REFERENCES QRTZ_JOB_DETAILS(SCHED_NAME,JOB_NAME,JOB_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_SIMPLE_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
REPEAT_COUNT BIGINT(7) NOT NULL,
REPEAT_INTERVAL BIGINT(12) NOT NULL,
TIMES_TRIGGERED BIGINT(10) NOT NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_CRON_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
CRON_EXPRESSION VARCHAR(120) NOT NULL,
TIME_ZONE_ID VARCHAR(80),
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_SIMPROP_TRIGGERS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    STR_PROP_1 VARCHAR(512) NULL,
    STR_PROP_2 VARCHAR(512) NULL,
    STR_PROP_3 VARCHAR(512) NULL,
    INT_PROP_1 INT NULL,
    INT_PROP_2 INT NULL,
    LONG_PROP_1 BIGINT NULL,
    LONG_PROP_2 BIGINT NULL,
    DEC_PROP_1 NUMERIC(13,4) NULL,
    DEC_PROP_2 NUMERIC(13,4) NULL,
    BOOL_PROP_1 VARCHAR(1) NULL,
    BOOL_PROP_2 VARCHAR(1) NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
    REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_BLOB_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
BLOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
INDEX (SCHED_NAME,TRIGGER_NAME, TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_CALENDARS (
SCHED_NAME VARCHAR(120) NOT NULL,
CALENDAR_NAME VARCHAR(200) NOT NULL,
CALENDAR BLOB NOT NULL,
PRIMARY KEY (SCHED_NAME,CALENDAR_NAME))
ENGINE=InnoDB;

CREATE TABLE QRTZ_PAUSED_TRIGGER_GRPS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_FIRED_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
ENTRY_ID VARCHAR(95) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
INSTANCE_NAME VARCHAR(200) NOT NULL,
FIRED_TIME BIGINT(13) NOT NULL,
SCHED_TIME BIGINT(13) NOT NULL,
PRIORITY INTEGER NOT NULL,
STATE VARCHAR(16) NOT NULL,
JOB_NAME VARCHAR(200) NULL,
JOB_GROUP VARCHAR(200) NULL,
IS_NONCONCURRENT VARCHAR(1) NULL,
REQUESTS_RECOVERY VARCHAR(1) NULL,
PRIMARY KEY (SCHED_NAME,ENTRY_ID))
ENGINE=InnoDB;

CREATE TABLE QRTZ_SCHEDULER_STATE (
SCHED_NAME VARCHAR(120) NOT NULL,
INSTANCE_NAME VARCHAR(200) NOT NULL,
LAST_CHECKIN_TIME BIGINT(13) NOT NULL,
CHECKIN_INTERVAL BIGINT(13) NOT NULL,
PRIMARY KEY (SCHED_NAME,INSTANCE_NAME))
ENGINE=InnoDB;

CREATE TABLE QRTZ_LOCKS (
SCHED_NAME VARCHAR(120) NOT NULL,
LOCK_NAME VARCHAR(40) NOT NULL,
PRIMARY KEY (SCHED_NAME,LOCK_NAME))
ENGINE=InnoDB;

CREATE INDEX IDX_QRTZ_J_REQ_RECOVERY ON QRTZ_JOB_DETAILS(SCHED_NAME,REQUESTS_RECOVERY);
CREATE INDEX IDX_QRTZ_J_GRP ON QRTZ_JOB_DETAILS(SCHED_NAME,JOB_GROUP);

CREATE INDEX IDX_QRTZ_T_J ON QRTZ_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_T_JG ON QRTZ_TRIGGERS(SCHED_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_T_C ON QRTZ_TRIGGERS(SCHED_NAME,CALENDAR_NAME);
CREATE INDEX IDX_QRTZ_T_G ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);
CREATE INDEX IDX_QRTZ_T_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_N_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_N_G_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_NEXT_FIRE_TIME ON QRTZ_TRIGGERS(SCHED_NAME,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_ST ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE_GRP ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_GROUP,TRIGGER_STATE);

CREATE INDEX IDX_QRTZ_FT_TRIG_INST_NAME ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME);
CREATE INDEX IDX_QRTZ_FT_INST_JOB_REQ_RCVRY ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME,REQUESTS_RECOVERY);
CREATE INDEX IDX_QRTZ_FT_J_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_FT_JG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_FT_T_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP);
CREATE INDEX IDX_QRTZ_FT_TG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);

commit;

任务和触发器实体类：

package com.xkcoding.task.quartz.entity.domain;

import lombok.Data;

import java.math.BigInteger;

/**
 * <p>
 * 实体类
 * </p>
 *
 * @author yangkai.shen
 * @date Created in 2018-11-26 15:05
 */
@Data
public class JobAndTrigger {
    /**
     * 定时任务名称
     */
    private String jobName;
    /**
     * 定时任务组
     */
    private String jobGroup;
    /**
     * 定时任务全类名
     */
    private String jobClassName;
    /**
     * 触发器名称
     */
    private String triggerName;
    /**
     * 触发器组
     */
    private String triggerGroup;
    /**
     * 重复间隔
     */
    private BigInteger repeatInterval;
    /**
     * 触发次数
     */
    private BigInteger timesTriggered;
    /**
     * cron 表达式
     */
    private String cronExpression;
    /**
     * 时区
     */
    private String timeZoneId;
    /**
     * 定时任务状态
     */
    private String triggerState;
}

定时任务详情类：

package com.wl.standard.entity;

import lombok.Data;

import javax.validation.constraints.NotBlank;

/**
 * 定时任务详情
 * @author wl
 * @date 2021/12/27
 */
@Data
public class JobForm {
    /**
     * 定时任务全类名
     */
    @NotBlank(message = "类名不能为空")
    private String jobClassName;
    /**
     * 任务组名
     */
    @NotBlank(message = "任务组名不能为空")
    private String jobGroupName;
    /**
     * 定时任务cron表达式
     */
    @NotBlank(message = "cron表达式不能为空")
    private String cronExpression;
}

Job 基类：

package com.wl.standard.job.base;

import org.quartz.Job;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;

/**
 * @author wl
 * @date 2021/12/27
 */
public interface BaseJob extends Job {
    @Override
    void execute(JobExecutionContext jobExecutionContext) throws JobExecutionException;
}

测试任务类：

package com.wl.standard.job;

import com.wl.standard.job.base.BaseJob;
import lombok.extern.slf4j.Slf4j;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;

import java.text.SimpleDateFormat;
import java.util.Date;

/**
 * @author wl
 * @date 2021/12/27
 */
@Slf4j
public class TestJob implements BaseJob {
    @Override
    public void execute(JobExecutionContext jobExecutionContext) throws JobExecutionException {
        log.warn("Test Job 执行时间: {}", new SimpleDateFormat("yyyy-MM-dd HH:mm:ss").format(new Date()));
    }
}

定时任务反射工具类：

package com.wl.standard.utils;

import com.wl.standard.job.base.BaseJob;

/**
 * 定时任务反射工具类
 * @author wl
 * @date 2021/12/27
 */
public class JobUtil {
    /**
     * 根据全类名获取Job实例
     *
     * @param classname Job全类名
     * @return {@link BaseJob} 实例
     * @throws Exception 泛型获取异常
     */
    public static BaseJob getClass(String classname) throws Exception {
        Class<?> clazz = Class.forName(classname);
        return (BaseJob) clazz.newInstance();
    }
}

JobMapper：

package com.wl.standard.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.wl.standard.entity.JobAndTrigger;

import java.util.List;

/**
 * @author wl
 * @date 2021/12/27
 */
public interface JobMapper extends BaseMapper<JobAndTrigger> {
    /**
     * 查询定时作业和触发器列表
     *
     * @return 定时作业和触发器列表
     */
    List<JobAndTrigger> list();
}

JobMapper.xml：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.wl.standard.mapper.JobMapper">

    <select id="list" resultType="com.wl.standard.entity.JobAndTrigger">
	SELECT
		job_details.`JOB_NAME`,
		job_details.`JOB_GROUP`,
		job_details.`JOB_CLASS_NAME`,
		cron_triggers.`CRON_EXPRESSION`,
		cron_triggers.`TIME_ZONE_ID`,
		qrtz_triggers.`TRIGGER_NAME`,
		qrtz_triggers.`TRIGGER_GROUP`,
		qrtz_triggers.`TRIGGER_STATE`
	FROM
		`QRTZ_JOB_DETAILS` job_details
		LEFT JOIN `QRTZ_CRON_TRIGGERS` cron_triggers ON job_details.`JOB_NAME` = cron_triggers.`TRIGGER_NAME`
		AND job_details.`JOB_GROUP` = cron_triggers.`TRIGGER_GROUP`
		LEFT JOIN `QRTZ_TRIGGERS` qrtz_triggers ON qrtz_triggers.`TRIGGER_NAME` = job_details.`JOB_NAME`
		AND qrtz_triggers.`TRIGGER_GROUP` = job_details.`JOB_GROUP`
    </select>
</mapper>

JobService：

package com.wl.standard.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.wl.standard.common.PageInfoWrapper;
import com.wl.standard.entity.JobAndTrigger;
import com.wl.standard.entity.JobForm;
import org.quartz.SchedulerException;

/**
 * @author wl
 * @date 2021/12/27
 */
public interface JobService extends IService<JobAndTrigger> {

    /**
     * 添加并启动定时任务
     *
     * @param form 表单参数 {@link JobForm}
     * @throws Exception 异常
     */
    void addJob(JobForm form) throws Exception;

    /**
     * 删除定时任务
     *
     * @param form 表单参数 {@link JobForm}
     * @throws SchedulerException 异常
     */
    void deleteJob(JobForm form) throws SchedulerException;

    /**
     * 暂停定时任务
     *
     * @param form 表单参数 {@link JobForm}
     * @throws SchedulerException 异常
     */
    void pauseJob(JobForm form) throws SchedulerException;

    /**
     * 恢复定时任务
     *
     * @param form 表单参数 {@link JobForm}
     * @throws SchedulerException 异常
     */
    void resumeJob(JobForm form) throws SchedulerException;

    /**
     * 重新配置定时任务
     *
     * @param form 表单参数 {@link JobForm}
     * @throws Exception 异常
     */
    void cronJob(JobForm form) throws Exception;

    /**
     * 查询定时任务列表
     *
     * @param pageNum 当前页
     * @param pageSize    每页条数
     * @return 定时任务列表
     */
    PageInfoWrapper<JobAndTrigger> list(Integer pageNum, Integer pageSize);
}

JobServiceImpl：

package com.wl.standard.service.impl;

import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import com.wl.standard.common.PageInfoWrapper;
import com.wl.standard.entity.JobAndTrigger;
import com.wl.standard.entity.JobForm;
import com.wl.standard.mapper.JobMapper;
import com.wl.standard.service.JobService;
import com.wl.standard.utils.CommonUtils;
import com.wl.standard.utils.JobUtil;
import org.quartz.*;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

/**
 * @author wl
 * @date 2021/12/27
 */
@Service
public class JobServiceImpl extends ServiceImpl<JobMapper, JobAndTrigger> implements JobService {
    private final Scheduler scheduler;

    @Autowired
    public JobServiceImpl(Scheduler scheduler) {
        this.scheduler = scheduler;
    }

    @Override
    public void addJob(JobForm form) throws Exception {
        // 启动调度器
        scheduler.start();

        // 构建Job信息
        JobDetail jobDetail = JobBuilder.newJob(JobUtil.getClass(form.getJobClassName()).getClass()).withIdentity(form.getJobClassName(), form.getJobGroupName()).build();

        // Cron表达式调度构建器(即任务执行的时间)
        CronScheduleBuilder cron = CronScheduleBuilder.cronSchedule(form.getCronExpression());

        //根据Cron表达式构建一个Trigger
        CronTrigger trigger = TriggerBuilder.newTrigger().withIdentity(form.getJobClassName(), form.getJobGroupName()).withSchedule(cron).build();

        try {
            scheduler.scheduleJob(jobDetail, trigger);
        } catch (SchedulerException e) {
            log.error("【定时任务】创建失败！", e);
            throw new Exception("【定时任务】创建失败！");
        }
    }

    @Override
    public void deleteJob(JobForm form) throws SchedulerException {
        scheduler.pauseTrigger(TriggerKey.triggerKey(form.getJobClassName(), form.getJobGroupName()));
        scheduler.unscheduleJob(TriggerKey.triggerKey(form.getJobClassName(), form.getJobGroupName()));
        scheduler.deleteJob(JobKey.jobKey(form.getJobClassName(), form.getJobGroupName()));
    }

    @Override
    public void pauseJob(JobForm form) throws SchedulerException {
        scheduler.pauseJob(JobKey.jobKey(form.getJobClassName(), form.getJobGroupName()));
    }

    @Override
    public void resumeJob(JobForm form) throws SchedulerException {
        scheduler.resumeJob(JobKey.jobKey(form.getJobClassName(), form.getJobGroupName()));
    }

    @Override
    public void cronJob(JobForm form) throws Exception {
        try {
            TriggerKey triggerKey = TriggerKey.triggerKey(form.getJobClassName(), form.getJobGroupName());
            // 表达式调度构建器
            CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(form.getCronExpression());

            CronTrigger trigger = (CronTrigger) scheduler.getTrigger(triggerKey);

            // 根据Cron表达式构建一个Trigger
            trigger = trigger.getTriggerBuilder().withIdentity(triggerKey).withSchedule(scheduleBuilder).build();

            // 按新的trigger重新设置job执行
            scheduler.rescheduleJob(triggerKey, trigger);
        } catch (SchedulerException e) {
            log.error("【定时任务】更新失败！", e);
            throw new Exception("【定时任务】创建失败！");
        }
    }

    @Override
    public PageInfoWrapper<JobAndTrigger> list(Integer pageNum, Integer pageSize) {
        PageInfoWrapper pageInfoWrapper = CommonUtils.initPageInfoWrapper(pageNum, pageSize);
        PageHelper.startPage(pageInfoWrapper.getPageNum(), pageInfoWrapper.getPageSize());
        PageInfo<JobAndTrigger> pageInfo = new PageInfo<>(baseMapper.list());
        pageInfoWrapper.setPageInfo(pageInfo);
        return pageInfoWrapper;
    }
}

JobController：

package com.wl.standard.controller;

import com.wl.standard.common.result.HttpResult;
import com.wl.standard.common.result.HttpResultWithPageInfo;
import com.wl.standard.entity.JobForm;
import com.wl.standard.service.JobService;
import org.quartz.SchedulerException;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;

import javax.validation.Valid;

/**
 * @author wl
 * @date 2021/12/27
 */
@RestController
@RequestMapping("/job")
public class JobController {
    private final JobService jobService;

    public JobController(JobService jobService) {
        this.jobService = jobService;
    }

    /**
     * 保存定时任务
     */
    @PostMapping("/add")
    public HttpResult addJob(@Valid JobForm form) {
        try {
            jobService.addJob(form);
        } catch (Exception e) {
            return HttpResult.fail("添加定时任务失败");
        }

        return HttpResult.success();
    }

    /**
     * 删除定时任务
     */
    @DeleteMapping("/delete")
    public HttpResult deleteJob(JobForm form) {
        try {
            jobService.deleteJob(form);
        } catch (SchedulerException e) {
            e.printStackTrace();
            return HttpResult.fail("删除失败");
        }
        return HttpResult.success();
    }

    /**
     * 暂停定时任务
     */
    @PutMapping("/pause")
    public HttpResult pauseJob(JobForm form) {
        try {
            jobService.pauseJob(form);
        } catch (SchedulerException e) {
            e.printStackTrace();
            return HttpResult.fail("暂停失败");
        }
        return HttpResult.success();
    }

    /**
     * 恢复定时任务
     */
    @PutMapping("/resume")
    public HttpResult resumeJob(JobForm form) {
        try {
            jobService.resumeJob(form);
        } catch (SchedulerException e) {
            e.printStackTrace();
            return HttpResult.fail("恢复失败");
        }
        return HttpResult.success();
    }

    /**
     * 修改定时任务，定时时间
     * @param form
     * @return
     */
    @PutMapping("/cron")
    public HttpResult cronJob(@Valid JobForm form) {
        try {
            jobService.cronJob(form);
        } catch (Exception e) {
            return HttpResult.fail("修改失败");
        }

        return HttpResult.success();
    }

    @GetMapping("/list")
    public HttpResultWithPageInfo jobList(Integer pageNum, Integer pageSize) {
        return new HttpResultWithPageInfo<>(jobService.list(pageNum, pageSize));
    }
}

启动类：

package com.wl.standard;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.scheduling.annotation.EnableScheduling;
import springfox.documentation.oas.annotations.EnableOpenApi;

@SpringBootApplication
@MapperScan("com.wl.standard.mapper")
@EnableOpenApi
@EnableScheduling
public class Application {
    public static void main( String[] args ){
    	SpringApplication.run(Application.class, args);
    	System.out.println("(〃'▽'〃)SpringBoot启动成功!!!");
    }
}

启动以后，添加上面写好的TestJob：

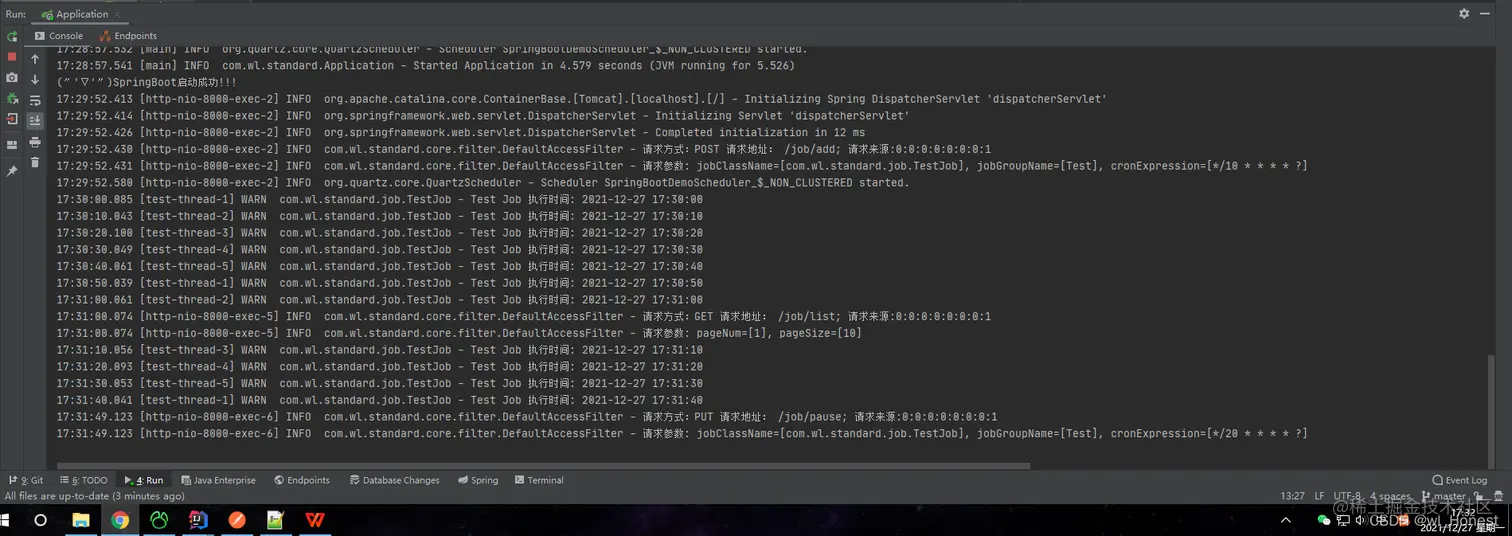

添加成功后，查看控制台：

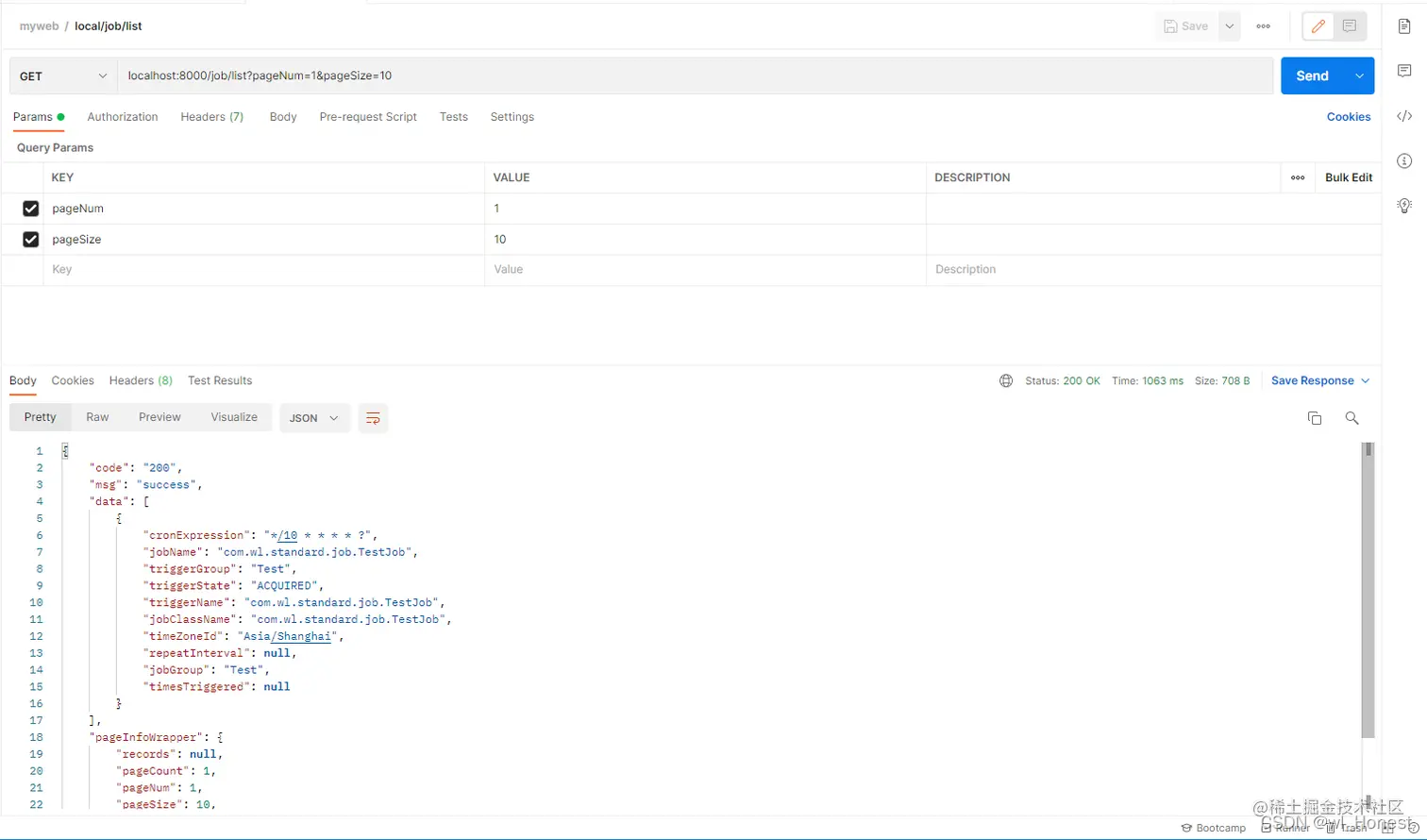

调用查询接口：

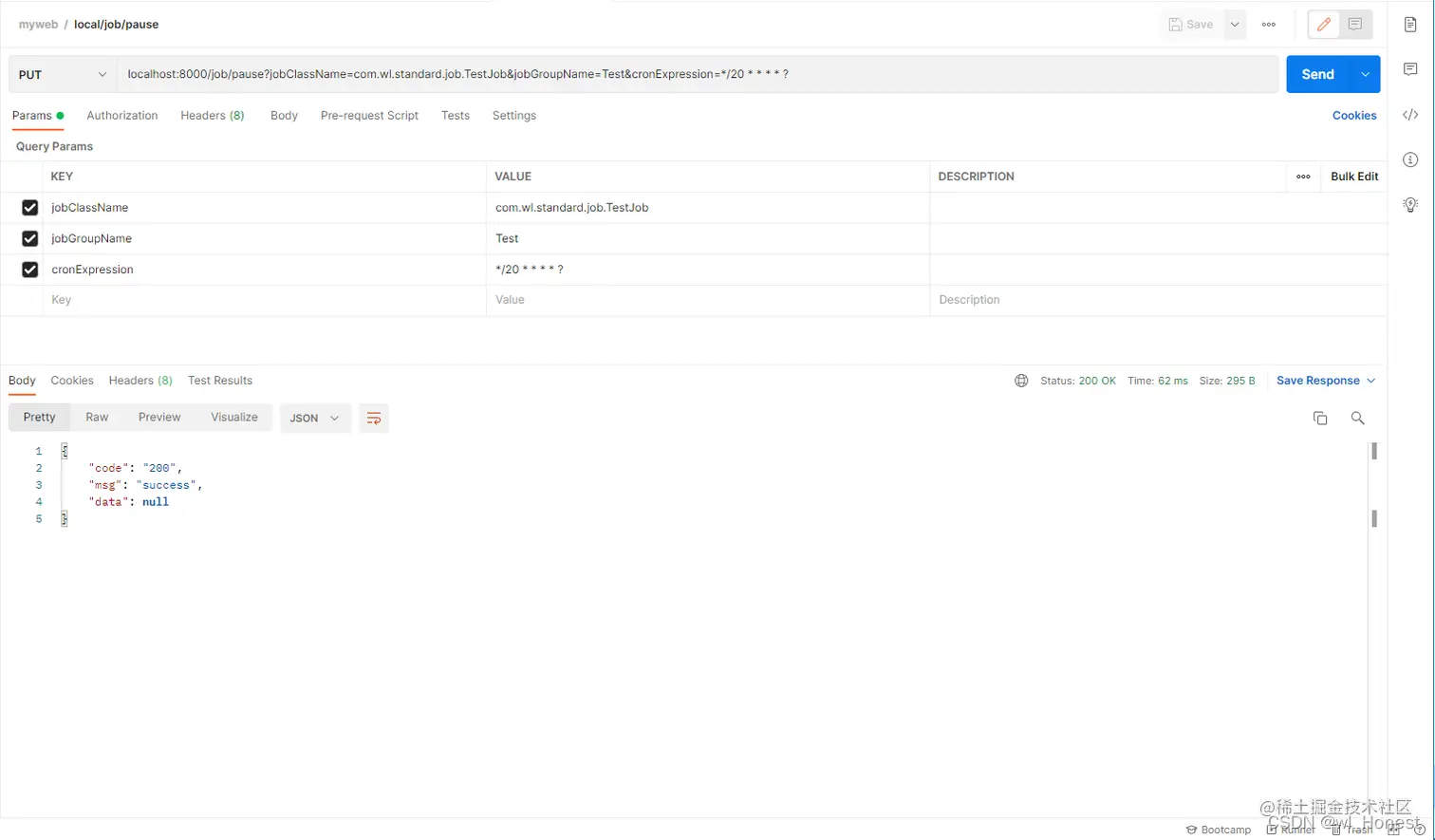

暂停任务：

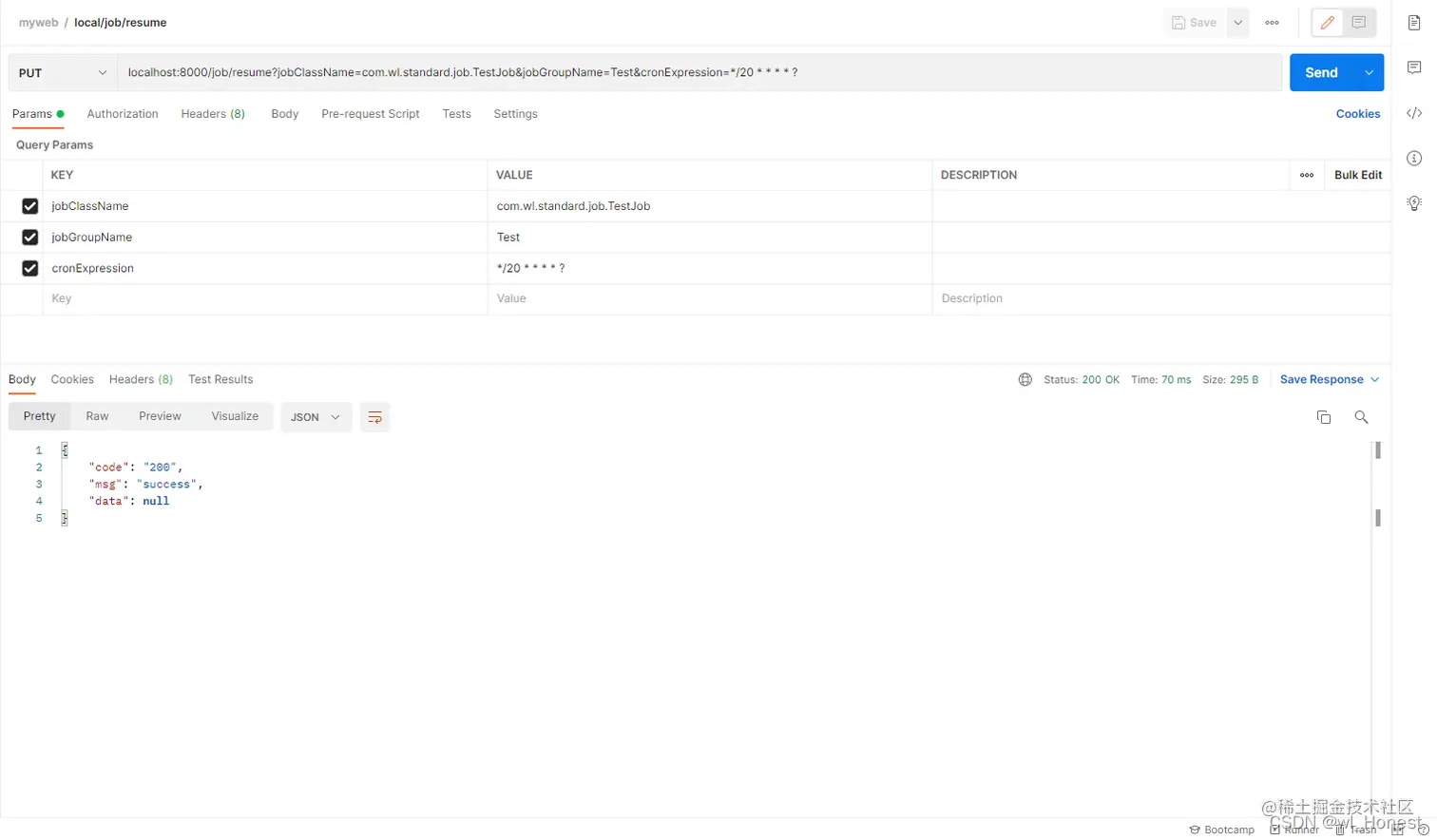

恢复任务：

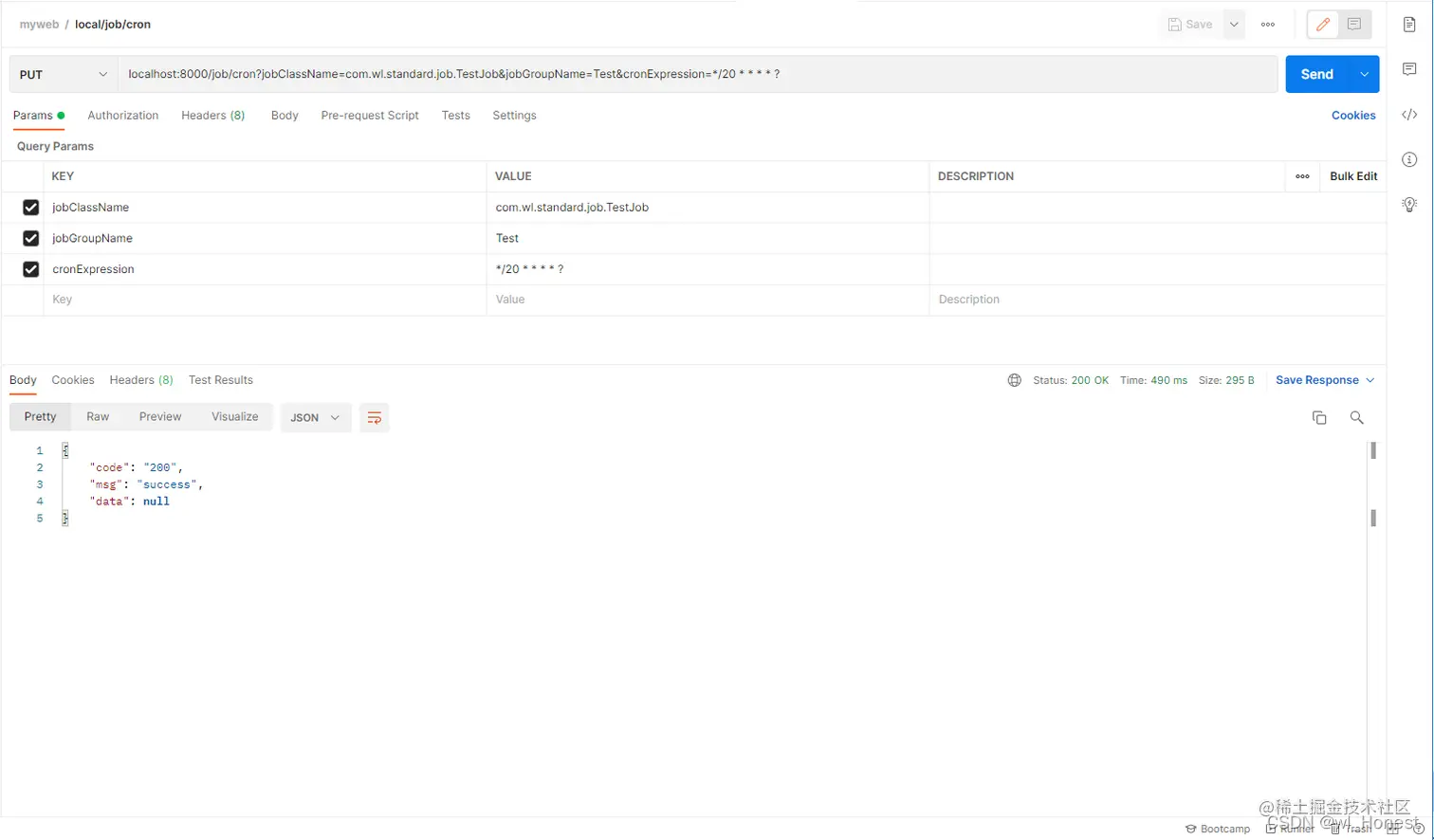

修改执行周期时间：
