首先贴上简单的验证代码，方便大家验证，欢迎提出问题一起交流讨论～

一丶代码

1. 工程一：transform 发布节点

/***************** tf发布文件 **********/
#include "ros/ros.h"
#include <tf/transform_listener.h>
#include <tf/transform_broadcaster.h>
#include <tf/tf.h>


int main(int argc, char *argv[])
{
    setlocale(LC_ALL,"");
    ros::init(argc,argv,"tf_pub");
    ros::NodeHandle nh;
    tf::TransformBroadcaster odom2BaseBroadcaster_;

    ros::Rate rate(1);
    double x = 0;
    double y = 0;
    while(ros::ok())
    {
        tf::Transform odom2Base;
        tf::Quaternion quaternion;

        ros::Time currentTime = ros::Time::now();
        odom2Base.setOrigin(tf::Vector3(x, y, 0));
        quaternion.setRPY(0, 0, 0);

        odom2Base.setRotation(quaternion);
        ROS_INFO("sendTransformodom2base robotpose : %f %f %f", x,y,0.0);
        odom2BaseBroadcaster_.sendTransform(tf::StampedTransform(odom2Base, currentTime, "odom", "base_link"));

        x += 1.0;
        rate.sleep();
        ros::spinOnce();
    }

    return 0;
}

cmake_minimum_required(VERSION 3.0.2)
project(tftestpub)

find_package(catkin REQUIRED COMPONENTS
  rospy
  std_msgs
  roscpp
  tf
  tf2
)

add_executable(${PROJECT_NAME}_node src/main.cpp)
target_link_libraries(${PROJECT_NAME}_node
  ${catkin_LIBRARIES}
)

catkin_package(
)

include_directories(
# include
  ${catkin_INCLUDE_DIRS}
)

2. 工程二：transform 接收节点

/***********  tf发布函数订阅文件 **********/
//1.包含头文件
#include "ros/ros.h"
#include <tf/transform_listener.h>
#include <tf/transform_broadcaster.h>
#include <tf/tf.h>

int main(int argc, char *argv[])
{
    setlocale(LC_ALL,"");
    // 2.初始化 ROS 节点
    ros::init(argc,argv,"dynamic_tf_sub");
    ros::NodeHandle nh;
    // 3.创建 TF 订阅节点
    tf2_ros::Buffer buffer;
    tf2_ros::TransformListener listener(buffer);

    ros::Rate r(3);

    while (ros::ok())
    {
        tf::TransformListener transform_listener;
        tf::StampedTransform base2odom;
        ROS_INFO("getTransformMap2Odom, robotPose");
        try{
            transform_listener.waitForTransform("odom", "base_link",ros::Time(0), ros::Duration(1));
            transform_listener.lookupTransform("odom", "base_link", ros::Time(0), base2odom);
            ROS_INFO("getTransformMap2Odom, robotPose %f %f %f",base2odom.getOrigin().x(), base2odom.getOrigin().y(),base2odom.getOrigin().z());
        }
            catch(tf::TransformException &ex){
            ROS_ERROR("%s", ex.what());
        }


        r.sleep();
        ros::spinOnce();
    }


    return 0;
}

cmake_minimum_required(VERSION 3.0.2)
project(tftestsub)

find_package(catkin REQUIRED COMPONENTS
  rospy
  std_msgs
  roscpp
  tf
  tf2
)

add_executable(${PROJECT_NAME}_node src/main.cpp)
target_link_libraries(${PROJECT_NAME}_node
  ${catkin_LIBRARIES}
)

catkin_package(
)

include_directories(
# include
  ${catkin_INCLUDE_DIRS}
)

二丶测试结果分析

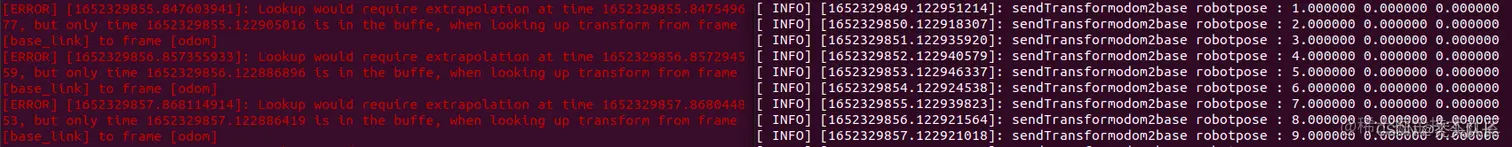

1. ros::Time::now() 获取当前的时间

            transform_listener.waitForTransform("odom", "base_link",ros::Time::now(), ros::Duration(0.1));
            transform_listener.lookupTransform("odom", "base_link", ros::Time::now(), base2odom);

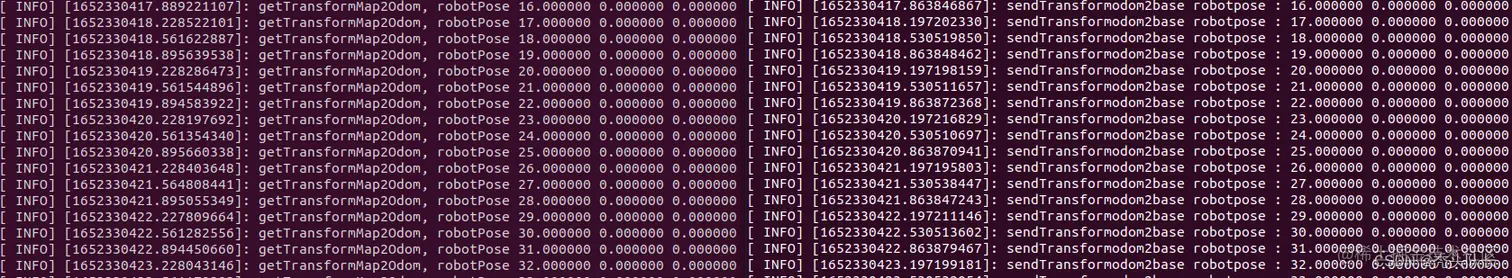

2. ros::Time(0) 使用缓冲中最新的tf数据

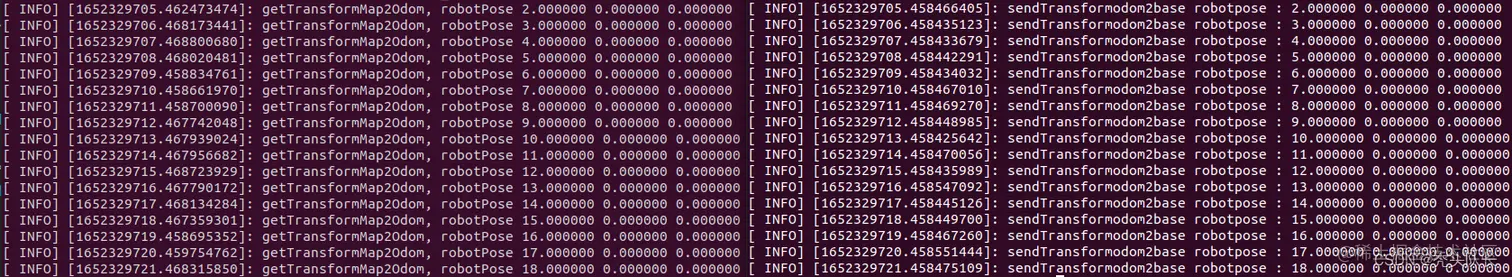

3. ros::Time::now() + ros::Time(0) 等待到最新时间，再取缓存数据

            transform_listener.waitForTransform("odom", "base_link",ros::Time::now(), ros::Duration(0.1));
            transform_listener.lookupTransform("odom", "base_link", ros::Time(0), base2odom);

但是并没有达到我想要得效果，因为在博客ROS学习之TF变换的时间戳中，证明 tf 会进行类似插值的计算，找到一个近似请求的时间戳的坐标变换，不过例子中是ROS中的tf2，后面有需要准备再复现一下该博客的现象。
