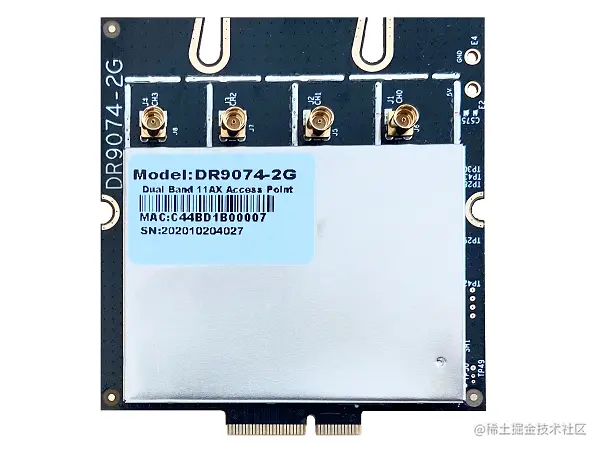

wallys-QCN9074/QCN9024/QCN6024 802.11ax 4x4 2.4GHz wifi6 ■ Qualcomm Atheros [QCN9074]****
■ 2.4GHz, max 23dBm per chain, up to 1147Mbps
■ Single Band 2.4GHz 4x4 [WiFi 6 (802.11ax]
■ 4 spatial streams (4SS)
■ M.2 E Key Interface
■ PCI Express 3.0 Interface
-
Absolute Maximum Rating -
\
-
Parameter**** Rating**** Unit**** Operating Temperature Range -20 to 70 ºC Storage Temperature Range -40 to 90 ºC Operating Humidity Range 5 to +95 (non-condensing) % Storage Humidity Range 0 to +90 (non-condensing) % -
\
-
Hard ware Specifications -
\
-
\
-
Symbol**** Parameter**** Chipset Qualcomm Atheros QCN9074 WLAN Host Interface PCI Express 3.0 Interface System Memory 2Mbit serial I²C bus EEPROM Standard Operating Voltage 5V Operating Systems QSDK Host Interface M.2 E Key Antenna Cable / Port 4 x MMCX Connectors,4T4R Frequency Range 2.412GHz-2.472GHz Data Rates for WALN 2.4GHz, max 23dBm per chain, up to 4949Mbps Channel Spectrum Widths for WLAN Support 20/40MHz at 2.4GHz Modulation Techniques OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM Temperature Range Operating: -20°C to 70°C, Storage: -40°C to 90°C Humidity Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing) Certification TBD Power Consumption TBD Reference Design PN01.1 Dimensions (WxHxD) 57mm x 63mm x 6mm -
\
-
\
-
\
-
M.2 Pin Definitions -
\
-
\
-
Pin No. Name Pin No. Name 1 GND 2 VDD3P3_PCIE 3 4 VDD3P3_PCIE 5 6 PCIE_LED0 7 GND 8 GPIO46_WCI2_UART_TXD_PCIE 9 TP19 10 GPIO47_WCI2_UART_RXD_PCIE 11 12 13 14 15 VDD_XPA_PCIE 16 PCIE_LED1 17 VDD_XPA_PCIE 18 GND 19 VDD_XPA_PCIE 20 21 VDD_XPA_PCIE 22 23 VDD_XPA_PCIE 33 GND 32 35 PCIE0_RX0_P 34 37 PCIE0_RX0_N 36 39 GND 38 MOD_BT_STS_2 41 PCIE0_TX0_P 40 MOD_WL_ACT_2 43 PCIE0_TX0_N 42 PINE_BT_ACT_2 45 GND 44 MOD_BT_STS 47 PCIE0_REFCLK_P 46 MOD_WL_ACT 49 PCIE0_REFCLK_N 48 PINE_BT_ACT 51 GND 50 53 PCIE0_CLKREQ_3P3_N 52 PCIE0_PERST_3P3 55 PCIE0_WAKE_3P3_N 54 57 GND 56 59 PCIE0_RX1_P 58 61 PCIE0_RX1_N 60 63 GND 62 65 PCIE0_TX1_P 64 67 PCIE0_TX1_N 66 69 GND 68 71 70 73 72 VDD3P3_PCIE 75 GND 74 VDD3P3_PCIE
