面试准备-vue2源码复习之初始化全流程

创建项目

首先我们创建一个最基础的Vue 2的脚手架应用，创建方法点击这里查看，然后我们关注到项目入口文件main.js, 引入Vue构造函数以及App.vue文件。完成应用的构建，我们来看看这个过程中发生了什么。

// The Vue build version to load with the `import` command
// (runtime-only or standalone) has been set in webpack.base.conf with an alias.
import Vue from 'vue'
import App from './App'
import router from './router'

Vue.config.productionTip = false
console.log(App)
/* eslint-disable no-new */
new Vue({
  el: '#app',
  router,
  components: { App },
  template: '<App/>'
})

Vue构造函数

Vue的构造函数调用this关键字下的__init方法并传入对应的

// node_modules/vue/src/core/instance/index.js
import { initMixin } from './init'
import { stateMixin } from './state'
import { renderMixin } from './render'
import { eventsMixin } from './events'
import { lifecycleMixin } from './lifecycle'
import { warn } from '../util/index'

function Vue (options) {
  if (process.env.NODE_ENV !== 'production' &&
    !(this instanceof Vue)
  ) {
    // 这一行主要利用的`this`关键字的实例对象的`__proto__`会先绑定到Vue的prototype上才可以依赖这个作为检查机制
    warn('Vue is a constructor and should be called with the `new` keyword')
  }
  this._init(options)
}

initMixin(Vue)
stateMixin(Vue)
eventsMixin(Vue)
lifecycleMixin(Vue)
renderMixin(Vue)

export default Vue

我们分别来看对应的Mixin系列函数吧

initMixin

查看下方代码，我们可以总结出来在initMixin中主要做了vm上的内部数据跟显示数据的初始化工作，并且执行了created以及beforeCreate生命周期

// node_modules/vue/src/core/instance/init.js
/* @flow */

import config from '../config'
import { initProxy } from './proxy'
import { initState } from './state'
import { initRender } from './render'
import { initEvents } from './events'
import { mark, measure } from '../util/perf'
import { initLifecycle, callHook } from './lifecycle'
import { initProvide, initInjections } from './inject'
import { extend, mergeOptions, formatComponentName } from '../util/index'

// VM唯一标识
let uid = 0

export function initMixin (Vue: Class<Component>) {
  Vue.prototype._init = function (options?: Object) {
    const vm: Component = this
    // a uid
    // 自增标识符
    vm._uid = uid++

    let startTag, endTag
    // 性能相关检测
    /* istanbul ignore if */
    if (process.env.NODE_ENV !== 'production' && config.performance && mark) {
      startTag = `vue-perf-start:${vm._uid}`
      endTag = `vue-perf-end:${vm._uid}`
      mark(startTag)
    }

    // a flag to avoid this being observed
    vm._isVue = true
    // merge options
    // 合并对应的配置项情况
    // 组建配置项目跟跟配置项的区分
    if (options && options._isComponent) {
      // optimize internal component instantiation
      // since dynamic options merging is pretty slow, and none of the
      // internal component options needs special treatment.
      initInternalComponent(vm, options)
    } else {
      vm.$options = mergeOptions(
        // 取出插件或者继承的一些配置项用于合并，在我的初始化项目里面，这个步骤可以取出vue-router的一些对应配置
        resolveConstructorOptions(vm.constructor),
        options || {},
        vm
      )
    }
    /* istanbul ignore else */
    // 用于对vm实例对象的操作进行提示
    if (process.env.NODE_ENV !== 'production') {
      initProxy(vm)
    } else {
      vm._renderProxy = vm
    }
    // expose real self
    vm._self = vm
    // 初始化部分基础参数（节点关系）以及初始化对应的标识符比如（_isMounted）
    initLifecycle(vm)
    // 初始化事件参数（_hasHookEvent， _events）
    initEvents(vm)
    // 初始化渲染相关参数（_vnode， _staticTrees，$vnode， $slots，$scopedSlots， _c， $createElement ，$attrs， $listeners）
    // 同时这里的$attrs， $listeners实际上已经初始化了对应的数据劫持
    initRender(vm)
    // 调用`beforeCreate`详细方法实现我们可以看到下方，作者这里复制出来了
    callHook(vm, 'beforeCreate')
    // 初始化inject配置，向$parent链路上查询的vm._provided是否存在，如果存在取出附值
    initInjections(vm) // resolve injections before data/props
    // 初始化状态数据(vm._watchers, props, methods, data, computed, watch)，那么我相信大家肯定很关注这个地方 我们下面会详细看这里。
    initState(vm)
    // 初始化provide到vm._provided上
    initProvide(vm) // resolve provide after data/props
    // 调用created的生命周期
    callHook(vm, 'created')

    // 性能检测
    /* istanbul ignore if */
    if (process.env.NODE_ENV !== 'production' && config.performance && mark) {
      vm._name = formatComponentName(vm, false)
      mark(endTag)
      measure(`vue ${vm._name} init`, startTag, endTag)
    }

    if (vm.$options.el) {
     // 如果配置el那么进行节点挂在
      vm.$mount(vm.$options.el)
    }
  }
}

export function initInternalComponent (vm: Component, options: InternalComponentOptions) {
  //  用于做继承
  const opts = vm.$options = Object.create(vm.constructor.options)
  // doing this because it's faster than dynamic enumeration.
  const parentVnode = options._parentVnode
  opts.parent = options.parent
  opts._parentVnode = parentVnode

  const vnodeComponentOptions = parentVnode.componentOptions
  opts.propsData = vnodeComponentOptions.propsData
  opts._parentListeners = vnodeComponentOptions.listeners
  opts._renderChildren = vnodeComponentOptions.children
  opts._componentTag = vnodeComponentOptions.tag
  if (options.render) {
    opts.render = options.render
    opts.staticRenderFns = options.staticRenderFns
  }
}

// 解析构造函数的配置项，包括Options的跟super继承的
export function resolveConstructorOptions (Ctor: Class<Component>) {
  let options = Ctor.options
  if (Ctor.super) {
    const superOptions = resolveConstructorOptions(Ctor.super)
    const cachedSuperOptions = Ctor.superOptions
    if (superOptions !== cachedSuperOptions) {
      // super option changed,
      // need to resolve new options.
      Ctor.superOptions = superOptions
      // check if there are any late-modified/attached options (#4976)
      const modifiedOptions = resolveModifiedOptions(Ctor)
      // update base extend options
      if (modifiedOptions) {
        extend(Ctor.extendOptions, modifiedOptions)
      }
      options = Ctor.options = mergeOptions(superOptions, Ctor.extendOptions)
      if (options.name) {
        options.components[options.name] = Ctor
      }
    }
  }
  return options
}

function resolveModifiedOptions (Ctor: Class<Component>): ?Object {
  let modified
  const latest = Ctor.options
  const sealed = Ctor.sealedOptions
  for (const key in latest) {
    if (latest[key] !== sealed[key]) {
      if (!modified) modified = {}
      modified[key] = latest[key]
    }
  }
  return modified
}
// callHook 来源于 node_modules/vue/src/core/instance/lifecycle.js 调用对应的生命周期的钩子
export function callHook (vm: Component, hook: string) {
  // #7573 disable dep collection when invoking lifecycle hooks
  // 推入空target
  pushTarget()
  // 配置中取出对应生命周期数组
  const handlers = vm.$options[hook]
  const info = `${hook} hook`
  if (handlers) {
    for (let i = 0, j = handlers.length; i < j; i++) {
      invokeWithErrorHandling(handlers[i], vm, null, vm, info)
    }
  }
  if (vm._hasHookEvent) {
    vm.$emit('hook:' + hook)
  }
  // 弹出空target
  popTarget()
}
export function invokeWithErrorHandling (
  // 对应的调用对象
  handler: Function,
  // 函数调用上下文
  context: any,
  // 参数列表
  args: null | any[],
  // 所属的视图模型对象
  vm: any,
  // 调用信息
  info: string
) {
  let res
  try {
    res = args ? handler.apply(context, args) : handler.call(context)
    if (res && !res._isVue && isPromise(res) && !res._handled) {
      res.catch(e => handleError(e, vm, info + ` (Promise/async)`))
      // issue #9511
      // avoid catch triggering multiple times when nested calls
      res._handled = true
    }
  } catch (e) {
    handleError(e, vm, info)
  }
  return res
}

initState 以及 stateMixin

大家下方直接找到initState跟开始学习

此文件正好涉及到stateMixin我们就直接一起看了吧

// node_modules/vue/src/core/instance/state.js

/* @flow */

import config from '../config'
import Watcher from '../observer/watcher'
import Dep, { pushTarget, popTarget } from '../observer/dep'
import { isUpdatingChildComponent } from './lifecycle'

import {
  set,
  del,
  observe,
  defineReactive,
  toggleObserving
} from '../observer/index'

import {
  warn,
  bind,
  noop,
  hasOwn,
  hyphenate,
  isReserved,
  handleError,
  nativeWatch,
  validateProp,
  isPlainObject,
  isServerRendering,
  isReservedAttribute,
  invokeWithErrorHandling
} from '../util/index'

const sharedPropertyDefinition = {
  enumerable: true,
  configurable: true,
  get: noop,
  set: noop
}

export function proxy (target: Object, sourceKey: string, key: string) {
  sharedPropertyDefinition.get = function proxyGetter () {
    return this[sourceKey][key]
  }
  sharedPropertyDefinition.set = function proxySetter (val) {
    this[sourceKey][key] = val
  }
  Object.defineProperty(target, key, sharedPropertyDefinition)
}

// 文件入口函数
export function initState (vm: Component) {
  // 初始化vm._watchers
  vm._watchers = []
  const opts = vm.$options
  // 下面都是各项配置的基础检查以及执行，我们就直接关注到对应函数即可
  if (opts.props) initProps(vm, opts.props)
  if (opts.methods) initMethods(vm, opts.methods)
  if (opts.data) {
    initData(vm)
  } else {
    observe(vm._data = {}, true /* asRootData */)
  }
  if (opts.computed) initComputed(vm, opts.computed)
  if (opts.watch && opts.watch !== nativeWatch) {
    initWatch(vm, opts.watch)
  }
}

// 初始化props
function initProps (vm: Component, propsOptions: Object) {
  // 取出props
  const propsData = vm.$options.propsData || {}
  // 初始化vm._props
  const props = vm._props = {}
  // cache prop keys so that future props updates can iterate using Array
  // instead of dynamic object key enumeration.
  const keys = vm.$options._propKeys = []
  const isRoot = !vm.$parent
  // root instance props should be converted
  // 如果不是跟节点，那么全局标识`shouldObserve`设置为false
  if (!isRoot) {
    toggleObserving(false)
  }
  // 便利数据对象
  for (const key in propsOptions) {
  // 插入数组，由于是引用数据类型，所以 keys 跟 vm.$options._propKeys 会同时增加对应数据
    keys.push(key)
    /*
    *  validateProp执行内容如下
    *  1.  对props是否属于boolean的类型进行检查并对其进行porps以及propsData中的配置的初始化（这里应该是因为Boolean类型的初始化逻辑独立于其他类型逻辑所以单独提出来做优先检查）
    *  2. 获取对应的初始化数据，并且对于数据建立观察者（observe）[建立观察者的前提是数据是一个对象，这里的对象指的是JS中的普遍对象类型]
    */ 3. 最后放回对应的数据类型
    const value = validateProp(key, propsOptions, propsData, vm)
    // 定义可响应对象， 具体定义过程我们后面来学习一下`defineReactive`
    defineReactive(props, key, value)
    // static props are already proxied on the component's prototype
    // during Vue.extend(). We only need to proxy props defined at
    // instantiation here.
    // 这里为props的数据进行代理，让你可以通过`this`关键字进行直接访问
    if (!(key in vm)) {
      proxy(vm, `_props`, key)
    }
  }
  // 切换回可创建观察者对象的全局状态
  toggleObserving(true)
}

function initData (vm: Component) {
  // 取出对应的data属性
  let data = vm.$options.data
  // 获取data的对应对象
  data = vm._data = typeof data === 'function'
    ? getData(data, vm)
    : data || {}
  // 要求必须是一个plainObj 也就是 Object.prototype.tostring(data) === '[object Object]'
  if (!isPlainObject(data)) {
    data = {}
    process.env.NODE_ENV !== 'production' && warn(
      'data functions should return an object:\n' +
      'https://vuejs.org/v2/guide/components.html#data-Must-Be-a-Function',
      vm
    )
  }
  // proxy data on instance
  const keys = Object.keys(data)
  const props = vm.$options.props
  const methods = vm.$options.methods
  let i = keys.length
  // 这里检查是否存在重名，重名就报警
  while (i--) {
    const key = keys[i]
    if (process.env.NODE_ENV !== 'production') {
      if (methods && hasOwn(methods, key)) {
        warn(
          `Method "${key}" has already been defined as a data property.`,
          vm
        )
      }
    }
    if (props && hasOwn(props, key)) {
      process.env.NODE_ENV !== 'production' && warn(
        `The data property "${key}" is already declared as a prop. ` +
        `Use prop default value instead.`,
        vm
      )
    } else if (!isReserved(key)) {
      proxy(vm, `_data`, key)
    }
  }
  // observe data
  // 将Object设置为Observe
  observe(data, true /* asRootData */)
}

// 绑定上下文并且进行执行，同时滞空现有的target以免数据的初始化操作产生不当相应
export function getData (data: Function, vm: Component): any {
  // #7573 disable dep collection when invoking data getters
  pushTarget()
  try {
    return data.call(vm, vm)
  } catch (e) {
    handleError(e, vm, `data()`)
    return {}
  } finally {
    popTarget()
  }
}

// computedWatcher的默认配置项
const computedWatcherOptions = { lazy: true }

// 初始化计算属性
function initComputed (vm: Component, computed: Object) {
  // $flow-disable-line
  // 为computed创建单独的vm._computedWatchers = {}
  const watchers = vm._computedWatchers = Object.create(null)
  // computed properties are just getters during SSR
  const isSSR = isServerRendering()
  // 遍历computed配置项
  for (const key in computed) {
    const userDef = computed[key]
    // 取出对应的`get`函数
    const getter = typeof userDef === 'function' ? userDef : userDef.get
    if (process.env.NODE_ENV !== 'production' && getter == null) {
      warn(
        `Getter is missing for computed property "${key}".`,
        vm
      )
    }

    if (!isSSR) {
      // create internal watcher for the computed property.
      // 为每个computed 配置项创建 Watcher
      watchers[key] = new Watcher(
        vm,
        getter || noop,
        noop,
        computedWatcherOptions
      )
    }

    // component-defined computed properties are already defined on the
    // component prototype. We only need to define computed properties defined
    // at instantiation here.
    if (!(key in vm)) {
      // 设置对应的计算属性代理让你可以通过`this`关键字访问相关属性
      defineComputed(vm, key, userDef)
    } else if (process.env.NODE_ENV !== 'production') {
      if (key in vm.$data) {
        warn(`The computed property "${key}" is already defined in data.`, vm)
      } else if (vm.$options.props && key in vm.$options.props) {
        warn(`The computed property "${key}" is already defined as a prop.`, vm)
      } else if (vm.$options.methods && key in vm.$options.methods) {
        warn(`The computed property "${key}" is already defined as a method.`, vm)
      }
    }
  }
}

export function defineComputed (
  target: any,
  key: string,
  userDef: Object | Function
) {
  // 是否缓存
  const shouldCache = !isServerRendering()
  // 是否仅为`get`钩子
  if (typeof userDef === 'function') {
    sharedPropertyDefinition.get = shouldCache
      ? createComputedGetter(key)
      // 直接进行计算
      : createGetterInvoker(userDef)
    sharedPropertyDefinition.set = noop
  } else {
    sharedPropertyDefinition.get = userDef.get
      ? shouldCache && userDef.cache !== false
        ? createComputedGetter(key)
        // 直接进行计算
        : createGetterInvoker(userDef.get)
      : noop
    sharedPropertyDefinition.set = userDef.set || noop
  }
  if (process.env.NODE_ENV !== 'production' &&
      sharedPropertyDefinition.set === noop) {
    sharedPropertyDefinition.set = function () {
      warn(
        `Computed property "${key}" was assigned to but it has no setter.`,
        this
      )
    }
  }
  Object.defineProperty(target, key, sharedPropertyDefinition)
}

// 创建对应的计算属性的get（this代理上的）
function createComputedGetter (key) {
  return function computedGetter () {
    const watcher = this._computedWatchers && this._computedWatchers[key]
    if (watcher) {
      // 如果数据脏了，那就更新一下对应的数据
      if (watcher.dirty) {
        watcher.evaluate()
      }
      // 如果评估完还有watch在进行评估， 那就调用当前watch的deps的depend
      if (Dep.target) {
        watcher.depend()
      }
      // 返回数据
      return watcher.value
    }
  }
}

// 直接绑定执行环境进行执行
function createGetterInvoker(fn) {
  return function computedGetter () {
    return fn.call(this, this)
  }
}

// 初始化方法
function initMethods (vm: Component, methods: Object) {
  const props = vm.$options.props
  for (const key in methods) {
    if (process.env.NODE_ENV !== 'production') {
      if (typeof methods[key] !== 'function') {
        warn(
          `Method "${key}" has type "${typeof methods[key]}" in the component definition. ` +
          `Did you reference the function correctly?`,
          vm
        )
      }
      if (props && hasOwn(props, key)) {
        warn(
          `Method "${key}" has already been defined as a prop.`,
          vm
        )
      }
      if ((key in vm) && isReserved(key)) {
        warn(
          `Method "${key}" conflicts with an existing Vue instance method. ` +
          `Avoid defining component methods that start with _ or $.`
        )
      }
    }
    // 绑定上下文进行执行
    vm[key] = typeof methods[key] !== 'function' ? noop : bind(methods[key], vm)
  }
}

function initWatch (vm: Component, watch: Object) {
  // 遍历watch配置，创建watcher
  for (const key in watch) {
    const handler = watch[key]
    if (Array.isArray(handler)) {
      for (let i = 0; i < handler.length; i++) {
        createWatcher(vm, key, handler[i])
      }
    } else {
      createWatcher(vm, key, handler)
    }
  }
}

function createWatcher (
  vm: Component,
  expOrFn: string | Function,
  handler: any,
  options?: Object
) {
  if (isPlainObject(handler)) {
    options = handler
    handler = handler.handler
  }
  if (typeof handler === 'string') {
    handler = vm[handler]
  }
  // 通过$watch对watch进行创建
  return vm.$watch(expOrFn, handler, options)
}

// stateMixin 是在 initMixin后执行的函数
export function stateMixin (Vue: Class<Component>) {
  // flow somehow has problems with directly declared definition object
  // when using Object.defineProperty, so we have to procedurally build up
  // the object here.
  const dataDef = {}
  dataDef.get = function () { return this._data }
  const propsDef = {}
  propsDef.get = function () { return this._props }
  if (process.env.NODE_ENV !== 'production') {
    dataDef.set = function () {
      warn(
        'Avoid replacing instance root $data. ' +
        'Use nested data properties instead.',
        this
      )
    }
    propsDef.set = function () {
      warn(`$props is readonly.`, this)
    }
  }
  // 创建对应的可读性对象$data 跟 $props
  Object.defineProperty(Vue.prototype, '$data', dataDef)
  Object.defineProperty(Vue.prototype, '$props', propsDef)

  // 设置$set 根 $delete
  Vue.prototype.$set = set
  Vue.prototype.$delete = del

  // 创建对应的watc
  Vue.prototype.$watch = function (
    expOrFn: string | Function,
    cb: any,
    options?: Object
  ): Function {
    const vm: Component = this
    if (isPlainObject(cb)) {
      return createWatcher(vm, expOrFn, cb, options)
    }
    options = options || {}
    // 如果是用户定义的Watch，而不是系统内部的Watch有此标识
    options.user = true
    // 这里我们看到我们的watch 跟 computer实际上都是基于`Watcher`对象。
    const watcher = new Watcher(vm, expOrFn, cb, options)
    if (options.immediate) {
      const info = `callback for immediate watcher "${watcher.expression}"`
      pushTarget()
      invokeWithErrorHandling(cb, vm, [watcher.value], vm, info)
      popTarget()
    }
    return function unwatchFn () {
      watcher.teardown()
    }
  }
}

那么我们在学习完会成当前文件后，注意以下：

1. props 中的数据如果是object的话会被初始化成Observe实例对象，剩下的属性会被进行defineReactive
2. data 的 object 也会被初始化成Observe实例对象
3. compute跟watch会被初始化成Watch实例对象，不过初始化配置不同
4. 在我们通过this访问computed是会触发computed的更新，其中会涉及到watcher操作Dep？（之间的关系是什么？）

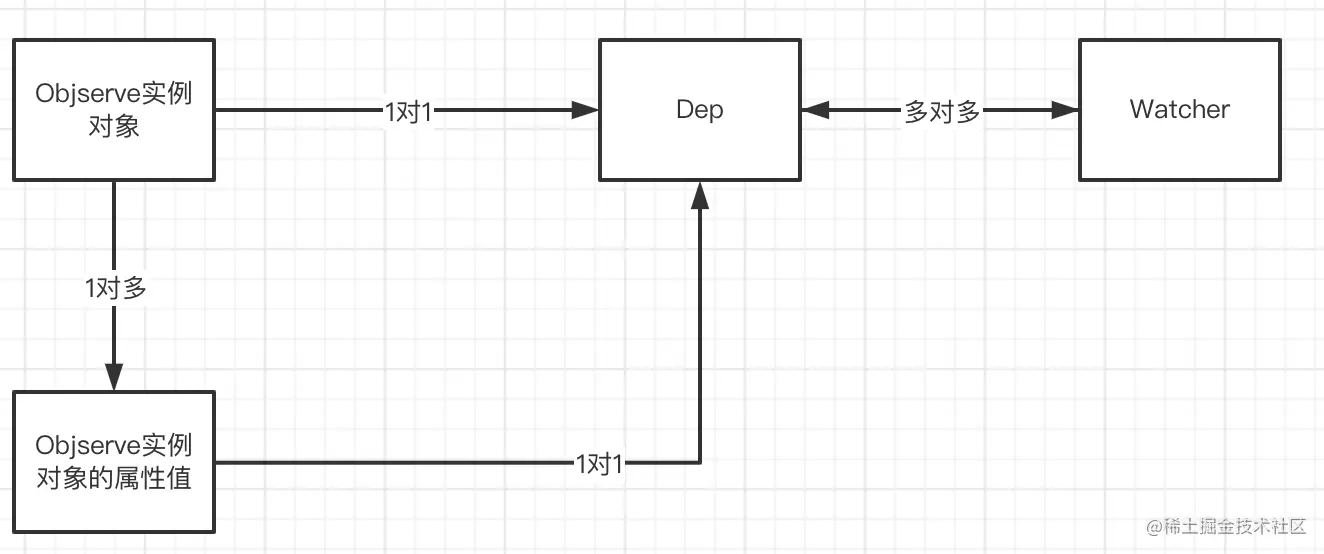

Observe, Watch 跟 Dep

根据顺序我们分别阅读 Observe, Watch 跟 Dep,首先我们学习Observe

Observe

我们可以在下方先找到observe函数，并开始代码阅读

// node_modules/vue/src/core/observer/index.js
/* @flow */

import Dep from './dep'
import VNode from '../vdom/vnode'
import { arrayMethods } from './array'
import {
  def,
  warn,
  hasOwn,
  hasProto,
  isObject,
  isPlainObject,
  isPrimitive,
  isUndef,
  isValidArrayIndex,
  isServerRendering
} from '../util/index'

const arrayKeys = Object.getOwnPropertyNames(arrayMethods)

/**
 * In some cases we may want to disable observation inside a component's
 * update computation.
 */
// 全局的Observe的标识符号，查看是否允许实例化Observe实例
export let shouldObserve: boolean = true

// 切换全局状态
export function toggleObserving (value: boolean) {
  shouldObserve = value
}

/**
 * Observer class that is attached to each observed
 * object. Once attached, the observer converts the target
 * object's property keys into getter/setters that
 * collect dependencies and dispatch updates.
 */
export class Observer {
  // 对应观察者数据
  value: any;
  // dep对象，那么我们知道了一个Objserve绑定一个dep
  dep: Dep;
  // vm 对于当前观察者的引用数量
  vmCount: number; // number of vms that have this object as root $data

  constructor (value: any) {
    // 初始化数据
    this.value = value
    // 创建新的Dep实例对象
    this.dep = new Dep()
    this.vmCount = 0
    // 设置当前对象的__ob__属性为当前观察者
    def(value, '__ob__', this)
    if (Array.isArray(value)) {
      if (hasProto) {
        /*
        * 重新数组方法
        * 如果存在插入对象调用objserve.observeArray(inserted)
        * 无论如何一定会引发ob.dep.notify()
        * 然后返回对应的操作数据
        */
        protoAugment(value, arrayMethods)
      } else {
        copyAugment(value, arrayMethods, arrayKeys)
      }
      // 遍历数据对每个元素创建observe
      this.observeArray(value)
    } else {
      // 如果数据为plainObj那么对对象中的每一个属性值，进行
      this.walk(value)
    }
  }

  /**
   * Walk through all properties and convert them into
   * getter/setters. This method should only be called when
   * value type is Object.
   */
  // 针对对象中的每一个Key进行可相应设置
  walk (obj: Object) {
    const keys = Object.keys(obj)
    for (let i = 0; i < keys.length; i++) {
      defineReactive(obj, keys[i])
    }
  }

  /**
   * Observe a list of Array items.
   */
  // 针对每一个数据进行观察者构建
  observeArray (items: Array<any>) {
    for (let i = 0, l = items.length; i < l; i++) {
      observe(items[i])
    }
  }
}

// helpers

/**
 * Augment a target Object or Array by intercepting
 * the prototype chain using __proto__
 */
function protoAugment (target, src: Object) {
  /* eslint-disable no-proto */
  target.__proto__ = src
  /* eslint-enable no-proto */
}

/**
 * Augment a target Object or Array by defining
 * hidden properties.
 */
/* istanbul ignore next */
function copyAugment (target: Object, src: Object, keys: Array<string>) {
  for (let i = 0, l = keys.length; i < l; i++) {
    const key = keys[i]
    def(target, key, src[key])
  }
}

/**
 * Attempt to create an observer instance for a value,
 * returns the new observer if successfully observed,
 * or the existing observer if the value already has one.
 */
// 建立观察者对象
export function observe (value: any, asRootData: ?boolean): Observer | void {
  // 如果不是对象，或者是VNode的节点对象，是不能成为观察对象的
  if (!isObject(value) || value instanceof VNode) {
    return
  }
  let ob: Observer | void
  if (hasOwn(value, '__ob__') && value.__ob__ instanceof Observer) {
    ob = value.__ob__
  } else if (
    // 是否允许创建观察者的全局标识
    shouldObserve &&
    // 不为服务端渲染
    !isServerRendering() &&
    // 是数组 或者 plainObj
    (Array.isArray(value) || isPlainObject(value)) &&
    // 对象具备可拓展性，也就是可以插入新的属性值
    Object.isExtensible(value) &&
    // 并且对应的值不是一个vue的实例
    !value._isVue
  ) {
    // 创建新的观察者，注意这里的value只能是Array或者PlainObj，构造函数在上方
    ob = new Observer(value)
  }
  // 共享当前的观察者的vm计数
  if (asRootData && ob) {
    ob.vmCount++
  }
  // 返回观察者
  return ob
}

/**
 * Define a reactive property on an Object.
 */
export function defineReactive (
  // 代理的数据对象
  obj: Object,
  // 键值
  key: string,
  // 数据值，在walk中未传递值
  val: any,
  // 自定义Setter
  customSetter?: ?Function,
  shallow?: boolean
) {
  // 创建一个dep实例对象
  const dep = new Dep()
  // 获取对象的叙述属性/访问器属性
  const property = Object.getOwnPropertyDescriptor(obj, key)
  if (property && property.configurable === false) {
    return
  }

  // cater for pre-defined getter/setters
  // 获取原本的访问器属性
  const getter = property && property.get
  const setter = property && property.set
  // 如果没有get访问器 或者 有setter访问器，并且参数数量为2，那么val直接获取对象中的值
  if ((!getter || setter) && arguments.length === 2) {
    val = obj[key]
  }
  // 对属性进行观察者实例化，如果为引用类型那么就会命中
  let childOb = !shallow && observe(val)
  // 设置对应的访问器属性
  Object.defineProperty(obj, key, {
    enumerable: true,
    configurable: true,
    get: function reactiveGetter () {
      // 获取数据
      const value = getter ? getter.call(obj) : val
      // 如果当前全局有Watcher的get执行时次
      if (Dep.target) {
        // 让Watch收集当前的dep实例对象到newDepIds跟newDeps中
        // 同时也把当前的Watcher传给dep的sub数组中
        // 理解为Watch 根 Dep的一个相互绑定的关系
        dep.depend()
        if (childOb) {
          // 如果存在子观察者，子观察者也进行收集
          childOb.dep.depend()
          // 如果是数组，那么遍历一层观察者然后采集
          if (Array.isArray(value)) {
            dependArray(value)
          }
        }
      }
      // 返回数据
      return value
    },
    set: function reactiveSetter (newVal) {
      // 获取数据值
      const value = getter ? getter.call(obj) : val
      /* eslint-disable no-self-compare */
      // 数据不变 或者 为NaN也不变
      if (newVal === value || (newVal !== newVal && value !== value)) {
        return
      }
      /* eslint-enable no-self-compare */
      if (process.env.NODE_ENV !== 'production' && customSetter) {
        customSetter()
      }
      // #7981: for accessor properties without setter
      if (getter && !setter) return
      // 如果有之前的访问器，就运行访问器进行数据计算
      if (setter) {
        setter.call(obj, newVal)
      } else {
        val = newVal
      }
      // 如果是一个新的对象（仅当Key值没变的情况下，更新观察者）
      childOb = !shallow && observe(newVal)
      // 通知Watcher依次进行update方法调用
      dep.notify()
    }
  })
}

/**
 * Set a property on an object. Adds the new property and
 * triggers change notification if the property doesn't
 * already exist.
 */
export function set (target: Array<any> | Object, key: any, val: any): any {
  if (process.env.NODE_ENV !== 'production' &&
    (isUndef(target) || isPrimitive(target))
  ) {
    warn(`Cannot set reactive property on undefined, null, or primitive value: ${(target: any)}`)
  }
  // 如果是数组，那么重写的splice进行数据更新
  if (Array.isArray(target) && isValidArrayIndex(key)) {
    target.length = Math.max(target.length, key)
    target.splice(key, 1, val)
    return val
  }
  // 如果原本就存在当前数据项，那么直接进行赋值即可
  if (key in target && !(key in Object.prototype)) {
    target[key] = val
    return val
  }
  const ob = (target: any).__ob__
  if (target._isVue || (ob && ob.vmCount)) {
    process.env.NODE_ENV !== 'production' && warn(
      'Avoid adding reactive properties to a Vue instance or its root $data ' +
      'at runtime - declare it upfront in the data option.'
    )
    return val
  }
  // 如果原本没有观察者也是直接进行赋值即可，毕竟没有可相应的必要
  if (!ob) {
    target[key] = val
    return val
  }
  // 相当于对新的数据进行可相应设置，并且主动触发一次notify()，用于更新当前观察者涉及的Watcher
  defineReactive(ob.value, key, val)
  ob.dep.notify(
  return val
}

/**
 * Delete a property and trigger change if necessary.
 */
export function del (target: Array<any> | Object, key: any) {
  if (process.env.NODE_ENV !== 'production' &&
    (isUndef(target) || isPrimitive(target))
  ) {
    warn(`Cannot delete reactive property on undefined, null, or primitive value: ${(target: any)}`)
  }
  // 同Set调用重写过后的方法进行操作
  if (Array.isArray(target) && isValidArrayIndex(key)) {
    target.splice(key, 1)
    return
  }
  const ob = (target: any).__ob__
  if (target._isVue || (ob && ob.vmCount)) {
    process.env.NODE_ENV !== 'production' && warn(
      'Avoid deleting properties on a Vue instance or its root $data ' +
      '- just set it to null.'
    )
    return
  }
  // 如果不存在当前属性，不用处理
  if (!hasOwn(target, key)) {
    return
  }
  // 如果存在就删除
  delete target[key]
  // 如果没有观察者就结束了
  if (!ob) {
    return
  }
  // 存在观察者进行通知
  ob.dep.notify()
}

/**
 * Collect dependencies on array elements when the array is touched, since
 * we cannot intercept array element access like property getters.
 */
function dependArray (value: Array<any>) {
  for (let e, i = 0, l = value.length; i < l; i++) {
    e = value[i]
    e && e.__ob__ && e.__ob__.dep.depend()
    if (Array.isArray(e)) {
      dependArray(e)
    }
  }
}

阅读完Observe以后，我们大致可以知道一个Observe实例对象跟一个Dep实例是一个一对一的关系，然后Observe实例对象上每个属性跟一个Dep实例也是1对1的关系。

Dep

接着我们来看看Dep

// node_modules/vue/src/core/observer/dep.js
/* @flow */

import type Watcher from './watcher'
import { remove } from '../util/index'
import config from '../config'

let uid = 0

/**
 * A dep is an observable that can have multiple
 * directives subscribing to it.
 */
export default class Dep {
  // 全局正在执行的Watcher
  static target: ?Watcher;
  // dep的实例的唯一ID
  id: number;
  // 用于收集Watcher的数组
  subs: Array<Watcher>;

  // 基本初始化
  constructor () {
    this.id = uid++
    this.subs = []
  }

  // 推入一个Watcher
  addSub (sub: Watcher) {
    this.subs.push(sub)
  }


  // 移除指定的Watcher
  removeSub (sub: Watcher) {
    remove(this.subs, sub)
  }

  // 如果当前全局有正在执行的Watch就会将当前依赖，同时在Watcher.addDep中也会调用当前dep的addSub
  depend () {
    if (Dep.target) {
      Dep.target.addDep(this)
    }
  }

  // 遍历执行Watcher上的update方法
  notify () {
    // stabilize the subscriber list first
    const subs = this.subs.slice()
    if (process.env.NODE_ENV !== 'production' && !config.async) {
      // subs aren't sorted in scheduler if not running async
      // we need to sort them now to make sure they fire in correct
      // order
      subs.sort((a, b) => a.id - b.id)
    }
    for (let i = 0, l = subs.length; i < l; i++) {
      subs[i].update()
    }
  }
}

// The current target watcher being evaluated.
// This is globally unique because only one watcher
// can be evaluated at a time.
// 全局正在进行评估的watcher
Dep.target = null
// 评估栈
const targetStack = []

// 全局推入一个watcher｜null
export function pushTarget (target: ?Watcher) {
  targetStack.push(target)
  Dep.target = target
}

// 全局弹出
export function popTarget () {
  targetStack.pop()
  Dep.target = targetStack[targetStack.length - 1]
}

看完Dep以后我们可以推断出，Dep实际上是用于跟Watcher建立多对多关系的，因为一个Dep实例可以绑定多个Wacter，一个Watcher也可以绑定多个Dep实例，同时我们可以看到我们在Observe中数据发生变动后触发的notify方法实际上主要是用于触发watcher上的update方法, 那么我们接着就一起看看Watcher。

Watcher

/* @flow */

import {
  warn,
  remove,
  isObject,
  parsePath,
  _Set as Set,
  handleError,
  invokeWithErrorHandling,
  noop
} from '../util/index'

import { traverse } from './traverse'
import { queueWatcher } from './scheduler'
import Dep, { pushTarget, popTarget } from './dep'

import type { SimpleSet } from '../util/index'

let uid = 0

/**
 * A watcher parses an expression, collects dependencies,
 * and fires callback when the expression value changes.
 * This is used for both the $watch() api and directives.
 */
export default class Watcher {
  vm: Component;
  expression: string;
  cb: Function;
  id: number;
  deep: boolean;
  user: boolean;
  lazy: boolean;
  sync: boolean;
  dirty: boolean;
  active: boolean;
  deps: Array<Dep>;
  newDeps: Array<Dep>;
  depIds: SimpleSet;
  newDepIds: SimpleSet;
  before: ?Function;
  getter: Function;
  value: any;

  constructor (
    // 当前的VM实例, 表明Watcher创建通常要绑定与我们的
    vm: Component,
    // 主执行函数
    expOrFn: string | Function,
    // 执行函数后的回调函数， 当前函数通常为用户自定义的watch
    cb: Function,
    // 配置项
    options?: ?Object,
    // 是否为渲染watch
    isRenderWatcher?: boolean
  ) {
    this.vm = vm
    if (isRenderWatcher) {
      // vm对象的渲染watch指向当前watch实例子
      vm._watcher = this
    }
    // 推入vm的_watchers的watch列表
    vm._watchers.push(this)
    // options
    // 初始化配置项
    if (options) {
      // 是否是深度监听
      this.deep = !!options.deep
      // 是否为用户定义的watch
      this.user = !!options.user
      this.lazy = !!options.lazy
      this.sync = !!options.sync
      this.before = options.before
    } else {
      this.deep = this.user = this.lazy = this.sync = false
    }
    this.cb = cb
    this.id = ++uid // uid for batching
    this.active = true
    // 判断数据是否脏了，也就是过时了
    this.dirty = this.lazy // for lazy watchers
    // 采集的dep列表
    this.deps = []
    // 新的Dep列表
    this.newDeps = []
    // Dep集合，保证Dep不重复手机
    this.depIds = new Set()
    // 新的Dep集合保证不重复采集
    this.newDepIds = new Set()
    this.expression = process.env.NODE_ENV !== 'production'
      ? expOrFn.toString()
      : ''
    // parse expression for getter
    if (typeof expOrFn === 'function') {
      this.getter = expOrFn
    } else {
      this.getter = parsePath(expOrFn)
      if (!this.getter) {
        this.getter = noop
        process.env.NODE_ENV !== 'production' && warn(
          `Failed watching path: "${expOrFn}" ` +
          'Watcher only accepts simple dot-delimited paths. ' +
          'For full control, use a function instead.',
          vm
        )
      }
    }
    // 是否立马计算值，如果是的话
    this.value = this.lazy
      ? undefined
      : this.get()
  }

  /**
   * Evaluate the getter, and re-collect dependencies.
   */
   // 评估数据以及重新采集依赖的过程
  get () {
    // 首先将当前Watch推入栈站中（其实这里越看越像是Agent的感觉，运行的执行上下文 跟 执行上下文栈）
    pushTarget(this)
    let value
    // 当前VM
    const vm = this.vm
    try {
      // 执行更新方法
      value = this.getter.call(vm, vm)
    } catch (e) {
      if (this.user) {
        handleError(e, vm, `getter for watcher "${this.expression}"`)
      } else {
        throw e
      }
    } finally {
      // "touch" every property so they are all tracked as
      // dependencies for deep watching
      if (this.deep) {
        traverse(value)
      }
      // 推出栈
      popTarget()
      // 重新清理依赖关系
      this.cleanupDeps()
    }
    // 返回数据
    return value
  }

  /**
   * Add a dependency to this directive.
   */·
  // 采集dep
  addDep (dep: Dep) {
    const id = dep.id
    if (!this.newDepIds.has(id)) {
      this.newDepIds.add(id)
      this.newDeps.push(dep)
      if (!this.depIds.has(id)) {
        dep.addSub(this)
      }
    }
  }

  /**
   * Clean up for dependency collection.
   */
  // 重新整理dep
  cleanupDeps () {
    let i = this.deps.length
    while (i--) {
      const dep = this.deps[i]
      if (!this.newDepIds.has(dep.id)) {
        dep.removeSub(this)
      }
    }
    let tmp = this.depIds
    this.depIds = this.newDepIds
    this.newDepIds = tmp
    this.newDepIds.clear()
    tmp = this.deps
    this.deps = this.newDeps
    this.newDeps = tmp
    this.newDeps.length = 0
  }

  /**
   * Subscriber interface.
   * Will be called when a dependency changes.
   */
  // 更新，这里就是主要就是dep的notify调用的位置
  update () {
    /* istanbul ignore else */
    // 如果是lazy的，那么就先标识为数据已经过期
    if (this.lazy) {
      this.dirty = true
    // 如果是同步任务，那么就会立刻执行
    } else if (this.sync) {
      this.run()
    } else {
      // 先加入执行Watcher的执行队列
      queueWatcher(this)
    }
  }

  /**
   * Scheduler job interface.
   * Will be called by the scheduler.
   */
  // 翻译：调度任务的接口，将会在调度任务中调用当前函数
  run () {
    if (this.active) {
      const value = this.get()
      if (
        value !== this.value ||
        // Deep watchers and watchers on Object/Arrays should fire even
        // when the value is the same, because the value may
        // have mutated.
        isObject(value) ||
        this.deep
      ) {
        // set new value
        const oldValue = this.value
        this.value = value
        if (this.user) {
          const info = `callback for watcher "${this.expression}"`
          invokeWithErrorHandling(this.cb, this.vm, [value, oldValue], this.vm, info)
        } else {
          this.cb.call(this.vm, value, oldValue)
        }
      }
    }
  }

  /**
   * Evaluate the value of the watcher.
   * This only gets called for lazy watchers.
   */
   // 翻译：只有lazy的Watcher才会调用这个函数，computed就是一个lazy watcher
  evaluate () {
    this.value = this.get()
    this.dirty = false
  }

  /**
   * Depend on all deps collected by this watcher.
   */
  // 调用dep把自己给收集进去
  depend () {
    let i = this.deps.length
    while (i--) {
      this.deps[i].depend()
    }
  }

  /**
   * Remove self from all dependencies' subscriber list.
   */
   // 把自己从所有的dep中移除，并且失活
  teardown () {
    if (this.active) {
      // remove self from vm's watcher list
      // this is a somewhat expensive operation so we skip it
      // if the vm is being destroyed.
      if (!this.vm._isBeingDestroyed) {
        remove(this.vm._watchers, this)
      }
      let i = this.deps.length
      while (i--) {
        this.deps[i].removeSub(this)
      }
      this.active = false
    }
  }
}

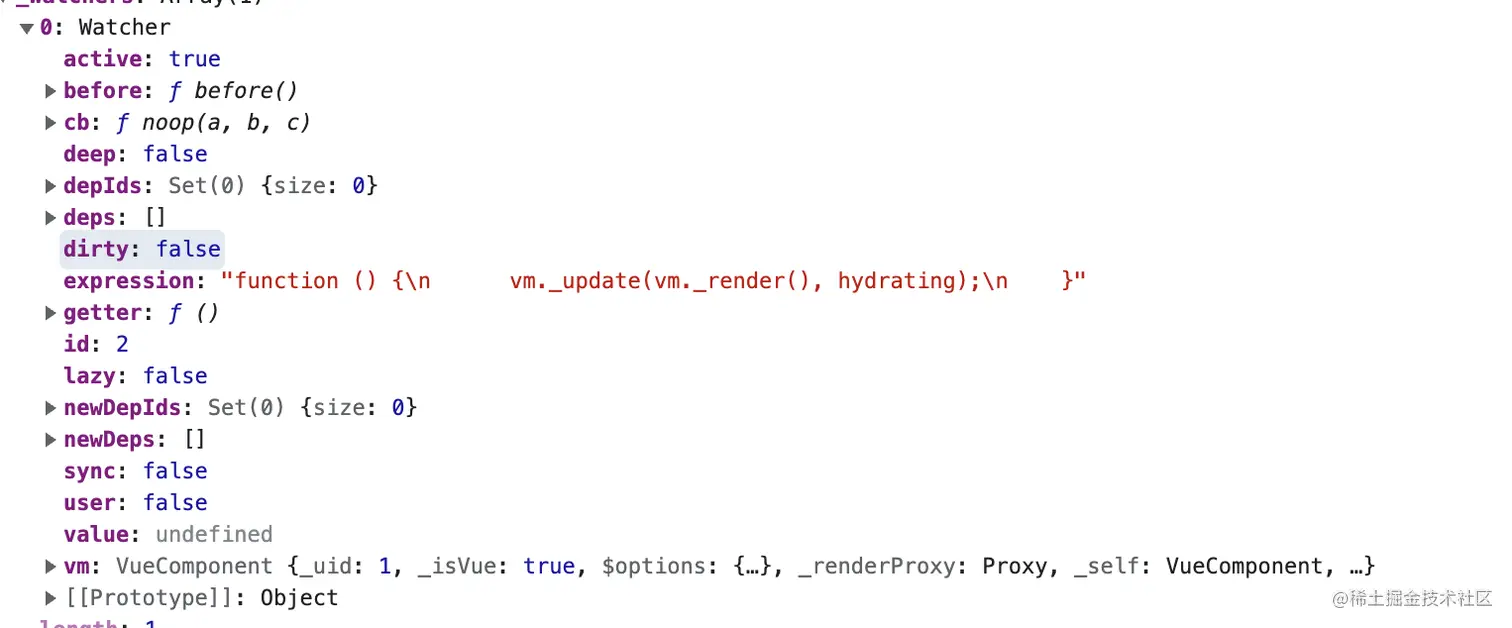

• 关于页面watcher的截图

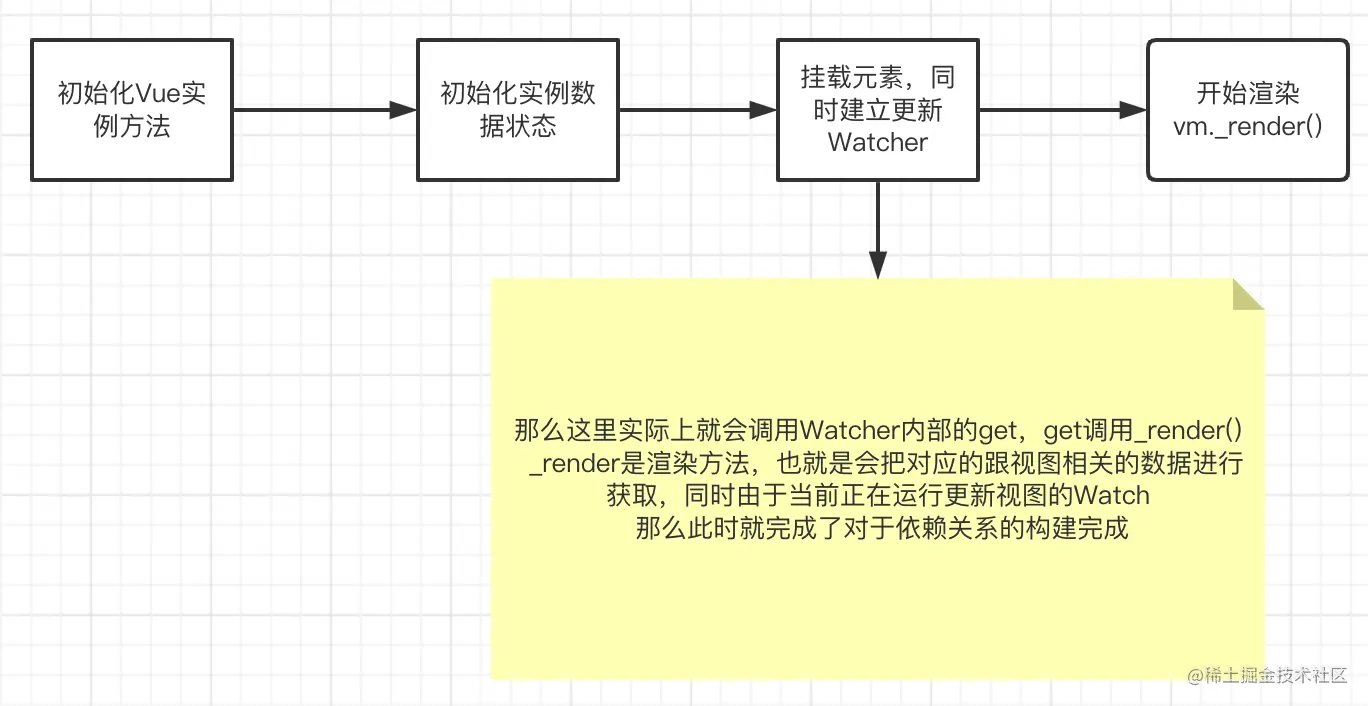

• 大致关系

那么到这里我们就完成了对于Observe,Dep以及Watch的学习。那么这里可能有小伙伴疑惑，就是我们的queueWatcher做了什么。 那么我们接下来就来看看queueWatcher

scheduler(queueWatcher)

我们在下面找到queueWatcher并开始阅读

/* @flow */

import type Watcher from './watcher'
import config from '../config'
import { callHook, activateChildComponent } from '../instance/lifecycle'

import {
  warn,
  nextTick,
  devtools,
  inBrowser,
  isIE
} from '../util/index'

export const MAX_UPDATE_COUNT = 100
// 队列
const queue: Array<Watcher> = []
// 用于存放Keep-alive的组建
const activatedChildren: Array<Component> = []
// 是否已经存在当前watch
let has: { [key: number]: ?true } = {}
// 循环测算
let circular: { [key: number]: number } = {}
// 是否等待
let waiting = false
// 是否正在进行任务调度
let flushing = false
// 当前正在执行的watch的任务队列下标
let index = 0

/**
 * Reset the scheduler's state.
 */
function resetSchedulerState () {
  index = queue.length = activatedChildren.length = 0
  has = {}
  if (process.env.NODE_ENV !== 'production') {
    circular = {}
  }
  waiting = flushing = false
}

// Async edge case #6566 requires saving the timestamp when event listeners are
// attached. However, calling performance.now() has a perf overhead especially
// if the page has thousands of event listeners. Instead, we take a timestamp
// every time the scheduler flushes and use that for all event listeners
// attached during that flush.
export let currentFlushTimestamp = 0

// Async edge case fix requires storing an event listener's attach timestamp.
let getNow: () => number = Date.now

// Determine what event timestamp the browser is using. Annoyingly, the
// timestamp can either be hi-res (relative to page load) or low-res
// (relative to UNIX epoch), so in order to compare time we have to use the
// same timestamp type when saving the flush timestamp.
// All IE versions use low-res event timestamps, and have problematic clock
// implementations (#9632)
if (inBrowser && !isIE) {
  const performance = window.performance
  if (
    performance &&
    typeof performance.now === 'function' &&
    getNow() > document.createEvent('Event').timeStamp
  ) {
    // if the event timestamp, although evaluated AFTER the Date.now(), is
    // smaller than it, it means the event is using a hi-res timestamp,
    // and we need to use the hi-res version for event listener timestamps as
    // well.
    getNow = () => performance.now()
  }
}

/**
 * Flush both queues and run the watchers.
 */
 // 更新所有队列 以及 执行watcher的run
function flushSchedulerQueue () {
  // 当前时间
  currentFlushTimestamp = getNow()
  // 开始更新
  flushing = true
  let watcher, id

  // Sort queue before flush.
  // This ensures that:
  // 1. Components are updated from parent to child. (because parent is always
  //    created before the child)
  // 2. A component's user watchers are run before its render watcher (because
  //    user watchers are created before the render watcher)
  // 3. If a component is destroyed during a parent component's watcher run,
  //    its watchers can be skipped.
  // 翻译：
  // 刷新前排序队列。
  // 这确保：
  // 1. 组件从父级更新到子级。 （因为父母总是在孩子之前创建）
  // 2. 组件的用户观察者在其渲染观察者之前运行（因为用户观察者在渲染观察者之前创建）
  // 3. 如果一个组件在父组件的 watcher 运行期间被销毁，
  // 可以跳过它的观察者。
  queue.sort((a, b) => a.id - b.id)

  // do not cache length because more watchers might be pushed
  // as we run existing watchers
  for (index = 0; index < queue.length; index++) {
    watcher = queue[index]
    // 如果有需要先执行的回调，那么先执行
    if (watcher.before) {
      watcher.before()
    }
    id = watcher.id
    // 清楚状态
    has[id] = null
    // 执行run
    watcher.run()
    // in dev build, check and stop circular updates.
    if (process.env.NODE_ENV !== 'production' && has[id] != null) {
      circular[id] = (circular[id] || 0) + 1
      if (circular[id] > MAX_UPDATE_COUNT) {
        warn(
          'You may have an infinite update loop ' + (
            watcher.user
              ? `in watcher with expression "${watcher.expression}"`
              : `in a component render function.`
          ),
          watcher.vm
        )
        break
      }
    }
  }

  // keep copies of post queues before resetting state
  const activatedQueue = activatedChildren.slice()
  const updatedQueue = queue.slice()

  resetSchedulerState()

  // call component updated and activated hooks
  // 调用Kep-alive组建的activated钩子，
  callActivatedHooks(activatedQueue)
  callUpdatedHooks(updatedQueue)

  // devtool hook
  /* istanbul ignore if */
  if (devtools && config.devtools) {
    devtools.emit('flush')
  }
}
// 调用组件的Update钩子
function callUpdatedHooks (queue) {
  let i = queue.length
  while (i--) {
    const watcher = queue[i]
    const vm = watcher.vm
    if (vm._watcher === watcher && vm._isMounted && !vm._isDestroyed) {
      callHook(vm, 'updated')
    }
  }
}

/**
 * Queue a kept-alive component that was activated during patch.
 * The queue will be processed after the entire tree has been patched.
 */
export function queueActivatedComponent (vm: Component) {
  // setting _inactive to false here so that a render function can
  // rely on checking whether it's in an inactive tree (e.g. router-view)
  vm._inactive = false
  activatedChildren.push(vm)
}

function callActivatedHooks (queue) {
  for (let i = 0; i < queue.length; i++) {
    queue[i]._inactive = true
    activateChildComponent(queue[i], true /* true */)
  }
}

/**
 * Push a watcher into the watcher queue.
 * Jobs with duplicate IDs will be skipped unless it's
 * pushed when the queue is being flushed.
 */
export function queueWatcher (watcher: Watcher) {
  const id = watcher.id
  // 如果当前Watch不存在，才推入队列
  if (has[id] == null) {
    has[id] = true
    if (!flushing) {
      queue.push(watcher)
    } else {
      // if already flushing, splice the watcher based on its id
      // if already past its id, it will be run next immediately.
      // 放在当前执行的Watcher之后执行
      let i = queue.length - 1
      while (i > index && queue[i].id > watcher.id) {
        i--
      }
      queue.splice(i + 1, 0, watcher)
    }
    // queue the flush
    if (!waiting) {
      waiting = true

      if (process.env.NODE_ENV !== 'production' && !config.async) {
        flushSchedulerQueue()
        return
      }
      // 推入nextTick进行执行
      nextTick(flushSchedulerQueue)
    }
  }
}

我们通过阅读以上代码可以了解到queueWatcher将等待执行的Watcher压入queue并在nextTick后回调flushSchedulerQueue（循环调用Watch）方法。有点类似于浏览器的事件循环中的微任务检查点，我们来看看nextTick中的具体实现吧

nextTick

/* @flow */
/* globals MutationObserver */

import { noop } from 'shared/util'
import { handleError } from './error'
import { isIE, isIOS, isNative } from './env'

// 是否用微任务
export let isUsingMicroTask = false

// 回调列表
const callbacks = []
// 是否等待
let pending = false

// 执行回调函数
function flushCallbacks () {
  pending = false
  const copies = callbacks.slice(0)
  callbacks.length = 0
  for (let i = 0; i < copies.length; i++) {
    copies[i]()
  }
}

// Here we have async deferring wrappers using microtasks.
// In 2.5 we used (macro) tasks (in combination with microtasks).
// However, it has subtle problems when state is changed right before repaint
// (e.g. #6813, out-in transitions).
// Also, using (macro) tasks in event handler would cause some weird behaviors
// that cannot be circumvented (e.g. #7109, #7153, #7546, #7834, #8109).
// So we now use microtasks everywhere, again.
// A major drawback of this tradeoff is that there are some scenarios
// where microtasks have too high a priority and fire in between supposedly
// sequential events (e.g. #4521, #6690, which have workarounds)
// or even between bubbling of the same event (#6566).
// 翻译：
// 这里我们有使用微任务的异步延迟包装器。
// 在 2.5 中，我们使用（宏）任务（结合微任务）。
// 然而，当状态在重绘之前改变时，它有一些微妙的问题
//（例如#6813，出入过渡）。
// 此外，在事件处理程序中使用（宏）任务会导致一些奇怪的行为
// 这是无法规避的（例如#7109、#7153、#7546、#7834、#8109）。
// 所以我们现在再次在任何地方使用微任务。
// 这种权衡的一个主要缺点是存在一些场景
// 微任务的优先级太高，应该在两者之间触发
// 顺序事件（例如 #4521、#6690，它们有变通方法）
// 甚至在同一事件的冒泡之间 (#6566)。
let timerFunc

// The nextTick behavior leverages the microtask queue, which can be accessed
// via either native Promise.then or MutationObserver.
// MutationObserver has wider support, however it is seriously bugged in
// UIWebView in iOS >= 9.3.3 when triggered in touch event handlers. It
// completely stops working after triggering a few times... so, if native
// Promise is available, we will use it:
/* istanbul ignore next, $flow-disable-line */
// 翻译：
// nextTick 行为利用了可以访问的微任务队列
// 通过本机 Promise.then 或 MutationObserver。
// MutationObserver 有更广泛的支持，但是它存在严重错误
// 在触摸事件处理程序中触发时，iOS 中的 UIWebView = 9.3.3。它
// 触发几次后完全停止工作...所以，如果是原生的Promise 可用，我们将使用它：

if (typeof Promise !== 'undefined' && isNative(Promise)) {
  const p = Promise.resolve()
  timerFunc = () => {
    p.then(flushCallbacks)
    // In problematic UIWebViews, Promise.then doesn't completely break, but
    // it can get stuck in a weird state where callbacks are pushed into the
    // microtask queue but the queue isn't being flushed, until the browser
    // needs to do some other work, e.g. handle a timer. Therefore we can
    // "force" the microtask queue to be flushed by adding an empty timer.
    // 在有问题的 UIWebViews 中，Promise.then 并没有完全中断，但是
    // 它可能会陷入一个奇怪的状态，回调被推入
    // 微任务队列，但队列没有被刷新，直到浏览器
    // 需要做一些其他的工作，例如处理一个计时器。因此我们可以
    // 通过添加一个空计时器“强制”刷新微任务队列。
    if (isIOS) setTimeout(noop)
  }
  isUsingMicroTask = true
} else if (!isIE && typeof MutationObserver !== 'undefined' && (
  isNative(MutationObserver) ||
  // PhantomJS and iOS 7.x
  MutationObserver.toString() === '[object MutationObserverConstructor]'
)) {
  // Use MutationObserver where native Promise is not available,
  // e.g. PhantomJS, iOS7, Android 4.4
  // (#6466 MutationObserver is unreliable in IE11)
  let counter = 1
  const observer = new MutationObserver(flushCallbacks)
  const textNode = document.createTextNode(String(counter))
  observer.observe(textNode, {
    characterData: true
  })
  timerFunc = () => {
    counter = (counter + 1) % 2
    textNode.data = String(counter)
  }
  isUsingMicroTask = true
} else if (typeof setImmediate !== 'undefined' && isNative(setImmediate)) {
  // Fallback to setImmediate.
  // Technically it leverages the (macro) task queue,
  // but it is still a better choice than setTimeout.
  timerFunc = () => {
    setImmediate(flushCallbacks)
  }
} else {
  // Fallback to setTimeout.
  timerFunc = () => {
    setTimeout(flushCallbacks, 0)
  }
}

export function nextTick (cb?: Function, ctx?: Object) {
  let _resolve
  callbacks.push(() => {
    if (cb) {
      try {
        cb.call(ctx)
      } catch (e) {
        handleError(e, ctx, 'nextTick')
      }
    } else if (_resolve) {
      _resolve(ctx)
    }
  })
  if (!pending) {
    pending = true
    timerFunc()
  }
  // $flow-disable-line
  // 如果没有回调，那就返回一个Promise
  if (!cb && typeof Promise !== 'undefined') {
    return new Promise(resolve => {
      _resolve = resolve
    })
  }
}

那么到这里我们就知道nextTick的内部实现实际上是基于Promise.then,MutationObserve,setImmediate(不常见于浏览器环境),SetTimeout连续的降级处理产生。

那么也就是说我们Watcher更新的任务队列，回作为浏览器的微任务或者任务执行。OK那么到这里我们再回到initMixin中的vm.$mount(vm.$options.el)继续学习。

$mount

// node_modules/vue/src/platforms/web/runtime/index.js
/* @flow */

import Vue from 'core/index'
import config from 'core/config'
import { extend, noop } from 'shared/util'
import { mountComponent } from 'core/instance/lifecycle'
import { devtools, inBrowser } from 'core/util/index'

import {
  query,
  mustUseProp,
  isReservedTag,
  isReservedAttr,
  getTagNamespace,
  isUnknownElement
} from 'web/util/index'

import { patch } from './patch'
import platformDirectives from './directives/index'
import platformComponents from './components/index'

// install platform specific utils
Vue.config.mustUseProp = mustUseProp
Vue.config.isReservedTag = isReservedTag
Vue.config.isReservedAttr = isReservedAttr
Vue.config.getTagNamespace = getTagNamespace
Vue.config.isUnknownElement = isUnknownElement

// install platform runtime directives & components
extend(Vue.options.directives, platformDirectives)
extend(Vue.options.components, platformComponents)

// install platform patch function
Vue.prototype.__patch__ = inBrowser ? patch : noop

// public mount method
Vue.prototype.$mount = function (
  el?: string | Element,
  hydrating?: boolean
): Component {
  el = el && inBrowser ? query(el) : undefined
  return mountComponent(this, el, hydrating)
}

这里我们跟着mountComponent函数进入core/instance/lifecycle

initLifecycle

我们优先查看mountComponent函数

// node_modules/vue/src/core/instance/lifecycle.js
/* @flow */

import config from '../config'
import Watcher from '../observer/watcher'
import { mark, measure } from '../util/perf'
import { createEmptyVNode } from '../vdom/vnode'
import { updateComponentListeners } from './events'
import { resolveSlots } from './render-helpers/resolve-slots'
import { toggleObserving } from '../observer/index'
import { pushTarget, popTarget } from '../observer/dep'

import {
  warn,
  noop,
  remove,
  emptyObject,
  validateProp,
  invokeWithErrorHandling
} from '../util/index'

// 用于Vnode创建子组件时记录调用栈
export let activeInstance: any = null
export let isUpdatingChildComponent: boolean = false

// 切换栈，当当前组建的patch的过程中存在子组件时可以挂在到当前正在执行的vnode节点
export function setActiveInstance(vm: Component) {
  const prevActiveInstance = activeInstance
  activeInstance = vm
  return () => {
    activeInstance = prevActiveInstance
  }
}

export function initLifecycle (vm: Component) {
  const options = vm.$options

  // locate first non-abstract parent
  let parent = options.parent
  if (parent && !options.abstract) {
    while (parent.$options.abstract && parent.$parent) {
      parent = parent.$parent
    }
    parent.$children.push(vm)
  }

  vm.$parent = parent
  vm.$root = parent ? parent.$root : vm

  vm.$children = []
  vm.$refs = {}

  vm._watcher = null
  vm._inactive = null
  vm._directInactive = false
  vm._isMounted = false
  vm._isDestroyed = false
  vm._isBeingDestroyed = false
}

export function lifecycleMixin (Vue: Class<Component>) {
  Vue.prototype._update = function (vnode: VNode, hydrating?: boolean) {
    const vm: Component = this
    const prevEl = vm.$el
    const prevVnode = vm._vnode
    const restoreActiveInstance = setActiveInstance(vm)
    vm._vnode = vnode
    // Vue.prototype.__patch__ is injected in entry points
    // based on the rendering backend used.
    // 如果没有之前的节点
    if (!prevVnode) {
      // initial render
      vm.$el = vm.__patch__(vm.$el, vnode, hydrating, false /* removeOnly */)
    } else {
      // update
      // 否则就进行patch
      vm.$el = vm.__patch__(prevVnode, vnode)
    }
    // 切换原本的Vnode确保父Vnode下可以正确挂在子组件
    restoreActiveInstance()
    // update __vue__ reference
    if (prevEl) {
      prevEl.__vue__ = null
    }
    if (vm.$el) {
      vm.$el.__vue__ = vm
    }
    // if parent is an HOC, update its $el as well
    // 如果父组建是一个高阶组建，那么父组建的vnode也进行更新
    if (vm.$vnode && vm.$parent && vm.$vnode === vm.$parent._vnode) {
      vm.$parent.$el = vm.$el
    }
    // updated hook is called by the scheduler to ensure that children are
    // updated in a parent's updated hook.
  }

  Vue.prototype.$forceUpdate = function () {
    const vm: Component = this
    if (vm._watcher) {
      vm._watcher.update()
    }
  }

  Vue.prototype.$destroy = function () {
    const vm: Component = this
    if (vm._isBeingDestroyed) {
      return
    }
    // 调用生命周期 beforeDestroy
    callHook(vm, 'beforeDestroy')
    vm._isBeingDestroyed = true
    // remove self from parent
    const parent = vm.$parent
    if (parent && !parent._isBeingDestroyed && !vm.$options.abstract) {
      remove(parent.$children, vm)
    }
    // teardown watchers
    // 清空渲染相关的dep
    if (vm._watcher) {
      vm._watcher.teardown()
    }
    let i = vm._watchers.length
    while (i--) {
      vm._watchers[i].teardown()
    }
    // remove reference from data ob
    // frozen object may not have observer.
    if (vm._data.__ob__) {
      vm._data.__ob__.vmCount--
    }
    // call the last hook...
    vm._isDestroyed = true
    // invoke destroy hooks on current rendered tree
    // 干掉DOM
    vm.__patch__(vm._vnode, null)
    // fire destroyed hook
    // 调用beforeDestroy
    callHook(vm, 'destroyed')
    // turn off all instance listeners.
    // 关掉event
    vm.$off()
    // remove __vue__ reference
    // 如果有挂载元素，清空掉
    if (vm.$el) {
      vm.$el.__vue__ = null
    }
    // release circular reference (#6759)
    if (vm.$vnode) {
      vm.$vnode.parent = null
    }
  }
}

export function mountComponent (
  vm: Component,
  el: ?Element,
  hydrating?: boolean
): Component {
  vm.$el = el
  // 如果没有渲染函数就挂在一个Vnode空节点的函数
  if (!vm.$options.render) {
    vm.$options.render = createEmptyVNode
  }
  // 调用对应的钩子
  callHook(vm, 'beforeMount')

  let updateComponent
  /* istanbul ignore if */
  if (process.env.NODE_ENV !== 'production' && config.performance && mark) {
    updateComponent = () => {
      const name = vm._name
      const id = vm._uid
      const startTag = `vue-perf-start:${id}`
      const endTag = `vue-perf-end:${id}`

      mark(startTag)
      const vnode = vm._render()
      mark(endTag)
      measure(`vue ${name} render`, startTag, endTag)

      mark(startTag)
      vm._update(vnode, hydrating)
      mark(endTag)
      measure(`vue ${name} patch`, startTag, endTag)
    }
  } else {
    // 调用vm._render()结果传入vm._update
    updateComponent = () => {
      vm._update(vm._render(), hydrating)
    }
  }

  // we set this to vm._watcher inside the watcher's constructor
  // since the watcher's initial patch may call $forceUpdate (e.g. inside child
  // component's mounted hook), which relies on vm._watcher being already defined
  // 构建一个新的watch
  /*
  * 那么这里实际上就会调用Watcher内部的get，get调用_render()
  * _render是渲染方法，也就是会把对应的跟视图相关的数据进行获取，同时由于当前正在运行更新视图的Watch
  * 那么此时就完成了对于依赖关系的构建完成
  */
  new Watcher(vm, updateComponent, noop, {
    before () {
      if (vm._isMounted && !vm._isDestroyed) {
        callHook(vm, 'beforeUpdate')
      }
    }
  }, true /* isRenderWatcher */)
  hydrating = false

  // manually mounted instance, call mounted on self
  // mounted is called for render-created child components in its inserted hook
  if (vm.$vnode == null) {
    vm._isMounted = true
    callHook(vm, 'mounted')
  }
  return vm
}

export function callHook (vm: Component, hook: string) {
  // #7573 disable dep collection when invoking lifecycle hooks
  pushTarget()
  const handlers = vm.$options[hook]
  const info = `${hook} hook`
  if (handlers) {
    for (let i = 0, j = handlers.length; i < j; i++) {
      invokeWithErrorHandling(handlers[i], vm, null, vm, info)
    }
  }
  if (vm._hasHookEvent) {
    vm.$emit('hook:' + hook)
  }
  popTarget()
}

目前逻辑链路大致如下

然后我们现在需要看到我们的_render()方法,通过尤大对于_update方法的参数定义我们得知_render的返回值是VNode那么我们先来看看_render()的内部实现吧！

_render()

下方我们主要关注renderMixin代码

// node_modules/vue/src/core/instance/render.js
/* @flow */

import {
  warn,
  nextTick,
  emptyObject,
  handleError,
  defineReactive
} from '../util/index'

import { createElement } from '../vdom/create-element'
import { installRenderHelpers } from './render-helpers/index'
import { resolveSlots } from './render-helpers/resolve-slots'
import { normalizeScopedSlots } from '../vdom/helpers/normalize-scoped-slots'
import VNode, { createEmptyVNode } from '../vdom/vnode'

import { isUpdatingChildComponent } from './lifecycle'

export function initRender (vm: Component) {
  vm._vnode = null // the root of the child tree
  vm._staticTrees = null // v-once cached trees
  const options = vm.$options
  const parentVnode = vm.$vnode = options._parentVnode // the placeholder node in parent tree
  const renderContext = parentVnode && parentVnode.context
  vm.$slots = resolveSlots(options._renderChildren, renderContext)
  vm.$scopedSlots = emptyObject
  // bind the createElement fn to this instance
  // so that we get proper render context inside it.
  // args order: tag, data, children, normalizationType, alwaysNormalize
  // internal version is used by render functions compiled from templates
  vm._c = (a, b, c, d) => createElement(vm, a, b, c, d, false)
  // normalization is always applied for the public version, used in
  // user-written render functions.
  vm.$createElement = (a, b, c, d) => createElement(vm, a, b, c, d, true)

  // $attrs & $listeners are exposed for easier HOC creation.
  // they need to be reactive so that HOCs using them are always updated
  const parentData = parentVnode && parentVnode.data

  /* istanbul ignore else */
  if (process.env.NODE_ENV !== 'production') {
    defineReactive(vm, '$attrs', parentData && parentData.attrs || emptyObject, () => {
      !isUpdatingChildComponent && warn(`$attrs is readonly.`, vm)
    }, true)
    defineReactive(vm, '$listeners', options._parentListeners || emptyObject, () => {
      !isUpdatingChildComponent && warn(`$listeners is readonly.`, vm)
    }, true)
  } else {
    defineReactive(vm, '$attrs', parentData && parentData.attrs || emptyObject, null, true)
    defineReactive(vm, '$listeners', options._parentListeners || emptyObject, null, true)
  }
}

export let currentRenderingInstance: Component | null = null

// for testing only
export function setCurrentRenderingInstance (vm: Component) {
  currentRenderingInstance = vm
}

export function renderMixin (Vue: Class<Component>) {
  // 注册相关VNode操作工具函数
  // install runtime convenience helpers
  installRenderHelpers(Vue.prototype)

  // 这里我们可以看到，我们的$nextTick就是基于内部的nextTick函数实现的
  Vue.prototype.$nextTick = function (fn: Function) {
    return nextTick(fn, this)
  }

  Vue.prototype._render = function (): VNode {
    const vm: Component = this
    // 获取对应的渲染函数跟父节点的Vnode
    const { render, _parentVnode } = vm.$options

    if (_parentVnode) {
      vm.$scopedSlots = normalizeScopedSlots(
        _parentVnode.data.scopedSlots,
        vm.$slots,
        vm.$scopedSlots
      )
    }

    // set parent vnode. this allows render functions to have access
    // to the data on the placeholder node.
    // 设置父节点。这允许渲染函数访问
    // 到占位符节点上的数据。
    vm.$vnode = _parentVnode
    // render self
    let vnode
    try {
      // There's no need to maintain a stack because all render fns are called
      // separately from one another. Nested component's render fns are called
      // when parent component is patched.

      // 不需要维护堆栈，因为所有的渲染 fns 都会被调用
      // 彼此分开。嵌套组件的渲染 fns 被调用
      // 当父组件被修补时
      currentRenderingInstance = vm
      // vm._renderProxy = vm 这个是在initMixin中执行的
      vnode = render.call(vm._renderProxy, vm.$createElement)
    } catch (e) {
      handleError(e, vm, `render`)
      // return error render result,
      // or previous vnode to prevent render error causing blank component
      /* istanbul ignore else */
      if (process.env.NODE_ENV !== 'production' && vm.$options.renderError) {
        try {
          vnode = vm.$options.renderError.call(vm._renderProxy, vm.$createElement, e)
        } catch (e) {
          handleError(e, vm, `renderError`)
          vnode = vm._vnode
        }
      } else {
        vnode = vm._vnode
      }
    } finally {
      currentRenderingInstance = null
    }
    // if the returned array contains only a single node, allow it
    if (Array.isArray(vnode) && vnode.length === 1) {
      vnode = vnode[0]
    }
    // return empty vnode in case the render function errored out
    if (!(vnode instanceof VNode)) {
      if (process.env.NODE_ENV !== 'production' && Array.isArray(vnode)) {
        warn(
          'Multiple root nodes returned from render function. Render function ' +
          'should return a single root node.',
          vm
        )
      }
      vnode = createEmptyVNode()
    }
    // set parent
    vnode.parent = _parentVnode
    return vnode
  }
}

那么看完我们知道我们核心的生成Vnode的过程在render函数中，在脚手架环境下reader实际上在脚本获取到组件引用是就已经被webpack中的loader进行处理了，他最终实际上调用了node_modules/vue-template-compiler/build.js中的createCompiler生成的compile进行处理的，过程比较繁琐，大致原理是通过AST进行解析，然后针对不同类型的节点进行处理，并且通过vm提供的工具函数以及vm进行数据访问，大致render内部情况如下：

// render()
var render = function() {
  var _vm = this
  var _h = _vm.$createElement
  var _c = _vm._self._c || _h
  return _c("div", { staticClass: "hello" }, [
    _c("h1", [_vm._v(_vm._s(_vm.msg))]),
    _vm._v(" "),
    _c("button", { on: { click: _vm.onChange } }, [_vm._v("我是按钮")]),
    _vm._v(
      "\n  " +
        _vm._s(_vm.myNumber) +
        "\n  " +
        _vm._s(_vm.doubleMyNumber) +
        "\n  "
    ),
    _c("h2", [_vm._v("Essential Links")]),
    _vm._v(" "),
    _vm._m(0),
    _vm._v(" "),
    _c("h2", [_vm._v("Ecosystem")]),
    _vm._v(" "),
    _vm._m(1)
  ])
}
var staticRenderFns = [
  function() {
    var _vm = this
    var _h = _vm.$createElement
    var _c = _vm._self._c || _h
    return _c("ul", [
      _c("li", [
        _c("a", { attrs: { href: "https://vuejs.org", target: "_blank" } }, [
          _vm._v("\n        Core Docs\n      ")
        ])
      ]),
      _vm._v(" "),
      _c("li", [
        _c(
          "a",
          { attrs: { href: "https://forum.vuejs.org", target: "_blank" } },
          [_vm._v("\n        Forum\n      ")]
        )
      ]),
      _vm._v(" "),
      _c("li", [
        _c(
          "a",
          { attrs: { href: "https://chat.vuejs.org", target: "_blank" } },
          [_vm._v("\n        Community Chat\n      ")]
        )
      ]),
      _vm._v(" "),
      _c("li", [
        _c(
          "a",
          { attrs: { href: "https://twitter.com/vuejs", target: "_blank" } },
          [_vm._v("\n        Twitter\n      ")]
        )
      ]),
      _vm._v(" "),
      _c("br"),
      _vm._v(" "),
      _c("li", [
        _c(
          "a",
          {
            attrs: {
              href: "http://vuejs-templates.github.io/webpack/",
              target: "_blank"
            }
          },
          [_vm._v("\n        Docs for This Template\n      ")]
        )
      ])
    ])
  },
  function() {
    var _vm = this
    var _h = _vm.$createElement
    var _c = _vm._self._c || _h
    return _c("ul", [
      _c("li", [
        _c(
          "a",
          { attrs: { href: "http://router.vuejs.org/", target: "_blank" } },
          [_vm._v("\n        vue-router\n      ")]
        )
      ]),
      _vm._v(" "),
      _c("li", [
        _c(
          "a",
          { attrs: { href: "http://vuex.vuejs.org/", target: "_blank" } },
          [_vm._v("\n        vuex\n      ")]
        )
      ]),
      _vm._v(" "),
      _c("li", [
        _c(
          "a",
          { attrs: { href: "http://vue-loader.vuejs.org/", target: "_blank" } },
          [_vm._v("\n        vue-loader\n      ")]
        )
      ]),
      _vm._v(" "),
      _c("li", [
        _c(
          "a",
          {
            attrs: {
              href: "https://github.com/vuejs/awesome-vue",
              target: "_blank"
            }
          },
          [_vm._v("\n        awesome-vue\n      ")]
        )
      ])
    ])
  }
]
render._withStripped = true
var esExports = { render: render, staticRenderFns: staticRenderFns }
export default esExports
if (module.hot) {
  module.hot.accept()
  if (module.hot.data) {
    require("vue-hot-reload-api")      .rerender("data-v-469af010", esExports)
  }
}

页面模版大致如下

<template>
  <div class="hello">
    <h1>{{ msg }}</h1>
    <button @click="onChange">我是按钮</button>
    {{myNumber}}
    {{doubleMyNumber}}
    <h2>Essential Links</h2>
    <ul>
      <li>
        <a
          href="https://vuejs.org"
          target="_blank"
        >
          Core Docs
        </a>
      </li>
      <li>
        <a
          href="https://forum.vuejs.org"
          target="_blank"
        >
          Forum
        </a>
      </li>
      <li>
        <a
          href="https://chat.vuejs.org"
          target="_blank"
        >
          Community Chat
        </a>
      </li>
      <li>
        <a
          href="https://twitter.com/vuejs"
          target="_blank"
        >
          Twitter
        </a>
      </li>
      <br>
      <li>
        <a
          href="http://vuejs-templates.github.io/webpack/"
          target="_blank"
        >
          Docs for This Template
        </a>
      </li>
    </ul>
    <h2>Ecosystem</h2>
    <ul>
      <li>
        <a
          href="http://router.vuejs.org/"
          target="_blank"
        >
          vue-router
        </a>
      </li>
      <li>
        <a
          href="http://vuex.vuejs.org/"
          target="_blank"
        >
          vuex
        </a>
      </li>
      <li>
        <a
          href="http://vue-loader.vuejs.org/"
          target="_blank"
        >
          vue-loader
        </a>
      </li>
      <li>
        <a
          href="https://github.com/vuejs/awesome-vue"
          target="_blank"
        >
          awesome-vue
        </a>
      </li>
    </ul>
  </div>
</template>

那么这个时候我们就明白我们的我们的Vnode是怎么来的，接着我们获取到我们的Vnode后应该如何进行渲染以及diff呢？这就需要我们回到我们的vm._update方法，它来自于

// node_modules/vue/src/core/instance/lifecycle.js
// 上方有完整文件，我们这里就忽略部分代码了
  Vue.prototype._update = function (vnode: VNode, hydrating?: boolean) {
    const vm: Component = this
    const prevEl = vm.$el
    const prevVnode = vm._vnode
    const restoreActiveInstance = setActiveInstance(vm)
    vm._vnode = vnode
    // Vue.prototype.__patch__ is injected in entry points
    // based on the rendering backend used.
    // 首次渲染走这个
    if (!prevVnode) {
      // initial render
      vm.$el = vm.__patch__(vm.$el, vnode, hydrating, false /* removeOnly */)
    } else {
      // updates
      // 有于$el就是对应的DOM元素，那么vm.__patch__就是我们生成DOM的核心路径
      vm.$el = vm.__patch__(prevVnode, vnode)
    }
    restoreActiveInstance()
    // update __vue__ reference
    if (prevEl) {
      prevEl.__vue__ = null
    }
    if (vm.$el) {
      vm.$el.__vue__ = vm
    }
    // if parent is an HOC, update its $el as well
    if (vm.$vnode && vm.$parent && vm.$vnode === vm.$parent._vnode) {
      vm.$parent.$el = vm.$el
    }
    // updated hook is called by the scheduler to ensure that children are
    // updated in a parent's updated hook.
  }

这里我们看到vm._update的核心方法是vm.__patch__,它注册于node_modules/vue/src/platforms/web/runtime/index.js文件，在浏览器环境下我们常用的patch在node_modules/vue/src/platforms/web/runtime/patch.js,我们一起看看

patch

// node_modules/vue/src/platforms/web/runtime/patch.js
/* @flow */

import * as nodeOps from 'web/runtime/node-ops'
import { createPatchFunction } from 'core/vdom/patch'
// 基础的模块函数，比如指令的处理以及ref的处理
import baseModules from 'core/vdom/modules/index'
// 平台特性相关的比如，这里主要是类，attrs，浏览器事件等
import platformModules from 'web/runtime/modules/index'

// the directive module should be applied last, after all
// built-in modules have been applied.
const modules = platformModules.concat(baseModules)

// 通过createPatchFunction创建`patch`
export const patch: Function = createPatchFunction({ nodeOps, modules })

这里我们查看createPatchFunction来看看patch是如何产生的, 我们直接看到下方的createPatchFunction

// node_modules/vue/src/core/vdom/patch.js
/**
 * Virtual DOM patching algorithm based on Snabbdom by
 * Simon Friis Vindum (@paldepind)
 * Licensed under the MIT License
 * https://github.com/paldepind/snabbdom/blob/master/LICENSE
 *
 * modified by Evan You (@yyx990803)
 *
 * Not type-checking this because this file is perf-critical and the cost
 * of making flow understand it is not worth it.
 */

import VNode, { cloneVNode } from './vnode'
import config from '../config'
import { SSR_ATTR } from 'shared/constants'
import { registerRef } from './modules/ref'
import { traverse } from '../observer/traverse'
import { activeInstance } from '../instance/lifecycle'
import { isTextInputType } from 'web/util/element'

import {
  warn,
  isDef,
  isUndef,
  isTrue,
  makeMap,
  isRegExp,
  isPrimitive
} from '../util/index'

export const emptyNode = new VNode('', {}, [])

const hooks = ['create', 'activate', 'update', 'remove', 'destroy']

function sameVnode (a, b) {
  return (
    // 循环中的Key
    a.key === b.key &&
    // 异步工厂函数
    a.asyncFactory === b.asyncFactory && (
      (
        // 标签名
        a.tag === b.tag &&
        // 评论
        a.isComment === b.isComment &&
        // 是否都存在对应的数据
        isDef(a.data) === isDef(b.data) &&
        // 如果是input标签的话就需要有相同的type，或者久都是文本类型的，这里我搬运一下函数
        sameInputType(a, b)
      ) || (
        isTrue(a.isAsyncPlaceholder) &&
        isUndef(b.asyncFactory.error)
      )
    )
  )
}

// 搬运函数isTextInputType
export const isTextInputType = makeMap('text,number,password,search,email,tel,url')

function sameInputType (a, b) {
  if (a.tag !== 'input') return true
  let i
  const typeA = isDef(i = a.data) && isDef(i = i.attrs) && i.type
  const typeB = isDef(i = b.data) && isDef(i = i.attrs) && i.type
  return typeA === typeB || isTextInputType(typeA) && isTextInputType(typeB)
}


function createKeyToOldIdx (children, beginIdx, endIdx) {
  let i, key
  const map = {}
  for (i = beginIdx; i <= endIdx; ++i) {
    key = children[i].key
    if (isDef(key)) map[key] = i
  }
  return map
}

export function createPatchFunction (backend) {
  let i, j
  const cbs = {}
  // 获取参数modules， nodeOps
  const { modules, nodeOps } = backend

  // 针对module中的操作进行归类
  for (i = 0; i < hooks.length; ++i) {
    cbs[hooks[i]] = []
    for (j = 0; j < modules.length; ++j) {
      if (isDef(modules[j][hooks[i]])) {
        cbs[hooks[i]].push(modules[j][hooks[i]])
      }
    }
  }


  function emptyNodeAt (elm) {
    return new VNode(nodeOps.tagName(elm).toLowerCase(), {}, [], undefined, elm)
  }

  function createRmCb (childElm, listeners) {
    function remove () {
      if (--remove.listeners === 0) {
        removeNode(childElm)
      }
    }
    remove.listeners = listeners
    return remove
  }

  function removeNode (el) {
    const parent = nodeOps.parentNode(el)
    // element may have already been removed due to v-html / v-text
    if (isDef(parent)) {
      nodeOps.removeChild(parent, el)
    }
  }

  function isUnknownElement (vnode, inVPre) {
    return (
      !inVPre &&
      !vnode.ns &&
      !(
        config.ignoredElements.length &&
        config.ignoredElements.some(ignore => {
          return isRegExp(ignore)
            ? ignore.test(vnode.tag)
            : ignore === vnode.tag
        })
      ) &&
      config.isUnknownElement(vnode.tag)
    )
  }

  let creatingElmInVPre = 0

  function createElm (
    vnode,
    insertedVnodeQueue,
    parentElm,
    refElm,
    nested,
    ownerArray,
    index
  ) {
    // 如果之前已经存在elm，并且存在ownerArray，那么对vnode进行深拷贝
    if (isDef(vnode.elm) && isDef(ownerArray)) {
      // This vnode was used in a previous render!
      // now it's used as a new node, overwriting its elm would cause
      // potential patch errors down the road when it's used as an insertion
      // reference node. Instead, we clone the node on-demand before creating
      // associated DOM element for it.
      vnode = ownerArray[index] = cloneVNode(vnode)
    }

    vnode.isRootInsert = !nested // for transition enter check
    // 创建组件，如果是一个组件节点的话
    if (createComponent(vnode, insertedVnodeQueue, parentElm, refElm)) {
      return
    }
    // vnode的data
    const data = vnode.data
    // 子孙节点
    const children = vnode.children
    // 标签名
    const tag = vnode.tag
    if (isDef(tag)) {
      // 这里调用节点操作方法
      vnode.elm = vnode.ns
        ? nodeOps.createElementNS(vnode.ns, tag)
        : nodeOps.createElement(tag, vnode)
      // 设置CSS的Scoped
      setScope(vnode)

      /* istanbul ignore if */
      if (__WEEX__) {
        // in Weex, the default insertion order is parent-first.
        // List items can be optimized to use children-first insertion
        // with append="tree".
        const appendAsTree = isDef(data) && isTrue(data.appendAsTree)
        if (!appendAsTree) {
          if (isDef(data)) {
            invokeCreateHooks(vnode, insertedVnodeQueue)
          }
          insert(parentElm, vnode.elm, refElm)
        }
        createChildren(vnode, children, insertedVnodeQueue)
        if (appendAsTree) {
          if (isDef(data)) {
            invokeCreateHooks(vnode, insertedVnodeQueue)
          }
          insert(parentElm, vnode.elm, refElm)
        }
      } else {
        createChildren(vnode, children, insertedVnodeQueue)
        if (isDef(data)) {
          invokeCreateHooks(vnode, insertedVnodeQueue)
        }
        insert(parentElm, vnode.elm, refElm)
      }

      if (process.env.NODE_ENV !== 'production' && data && data.pre) {
        creatingElmInVPre--
      }
    } else if (isTrue(vnode.isComment)) {
      vnode.elm = nodeOps.createComment(vnode.text)
      insert(parentElm, vnode.elm, refElm)
    } else {
      vnode.elm = nodeOps.createTextNode(vnode.text)
      insert(parentElm, vnode.elm, refElm)
    }
  }

  function createComponent (vnode, insertedVnodeQueue, parentElm, refElm) {
    let i = vnode.data
    // 如果是组件节点的Vnode,是存初始化方法的，具体可看
    if (isDef(i)) {
      const isReactivated = isDef(vnode.componentInstance) && i.keepAlive
      if (isDef(i = i.hook) && isDef(i = i.init)) {
        i(vnode, false /* hydrating */)
      }
      // 翻译
      // 调用 init 钩子后，如果 vnode 是子组件
      // 它应该已经创建了一个子实例并挂载了它。孩子
      // 组件还设置了占位符 vnode 的 elm。
      // 在这种情况下，我们可以只返回元素并完成。
      if (isDef(vnode.componentInstance)) {
        // 做cbs的created操作
        initComponent(vnode, insertedVnodeQueue)
        // 插入对应的DOM节点
        insert(parentElm, vnode.elm, refElm)
        // 如果是Kep-alive的组件
        if (isTrue(isReactivated)) {
          // 如果是kep-alive组件，需要调用父组件的activate方法
          reactivateComponent(vnode, insertedVnodeQueue, parentElm, refElm)
        }
        return true
      }
    }
  }

  function initComponent (vnode, insertedVnodeQueue) {
    if (isDef(vnode.data.pendingInsert)) {
      insertedVnodeQueue.push.apply(insertedVnodeQueue, vnode.data.pendingInsert)
      vnode.data.pendingInsert = null
    }
    vnode.elm = vnode.componentInstance.$el
    if (isPatchable(vnode)) {
      // 通过module的内容对组件的指令，类，事件等做初始化操作
      invokeCreateHooks(vnode, insertedVnodeQueue)
      setScope(vnode)
    } else {
      // empty component root.
      registerRef(vnode)
      // make sure to invoke the insert hook
      insertedVnodeQueue.push(vnode)
    }
  }

  function reactivateComponent (vnode, insertedVnodeQueue, parentElm, refElm) {
    let i
    // 如果外层对kepAlive的组件有transition的设置，就会触发node_modules/vue/src/platforms/web/runtime/modules/transition.js 文件enter方法
    let innerNode = vnode
    while (innerNode.componentInstance) {
      innerNode = innerNode.componentInstance._vnode
      if (isDef(i = innerNode.data) && isDef(i = i.transition)) {
        for (i = 0; i < cbs.activate.length; ++i) {
          cbs.activate[i](emptyNode, innerNode)
        }
        insertedVnodeQueue.push(innerNode)
        break
      }
    }
    // unlike a newly created component,
    // a reactivated keep-alive component doesn't insert itself
    // 再次插入节点
    insert(parentElm, vnode.elm, refElm)
  }

  function insert (parent, elm, ref) {
    if (isDef(parent)) {
      if (isDef(ref)) {
        if (nodeOps.parentNode(ref) === parent) {
          nodeOps.insertBefore(parent, elm, ref)
        }
      } else {
        nodeOps.appendChild(parent, elm)
      }
    }
  }
  function createChildren (vnode, children, insertedVnodeQueue) {
    // 如果是数组就递归渲染
    if (Array.isArray(children)) {
      if (process.env.NODE_ENV !== 'production') {
        checkDuplicateKeys(children)
      }
      for (let i = 0; i < children.length; ++i) {
        createElm(children[i], insertedVnodeQueue, vnode.elm, null, true, children, i)
      }
      // 如果是简单类型就增加一个文本节点
    } else if (isPrimitive(vnode.text)) {
      nodeOps.appendChild(vnode.elm, nodeOps.createTextNode(String(vnode.text)))
    }
  }
  function isPatchable (vnode) {
    while (vnode.componentInstance) {
      vnode = vnode.componentInstance._vnode
    }
    return isDef(vnode.tag)
  }
  function invokeCreateHooks (vnode, insertedVnodeQueue) {
    for (let i = 0; i < cbs.create.length; ++i) {
      cbs.create[i](emptyNode, vnode)
    }
    i = vnode.data.hook // Reuse variable
    if (isDef(i)) {
      if (isDef(i.create)) i.create(emptyNode, vnode)
      if (isDef(i.insert)) insertedVnodeQueue.push(vnode)
    }
  }

  // set scope id attribute for scoped CSS.
  // this is implemented as a special case to avoid the overhead
  // of going through the normal attribute patching process.
  function setScope (vnode) {
    let i
    if (isDef(i = vnode.fnScopeId)) {
      nodeOps.setStyleScope(vnode.elm, i)
    } else {
      let ancestor = vnode
      while (ancestor) {
        if (isDef(i = ancestor.context) && isDef(i = i.$options._scopeId)) {
          nodeOps.setStyleScope(vnode.elm, i)
        }
        ancestor = ancestor.parent
      }
    }
    // for slot content they should also get the scopeId from the host instance.
    if (isDef(i = activeInstance) &&
      i !== vnode.context &&
      i !== vnode.fnContext &&
      isDef(i = i.$options._scopeId)
    ) {
      nodeOps.setStyleScope(vnode.elm, i)
    }
  }

  // 循环创建新元素
  function addVnodes (parentElm, refElm, vnodes, startIdx, endIdx, insertedVnodeQueue) {
    for (; startIdx <= endIdx; ++startIdx) {
      createElm(vnodes[startIdx], insertedVnodeQueue, parentElm, refElm, false, vnodes, startIdx)
    }
  }

  // 执行摧毁节点
  function invokeDestroyHook (vnode) {
    let i, j
    const data = vnode.data
    if (isDef(data)) {
      if (isDef(i = data.hook) && isDef(i = i.destroy)) i(vnode)
      // 依次执行摧毁操作中的方法
      for (i = 0; i < cbs.destroy.length; ++i) cbs.destroy[i](vnode)
    }
    if (isDef(i = vnode.children)) {
      for (j = 0; j < vnode.children.length; ++j) {
        invokeDestroyHook(vnode.children[j])
      }
    }
  }

  function removeVnodes (vnodes, startIdx, endIdx) {
    for (; startIdx <= endIdx; ++startIdx) {
      const ch = vnodes[startIdx]
      if (isDef(ch)) {
        if (isDef(ch.tag)) {
          removeAndInvokeRemoveHook(ch)
          invokeDestroyHook(ch)
        } else { // Text node
          removeNode(ch.elm)
        }
      }
    }
  }

  function removeAndInvokeRemoveHook (vnode, rm) {
    if (isDef(rm) || isDef(vnode.data)) {
      let i
      const listeners = cbs.remove.length + 1
      if (isDef(rm)) {
        // we have a recursively passed down rm callback
        // increase the listeners count
        rm.listeners += listeners
      } else {
        // directly removing
        rm = createRmCb(vnode.elm, listeners)
      }
      // recursively invoke hooks on child component root node
      if (isDef(i = vnode.componentInstance) && isDef(i = i._vnode) && isDef(i.data)) {
        removeAndInvokeRemoveHook(i, rm)
      }
      for (i = 0; i < cbs.remove.length; ++i) {
        cbs.remove[i](vnode, rm)
      }
      if (isDef(i = vnode.data.hook) && isDef(i = i.remove)) {
        i(vnode, rm)
      } else {
        rm()
      }
    } else {
      removeNode(vnode.elm)
    }
  }

  function updateChildren (
      // 真实的DOM节点
      parentElm,
      // 老的子节点数组
      oldCh,
      // 新的字子点数组
      newCh,
      // 插入队列
      insertedVnodeQueue,
      removeOnly
    ) {
    let oldStartIdx = 0
    let newStartIdx = 0
    let oldEndIdx = oldCh.length - 1
    let oldStartVnode = oldCh[0]
    let oldEndVnode = oldCh[oldEndIdx]
    let newEndIdx = newCh.length - 1
    let newStartVnode = newCh[0]
    let newEndVnode = newCh[newEndIdx]
    let oldKeyToIdx, idxInOld, vnodeToMove, refElm

    // removeOnly is a special flag used only by <transition-group>
    // to ensure removed elements stay in correct relative positions
    // during leaving transitions
    // removeOnly 是一个特殊标志，仅由<transition-group>使用
    // 确保移除的元素保持在正确的相对位置
    // 在离开过渡期间
    const canMove = !removeOnly

    if (process.env.NODE_ENV !== 'production') {
      checkDuplicateKeys(newCh)
    }
    // 开始循环
    while (oldStartIdx <= oldEndIdx && newStartIdx <= newEndIdx) {
      if (isUndef(oldStartVnode)) {
        oldStartVnode = oldCh[++oldStartIdx] // Vnode has been moved left
      } else if (isUndef(oldEndVnode)) {
        oldEndVnode = oldCh[--oldEndIdx]
        /*
        * 如果key相同，
        * tagName相同，
        * Vnode.data相同，
        * Vnode.isComment相同，
        * 还有是一个Input类型，那么就是相同的节点
        */
      } else if (sameVnode(oldStartVnode, newStartVnode)) {
        patchVnode(oldStartVnode, newStartVnode, insertedVnodeQueue, newCh, newStartIdx)
        oldStartVnode = oldCh[++oldStartIdx]
        newStartVnode = newCh[++newStartIdx]
      } else if (sameVnode(oldEndVnode, newEndVnode)) {
        patchVnode(oldEndVnode, newEndVnode, insertedVnodeQueue, newCh, newEndIdx)
        oldEndVnode = oldCh[--oldEndIdx]
        newEndVnode = newCh[--newEndIdx]
      } else if (sameVnode(oldStartVnode, newEndVnode)) { // Vnode moved right
        patchVnode(oldStartVnode, newEndVnode, insertedVnodeQueue, newCh, newEndIdx)
        // 直接进行调换位置的节点操作
        canMove && nodeOps.insertBefore(parentElm, oldStartVnode.elm, nodeOps.nextSibling(oldEndVnode.elm))
        oldStartVnode = oldCh[++oldStartIdx]
        newEndVnode = newCh[--newEndIdx]
      } else if (sameVnode(oldEndVnode, newStartVnode)) { // Vnode moved left
        patchVnode(oldEndVnode, newStartVnode, insertedVnodeQueue, newCh, newStartIdx)
        // 直接进行调换位置的节点操作
        canMove && nodeOps.insertBefore(parentElm, oldEndVnode.elm, oldStartVnode.elm)
        oldEndVnode = oldCh[--oldEndIdx]
        newStartVnode = newCh[++newStartIdx]
        // 如果四个位置对比都没有命中对应的节点
      } else {
        // 初始化一个key跟Index对应的map
        if (isUndef(oldKeyToIdx)) oldKeyToIdx = createKeyToOldIdx(oldCh, oldStartIdx, oldEndIdx)
        // 在老列表中查找新的子元素
        idxInOld = isDef(newStartVnode.key)
          ? oldKeyToIdx[newStartVnode.key]
          : findIdxInOld(newStartVnode, oldCh, oldStartIdx, oldEndIdx)
        // 如果在原本的里面找不到，那就是一个新元素，那就需要创建一个新的元素
        if (isUndef(idxInOld)) { // New element
          createElm(newStartVnode, insertedVnodeQueue, parentElm, oldStartVnode.elm, false, newCh, newStartIdx)
        } else {
        // 如果找到了
          vnodeToMove = oldCh[idxInOld]
         //  这里的sameVnode主要是解决oldKeyToIdx[newStartVnode.key]的匹配可能不准确的问题
          if (sameVnode(vnodeToMove, newStartVnode)) {
            patchVnode(vnodeToMove, newStartVnode, insertedVnodeQueue, newCh, newStartIdx)
            oldCh[idxInOld] = undefined
            canMove && nodeOps.insertBefore(parentElm, vnodeToMove.elm, oldStartVnode.elm)
          } else {
            //相同的Key不同的元素吗，那么需要创建新元素
            // same key but different element. treat as new element
            createElm(newStartVnode, insertedVnodeQueue, parentElm, oldStartVnode.elm, false, newCh, newStartIdx)
          }
        }
        newStartVnode = newCh[++newStartIdx]
      }
    }
    // 如果是老的列表先没了，就要把剩余的新的进行节点创建
    if (oldStartIdx > oldEndIdx) {
      refElm = isUndef(newCh[newEndIdx + 1]) ? null : newCh[newEndIdx + 1].elm
      addVnodes(parentElm, refElm, newCh, newStartIdx, newEndIdx, insertedVnodeQueue)
    } else if (newStartIdx > newEndIdx) {
    // 否则移除原有元素
      removeVnodes(oldCh, oldStartIdx, oldEndIdx)
    }
  }

  function checkDuplicateKeys (children) {
    const seenKeys = {}
    for (let i = 0; i < children.length; i++) {
      const vnode = children[i]
      const key = vnode.key
      if (isDef(key)) {
        if (seenKeys[key]) {
          warn(
            `Duplicate keys detected: '${key}'. This may cause an update error.`,
            vnode.context
          )
        } else {
          seenKeys[key] = true
        }
      }
    }
  }

  function findIdxInOld (node, oldCh, start, end) {
    for (let i = start; i < end; i++) {
      const c = oldCh[i]
      if (isDef(c) && sameVnode(node, c)) return i
    }
  }

  function patchVnode (
    // 老节点
    oldVnode,
    // 新节点
    vnode,
    insertedVnodeQueue,
    ownerArray,
    index,
    removeOnly
  ) {
    // 如果相同，那么直接返回
    if (oldVnode === vnode) {
      return
    }

    if (isDef(vnode.elm) && isDef(ownerArray)) {
      // clone reused vnode
      vnode = ownerArray[index] = cloneVNode(vnode)
    }
    // 拿到现在视图上的DOM元素
    const elm = vnode.elm = oldVnode.elm

    if (isTrue(oldVnode.isAsyncPlaceholder)) {
      if (isDef(vnode.asyncFactory.resolved)) {
        hydrate(oldVnode.elm, vnode, insertedVnodeQueue)
      } else {
        vnode.isAsyncPlaceholder = true
      }
      return
    }

    // reuse element for static trees.
    // note we only do this if the vnode is cloned -
    // if the new node is not cloned it means the render functions have been
    // reset by the hot-reload-api and we need to do a proper re-render.
    // 为静态树重用元素。
    // 请注意，我们仅在 vnode 被克隆时才这样做
    // 如果新节点没有被克隆，则表示渲染函数已经被克隆
    // 由 hot-reload-api 重置，我们需要进行适当的重新渲染。
    if (isTrue(vnode.isStatic) &&
      isTrue(oldVnode.isStatic) &&
      vnode.key === oldVnode.key &&
      (isTrue(vnode.isCloned) || isTrue(vnode.isOnce))
    ) {
      vnode.componentInstance = oldVnode.componentInstance
      return
    }

    let i
    // data比如一些class或者是绑定的attr的名称
    const data = vnode.data
    if (isDef(data) && isDef(i = data.hook) && isDef(i = i.prepatch)) {
      i(oldVnode, vnode)
    }

    const oldCh = oldVnode.children
    const ch = vnode.children
    // 调用对应的module中的更新方法
    if (isDef(data) && isPatchable(vnode)) {
      for (i = 0; i < cbs.update.length; ++i) cbs.update[i](oldVnode, vnode)
      if (isDef(i = data.hook) && isDef(i = i.update)) i(oldVnode, vnode)
    }
    // 如果当前Vnode不存在文本，也就是存在树状结构的话，那么久
    if (isUndef(vnode.text)) {
      // 如果都存在子节点数组
      if (isDef(oldCh) && isDef(ch)) {
        // 并且数组不相等的话
        if (oldCh !== ch) updateChildren(elm, oldCh, ch, insertedVnodeQueue, removeOnly)
      } else if (isDef(ch)) {
        // 如果老节点是文本节点，新节点不存在文本，那么久取出文本，并且给增加子元素
        if (isDef(oldVnode.text)) nodeOps.setTextContent(elm, '')
        addVnodes(elm, null, ch, 0, ch.length - 1, insertedVnodeQueue)
      } else if (isDef(oldCh)) {
        // 将老节点移除
        removeVnodes(oldCh, 0, oldCh.length - 1)
      } else if (isDef(oldVnode.text)) {
        // 仅将新节点的文本滞空
        nodeOps.setTextContent(elm, '')
      }
    } else if (oldVnode.text !== vnode.text) {
      // 替换文本
      nodeOps.setTextContent(elm, vnode.text)
    }
    // 如果有data并且data存在hook，那么调用hook
    if (isDef(data)) {
      if (isDef(i = data.hook) && isDef(i = i.postpatch)) i(oldVnode, vnode)
    }
  }

  function invokeInsertHook (vnode, queue, initial) {
    // delay insert hooks for component root nodes, invoke them after the
    // element is really inserted
    if (isTrue(initial) && isDef(vnode.parent)) {
      vnode.parent.data.pendingInsert = queue
    } else {
      for (let i = 0; i < queue.length; ++i) {
        queue[i].data.hook.insert(queue[i])
      }
    }
  }

  let hydrationBailed = false
  // list of modules that can skip create hook during hydration because they
  // are already rendered on the client or has no need for initialization
  // Note: style is excluded because it relies on initial clone for future
  // deep updates (#7063).
  const isRenderedModule = makeMap('attrs,class,staticClass,staticStyle,key')

  // Note: this is a browser-only function so we can assume elms are DOM nodes.
  function hydrate (elm, vnode, insertedVnodeQueue, inVPre) {
    let i
    const { tag, data, children } = vnode
    inVPre = inVPre || (data && data.pre)
    vnode.elm = elm

    if (isTrue(vnode.isComment) && isDef(vnode.asyncFactory)) {
      vnode.isAsyncPlaceholder = true
      return true
    }
    // assert node match
    if (process.env.NODE_ENV !== 'production') {
      if (!assertNodeMatch(elm, vnode, inVPre)) {
        return false
      }
    }
    if (isDef(data)) {
      if (isDef(i = data.hook) && isDef(i = i.init)) i(vnode, true /* hydrating */)
      if (isDef(i = vnode.componentInstance)) {
        // child component. it should have hydrated its own tree.
        initComponent(vnode, insertedVnodeQueue)
        return true
      }
    }
    if (isDef(tag)) {
      if (isDef(children)) {
        // empty element, allow client to pick up and populate children
        if (!elm.hasChildNodes()) {
          createChildren(vnode, children, insertedVnodeQueue)
        } else {
          // v-html and domProps: innerHTML
          if (isDef(i = data) && isDef(i = i.domProps) && isDef(i = i.innerHTML)) {
            if (i !== elm.innerHTML) {
              /* istanbul ignore if */
              if (process.env.NODE_ENV !== 'production' &&
                typeof console !== 'undefined' &&
                !hydrationBailed
              ) {
                hydrationBailed = true
                console.warn('Parent: ', elm)
                console.warn('server innerHTML: ', i)
                console.warn('client innerHTML: ', elm.innerHTML)
              }
              return false
            }
          } else {
            // iterate and compare children lists
            let childrenMatch = true
            let childNode = elm.firstChild
            for (let i = 0; i < children.length; i++) {
              if (!childNode || !hydrate(childNode, children[i], insertedVnodeQueue, inVPre)) {
                childrenMatch = false
                break
              }
              childNode = childNode.nextSibling
            }
            // if childNode is not null, it means the actual childNodes list is
            // longer than the virtual children list.
            if (!childrenMatch || childNode) {
              /* istanbul ignore if */
              if (process.env.NODE_ENV !== 'production' &&
                typeof console !== 'undefined' &&
                !hydrationBailed
              ) {
                hydrationBailed = true
                console.warn('Parent: ', elm)
                console.warn('Mismatching childNodes vs. VNodes: ', elm.childNodes, children)
              }
              return false
            }
          }
        }
      }
      if (isDef(data)) {
        let fullInvoke = false
        for (const key in data) {
          if (!isRenderedModule(key)) {
            fullInvoke = true
            invokeCreateHooks(vnode, insertedVnodeQueue)
            break
          }
        }
        if (!fullInvoke && data['class']) {
          // ensure collecting deps for deep class bindings for future updates
          traverse(data['class'])
        }
      }
    } else if (elm.data !== vnode.text) {
      elm.data = vnode.text
    }
    return true
  }

  function assertNodeMatch (node, vnode, inVPre) {
    if (isDef(vnode.tag)) {
      return vnode.tag.indexOf('vue-component') === 0 || (
        !isUnknownElement(vnode, inVPre) &&
        vnode.tag.toLowerCase() === (node.tagName && node.tagName.toLowerCase())
      )
    } else {
      return node.nodeType === (vnode.isComment ? 8 : 3)
    }
  }

  return function patch (oldVnode, vnode, hydrating, removeOnly) {
     // 是否未定义
    if (isUndef(vnode)) {
      // 如果命中就摧毁当前老的节点
      if (isDef(oldVnode)) invokeDestroyHook(oldVnode)
      return
    }

    let isInitialPatch = false
    const insertedVnodeQueue = []
    // 如果老节点没有定义
    if (isUndef(oldVnode)) {
      // empty mount (likely as component), create new root element
      isInitialPatch = true
      // 根据当前vnode创建DOM
      createElm(vnode, insertedVnodeQueue)
    } else {
      const isRealElement = isDef(oldVnode.nodeType)
      if (!isRealElement && sameVnode(oldVnode, vnode)) {
        // patch existing root node
        // patchVnode 完成后
        patchVnode(oldVnode, vnode, insertedVnodeQueue, null, null, removeOnly)
      } else {
        // 如果是真实的DOM节点
        if (isRealElement) {
          // mounting to a real element
          // check if this is server-rendered content and if we can perform
          // a successful hydration.
          if (oldVnode.nodeType === 1 && oldVnode.hasAttribute(SSR_ATTR)) {
            oldVnode.removeAttribute(SSR_ATTR)
            hydrating = true
          }
          if (isTrue(hydrating)) {
            if (hydrate(oldVnode, vnode, insertedVnodeQueue)) {
              invokeInsertHook(vnode, insertedVnodeQueue, true)
              return oldVnode
            } else if (process.env.NODE_ENV !== 'production') {
              warn(
                'The client-side rendered virtual DOM tree is not matching ' +
                'server-rendered content. This is likely caused by incorrect ' +
                'HTML markup, for example nesting block-level elements inside ' +
                '<p>, or missing <tbody>. Bailing hydration and performing ' +
                'full client-side render.'
              )
            }
          }
          // either not server-rendered, or hydration failed.
          // create an empty node and replace it
          oldVnode = emptyNodeAt(oldVnode)
        }

        // replacing existing element
        const oldElm = oldVnode.elm
        const parentElm = nodeOps.parentNode(oldElm)

        // create new node
        createElm(
          vnode,
          insertedVnodeQueue,
          // extremely rare edge case: do not insert if old element is in a
          // leaving transition. Only happens when combining transition +
          // keep-alive + HOCs. (#4590)
          oldElm._leaveCb ? null : parentElm,
          nodeOps.nextSibling(oldElm)
        )

        // update parent placeholder node element, recursively
        if (isDef(vnode.parent)) {
          let ancestor = vnode.parent
          const patchable = isPatchable(vnode)
          while (ancestor) {
            for (let i = 0; i < cbs.destroy.length; ++i) {
              cbs.destroy[i](ancestor)
            }
            ancestor.elm = vnode.elm
            if (patchable) {
              for (let i = 0; i < cbs.create.length; ++i) {
                cbs.create[i](emptyNode, ancestor)
              }
              // #6513
              // invoke insert hooks that may have been merged by create hooks.
              // e.g. for directives that uses the "inserted" hook.
              const insert = ancestor.data.hook.insert
              if (insert.merged) {
                // start at index 1 to avoid re-invoking component mounted hook
                for (let i = 1; i < insert.fns.length; i++) {
                  insert.fns[i]()
                }
              }
            } else {
              registerRef(ancestor)
            }
            ancestor = ancestor.parent
          }
        }

        // destroy old node
        if (isDef(parentElm)) {
          removeVnodes([oldVnode], 0, 0)
        } else if (isDef(oldVnode.tag)) {
          invokeDestroyHook(oldVnode)
        }
      }
    }
    // 最终这边会循环调用，vnode的data的insert方法
    invokeInsertHook(vnode, insertedVnodeQueue, isInitialPatch)
    // 返回DOM元素
    return vnode.elm
  }
}

了解完patch的过程，那么我们整个初始化的基本上就了解完成。但是关于Vue2我们还有很多还没学习的地方，我们就在下一篇中进行比较常见的地方进行学习。

下一篇：面试准备-vue2源码复习之路由相关
