统一异常处理使用及其原理

1. 使用

定义异常返回类ApiError

@Data
public class ApiError {

    private Integer status = 400;

    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
    private Date date;

    private String message;

    private ApiError() {
        date = new Date();
    }

    public static ApiError error(String message) {
        ApiError apiError = new ApiError();
        apiError.setMessage(message);
        return apiError;
    }

    public static ApiError error(Integer status, String message) {
        ApiError apiError = new ApiError();
        apiError.setStatus(status);
        apiError.setMessage(message);
        return apiError;
    }
}

全局异常处理类GlobalExceptionAdvice

@Slf4j
@RestControllerAdvice
public class GlobalExceptionAdvice {

    /**
     * 请求方式不支持
     */
    @ExceptionHandler(HttpRequestMethodNotSupportedException.class)
    public ApiError handleException(HttpRequestMethodNotSupportedException e) {
        log.error(e.getMessage(), e);
        return ApiError.error("不支持' " + e.getMethod() + "'请求");
    }

    @ExceptionHandler(IllegalArgumentException.class)
    public ApiError handleException(IllegalArgumentException e) {
        log.error(e.getMessage(), e);
        return ApiError.error(e.getMessage());
    }
  ··· 省略，这里以 IllegalArgumentException举例子
 }

测试类TestController

@RestController
public class TestController {

    @GetMapping("test")
    public String test() {
        throw new IllegalArgumentException("Illegal exception");
    }
}

启动项目，访问 localhost:8080/test,返回结果为

{
status: 400,
date: "2022-05-09 21:46:03",
message: "Illegal exception"
}

2. 原理

返回结果没有跑出异常，而是显示一个json。这说明最后走的逻辑是GlobalExceptionAdvice.handleException(IllegalArgumentException e)。

既然能走到这里，说明是通过反射调用的，那么是如何找到这个方法的呢？

    @ExceptionHandler(IllegalArgumentException.class)
    public ApiError handleException(IllegalArgumentException e) {
        log.error(e.getMessage(), e);
        return ApiError.error(e.getMessage());
    }

可以看到，这个方法上面有个注解@ExceptionHandler注解，应该是将这个注解里面的值与方法名绑定在一起，调用接口/test的时候，如果抛出异常，那么就会去找一个这个异常关联的方法，然后通过反射调用方法。逻辑通了，那就开始分析。

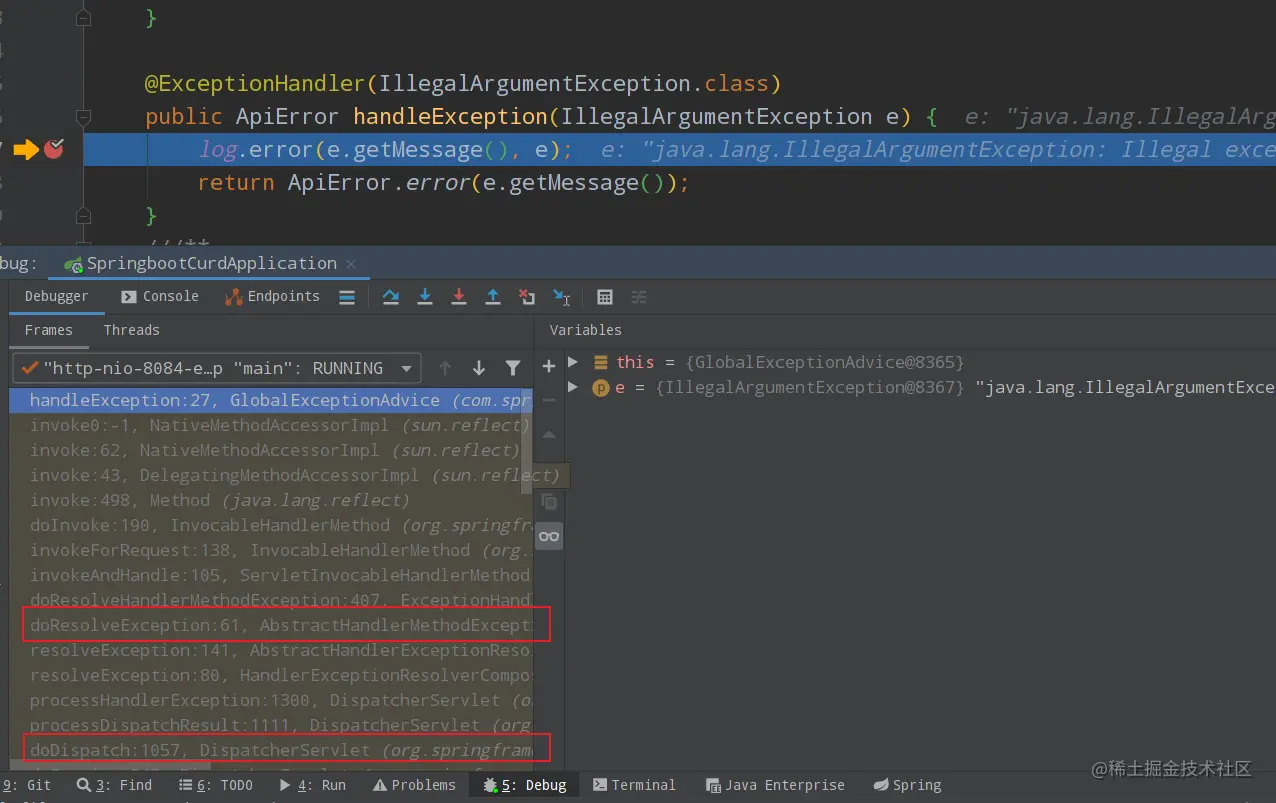

断点直接打在上面代码的 log.error(e.getMessage(), e)处，然后debug调试，访问 localhost:8080/test

先查看代码入口org.springframework.web.servlet.DispatcherServlet#doDispatch。service入口，这里就不介绍了。

	protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
			HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
				processedRequest = checkMultipart(request);
				multipartRequestParsed = (processedRequest != request);

				// Determine handler for the current request.
				mappedHandler = getHandler(processedRequest);
				if (mappedHandler == null) {
					noHandlerFound(processedRequest, response);
					return;
				}

				// Determine handler adapter for the current request.
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				// Process last-modified header, if supported by the handler.
				String method = request.getMethod();
				boolean isGet = "GET".equals(method);
				if (isGet || "HEAD".equals(method)) {
					long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
					if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
						return;
					}
				}

				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				// Actually invoke the handler.
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

				if (asyncManager.isConcurrentHandlingStarted()) {
					return;
				}

				applyDefaultViewName(processedRequest, mv);
				mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			catch (Throwable err) {
				// As of 4.3, we're processing Errors thrown from handler methods as well,
				// making them available for @ExceptionHandler methods and other scenarios.
				dispatchException = new NestedServletException("Handler dispatch failed", err);
			}
			// 处理返回结果
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}



        private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
        @Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
        @Nullable Exception exception) throws Exception {

		boolean errorView = false;

		if (exception != null) {
			if (exception instanceof ModelAndViewDefiningException) {
				logger.debug("ModelAndViewDefiningException encountered", exception);
				mv = ((ModelAndViewDefiningException) exception).getModelAndView();
			}
			else {
				Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
				// 处理异常代码
				mv = processHandlerException(request, response, handler, exception);
				errorView = (mv != null);
			}
		}
		···
		}

再来到处理异常代码org.springframework.web.servlet.handler.AbstractHandlerMethodExceptionResolver#doResolveException

	protected final ModelAndView doResolveException(
			HttpServletRequest request, HttpServletResponse response, @Nullable Object handler, Exception ex) {

		return doResolveHandlerMethodException(request, response, (HandlerMethod) handler, ex);
	}

实现类org.springframework.web.servlet.mvc.method.annotation.ExceptionHandlerExceptionResolver#doResolveHandlerMethodException

这里核心步骤就是根据异常类去查找绑定的方法，然后通过反射去调用全局处理类中的方法。

	protected ModelAndView doResolveHandlerMethodException(HttpServletRequest request,
			HttpServletResponse response, @Nullable HandlerMethod handlerMethod, Exception exception) {

		// 重点这里 根据异常类拿到对应的方法
		ServletInvocableHandlerMethod exceptionHandlerMethod = getExceptionHandlerMethod(handlerMethod, exception);
		if (exceptionHandlerMethod == null) {
			return null;
		}

		if (this.argumentResolvers != null) {
			exceptionHandlerMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
		}
		if (this.returnValueHandlers != null) {
			exceptionHandlerMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
		}

		ServletWebRequest webRequest = new ServletWebRequest(request, response);
		ModelAndViewContainer mavContainer = new ModelAndViewContainer();

		try {
			if (logger.isDebugEnabled()) {
				logger.debug("Using @ExceptionHandler " + exceptionHandlerMethod);
			}
			Throwable cause = exception.getCause();
			if (cause != null) {
				// Expose cause as provided argument as well
				exceptionHandlerMethod.invokeAndHandle(webRequest, mavContainer, exception, cause, handlerMethod);
			}
			else {
				// 根据方法反射调用
				exceptionHandlerMethod.invokeAndHandle(webRequest, mavContainer, exception, handlerMethod);
			}
		}
		catch (Throwable invocationEx) {

			if (invocationEx != exception && invocationEx != exception.getCause() && logger.isWarnEnabled()) {
				logger.warn("Failure in @ExceptionHandler " + exceptionHandlerMethod, invocationEx);
			}

			return null;
		}

		if (mavContainer.isRequestHandled()) {
			return new ModelAndView();
		}
		else {
			ModelMap model = mavContainer.getModel();
			HttpStatus status = mavContainer.getStatus();
			ModelAndView mav = new ModelAndView(mavContainer.getViewName(), model, status);
			mav.setViewName(mavContainer.getViewName());
			if (!mavContainer.isViewReference()) {
				mav.setView((View) mavContainer.getView());
			}
			if (model instanceof RedirectAttributes) {
				Map<String, ?> flashAttributes = ((RedirectAttributes) model).getFlashAttributes();
				RequestContextUtils.getOutputFlashMap(request).putAll(flashAttributes);
			}
			return mav;
		}
	}

		// 根据异常类去查找绑定的方法
		protected ServletInvocableHandlerMethod getExceptionHandlerMethod(
			@Nullable HandlerMethod handlerMethod, Exception exception) {

		Class<?> handlerType = null;

		if (handlerMethod != null) {
			// Local exception handler methods on the controller class itself.
			// To be invoked through the proxy, even in case of an interface-based proxy.
			handlerType = handlerMethod.getBeanType();
			// exceptionHandlerCache这个map肯定是提前初始化的
			ExceptionHandlerMethodResolver resolver = this.exceptionHandlerCache.get(handlerType);
			if (resolver == null) {
				resolver = new ExceptionHandlerMethodResolver(handlerType);
				this.exceptionHandlerCache.put(handlerType, resolver);
			}
			// 具体细节自己debug
			Method method = resolver.resolveMethod(exception);
			if (method != null) {
				return new ServletInvocableHandlerMethod(handlerMethod.getBean(), method);
			}
			// For advice applicability check below (involving base packages, assignable types
			// and annotation presence), use target class instead of interface-based proxy.
			if (Proxy.isProxyClass(handlerType)) {
				handlerType = AopUtils.getTargetClass(handlerMethod.getBean());
			}
		}

		for (Map.Entry<ControllerAdviceBean, ExceptionHandlerMethodResolver> entry : 			this.exceptionHandlerAdviceCache.entrySet()) {
			ControllerAdviceBean advice = entry.getKey();
			if (advice.isApplicableToBeanType(handlerType)) {
				ExceptionHandlerMethodResolver resolver = entry.getValue();
				Method method = resolver.resolveMethod(exception);
				if (method != null) {
					return new ServletInvocableHandlerMethod(advice.resolveBean(), method);
				}
			}
		}

		return null;
	}

什么时候提前绑定了异常类class与方法呢？答案时启动的时候。

全局搜索注解@ExceptionHandler，发现有个相关类ExceptionHandlerMethodResolver,该类实现了InitializingBean接口，在afterPropertiesSet()方法上打上断点

public class ExceptionHandlerExceptionResolver extends AbstractHandlerMethodExceptionResolver
		implements ApplicationContextAware, InitializingBean {
			@Override
	public void afterPropertiesSet() {
		// Do this first, it may add ResponseBodyAdvice beans
		initExceptionHandlerAdviceCache();

		if (this.argumentResolvers == null) {
			List<HandlerMethodArgumentResolver> resolvers = getDefaultArgumentResolvers();
			this.argumentResolvers = new HandlerMethodArgumentResolverComposite().addResolvers(resolvers);
		}
		if (this.returnValueHandlers == null) {
			List<HandlerMethodReturnValueHandler> handlers = getDefaultReturnValueHandlers();
			this.returnValueHandlers = new HandlerMethodReturnValueHandlerComposite().addHandlers(handlers);
		}
	}

		private void initExceptionHandlerAdviceCache() {
		if (getApplicationContext() == null) {
			return;
		}

		List<ControllerAdviceBean> adviceBeans = ControllerAdviceBean.findAnnotatedBeans(getApplicationContext());
		for (ControllerAdviceBean adviceBean : adviceBeans) {
			Class<?> beanType = adviceBean.getBeanType();
			if (beanType == null) {
				throw new IllegalStateException("Unresolvable type for ControllerAdviceBean: " + adviceBean);
			}
			// 在这里绑定class与方法
			ExceptionHandlerMethodResolver resolver = new ExceptionHandlerMethodResolver(beanType);
			if (resolver.hasExceptionMappings()) {
				this.exceptionHandlerAdviceCache.put(adviceBean, resolver);
			}
			if (ResponseBodyAdvice.class.isAssignableFrom(beanType)) {
				this.responseBodyAdvice.add(adviceBean);
			}
		}

		if (logger.isDebugEnabled()) {
			int handlerSize = this.exceptionHandlerAdviceCache.size();
			int adviceSize = this.responseBodyAdvice.size();
			if (handlerSize == 0 && adviceSize == 0) {
				logger.debug("ControllerAdvice beans: none");
			}
			else {
				logger.debug("ControllerAdvice beans: " +
						handlerSize + " @ExceptionHandler, " + adviceSize + " ResponseBodyAdvice");
			}
		}
	}

最后在ExceptionHandlerMethodResolver完成class与method的绑定。具体细节需要自己debug

public class ExceptionHandlerMethodResolver {

	/**
	 * A filter for selecting {@code @ExceptionHandler} methods.
	 */
	public static final MethodFilter EXCEPTION_HANDLER_METHODS = method ->
			AnnotatedElementUtils.hasAnnotation(method, ExceptionHandler.class);


	private final Map<Class<? extends Throwable>, Method> mappedMethods = new HashMap<>(16);

	private final Map<Class<? extends Throwable>, Method> exceptionLookupCache = new ConcurrentReferenceHashMap<>(16);


	/**
	 * A constructor that finds {@link ExceptionHandler} methods in the given type.
	 * @param handlerType the type to introspect
	 */
	public ExceptionHandlerMethodResolver(Class<?> handlerType) {
		for (Method method : MethodIntrospector.selectMethods(handlerType, EXCEPTION_HANDLER_METHODS)) {
			for (Class<? extends Throwable> exceptionType : detectExceptionMappings(method)) {
				addExceptionMapping(exceptionType, method);
			}
		}
	}
	···
}
