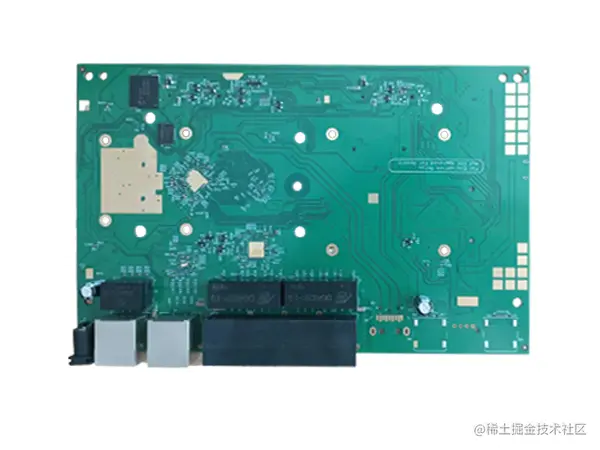

802.11ax 2X2 2.4G IPQ5018 QCN9074/QCN9024 card -wallys Dual-core ARM 64bit A53 1.0GHz Processor
512MB DDRL3L System Memory
4MB NOR Flash, 128MB NAND Flash
2x2 On-board 2.4GHz radio,up to 573Mbps physical Data Rate
Support BT5.1
Two PCIe2.0 connector can support [QCN90xx]production
-
Absolute Maximum Rating -
\
-
Parameter**** Rating**** Unit**** Supply Voltage 12 V Operating Temperature Range -40 to +70 ºC Storage Temperature Range -45 to +105 ºC Operating Humidity Range 5 to +95 (non-condensing) % -
-
****Hardware Specifications -
\
-
Symbol**** Parameter**** CPU Qualcomm-Atheros [IPQ5018] CPU Frequency Dual-core ARM 64 bit A53 @1.0 GHz processor System Memory 512MB DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 4 x 1Gbps Ethernet Ports or 1X2.5Gbps Ethernet Port；1 x1Gbps Ethernet Port NGFF Slot 2 X M.2 (NGFF) “E Key” Socket with MiniPCIe 2.0(For WiFi Module) EMMC 4G/8G(optional) USB /header 1x USB 3.0 Port POE NA DC Jack 12V power supply LED header LED for power ,Wifi strength Serial Port support Wireless On-board 2x22.4GHz MU-MIMO OFDMA 802.11b/802.11g/802.11n/[802.11ax],max 23dBm per chain2x IPEX Connectors Bluetooth BT5.1 Nor Flash 8MB Nand Flash 128 MB DDR 512MB Dimension 185mm x 116mm -
\
-
\
-
****Radio TX Specifications(2412MHz-2482MHz) -
\
-
Operating Mode Data Rate Power Tolerance 1 Chain**** 2 Chains**** 2.4Ghz 802.11ax HE20 MCS0 23dbm 26dbm ±2dB MCS1 23dBm 26dBm ±2dB MCS2 23dBm 26dBm ±2dB MCS3 23dBm 26dBm ±2dB MCS4 23dBm 26dBm ±2dB MCS5 23dBm 26dBm ±2dB MCS6 23dBm 26dBm ±2dB MCS7 22dBm 25dBm ±2dB MCS8 21dBm 24dBm ±2dB MCS9 21dBm 24dBm ±2dB MCS10 18dBm 21dBm ±2dB MCS11 17dbm 20dbm ±2dB 2.4Ghz 802.11ax HE40 MCS0 23dbm 26dbm ±2dB MCS1 23dBm 26dBm ±2dB MCS2 23dBm 26dBm ±2dB MCS3 23dBm 26dBm ±2dB MCS4 23dBm 26dBm ±2dB MCS5 23dBm 26dBm ±2dB MCS6 23dBm 26dBm ±2dB MCS7 22dBm 25dBm ±2dB MCS8 21dBm 24dBm ±2dB MCS9 21dBm 24dBm ±2dB MCS10 21dBm 24dBm ±2dB MCS11 19dbm 22dbm ±2dB
