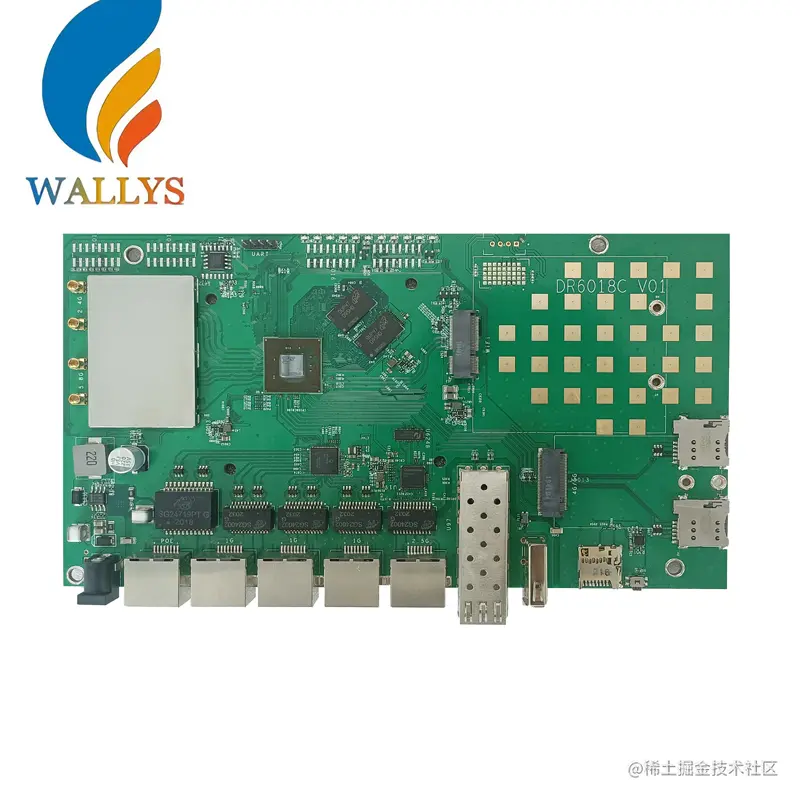

OpenWRT IPQ6010/IPQ6018 802.11ax QCN9074 2x2 2.4G&5G 2.5Gbps SFP-wallys Qualcomm-Atheros IPQ6010
Quad-core ARM 64bit A53 @1.8GHz Processor
1GB DDRL3L System Memory
32MB NOR Flash, 256MB NAND Flash
Supports Dynamic Frequency Selection (DFS)
2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate
2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate
Support: QUECTEL RM500Q-GL
Support: QCN9074 WiFi 6E Card
-
Absolute Maximum Rating -
\
-
Parameter**** Rating**** Unit**** Supply Voltage 24V~48 V Operating Temperature Range -40 to +70 ºC Storage Temperature Range -45 to +105 ºC Operating Humidity Range 5 to +95 (non-condensing) % -
\
-
****Hardware Specifications -
\
-
Symbol**** Parameter**** CPU Qualcomm-Atheros [IPQ6010] CPU Frequency Quad-core ARM 64 bit A53 @1.8 GHz processor System Memory 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 1 x 1Gbps Ethernet Ports & POE3 x 1Gbps Ethernet Ports , 1x 2.5Gbps Ethernet Port SFP Port 1x SFP port NGFF Slot M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0 SD Card Slot 1x SD Card Slot USB /header 1x USB 2.0 Port POE 24V~48V passive POE/Active POE(Suport 802.3bt) DC Jack 24V power supply LED header FFC/FPC Connector Serial Port 1x Serial Port 4 Pin Connector Wireless On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chainOn-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain4 x MMCX Connectors Bluetooth CSR8811 BLE 4.2 Nor Flash 32MB Nand Flash 256MB DDR 256MB~512MB Dimension 185mm x 116mm -
\
-
Radio TX Specifications(5180MHz-5825MHz) -
\
-
Operating Mode Data Rate Power Tolerance 1 Chain**** 2 Chains**** 5Ghz 802.11ax HE20 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB 5Ghz 802.11ax HE400 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB 5Ghz 802.11ax HE80 MCS0 20dBm 23dbm ±2dB MCS1 20dBm 23dBm ±2dB MCS2 20dBm 23dBm ±2dB MCS3 20dBm 23dBm ±2dB MCS4 19dBm 22dBm ±2dB MCS5 18dBm 21dBm ±2dB MCS6 17dBm 20dBm ±2dB MCS7 16dBm 19dBm ±2dB MCS8 15dBm 18dBm ±2dB MCS9 14dBm 17dBm ±2dB MCS10 13dBm 16dBm ±2dB MCS11 13dBm 16dbm ±2dB -
\
