如何实现双飞翼(圣杯)布局

565 阅读1分钟

方案一、

1、利用定位实现两侧固定中间自适应

  1. 父盒子设置左右padding值
  2. 给左右盒子的width设置父盒子的padding值,然后分别定位到padding处
  3. 中间盒子自适应 如图所示:

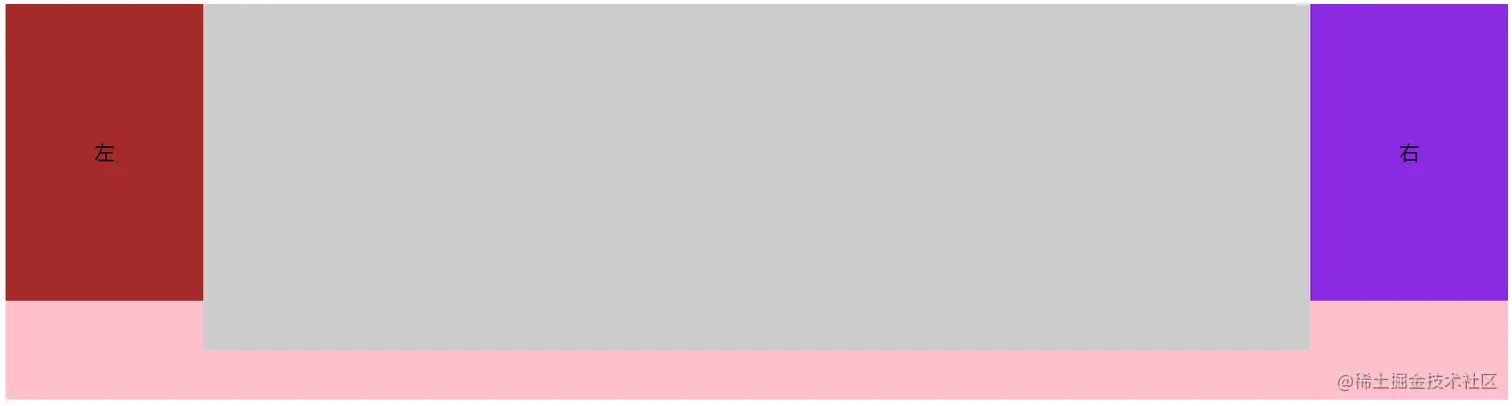

圣杯1.png html结构如下:

  <div class="father">
    <div class="left">左</div>
    <div class="center"></div>
    <div class="right">右</div>
  </div>

css代码如下:

.father {
      height: 400px;
      background-color: pink;
      position: relative;
      padding: 0 200px;
    }

    .left,
    .right {
      width: 200px;
      height: 300px;
      position: absolute;
      top: 0;
      /* 调试文字位置,更直观的查看圣杯布局 */
      text-align: center;
      font-size: 20px;
      line-height: 300px;
    }

    .left {
      left: 0;
      background-color: brown;
    }

    .right {
      right: 0;
      background-color: blueviolet;
    }

    .center {
      background-color: #ccc;
      height: 350px;
    }

方案二、

2、利用flex布局实现两侧固定中间自适应

  1. 父盒子设置display:flex
  2. 左右盒子设置固定宽高
  3. 给中间盒子设置flex:1; 如图所示:

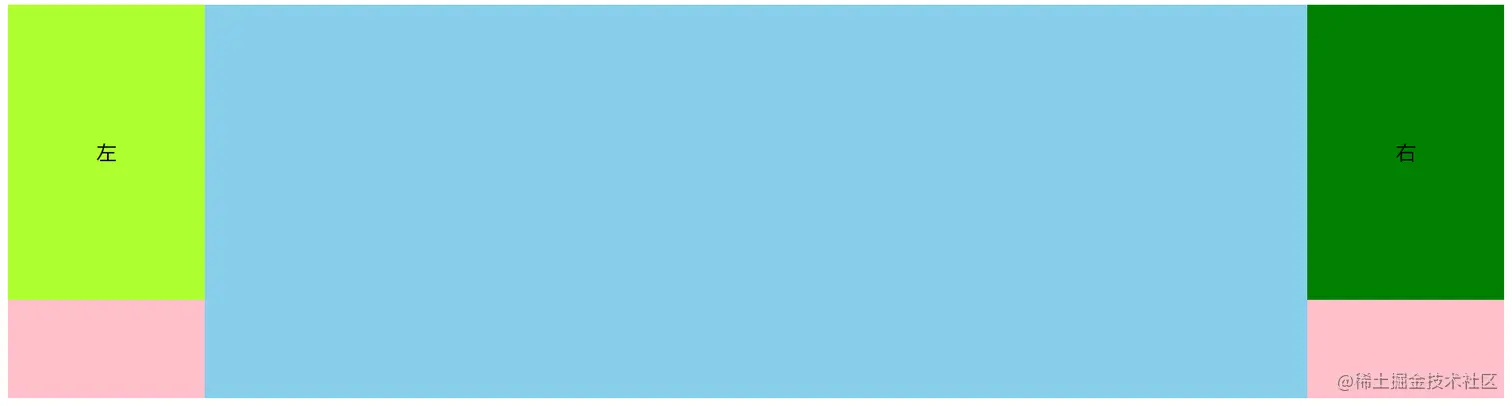

圣杯2.png html结构如下:

 <div class="father">
    <div class="left">左</div>
    <div class="center"></div>
    <div class="right">右</div>
  </div>

css代码如下:

.father {
      height: 400px;
      background-color: pink;
      display: flex;
    }

    .left,
    .right {
      width: 200px;
      height: 300px;
      /* 调试文字位置,更直观的查看圣杯布局 */
      text-align: center;
      font-size: 20px;
      line-height: 300px;
    }

    .left {
      background-color: greenyellow;
    }

    .right {
      background-color: green;
    }

    .center {
      flex: 1;
      background-color: skyblue;
    }

方案三、

3、利用bfc块级格式化上下文,实现两侧固定中间自适应

  1. 左右固定宽高,进行浮动
  2. 中间 voerflow:hidden; 如图所示:

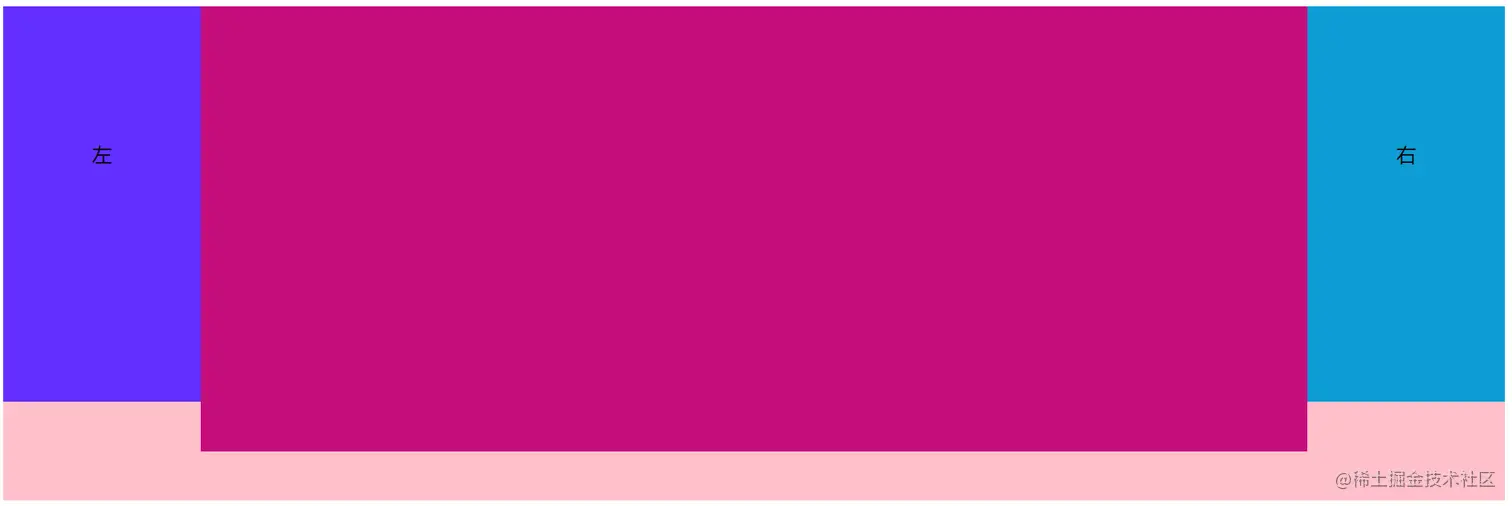

圣杯3.png html结构如下:

 <!-- 注意:left和right必须放在center前面 -->
  <div class="father">
    <div class="left"></div>
    <div class="right"></div>
    <div class="center"></div>
  </div>

css代码如下:

    .father {
      height: 500px;
      background-color: pink;
    }

    .left,
    .right {
      width: 200px;
      height: 400px;
      /* 调试文字位置,更直观的查看圣杯布局 */
      text-align: center;
      font-size: 20px;
      line-height: 300px;
    }

    .left {
      float: left;
      background-color: rgb(99, 47, 255);
    }

    .right {
      float: right;
      background-color: rgb(14, 156, 212);
    }

    .center {
      height: 450px;
      background-color: rgb(196, 13, 123);
      overflow: hidden;
    }
