基于android10.0

应用调用接口

以启动服务为例，看下AMS获取全流程。 一般，我么可以通过在Activity通过调用startService启动某个服务

//ContextImpl.java
@Override
public ComponentName startService(Intent service) {
    warnIfCallingFromSystemProcess();
    return startServiceCommon(service, false, mUser);
}

private ComponentName startServiceCommon(Intent service, boolean requireForeground,
    UserHandle user) {
try {
    validateServiceIntent(service);
    service.prepareToLeaveProcess(this);
    ComponentName cn = ActivityManager.getService().startService(
            mMainThread.getApplicationThread(), service,
            service.resolveTypeIfNeeded(getContentResolver()), requireForeground,
            getOpPackageName(), getAttributionTag(), user.getIdentifier());
      ...
    return cn;
} catch (RemoteException e) {
    throw e.rethrowFromSystemServer();
}
}

以上分为两步，首先获取AMS的本地代理服务，然后通过代理对象启动服务

获取AMS服务

//ActivityManager.getService()

public static IActivityManager getService() {
    return IActivityManagerSingleton.get();
}

@UnsupportedAppUsage
private static final Singleton<IActivityManager> IActivityManagerSingleton =
    new Singleton<IActivityManager>() {
        @Override
        protected IActivityManager create() {
            final IBinder b = ServiceManager.getService(Context.ACTIVITY_SERVICE);
            final IActivityManager am = IActivityManager.Stub.asInterface(b);
            return am;
        }
};

system_server进程的AMS服务是注册在servicemanager进程中的，因此需要通过ServiceManager获取

servicemanager服务获取

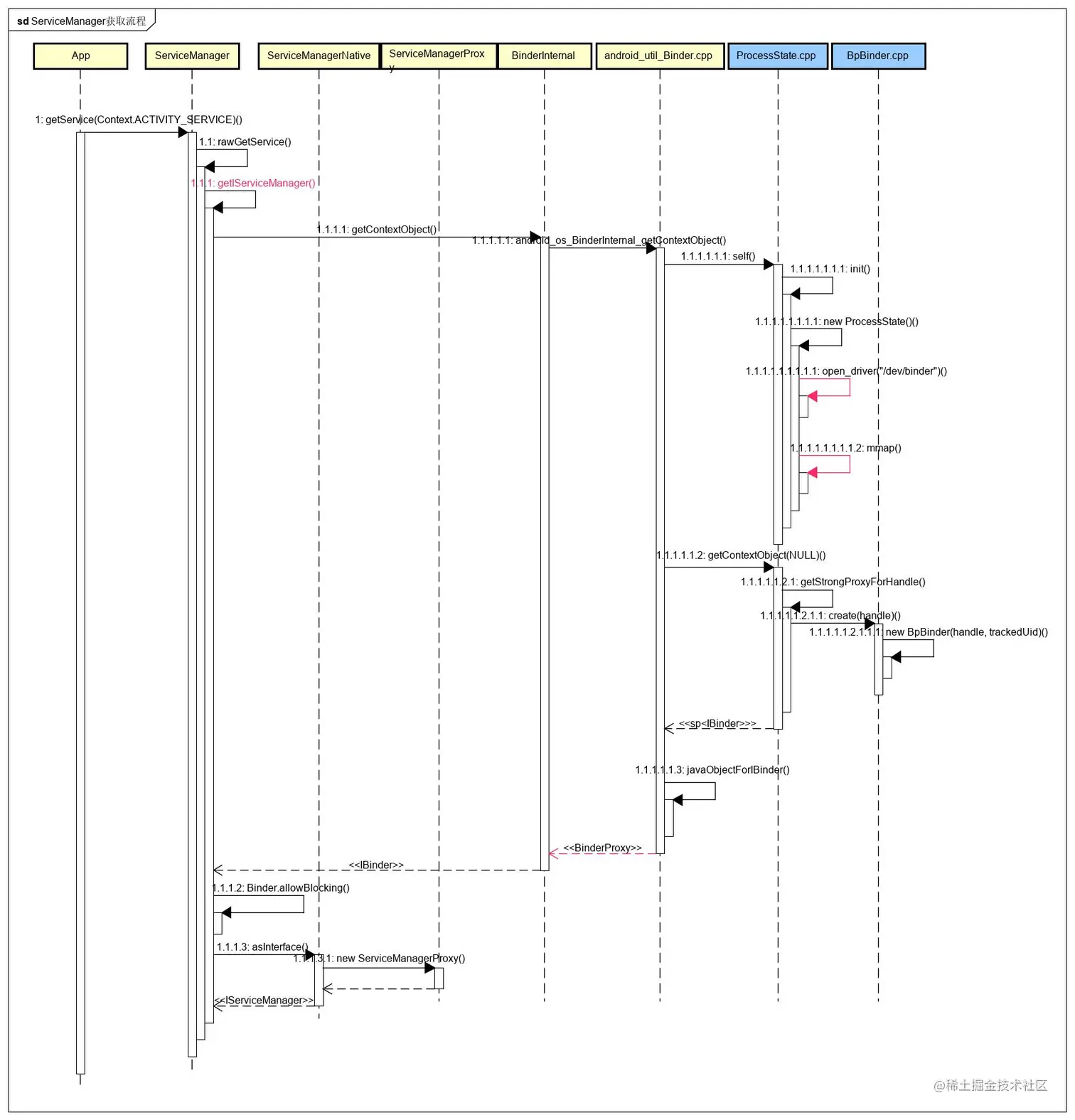

servicemanager服务本地代理BinderProxy获取的整体调用流程如下：


我们从关键函数开始说起

@UnsupportedAppUsage
private static IServiceManager getIServiceManager() {
    if (sServiceManager != null) {
        return sServiceManager;
    }
    // Find the service manager
    sServiceManager = ServiceManagerNative
            .asInterface(Binder.allowBlocking(BinderInternal.getContextObject()));
    return sServiceManager;
}

分为两步步：

  1. BinderInternal.getContextObject())获取BinderProxy对象
  2. asInterface获取封装了BinderProxy的ServiceManagerProxy对象

BinderInternal.getContextObject()

主要流程如下：

  1. 通过JNI调用调用到native层
  2. 完成进程ProcessState的初始化，主要是打开binder驱动设备和mmap映射共享内存
  3. 通过servicemanager进程对应的handle 0， 创建本地代表远程serviceanager对象的BpBinder对象
  4. 将BpBinder对象，转换成java层的BinderProxy对象，返回给java层
JNI映射
static jobject android_os_BinderInternal_getContextObject(JNIEnv* env, jobject clazz)
{
    sp<IBinder> b = ProcessState::self()->getContextObject(NULL);
    return javaObjectForIBinder(env, b);
}
初始化ProcessState
sp<ProcessState> ProcessState::self()
{
    return init(kDefaultDriver, false /*requireDefault*/);
}

sp<ProcessState> ProcessState::init(const char *driver, bool requireDefault)
{
    [[clang::no_destroy]] static sp<ProcessState> gProcess;
    [[clang::no_destroy]] static std::mutex gProcessMutex;

    if (driver == nullptr) {
        std::lock_guard<std::mutex> l(gProcessMutex);
        return gProcess;
    }

    [[clang::no_destroy]] static std::once_flag gProcessOnce;
    std::call_once(gProcessOnce, [&](){
        if (access(driver, R_OK) == -1) {
            driver = "/dev/binder";
        }
        std::lock_guard<std::mutex> l(gProcessMutex);
        //构造初始化
        gProcess = new ProcessState(driver);
    });
    ...

    return gProcess;
}

ProcessState::ProcessState(const char *driver)
    : mDriverFD(open_driver(driver))//打开binder驱动
    , mVMStart(MAP_FAILED)
    ...
    , mCallRestriction(CallRestriction::NONE)
{
    if (mDriverFD >= 0) {
        // mmap the binder, providing a chunk of virtual address space to receive transactions.
        //将binder驱动文件映射到也缓存，然后转换成用户空间地址
        mVMStart = mmap(nullptr, BINDER_VM_SIZE, PROT_READ, MAP_PRIVATE | MAP_NORESERVE, mDriverFD, 0);
        if (mVMStart == MAP_FAILED) {
            close(mDriverFD);
            mDriverFD = -1;
            mDriverName.clear();
        }
    }
}
BpBinder创建
//processstate.cpp
sp<IBinder> ProcessState::getStrongProxyForHandle(int32_t handle)
{
    sp<IBinder> result;
    AutoMutex _l(mLock);
    //本地缓存，没有的时候新建一个空对象
    handle_entry* e = lookupHandleLocked(handle);
    //创建了一个初始化对象，e不为null
    if (e != nullptr) {
        IBinder* b = e->binder;
        //首次是空对象，b为null
        if (b == nullptr || !e->refs->attemptIncWeak(this)) {
            //servicemanager对应的handle为0
            if (handle == 0) {
                Parcel data;
                //检测binder驱动设备是否可以ping通
                status_t status = IPCThreadState::self()->transact(
                        0, IBinder::PING_TRANSACTION, data, nullptr, 0);
                if (status == DEAD_OBJECT)
                   return nullptr;
            }
            //根据handle创建一个BpBinder对象
            b = BpBinder::create(handle);
            e->binder = b;
            if (b) e->refs = b->getWeakRefs();
            result = b;
        } else {
            // This little bit of nastyness is to allow us to add a primary
            // reference to the remote proxy when this team doesn't have one
            // but another team is sending the handle to us.
            result.force_set(b);
            e->refs->decWeak(this);
        }
    }
return result;
}

BpBinder对象只是一个普通的c++ IBinder对象，创建过程处理验证是否能ping通binder驱动设备，并没有其他操作binder驱动的行为。

实际上，应用层通过java层调用native层BpBinder的transact方法的时候，才开始真正与binder进行通信，

lookupHandleLocked

ProcessState::handle_entry* ProcessState::lookupHandleLocked(int32_t handle)
{
    const size_t N=mHandleToObject.size();
    if (N <= (size_t)handle) {
        handle_entry e;
        e.binder = nullptr;
        e.refs = nullptr;
        status_t err = mHandleToObject.insertAt(e, N, handle+1-N);
        if (err < NO_ERROR) return nullptr;
    }
    return &mHandleToObject.editItemAt(handle);
}
生成BinderProxy

将BpBinder对象，转换成java层的BinderProxy对象BinderProxyNativeData的mObejct对象，然后通过CallStaticObjectMethod转化成jobject

//android_util_Binder.cpp
static jobject android_os_BinderInternal_getContextObject(JNIEnv* env, jobject clazz)
{
    sp<IBinder> b = ProcessState::self()->getContextObject(NULL);
    //c++对象转化成java对象
    return javaObjectForIBinder(env, b);
}


// If the argument is a JavaBBinder, return the Java object that was used to create it.
// Otherwise return a BinderProxy for the IBinder. If a previous call was passed the
// same IBinder, and the original BinderProxy is still alive, return the same BinderProxy.
jobject javaObjectForIBinder(JNIEnv* env, const sp<IBinder>& val)
{
    // N.B. This function is called from a @FastNative JNI method, so don't take locks around
    // calls to Java code or block the calling thread for a long time for any reason.

    if (val == NULL) return NULL;

    if (val->checkSubclass(&gBinderOffsets)) {
        // It's a JavaBBinder created by ibinderForJavaObject. Already has Java object.
        jobject object = static_cast<JavaBBinder*>(val.get())->object();
        LOGDEATH("objectForBinder %p: it's our own %p!\n", val.get(), object);
        return object;
    }

    BinderProxyNativeData* nativeData = new BinderProxyNativeData();
    nativeData->mOrgue = new DeathRecipientList;
    nativeData->mObject = val;//BpBinder赋值给BinderProxyNativeData的mObject对象

    jobject object = env->CallStaticObjectMethod(gBinderProxyOffsets.mClass,
            gBinderProxyOffsets.mGetInstance, (jlong) nativeData, (jlong) val.get());
    if (env->ExceptionCheck()) {
        // In the exception case, getInstance still took ownership of nativeData.
        return NULL;
    }
    BinderProxyNativeData* actualNativeData = getBPNativeData(env, object);
    if (actualNativeData == nativeData) {
        // Created a new Proxy
        uint32_t numProxies = gNumProxies.fetch_add(1, std::memory_order_relaxed);
        uint32_t numLastWarned = gProxiesWarned.load(std::memory_order_relaxed);
        if (numProxies >= numLastWarned + PROXY_WARN_INTERVAL) {
            // Multiple threads can get here, make sure only one of them gets to
            // update the warn counter.
            if (gProxiesWarned.compare_exchange_strong(numLastWarned,
                        numLastWarned + PROXY_WARN_INTERVAL, std::memory_order_relaxed)) {
                ALOGW("Unexpectedly many live BinderProxies: %d\n", numProxies);
            }
        }
    } else {
        delete nativeData;
    }

    return object;
}


/**
 * Java proxy for a native IBinder object.
 * Allocated and constructed by the native javaObjectforIBinder function. Never allocated
 * directly from Java code.
 *
 * @hide
 */
public final class BinderProxy implements IBinder
{...}

asInterface生成ServiceManagerProxy

asInterface获取封装了BinderProxy的ServiceManagerProxy对象

@UnsupportedAppUsage
private static IServiceManager getIServiceManager() {
    if (sServiceManager != null) {
        return sServiceManager;
    }
    // Find the service manager
    sServiceManager = ServiceManagerNative
            .asInterface(Binder.allowBlocking(BinderInternal.getContextObject()));
    return sServiceManager;
}

@UnsupportedAppUsage
public static IServiceManager asInterface(IBinder obj) {
    if (obj == null) {
        return null;
    }
    // ServiceManager is never local
    return new ServiceManagerProxy(obj);
}

public ServiceManagerProxy(IBinder remote) {
    mRemote = remote;
    mServiceManager = IServiceManager.Stub.asInterface(remote);
}

IServiceManager是通过aidl自动生成，他的stub应当是这样的

public static IServiceManager asInterface(android.os.IBinder obj)
{
    if ((obj==null)) {
        return null;
    }
    android.os.IInterface iin = obj.queryLocalInterface(DESCRIPTOR);
    if (((iin!=null)&&(iin instanceof cIServiceManager))) {
        return ((IServiceManager)iin);
    }
    return new IServiceManager.Stub.Proxy(obj);
}

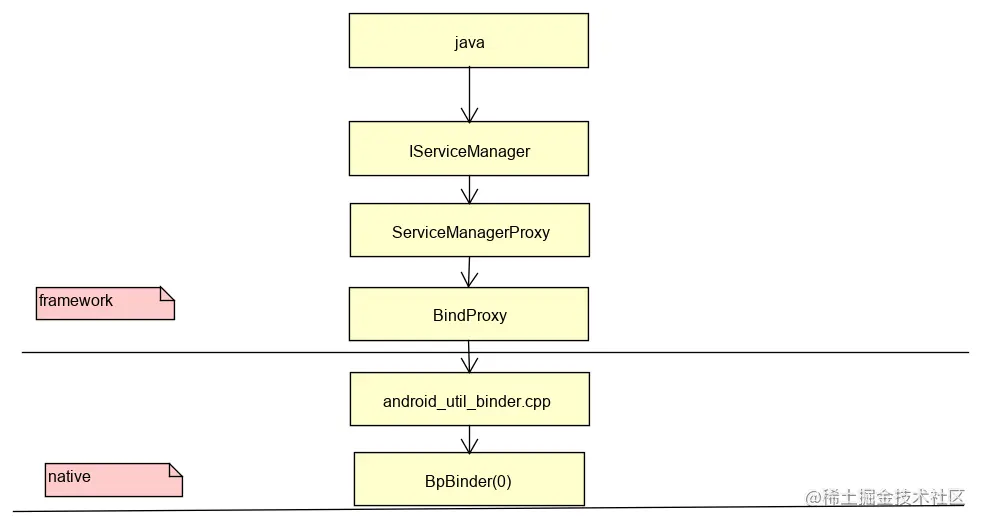

总结

通过以上过程，应用层获取了以下对象： java 层: IServiceManager-->ServiceManagerNative-->ServiceManagerProxy-->ServiceManager.Stub.Proxy-->BinderProxy

native层： android_util_Binder.cpp-->ProcessState-->BpBinder


获取ServiceManager本地代理队形的整体流程如下：

  1. 应用层通过getIServiceManager获取ServiceManager本地代理
  2. getIServiceManager首先通过getContextObject JNI调用调用到native层
  3. 完成进程ProcessState的初始化，主要是打开binder驱动设备和mmap映射共享内存
  4. 通过servicemanager进程对应的handle 0， 创建本地代表远程serviceanager对象的BpBinder对象
  5. 将BpBinder对象，转换成java层的BinderProxy对象，返回给java层
  6. java层焦勇asinterface封装BinderProxy,得到ServiceManagerNative。ServiceManagerProxy对象
