一、简介
Point-to-Point,点对点通信模型。PTP是基于队列(Queue)的,一个队列可以有多个生产者,和多个消费者。消息服务器按照收到消息的先后顺序,将消息放到队列中。队列中的每一条消息,只能由一个消费者进行消费,消费之后就会从队列中移除。
特点:
- 每个消息只用一个消费者;
- 发送者和接受者没有时间依赖;
- 接受者确认消息接受和处理成功。

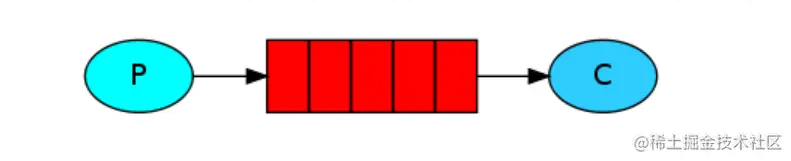

P 表示为生产者 、C 表示为消费者,红色表示队列。
在rabbitmq中有生产者,消费者的概念,本篇主要是消息如何生产以及消费者这部分的实现。使用的laravel框架,php-amqplib拓展。
二、Laravel中添加依赖
在项目根目录下执行一下命令
composer require php-amqplib/php-amqplib
lishuo@李硕的MacBook Pro:~/Code/php/www.zfw.com (branch: master!)
$ composer require php-amqplib/php-amqplib
Using version ^3.1 for php-amqplib/php-amqplib
./composer.json has been updated
Running composer update php-amqplib/php-amqplib
Loading composer repositories with package information
Updating dependencies
Nothing to modify in lock file
Installing dependencies from lock file (including require-dev)
Nothing to install, update or remove
Package caouecs/laravel-lang is abandoned, you should avoid using it. Use https://github.com/Laravel-Lang/lang instead.
Package swiftmailer/swiftmailer is abandoned, you should avoid using it. Use symfony/mailer instead.
Generating optimized autoload files
> Illuminate\Foundation\ComposerScripts::postAutoloadDump
> @php artisan package:discover --ansi
Discovered Package: barryvdh/laravel-ide-helper
Discovered Package: facade/ignition
Discovered Package: fruitcake/laravel-cors
Discovered Package: jenssegers/mongodb
Discovered Package: laravel/passport
Discovered Package: laravel/sail
Discovered Package: laravel/sanctum
Discovered Package: laravel/tinker
Discovered Package: maatwebsite/excel
Discovered Package: nesbot/carbon
Discovered Package: nunomaduro/collision
Package manifest generated successfully.
100 packages you are using are looking for funding.
Use the `composer fund` command to find out more!
> @php artisan vendor:publish --tag=laravel-assets --ansi
No publishable resources for tag [laravel-assets].
Publishing complete.
三、使用Laravel的command来实现消息的生产和消费
1.创建生产者
执行以下命令快速创建生产者
php artisan make:command RabbitmqProducerCommand
lishuo@李硕的MacBook Pro:~/Code/php/www.zfw.com (branch: master!)
$ php artisan make:command RabbitmqProducerCommand
Console command created successfully.
基本代码(接下来就在command里面写生产消息的逻辑)
<?php
namespace App\Console\Commands;
use Illuminate\Console\Command;
//引入amqp扩展
use PhpAmqpLib\Connection\AMQPStreamConnection;
use PhpAmqpLib\Message\AMQPMessage;
class RabbitmqProducerCommand extends Command
{
/**
* The name and signature of the console command.
*
* @var string
*/
protected $signature = 'rabbitmq_producer';//给生产者起个command名称
/**
* The console command description.
*
* @var string
*/
protected $description = 'Command description';
/**
* Create a new command instance.
*
* @return void
*/
public function __construct()
{
parent::__construct();
}
/**
* Execute the console command.
* 生产者消息代码
* @return int
*/
public function handle()
{
//创建服务器连接
$connection = new AMQPStreamConnection('localhost', 5672, 'guest', 'guest');
//连接信道
//信道是生产消费者与rabbit通信的渠道,生产者publish或者消费者消费一个队列都是需要通过信道来通信的
//信道是建立在TCP上面的虚拟链接,也就是rabbitMQ在一个TCP上面建立成百上千的信道来达到多个线程处理。
//注意是一个TCP 被多个线程共享,每个线程对应一个信道,信道在rabbit都有唯一的ID,保证了信道的私有性,对应上唯一的线程使用。
$channel = $connection->channel();
//channel->queue_declare通过信道创建一个是否是持久化的消息队列
//queue第一个参数代表消息队列名称
$channel->queue_declare('test', false, false, false, false);
//往队列里要发送内容,待发送的内容
$msg = new AMQPMessage('我是一个生产者消息');
//通过信道来进行发送消息
//而exchange是怎么知道消息应该推到哪个queue呢,这就要通过绑定queue与exchange时的routingkey了,通过代码进行绑定并且指定routingkey,下面有一张关系图,p(发布者) —> x(exchange) bindding(绑定关系也就是我们的routingkey) 红色代表着queue
$channel->basic_publish($msg, '', 'test');
echo " [x] Sent '我是一个生产者消息!'\n";
//关闭信道
$channel->close();
//关闭连接
$connection->close();
}
}
2.创建消费者
因为消费者是需要常驻内存的,所以需要在cli下运行,我们可以通过以下操作创建一个任务。
php artisan make:command RabbitmqConsumerCommand
基本代码(接下来就在command里面写消费消息的逻辑)
<?php
namespace App\Console\Commands;
use Illuminate\Console\Command;
use PhpAmqpLib\Connection\AMQPStreamConnection;
class RabbitmqConsumerCommand extends Command
{
/**
* The name and signature of the console command.
*
* @var string
*/
protected $signature = 'rabbitmq_consumer';//给消费者起个command名称
/**
* The console command description.
*
* @var string
*/
protected $description = 'Command description';
/**
* Create a new command instance.
*
* @return void
*/
public function __construct()
{
parent::__construct();
}
/**
* Execute the console command.
*
* @return int
*/
public function handle()
{
//创建服务器连接
$connection = new AMQPStreamConnection('localhost', 5672, 'guest', 'guest');
//连接信道
//信道是生产消费者与rabbit通信的渠道,生产者publish或者消费者消费一个队列都是需要通过信道来通信的
//信道是建立在TCP上面的虚拟链接,也就是rabbitMQ在一个TCP上面建立成百上千的信道来达到多个线程处理。
//注意是一个TCP 被多个线程共享,每个线程对应一个信道,信道在rabbit都有唯一的ID,保证了信道的私有性,对应上唯一的线程使用。
$channel = $connection->channel();
//channel->queue_declare通过信道创建一个是否是持久化的消息队列
//queue第一个参数代表消息队列名称
$channel->queue_declare('test', false, false, false, false);
echo " [*] Waiting for messages. To exit press CTRL+C\n";
//进行监听消费者是否有消息,如果有进行输出消息内容
$callback = function ($msg) {
echo ' [x] Received ', $msg->body, "\n";
};
//通过信道进行消费消息
$channel->basic_consume('test', '', false, true, false, false, $callback);
//如果信道是打开状态
while ($channel->is_open()) {
//然后让信道一直处于监听等待状态
$channel->wait();
}
//关闭信道
$channel->close();
//关闭连接
$connection->close();
}
}
三、使用command进行测试生产消息和消费消息是否成功
执行生产消息
php artisan rabbitmq_producer
执行消费消息
hp artisan rabbitmq_consumer
