springboot基本配置

itwenxiao
225 阅读4分钟

一、依赖

1.1 导入依赖

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-validation</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
    <optional>true</optional>
</dependency>

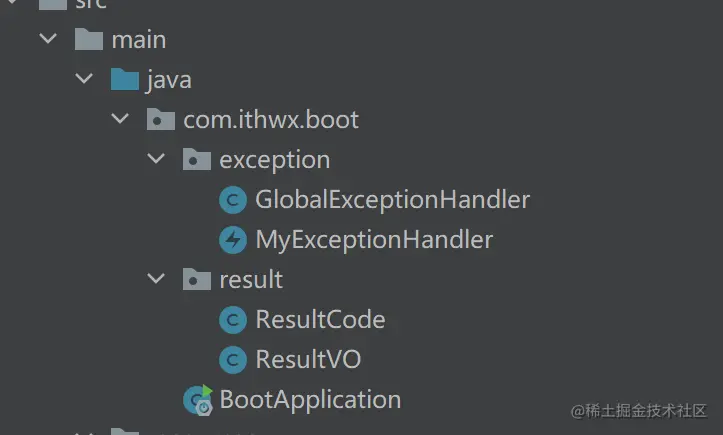

二、目录结构


1.统一返回接口

1.1 枚举状态码定义

package com.ithwx.boot.result;

import lombok.Data;

/**
 * @Author 胡文晓
 * @ClassName ResultCode
 * @CreateTime 2022-04-29 17:31
 * @Version 1.0
 * @Description: 响应码
 */
@Data
public class ResultCode {

    /**
     * 成功
     */
    public static Integer SUCCESS = 200;

    /**
     * bad request
     */
    public static Integer BAD_REQUEST = 400;

    /**
     * 未认证
     */
    public static Integer UNAUTHORIZED = 401;


    /**
     * 无访问权限
     */
    public static Integer FORBIDDEN = 403;

    /**
     * 接口不存在
     */
    public static Integer NOT_FOUND = 404;


    /**
     * 方法不允许
     */
    public static Integer METHOD_NOT_ALLOWED = 405;

    /**
     * 参数无效
     */
    public static Integer PARAMS_IS_INVALID = 1001;
    /**
     * 参数为空
     */
    public static Integer PARAMS_IS_BLANK = 1002;

    /**
     * 失败  服务器错误
     */
    public static Integer ERROR = 500;

}

1.2统一响应体定义

package com.ithwx.boot.result;
import lombok.Setter;

/**
 * @Author 胡文晓
 * @ClassName ResultVO
 * @CreateTime 2022-05-01 11:57
 * @Version 1.0
 * @Description: 统一返回值
 */
@Setter
public class ResultVO<T> {
    /**
     * 是否成功
     */
    private Boolean success;

    /**
     * 返回状态码
     */
    private Integer code;


    /**
     * 返回信息
     */
    private String message;

    /**
     * 返回数据
     */
    private T data ;

    //私有化无参构造
    private ResultVO() {}

    public static ResultVO success(){
        ResultVO r = new ResultVO();
        r.setSuccess(true);
        r.setCode(ResultCode.SUCCESS);
        r.setMessage("成功");
        return r;

    }
    public static ResultVO error(){
        ResultVO r = new ResultVO();
        r.setSuccess(false);
        r.setCode(ResultCode.ERROR);
        r.setMessage("失败");
        return r;
    }

    //链式编程
    public ResultVO success(Boolean success){
        this.setSuccess(success);
        return this;
    }
    //链式编程
    public ResultVO message(String message){
        this.setMessage(message);
        return this;
    }
    //链式编程
    public ResultVO code(Integer code){
        this.setCode(code);
        return this;
    }
    //链式编程
    public ResultVO data(T data){
        this.setData(data);
        return this;
    }

}

2.全局异常处理

2.1自定义异常MyExceptionHandler

package com.ithwx.boot.exception;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * @Author 胡文晓
 * @ClassName MyExceptionHandler
 * @CreateTime 2022-05-04 14:42
 * @Version 1.0
 * @Description: 自定义异常
 */
@Data
@AllArgsConstructor
@NoArgsConstructor
public class MyExceptionHandler extends RuntimeException {
    private Integer code; //状态码
    private String msg; //异常信息
}

2.2 全局异常统一处理

package com.ithwx.boot.exception;

import com.ithwx.boot.result.ResultVO;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestControllerAdvice;

/**
 * @Author 胡文晓
 * @ClassName GlobalExceptionHandler
 * @CreateTime 2022-05-04 14:28
 * @Version 1.0
 * @Description: 全局统一异常处理
 */
@RestControllerAdvice
@ResponseBody
@Slf4j
public class GlobalExceptionHandler {

    //全局异常
    @ExceptionHandler(Exception.class)
    public ResultVO error(Exception e){
        log.error("全局异常:",e.getStackTrace());
        return ResultVO.error().message("执行了全局异常处理");
    }

    //算术异常
    @ExceptionHandler(ArithmeticException.class)
    public ResultVO error(ArithmeticException e){
        log.error("算术异常:",e.getStackTrace());
        return ResultVO.error().message("算术异常处理");
    }

    //自定异常
    @ExceptionHandler(MyExceptionHandler.class)
    public ResultVO error(MyExceptionHandler e){
        log.error("自定义异常:",e.getStackTrace());
        return ResultVO.error().code(e.getCode()).message(e.getMessage());
    }

}

三、Knife4j配置

3.1 导入依赖

 <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
            <version>${knife4j-spring-boot-starter.version}</version>
 </dependency>

3.2 创建Knife4jConfig配置类

import lombok.AllArgsConstructor;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.autoconfigure.AutoConfigureAfter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.data.util.ParameterTypes;
import org.springframework.http.ResponseEntity;
import org.springframework.plugin.core.PluginRegistry;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import org.springframework.web.servlet.handler.SimpleUrlHandlerMapping;
import org.springframework.web.servlet.resource.PathResourceResolver;
import org.springframework.web.servlet.resource.ResourceHttpRequestHandler;
import org.springframework.web.util.UrlPathHelper;
import springfox.documentation.annotations.ApiIgnore;
import springfox.documentation.builders.*;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.service.Parameter;
import springfox.documentation.service.RequestParameter;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.DocumentationCache;
import springfox.documentation.spring.web.json.Json;
import springfox.documentation.spring.web.json.JsonSerializer;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger.web.ApiResourceController;
import springfox.documentation.swagger.web.SecurityConfiguration;
import springfox.documentation.swagger.web.SwaggerResource;
import springfox.documentation.swagger.web.UiConfiguration;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
import springfox.documentation.swagger2.mappers.ServiceModelToSwagger2Mapper;
import springfox.documentation.swagger2.web.Swagger2ControllerWebMvc;
import springfox.documentation.swagger2.web.WebMvcSwaggerTransformationFilter;

import javax.servlet.ServletContext;
import javax.servlet.http.HttpServletRequest;
import java.util.*;

import static org.springframework.util.MimeTypeUtils.APPLICATION_JSON_VALUE;

/**
 * Swagger2 前端API配置
 *
 * @author chqiu
 */
@Configuration
@EnableSwagger2
@AutoConfigureAfter({WebMvcConfigurer.class})
@AllArgsConstructor
public class Knife4jConfig {
	private static final String DEFAULT_PATH = "/swagger";

	@Bean
	public Docket createRestApi() {
		Docket docket = new Docket(DocumentationType.SWAGGER_2)
				.apiInfo(new ApiInfoBuilder()
						.title("CMDB系统接口文档")
						.description("CMDB系统接口文档")
						.termsOfServiceUrl("http:localhsot:8080")
						.contact(new Contact("南京DXC团队", "http://localhsot:8080", ""))
						.version("1.0")
						.build())
				// 分组名称
				.groupName("1.0版本").select()
				// 这里指定Controller扫描包路径
				.apis(RequestHandlerSelectors.basePackage("com.xxx.controller"))
				.paths(PathSelectors.any())
				.build()
				.globalRequestParameters(buildRequestParameterList());
		return docket;
	}

	//配置token
	private List<RequestParameter> buildRequestParameterList() {
		List<RequestParameter> requestParameters = new ArrayList<>();
		RequestParameterBuilder requestParameterBuilder = new RequestParameterBuilder();
		RequestParameter build = requestParameterBuilder.name("Authorization").description("token").in("header").required(false).build();
		requestParameters.add(build);
		return requestParameters;
	}

	/**
	 * SwaggerUI资源访问
	 *
	 * @param servletContext
	 * @param order
	 * @return
	 * @throws Exception
	 */
	@Bean
	public SimpleUrlHandlerMapping swaggerUrlHandlerMapping(ServletContext servletContext,
															@Value("${swagger.mapping.order:10}") int order) throws Exception {
		SimpleUrlHandlerMapping urlHandlerMapping = new SimpleUrlHandlerMapping();
		Map<String, ResourceHttpRequestHandler> urlMap = new HashMap<>();
		{
			PathResourceResolver pathResourceResolver = new PathResourceResolver();
			pathResourceResolver.setAllowedLocations(new ClassPathResource("META-INF/resources/webjars/"));
			pathResourceResolver.setUrlPathHelper(new UrlPathHelper());

			ResourceHttpRequestHandler resourceHttpRequestHandler = new ResourceHttpRequestHandler();
			resourceHttpRequestHandler.setLocations(Arrays.asList(new ClassPathResource("META-INF/resources/webjars/")));
			resourceHttpRequestHandler.setResourceResolvers(Arrays.asList(pathResourceResolver));
			resourceHttpRequestHandler.setServletContext(servletContext);
			resourceHttpRequestHandler.afterPropertiesSet();
			//设置新的路径
			urlMap.put(DEFAULT_PATH + "/webjars/**", resourceHttpRequestHandler);
		}
		{
			PathResourceResolver pathResourceResolver = new PathResourceResolver();
			pathResourceResolver.setAllowedLocations(new ClassPathResource("META-INF/resources/"));
			pathResourceResolver.setUrlPathHelper(new UrlPathHelper());

			ResourceHttpRequestHandler resourceHttpRequestHandler = new ResourceHttpRequestHandler();
			resourceHttpRequestHandler.setLocations(Arrays.asList(new ClassPathResource("META-INF/resources/")));
			resourceHttpRequestHandler.setResourceResolvers(Arrays.asList(pathResourceResolver));
			resourceHttpRequestHandler.setServletContext(servletContext);
			resourceHttpRequestHandler.afterPropertiesSet();
			//设置新的路径
			urlMap.put(DEFAULT_PATH + "/**", resourceHttpRequestHandler);
		}
		urlHandlerMapping.setUrlMap(urlMap);
		//调整DispatcherServlet关于SimpleUrlHandlerMapping的排序
		urlHandlerMapping.setOrder(order);
		return urlHandlerMapping;
	}

	/**
	 * SwaggerUI接口访问
	 */
	@Controller
	@ApiIgnore
	@RequestMapping(DEFAULT_PATH)
	public static class SwaggerResourceController implements InitializingBean {
		private final ApiResourceController apiResourceController;
		private final DocumentationCache documentationCache;
		private final ServiceModelToSwagger2Mapper mapper;
		private final JsonSerializer jsonSerializer;
		private final PluginRegistry<WebMvcSwaggerTransformationFilter, DocumentationType> transformations;
		private static final String HAL_MEDIA_TYPE = "application/hal+json";
		private Swagger2ControllerWebMvc swagger2ControllerWebMvc;

		public SwaggerResourceController(ApiResourceController apiResourceController, DocumentationCache documentationCache, ServiceModelToSwagger2Mapper mapper, JsonSerializer jsonSerializer, PluginRegistry<WebMvcSwaggerTransformationFilter, DocumentationType> transformations) {
			this.apiResourceController = apiResourceController;
			this.documentationCache = documentationCache;
			this.mapper = mapper;
			this.jsonSerializer = jsonSerializer;
			this.transformations = transformations;
		}

		@Override
		public void afterPropertiesSet() throws Exception {
			swagger2ControllerWebMvc = new Swagger2ControllerWebMvc(documentationCache, mapper, jsonSerializer, transformations);
		}
		/**
		 * Swagger API首页地址
		 *
		 * @return 首页地址
		 */
		@RequestMapping
		public ModelAndView index() {
			return new ModelAndView("redirect:" + DEFAULT_PATH + "/doc.html");
		}

		@RequestMapping("/swagger-resources/configuration/security")
		@ResponseBody
		public ResponseEntity<SecurityConfiguration> securityConfiguration() {
			return apiResourceController.securityConfiguration();
		}

		@RequestMapping("/swagger-resources/configuration/ui")
		@ResponseBody
		public ResponseEntity<UiConfiguration> uiConfiguration() {
			return apiResourceController.uiConfiguration();
		}

		@RequestMapping("/swagger-resources")
		@ResponseBody
		public ResponseEntity<List<SwaggerResource>> swaggerResources() {
			return apiResourceController.swaggerResources();
		}

		@RequestMapping(value = "/v2/api-docs", method = RequestMethod.GET, produces = {APPLICATION_JSON_VALUE, HAL_MEDIA_TYPE})
		@ResponseBody
		public ResponseEntity<Json> getDocumentation(
				@RequestParam(value = "group", required = false) String swaggerGroup,
				HttpServletRequest servletRequest) {
			return swagger2ControllerWebMvc.getDocumentation(swaggerGroup, servletRequest);
		}
	}
}

四、启动类

4.1后台打印接口地址

import lombok.extern.slf4j.Slf4j;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.ConfigurableApplicationContext;
import org.springframework.core.env.Environment;
import org.springframework.transaction.annotation.EnableTransactionManagement;

import java.net.InetAddress;
import java.net.UnknownHostException;

@SpringBootApplication
@Slf4j
@MapperScan("com.dxc.cmdb.mapper")
@EnableTransactionManagement
public class CMDBMain {
    public static void main(String[] args) throws UnknownHostException {
        ConfigurableApplicationContext run = SpringApplication.run(CMDBMain.class, args);
        Environment env = run.getEnvironment();
        String ip = InetAddress.getLocalHost().getHostAddress();
        String port = env.getProperty("server.port");
        //String path = env.getProperty("server.servlet.context-path");
        log.info("\n----------------------------------------------------------\n\t" +
                "Application is running! Access URLs:\n\t" +
                "Local: \t\thttp://localhost:" + port + "/\n\t" +
                "External: \thttp://" + ip + ":" + port +"/\n\t" +
                "Swagger文档:\thttp://" + ip + ":" + port +"/cmdb/swagger/doc.html\n" +
                "----------------------------------------------------------");
    }
}

五、mybatis-plus

5.1 导入依赖

<dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.5.1</version>
</dependency>

5.2 yam配置

mybatis-plus:
  global-config:
    db-config:
      logic-delete-value: 1 #逻辑删除值
      logic-not-delete-value: 0 #逻辑未删除值
  mapper-locations: classpath:mapper/*.xml
  configuration:
    #打印sql
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl

注意启动类要加：@MapperScan("com.xxx.xxx.mapper")

5.3 代码生成器

5.3.1 导入依赖

 <!-- velocity 模板引擎, Mybatis Plus 代码生成器需要 -->
        <dependency>
            <groupId>org.apache.velocity</groupId>
            <artifactId>velocity-engine-core</artifactId>
            <version>2.0</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
            <version>3.3.2</version>
        </dependency>

5.3.2 新建代码生成器类

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.core.toolkit.StringPool;
import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.InjectionConfig;
import com.baomidou.mybatisplus.generator.config.*;
import com.baomidou.mybatisplus.generator.config.po.TableInfo;
import com.baomidou.mybatisplus.generator.config.rules.DateType;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;

import java.util.ArrayList;
import java.util.List;

public class CodeGenerator {
    public static void main(String[] args) {

        // 1、创建代码生成器
        AutoGenerator mpg = new AutoGenerator();

        // 2、全局配置
        GlobalConfig gc = new GlobalConfig();
        String projectPath = System.getProperty("user.dir");
        //项目存储路径
        //String path ="D:\\ideaworkspace\\cmdb";
        gc.setOutputDir(projectPath + "/src/main/java");
        //gc.setAuthor("itwenxiao");
        gc.setOpen(false); //生成后是否打开资源管理器
        gc.setFileOverride(false); //重新生成时文件是否覆盖
        //gc.setServiceName("%sService");	//去掉Service接口的首字母I
        gc.setMapperName("I%sMapper");
        gc.setIdType(IdType.ASSIGN_ID); //主键策略
        gc.setDateType(DateType.ONLY_DATE);//定义生成的实体类中日期类型
        gc.setSwagger2(true);//开启Swagger2模式

        mpg.setGlobalConfig(gc);

        // 3、数据源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setUrl("jdbc:mysql://127.0.1:3306/cmdb?serverTimezone=GMT%2B8");
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername("root");
        dsc.setPassword("123456");
        dsc.setDbType(DbType.MYSQL);
        mpg.setDataSource(dsc);

        // 4、包配置
        PackageConfig pc = new PackageConfig();
        pc.setParent("com.dxc.cmdb");
        //pc.setModuleName("eduservice"); //模块名
//        pc.setController("controller");
//        pc.setEntity("entity");
//        pc.setService("service");
//        pc.setMapper("mapper");
        mpg.setPackageInfo(pc);

        // 自定义配置
        InjectionConfig cfg = new InjectionConfig() {
            @Override
            public void initMap() {
                // to do nothing
            }
        };

        //如果模板引擎是 velocity
        String templatePath = "/templates/mapper.xml.vm";

        // 自定义输出配置
        List<FileOutConfig> focList = new ArrayList<>();
        // 自定义配置会被优先输出
        focList.add(new FileOutConfig(templatePath) {
            @Override
            public String outputFile(TableInfo tableInfo) {
                // 自定义输出文件名 ， 如果你 Entity 设置了前后缀、此处注意 xml 的名称会跟着发生变化！！
                return projectPath + "/src/main/resources/mapper/" + tableInfo.getEntityName() + "Mapper" + StringPool.DOT_XML;
            }
        });

        cfg.setFileOutConfigList(focList);
        mpg.setCfg(cfg);

        // 配置模板
        TemplateConfig templateConfig = new TemplateConfig();

        templateConfig.setXml(null);
        mpg.setTemplate(templateConfig);


        // 5、策略配置
        StrategyConfig strategy = new StrategyConfig();
        //对应数据库表名，如果有多表操作就用逗号隔开
        strategy.setInclude("sys_cluster_template");
        strategy.setNaming(NamingStrategy.underline_to_camel);//数据库表映射到实体的命名策略
        strategy.setTablePrefix(pc.getModuleName() + "_"); //生成实体时去掉表前缀

        strategy.setColumnNaming(NamingStrategy.underline_to_camel);//数据库表字段映射到实体的命名策略
        strategy.setEntityLombokModel(true); // lombok 模型 @Accessors(chain = true) setter链式操作

        strategy.setRestControllerStyle(true); //restful api风格控制器
        strategy.setControllerMappingHyphenStyle(true); //url中驼峰转连字符

        mpg.setStrategy(strategy);

        // 6、执行
        mpg.execute();
    }

}
avatar
文章
阅读
粉丝
