根据标定的相机和激光雷达的外参，使用python将3D激光雷达点云映射到图像上

本文已参与「新人创作礼」活动，一起开启掘金创作之路。

1、用于测试的数据，已经上传到CSDN上：

• 测试数据下载

2、代码

'''
项目名称：
项目内容：
参考来源：

https://blog.csdn.net/qq_36187544/article/details/102626629
https://blog.csdn.net/weixin_30686845/article/details/99054389
https://blog.csdn.net/originalcandy/article/details/84834991
'''

__Author__ = "Shliang"
__Email__ = "shliang0603@gmail.com"


import cv2
import numpy as np
from pyquaternion import Quaternion


translation_vector = np.array([0.06, -0.08, 0.196])

rotation_x = Quaternion(axis=(1.0, 0.0, 0.0), degrees=-3.074572889)
rotation_y = Quaternion(axis=(0.0, 1.0, 0.0), degrees=-71.973162002)
rotation_z = Quaternion(axis=(0.0, 0.0, 1.0), degrees=93.232960952)
Tcl = np.dot(rotation_z.rotation_matrix, rotation_y.rotation_matrix)
Tcl = np.dot(Tcl, rotation_x.rotation_matrix)
qcl = Quaternion(matrix=Tcl)
print("qcl: ", qcl)
print("qcl.axis(): ", qcl.axis)
rotation_vector = qcl.angle * qcl.axis
print("Tcl", Tcl)
print("rotation_vector", rotation_vector)

# 3x3
camera_matrix = np.array([[685.64675,    0.     ,  649.10791],
                  [0.     ,  676.65803,  338.05443],
                  [0.     ,    0.     ,    1.     ]])


dist_coeffs = np.array([-0.363219, 0.093818, 0.006178, -0.003714, 0.000000])


# 对图像做畸变矫正
def undistort(frame):
    fx = 685.646752
    cx = 649.107905
    fy = 676.658033
    cy = 338.054431
    k1, k2, p1, p2, k3 = -0.363219, 0.093818, 0.006178, -0.003714, 0.0

    # 相机坐标系到像素坐标系的转换矩阵
    k = np.array([
        [fx, 0, cx],
        [0, fy, cy],
        [0, 0, 1]
    ])
    # 畸变系数
    d = np.array([
        k1, k2, p1, p2, k3
    ])
    h, w = frame.shape[:2]
    mapx, mapy = cv2.initUndistortRectifyMap(k, d, None, k, (w, h), 5)
    return cv2.remap(frame, mapx, mapy, cv2.INTER_LINEAR)


def read_pointcloud(pointcloud_file):
    with open(pointcloud_file) as f:
        points = f.readlines()
        data = np.zeros((len(points), 3))
        for idx, point in enumerate(points):
            x, y, z = point.strip().split()
            point = np.array([float(x), float(y), float(z)])
            data[idx, :] = point
            # time.sleep(0.1)
            # print(f"point data of {idx+1}: {point}")
    print(data.shape)
    return data


def read_image(image_path):
    image = cv2.imread(image_path)
    return image


def draw_points(points):
    image = read_image("./1.png")

    # 在没有绘制点云的时候就矫正图片，这种提前矫正会导致点云的信息和图片有些对不上，因为矫正后的图像是有裁切的
    # image = undistort(image)
    for i in range(len(points)):
        x, y = points[i]
        x, y = int(x), int(y)
        # 3D点映射到像素坐标系的2D点后，有些坐标不再画面中的过滤掉
        if 0 < x < 1280 and 0 < y < 720:
            print(x, y)
            image = cv2.circle(image, (x, y), 1, (0, 255, 0), 1)

    # 在图像上绘制好点云信息之后，在对绘制后的图像进行矫正，及时裁切，也会同映射的点一起被裁切，也是合理的！
    # undistort(image)
    cv2.imshow("image", image)
    cv2.waitKey(0)


def main():
    # 读取3D激光雷达点云
    points3D = read_pointcloud('./1.txt')
    print(f"./point3D shape: {points3D.shape}")

    # 把3D激光雷达点云映射到图像上
    points2D_reproj = cv2.projectPoints(points3D, rotation_vector,
            translation_vector, camera_matrix, dist_coeffs)[0].squeeze(1)

    print(points2D_reproj)
    print(f"points2D_reproj shape: {points2D_reproj.shape}, length : {len(points2D_reproj)}")

    # 把映射后在像素坐标系下的点坐标绘制出来
    draw_points(points2D_reproj)


if __name__ == '__main__':
    main()

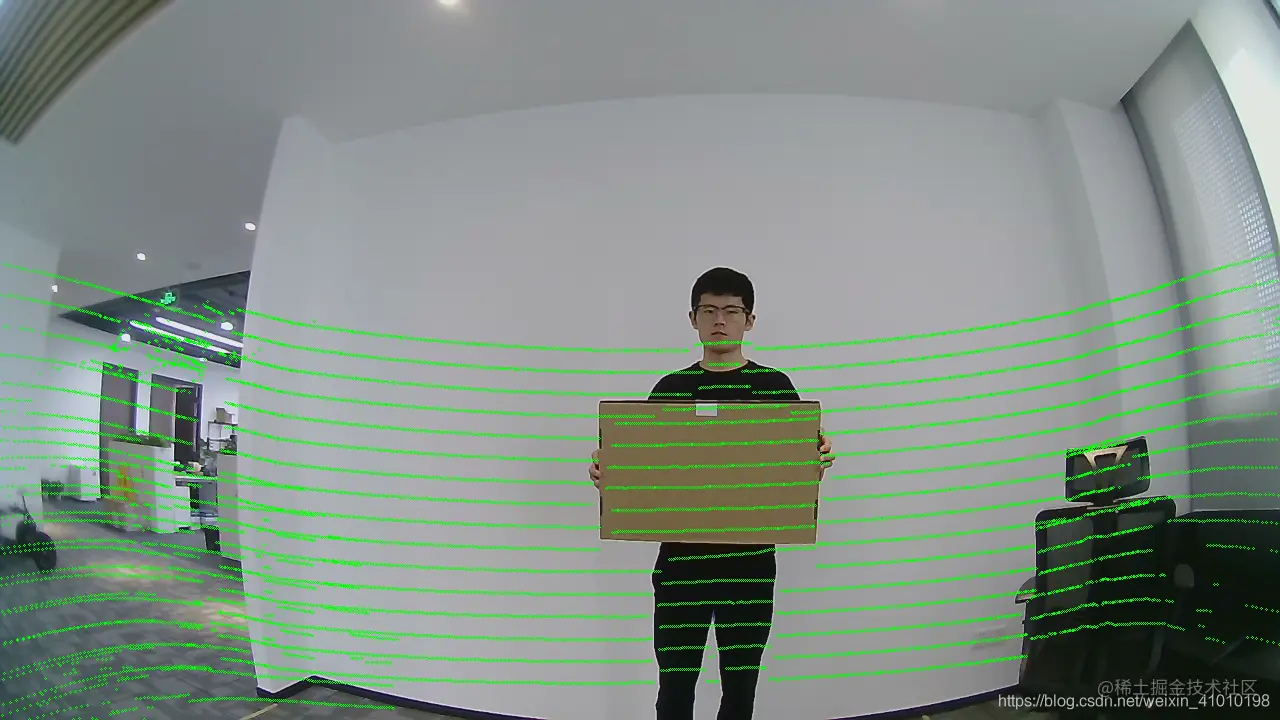

• 没有做畸变矫正的映射结果

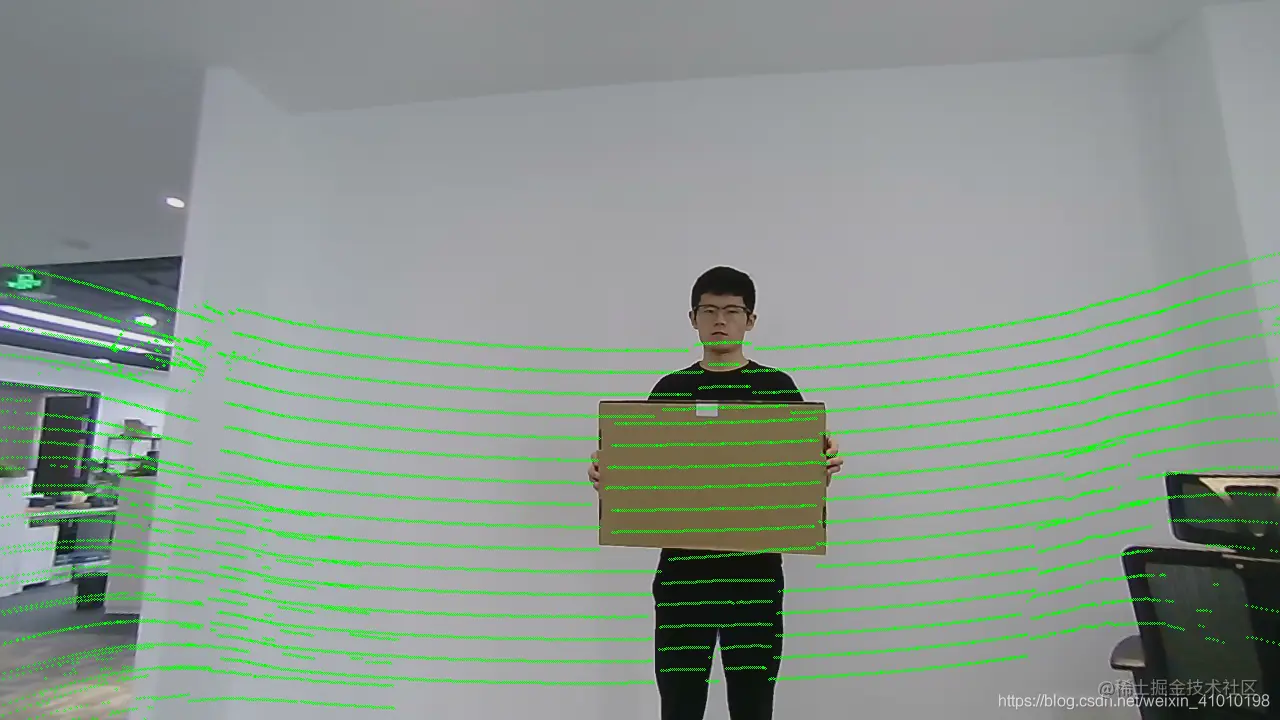

• 在没有绘制映射点之前就做了畸变矫正，这种显然不对，从右边的椅子就可以看出，因为画面提前被裁剪了，但是分辨率又保持不变，这样在裁剪后信息之后在做投影，显然越靠近边缘的点就对不上了！

• 在绘制点之后，再对图像做畸变矫正，即使画面信息被裁剪了，但是点云映射是能和画面对的上的！
