数据结构与算法

79 阅读1分钟

数据结构学习视频

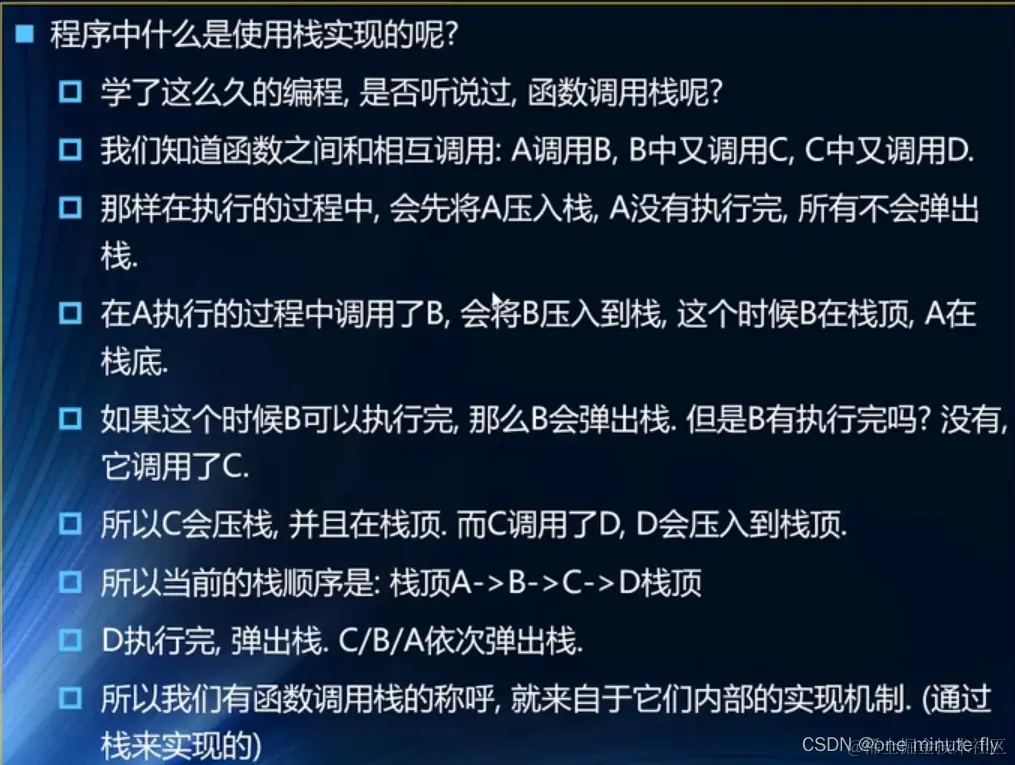

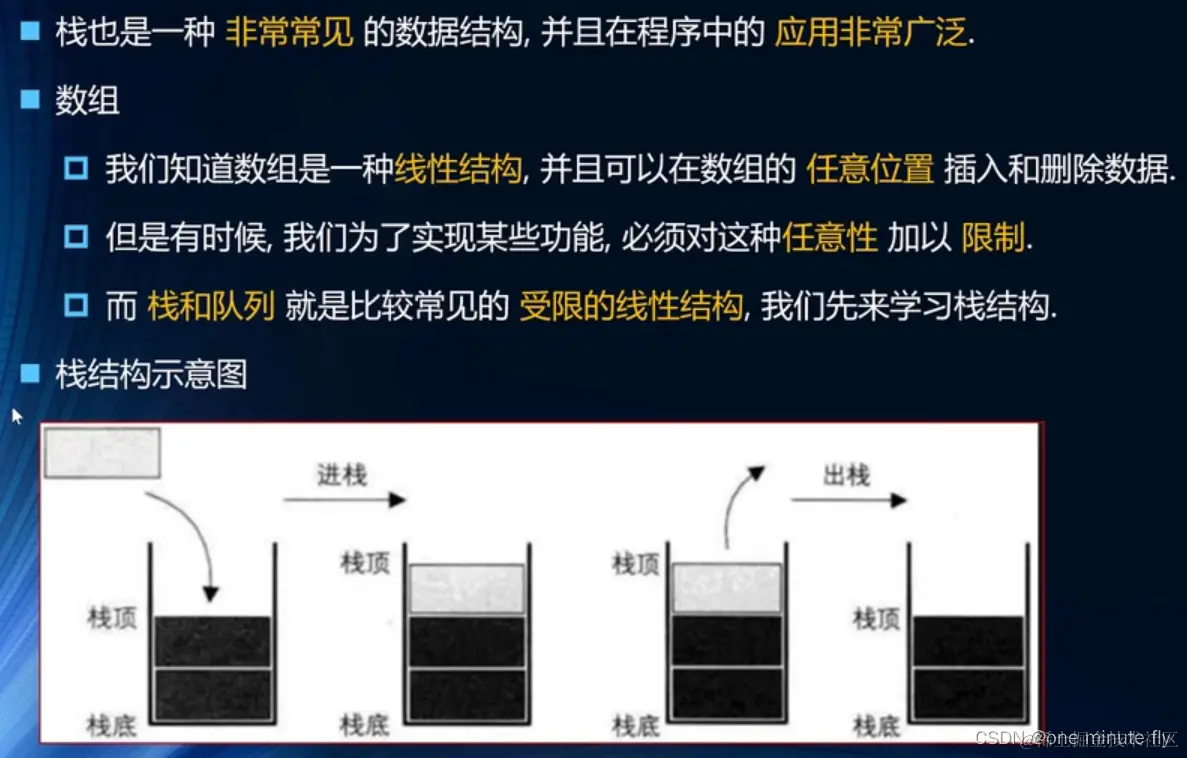

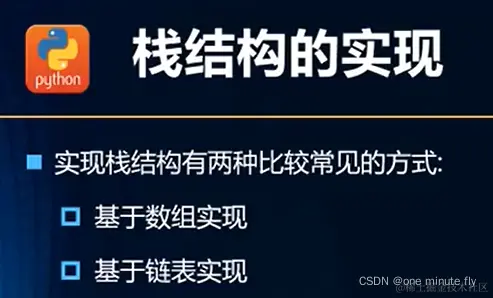

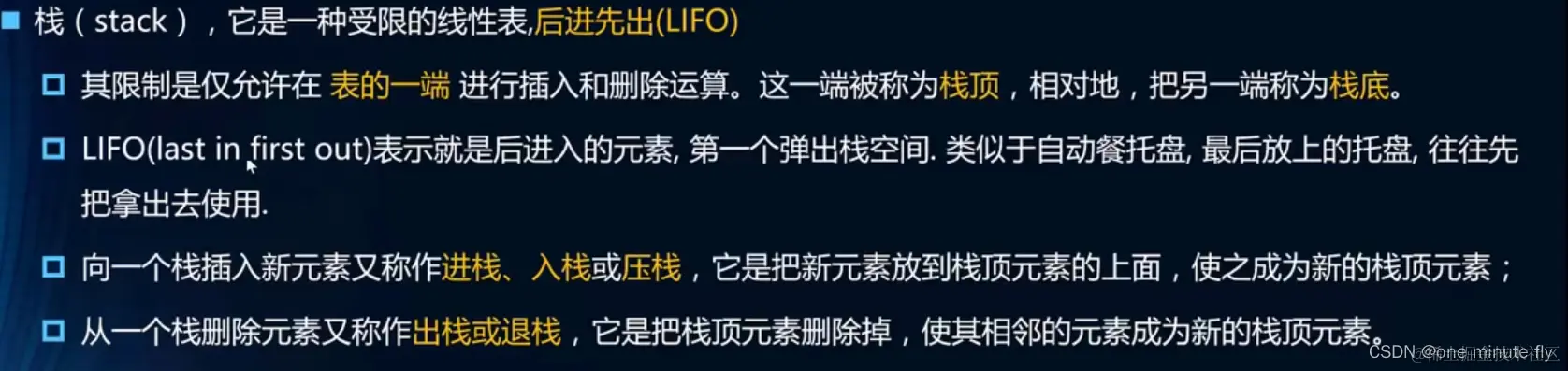

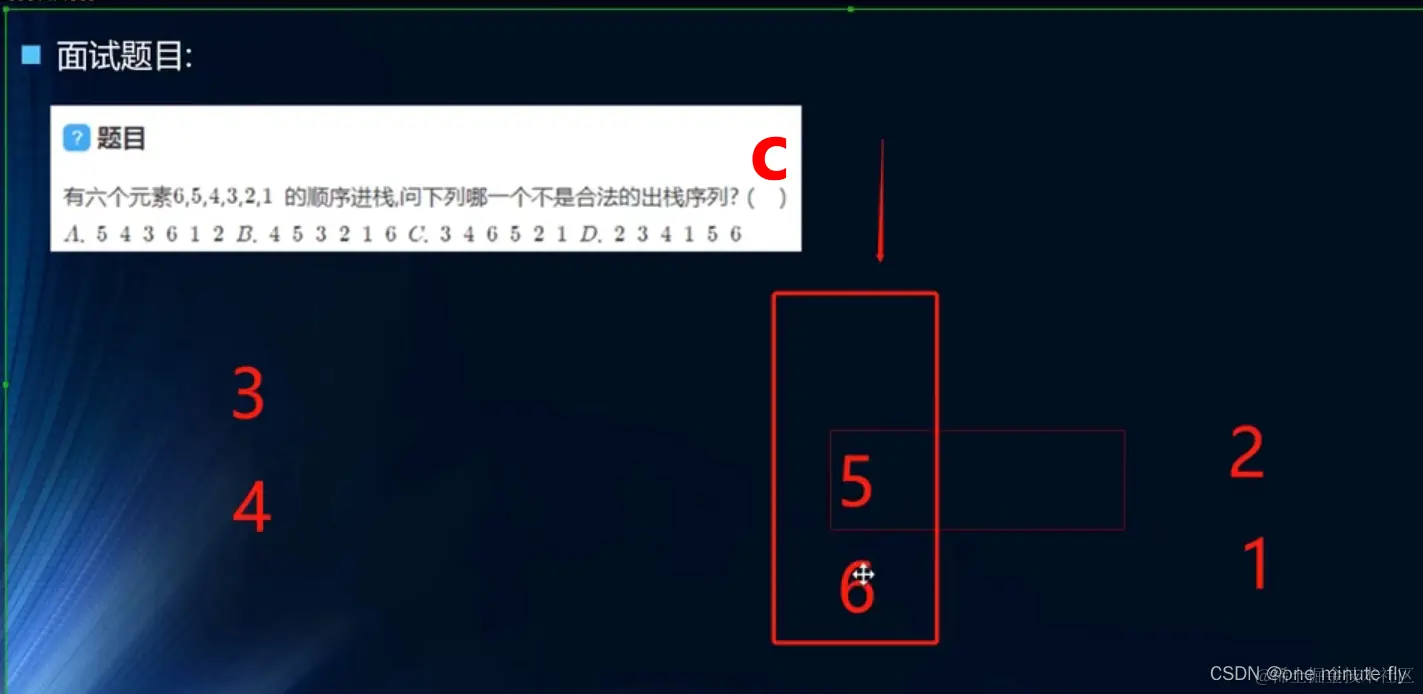

栈结构

在这里插入图片描述 在这里插入图片描述 在这里插入图片描述

在这里插入图片描述 在这里插入图片描述 在这里插入图片描述

function Stack() {
  var items = [];

  this.push = function (ele) {
    items.push(ele);
  };
  this.pop = function () {
    return items.pop();
  };
  this.peek = function () {
    return items[items.length - 1];
  };
  this.isEmpty = function () {
    return items.length == 0;
  };
  this.clear = function () {
    items = [];
  };
  this.size = function () {
    return items.length;
  };
  this.print = function () {
    console.log(items.toString());
  };
}
// 将十进制转为任意进制
function baseConerter(decNumber, base) {
  var remStack = new Stack(),
    rem,
    baseString = '',
    digits = '0123456789ABCDEF'
  while (decNumber > 0) {
    rem = Math.floor(decNumber % base)
    remStack.push(rem)
    decNumber = Math.floor(decNumber / base)
  }
  while (!remStack.isEmpty()) {
    baseString += digits[remStack.pop()]
  }
  console.log('baseString:' + baseString)
  return baseString
}
baseConerter(223411, 2)    // 110110100010110011
baseConerter(223411, 8)    // 664263
baseConerter(223411, 16)  // 368B3

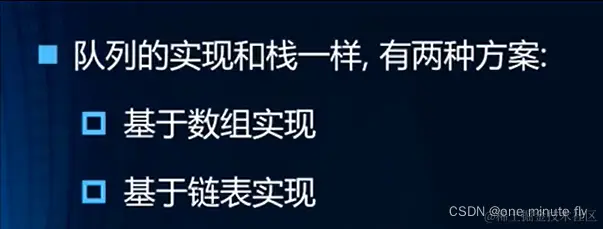

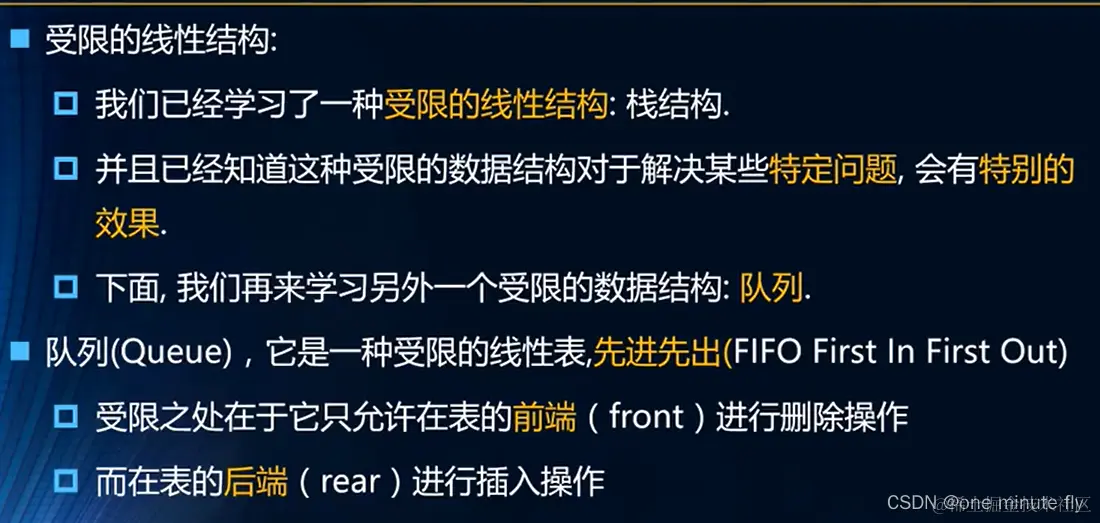

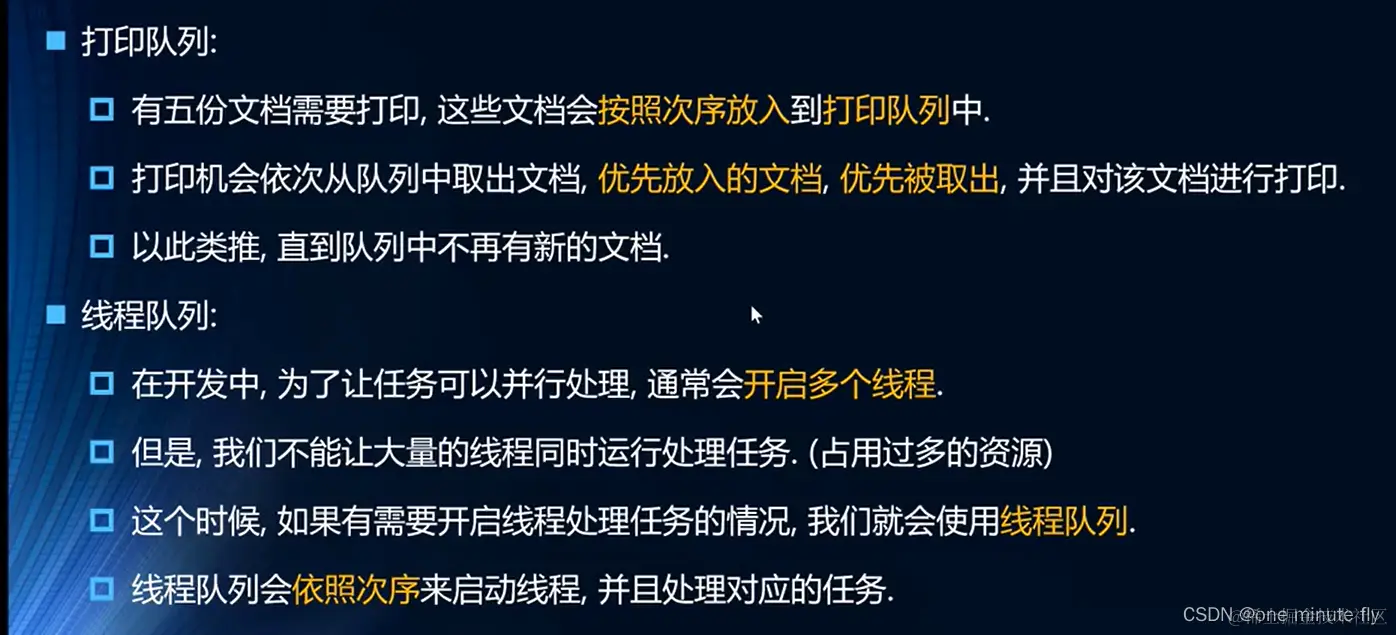

队列结构(queue)

在这里插入图片描述 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述

function Queue() {
  this.items = []
  this.enqueue = function (ele) {
    this.items.push(ele);
  };
  this.dequeue = function () {
    return this.items.shift();
  };
  this.front = function () {
    return this.items[0];
  };
  this.isEmpty = function () {
    return this.items.length == 0;
  };
  this.size = function () {
    return this.items.length;
  };
  this.print = function () {
    console.log(this.items.toString());
  };
}

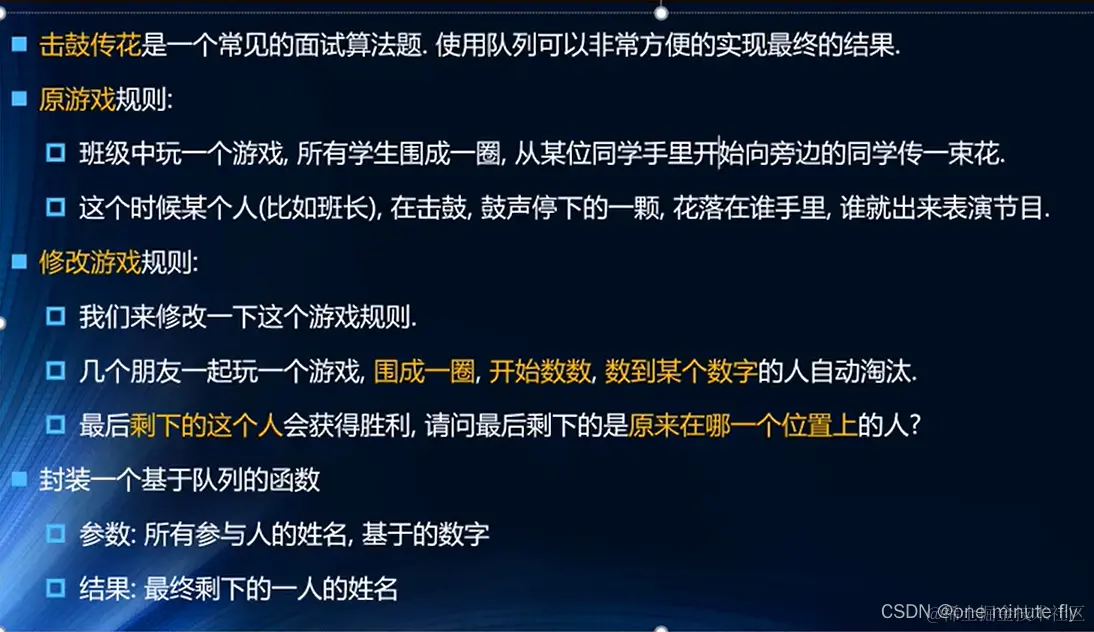

function jgch(arr, n) {
  var queue = new Queue()
  for (var i = 0; i < arr.length; i++) {
    queue.enqueue(arr[i])
  }
  for (var j = 0; j < n - 1; j++) {
    queue.enqueue(queue.dequeue())
  }
  queue.dequeue()
  while (queue.size() > 1) {
    for (var j = 0; j < n - 1; j++) {
      queue.enqueue(queue.dequeue())
    }
    queue.dequeue()
  }
  return queue.front()
}
jgch(['aa', 'bb', 'cc'], 2)

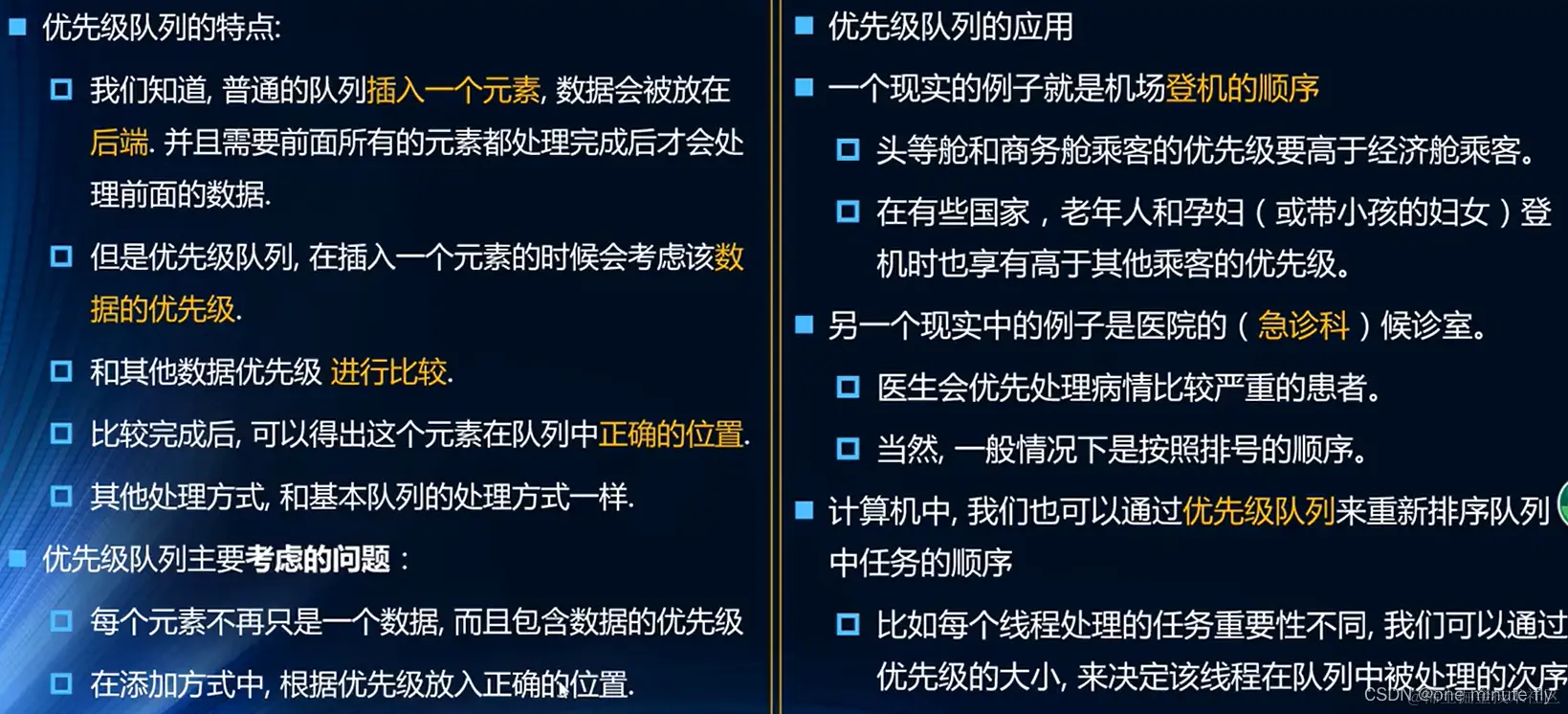

优先级队列

在这里插入图片描述

function QueurElement(element, priority) {
  this.element = element
  this.priority = priority
}
function PriorityQueue() {
  this.items = []
  this.enqueue = function (element, priority) {
    var queurElement = new QueurElement(element, priority)
    if (this.items.length == 0) {
      this.items.push(queurElement)
    } else {
      var added = false
      for (var i = 0; i < this.items.length; i++) {
        if (queurElement.priority < this.items[i].priority) {
          this.items.splice(i, 0, queurElement)
          added = true
          break
        }
      }
      if (!added) {
        this.items.push(queurElement)
      }
    }
  };
  this.dequeue = function () {
    return this.items.shift();
  };
  this.front = function () {
    return this.items[0];
  };
  this.isEmpty = function () {
    return this.items.length == 0;
  };
  this.size = function () {
    return this.items.length;
  };
  this.print = function () {
    console.log(this.items.toString());
  };
}

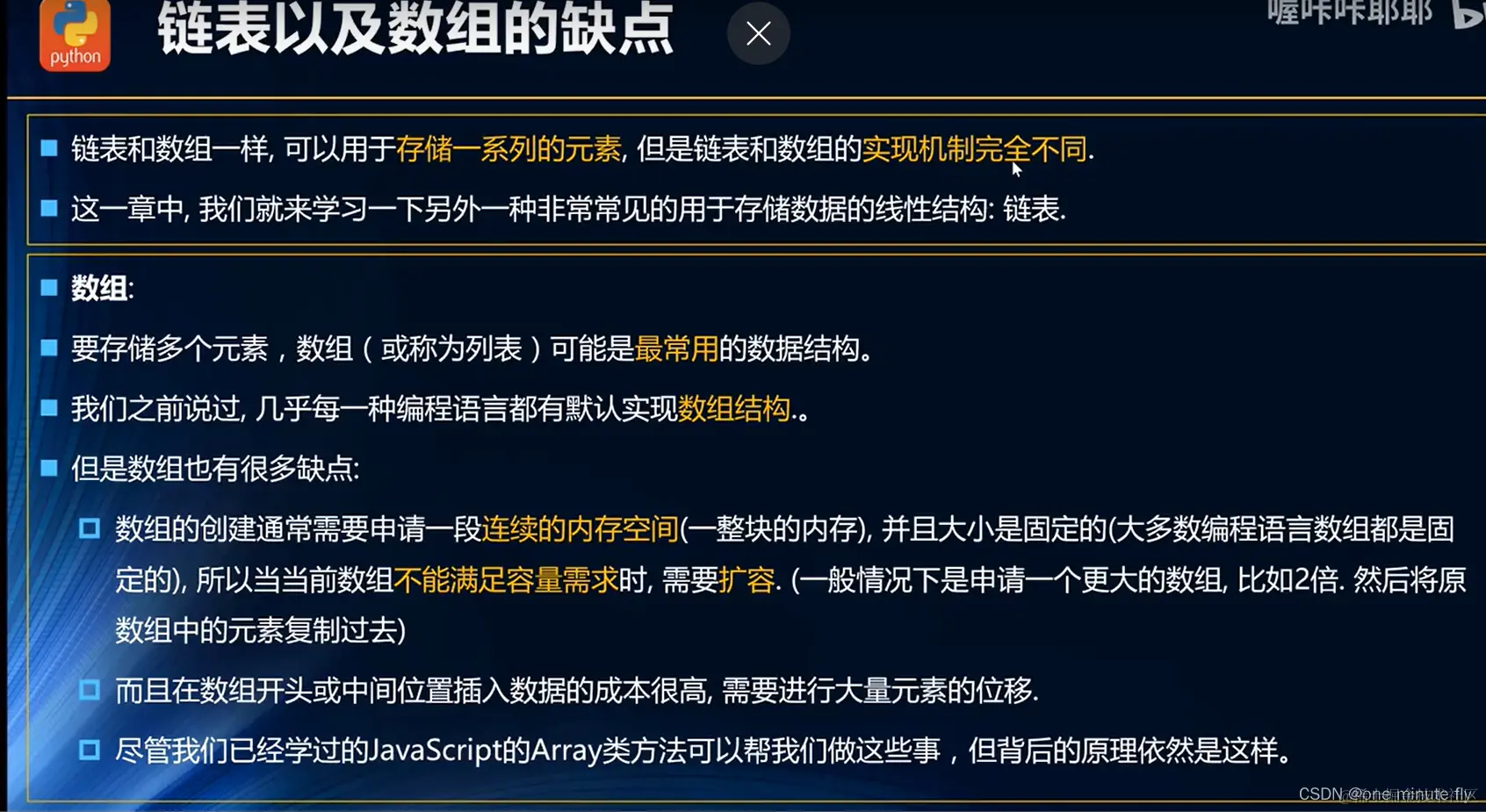

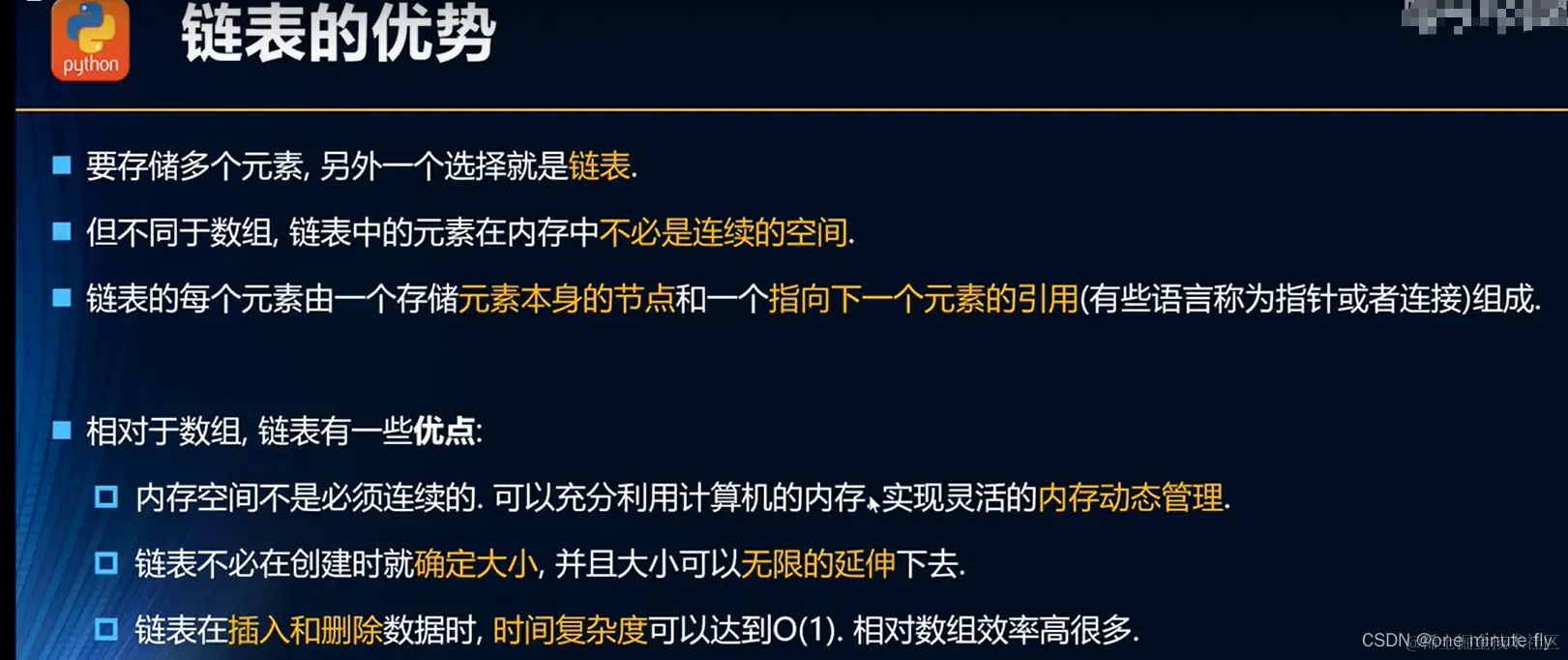

链表

在这里插入图片描述 在这里插入图片描述

在这里插入图片描述 在这里插入图片描述

function Node(element) {
    this.element = element
    this.next = null
}
function LinkedList() {
    this.length = 0
    this.head = null
    // 链表尾部追加元素方法
    LinkedList.prototype.append = function (element) {
        var newNode = new Node(element)
        if (this.head === null) { // 链表尾空
            this.head = newNode
        } else { // 链表不为空
            var current = this.head
            while (current.next) {
                current = current.next
            }
            current.next = newNode
        }
        this.length++
    }
    LinkedList.prototype.toString = function () {
        var current = this.head
        var listString = ""
        while (current) {
            listString += "," + current.element
            current = current.next
        }
        return listString.slice(1)
    }
    LinkedList.prototype.insert = function (position, element) {
        if (position < 0 || position > this.length) return false
        var newNode = new Node(element)
        var current = this.head
        var previous = null
        index = 0
        if (position == 0) {
            newNode.next = current
            this.head = newNode
        } else {
            while (index++ < position) {
                previous = current
                current = current.next
            }
            newNode.next = current
            previous.next = newNode
        }
        this.length++
        return true
    }
    LinkedList.prototype.removeAt = function (position) {
        if (position < 0 || position >= this.length) return null
        var current = this.head
        var previous = null
        var index = 0
        if (position === 0) {
            this.head = current.next
        } else {
            while (index++ < position) {
                previous = current
                current = current.next
            }

            previous.next = current.next
        }
        this.length--
        return current.element
    }
    LinkedList.prototype.indexOf = function (element) {
        var current = this.head
        index = 0
        while (current) {
            if (current.element === element) {
                return index
            }
            index++
            current = current.next
        }
        return -1
    }
    LinkedList.prototype.remove = function (element) {
        var index = this.indexOf(element)
        return this.removeAt(index)
    }
    LinkedList.prototype.isEmpty = function () {
        return this.length == 0
    }
    LinkedList.prototype.size = function () {
        return this.length
    }
    LinkedList.prototype.getFirst = function () {
        return this.head.element
    }
}

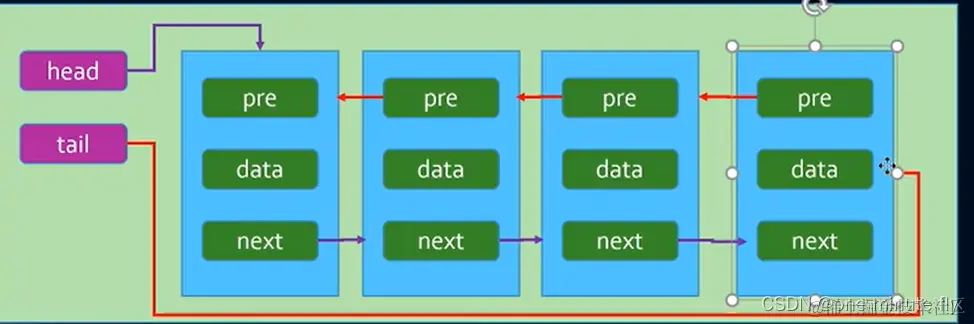

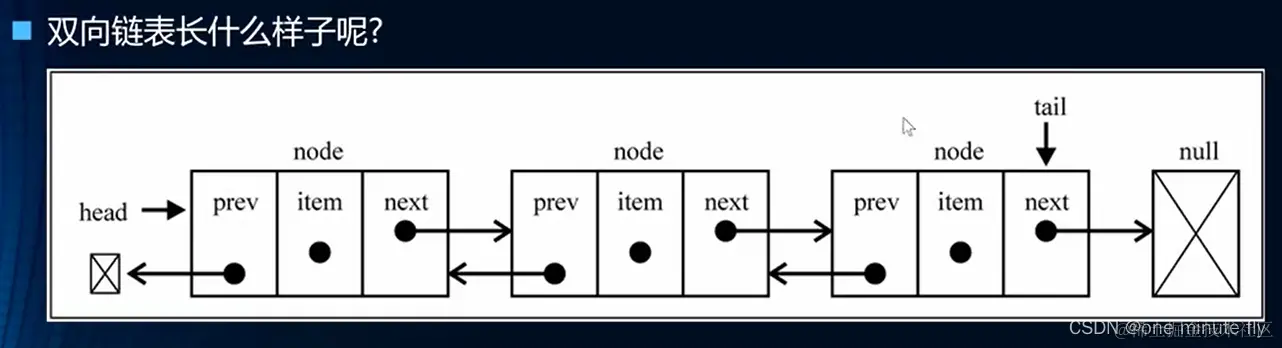

双向链表

在这里插入图片描述

在这里插入图片描述 在这里插入图片描述

function Node(element) {
        this.element = element
        this.next = null
        this.prev = null // 新添加的
    }
    function DoublyLinkedList() {
        this.length = 0
        this.head = null
        this.tail = null // 新添加的
        DoublyLinkedList.prototype.append = function (element) {
            var newNode = new Node(element)
            if (this.head == null) {
                this.head = newNode
                this.tail = newNode
            } else {
                this.tail.next = newNode
                newNode.prev = this.tail
                this.tail = newNode
            }
            this.length++
        }
        DoublyLinkedList.prototype.insert = function (position, element) {
            if (position < 0 || position > this.length) return false
            var newNode = new Node(element)
            if (position === 0) { // 在第一个位置插入数据
                if (this.head == null) {
                    this.head = newNode
                    this.tail = newNode
                } else {
                    this.head.prev = newNode
                    newNode.next = this.head
                    this.head = newNode
                }
            } else if (position === this.length) { // 插入到最后的情况
                this.tail.next = newNode
                newNode.prev = this.tail
                this.tail = newNode
            } else { // 在中间位置插入数据
                var index = 0
                var current = this.head
                var previous = null
                while (index++ < position) {
                    previous = current
                    current = current.next
                }
                newNode.next = current
                newNode.prev = previous
                current.prev = newNode
                previous.next = newNode
            }
            this.length++
            return true
        }
        DoublyLinkedList.prototype.removeAt = function (position) {
            if (position < 0 || position >= this.length) return null
            var current = this.head
            if (position === 0) {
                if (this.length == 1) {
                    this.head = null
                    this.tail = null
                } else {
                    this.head = this.head.next
                    this.head.prev = null
                }
            } else if (position === this.length -1) {
                current = this.tail
                this.tail = this.tail.prev
                this.tail.next = null
            } else {
                var index = 0
                var previous = null

                while (index++ < position) {
                    previous = current
                    current = current.next
                }

                previous.next = current.next
                current.next.prev = previous
            }
            this.length--
            return current.element
        }
        DoublyLinkedList.prototype.indexOf = function (element) {
            var current = this.head
            var index = 0
            while (current) {
                if (current.element === element) {
                    return index
                }
                index++
                current = current.next
            }
            return -1
        }
        DoublyLinkedList.prototype.remove = function (element) {
            var index = this.indexOf(element)
            return this.removeAt(index)
        }
        DoublyLinkedList.prototype.isEmpty = function () {
            return this.length === 0
        }
        DoublyLinkedList.prototype.size = function () {
            return this.length
        }
        DoublyLinkedList.prototype.getHead = function () {
            return this.head.element
        }
        DoublyLinkedList.prototype.getTail = function () {
            return this.tail.element
        }
        DoublyLinkedList.prototype.forwardString = function () {
            var current = this.head
            var forwardStr = ""
            while (current) {
                forwardStr += "," + current.element
                current = current.next
            }
            return forwardStr.slice(1)
        }
        DoublyLinkedList.prototype.reverseString = function () {
            var current = this.tail
            var reverseStr = ""
            while (current) {
                reverseStr += "," + current.element
                current = current.prev
            }
            return reverseStr.slice(1)
        }
        DoublyLinkedList.prototype.toString = function () {
            return this.forwardString()
        }
    }

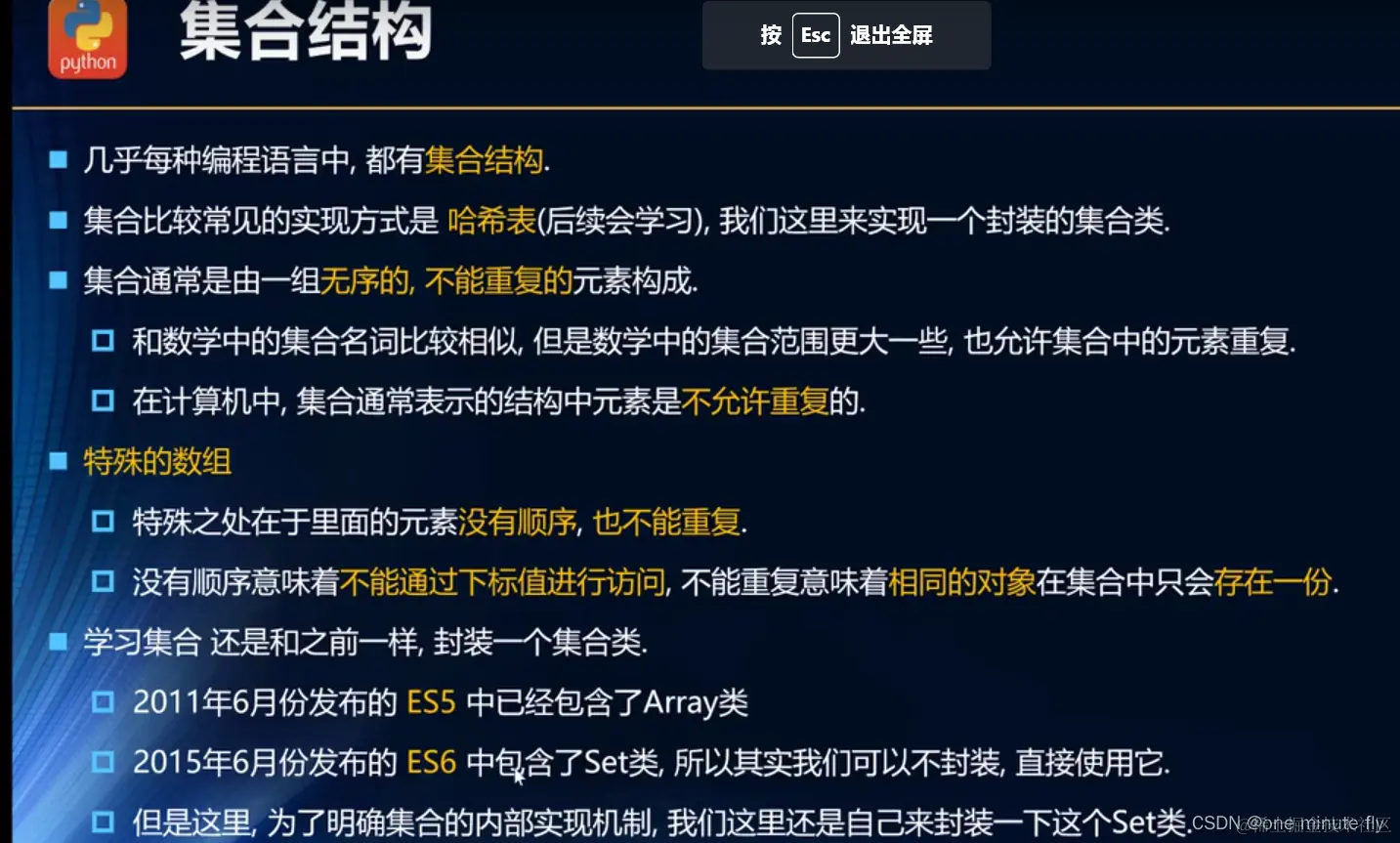

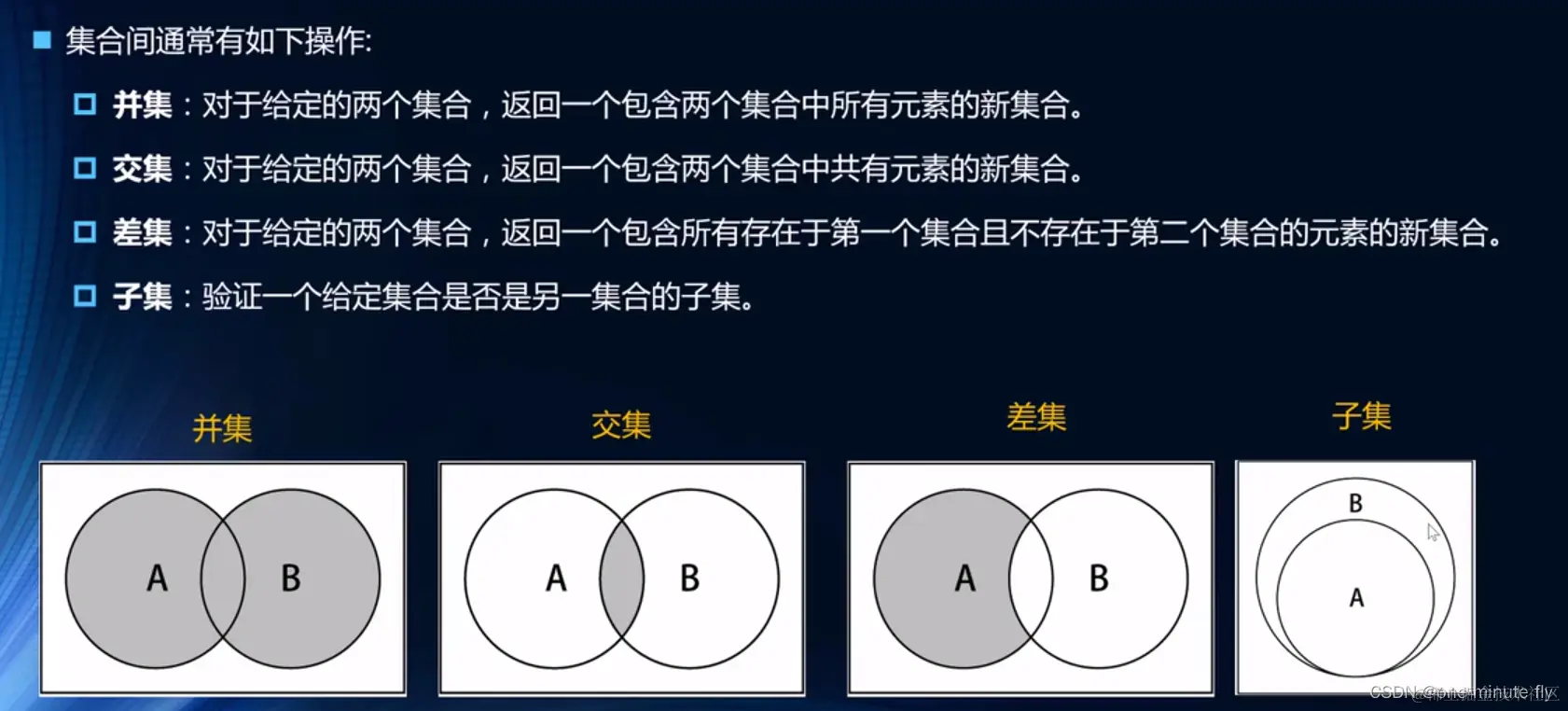

集合结构

在这里插入图片描述

 function Set() {
        this.items = {}
        Set.prototype.has = function (value) {
            return this.items.hasOwnProperty(value)
        }
        Set.prototype.add = function (value) {
            if (this.has(value)) return false
            this.items[value] = value
            return true
        }
        Set.prototype.remove = function (value) {
            if (!this.has(value)) return false
            delete this.items[value]
            return true
        }
        Set.prototype.clear = function () {
            this.items = {}
        }
        Set.prototype.size = function () {
            return Object.keys(this.items).length
        }
        Set.prototype.values = function () {
            return Object.keys(this.items)
        }
    }

在这里插入图片描述

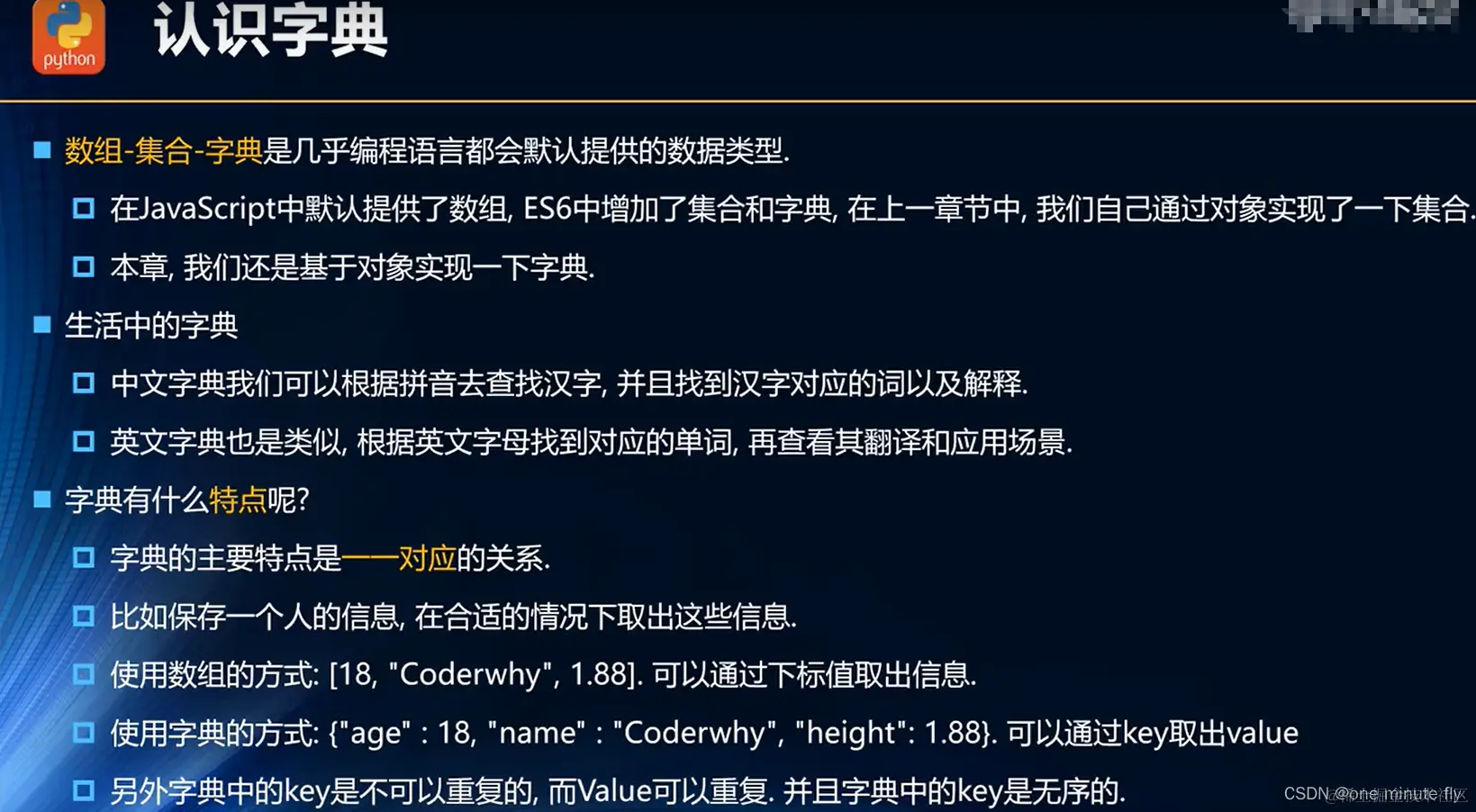

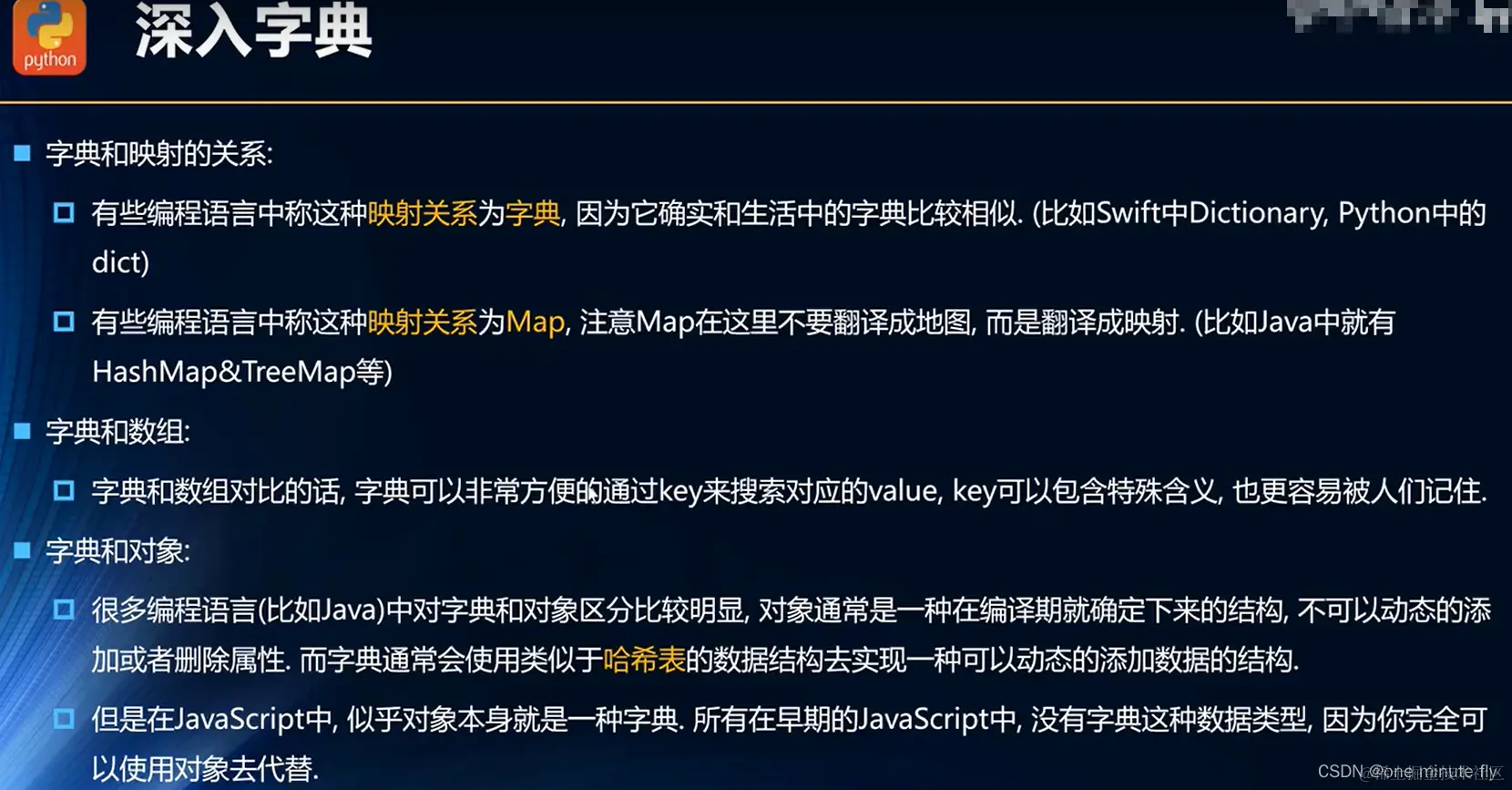

字典类型

在这里插入图片描述

在这里插入图片描述

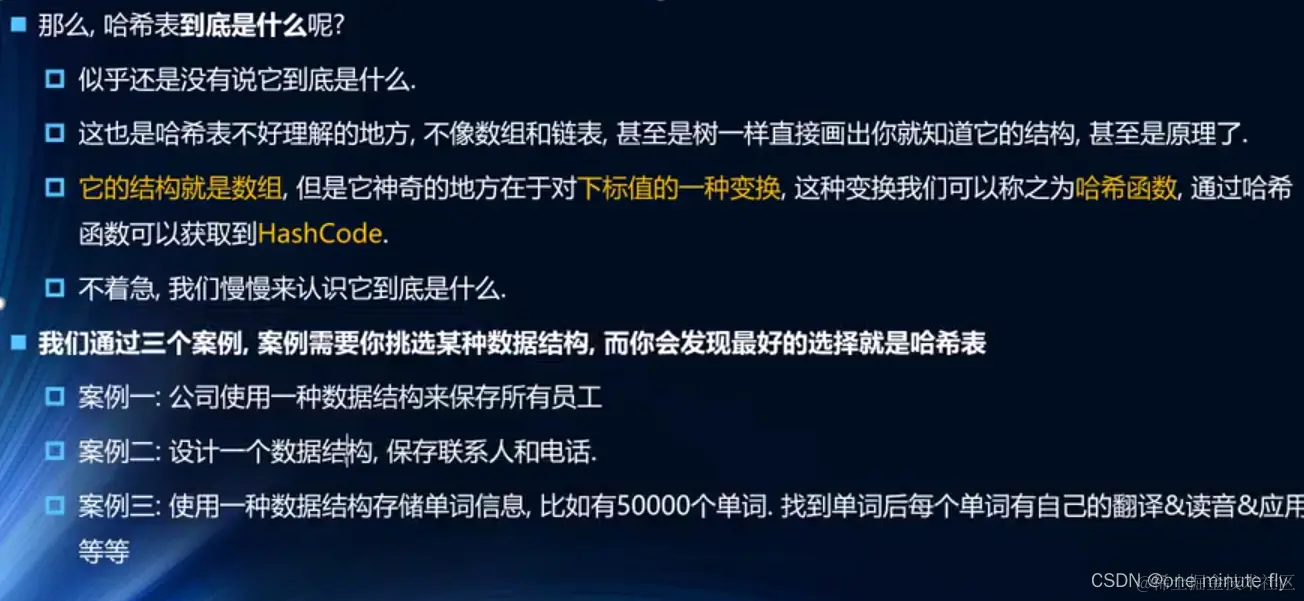

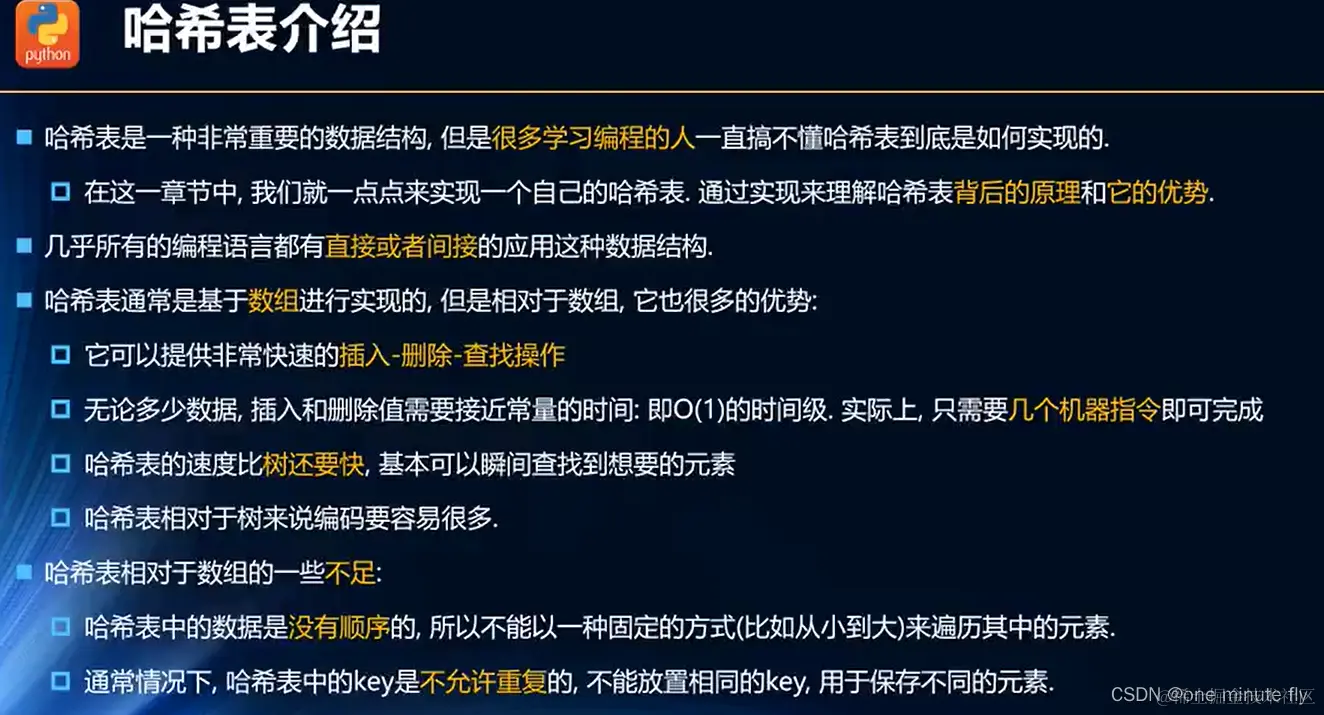

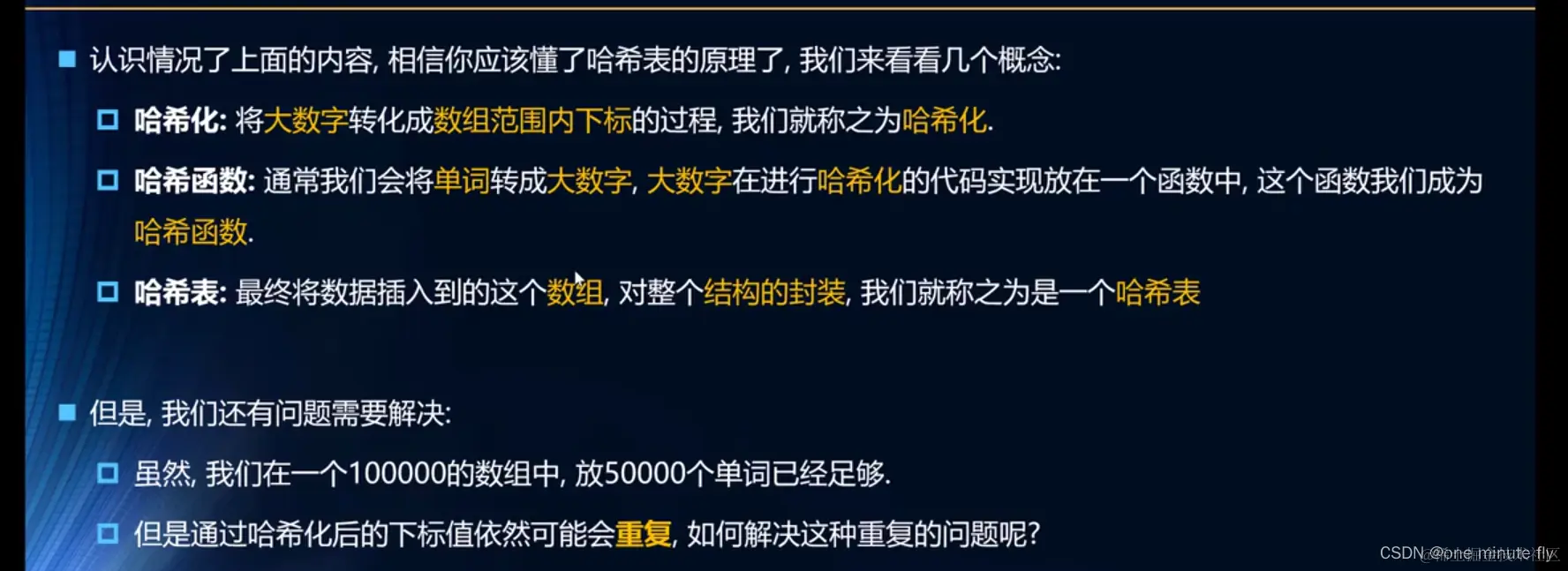

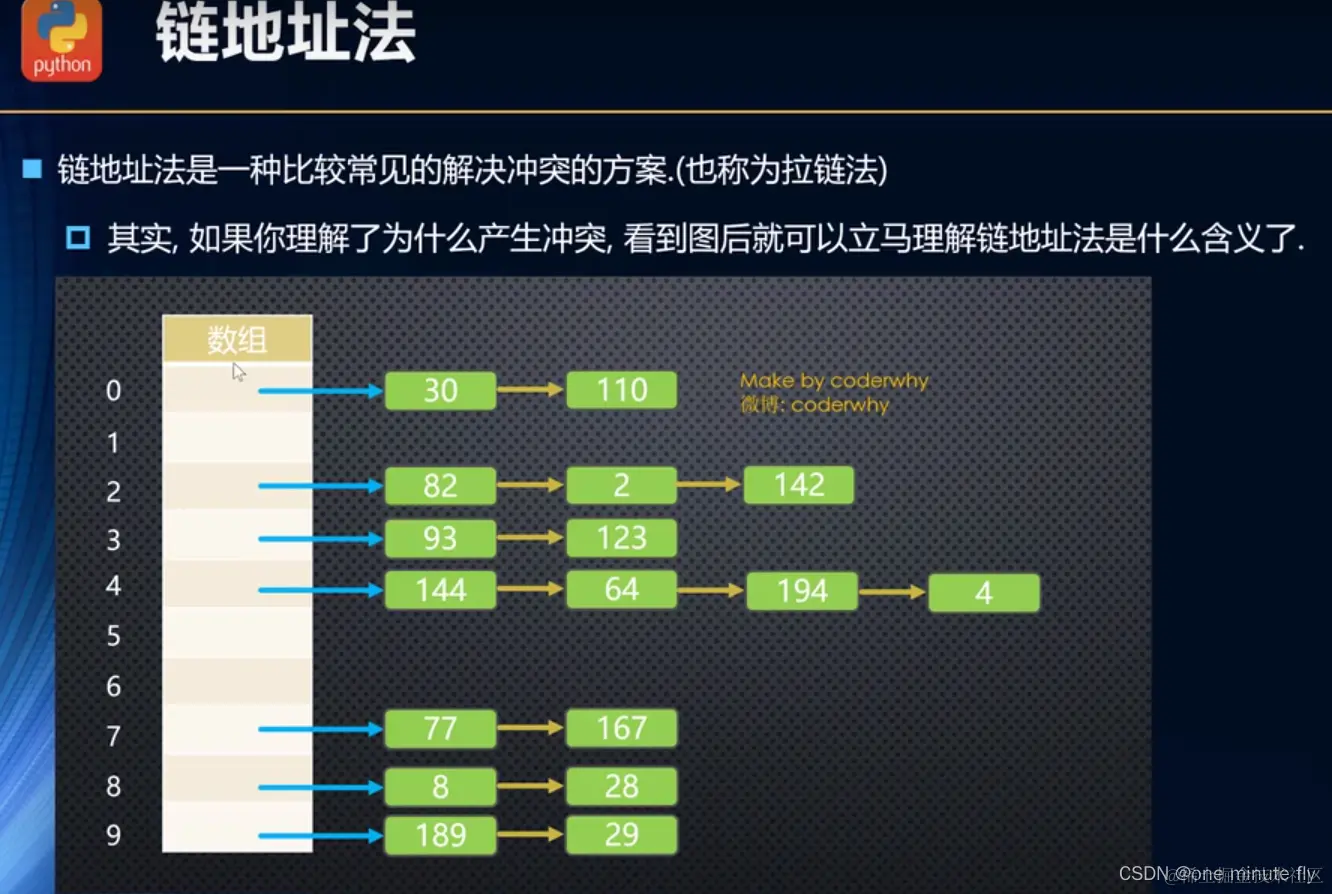

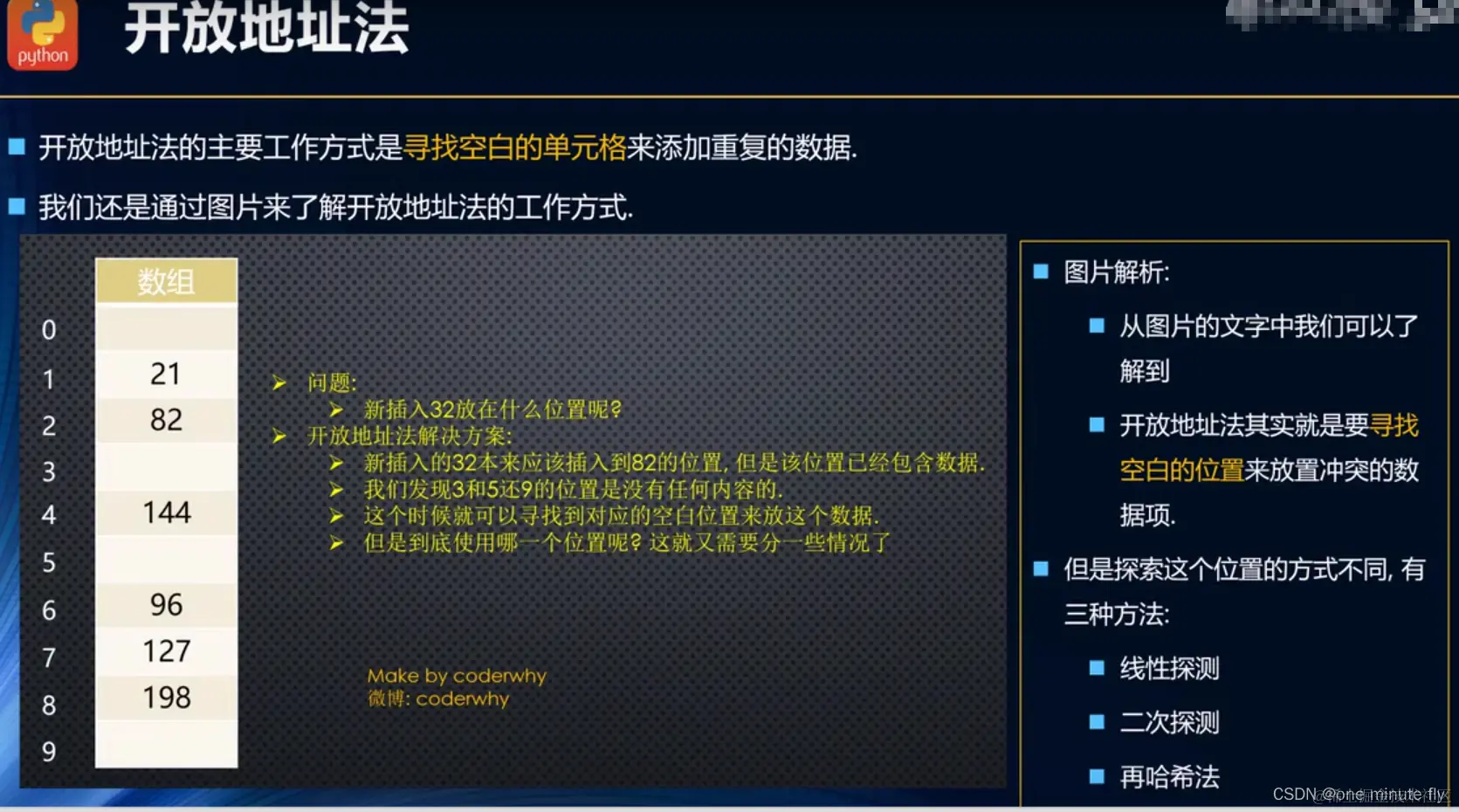

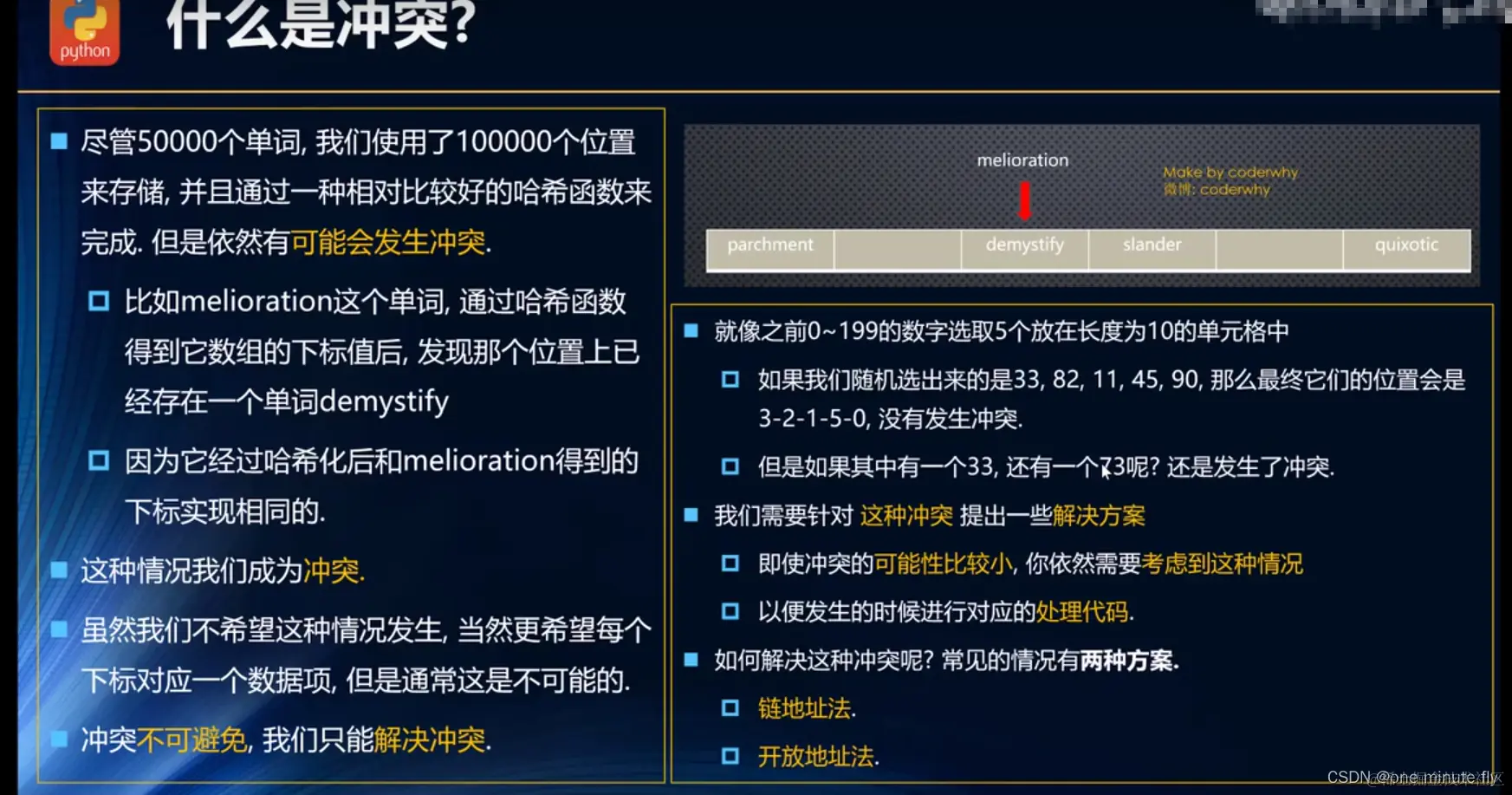

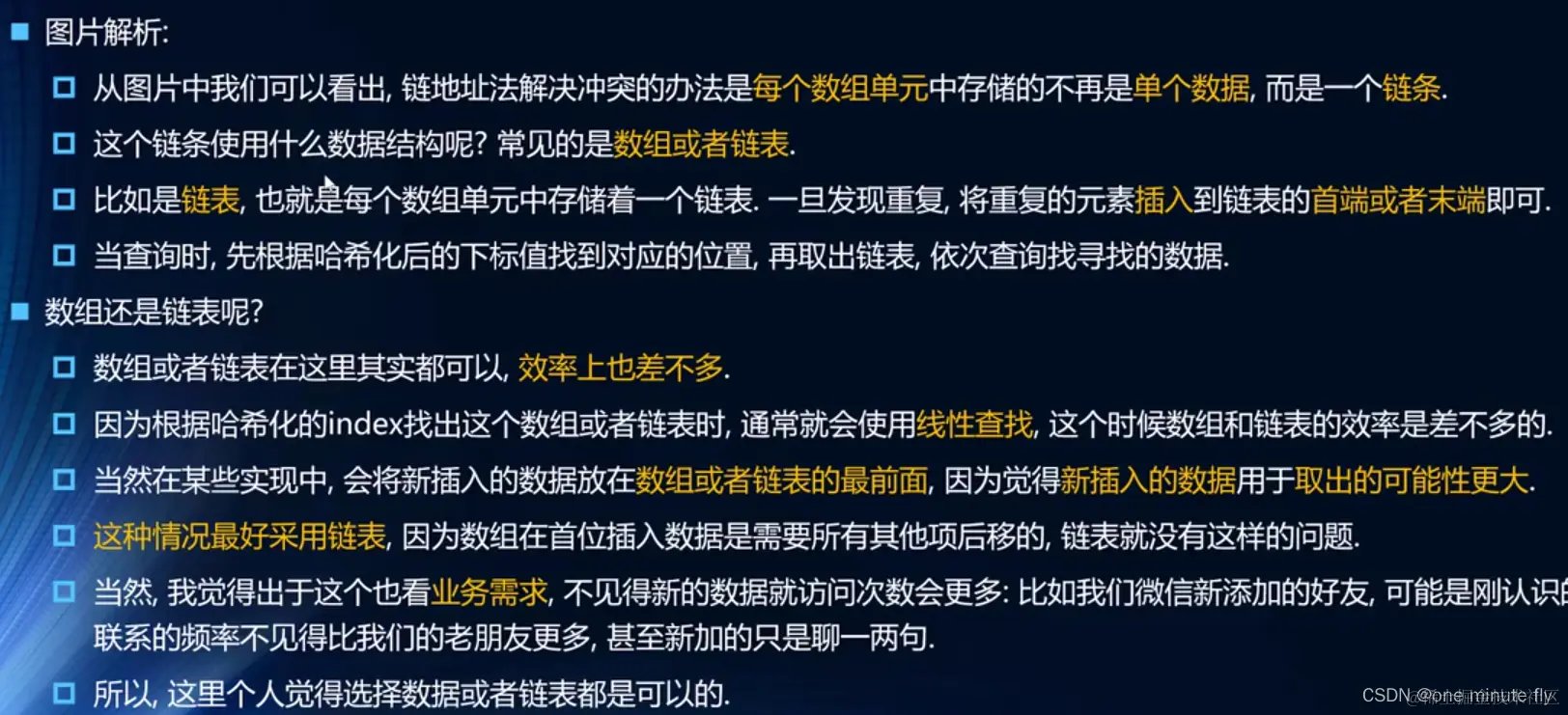

哈希表

在这里插入图片描述 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述

在这里插入图片描述 在这里插入图片描述

质数算法简单版本

质数的特点:大于1的自然数中,只能被1和自己整除的数

function isPrime(num){
	for(var i = 2;i<num;i++){
		if(num % i == 0){
			return false
		}
	}
	return true
}

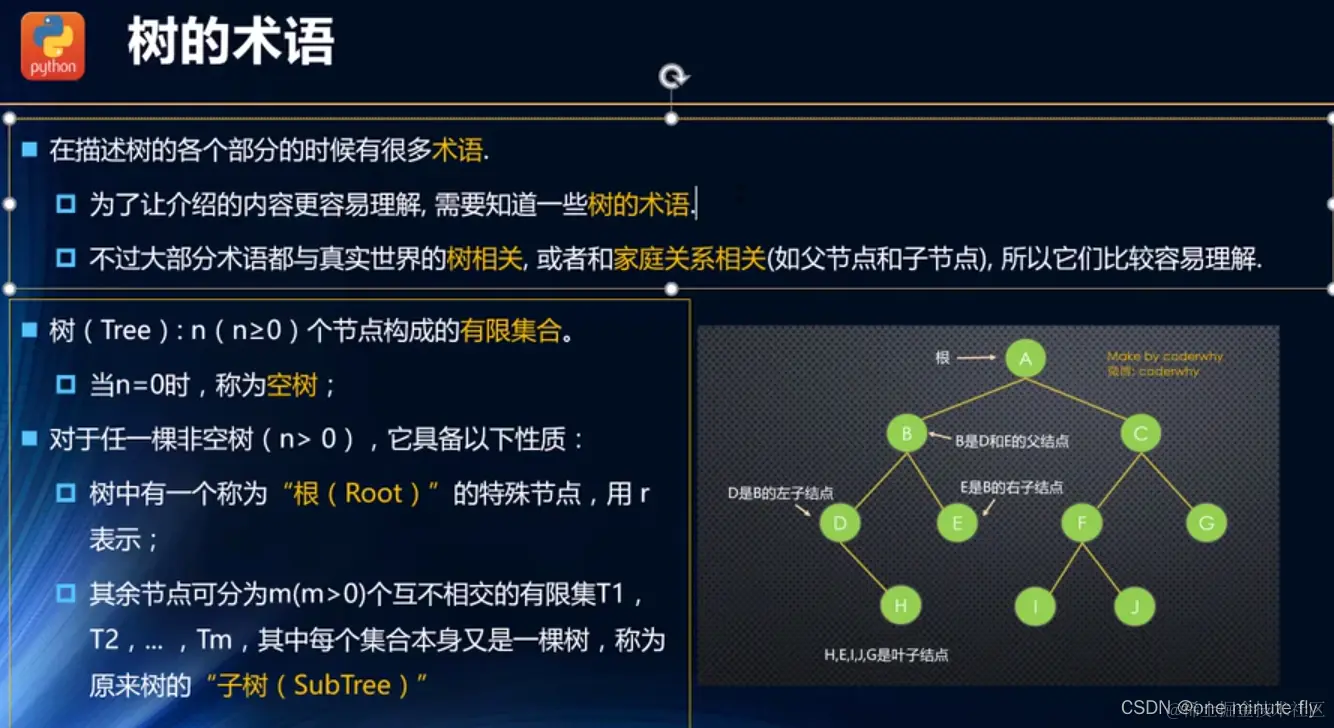

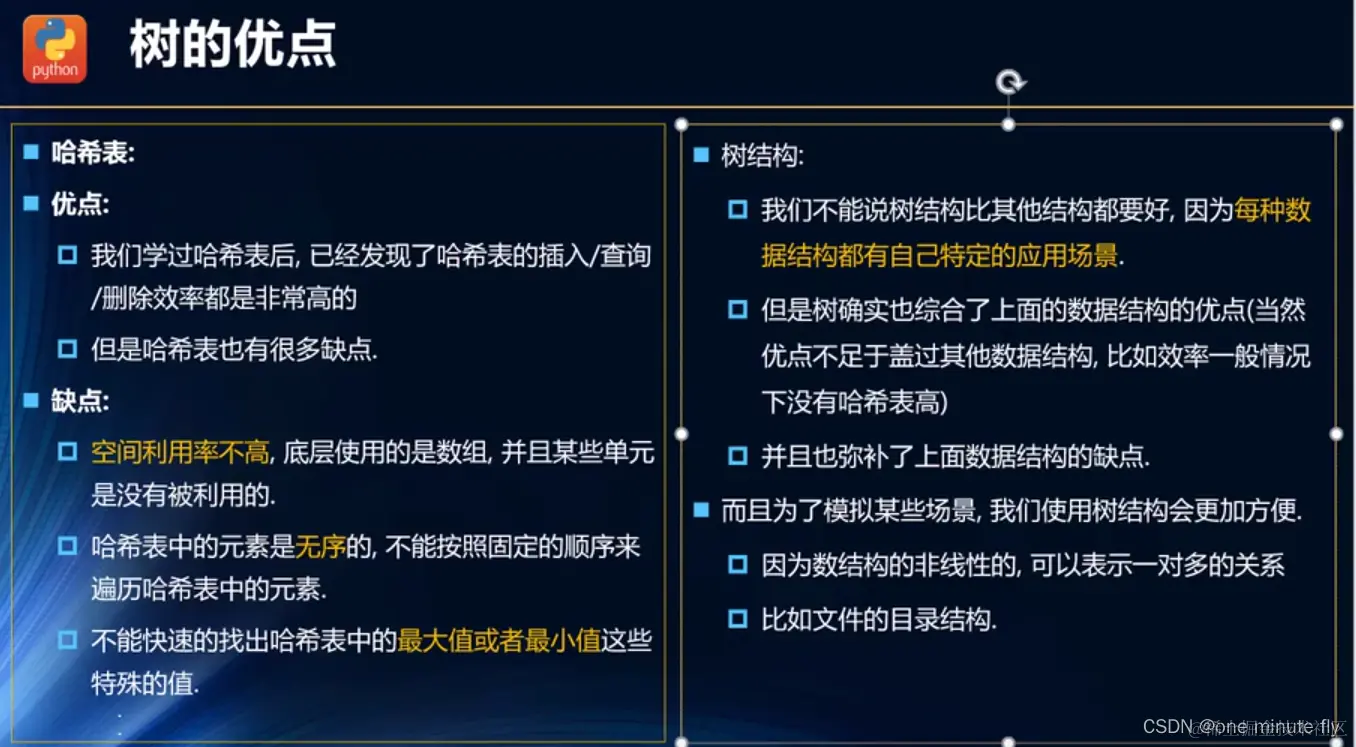

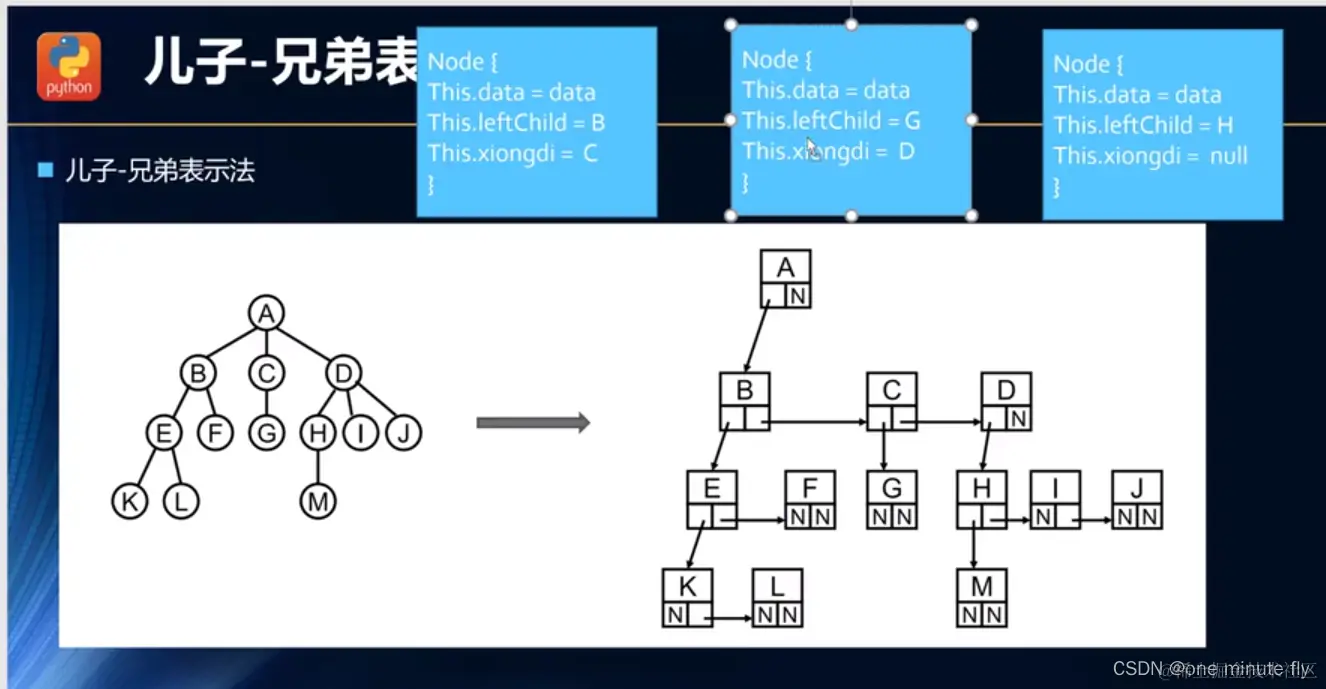

1、数是n个结点的有限集合T(Tree),n=0的时候,称为为空树 数的特性 1、任意非空树,有且仅有一个特定的成为root的节点,树形结构是一种具有递归特征的数据结构(任何一颗数又满足树的概念) 2、树形结构中数据元素之间存在这一对多的关系,或者是多对多 数的存储结构 1、顺序存储或者是链表存储,树的结构不能够直接的存储,需要转换为顺序存储或链表存储。 2、双亲表示:顺序存储各个节点的同时,给各个节点添加一个变量,记录其父节点的位置 3、孩子表示法:建立多个指针域,指向它所有子节点的地址,任何一个节点,都会掌握它所有子节点的信息 4、孩子兄弟表示法:从树的根节点开始,依次采用链表去存储各个节点的孩子节点和兄弟节点。可以把一颗普通树,转换为二叉树

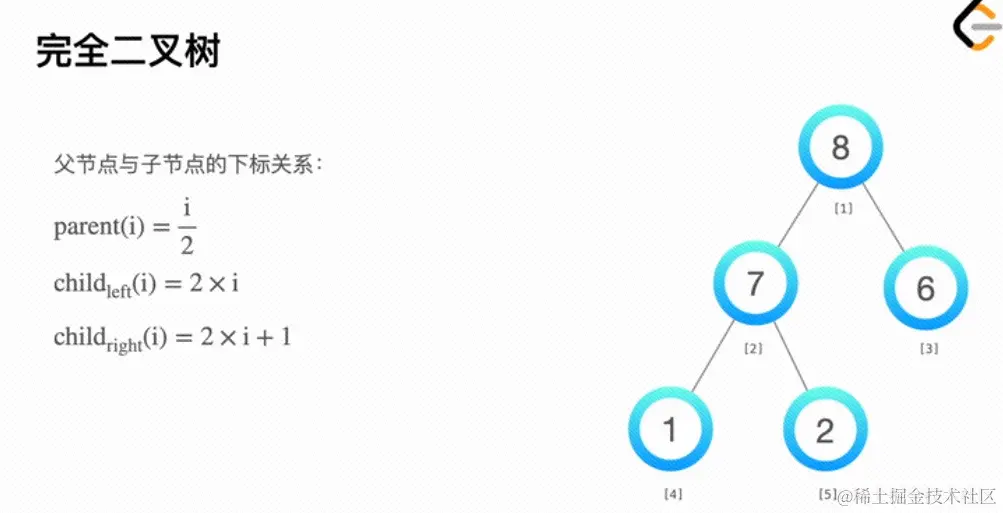

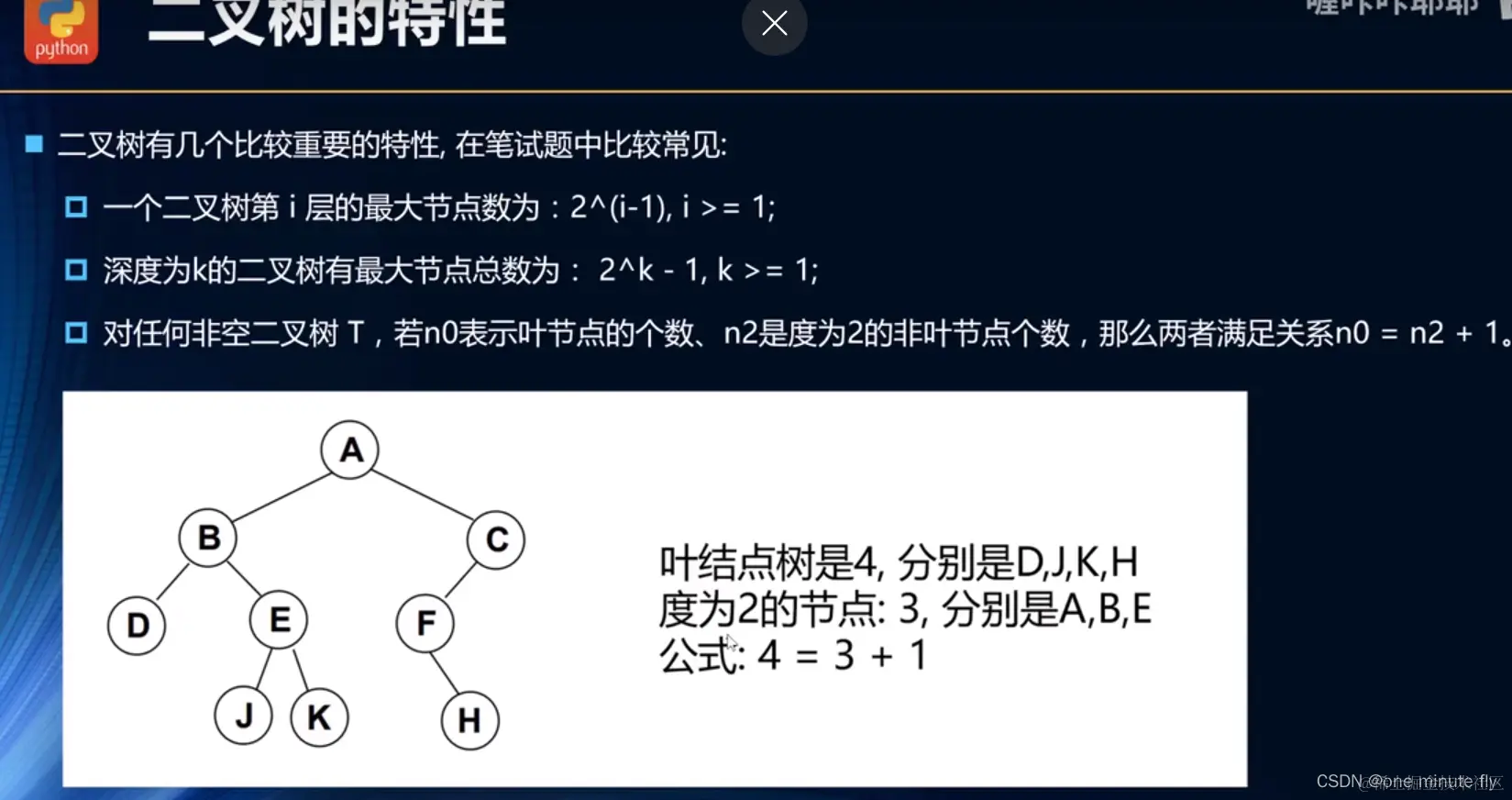

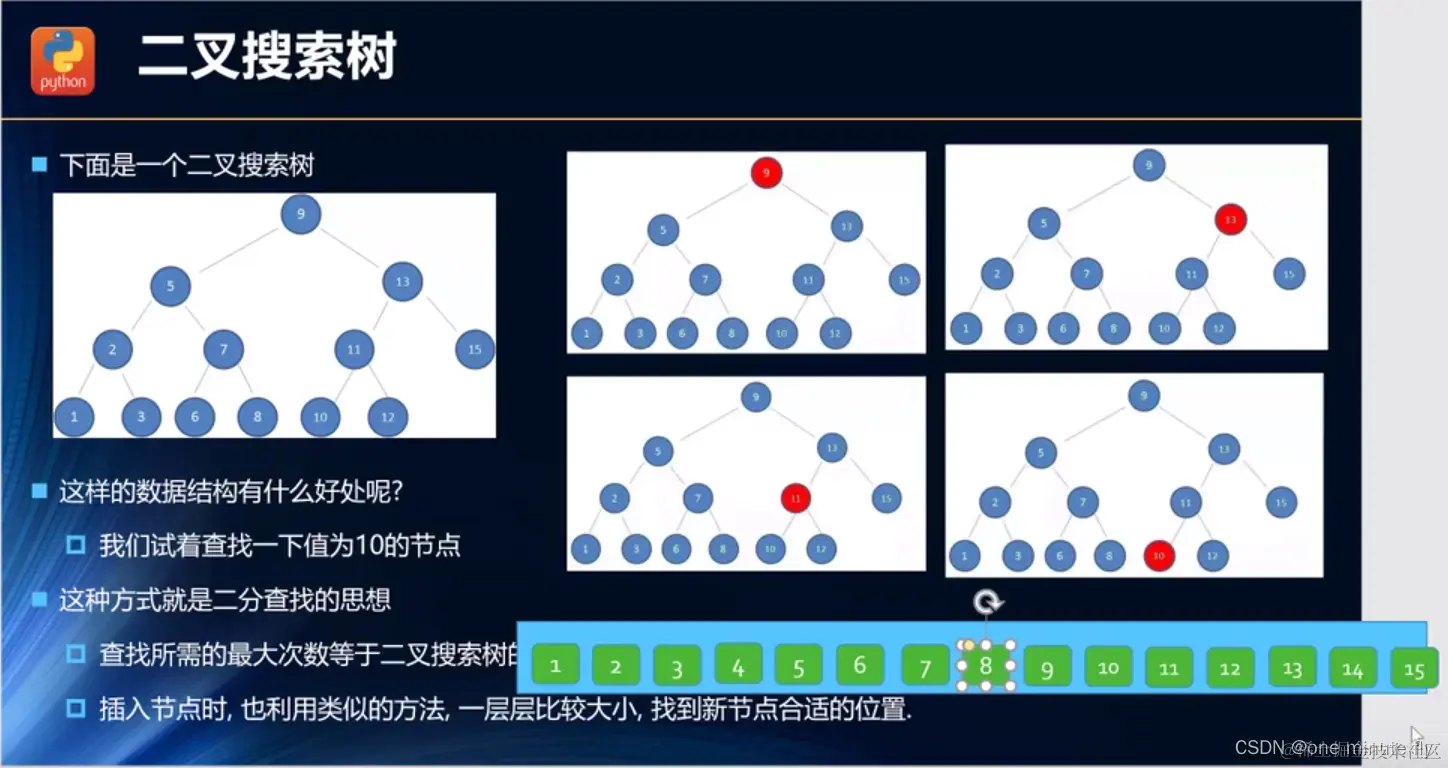

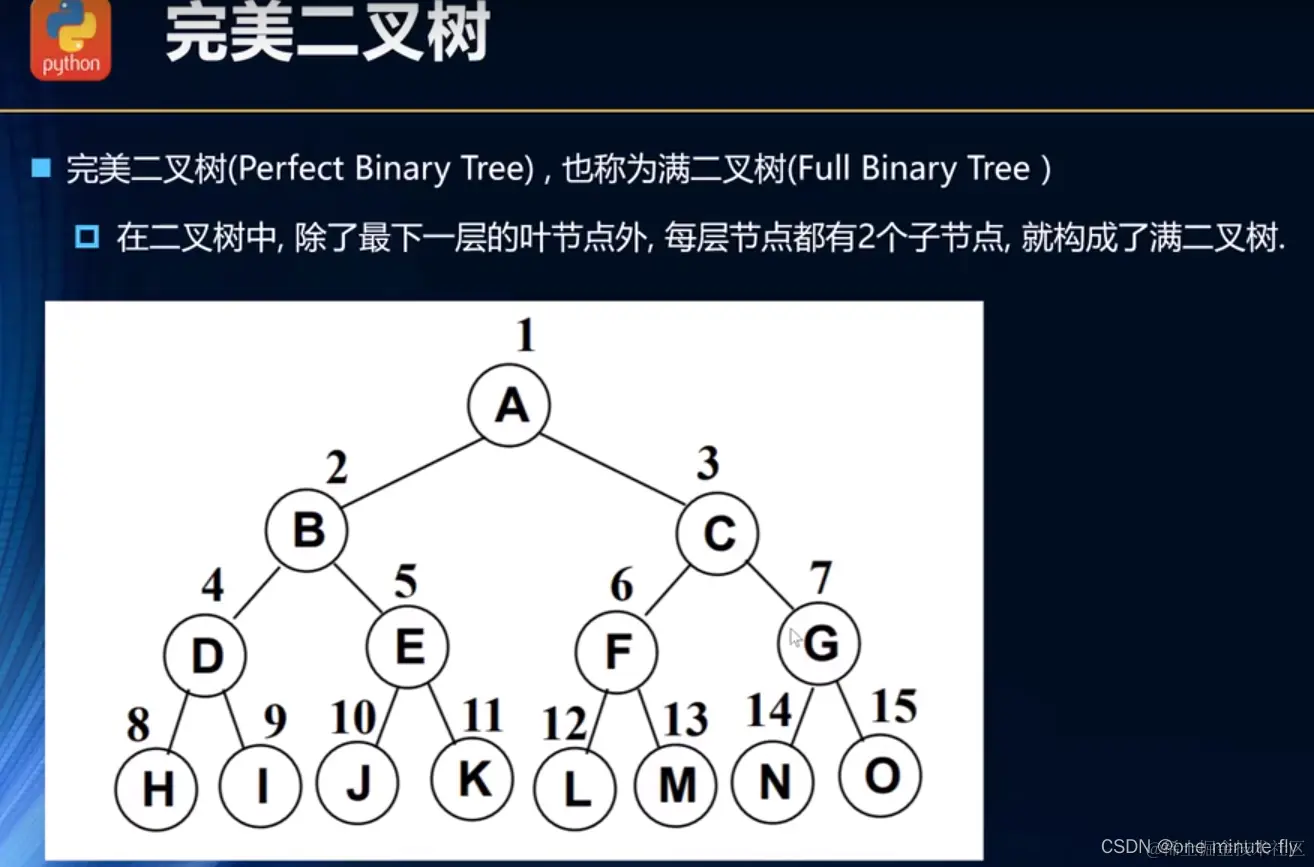

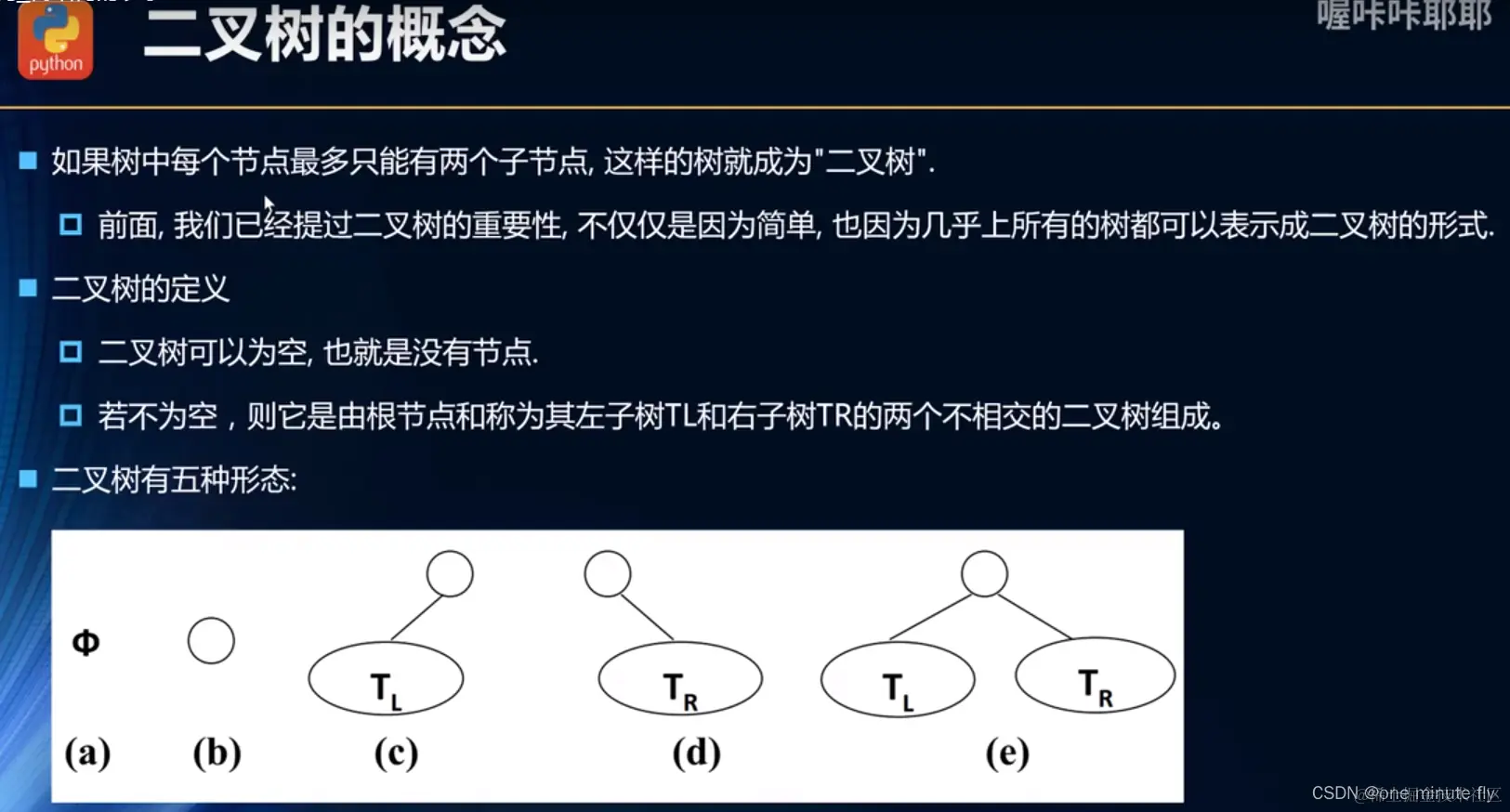

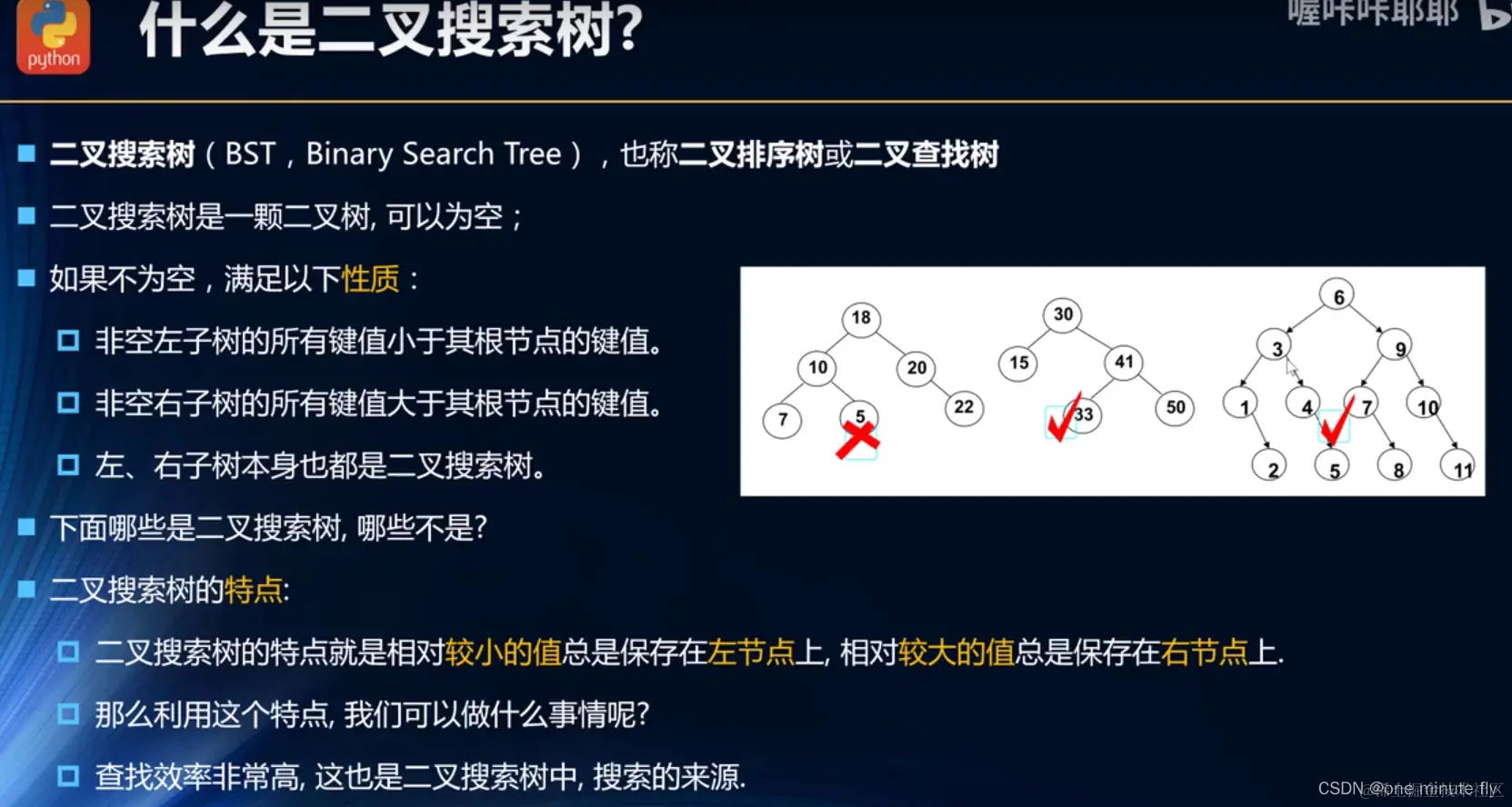

二叉树

如果说树中的每个节点最多只能有两个子节点,这样的树我们称之为二叉树,二叉树可以为空 特点: 1、每个节点最多有两棵子树,所以二叉树中不存在度大于二的节点 一棵树中,最大的节点的度称为树的度,节点的度:节点所拥有的子树的个数 2、左子树和右子树是有顺序的,次序不能任意的颠倒 3、即使树中某个节点只有一颗树,也要去区分它是左子树还是右子树 性质:在二叉树中,第i层上最多有2^i - 1次节点(i >= 1) 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述

在这里插入图片描述

在这里插入图片描述 在这里插入图片描述 在这里插入图片描述

在这里插入图片描述

在这里插入图片描述 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述
