前言
Spring’s Inversion of Control (IoC) container 简称IoC容器，也称为dependency injection (DI) 依赖注入，是Spring最核心的关键技术之一。
一、对Spring Ioc的理解
Spring IoC是对Bean的全生命周期管理的容器，包括bean创建，依赖注入，销毁。他是Spring技术生态的底座，所有的Spring技术在Ioc容器之上进行扩展实现。
beans和context包是ioc容器的基础，BeanFactory支持配置任意类型的对象。ApplicationContext是BeanFactory的子接口，它更易于集成aop,支持国际化，事件发布，以及应用层特定的上下文，如用于web应用程序的WebApplicationContext。
二、Spring IoC需要提供的功能
1、 获取不同来源bean的资源
2、 加载读取bean资源
3、 解析资源bean的定义信息
4、 根据bean的定义信息进行实例化，并存储
三、Spring IoC启动流程
在AbstractApplicationContext类中，spring使用了模版模式来将Spring ioc容器初始化进行了定义。
public abstract class AbstractApplicationContext extends DefaultResourceLoader
implements ConfigurableApplicationContext {
// ...
@Override
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
// Prepare this context for refreshing.
prepareRefresh();
// Tell the subclass to refresh the internal bean factory.
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// Prepare the bean factory for use in this context.
prepareBeanFactory(beanFactory);
try {
// Allows post-processing of the bean factory in context subclasses.
postProcessBeanFactory(beanFactory);
// Invoke factory processors registered as beans in the context.
invokeBeanFactoryPostProcessors(beanFactory);
// Register bean processors that intercept bean creation.
registerBeanPostProcessors(beanFactory);
// Initialize message source for this context.
initMessageSource();
// Initialize event multicaster for this context.
initApplicationEventMulticaster();
// Initialize other special beans in specific context subclasses.
onRefresh();
// Check for listener beans and register them.
registerListeners();
// Instantiate all remaining (non-lazy-init) singletons.
finishBeanFactoryInitialization(beanFactory);
// Last step: publish corresponding event.
finishRefresh();
}
catch (BeansException ex) {
if (logger.isWarnEnabled()) {
logger.warn("Exception encountered during context initialization - " +
"cancelling refresh attempt: " + ex);
}
// Destroy already created singletons to avoid dangling resources.
destroyBeans();
// Reset 'active' flag.
cancelRefresh(ex);
// Propagate exception to caller.
throw ex;
}
finally {
// Reset common introspection caches in Spring's core, since we
// might not ever need metadata for singleton beans anymore...
resetCommonCaches();
}
}
}
// ...
}
流程说明：
首先是资源定位：ioc容器需要统一创建对象，创建对象的类信息，属性信息需要从不同配置文件中解析出来，所以需要查找类的配置文件。这就是资源定位。

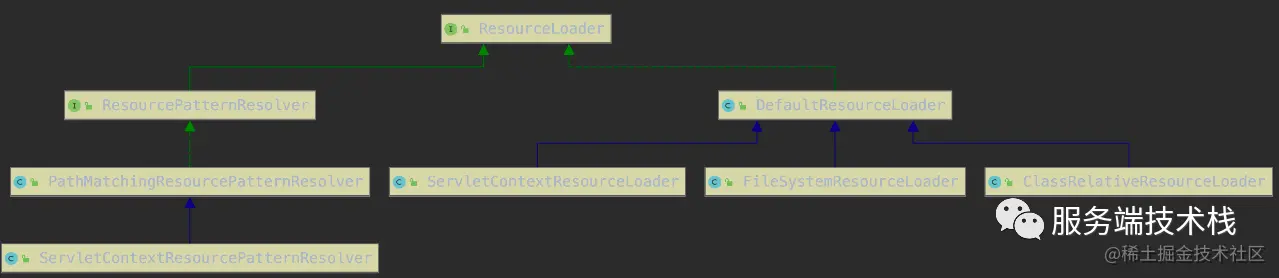

spring设计了如下接口和类用来定位资源路径，通过一个字符串路径获取资源加载器。字符串路径可以是类路径下的文件，网络Url,文件系统等等。其中PathMatchingResourcePatternResolver通过持有ResourceLoader的引用，可以根据不同的资源加载器加载不同位置的资源。
加载资源
//资源加载处理器 **此处使用了策略模式** 持有了ResourceResolver的引用，根据不同类型的ResourceResolver来实现加载不同位置的资源
public class PathMatchingResourcePatternResolver implements ResourcePatternResolver {
//通过构造函数持有ResourceLoader引用
public PathMatchingResourcePatternResolver(ResourceLoader resourceLoader) {
Assert.notNull(resourceLoader, "ResourceLoader must not be null");
this.resourceLoader = resourceLoader;
}
//通过不同的ResourceLoader来加载资源
@Override
public Resource[] getResources(String locationPattern) throws IOException {
Assert.notNull(locationPattern, "Location pattern must not be null");
if (locationPattern.startsWith(CLASSPATH_ALL_URL_PREFIX)) {
// a class path resource (multiple resources for same name possible)
if (getPathMatcher().isPattern(locationPattern.substring(CLASSPATH_ALL_URL_PREFIX.length()))) {
// a class path resource pattern
return findPathMatchingResources(locationPattern);
}
else {
// all class path resources with the given name
return findAllClassPathResources(locationPattern.substring(CLASSPATH_ALL_URL_PREFIX.length()));
}
}
else {
// Generally only look for a pattern after a prefix here,
// and on Tomcat only after the "*/" separator for its "war:" protocol.
int prefixEnd = (locationPattern.startsWith("war:") ? locationPattern.indexOf("*/") + 1 :
locationPattern.indexOf(':') + 1);
if (getPathMatcher().isPattern(locationPattern.substring(prefixEnd))) {
// a file pattern
return findPathMatchingResources(locationPattern);
}
else {
// a single resource with the given name
return new Resource[] {getResourceLoader().getResource(locationPattern)};
}
}
}
}

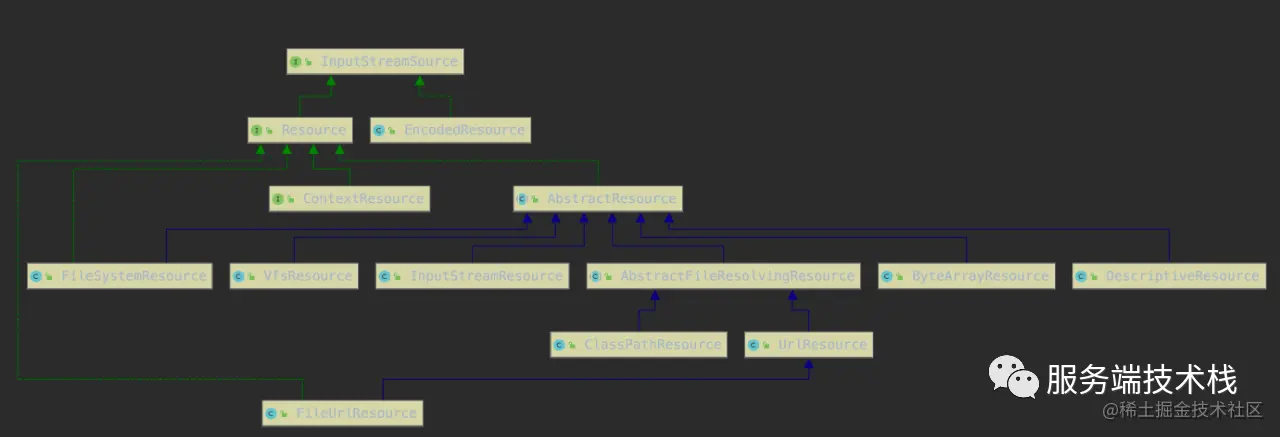

不同资源类继承图
包含本地文件，类路径资源，字节数组等
第2点是资源加载，读取到了资源文件，需要将资源文件转换成BeanDefinition
1、先获取类信息资源字节流对象

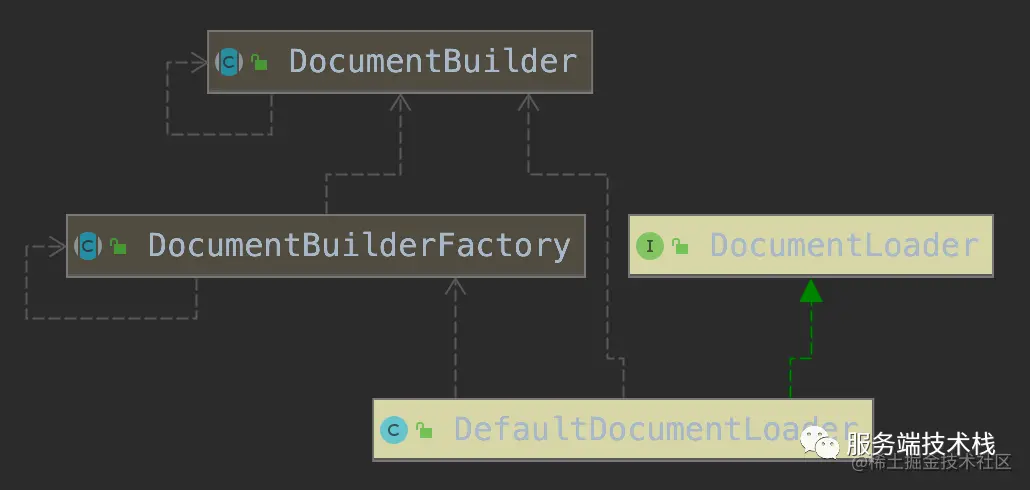

2、加载资源字节流对象成org.w3c.dom.Document对象，在Spring中通过jdk的SAX的xml解析技术，类图如下
3、在DefaultBeanDefinitionDocumentReader类中，读取Document对象里所有xml节点，委派给BeanDefinitionParserDelegate类进行解析，使用了委派设计模式
public class DefaultBeanDefinitionDocumentReader implements BeanDefinitionDocumentReader { protected void doRegisterBeanDefinitions(Element root) { BeanDefinitionParserDelegate parent = this.delegate; this.delegate = createDelegate(getReaderContext(), root, parent); // .... //解析前处理 preProcessXml(root); //解析bean定义 parseBeanDefinitions(root, this.delegate); //解析后处理 postProcessXml(root); //解析 this.delegate = parent; }}
4、parseBeanDefinitions()方法进行具体解析
先解析bean标签属性，如name,id,class,参数等等，然后构造GenericBeanDefinition对象，并填充属性，这就是bean实例化的原始配方。解析主要有两种情况，
第一种是spring默认支持的标签。
//构造GenericBeanDefinition定义public static AbstractBeanDefinition createBeanDefinition( @Nullable String parentName, @Nullable String className, @Nullable ClassLoader classLoader) throws ClassNotFoundException { GenericBeanDefinition bd = new GenericBeanDefinition(); bd.setParentName(parentName); if (className != null) { if (classLoader != null) { bd.setBeanClass(ClassUtils.forName(className, classLoader)); } else { bd.setBeanClassName(className); } } return bd; }
对于应用程序自定义的标签，Spring支持灵活定制，方便集成其他组件到spring中。用户可以将自己的解析器注册器放到META-INF/spring.handlers文件中，同时用户还需要自定义xsd文件和META-INF/spring.schemas文件，在tx模块和dubbo中都是用到了该扩展点。 在加载自定义标签的时候，spring将会加载到具体解析器。具体解析过程中，
通过org.springframework.beans.factory.xml.BeanDefinitionParserDelegate#parseCustomElement()方法进行管理解析流程。委派给NamespaceHandlerSupport进行解析，NamespaceHandlerSupport类持有了所有的解析器，由它委派给具体的解析器进行解析。

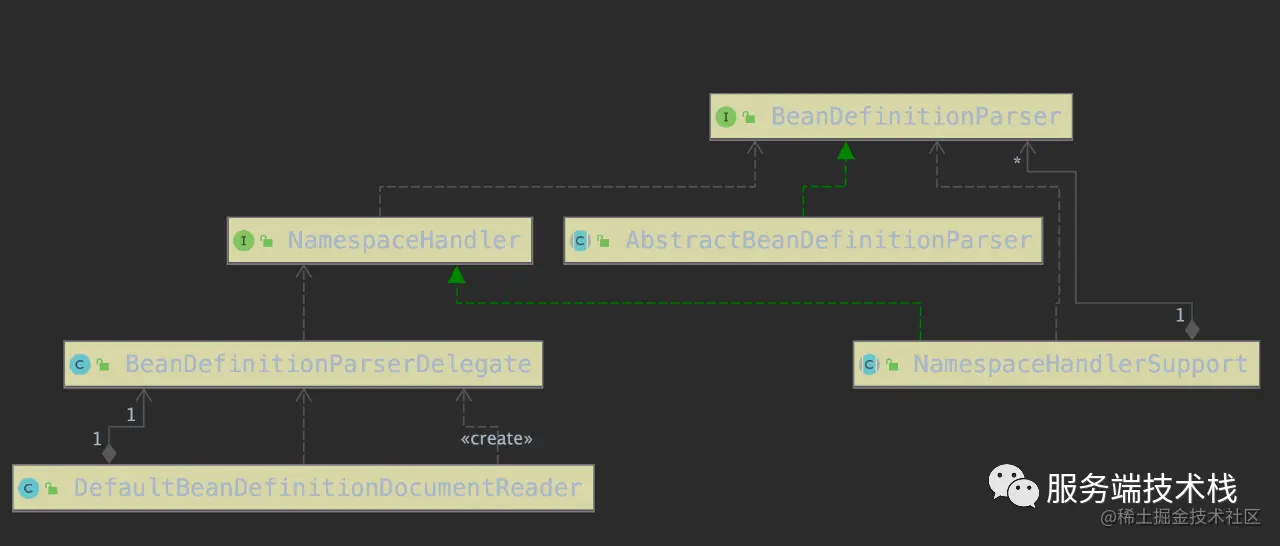

下面是自定义标签解析器相关类图。
解析标签流程图
5、第5步，将生成的GenericBeanDefinition对象，注册到容器中，
public abstract class BeanDefinitionReaderUtils { public static void registerBeanDefinition( BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry) throws BeanDefinitionStoreException { // Register bean definition under primary name. //主要名称 String beanName = definitionHolder.getBeanName(); registry.registerBeanDefinition(beanName, definitionHolder.getBeanDefinition()); //注册别名 // Register aliases for bean name, if any. String[] aliases = definitionHolder.getAliases(); if (aliases != null) { for (String alias : aliases) { registry.registerAlias(beanName, alias); } } }}
注册beandefinition具体过程包括,校验，判断是否可以覆盖，存入到
public class DefaultListableBeanFactory extends AbstractAutowireCapableBeanFactory implements ConfigurableListableBeanFactory, BeanDefinitionRegistry, Serializable { @Override public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition) throws BeanDefinitionStoreException { Assert.hasText(beanName, "Bean name must not be empty"); Assert.notNull(beanDefinition, "BeanDefinition must not be null"); if (beanDefinition instanceof AbstractBeanDefinition) { try { ((AbstractBeanDefinition) beanDefinition).validate(); } catch (BeanDefinitionValidationException ex) { throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName, "Validation of bean definition failed", ex); } } BeanDefinition existingDefinition = this.beanDefinitionMap.get(beanName); if (existingDefinition != null) { if (!isAllowBeanDefinitionOverriding()) { throw new BeanDefinitionOverrideException(beanName, beanDefinition, existingDefinition); } else if (existingDefinition.getRole() < beanDefinition.getRole()) { // e.g. was ROLE_APPLICATION, now overriding with ROLE_SUPPORT or ROLE_INFRASTRUCTURE if (logger.isInfoEnabled()) { logger.info("Overriding user-defined bean definition for bean '" + beanName + "' with a framework-generated bean definition: replacing [" + existingDefinition + "] with [" + beanDefinition + "]"); } } else if (!beanDefinition.equals(existingDefinition)) { if (logger.isDebugEnabled()) { logger.debug("Overriding bean definition for bean '" + beanName + "' with a different definition: replacing [" + existingDefinition + "] with [" + beanDefinition + "]"); } } else { if (logger.isTraceEnabled()) { logger.trace("Overriding bean definition for bean '" + beanName + "' with an equivalent definition: replacing [" + existingDefinition + "] with [" + beanDefinition + "]"); } } this.beanDefinitionMap.put(beanName, beanDefinition); } else { if (hasBeanCreationStarted()) { // Cannot modify startup-time collection elements anymore (for stable iteration) synchronized (this.beanDefinitionMap) { this.beanDefinitionMap.put(beanName, beanDefinition); List<String> updatedDefinitions = new ArrayList<>(this.beanDefinitionNames.size() + 1); updatedDefinitions.addAll(this.beanDefinitionNames); updatedDefinitions.add(beanName); this.beanDefinitionNames = updatedDefinitions; removeManualSingletonName(beanName); } } else { // Still in startup registration phase this.beanDefinitionMap.put(beanName, beanDefinition); this.beanDefinitionNames.add(beanName); removeManualSingletonName(beanName); } this.frozenBeanDefinitionNames = null; } if (existingDefinition != null || containsSingleton(beanName)) { resetBeanDefinition(beanName); } }}
6、看的上面,beanDefinition就解析好了。
接下里spring初始化了一系列bean,这些bean比较特殊，他是spring的bean工厂级别的，比如Environment，ClassLoader， post-processors
public abstract class AbstractApplicationContext extends DefaultResourceLoader implements ConfigurableApplicationContext {/** * Configure the factory's standard context characteristics, * such as the context's ClassLoader and post-processors. * @param beanFactory the BeanFactory to configure */ protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) { // Tell the internal bean factory to use the context's class loader etc. beanFactory.setBeanClassLoader(getClassLoader()); beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader())); beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment())); // Configure the bean factory with context callbacks. //这个地方是注册容器本身的ApplicationContextAwareProcessor，他的作用是为实现了**Aware接口的bean进行回调赋值。 beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this)); beanFactory.ignoreDependencyInterface(EnvironmentAware.class); beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class); beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class); beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class); beanFactory.ignoreDependencyInterface(MessageSourceAware.class); beanFactory.ignoreDependencyInterface(ApplicationContextAware.class); // BeanFactory interface not registered as resolvable type in a plain factory. // MessageSource registered (and found for autowiring) as a bean. beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory); beanFactory.registerResolvableDependency(ResourceLoader.class, this); beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this); beanFactory.registerResolvableDependency(ApplicationContext.class, this); // Register early post-processor for detecting inner beans as ApplicationListeners. 检测实现了ApplicationListener接口的bean,并存储下来 beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this)); // Detect a LoadTimeWeaver and prepare for weaving, if found. if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) { beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory)); // Set a temporary ClassLoader for type matching. beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader())); } // Register default environment beans.环境对象，里面包含系统环境配置 if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) { beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment()); } if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) { //注册系统属性对象 beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties()); } if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) { //注册系统环境对象 beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment()); } } }
7、上一步初始化了必须的bean,接下来执行postProcessBeanFactory(beanFactory);方法方便不同容器对BeanFactory进行定制。
8、调用invokeBeanFactoryPostProcessors(beanFactory);执行所有的BeanFactoryPostProcessor。对beandefinition进行修改，这个是spring提供的扩展点，用来自定义修改beandefinition的。比如mybatis(将mapper的class统一修改成MapperFactoryBean,将mapper的class作为它的构造参数),dubbo,都使用这个技术来和spring进行集成。
9、Register bean processors that intercep registerBeanPostProcessors(beanFactory); 实例化并注册所有bean的后置处理器，用于拦截bean创建。
10、initMessageSource(); 国际化支持
11、initApplicationEventMulticaster(); 初始化事件多播器
12、onRefresh(); 子类使用，初始化其他资源
13、registerListeners(); 注册事件监听器
在spring容器中，提供了一种事件机制，帮助springbean之间进行通信。
14、finishBeanFactoryInitialization(beanFactory); 初始化bean,并完成依赖注入
15、finishRefresh();完成容器初始化函数
16、最后回收资源，清除缓存，结束初始化
