iOS底层原理(24) - GCD分析中

同步函数和异步函数的区别

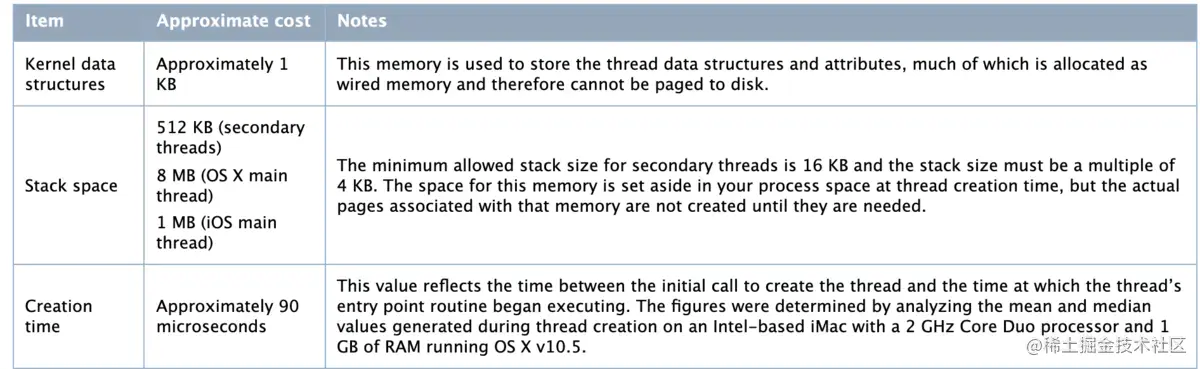

1、能否开辟线程

2、任务的回调是否具备异步性、同步性

同步函数

分析libdispatch-1271.120.2源码：

先看dispatch_sync：

void
dispatch_sync(dispatch_queue_t dq, dispatch_block_t work)
{
	uintptr_t dc_flags = DC_FLAG_BLOCK;
	if (unlikely(_dispatch_block_has_private_data(work))) {
		return _dispatch_sync_block_with_privdata(dq, work, dc_flags);
	}
	_dispatch_sync_f(dq, work, _dispatch_Block_invoke(work), dc_flags);
}

进入_dispatch_sync_f，发现只是一次函数调用，那么再进入调用的函数_dispatch_sync_f_inline,如下所示

_dispatch_sync_f_inline

static inline void
_dispatch_sync_f_inline(dispatch_queue_t dq, void *ctxt,
		dispatch_function_t func, uintptr_t dc_flags)
{
        //dq_width=1 说明是串行队列，死锁会发生在这里
	if (likely(dq->dq_width == 1)) {
		return _dispatch_barrier_sync_f(dq, ctxt, func, dc_flags);
	}

	if (unlikely(dx_metatype(dq) != _DISPATCH_LANE_TYPE)) {
		DISPATCH_CLIENT_CRASH(0, "Queue type doesn't support dispatch_sync");
	}

	dispatch_lane_t dl = upcast(dq)._dl;
	// Global concurrent queues and queues bound to non-dispatch threads
	// always fall into the slow case, see DISPATCH_ROOT_QUEUE_STATE_INIT_VALUE
	if (unlikely(!_dispatch_queue_try_reserve_sync_width(dl))) {
		return _dispatch_sync_f_slow(dl, ctxt, func, 0, dl, dc_flags);
	}

	if (unlikely(dq->do_targetq->do_targetq)) {
		return _dispatch_sync_recurse(dl, ctxt, func, dc_flags);
	}
	_dispatch_introspection_sync_begin(dl);
	_dispatch_sync_invoke_and_complete(dl, ctxt, func DISPATCH_TRACE_ARG(
			_dispatch_trace_item_sync_push_pop(dq, ctxt, func, dc_flags)));
}

接下来先探索死锁的原理： _dispatch_barrier_sync_f

static void
_dispatch_barrier_sync_f(dispatch_queue_t dq, void *ctxt,
		dispatch_function_t func, uintptr_t dc_flags)
{
	_dispatch_barrier_sync_f_inline(dq, ctxt, func, dc_flags);
}

调用了_dispatch_barrier_sync_f_inline

static inline void
_dispatch_barrier_sync_f_inline(dispatch_queue_t dq, void *ctxt,
		dispatch_function_t func, uintptr_t dc_flags)
{
	dispatch_tid tid = _dispatch_tid_self();

	if (unlikely(dx_metatype(dq) != _DISPATCH_LANE_TYPE)) {
		DISPATCH_CLIENT_CRASH(0, "Queue type doesn't support dispatch_sync");
	}

	dispatch_lane_t dl = upcast(dq)._dl;
	// The more correct thing to do would be to merge the qos of the thread
	// that just acquired the barrier lock into the queue state.
	//
	// However this is too expensive for the fast path, so skip doing it.
	// The chosen tradeoff is that if an enqueue on a lower priority thread
	// contends with this fast path, this thread may receive a useless override.
	//
	// Global concurrent queues and queues bound to non-dispatch threads
	// always fall into the slow case, see DISPATCH_ROOT_QUEUE_STATE_INIT_VALUE
	if (unlikely(!_dispatch_queue_try_acquire_barrier_sync(dl, tid))) {
		return _dispatch_sync_f_slow(dl, ctxt, func, DC_FLAG_BARRIER, dl,
				DC_FLAG_BARRIER | dc_flags);
	}

	if (unlikely(dl->do_targetq->do_targetq)) {
		return _dispatch_sync_recurse(dl, ctxt, func,
				DC_FLAG_BARRIER | dc_flags);
	}
	_dispatch_introspection_sync_begin(dl);
	_dispatch_lane_barrier_sync_invoke_and_complete(dl, ctxt, func
			DISPATCH_TRACE_ARG(_dispatch_trace_item_sync_push_pop(
					dq, ctxt, func, dc_flags | DC_FLAG_BARRIER)));
}

因为我们代码死锁发生的时候，查看函数堆栈可以知道会走到_dispatch_sync_f_slow,那么直接查看该函数

static void
_dispatch_sync_f_slow(dispatch_queue_class_t top_dqu, void *ctxt,
		dispatch_function_t func, uintptr_t top_dc_flags,
		dispatch_queue_class_t dqu, uintptr_t dc_flags)
{
	dispatch_queue_t top_dq = top_dqu._dq;
	dispatch_queue_t dq = dqu._dq;
	if (unlikely(!dq->do_targetq)) {
		return _dispatch_sync_function_invoke(dq, ctxt, func);
	}

	pthread_priority_t pp = _dispatch_get_priority();
	struct dispatch_sync_context_s dsc = {
		.dc_flags    = DC_FLAG_SYNC_WAITER | dc_flags,
		.dc_func     = _dispatch_async_and_wait_invoke,
		.dc_ctxt     = &dsc,
		.dc_other    = top_dq,
		.dc_priority = pp | _PTHREAD_PRIORITY_ENFORCE_FLAG,
		.dc_voucher  = _voucher_get(),
		.dsc_func    = func,
		.dsc_ctxt    = ctxt,
		//#define _dispatch_tid_self() ((dispatch_tid)_dispatch_thread_port())
                .dsc_waiter  = _dispatch_tid_self(),//线程ID

	};

	_dispatch_trace_item_push(top_dq, &dsc);
	__DISPATCH_WAIT_FOR_QUEUE__(&dsc, dq);//死锁报错的地方

	if (dsc.dsc_func == NULL) {
		// dsc_func being cleared means that the block ran on another thread ie.
		// case (2) as listed in _dispatch_async_and_wait_f_slow.
		dispatch_queue_t stop_dq = dsc.dc_other;
		return _dispatch_sync_complete_recurse(top_dq, stop_dq, top_dc_flags);
	}

	_dispatch_introspection_sync_begin(top_dq);
	_dispatch_trace_item_pop(top_dq, &dsc);
	_dispatch_sync_invoke_and_complete_recurse(top_dq, ctxt, func,top_dc_flags
			DISPATCH_TRACE_ARG(&dsc));
}

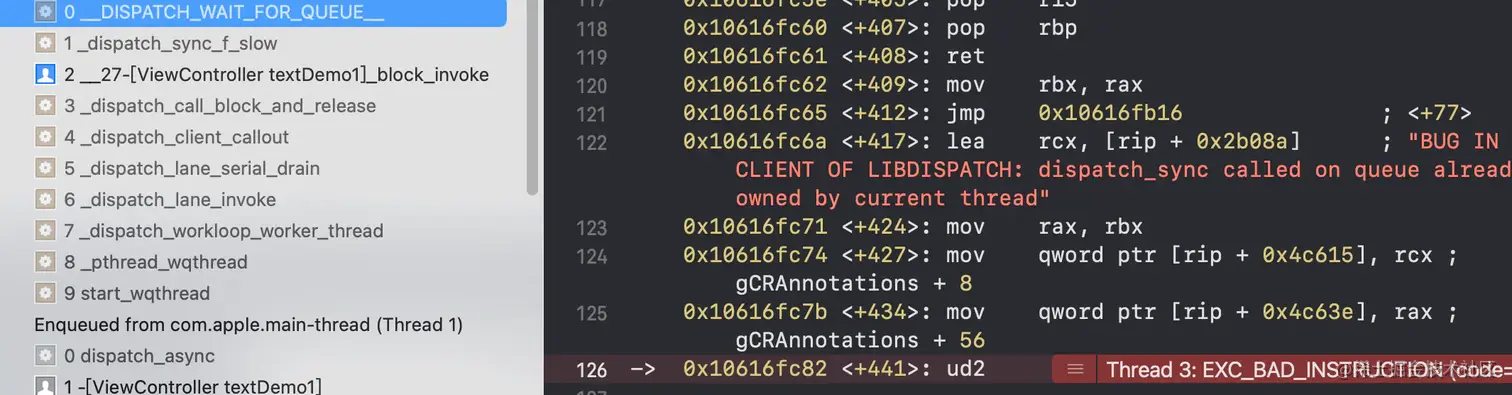

根据堆栈信息会发现在__DISPATCH_WAIT_FOR_QUEUE__发生死锁报错

static void
__DISPATCH_WAIT_FOR_QUEUE__(dispatch_sync_context_t dsc, dispatch_queue_t dq)
{
	uint64_t dq_state = _dispatch_wait_prepare(dq);
        //当dq_state和dsc->dsc_waiter相等的时候，就发生了死锁
	if (unlikely(_dq_state_drain_locked_by(dq_state, dsc->dsc_waiter))) {
		DISPATCH_CLIENT_CRASH((uintptr_t)dq_state,
				"dispatch_sync called on queue "
				"already owned by current thread");
	}

	// Blocks submitted to the main thread MUST run on the main thread, and
	// dispatch_async_and_wait also executes on the remote context rather than
	// the current thread.
	//
	// For both these cases we need to save the frame linkage for the sake of
	// _dispatch_async_and_wait_invoke
	_dispatch_thread_frame_save_state(&dsc->dsc_dtf);

	if (_dq_state_is_suspended(dq_state) ||
			_dq_state_is_base_anon(dq_state)) {
		dsc->dc_data = DISPATCH_WLH_ANON;
	} else if (_dq_state_is_base_wlh(dq_state)) {
		dsc->dc_data = (dispatch_wlh_t)dq;
	} else {
		_dispatch_wait_compute_wlh(upcast(dq)._dl, dsc);
	}

	if (dsc->dc_data == DISPATCH_WLH_ANON) {
		dsc->dsc_override_qos_floor = dsc->dsc_override_qos =
				(uint8_t)_dispatch_get_basepri_override_qos_floor();
		_dispatch_thread_event_init(&dsc->dsc_event);
	}
	dx_push(dq, dsc, _dispatch_qos_from_pp(dsc->dc_priority));
	_dispatch_trace_runtime_event(sync_wait, dq, 0);
	if (dsc->dc_data == DISPATCH_WLH_ANON) {
		_dispatch_thread_event_wait(&dsc->dsc_event); // acquire
	} else if (!dsc->dsc_wlh_self_wakeup) {
		_dispatch_event_loop_wait_for_ownership(dsc);
	}
	if (dsc->dc_data == DISPATCH_WLH_ANON) {
		_dispatch_thread_event_destroy(&dsc->dsc_event);
		// If _dispatch_sync_waiter_wake() gave this thread an override,
		// ensure that the root queue sees it.
		if (dsc->dsc_override_qos > dsc->dsc_override_qos_floor) {
			_dispatch_set_basepri_override_qos(dsc->dsc_override_qos);
		}
	}
}

//_dq_state_drain_locked_by 查看源码得知，就是判断两个参数是否相等
//当dq_state和dsc->dsc_waiter相等的时候，就发生了死锁
if (unlikely(_dq_state_drain_locked_by(dq_state, dsc->dsc_waiter))) {
    DISPATCH_CLIENT_CRASH((uintptr_t)dq_state,
	"dispatch_sync called on queue "
	"already owned by current thread");
}

上面这个函数是死锁发生的条件， "dispatch_sync called on queue ，already owned by current thread"这段英文解释的是同步函数调起的队列，已经被当前的线程所持有。那么两个参数dq_state和dsc->dsc_waiter分别是什么呢？

uint64_t dq_state = _dispatch_wait_prepare(dq);//队列等待状态

.dsc_waiter  = _dispatch_tid_self(),//线程ID

也就是说要等待的状态和线程id相同，当前在等待状态，又调起了dq(队列)，又要去执行，执行的时候，又发现是在等待状态，产生了死锁。

异步函数

dispatch_async

void
dispatch_async(dispatch_queue_t dq, dispatch_block_t work)
{
	dispatch_continuation_t dc = _dispatch_continuation_alloc();
	uintptr_t dc_flags = DC_FLAG_CONSUME;
	dispatch_qos_t qos;
        //任务包装到qos
	qos = _dispatch_continuation_init(dc, dq, work, 0, dc_flags);
	_dispatch_continuation_async(dq, dc, qos, dc->dc_flags);
}

_dispatch_continuation_async

static inline void
_dispatch_continuation_async(dispatch_queue_class_t dqu,
		dispatch_continuation_t dc, dispatch_qos_t qos, uintptr_t dc_flags)
{
#if DISPATCH_INTROSPECTION
	if (!(dc_flags & DC_FLAG_NO_INTROSPECTION)) {
		_dispatch_trace_item_push(dqu, dc);
	}
#else
	(void)dc_flags;
#endif
        //根据传过来的队列的不通过，而做不同的处理
        //#define dx_push(x, y, z) dx_vtable(x)->dq_push(x, y, z)
	return dx_push(dqu._dq, dc, qos);
}

dx_push(dqu._dq, dc, qos);这个其实是根据传过来的队列的类型，进行不同的处理，如下所示：

dq_push

这里仅仅以串行和并发队列为例：

DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_serial, lane,
	.do_type        = DISPATCH_QUEUE_SERIAL_TYPE,
	.do_dispose     = _dispatch_lane_dispose,
	.do_debug       = _dispatch_queue_debug,
	.do_invoke      = _dispatch_lane_invoke,

	.dq_activate    = _dispatch_lane_activate,
	.dq_wakeup      = _dispatch_lane_wakeup,
	.dq_push        = _dispatch_lane_push,
);

DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_concurrent, lane,
	.do_type        = DISPATCH_QUEUE_CONCURRENT_TYPE,
	.do_dispose     = _dispatch_lane_dispose,
	.do_debug       = _dispatch_queue_debug,
	.do_invoke      = _dispatch_lane_invoke,

	.dq_activate    = _dispatch_lane_activate,
	.dq_wakeup      = _dispatch_lane_wakeup,
	.dq_push        = _dispatch_lane_concurrent_push,
);

我们以并发队列为例来进行分析： _dispatch_lane_concurrent_push

void
_dispatch_lane_concurrent_push(dispatch_lane_t dq, dispatch_object_t dou,
		dispatch_qos_t qos)
{
	// <rdar://problem/24738102&24743140> reserving non barrier width
	// doesn't fail if only the ENQUEUED bit is set (unlike its barrier
	// width equivalent), so we have to check that this thread hasn't
	// enqueued anything ahead of this call or we can break ordering
	if (dq->dq_items_tail == NULL &&
			!_dispatch_object_is_waiter(dou) &&
			!_dispatch_object_is_barrier(dou) &&
			_dispatch_queue_try_acquire_async(dq)) {
		return _dispatch_continuation_redirect_push(dq, dou, qos);
	}

	_dispatch_lane_push(dq, dou, qos);
}

_dispatch_lane_push

void
_dispatch_lane_push(dispatch_lane_t dq, dispatch_object_t dou,
		dispatch_qos_t qos)
{
	dispatch_wakeup_flags_t flags = 0;
	struct dispatch_object_s *prev;

	if (unlikely(_dispatch_object_is_waiter(dou))) {
		return _dispatch_lane_push_waiter(dq, dou._dsc, qos);
	}

	dispatch_assert(!_dispatch_object_is_global(dq));
	qos = _dispatch_queue_push_qos(dq, qos);

	prev = os_mpsc_push_update_tail(os_mpsc(dq, dq_items), dou._do, do_next);
	if (unlikely(os_mpsc_push_was_empty(prev))) {
		_dispatch_retain_2_unsafe(dq);
		flags = DISPATCH_WAKEUP_CONSUME_2 | DISPATCH_WAKEUP_MAKE_DIRTY;
	} else if (unlikely(_dispatch_queue_need_override(dq, qos))) {
		_dispatch_retain_2_unsafe(dq);
		flags = DISPATCH_WAKEUP_CONSUME_2;
	}
	os_mpsc_push_update_prev(os_mpsc(dq, dq_items), prev, dou._do, do_next);
	if (flags) {
        //#define dx_wakeup(x, y, z) dx_vtable(x)->dq_wakeup(x, y, z)
		return dx_wakeup(dq, qos, flags);
	}
}

dq_wakeup

DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_serial, lane,
	.do_type        = DISPATCH_QUEUE_SERIAL_TYPE,
	.do_dispose     = _dispatch_lane_dispose,
	.do_debug       = _dispatch_queue_debug,
	.do_invoke      = _dispatch_lane_invoke,

	.dq_activate    = _dispatch_lane_activate,
	.dq_wakeup      = _dispatch_lane_wakeup,
	.dq_push        = _dispatch_lane_push,
);

DISPATCH_VTABLE_SUBCLASS_INSTANCE(queue_concurrent, lane,
	.do_type        = DISPATCH_QUEUE_CONCURRENT_TYPE,
	.do_dispose     = _dispatch_lane_dispose,
	.do_debug       = _dispatch_queue_debug,
	.do_invoke      = _dispatch_lane_invoke,

	.dq_activate    = _dispatch_lane_activate,
	.dq_wakeup      = _dispatch_lane_wakeup,
	.dq_push        = _dispatch_lane_concurrent_push,
);

上面可以看到串行队列和并发队列，他们的dq_wakeup是一样的。

_dispatch_lane_wakeup

void
_dispatch_lane_wakeup(dispatch_lane_class_t dqu, dispatch_qos_t qos,
		dispatch_wakeup_flags_t flags)
{
	dispatch_queue_wakeup_target_t target = DISPATCH_QUEUE_WAKEUP_NONE;

        //如果加了barrier函数会走这里
	if (unlikely(flags & DISPATCH_WAKEUP_BARRIER_COMPLETE)) {
		return _dispatch_lane_barrier_complete(dqu, qos, flags);
	}
	if (_dispatch_queue_class_probe(dqu)) {
		target = DISPATCH_QUEUE_WAKEUP_TARGET;
	}
	return _dispatch_queue_wakeup(dqu, qos, flags, target);
}

_dispatch_queue_wakeup

_dispatch_queue_wakeup(dispatch_queue_class_t dqu, dispatch_qos_t qos,
		dispatch_wakeup_flags_t flags, dispatch_queue_wakeup_target_t target)
{
...
        if (unlikely(flags & DISPATCH_WAKEUP_BARRIER_COMPLETE)) {
                    dispatch_assert(dx_metatype(dq) == _DISPATCH_SOURCE_TYPE);
		qos = _dispatch_queue_wakeup_qos(dq, qos);
		return _dispatch_lane_class_barrier_complete(upcast(dq)._dl, qos,
				flags, target, DISPATCH_QUEUE_SERIAL_DRAIN_OWNED);
	}

...
}

继续跟踪，发现会依次调用 _dispatch_lane_class_barrier_complete 、_dispatch_root_queue_push、_dispatch_root_queue_push_inline、_dispatch_root_queue_poke这些函数，由于代码太多，不是特别关键的代码就不贴在这里了，紧接着会走如下的方法：

_dispatch_root_queue_poke_slow

static void
_dispatch_root_queue_poke_slow(dispatch_queue_global_t dq, int n, int floor)
{
	int remaining = n;
#if !defined(_WIN32)
	int r = ENOSYS;
#endif

	_dispatch_root_queues_init();
	_dispatch_debug_root_queue(dq, __func__);
	_dispatch_trace_runtime_event(worker_request, dq, (uint64_t)n);

#if !DISPATCH_USE_INTERNAL_WORKQUEUE
#if DISPATCH_USE_PTHREAD_ROOT_QUEUES
	if (dx_type(dq) == DISPATCH_QUEUE_GLOBAL_ROOT_TYPE)
#endif
	{
		_dispatch_root_queue_debug("requesting new worker thread for global "
				"queue: %p", dq);
		r = _pthread_workqueue_addthreads(remaining,
				_dispatch_priority_to_pp_prefer_fallback(dq->dq_priority));
		(void)dispatch_assume_zero(r);
		return;
	}
#endif // !DISPATCH_USE_INTERNAL_WORKQUEUE
#if DISPATCH_USE_PTHREAD_POOL
	dispatch_pthread_root_queue_context_t pqc = dq->do_ctxt;
	if (likely(pqc->dpq_thread_mediator.do_vtable)) {
		while (dispatch_semaphore_signal(&pqc->dpq_thread_mediator)) {
			_dispatch_root_queue_debug("signaled sleeping worker for "
					"global queue: %p", dq);
			if (!--remaining) {
				return;
			}
		}
	}

	bool overcommit = dq->dq_priority & DISPATCH_PRIORITY_FLAG_OVERCOMMIT;
	if (overcommit) {
		os_atomic_add2o(dq, dgq_pending, remaining, relaxed);
	} else {
		if (!os_atomic_cmpxchg2o(dq, dgq_pending, 0, remaining, relaxed)) {
			_dispatch_root_queue_debug("worker thread request still pending for "
					"global queue: %p", dq);
			return;
		}
	}

	int can_request, t_count;
	// seq_cst with atomic store to tail <rdar://problem/16932833>
	t_count = os_atomic_load2o(dq, dgq_thread_pool_size, ordered);
	do {
		can_request = t_count < floor ? 0 : t_count - floor;
		if (remaining > can_request) {
			_dispatch_root_queue_debug("pthread pool reducing request from %d to %d",
					remaining, can_request);
			os_atomic_sub2o(dq, dgq_pending, remaining - can_request, relaxed);
			remaining = can_request;
		}
		if (remaining == 0) {
			_dispatch_root_queue_debug("pthread pool is full for root queue: "
					"%p", dq);
			return;
		}
	} while (!os_atomic_cmpxchgv2o(dq, dgq_thread_pool_size, t_count,
			t_count - remaining, &t_count, acquire));

#if !defined(_WIN32)
	pthread_attr_t *attr = &pqc->dpq_thread_attr;
	pthread_t tid, *pthr = &tid;
#if DISPATCH_USE_MGR_THREAD && DISPATCH_USE_PTHREAD_ROOT_QUEUES
	if (unlikely(dq == &_dispatch_mgr_root_queue)) {
		pthr = _dispatch_mgr_root_queue_init();
	}
#endif
	do {
		_dispatch_retain(dq); // released in _dispatch_worker_thread
		while ((r = pthread_create(pthr, attr, _dispatch_worker_thread, dq))) {
			if (r != EAGAIN) {
				(void)dispatch_assume_zero(r);
			}
			_dispatch_temporary_resource_shortage();
		}
	} while (--remaining);
#else // defined(_WIN32)
#if DISPATCH_USE_MGR_THREAD && DISPATCH_USE_PTHREAD_ROOT_QUEUES
	if (unlikely(dq == &_dispatch_mgr_root_queue)) {
		_dispatch_mgr_root_queue_init();
	}
#endif
	do {
		_dispatch_retain(dq); // released in _dispatch_worker_thread
#if DISPATCH_DEBUG
		unsigned dwStackSize = 0;
#else
		unsigned dwStackSize = 64 * 1024;
#endif
		uintptr_t hThread = 0;
		while (!(hThread = _beginthreadex(NULL, dwStackSize, _dispatch_worker_thread_thunk, dq, STACK_SIZE_PARAM_IS_A_RESERVATION, NULL))) {
			if (errno != EAGAIN) {
				(void)dispatch_assume(hThread);
			}
			_dispatch_temporary_resource_shortage();
		}
#if DISPATCH_USE_PTHREAD_ROOT_QUEUES
		if (_dispatch_mgr_sched.prio > _dispatch_mgr_sched.default_prio) {
			(void)dispatch_assume_zero(SetThreadPriority((HANDLE)hThread, _dispatch_mgr_sched.prio) == TRUE);
		}
#endif
		CloseHandle((HANDLE)hThread);
	} while (--remaining);
#endif // defined(_WIN32)
#else
	(void)floor;
#endif // DISPATCH_USE_PTHREAD_POOL
}

_dispatch_root_queues_init这里的函数比较重要，分析它之前，我们先要讲下GCD单例的原理。

单例底层原理

_dispatch_root_queues_init

单例的代码：

static dispatch_once_t onceToken;
dispatch_once(&onceToken, ^{

})

看一下 dispatch_once的源码：

void
dispatch_once(dispatch_once_t *val, dispatch_block_t block)
{
    dispatch_once_f(val, block, _dispatch_Block_invoke(block));
}

dispatch_once_f

void
dispatch_once_f(dispatch_once_t *val, void *ctxt, dispatch_function_t func)
{
    //这里的val就是`onceToken`，`dispatch_once_gate_t`，相当于开关。
    dispatch_once_gate_t l = (dispatch_once_gate_t)val;

#if !DISPATCH_ONCE_INLINE_FASTPATH || DISPATCH_ONCE_USE_QUIESCENT_COUNTER
//这里如果调用过一次，就直接返回了
    uintptr_t v = os_atomic_load(&l->dgo_once, acquire);
    if (likely(v == DLOCK_ONCE_DONE)) {
        return;
    }
#if DISPATCH_ONCE_USE_QUIESCENT_COUNTER
    if (likely(DISPATCH_ONCE_IS_GEN(v))) {
        return _dispatch_once_mark_done_if_quiesced(l, v);
    }
#endif
#endif
//执行任务
    if (_dispatch_once_gate_tryenter(l)) {
        return _dispatch_once_callout(l, ctxt, func);
    }
    return _dispatch_once_wait(l);
}

如果v != DLOCK_ONCE_DONE，就判断

_dispatch_once_gate_tryenter

static inline bool
_dispatch_once_gate_tryenter(dispatch_once_gate_t l)
{
    return os_atomic_cmpxchg(&l->dgo_once, DLOCK_ONCE_UNLOCKED,
            (uintptr_t)_dispatch_lock_value_for_self(), relaxed);
}

这里又调用了os_atomic_cmpxchg这里会进行锁的处理，这里是由线程锁控制。所以GCD的单列是多线程安全的。 _dispatch_lock_value_for_self它的代码如下：

_dispatch_lock_value_for_self

static inline void
_dispatch_root_queues_init(void)
{
	dispatch_once_f(&_dispatch_root_queues_pred, NULL,
			_dispatch_root_queues_init_once);
}

_dispatch_once_gate_tryenter 一些原子操作

static inline bool
_dispatch_once_gate_tryenter(dispatch_once_gate_t l)
{
	return os_atomic_cmpxchg(&l->dgo_once, DLOCK_ONCE_UNLOCKED,
			(uintptr_t)_dispatch_lock_value_for_self(), relaxed);
}

接下来会调用：

_dispatch_once_callout

static void
_dispatch_once_callout(dispatch_once_gate_t l, void *ctxt,
		dispatch_function_t func)
{
	_dispatch_client_callout(ctxt, func);
	_dispatch_once_gate_broadcast(l);
}

_dispatch_once_gate_broadcast

static inline void
_dispatch_once_gate_broadcast(dispatch_once_gate_t l)
{
	dispatch_lock value_self = _dispatch_lock_value_for_self();
	uintptr_t v;
#if DISPATCH_ONCE_USE_QUIESCENT_COUNTER
	v = _dispatch_once_mark_quiescing(l);
#else
	v = _dispatch_once_mark_done(l);
#endif
	if (likely((dispatch_lock)v == value_self)) return;
	_dispatch_gate_broadcast_slow(&l->dgo_gate, (dispatch_lock)v);
}

_dispatch_once_mark_done

static inline uintptr_t
_dispatch_once_mark_done(dispatch_once_gate_t dgo)
{
	return os_atomic_xchg(&dgo->dgo_once, DLOCK_ONCE_DONE, release);
}

这里会标记DLOCK_ONCE_DONE, 回到 dispatch_once_f,

uintptr_t v = os_atomic_load(&l->dgo_once, acquire);
    if (likely(v == DLOCK_ONCE_DONE)) {
        return;
    }

这里就会直接return。

讲完了单例的底层原理，回到_dispatch_root_queues_init.

static void
_dispatch_root_queues_init_once(void *context DISPATCH_UNUSED)
{
    _dispatch_fork_becomes_unsafe();
#if DISPATCH_USE_INTERNAL_WORKQUEUE
    size_t i;
    for (i = 0; i < DISPATCH_ROOT_QUEUE_COUNT; i++) {
        _dispatch_root_queue_init_pthread_pool(&_dispatch_root_queues[i], 0,
                _dispatch_root_queues[i].dq_priority);
    }
#else
    int wq_supported = _pthread_workqueue_supported();
    int r = ENOTSUP;

    if (!(wq_supported & WORKQ_FEATURE_MAINTENANCE)) {
        DISPATCH_INTERNAL_CRASH(wq_supported,
                "QoS Maintenance support required");
    }

#if DISPATCH_USE_KEVENT_SETUP
    struct pthread_workqueue_config cfg = {
        .version = PTHREAD_WORKQUEUE_CONFIG_VERSION,
        .flags = 0,
        .workq_cb = 0,
        .kevent_cb = 0,
        .workloop_cb = 0,
        .queue_serialno_offs = dispatch_queue_offsets.dqo_serialnum,
#if PTHREAD_WORKQUEUE_CONFIG_VERSION >= 2
        .queue_label_offs = dispatch_queue_offsets.dqo_label,
#endif
    };
#endif

#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wunreachable-code"
    if (unlikely(!_dispatch_kevent_workqueue_enabled)) {
#if DISPATCH_USE_KEVENT_SETUP
        cfg.workq_cb = _dispatch_worker_thread2;
        r = pthread_workqueue_setup(&cfg, sizeof(cfg));
#else
        r = _pthread_workqueue_init(_dispatch_worker_thread2,
                offsetof(struct dispatch_queue_s, dq_serialnum), 0);
#endif // DISPATCH_USE_KEVENT_SETUP
#if DISPATCH_USE_KEVENT_WORKLOOP
    } else if (wq_supported & WORKQ_FEATURE_WORKLOOP) {
#if DISPATCH_USE_KEVENT_SETUP
        cfg.workq_cb = _dispatch_worker_thread2;
        cfg.kevent_cb = (pthread_workqueue_function_kevent_t) _dispatch_kevent_worker_thread;
        cfg.workloop_cb = (pthread_workqueue_function_workloop_t) _dispatch_workloop_worker_thread;
        r = pthread_workqueue_setup(&cfg, sizeof(cfg));
#else
        r = _pthread_workqueue_init_with_workloop(_dispatch_worker_thread2,
                (pthread_workqueue_function_kevent_t)
                _dispatch_kevent_worker_thread,
                (pthread_workqueue_function_workloop_t)
                _dispatch_workloop_worker_thread,
                offsetof(struct dispatch_queue_s, dq_serialnum), 0);
#endif // DISPATCH_USE_KEVENT_SETUP
#endif // DISPATCH_USE_KEVENT_WORKLOOP
#if DISPATCH_USE_KEVENT_WORKQUEUE
    } else if (wq_supported & WORKQ_FEATURE_KEVENT) {
#if DISPATCH_USE_KEVENT_SETUP
        cfg.workq_cb = _dispatch_worker_thread2;
        cfg.kevent_cb = (pthread_workqueue_function_kevent_t) _dispatch_kevent_worker_thread;
        r = pthread_workqueue_setup(&cfg, sizeof(cfg));
#else
        r = _pthread_workqueue_init_with_kevent(_dispatch_worker_thread2,
                (pthread_workqueue_function_kevent_t)
                _dispatch_kevent_worker_thread,
                offsetof(struct dispatch_queue_s, dq_serialnum), 0);
#endif // DISPATCH_USE_KEVENT_SETUP
#endif
    } else {
        DISPATCH_INTERNAL_CRASH(wq_supported, "Missing Kevent WORKQ support");
    }
#pragma clang diagnostic pop

    if (r != 0) {
        DISPATCH_INTERNAL_CRASH((r << 16) | wq_supported,
                "Root queue initialization failed");
    }
#endif // DISPATCH_USE_INTERNAL_WORKQUEUE
}

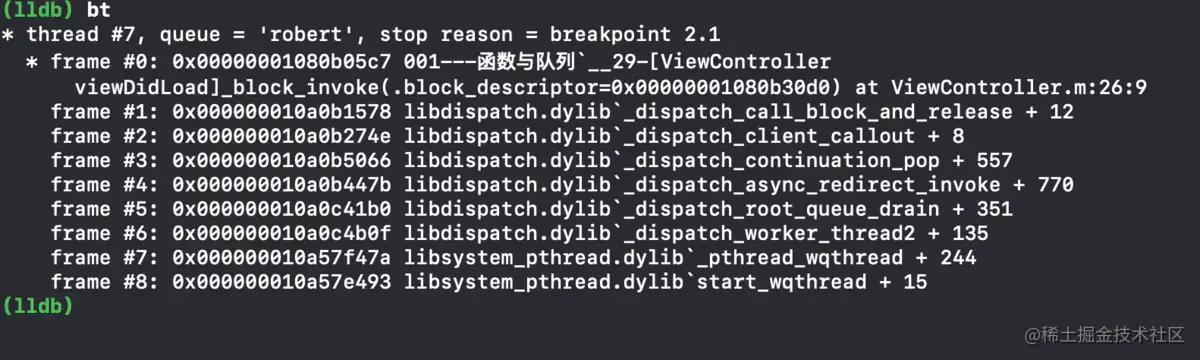

接着我们再看下dispatch_async的调用堆栈，如图所示：

frame5 到 frame1 是 block 内部任务的执行，那么这个任务是包装在 _dispatch_worker_thread2这里，其实包装在 pthread 中 API 中，GCD是封装了 pthread。 这里有 _pthread_workqueue_init_with_workloop工作循环调起， 不是立马调用的，受我们当前的 OS 管控。

异步线程的回调是异步的

我们再来看下_dispatch_root_queue_poke_slow这个函数，

if (dx_type(dq) == DISPATCH_QUEUE_GLOBAL_ROOT_TYPE)
#endif
    {
        _dispatch_root_queue_debug("requesting new worker thread for global "
                "queue: %p", dq);
        r = _pthread_workqueue_addthreads(remaining,
                _dispatch_priority_to_pp_prefer_fallback(dq->dq_priority));
        (void)dispatch_assume_zero(r);
        return;
    }

这里如果是全局并发队列，这里会_pthread_workqueue_addthreads调用它创建线程，并执行任务。

如果是普通队列，则走下面的流程：

t_count = os_atomic_load2o(dq, dgq_thread_pool_size, ordered);
    do {
        can_request = t_count < floor ? 0 : t_count - floor;
        if (remaining > can_request) {
            _dispatch_root_queue_debug("pthread pool reducing request from %d to %d",
                    remaining, can_request);
            os_atomic_sub2o(dq, dgq_pending, remaining - can_request, relaxed);
            remaining = can_request;
        }
        if (remaining == 0) {
            _dispatch_root_queue_debug("pthread pool is full for root queue: "
                    "%p", dq);
            return;
        }
    } while (!os_atomic_cmpxchgv2o(dq, dgq_thread_pool_size, t_count,
            t_count - remaining, &t_count, acquire));

这里的 dgq_thread_pool_size 为1，如下所示：

const struct dispatch_queue_global_s _dispatch_custom_workloop_root_queue = {
    DISPATCH_GLOBAL_OBJECT_HEADER(queue_global),
    .dq_state = DISPATCH_ROOT_QUEUE_STATE_INIT_VALUE,
    .do_ctxt = NULL,
    .dq_label = "com.apple.root.workloop-custom",
    .dq_atomic_flags = DQF_WIDTH(DISPATCH_QUEUE_WIDTH_POOL),
    .dq_priority = _dispatch_priority_make_fallback(DISPATCH_QOS_DEFAULT) |
            DISPATCH_PRIORITY_SATURATED_OVERRIDE,
    .dq_serialnum = DISPATCH_QUEUE_SERIAL_NUMBER_WLF,
    .dgq_thread_pool_size = 1,
};

全局并发队列要比自定义的并发队列大1

#define DISPATCH_QUEUE_WIDTH_POOL (DISPATCH_QUEUE_WIDTH_FULL - 1) // 全局并发队列
#define DISPATCH_QUEUE_WIDTH_MAX  (DISPATCH_QUEUE_WIDTH_FULL - 2) // 并发队列

全局并发队列的pool_size是从1开始的。 dgq_thread_pool_size会不断的赋值，++操作。 继续_dispatch_root_queue_poke_slow流程：

t_count = os_atomic_load2o(dq, dgq_thread_pool_size, ordered);
    do {
        can_request = t_count < floor ? 0 : t_count - floor;
        if (remaining > can_request) {
            _dispatch_root_queue_debug("pthread pool reducing request from %d to %d",
                    remaining, can_request);
            os_atomic_sub2o(dq, dgq_pending, remaining - can_request, relaxed);
            remaining = can_request;
        }
        //线程池满了
        if (remaining == 0) {
            _dispatch_root_queue_debug("pthread pool is full for root queue: "
                    "%p", dq);
            return;
        }
    } while (!os_atomic_cmpxchgv2o(dq, dgq_thread_pool_size, t_count,
            t_count - remaining, &t_count, acquire));

这段代码中，remaining = can_request;空余的数量=我能够请求的数量，can_request 来自于 can_request = t_count < floor ? 0 : t_count - floor;这里，如果floor传过来的，t_count是加载过来的。 remaing来自于参数n，经过分析传的是1，异步线程进来，创建一个线程，所以是1 。 所以这里

if (remaining > can_request) {
            _dispatch_root_queue_debug("pthread pool reducing request from %d to %d",
                    remaining, can_request);
            os_atomic_sub2o(dq, dgq_pending, remaining - can_request, relaxed);
            remaining = can_request;
        }

小知识点： iOS能开辟多少条线程？

线程最小的分配空间为 16k

如果4G内存，系统内核态1G

因此，可以开辟的线程数量为 10241024/16 = 641024 个，这个是理想值，实际上不可能这么多。
