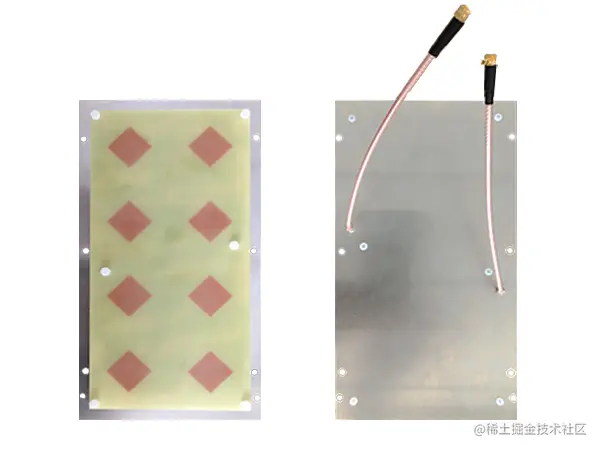

5G 17dBi panel antenna DR5G17 802.11ac/802.11ax, mmcx connector-wallys 1. Feature
* [17dBi ****] "17dBi")Dual Polarized Micro strip [Antenna] "Antenna") Array
* 5GHz of frequency
* MMCX connector
* Support 802.3 11AX/AC/AN
* RoHS compliance
2. Application
* 5GHz Wireless Communication
* WLAN device, WLAN Router, e.g., AP, PIC Wireless Card 3. Description
This antenna array is designed for 5GHz applications and can be easily built-in portable devices with MHF processes. It has excellent stability and sensitivity to consistently provide high signal reception efficiency.
- | | | General Data |
| - | ------------------------ || Product Name | Dual Polarized Micro strip Antenna Array | |
| -------------------------------- | ---------------------------------------- | ------------------------------------------------------------ |
| Part No. | DR5G17_A | DR5G17_H |
| Frequency**** | 5.1GHz-5.9GHz | 5.1GHz-5.9GHz |
| V.S.W.R**** | <1.85 | <1.65 |
| Gain ( dBi )**** | 17dbi | [18dbi] "18dbi") |
| Polarization**** | Vertical & horizontal | Vertical & horizontal |
| Isolation**** | >40db | >40db |
| Storage Temp**** | -20°C
70°C | -20°C70°C | | Operating Temperature**** | -20°C60°C | -20°C60°C | | Antenna Type**** | Antenna Array | Antenna Array | | Dimension**** | 200105mm | 200105mm | | Weight**** | |
