一、需要用到的知识
filter: hue-rotate(90deg)
hue-rotate() 函数在输入图像上应用色相旋转。`angle` 一值设定图像会被调整的色环角度值。值
为 `0deg`,则图像无变化。若值未设置值,默认为 `0deg`。该值虽然没有最大值,超过 `360deg` 的值相当于
又绕一圈。
二、布局
<div class="container">
<div class="header"></div>//电池头部
<div class="electricity">//电池主体
</div>
<div class="electricity-copy">//电量
<p></p>//充电需要的动画
<p></p>
<p></p>
</div>
</div>
三、样式
.container {
width: 120px;
margin: 120px auto;
position: relative;
height: 200px;
}
.header{
position: absolute;
top: 0;
left: 50%;
height: 20px;
border-radius: 5px;
width: 15px;
transform: translate(-50%,-18px);
background-color: #fff;
}
.container .electricity {
width: 120px;
height: 200px;
border-radius: 5px;
background-color: #fff;
}
.container .electricity::before {
content: '';
background-image: linear-gradient(to top, rgb(64, 189, 247), rgb(99, 247, 247));
position: absolute;
bottom: 0;
left: 0;
right: 0;
top: 0;
animation: change 10s infinite;
border-radius: 5px;
}
.electricity-copy {
position: absolute;
bottom: 0;
left: 0;
right: 0;
top: 0;
overflow: hidden;
}
p {
position: absolute;
width: 300px;
height: 300px;
background: rgba(255, 255, 255, .8);
border-radius: 45% 47% 44% 42%;
bottom: -40px;
left: 50%;
transform: translate(-50%, 0);
z-index: 1;
animation: move 10s linear infinite;
}
p:nth-child(2) {
transform: translate(-50%, 0);
border-radius: 55% 57% 55% 52%;
}
p:nth-child(3) {
transform: translate(-50%, 0);
border-radius: 65% 67% 66% 62%;
}
@keyframes change {
0% {
top: 200px;
filter: hue-rotate(45deg);
}
100% {
top: 0;
filter: hue-rotate(90deg);
}
}

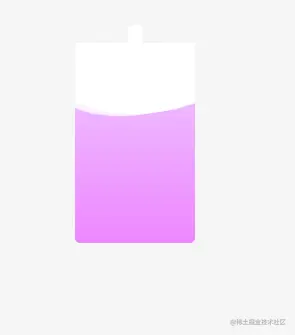

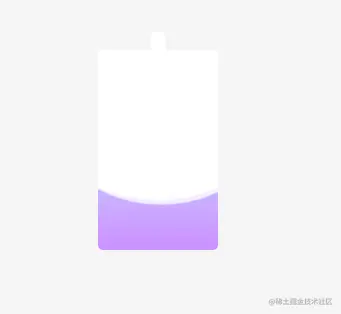

四、效果展示
