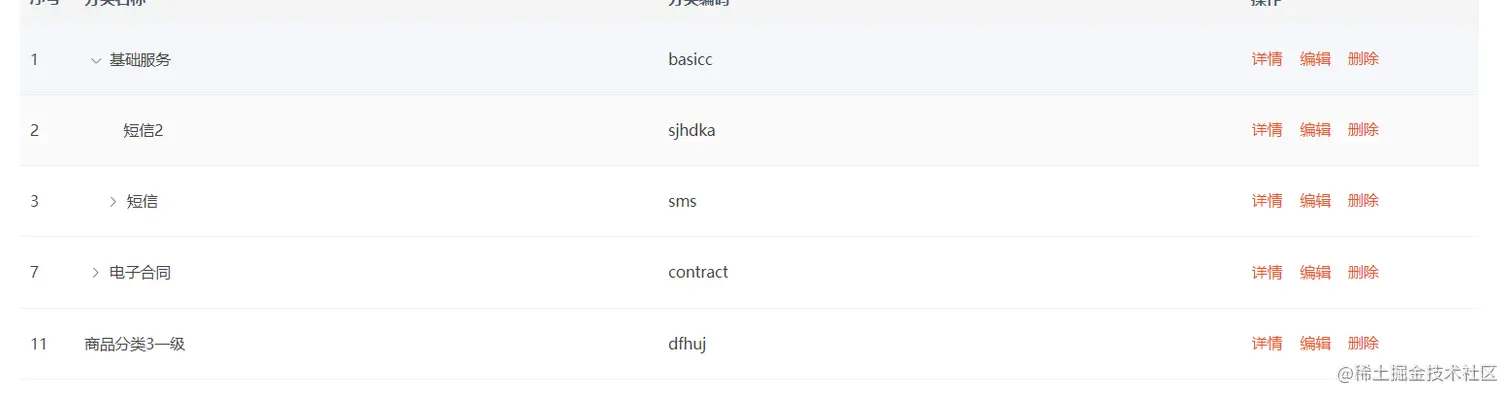

最近因为项目需求，专门研究了树形表格行拖拽。总结一下。效果图如下：

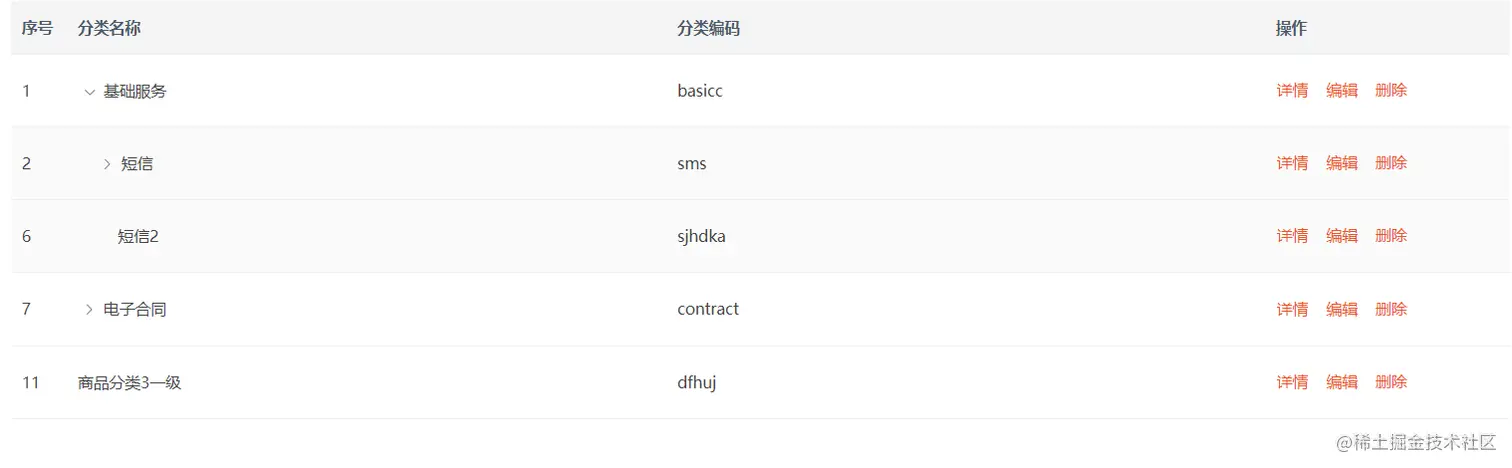

拖拽后
1，npm安装Sortablejs
可以参考中文文档www.itxst.com/sortablejs/…
在对应页面引入：import Sortable from 'sortablejs'
2，需求后台返回的树形结构数据。首先要根据后台返回的sort字段排序。
3，不能跨级拖拽，只能同级拖拽。
4，因为不能跨级拖拽，我们需要先把后台的数据每一级通过递归加上level。然后再平铺数据，根据他的level与parentId来进行判断是否同级，同级方可拖拽。
表格要必须添加:key="tableKey" row-key="id" ，key是用来刷新dom用的。
废话不说，直接上代码。
<el-table stripe v-loading="loading" :data="classificationList" style="width: 100%"
:tree-props="{children: 'children', hasChildren: 'hasChildren'}"
ref="sortableTable"
:key="tableKey"
row-key="id" @row-click="rowClick"
>
<el-table-column type="index" width="50" label="序号"></el-table-column>
<el-table-column prop="name" show-overflow-tooltip label="分类名称"></el-table-column>
<el-table-column prop="code" show-overflow-tooltip label="分类编码"></el-table-column>
<el-table-column prop="operating" label="操作" width="220">
<template slot-scope="scope">
<el-button type="text" @click="getDetailCategory(scope.row)">详情</el-button>
<el-button type="text" @click="getEditCategory(scope.row)">编辑</el-button>
<el-button type="text" @click="getDeleteC(scope.row.id)">删除</el-button>
</template>
</el-table-column>
</el-table>
这是表格内容。 下面是全部逻辑代码，大家看完就懂啦
import Sortable from 'sortablejs'
export default {
name: "detail",
components:{
addCommodity,
detailCommodity,
editCommodity
},
data() {
return {
isAddShopCategory: false,
isDetails: false,
isEdit: false,
activeName: 'first',
details:{},
classificationList:[],
commodityList:[],
ids:{id:'',parentId:'',shopCategoryId:'',},
loading:false,
ownerNameList:[],
payeeUuidList:[],
invoiceDrawerUuidList:[],
tableData:[],
pageInfo:{},
total:0,
pageNum:1,
pageSize:10,
sortable: null, // sortable对象
activeRows: new Array(0), // 排序时用来跟后端进行数据交互
tableKey: '' // 这个蛮重要的，让dom刷新
}
},
created() {
this.ids.id = this.$route.query.id
if(this.ids.id){
this.getDetail(this.ids.id);
this.getCategoryTree(this.ids.id)
}
this.getOwnerName()
this.getPayeeList()
this.getInvoiceDrawer()
//this.getGoodsList()
},
methods: {
getCategoryTree(id){
shopCategoryTree({id:id}).then(res => {
let arr = this.sortMenu(res.data)
this.classificationList = arr
//初始化数据
this.initData()
})
},
//根据后台的sort递归字段排序
sortMenu(arr) {
arr.forEach((item) => {
if(item.children && item.children.length) {
this.sortMenu(item.children);
}
})
arr.sort((a,b) => {
return a.sort - b.sort;
})
return arr;
},
async initData () {
if (this.sortable && this.sortable.el) {
this.sortable.destroy()
}
// 这里是把树结构的数据再按照从上到下的顺序转化成平级数据
this.arrayFlagLevel(this.classificationList,1)
// 这里是把树结构的数据再按照从上到下的顺序转化成平级数据
this.$set(this, 'activeRows', this.treeToTile(this.classificationList))
// 这里是给tableKey一个随机数，Math.random也可以的，只要跟上一次的值不一样，能让dom刷新就可以
this.tableKey = new Date().getTime()
this.$nextTick(() => {
this.setSort()
})
},
setSort () {
const el = document.querySelectorAll('table.el-table__body > tbody')[0]
if (!el) {
return
}
let that = this
this.sortable = Sortable.create(el, {
ghostClass: 'sortable-ghost',
setData: function (dataTransfer) {
dataTransfer.setData('Text', '')
},
// 拖拽移动的时候
onMove: function ({ dragged, related }) {
//树数据中不管是哪一层，都一定要有level字段
/*
evt.dragged; // 被拖拽的对象
evt.related; // 被替换的对象
*/
const oldRow = that.activeRows[dragged.rowIndex]
const newRow = that.activeRows[related.rowIndex]
if (oldRow.level !== newRow.level || oldRow.parentId !== newRow.parentId) {
return false
}
},
onEnd: async ({ oldIndex, newIndex }) => {
const oldRow = that.activeRows[oldIndex]
const newRow = that.activeRows[newIndex]
if (oldIndex !== newIndex && oldRow.level === newRow.level && oldRow.parentId === newRow.parentId) {
const oldRow = that.activeRows[oldIndex]
const newRow = that.activeRows[newIndex]
let oldRowSuffixData = that.activeRows.slice(oldIndex)
let newRowSuffixData = that.activeRows.slice(newIndex)
oldRowSuffixData = oldRowSuffixData.filter((d, i) => i < that.getLeastIndex(oldRowSuffixData.findIndex((_d, _i) => _d.level === oldRow.level && _i !== 0)))
newRowSuffixData = newRowSuffixData.filter((d, i) => i < that.getLeastIndex(newRowSuffixData.findIndex((_d, _i) => _d.level === newRow.level && _i !== 0)))
const targetRows = that.activeRows.splice(oldIndex, oldRowSuffixData.length)
if (oldIndex > newIndex) {
that.activeRows.splice(newIndex, 0, ...targetRows)
} else if (oldIndex < newIndex) {
that.activeRows.splice(newIndex + newRowSuffixData.length - oldRowSuffixData.length, 0, ...targetRows)
}
let newChildrenId=[]
let childrenId =[]
that.activeRows.map(item =>{
if(oldRow.parentId && newRow.parentId){
if(oldRow.parentId==item.id && newRow.parentId==item.id){
item.children.forEach(item2=>{
childrenId.push(item2.id)
})
}
let sortId = that.activeRows.map(d => d.id)
newChildrenId = sortId.filter(function(n) {
return childrenId.indexOf(n) != -1
});
}else if(!oldRow.parentId && !newRow.parentId){
if(oldRow.level ==1 && newRow.level==1){
if(oldRow.level ==item.level) {
newChildrenId.push(item.id)
}
}
}
})
await that.sort(newChildrenId)
this.tableKey = new Date().getTime()
that.initData();
}
},
})
},
//排序接口
sort(arr){
shopCategorySort({sortedCategoryId:arr}).then(res => {
this.$message({
type: 'success',
message: res.msg
})
this.getCategoryTree(this.ids.id)
})
},
getLeastIndex (index) {
return index >= 1 ? index : 1
},
// 将树数据转化为平铺数据
treeToTile(classificationList, childKey = 'children') {
let arr = []
let expanded = data => {
if (data && data.length > 0) {
data.filter(d => d).forEach(e => {
arr.push(e)
expanded(e[childKey] || [])
})
}
}
expanded(classificationList)
return arr
},
//递归给每一级增加一个level
arrayFlagLevel(array, level) {
if (!array || !array.length) return;
array.forEach(item => {
item.level = level;
if (item.children && item.children.length) {
this.arrayFlagLevel(item.children, level + 1);
}
})
},
好啦，完成，做一个爱学习爱研究的美少女啦
