搭建Hadoop完全分布式高可用集群

本文已参与「新人创作礼」活动，一起开启掘金创作之路。

此文以Hadoop 3.2.2版本为例！

如未指定，下述命令在所有节点执行！

一、 系统资源及组件规划

节点名称	系统名称	CPU/ 内存	网卡	磁盘	IP 地址	OS	节点角色
Master1	master1	2C/4G	ens33	128G	192.168.0.11	CentOS7	NameNode、ResourceManager、DFSZKFailoverController
Master2	master2	2C/4G	ens33	128G	192.168.0.12	CentOS7	NameNode、ResourceManager、DFSZKFailoverController
Worker1	worker1	2C/4G	ens33	128G	192.168.0.21	CentOS7	DataNode、NodeManager、JournalNode、QuorumPeerMain
Worker2	worker2	2C/4G	ens33	128G	192.168.0.22	CentOS7	DataNode、NodeManager、JournalNode、QuorumPeerMain
Worker3	worker3	2C/4G	ens33	128G	192.168.0.23	CentOS7	DataNode、NodeManager、JournalNode、QuorumPeerMain

二、系统软件安装与设置

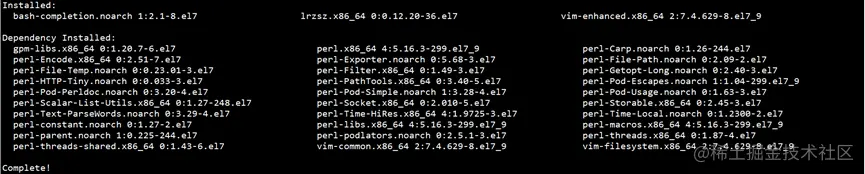

1、安装基本软件

yum -y install vim lrzsz bash-completion

2、设置名称解析

echo 192.168.0.11 master1 >> /etc/hosts
echo 192.168.0.12 master2 >> /etc/hosts
echo 192.168.0.21 worker1 >> /etc/hosts
echo 192.168.0.22 worker2 >> /etc/hosts
echo 192.168.0.23 worker3 >> /etc/hosts

3、设置NTP

yum -y install chrony

systemctl start chronyd
systemctl enable chronyd
systemctl status chronyd

chronyc sources

4、设置SELinux、防火墙

systemctl stop firewalld
systemctl disable firewalld
setenforce 0
sed -i 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config

三、搭建Hadoop完全分布式高可用集群

1、设置SSH免密登录

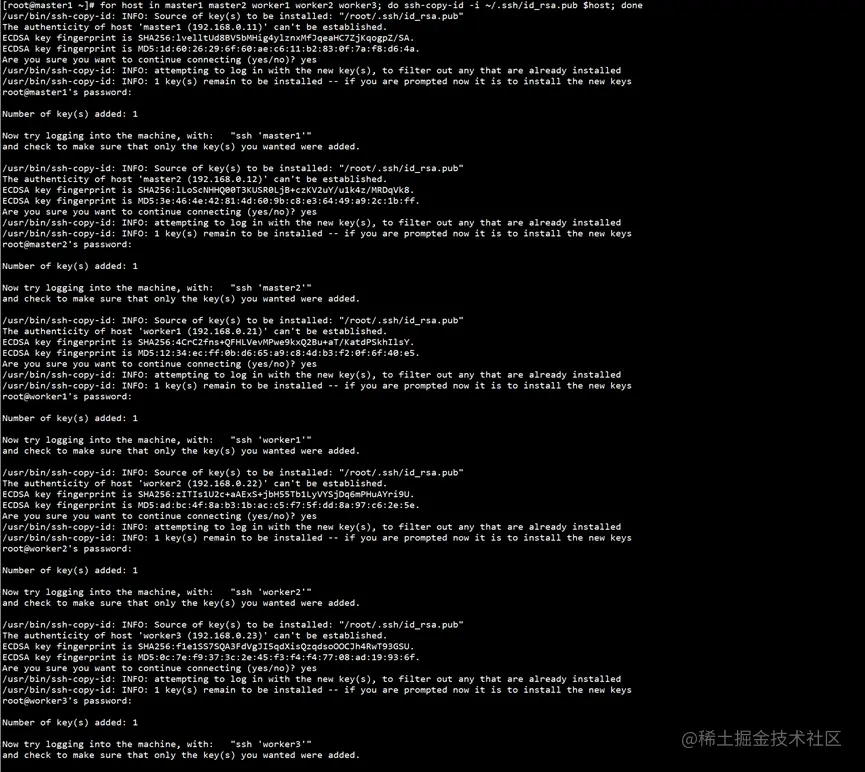

在Master1和Master2节点上（NameNode和ResourceManager节点）配置免密ssh所有节点：

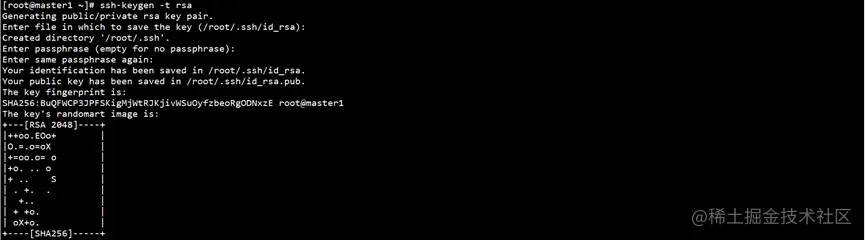

ssh-keygen -t rsa

for host in master1 master2 worker1 worker2 worker3; do ssh-copy-id -i ~/.ssh/id_rsa.pub $host; done

2、安装JDK

下载JDK文件：

参考地址：www.oracle.com/java/techno…



解压JDK安装文件：

tar -xf /root/jdk-8u291-linux-x64.tar.gz -C /usr/local/

设置环境变量：

export JAVA_HOME=/usr/local/jdk1.8.0_291/
export PATH=$PATH:/usr/local/jdk1.8.0_291/bin/

添加环境变量至/etc/profile文件：

export JAVA_HOME=/usr/local/jdk1.8.0_291/
PATH=$PATH:/usr/local/jdk1.8.0_291/bin/

查看Java版本：

java -version

3、安装ZooKeeper

下载ZooKeeper文件：

参考地址：downloads.apache.org/zookeeper/s…



在Worker节点上（ZooKeeper节点）解压ZooKeeper安装文件：

tar -xf /root/apache-zookeeper-3.6.3-bin.tar.gz -C /usr/local/

在Worker节点上（ZooKeeper节点）设置环境变量：

export PATH=$PATH:/usr/local/apache-zookeeper-3.6.3-bin/bin/

在Worker节点上（ZooKeeper节点）添加环境变量至/etc/profile文件：

PATH=$PATH:/usr/local/apache-zookeeper-3.6.3-bin/bin/

在Worker节点上（ZooKeeper节点）创建ZooKeeper数据目录：

mkdir /usr/local/apache-zookeeper-3.6.3-bin/data/

在Worker节点上（ZooKeeper节点）创建ZooKeeper配置文件：

mv /usr/local/apache-zookeeper-3.6.3-bin/conf/zoo_sample.cfg /usr/local/apache-zookeeper-3.6.3-bin/conf/zoo.cfg

在Worker节点上（ZooKeeper节点）修改ZooKeeper配置文件：

vim /usr/local/apache-zookeeper-3.6.3-bin/conf/zoo.cfg

添加数据目录：

dataDir=/usr/local/apache-zookeeper-3.6.3-bin/data/

添加ZooKeeper节点：

server.1=worker1:2888:3888
server.2=worker2:2888:3888
server.3=worker3:2888:3888

ZooKeeper配置参数解读

Server.A=B:C:D。

A是一个数字，表示这个是第几号服务器；

B是这个服务器的IP地址；

C是这个服务器与集群中的Leader服务器交换信息的端口；

D是当集群中的Leader服务器故障，需要一个端口来重新进行选举，选出一个新的Leader，而端口D就是用来执行选举时服务器相互通信的端口。

集群模式下配置一个文件myid，这个文件在dataDir目录下，这个文件里面有一个数据就是A的值，Zookeeper启动时读取此文件，拿到里面的数据与zoo.cfg里面的配置信息比较从而判断到底是哪个server。



在Worker1节点上（ZooKeeper节点）创建myid文件，并添加A值：

touch /usr/local/apache-zookeeper-3.6.3-bin/data/myid
echo 1 > /usr/local/apache-zookeeper-3.6.3-bin/data/myid

在Worker2节点上（ZooKeeper节点）创建myid文件，并添加A值：

touch /usr/local/apache-zookeeper-3.6.3-bin/data/myid
echo 2 > /usr/local/apache-zookeeper-3.6.3-bin/data/myid

在Worker3节点上（ZooKeeper节点）创建myid文件，并添加A值：

touch /usr/local/apache-zookeeper-3.6.3-bin/data/myid
echo 3 > /usr/local/apache-zookeeper-3.6.3-bin/data/myid

在Worker节点上（ZooKeeper节点）启动ZooKeeper：

zkServer.sh start

在Worker节点上（ZooKeeper节点）查看ZooKeeper状态：

zkServer.sh status

4、安装Hadoop集群

下载Hadoop文件：

参考地址：hadoop.apache.org/releases.ht…



解压Hadoop安装文件：

tar -xf /root/hadoop-3.2.2.tar.gz -C /usr/local/

设置环境变量：

export PATH=$PATH:/usr/local/hadoop-3.2.2/bin/:/usr/local/hadoop-3.2.2/sbin/

添加环境变量至/etc/profile文件：

PATH=$PATH:/usr/local/hadoop-3.2.2/bin/:/usr/local/hadoop-3.2.2/sbin/

Master节点/etc/profile文件：

Worker节点/etc/profile文件：

查看Hadoop版本：

hadoop version

5、配置Hadoop集群

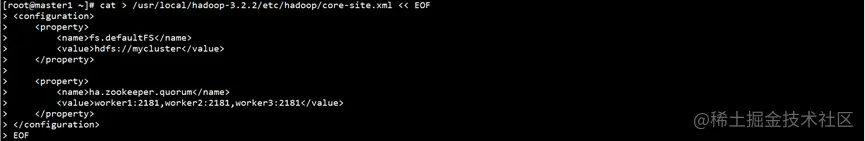

修改core-site.xml文件：

cat > /usr/local/hadoop-3.2.2/etc/hadoop/core-site.xml << EOF
<configuration>
    <property>
        <name>fs.defaultFS</name>
        <value>hdfs://mycluster</value>
    </property>

    <property>
        <name>ha.zookeeper.quorum</name>
        <value>worker1:2181,worker2:2181,worker3:2181</value>
    </property>
</configuration>
EOF

修改hdfs-site.xml文件：

cat > /usr/local/hadoop-3.2.2/etc/hadoop/hdfs-site.xml << EOF
<configuration>
    <property>
        <name>dfs.nameservices</name>
        <value>mycluster</value>
    </property>

    <property>
        <name>dfs.ha.namenodes.mycluster</name>
        <value>nn1,nn2</value>
    </property>

    <property>
        <name>dfs.namenode.rpc-address.mycluster.nn1</name>
        <value>master1:9000</value>
    </property>

    <property>
        <name>dfs.namenode.http-address.mycluster.nn1</name>
        <value>master1:50070</value>
    </property>

    <property>
        <name>dfs.namenode.rpc-address.mycluster.nn2</name>
        <value>master2:9000</value>
    </property>

    <property>
        <name>dfs.namenode.http-address.mycluster.nn2</name>
        <value>master2:50070</value>
    </property>

    <property>
        <name>dfs.namenode.shared.edits.dir</name>
        <value>qjournal://worker1:8485;worker2:8485;worker3:8485/mycluster</value>
    </property>

    <property>
        <name>dfs.ha.automatic-failover.enabled</name>
        <value>true</value>
    </property>

    <property>
        <name>dfs.client.failover.proxy.provider.mycluster</name>
        <value>org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider</value>
    </property>

    <property>
        <name>dfs.ha.fencing.methods</name>
        <value>
            sshfence
            shell(/bin/true)
        </value>
    </property>

    <property>
        <name>dfs.ha.fencing.ssh.private-key-files</name>
        <value>/root/.ssh/id_rsa</value>
    </property>

    <property>
        <name>dfs.replication</name>
        <value>3</value>
    </property>
</configuration>
EOF

修改mapred-site.xml文件：

cat > /usr/local/hadoop-3.2.2/etc/hadoop/mapred-site.xml << EOF
<configuration>
    <property>
        <name>mapreduce.framework.name</name>
        <value>yarn</value>
    </property>

    <property>
        <name>mapreduce.jobhistory.address</name>
        <value>0.0.0.0:10020</value>
    </property>

    <property>
        <name>mapreduce.jobhistory.webapp.address</name>
        <value>0.0.0.0:19888</value>
    </property>
</configuration>
EOF

在Master1节点上修改yarn-site.xml文件，yarn.resourcemanager.ha.id为rm1：

cat > /usr/local/hadoop-3.2.2/etc/hadoop/yarn-site.xml << EOF
<configuration>
    <property>
        <name>yarn.resourcemanager.ha.enabled</name>
        <value>true</value>
    </property>

    <property>
        <name>yarn.resourcemanager.recovery.enabled</name>
        <value>true</value>
    </property>

    <property>
        <name>yarn.resourcemanager.cluster-id</name>
        <value>mycluster-yarn</value>
    </property>

    <property>
        <name>yarn.resourcemanager.ha.rm-ids</name>
        <value>rm1,rm2</value>
    </property>

    <property>
        <name>yarn.resourcemanager.hostname.rm1</name>
        <value>master1</value>
    </property>

    <property>
        <name>yarn.resourcemanager.hostname.rm2</name>
        <value>master2</value>
    </property>

    <property>
        <name>yarn.resourcemanager.ha.id</name>
        <value>rm1</value>
    </property>

    <property>
        <name>yarn.resourcemanager.zk-address</name>
        <value>worker1:2181,worker2:2181,worker3:2181</value>
    </property>

    <property>
        <name>ha.zookeeper.quorum</name>
        <value>worker1:2181,worker2:2181,worker3:2181</value>
    </property>

    <property>
        <name>yarn.resourcemanager.zk-state-store.address</name>
        <value>worker1:2181,worker2:2181,worker3:2181</value>
    </property>

    <property>
        <name>yarn.resourcemanager.store.class</name>
        <value>org.apache.hadoop.yarn.server.resourcemanager.recovery.ZKRMStateStore</value>
    </property>

    <property>
        <name>yarn.resourcemanager.ha.automatic-failover.zk-base-path</name>
        <value>/yarn-leader-election</value>
    </property>

    <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
</configuration>
EOF

在Master2节点上修改yarn-site.xml文件，yarn.resourcemanager.ha.id为rm2：

yarn.resourcemanager.ha.id为rm2

cat > /usr/local/hadoop-3.2.2/etc/hadoop/yarn-site.xml << EOF
<configuration>
    <property>
        <name>yarn.resourcemanager.ha.enabled</name>
        <value>true</value>
    </property>

    <property>
        <name>yarn.resourcemanager.recovery.enabled</name>
        <value>true</value>
    </property>

    <property>
        <name>yarn.resourcemanager.cluster-id</name>
        <value>mycluster-yarn</value>
    </property>

    <property>
        <name>yarn.resourcemanager.ha.rm-ids</name>
        <value>rm1,rm2</value>
    </property>

    <property>
        <name>yarn.resourcemanager.hostname.rm1</name>
        <value>master1</value>
    </property>

    <property>
        <name>yarn.resourcemanager.hostname.rm2</name>
        <value>master2</value>
    </property>

    <property>
        <name>yarn.resourcemanager.ha.id</name>
        <value>rm2</value>
    </property>

    <property>
        <name>yarn.resourcemanager.zk-address</name>
        <value>worker1:2181,worker2:2181,worker3:2181</value>
    </property>

    <property>
        <name>ha.zookeeper.quorum</name>
        <value>worker1:2181,worker2:2181,worker3:2181</value>
    </property>

    <property>
        <name>yarn.resourcemanager.zk-state-store.address</name>
        <value>worker1:2181,worker2:2181,worker3:2181</value>
    </property>

    <property>
        <name>yarn.resourcemanager.store.class</name>
        <value>org.apache.hadoop.yarn.server.resourcemanager.recovery.ZKRMStateStore</value>
    </property>

    <property>
        <name>yarn.resourcemanager.ha.automatic-failover.zk-base-path</name>
        <value>/yarn-leader-election</value>
    </property>

    <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
</configuration>
EOF

在Worker节点上修改yarn-site.xml文件，无yarn.resourcemanager.ha.id：

cat > /usr/local/hadoop-3.2.2/etc/hadoop/yarn-site.xml << EOF
<configuration>
    <property>
        <name>yarn.resourcemanager.ha.enabled</name>
        <value>true</value>
    </property>

    <property>
        <name>yarn.resourcemanager.recovery.enabled</name>
        <value>true</value>
    </property>

    <property>
        <name>yarn.resourcemanager.cluster-id</name>
        <value>mycluster-yarn</value>
    </property>

    <property>
        <name>yarn.resourcemanager.ha.rm-ids</name>
        <value>rm1,rm2</value>
    </property>

    <property>
        <name>yarn.resourcemanager.hostname.rm1</name>
        <value>master1</value>
    </property>

    <property>
        <name>yarn.resourcemanager.hostname.rm2</name>
        <value>master2</value>
    </property>

    <property>
        <name>yarn.resourcemanager.zk-address</name>
        <value>worker1:2181,worker2:2181,worker3:2181</value>
    </property>

    <property>
        <name>ha.zookeeper.quorum</name>
        <value>worker1:2181,worker2:2181,worker3:2181</value>
    </property>

    <property>
        <name>yarn.resourcemanager.zk-state-store.address</name>
        <value>worker1:2181,worker2:2181,worker3:2181</value>
    </property>

    <property>
        <name>yarn.resourcemanager.store.class</name>
        <value>org.apache.hadoop.yarn.server.resourcemanager.recovery.ZKRMStateStore</value>
    </property>

    <property>
        <name>yarn.resourcemanager.ha.automatic-failover.zk-base-path</name>
        <value>/yarn-leader-election</value>
    </property>

    <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
</configuration>
EOF

修改hadoop-env.sh文件：

vim /usr/local/hadoop-3.2.2/etc/hadoop/hadoop-env.sh
export JAVA_HOME=/usr/local/jdk1.8.0_291/

修改workers文件，指定Worker节点：

echo worker1 > /usr/local/hadoop-3.2.2/etc/hadoop/workers
echo worker2 >> /usr/local/hadoop-3.2.2/etc/hadoop/workers
echo worker3 >> /usr/local/hadoop-3.2.2/etc/hadoop/workers

修改start-dfs.sh文件，指定启动用户：

vim /usr/local/hadoop-3.2.2/sbin/start-dfs.sh
HDFS_DATANODE_USER=root
HDFS_DATANODE_SECURE_USER=hdfs
HDFS_NAMENODE_USER=root
HDFS_SECONDARYNAMENODE_USER=root
HDFS_JOURNALNODE_USER=root
HDFS_ZKFC_USER=root

修改stop-dfs.sh文件，指定启动用户：

vim /usr/local/hadoop-3.2.2/sbin/stop-dfs.sh
HDFS_DATANODE_USER=root
HDFS_DATANODE_SECURE_USER=hdfs
HDFS_NAMENODE_USER=root
HDFS_SECONDARYNAMENODE_USER=root
HDFS_JOURNALNODE_USER=root
HDFS_ZKFC_USER=root

修改start-yarn.sh文件，指定启动用户：

vim /usr/local/hadoop-3.2.2/sbin/start-yarn.sh
YARN_RESOURCEMANAGER_USER=root
HADOOP_SECURE_DN_USER=yarn
YARN_NODEMANAGER_USER=root

修改stop-yarn.sh文件，指定启动用户：

vim /usr/local/hadoop-3.2.2/sbin/stop-yarn.sh
YARN_RESOURCEMANAGER_USER=root
HADOOP_SECURE_DN_USER=yarn
YARN_NODEMANAGER_USER=root

6、启动Hadoop集群

在Worker节点上（JournalNode节点）启动JournalNode：

hdfs --daemon start journalnode

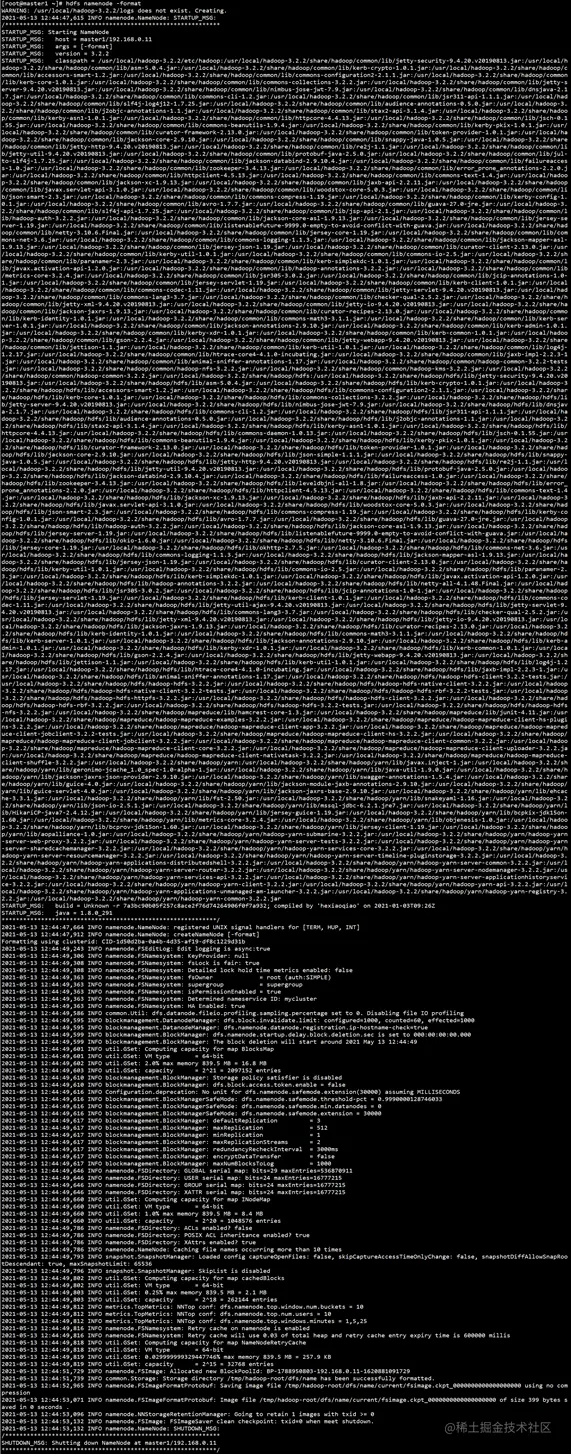

在Master1节点上（NameNode节点）格式化NameNode：

hdfs namenode -format

在所有Master节点上（DFSZKFailoverController节点）格式化zkfc：

hdfs zkfc -formatZK

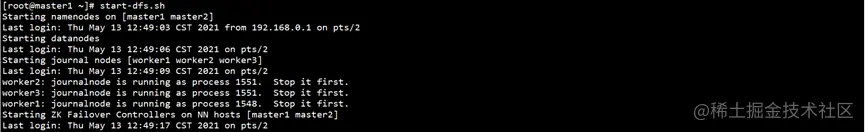

在Master1节点上（主NameNode节点）启动HDFS：

start-dfs.sh

在Master1节点上（主ResourceManager节点）启动YARN：

start-yarn.sh

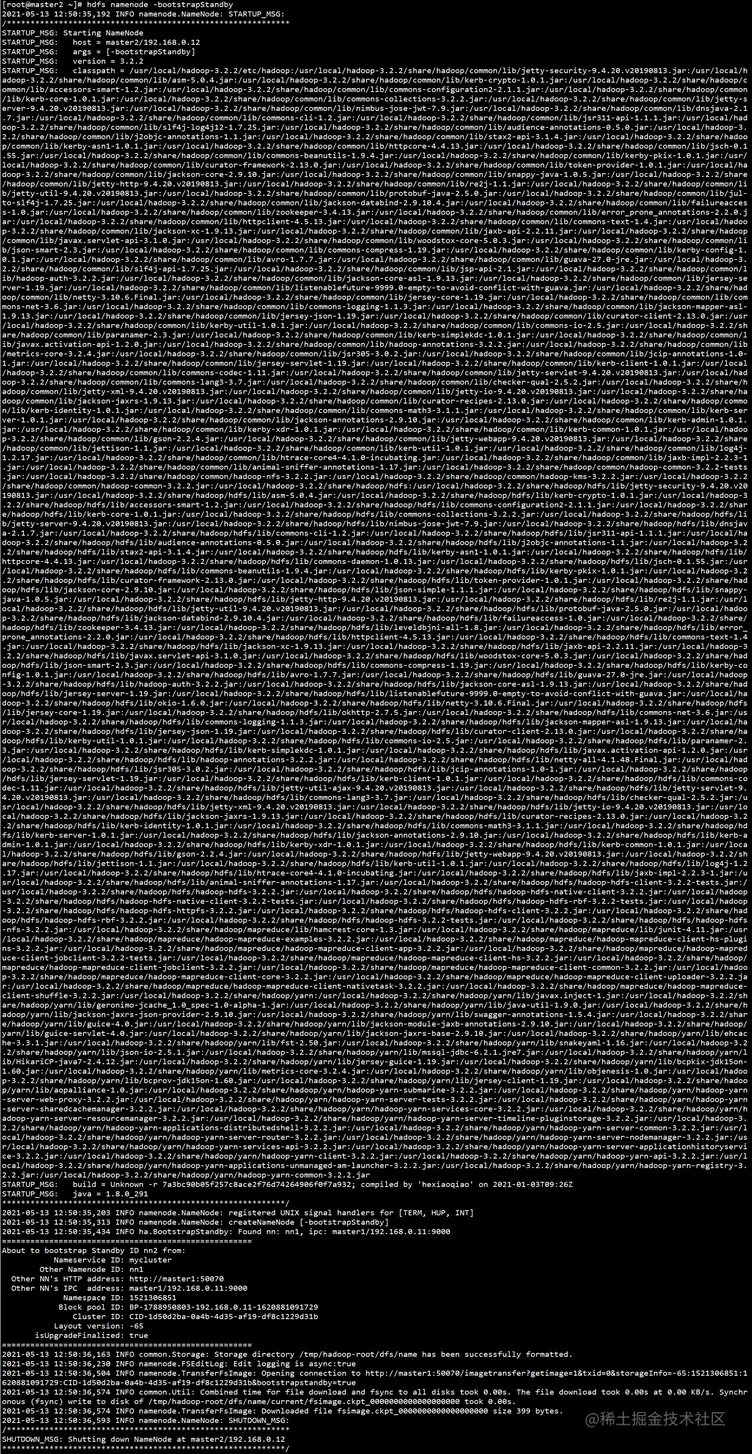

在Master2节点上（从NameNode节点）格式化NameNode Standby：

hdfs namenode -bootstrapStandby

在Master2节点上（从NameNode节点）启动NameNode Standby：

hdfs --daemon start namenode

在各类节点上查看Hadoop进程：

jps

7、Hadoop集群故障演示

在任意Master节点上查看NameNode状态：

hdfs haadmin -getServiceState nn1
hdfs haadmin -getServiceState nn2

在任意Master节点上查看ResourceManager状态：

yarn rmadmin -getServiceState rm1
yarn rmadmin -getServiceState rm2

Master1节点故障，主从节点已切换

关闭Master1节点

在Master2节点上查看NameNode状态：

hdfs haadmin -getServiceState nn2

在Master2节点上查看ResourceManager状态：

yarn rmadmin -getServiceState rm2

恢复Master1节点，启动HDFS与YARN

在任意Master节点上查看NameNode状态：

hdfs haadmin -getServiceState nn1
hdfs haadmin -getServiceState nn2

在任意Master节点上查看ResourceManager状态：

yarn rmadmin -getServiceState rm1
yarn rmadmin -getServiceState rm2

Master1节点恢复，主从节点未切换

8、关闭Hadoop集群

在Master1节点上（从NameNode节点）关闭NameNode Standby：

hdfs --daemon stop namenode

在Master2节点上（主ResourceManager节点）关闭YARN：

stop-yarn.sh

在Master2节点上（主NameNode节点）关闭HDFS：

stop-dfs.sh

在Worker节点上（JournalNode节点）关闭JournalNode：

hdfs --daemon stop journalnode

在Worker节点上（ZooKeeper节点）关闭ZooKeeper：

zkServer.sh stop
