一、概述
很多时候我们需要在Activity或Fragment的生命周期发生变化时做一些事情，比如onStart时初始化视频、动画、定位等，而当onPause时需要暂停视频、动画、定位等，在onDestroy时让视频、动画、定位等资源释放并退出，在以前的开发中会把相关的生命周期操作臃肿的塞在Activity或Fragment的各个生命周期里，代码长不利于阅读和维护。比如如下伪代码：
伪代码一：全部写在类中塞在一起
class MainActivity : AppCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
//初始化播放器
initPlayer();
//初始化定位
initLocation();
}
override fun onStart() {
super.onStart()
//开始播放
mediaPlayer.start();
//开始定位
location.start();
}
override fun onPause() {
super.onPause()
//暂停播放
mediaPlayer.pause();
//暂停定位
location.start();
}
override fun onDestroy() {
super.onDestroy()
//释放资源
mediaPlayer.release();
//释放资源
location.release();
}
}
伪代码二：多个动作需要监听生命周期时写多个Listener回调
//定位的类
class ProjectLocationListener(context: Context, callback: LocationCallback) {
fun statrt() {
//初始化定位
startLocation();
}
fun pause() {
//暂停定位
pauseLocation();
}
fun destroy() {
//释放资源
releaseLocation();
}
}
//MainActivity中使用
class MainActivity : AppCompatActivity() {
private lateinit var mProjectLocationListener:ProjectLocationListener
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
//初始化定位的监听器
mProjectLocationListener = ProjectLocationListener(this){
//callback回调，比如把定位的位置返回：xx省xx市xx区
}
}
override fun onStart() {
super.onStart()
//传递生命周期
mProjectLocationListener.statrt()
}
override fun onPause() {
super.onPause()
//传递生命周期
mProjectLocationListener.pause()
}
override fun onDestroy() {
super.onDestroy()
//传递生命周期
mProjectLocationListener.destroy()
}
}
看着没问题，但是会有太多管理界面和其他组件的调用，繁琐且不安全。Lifecycle可以更方便的解决这个问题。
二、Lifecycle
1、简介
Lifecycle 是一个类，用于存储有关组件（如 Activity 或 Fragment）的生命周期状态的信息，并允许其他对象观察此状态。
Lifecycle 使用两种主要枚举跟踪其关联组件的生命周期状态：事件和状态
2、引入Lifecycle库
现在创建androidx项目时默认就会引入，就是这一行：
implementation 'androidx.appcompat:appcompat:1.4.1'

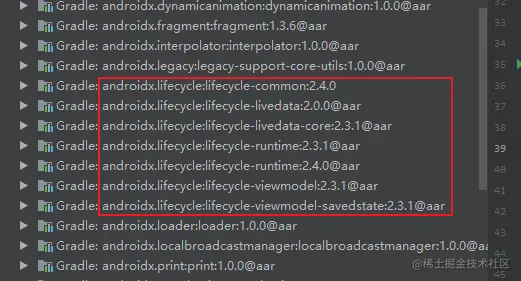

这行依赖除了引入Lifecycle以外还会引入很多其他依赖，看下Lifecycle引入了哪些：
3、DefaultLifecycleObserver
普通的类可以通过实现DefaultLifecycleObserver 并替换相应的方法onCreate 和 onStart 等）来监控组件的生命周期状态。如下代码：
class LocationLifecycleObserver(context: Context,
lifecycle:Lifecycle,
callback:LocationCallback
): DefaultLifecycleObserver {
override fun onCreate(owner: LifecycleOwner) {
super.onCreate(owner)
//初始化定位
initLocation()
}
override fun onStart(owner: LifecycleOwner) {
super.onStart(owner)
//开始定位
startLocation()
}
override fun onResume(owner: LifecycleOwner) {
super.onResume(owner)
}
override fun onPause(owner: LifecycleOwner) {
super.onPause(owner)
//暂停定位
pauseLocation()
}
override fun onStop(owner: LifecycleOwner) {
super.onStop(owner)
}
override fun onDestroy(owner: LifecycleOwner) {
super.onDestroy(owner)
//释放资源
releaseLocation()
}
}
然后，可以通过调用 Lifecycle 类的 addObserver() 方法并传递观察器的实例来添加观察器，如下例所示：
//调用上面的Listener
xxLifecycleOwner.lifecycle.addObserver(LocationLifecycleObserver(this){
//callback回调，比如把定位的位置返回：xx省xx市xx区
})
上面代码中的xxLifecycleOwner是啥？从LifecycleOwner字面理解是生命周期的持有者，常见的有生命周期的有Activity、Fragment等，LifecycleOwner是一个接口，xxLifecycleOwner是接口的实现类(这里的xxLifecycleOwner是伪代码)。
4、LifecycleOwner
LifecycleOwner 是单一方法接口，任何自定义类均可实现 LifecycleOwner接口，这个接口有一个方法getLifecycle()获取生命周期：
/**
* A class that has an Android lifecycle. These events can be used by custom components to
* handle lifecycle changes without implementing any code inside the Activity or the Fragment.
*
* @see Lifecycle
* @see ViewTreeLifecycleOwner
*/
@SuppressWarnings({"WeakerAccess", "unused"})
public interface LifecycleOwner {
/**
* Returns the Lifecycle of the provider.
*
* @return The lifecycle of the provider.
*/
@NonNull
Lifecycle getLifecycle();
}
实现 DefaultLifecycleObserver 的组件可与实现 LifecycleOwner 的组件完美配合，因为所有者可以提供生命周期，而观察者可以注册以观察生命周期。这句话就是Lifecycle的核心。支持库 26.1.0 及更高版本中的 Fragment 和 Activity 已实现 LifecycleOwner 接口。如下：
public class ComponentActivity extends androidx.core.app.ComponentActivity implements
ContextAware,
LifecycleOwner, //Activity已经实现了LifecycleOwner
ViewModelStoreOwner,
HasDefaultViewModelProviderFactory,
SavedStateRegistryOwner,
OnBackPressedDispatcherOwner,
ActivityResultRegistryOwner,
ActivityResultCaller {
...
}
public class Fragment implements ComponentCallbacks,
OnCreateContextMenuListener,
LifecycleOwner, //Fragment已经实现了LifecycleOwner
ViewModelStoreOwner,
HasDefaultViewModelProviderFactory,
SavedStateRegistryOwner,
ActivityResultCaller {
现在结合上面的第三点看，定义了一个位置信息的观察者LocationLifecycleObserver，只需要将LocationLifecycleObserver注入到实现了LifecycleOwner的组件中即可，假如这个组件是Activity代码如下：
this.lifecycle.addObserver(LocationLifecycleObserver(this,lifecycle){
//callback回调，比如把定位的位置返回：xx省xx市xx区
})
于是我们就可以用这种注入的形式把定位、播放视频、动画等需要跟生命周期关联的需求分拆开，使代码简洁方便维护。
5、实现自定义LifecycleOwner
支持库 26.1.0 及更高版本中的 Fragment 和 Activity 已实现 LifecycleOwner 接口。
如果您有一个自定义类并希望使其成为 LifecycleOwner，您可以使用 LifecycleRegistry 类，但需要将事件转发到该类，如以下代码示例中所示：
class MyActivity : Activity(), LifecycleOwner {
private lateinit var lifecycleRegistry: LifecycleRegistry
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
lifecycleRegistry = LifecycleRegistry(this)
//转发事件
lifecycleRegistry.markState(Lifecycle.State.CREATED)
}
public override fun onStart() {
super.onStart()
//转发事件
lifecycleRegistry.markState(Lifecycle.State.STARTED)
}
//重写getLifecycle方法
override fun getLifecycle(): Lifecycle {
return lifecycleRegistry
}
}
6、获取生命周期的事件
有时候需要判断已经到达了某个生命周期事件才能触发动作，代码如下：
if (lifecycle.currentState.isAtLeast(Lifecycle.State.STARTED)) {
// connect if not connected
}
三、Service中的Lifecycle
为了方便对Service生命周期的监听，Android提供了一个名为LifecycleService的类，让该类继承自Service，并实现LifecycleOwner接口，不过先要引入依赖：
implementation "android.arch.lifecycle:extensions:1.4.1"
LifecycleService类的源码：
public class LifecycleService extends Service implements LifecycleOwner {
private final ServiceLifecycleDispatcher mDispatcher = new ServiceLifecycleDispatcher(this);
@CallSuper
@Override
public void onCreate() {
//lifecycle事件create
mDispatcher.onServicePreSuperOnCreate();
super.onCreate();
}
@CallSuper
@Nullable
@Override
public IBinder onBind(Intent intent) {
//lifecycle事件bind
mDispatcher.onServicePreSuperOnBind();
return null;
}
@SuppressWarnings("deprecation")
@CallSuper
@Override
public void onStart(Intent intent, int startId) {
//lifecycle事件start
mDispatcher.onServicePreSuperOnStart();
super.onStart(intent, startId);
}
// this method is added only to annotate it with @CallSuper.
// In usual service super.onStartCommand is no-op, but in LifecycleService
// it results in mDispatcher.onServicePreSuperOnStart() call, because
// super.onStartCommand calls onStart().
@CallSuper
@Override
public int onStartCommand(Intent intent, int flags, int startId) {
return super.onStartCommand(intent, flags, startId);
}
@CallSuper
@Override
public void onDestroy() {
//lifecycle事件destroy
mDispatcher.onServicePreSuperOnDestroy();
super.onDestroy();
}
@Override
public Lifecycle getLifecycle() {
return mDispatcher.getLifecycle();
}
}
那么LifecycleService该如何使用? 其实跟上面的思路一样，创建类实现DefaultLifecycleObserver或LifecycleObserver，伪代码如下：
class LocationLifecycleObserver(
var context: Context,
var lifecycle: Lifecycle,
var callback: LocationCallback
) : DefaultLifecycleObserver {
override fun onStart(owner: LifecycleOwner) {
super.onStart(owner)
//开始定位
startLocation()
}
private fun startLocation() {
Log.d("LOCATION","startLocation")
callback.getLocation("XX省,XX市,XX区")
}
override fun onDestroy(owner: LifecycleOwner) {
super.onDestroy(owner)
//停止定位
stopLocation()
}
private fun stopLocation() {
Log.d("LOCATION","stopLocation")
}
}
在Service中注入生命周期
class TestService : LifecycleService() {
private lateinit var mLocationLifecycleObserver: LocationLifecycleObserver
override fun onCreate() {
super.onCreate()
mLocationLifecycleObserver =
LocationLifecycleObserver(this, lifecycle, object : LocationCallback {
override fun getLocation(location: String) {
Log.d("LOCATION", "回调位置:${location}")
}
})
//注入生命周期的事件
lifecycle.addObserver(mLocationLifecycleObserver)
}
}
四、Application的Lifecycle
1、ProcessLifecycleOwner
创建Application生命周期事件的观察者
class ApplicationObserver(
var context: Context,
var lifecycle: Lifecycle
) : DefaultLifecycleObserver {
companion object{
const val TAG = "ApplicationObserver"
}
override fun onCreate(owner: LifecycleOwner) {
super.onCreate(owner)
Log.d(TAG,"onCreate")
}
override fun onStart(owner: LifecycleOwner) {
super.onStart(owner)
Log.d(TAG,"onStart")
}
override fun onResume(owner: LifecycleOwner) {
super.onResume(owner)
Log.d(TAG,"onResume")
}
override fun onPause(owner: LifecycleOwner) {
super.onPause(owner)
Log.d(TAG,"onPause")
}
override fun onStop(owner: LifecycleOwner) {
super.onStop(owner)
Log.d(TAG,"onStop")
}
override fun onDestroy(owner: LifecycleOwner) {
super.onDestroy(owner)
Log.d(TAG,"onDestroy")
}
}
注入观察者
class App : Application() {
override fun onCreate() {
super.onCreate()
ProcessLifecycleOwner.get().lifecycle.addObserver(
ApplicationObserver(
this,
ProcessLifecycleOwner.get().lifecycle
)
)
}
}
需要注意的是App被杀死时一般不会回调onDestroy方法，而onStop方法在切换前后台时也会被回调，所以要慎重使用。
跟踪ProcessLifecycleOwner源码会发现关联的是Activity的生命周期：
@SuppressWarnings("WeakerAccess")
public class ProcessLifecycleOwner implements LifecycleOwner {
@VisibleForTesting
static final long TIMEOUT_MS = 700; //mls
// ground truth counters
private int mStartedCounter = 0;
private int mResumedCounter = 0;
private boolean mPauseSent = true;
private boolean mStopSent = true;
private Handler mHandler;
//lifecycle的生命周期事件的注册
private final LifecycleRegistry mRegistry = new LifecycleRegistry(this);
//底层是handler传递runnable事件
private Runnable mDelayedPauseRunnable = new Runnable() {
@Override
public void run() {
dispatchPauseIfNeeded();
dispatchStopIfNeeded();
}
};
ActivityInitializationListener mInitializationListener =
new ActivityInitializationListener() {
@Override
public void onCreate() {
}
@Override
public void onStart() {
activityStarted();
}
@Override
public void onResume() {
activityResumed();
}
};
private static final ProcessLifecycleOwner sInstance = new ProcessLifecycleOwner();
/**
* The LifecycleOwner for the whole application process. Note that if your application
* has multiple processes, this provider does not know about other processes.
*
* @return {@link LifecycleOwner} for the whole application.
*/
@NonNull
public static LifecycleOwner get() {
return sInstance; //单例
}
static void init(Context context) {
sInstance.attach(context);
}
//Activity的start事件
void activityStarted() {
mStartedCounter++;
if (mStartedCounter == 1 && mStopSent) {
//注册了Activity的start事件
mRegistry.handleLifecycleEvent(Lifecycle.Event.ON_START);
mStopSent = false;
}
}
//Activity的resume事件
void activityResumed() {
mResumedCounter++;
if (mResumedCounter == 1) {
if (mPauseSent) {
//注册了Activity的resume事件
mRegistry.handleLifecycleEvent(Lifecycle.Event.ON_RESUME);
mPauseSent = false;
} else {
mHandler.removeCallbacks(mDelayedPauseRunnable);
}
}
}
void activityPaused() {
mResumedCounter--;
if (mResumedCounter == 0) {
//回调dispatchPauseIfNeeded,会注册pause事件
mHandler.postDelayed(mDelayedPauseRunnable, TIMEOUT_MS);
}
}
void activityStopped() {
mStartedCounter--;
//回调dispatchStopIfNeeded,会注册stop事件
dispatchStopIfNeeded();
}
void dispatchPauseIfNeeded() {
if (mResumedCounter == 0) {
mPauseSent = true;
//注册Activity的pause事件
mRegistry.handleLifecycleEvent(Lifecycle.Event.ON_PAUSE);
}
}
void dispatchStopIfNeeded() {
if (mStartedCounter == 0 && mPauseSent) {
//注册Activity的stop事件
mRegistry.handleLifecycleEvent(Lifecycle.Event.ON_STOP);
mStopSent = true;
}
}
private ProcessLifecycleOwner() {
}
@SuppressWarnings("deprecation")
void attach(Context context) {
mHandler = new Handler();
mRegistry.handleLifecycleEvent(Lifecycle.Event.ON_CREATE);
Application app = (Application) context.getApplicationContext();
//关键的代码，注册了registerActivityLifecycleCallbacks拿到Activity的生命周期回调
app.registerActivityLifecycleCallbacks(new EmptyActivityLifecycleCallbacks() {
@RequiresApi(29)
@Override
public void onActivityPreCreated(@NonNull Activity activity,
@Nullable Bundle savedInstanceState) {
// We need the ProcessLifecycleOwner to get ON_START and ON_RESUME precisely
// before the first activity gets its LifecycleOwner started/resumed.
// The activity's LifecycleOwner gets started/resumed via an activity registered
// callback added in onCreate(). By adding our own activity registered callback in
// onActivityPreCreated(), we get our callbacks first while still having the
// right relative order compared to the Activity's onStart()/onResume() callbacks.
activity.registerActivityLifecycleCallbacks(new EmptyActivityLifecycleCallbacks() {
@Override
public void onActivityPostStarted(@NonNull Activity activity) {
activityStarted();
}
@Override
public void onActivityPostResumed(@NonNull Activity activity) {
activityResumed();
}
});
}
@Override
public void onActivityCreated(Activity activity, Bundle savedInstanceState) {
// Only use ReportFragment pre API 29 - after that, we can use the
// onActivityPostStarted and onActivityPostResumed callbacks registered in
// onActivityPreCreated()
if (Build.VERSION.SDK_INT < 29) {
ReportFragment.get(activity).setProcessListener(mInitializationListener);
}
}
@Override
public void onActivityPaused(Activity activity) {
activityPaused();
}
@Override
public void onActivityStopped(Activity activity) {
activityStopped();
}
});
}
@NonNull
@Override
public Lifecycle getLifecycle() { //获取Lifecycle对象
return mRegistry;
}
}
registerActivityLifecycleCallbacks注册了Activity生命周期的回调，可以拿到当前前台的Activity的生命周期事件。
2、ActivityLifecycleCallbacks
Application提供了Acitivty生命周期回调的方法，就是registerActivityLifecycleCallbacks，看下如何自定义使用。
创建类实现Application.ActivityLifecycleCallbacks接口：
class AppLifeCallback : Application.ActivityLifecycleCallbacks {
companion object {
const val TAG = "AppHelper"
}
override fun onActivityCreated(activity: Activity, savedInstanceState: Bundle?) {
//打印调用此方法的Activity的类的名称
Log.d(TAG, "onActivityCreated:${activity.localClassName}")
}
override fun onActivityDestroyed(activity: Activity) {
//打印调用此方法的Activity的类的名称
Log.d(TAG, "onActivityDestroyed:${activity.localClassName}")
}
override fun onActivityStarted(activity: Activity) {
//打印调用此方法的Activity的类的名称
Log.d(TAG, "onActivityStarted:${activity.localClassName}")
}
override fun onActivityResumed(activity: Activity) {
//打印调用此方法的Activity的类的名称
Log.d(TAG, "onActivityResumed:${activity.localClassName}")
}
override fun onActivityPaused(activity: Activity) {
//打印调用此方法的Activity的类的名称
Log.d(TAG, "onActivityPaused:${activity.localClassName}")
}
override fun onActivityStopped(activity: Activity) {
//打印调用此方法的Activity的类的名称
Log.d(TAG, "onActivityStopped:${activity.localClassName}")
}
override fun onActivitySaveInstanceState(activity: Activity, outState: Bundle) {}
}
在Application中注册
class App : Application() {
override fun onCreate() {
super.onCreate()
//注册
registerActivityLifecycleCallbacks(AppLifeCallback())
}
}

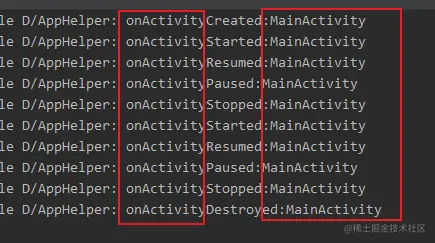

打印会发现所有的Activity的生命周期事件都会在这里回调
所以这里可以做一些Activity的统一管理，比如杀死所有Activity并退出应用等。
3、FragmentLifecycleCallbacks
相应的Fragment也有生命周期回调FragmentLifecycleCallbacks，自定义它的实现类并实现它的所有方法：
class CustomFragmentLifecycleCallback: FragmentManager.FragmentLifecycleCallbacks() {
override fun onFragmentPreAttached(fm: FragmentManager, f: Fragment, context: Context) {
super.onFragmentPreAttached(fm, f, context)
}
override fun onFragmentAttached(fm: FragmentManager, f: Fragment, context: Context) {
super.onFragmentAttached(fm, f, context)
}
override fun onFragmentPreCreated(
fm: FragmentManager,
f: Fragment,
savedInstanceState: Bundle?
) {
super.onFragmentPreCreated(fm, f, savedInstanceState)
}
override fun onFragmentCreated(fm: FragmentManager, f: Fragment, savedInstanceState: Bundle?) {
super.onFragmentCreated(fm, f, savedInstanceState)
}
override fun onFragmentActivityCreated(
fm: FragmentManager,
f: Fragment,
savedInstanceState: Bundle?
) {
super.onFragmentActivityCreated(fm, f, savedInstanceState)
}
override fun onFragmentViewCreated(
fm: FragmentManager,
f: Fragment,
v: View,
savedInstanceState: Bundle?
) {
super.onFragmentViewCreated(fm, f, v, savedInstanceState)
}
override fun onFragmentStarted(fm: FragmentManager, f: Fragment) {
super.onFragmentStarted(fm, f)
}
override fun onFragmentResumed(fm: FragmentManager, f: Fragment) {
super.onFragmentResumed(fm, f)
}
override fun onFragmentPaused(fm: FragmentManager, f: Fragment) {
super.onFragmentPaused(fm, f)
}
override fun onFragmentStopped(fm: FragmentManager, f: Fragment) {
super.onFragmentStopped(fm, f)
}
override fun onFragmentSaveInstanceState(fm: FragmentManager, f: Fragment, outState: Bundle) {
super.onFragmentSaveInstanceState(fm, f, outState)
}
override fun onFragmentViewDestroyed(fm: FragmentManager, f: Fragment) {
super.onFragmentViewDestroyed(fm, f)
}
override fun onFragmentDestroyed(fm: FragmentManager, f: Fragment) {
super.onFragmentDestroyed(fm, f)
}
override fun onFragmentDetached(fm: FragmentManager, f: Fragment) {
super.onFragmentDetached(fm, f)
}
}
在Activity中注册
class MainActivity : AppCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
//第二参数是是否自动注册Fragment的子Fragment
supportFragmentManager.registerFragmentLifecycleCallbacks(
CustomFragmentLifecycleCallback(), true)
}
}
参考了如下博客，表示感谢：
监听Service的生命周期-LifecycleService
