【设计模式】 模式之外-委派模式

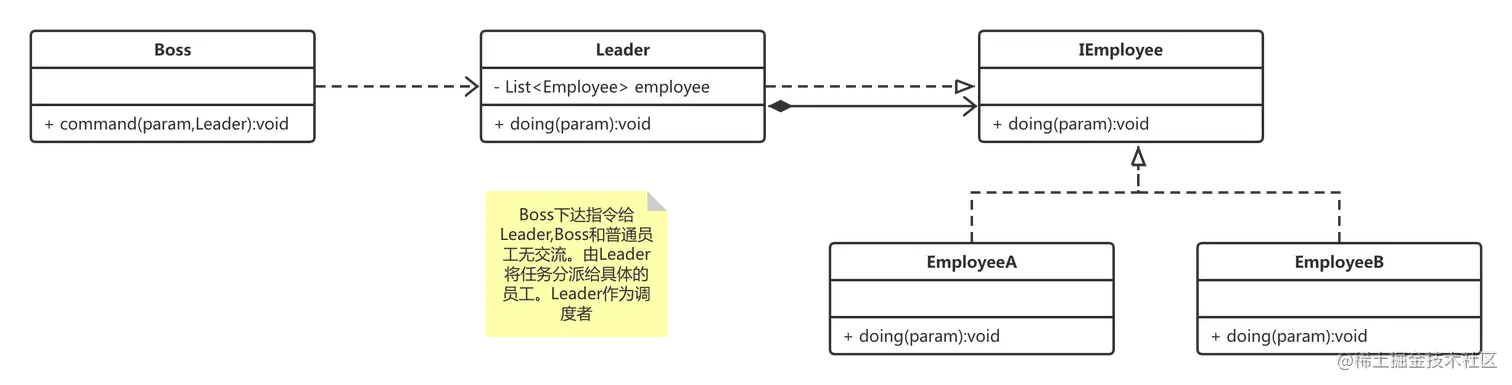

委派模式

单独拿出来，因为他不属于23种设计模式,他的基本作用是负责任务的调用和分配任务。和代理模式很像，但是代理模式强调的是代理的过程[代理做了什么]，委派模式强调的是做了什么[我该把任务给谁来做得到怎样的结果] 【类比调度中心】。

源码应用

• DispatcherServlet

  ​
  // 继承自FrameworkServlet ，更高层继承 HttpServlet
  public class DispatcherServlet extends FrameworkServlet {
  ​
    . . .
  ​
    static {
      // 读取DispatcherServlet.properties配置,定义了处理器、适配器、异常处理....策略
      /**   org.springframework.web.servlet.HandlerMapping=org.springframework.web.servlet.handler.BeanNameUrlHandlerMapping,\
          org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping,\
          org.springframework.web.servlet.function.support.RouterFunctionMapping

        org.springframework.web.servlet.HandlerAdapter=org.springframework.web.servlet.mvc.HttpRequestHandlerAdapter,\
          org.springframework.web.servlet.mvc.SimpleControllerHandlerAdapter,\
          org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter,\
          org.springframework.web.servlet.function.support.HandlerFunctionAdapter
        org.springframework.web.servlet.HandlerExceptionResolver=org.springframework.web.servlet.mvc.method.annotation.ExceptionHandlerExceptionResolver,\
          org.springframework.web.servlet.mvc.annotation.ResponseStatusExceptionResolver,\
          org.springframework.web.servlet.mvc.support.DefaultHandlerExceptionResolver
      */

      try {
        ClassPathResource resource = new ClassPathResource(DEFAULT_STRATEGIES_PATH, DispatcherServlet.class);
        defaultStrategies = PropertiesLoaderUtils.loadProperties(resource);
      }
      catch (IOException ex) {
        throw new IllegalStateException("Could not load '" + DEFAULT_STRATEGIES_PATH + "': " + ex.getMessage());
      }
    }
  ​
      . . .
  ​
    /** 处理器策略 */
    @Nullable
    private List<HandlerMapping> handlerMappings;
  ​
    /** 适配器策略 */
    @Nullable
    private List<HandlerAdapter> handlerAdapters;
  ​
     . . .
  ​
    /**
     * This implementation calls {@link #initStrategies}.
     */
    @Override
    protected void onRefresh(ApplicationContext context) {
      initStrategies(context);
    }
  ​
    /**
     * 初始化策略到servlet
     */
    protected void initStrategies(ApplicationContext context) {
      initMultipartResolver(context);
      initLocaleResolver(context);
      initThemeResolver(context);
      initHandlerMappings(context);
      initHandlerAdapters(context);
      initHandlerExceptionResolvers(context);
      initRequestToViewNameTranslator(context);
      initViewResolvers(context);
      initFlashMapManager(context);
    }
    . . .
  ​
    /**
     * Initialize the HandlerMappings used by this class.
     * <p>If no HandlerMapping beans are defined in the BeanFactory for this namespace,
     * we default to BeanNameUrlHandlerMapping.
     */
    private void initHandlerMappings(ApplicationContext context) {
      this.handlerMappings = null;
      if (this.detectAllHandlerMappings) {
        // Find all HandlerMappings in the ApplicationContext, including ancestor contexts.
        Map<String, HandlerMapping> matchingBeans =
            BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
        if (!matchingBeans.isEmpty()) {
          this.handlerMappings = new ArrayList<>(matchingBeans.values());
          // We keep HandlerMappings in sorted order.
          AnnotationAwareOrderComparator.sort(this.handlerMappings);
        }
      }
      else {
        try {
          HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
          this.handlerMappings = Collections.singletonList(hm);
        }
        catch (NoSuchBeanDefinitionException ex) {
          // Ignore, we'll add a default HandlerMapping later.
        }
      }
    }

                . . .
    /**
     * 重写 doService 调用doDispatch。doDispatch方法用来委派任务
     */
    @Override
    protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
          . . .
          doDispatch(request, response);
          . . .
    }
    /**
     * 委派模式的思想在这里体现。
     *
     * doDispatch将请求委托给可以处理的处理器来执行，找到支持的适配器来处理
     * 和代理模式不同的是，代理模式强调的是过程(我做了什么),委派模式是交给谁来做
     */
    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
      HttpServletRequest processedRequest = request;
      HandlerExecutionChain mappedHandler = null;
      boolean multipartRequestParsed = false;
      WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
      try {
        ModelAndView mv = null;
        Exception dispatchException = null;
        try {
          processedRequest = checkMultipart(request);
          multipartRequestParsed = (processedRequest != request);
          // 找到可以处理此次请求的HandlerExecutionChain。内部包含具体的处理器和interceptorList
          mappedHandler = getHandler(processedRequest);
          . . .
          // 找到支持此处理器的适配器策略
          HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
          // 执行拦截器链的前置拦截。从前往后执行
          if (!mappedHandler.applyPreHandle(processedRequest, response)) {
            return;
          }
          // 处理器执行
          mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
          //  执行拦截器后置拦截。从后往前执行。
          mappedHandler.applyPostHandle(processedRequest, response, mv);
        }
        catch (Exception ex) {
          dispatchException = ex;
        }
        catch (Throwable err) {
          // As of 4.3, we're processing Errors thrown from handler methods as well,
          // making them available for @ExceptionHandler methods and other scenarios.
          dispatchException = new NestedServletException("Handler dispatch failed", err);
        }
        processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
      }
      catch (Exception ex) {
        triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
      }
      . . .
    }
  }


• Spring中Delegate结尾的类都是实现了委派模式,如BeanDefinitionParserDelegate;

优点

• 将调用者和真正的执行者分离,降低了系统的耦合度，符合最少知识原则;
• 结合策略模式来使用,可以做到不修改代码扩展新功能;

缺点

• 需要增加一个调度者,如果业务很复杂可能导致调度者的职责过重

应用场景

• 例如支付，通过委派模式委派给不同的支付策略类处理
• 订单流程可以封装为不同的策略类，根据当前订单处理进度委派给不同的类去处理
• 例如我将OA的流程封装起来，但是根据单据不一样传递至OA的数据不一样，可以以单据为策略，然后再以单据类型委派给不同的策略类处理
• 总之策略+委派是我用的很舒服的设计模式
