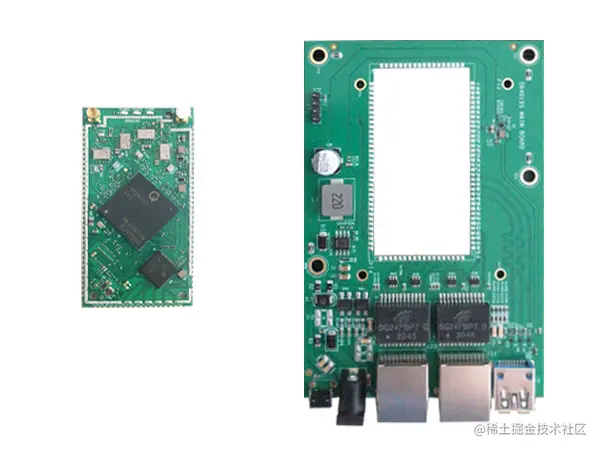

IPQ4019/IPQ4029-2T2R-Dual-Band-2-4GHz-5GHz-support-OpenWRT-802.11ac-Wave Featuring withindustrial-grade IPQ4019 chipset
Integrated with 2x 2 5G high power
Radio module and 2x2 2.4G high power Radio module
Support 5.180GHz to5.825GHz Frequency Range;
Support 2.412GHz to 2.482GHz
Support 2 x 5G MMCX Connectors and 2x2.4G MMCX
20MHz/40MHz/80MHz Bandwidth
Support 11ABGN/[802.11AC]
RoHS compliance ensure a high level
protection of human health and the environment from risks that can be posed by、
-
Parameter Rating Unit Supply Voltage 24V~48 V Operating Temperature Range -40 to +70 ºC Storage Temperature Range -45 to +105 ºC Operating Humidity Range 5 to +95 (non-condensing) % Storage Humidity Range 0 to +90 (non-condensing) %
- \
-
Symbol**** Parameter**** CPU [IPQ4019]（Quad core ARM Cortex A7 at 716.8 MHz） Antenna Connector 2 x 5G MMCX connectors;2x2.4G MMCX 10/100/1000Mbps Gigabit Ethernet ****2xRJ45 DC Jack 12 power supply ROHS Compliance YES Dimension 65mmx35mm x 16mm Max Power 12V x 0.8A= 9.6W Nor Flash 32MB DDR 256MB
- | Operating Mode**** | Data Rate**** | Power**** | Tolerance**** | | | ---------------------- | ----------------- | ------------- | ----------------- | ---- | | 1 Chain**** | 2 Chains**** | | | | | 802.11a | 6 Mbps | 26dBm | 29dbm | ±2dB | | 54 Mbps | 22dBm | 25dbm | ±2dB | | | 802.11n HT20 | MCS0, MCS8 | 26dBm | 29dbm | ±2dB | | MCS7, MCS15 | 22dBm | 25dbm | ±2dB | | | 802.11n HT40 | MCS0, MCS8 | 25dBm | 28dbm | ±2dB | | MCS7, MCS15 | 21dBm | 24dbm | ±2dB | | | 802.11ac | MCS0, MCS10,MCS20 | 25dBm | 28dbm | ±2dB | | MCS9,MCS19,MCS29 | 19dBm | 22dbm | ±2dB | |
\
