【Jetpack Compose】LazyColumn和LazyVerticalGrid 使用Paging3分页+SwipeRefresh下拉刷新

1.数据源

https://api.github.com/search/repositories?q=compose+language:kotlin&sort=stars&order=desc

大家可以用AS的JsonToKotlinClass插件来把这个响应数据生成data class，这里就不贴代码了。

2.依赖项

//network & serialization
implementation "com.google.code.gson:gson:2.9.0"
implementation "com.squareup.retrofit2:converter-gson:2.9.0"
implementation "com.squareup.retrofit2:retrofit:2.9.0"//
implementation 'com.squareup.okhttp3:logging-interceptor:4.9.3'

//swiperefresh 的compose 版本
implementation "com.google.accompanist:accompanist-swiperefresh:0.23.1"
// paging 3 的compose 版本
implementation "androidx.paging:paging-compose:1.0.0-alpha14"
//这个可以在Compose中得到viewmodel
implementation "androidx.lifecycle:lifecycle-viewmodel-compose:2.4.1"

//coil Compose 图片加载库
implementation "io.coil-kt:coil-compose:2.0.0-rc01"

compose_version用的是1.1.1版本的这里就不贴了

3.Api调用

interface GithubService {
    /**
     * 用户列表
     */
    @GET("users")
    suspend fun getUsers(@Query("since") userId: Int,@Query("per_page") pageSize: Int = 30): List<UserEntity>

    /**
     * 仓库搜索
     */
    @GET("search/repositories")
    suspend fun searchRepositors(
        @Query("q") words: String,
        @Query("page") page: Int = 1,
        @Query("per_page") pageSize: Int = 30,
        @Query("sort") sort:String = "stars",
        @Query("order") order: String = "desc",
    ): RepositorResult
}

private val service: GithubService by lazy {
    val okHttpClient = OkHttpClient.Builder()
        .addInterceptor(HttpLoggingInterceptor().apply { setLevel(HttpLoggingInterceptor.Level.BODY) })
        .build()

    val retrofit = Retrofit.Builder()
        .baseUrl("https://api.github.com")
        .client(okHttpClient)
        .addConverterFactory(GsonConverterFactory.create())
        .build()

    retrofit.create(GithubService::class.java)
}

fun getGithubService() = service

Retrofit 2.6.0版本及以上就支持kotlin协程了

4.使用paging3 进行分页：

class MyPagingSource(
    val githubService: GithubService = getGithubService(),
    val words: String,
) : PagingSource<Int, RepositorItem>() {

    override fun getRefreshKey(state: PagingState<Int, RepositorItem>): Int? {
        return state.anchorPosition?.let {
            val anchorPage = state.closestPageToPosition(it)
            anchorPage?.prevKey?.plus(1) ?: anchorPage?.nextKey?.minus(1)
        }
    }

    override suspend fun load(params: LoadParams<Int>): LoadResult<Int, RepositorItem> {
        try {
            val nextPage: Int = params.key ?: 1
            val repositorRst = githubService.searchRepositors(words, nextPage, 20)
            return LoadResult.Page(
                data = repositorRst.items,
                prevKey = if (nextPage == 1) null else nextPage - 1,
                nextKey = if (repositorRst.items.isEmpty()) null else nextPage + 1
            )
        }catch (e:Exception){
            return LoadResult.Error(e)
        }
    }
}

5.viewModel：

class GithubViewModel:ViewModel() {

    val repositorPager = Pager(config = PagingConfig(pageSize = 6)){
        MyPagingSource(getGithubService(),"compose")
    }.flow.cachedIn(viewModelScope)

}

6.最后是Compose：

@Composable
fun ListContent() {
    val viewModel: GithubViewModel = viewModel()
    val lazyPagingItems = viewModel.repositorPager.collectAsLazyPagingItems()

    val state: LazyListState = rememberLazyListState()
    SwipeRefresh(
        state = rememberSwipeRefreshState((lazyPagingItems.loadState.refresh is LoadState.Loading && lazyPagingItems.itemCount > 0)),
        onRefresh = { lazyPagingItems.refresh() },
    ) {
        LazyColumn(
            state =state,
            contentPadding = PaddingValues(10.dp),
            verticalArrangement = Arrangement.spacedBy(5.dp)) {

            items(items = lazyPagingItems) { item ->
                item?.let {
                    RepositorCard(item)
                }
            }
            if (lazyPagingItems.loadState.append is LoadState.Loading) {
                //下一页的load状态
                item {
                    Box(modifier = Modifier
                        .fillMaxWidth()
                        .height(50.dp)) {
                        CircularProgressIndicator(modifier = Modifier.align(alignment = Alignment.Center))
                    }
                }
            }
        }
    }

    if (lazyPagingItems.loadState.refresh is LoadState.Loading) {
        if (lazyPagingItems.itemCount == 0) {//第一次响应页面加载时的loading状态
            Box(modifier = Modifier.fillMaxSize()) {
                CircularProgressIndicator(modifier = Modifier.align(alignment = Alignment.Center))
            }
        }
    }else if(lazyPagingItems.loadState.refresh is LoadState.Error){
        //加载失败的错误页面
        Box(modifier = Modifier.fillMaxSize()) {
            Button(modifier = Modifier.align(alignment = Alignment.Center),
            onClick = { lazyPagingItems.refresh() }) {
                Text(text = "加载失败！请重试")
            }
        }
   }
}

item：

@Composable
fun RepositorCard(repositorItem: RepositorItem) {
    Card(modifier = Modifier
        .fillMaxWidth()
        .padding(8.dp)) {
        Row(modifier = Modifier
            .fillMaxWidth()
            .height(88.dp)) {
            Spacer(modifier = Modifier.width(10.dp))
            Surface(shape = CircleShape, modifier = Modifier
                .size(66.dp)
                .align(Alignment.CenterVertically)) {
                AsyncImage(model = repositorItem.owner.avatar_url,
                    contentDescription = "",
                    contentScale = ContentScale.Crop)
            }

            Spacer(modifier = Modifier.width(15.dp))
            Column(modifier = Modifier.fillMaxWidth()) {
                Spacer(modifier = Modifier.height(8.dp))
                Text(text = repositorItem.name,
                    color = MaterialTheme.colors.primary,
                    style = MaterialTheme.typography.h6)
                Text(text = repositorItem.full_name, style = MaterialTheme.typography.subtitle1)
            }
        }
    }
}

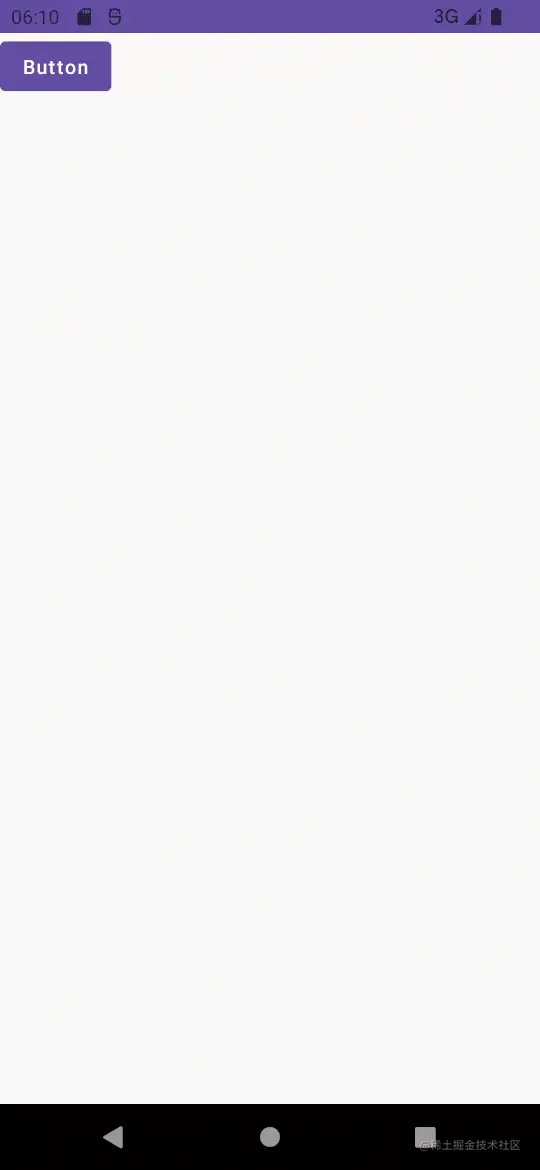

最后运行是这样的：

7.自动向上翻页的问题

有的同学想上下都能翻页加载，还是用这个搜索的api来模拟一下，首次进入页面就加载第10页的数据，在 PagingSource这里改一下：

override suspend fun load(params: LoadParams<Int>): LoadResult<Int, RepositorItem> {
    try {
        val nextPage: Int = params.key ?: 10//改成10 默认首次从第10页加载
        val repositorRst = githubService.searchRepositors(words, nextPage, 20)
        return LoadResult.Page(
            data = repositorRst.items,
            prevKey = if (nextPage == 1) null else nextPage - 1,
            nextKey = if (repositorRst.items.isEmpty()) null else nextPage + 1
        )
    }catch (e:Exception){
        return LoadResult.Error(e)
    }
}

compose里面也改一下去掉SwipeRefresh：

LazyColumn(
    state =state,
    contentPadding = PaddingValues(10.dp),
    verticalArrangement = Arrangement.spacedBy(5.dp)) {

    if (lazyPagingItems.loadState.prepend is LoadState.Loading) {
        //list 顶部loading
        item {
            Box(modifier = Modifier
                .fillMaxWidth()
                .height(50.dp)) {
                CircularProgressIndicator(modifier = Modifier.align(alignment = Alignment.Center))
            }
        }
    }

    items(items = lazyPagingItems) { item ->
        item?.let {
            RepositorCard(item)
        }
    }
    if (lazyPagingItems.loadState.append is LoadState.Loading) {
        //list 底部loading
        item {
            Box(modifier = Modifier
                .fillMaxWidth()
                .height(50.dp)) {
                CircularProgressIndicator(modifier = Modifier.align(alignment = Alignment.Center))
            }
        }
    }
}

肿么肥事！！它怎么自动向上翻页！！！ 直到 prevKey为null ,这难道是paging compose版本的bug，后来我想到了 compose lifecycle里面讲到的：

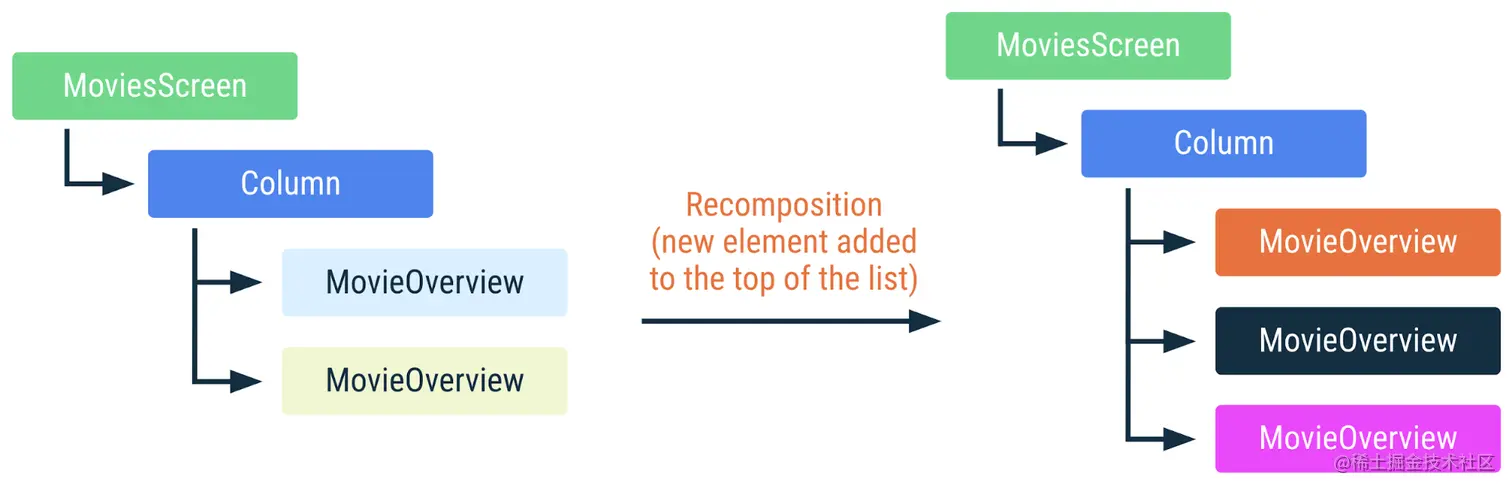

列表加载完初始数据后，因为prevKey不为空，就继续获取上页数据，然后就相当于列表在顶部新增内容，然后LazyColumn自动滑动到顶部，然后又会触发paging加载上一页的数据，如此循环直到prevKey为空。

compose lifecycle后面讲到了可以用key 可组合项，在LazyColumn中提供了key 可组合项的内置支持，我们加上key就行了：

items(items = lazyPagingItems, key = { item -> item.id }) { item ->
    item?.let {
        RepositorCard(item)
    }
}

ok 解决了

这里也可以加上重试按钮，这是底部的：

if (lazyPagingItems.loadState.append is LoadState.Loading) {
    // xxxx
}else if(lazyPagingItems.loadState.append is LoadState.Error){
    item {
        //底部的重试按钮
        Box(modifier = Modifier
            .fillMaxWidth()
            .height(50.dp)) {
            Button(modifier = Modifier.align(alignment = Alignment.Center),
                onClick = { lazyPagingItems.retry() }) {
                Text(text = "重试")
            }
        }
    }
}

顶部的就是

if(lazyPagingItems.loadState.prepend is LoadState.Error)

然后可以在PagingSource load方法里随机抛出TimeoutException来模拟数据加载失败的情况。

override suspend fun load(params: LoadParams<Int>): LoadResult<Int, RepositorItem> {
    try {
        val nextPage: Int = params.key ?: 10//改成10 默认从第10页加载
        if(Random.nextBoolean()){
            throw SocketTimeoutException("SocketTimeout")
        }
        val repositorRst = githubService.searchRepositors(words, nextPage, 20)
        return LoadResult.Page(
            data = repositorRst.items,
            prevKey = if (nextPage == 1) null else nextPage - 1,
            nextKey = if (repositorRst.items.isEmpty()) null else nextPage + 1
        )
    }catch (e:Exception){
        return LoadResult.Error(e)
    }
}

有的童靴觉得列表底部加个重试按钮有点丑，然后想能不能当翻页的数据加载失败后滑动到底部自动重试

首先我们加个方法判断是否滑动到底部了：

@Composable
fun LazyListState.isScrollToEnd():Boolean {
    var previousIndex by remember(this) { mutableStateOf(firstVisibleItemIndex) }
    var previousScrollOffset by remember(this) { mutableStateOf(firstVisibleItemScrollOffset) }
    return remember(this) {
        derivedStateOf {
            if (previousIndex != firstVisibleItemIndex) {
                previousIndex < firstVisibleItemIndex
            } else {
                previousScrollOffset < firstVisibleItemScrollOffset
            }.also {
                previousIndex = firstVisibleItemIndex
                previousScrollOffset = firstVisibleItemScrollOffset
            } && layoutInfo.visibleItemsInfo.lastOrNull()?.let { it.index == layoutInfo.totalItemsCount-1 } ?: false
        }
    }.value
}

然后就是根据条件调用重试了

val state: LazyListState = rememberLazyListState()
LazyColumn(state =state）{
        xxx
}

//是否滑动到底部
val isScrollToEnd = state.isScrollToEnd()
//是否自动重试
val currectIsNextRetry by rememberUpdatedState(isScrollToEnd &&
        lazyPagingItems.loadState.append is LoadState.Error)

LaunchedEffect(isScrollToEnd){
    if(currectIsNextRetry){
        Log.i(TAG,"retry")
        lazyPagingItems.retry()
    }
}

8. LazyVerticalGrid paging 分页

注意：LazyVerticalGrid这里compose用的1.2.0-rc3 版本，paging-compose 用的是1.0.0-alpha15

LazyVerticalGrid 在1.2.0 中有变化，从1.1.1它还是实验性质的，1.2.0中它已经是正式的了

LazyVerticalGrid使用paging分页还是要另外加两个扩展方法，不然在paging-compose 1.0.0-alpha15版本无法使用LazyVerticalGrid分页，当然后面新版本支持了LazyGrid就不用加扩展方法了

inline fun <T : Any> LazyGridScope.items(
    items: LazyPagingItems<T>,
    noinline key: ((item: T) -> Any)? = null,
    noinline span: (LazyGridItemSpanScope.(item: T?) -> GridItemSpan)? = null,
    noinline contentType: (item: T?) -> Any? = { null },
    crossinline itemContent: @Composable LazyGridItemScope.(item: T?) -> Unit
) {
    items(
        count = items.itemCount,
        key = if (key == null) null else { index ->
            val item = items.peek(index)
            if (item == null) {
                MyPagingPlaceholderKey(index)
            } else {
                key(item)
            }
        },
        span = if (span != null) { { span(items[it]) } } else null,
        contentType = { index: Int -> contentType(items[index]) }
    ) { index ->
        itemContent(items[index])
    }
}

inline fun <T : Any> LazyGridScope.itemsIndexed(
    items: LazyPagingItems<T>,
    noinline key: ((index: Int, item: T) -> Any)? = null,
    noinline span: (LazyGridItemSpanScope.(index: Int, item: T?) -> GridItemSpan)? = null,
    crossinline contentType: (index: Int, item: T?) -> Any? = { _, _ -> null },
    crossinline itemContent: @Composable LazyGridItemScope.(index: Int, value: T?) -> Unit
) {
    items(
        count = items.itemCount,
        key = if (key == null) null else { index ->
            val item = items.peek(index)
            if (item == null) {
                MyPagingPlaceholderKey(index)
            } else {
                key(index, item)
            }
        },
        span = if (span != null) { { span(it, items[it]) } } else null,
        contentType = { index -> contentType(index, items[index]) }
    ) { index ->
        itemContent(index, items[index])
    }
}

@SuppressLint("BanParcelableUsage")
data class MyPagingPlaceholderKey(private val index: Int) : Parcelable {
    override fun writeToParcel(parcel: Parcel, flags: Int) {
        parcel.writeInt(index)
    }

    override fun describeContents(): Int {
        return 0
    }

    companion object {
        @Suppress("unused")
        @JvmField
        val CREATOR: Parcelable.Creator<MyPagingPlaceholderKey> =
            object : Parcelable.Creator<MyPagingPlaceholderKey> {
                override fun createFromParcel(parcel: Parcel) =
                    MyPagingPlaceholderKey(parcel.readInt())

                override fun newArray(size: Int) = arrayOfNulls<MyPagingPlaceholderKey?>(size)
            }
    }
}

使用方式和LazyColumn差不多

val lazyPagingItems = viewModel.repositorPager.collectAsLazyPagingItems()
LazyVerticalGrid(
    columns = GridCells.Fixed(3),
    contentPadding = PaddingValues(15.dp),
    verticalArrangement = Arrangement.spacedBy(10.dp),
    horizontalArrangement = Arrangement.spacedBy(10.dp)
) {
    items(
        items = lazyPagingItems,
        key = { item -> item.id },
        span = { GridItemSpan(1) }) { item ->
        item?.let {
            ConstraintLayout {
                val image = createRef()
                AsyncImage(
                    model = item.owner.avatar_url,
                    contentDescription = null,
                    contentScale = ContentScale.Crop,
                    modifier = Modifier.constrainAs(image) {
                        width = Dimension.percent(1f)
                        height = Dimension.ratio("1:1")
                    }
                )
            }
        }
    }
    if (lazyPagingItems.loadState.append is LoadState.Loading) {
        //Grid 底部loading
        item(key = "appendLoading", span = { GridItemSpan(3) }) {
            Box(
                modifier = Modifier
                    .fillMaxWidth()
                    .height(50.dp)
            ) {
                CircularProgressIndicator(modifier = Modifier.align(alignment = Alignment.Center))
            }
        }
    }
}
