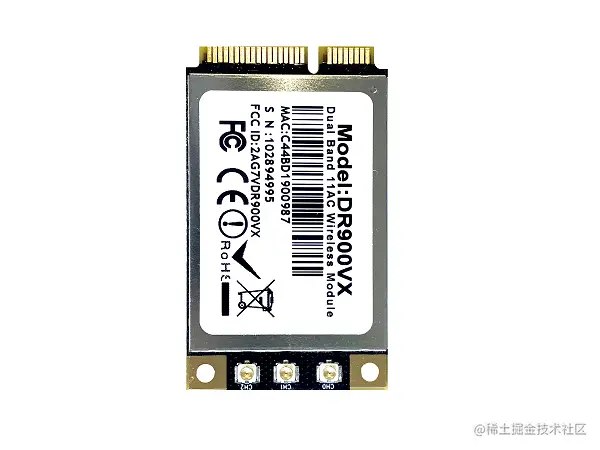

QCA9880/QCA9882 802.11ac Dual band 2.4G/5G FCC/CE/IC Qualcomm-Atheros [QCA9880] chipset
2.4GHz max 26dBm & 5GHz max 25dBm output power
IEEE [802.11ac]compliant & backward compatible with 802.11a/b/g/n
3x3 MIMO Technology, up to 1.3Gbps
Mini PCI Express edge connector
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio
Combining (MRC), Space Time Block Code (STBC)
Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards
Supports Dynamic Frequency Selection (DFS)
FCC,CE and IC Certification
-
Symbol**** Parameter**** Chipset [QCA9880]"QCA9880") Host Interface Mini PCI Express 1.1 Standard Antenna Connector 3 x UF.L Frequency Range 2.4GHz: 2.412GHz to 2.472GHz 5GHz: 4.920GHz to 5.825GHz Operating Voltage 3.3V DC Power Consumption 5W(Max） Modulation Techniques OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM Environmental Temperature Operating: -40°C to 70°C, Storage: -40°C to 90°C Environmental Humidity, non-condensing Operating: 5% to 95%, Storage: Max. 90% ROHS Compliance YES Dimensions (W×H×D) 30.0mm × 50.9mm × 3.2mm -
Version -
\
-
\
-
Version CPU Feature DR900VX QCA9880 DR900VX-i QCA9890 Operation Temp. Up to 85° DR900VX-4.9 QCA9880 Support 4.9G
