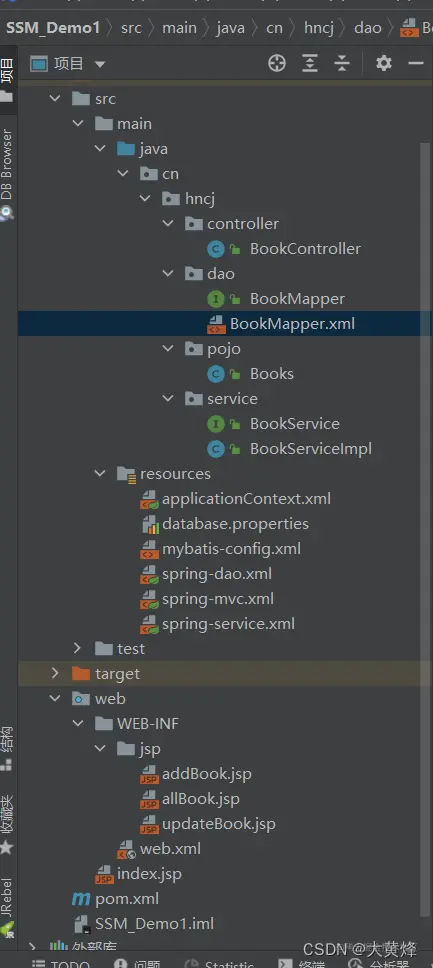

一、项目结构和数据库文件


数据库文件

CREATE DATABASE `ssmbuild`;

USE `ssmbuild`;

DROP TABLE IF EXISTS `books`;

CREATE TABLE `books` (
`bookID` INT(10) NOT NULL AUTO_INCREMENT COMMENT '书id',
`bookName` VARCHAR(100) NOT NULL COMMENT '书名',
`bookCounts` INT(11) NOT NULL COMMENT '数量',
`detail` VARCHAR(200) NOT NULL COMMENT '描述',
KEY `bookID` (`bookID`)
) ENGINE=INNODB DEFAULT CHARSET=utf8

INSERT  INTO `books`(`bookID`,`bookName`,`bookCounts`,`detail`)VALUES
(1,'Java',1,'从入门到放弃'),
(2,'MySQL',10,'从删库到跑路'),
(3,'Linux',5,'从进门到进牢');

二、pom.xml $$ web.xml

2.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>cn.hncj</groupId>
    <artifactId>SSM_Demo1</artifactId>
    <version>1.0</version>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.13.2</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.taglibs/taglibs-standard-impl -->
        <dependency>
            <groupId>org.apache.taglibs</groupId>
            <artifactId>taglibs-standard-impl</artifactId>
            <version>1.2.5</version>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.28</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/com.mchange/c3p0 -->
        <!-- https://mvnrepository.com/artifact/com.mchange/c3p0 -->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.2</version>
        </dependency>

        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.9.8</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.2</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency> <!--Mybatis-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.2</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.2</version>
        </dependency>

        <!--Spring-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.22</version>
        </dependency>
    </dependencies>
    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
    </build>
</project>

2.2 web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
    <!--DispatcherServlet-->
    <servlet>
        <servlet-name>springmvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！-->
            <param-value>classpath:applicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--encodingFilter-->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>
            org.springframework.web.filter.CharacterEncodingFilter
        </filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--Session过期时间-->
    <session-config>
        <session-timeout>15</session-timeout>
    </session-config>
</web-app>

三、poji实体类

package cn.hncj.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * Created on 2022/4/10.
 *
 * @author Hou chaof
 */
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Books {
    private int bookID;
    private String bookName;
    private int bookCounts;
    private String detail;
}

四、controller层

BookController

package cn.hncj.controller;

import cn.hncj.pojo.Books;
import cn.hncj.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import java.awt.print.Book;
import java.util.ArrayList;
import java.util.List;

/**
 * Created on 2022/4/11.
 *
 * @author Hou chaof
 */
@Controller
@RequestMapping("/book")
public class BookController {

    @Autowired
    @Qualifier("BookServiceImpl")
    private BookService bookService;

    //查询全部的书记，返回到一个书籍展示页面
    @RequestMapping("/allBook")
    public String list(Model model) {
        List<Books> list = bookService.queryAllBook();
        model.addAttribute("list", list);
        return "allBook";
    }

    @RequestMapping("/toAddBook")
    public String toAddPaper() {
        return "addBook";
    }

    @RequestMapping("/addBook")
    public String addPaper(Books books) {
        System.out.println(books);
        bookService.addBook(books);
        return "redirect:/book/allBook";
    }
        //跳转到修改页面
    @RequestMapping("/toUpdateBook")
    public String toUpdateBook(Model model, int id) {
        Books books = bookService.queryBookById(id);
        System.out.println(books);
        model.addAttribute("book",books );
        return "updateBook";
    }
        //修改书籍
    @RequestMapping("/updateBook")
    public String updateBook(Model model, Books book) {
        System.out.println(book);
        bookService.updateBook(book);
        Books books = bookService.queryBookById(book.getBookID());
        model.addAttribute("books", books);
        return "redirect:/book/allBook";
    }

    @RequestMapping("/del/{bookId}")
    public String deleteBook(@PathVariable("bookId") int id) {
        bookService.deleteBookById(id);
        return "redirect:/book/allBook";
    }
    @RequestMapping("/queryBook")
    public String queryBook(String queryBookName,Model model){
        Books books = bookService.queryBookByName(queryBookName);
        List<Books> list=new ArrayList<Books>();
        list.add(books);
        model.addAttribute("list",list);
        return "allBook";
    }
}

五、dao层

5.1、BookMapper

package cn.hncj.dao;

import cn.hncj.pojo.Books;
import org.apache.ibatis.annotations.Param;

import java.util.List;

/**
 * Created on 2022/4/10.
 *
 * @author Hou chaof
 */
public interface BookMapper {
    //增加一本书
    int addBook(Books books);
    //删除一本书
    int deleteBookById(@Param("bookId") int id);
    //修改一本书
    int updateBook(Books books);
    //查询一本书
    Books queryBookById(@Param("bookId") int id);
    //查询所有书
    List<Books> queryAllBook();

    Books queryBookByName(@Param("bookName")String bookName);
}

5.2、BookMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="cn.hncj.dao.BookMapper">

    <insert id="addBook" parameterType="Books">
        insert into ssmbuild.books (bookName, bookCounts, detail)
        values (#{bookName}, #{bookCounts}, #{detail});
    </insert>

    <delete id="deleteBookById" parameterType="int">
        delete
        from ssmbuild.books
        where bookID = #{bookId};
    </delete>

    <update id="updateBook" parameterType="Books">
        update ssmbuild.books
        set bookName=#{bookName},
            bookCounts=#{bookCounts},
            detail=#{detail}
        where bookID = #{bookID};
    </update>

    <select id="queryBookById" resultType="Books">
        select *
        from ssmbuild.books
        where bookID = #{bookId};
    </select>

    <select id="queryAllBook" resultType="Books">
        select * from  ssmbuild.books ;
    </select>


    <select id="queryBookByName" resultType="Books">
        select *  from ssmbuild.books where bookName=#{bookName}
    </select>
</mapper>

六、service层

6.1 BookService

package cn.hncj.service;

import cn.hncj.pojo.Books;
import org.apache.ibatis.annotations.Param;

import java.util.List;

/**
 * Created on 2022/4/10.
 *
 * @author Hou chaof
 */
public interface BookService {
    //增加一本书
    int addBook(Books books);

    //删除一本书
    int deleteBookById(int id);

    //修改一本书
    int updateBook(Books books);

    //查询一本书
    Books queryBookById(int id);

    //查询所有书
    List<Books> queryAllBook();


    Books queryBookByName(String bookName);
}

6.2、BookServiceImpl

package cn.hncj.service;

import cn.hncj.dao.BookMapper;
import cn.hncj.pojo.Books;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * Created on 2022/4/10.
 *
 * @author Hou chaof
 */

public class BookServiceImpl implements  BookService{
    //service层调dao层：组合dao

    private BookMapper bookMapper;
    public void setBookMapper(BookMapper bookMapper) {
        this.bookMapper = bookMapper;
    }

    @Override
    public int addBook(Books books) {
        return bookMapper.addBook(books);
    }

    @Override
    public int deleteBookById(int id) {
        return bookMapper.deleteBookById(id);
    }

    @Override
    public int updateBook(Books books) {
        return bookMapper.updateBook(books);
    }

    @Override
    public Books queryBookById(int id) {
        return bookMapper.queryBookById(id);
    }

    @Override
    public List<Books> queryAllBook() {
        return bookMapper.queryAllBook();
    }

    @Override
    public Books queryBookByName(String bookName) {
        return bookMapper.queryBookByName(bookName);
    }
}

七、resources配置文件

7.1 applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

    <import resource="classpath:spring-dao.xml"/>
    <import resource="classpath:spring-service.xml"/>
    <import resource="classpath:spring-mvc.xml"/>
</beans>

7.2 database.properties

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?characterEncoding=utf-8&useSSL=false&serverTimezone=UTC&rewriteBatchedStatements=true
jdbc.username=root
jdbc.password=

7.3 mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>


    <!--设置类型别名-->
    <typeAliases>
        <package name="cn.hncj.pojo"/>
    </typeAliases>

    <!--引入映射文件-->
    <mappers>
        <mapper class="cn.hncj.dao.BookMapper"></mapper>
    </mappers>
</configuration>

7.4 spring-dao.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">
    <!--1关联数据库配置文件-->
    <context:property-placeholder location="classpath:database.properties"></context:property-placeholder>
    <!--2连接池-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"></property>
        <property name="jdbcUrl" value="${jdbc.url}"></property>
        <property name="user" value="${jdbc.username}"></property>
        <property name="password" value="${jdbc.password}"></property>
        <!-- c3p0连接池的私有属性 -->
        <property name="maxPoolSize" value="30"/>
        <property name="minPoolSize" value="10"/>
        <!-- 关闭连接后不自动commit -->
        <property name="autoCommitOnClose" value="false"/>
        <!-- 获取连接超时时间 -->
        <property name="checkoutTimeout" value="10000"/>
    </bean>

    <!--sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
    </bean>
    <!-- 4.配置扫描Dao接口包，动态实现Dao接口注入到spring容器中 -->
    <!--解释 ：https://www.cnblogs.com/jpfss/p/7799806.html-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="cn.hncj.dao"/>
    </bean>


</beans>

7.5 spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                            http://www.springframework.org/schema/beans/spring-beans.xsd
                            http://www.springframework.org/schema/mvc
                            https://www.springframework.org/schema/mvc/spring-mvc.xsd
                            http://www.springframework.org/schema/context
                            https://www.springframework.org/schema/context/spring-context.xsd">
    <!-- 配置SpringMVC -->
    <!-- 1.开启SpringMVC注解驱动 -->
    <mvc:annotation-driven/>
    <!-- 2.静态资源默认servlet配置-->
    <mvc:default-servlet-handler/>

    <!-- 4.扫描web相关的bean -->
    <context:component-scan base-package="cn.hncj.controller"/>


    <!-- 3.配置jsp 显示ViewResolver视图解析器 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/jsp/"/>
        <property name="suffix" value=".jsp"/>
    </bean>


</beans>

7.6 spring-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">
    <!-- 扫描service相关的bean -->
    <context:component-scan base-package="cn.hncj.service"/>

    <!--BookServiceImpl注入到IOC容器中-->
    <bean id="BookServiceImpl" class="cn.hncj.service.BookServiceImpl">
        <property name="bookMapper" ref="bookMapper"/>
    </bean>

    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
    </bean>

</beans>

八、前端页面

8.1 index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" %>
<!DOCTYPE HTML>
<html>
<head>
    <title>首页</title>
    <style type="text/css">
        a {
            text-decoration: none;
            color: black;
            font-size: 18px;
        }
        h3 {
            width: 180px;
            height: 38px;
            margin: 100px auto;
            text-align: center;
            line-height: 38px;
            background: deepskyblue;
            border-radius: 4px;
        }
    </style>
</head>
<body>

<h3>
    <a href="${pageContext.request.contextPath}/book/allBook">点击进入列表页</a>
</h3>
</body>
</html>

8.2 addBook.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>

<html>
<head>
  <title>新增书籍</title>
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <!-- 引入 Bootstrap -->
  <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">

  <div class="row clearfix">
    <div class="col-md-12 column">
      <div class="page-header">
        <h1>
          <small>新增书籍</small>
        </h1>
      </div>
    </div>
  </div>
  <form action="${pageContext.request.contextPath}/book/addBook" method="post">
    书籍名称：<input type="text" name="bookName"><br><br><br>
    书籍数量：<input type="text" name="bookCounts"><br><br><br>
    书籍详情：<input type="text" name="detail"><br><br><br>
    <input type="submit" value="添加">
  </form>

</div>

8.3 allBook.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>书籍列表</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>

<div class="container">

    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>书籍列表 —— 显示所有书籍</small>
                </h1>
            </div>
        </div>
    </div>

    <div class="row">
        <div class="col-md-4 column">
            <a class="btn btn-primary" href="${pageContext.request.contextPath}/book/toAddBook">新增</a>
        </div><div class="col-md-4 column"></div>
        <div class="col-md-4 column">
            <form action="${pageContext.request.contextPath}/book/queryBook" method="post" style="float: right">
                <input type="text"  name="queryBookName" class="form-control"  placeholder="请输入要查询的书籍">
                <input type="submit" value="查询" class="btn btn-primary">
            </form>
        </div>
    </div>

    <div class="row clearfix">
        <div class="col-md-12 column">
            <table class="table table-hover table-striped">
                <thead>
                <tr>
                    <th>书籍编号</th>
                    <th>书籍名字</th>
                    <th>书籍数量</th>
                    <th>书籍详情</th>
                    <th>操作</th>
                </tr>
                </thead>

                <tbody>
                <c:forEach var="book" items="${requestScope.get('list')}">
                    <tr>
                        <td>${book.getBookID()}</td>
                        <td>${book.getBookName()}</td>
                        <td>${book.getBookCounts()}</td>
                        <td>${book.getDetail()}</td>
                        <td>
                            <a href="${pageContext.request.contextPath}/book/toUpdateBook?id=${book.getBookID()}">更改</a> |
                            <a href="${pageContext.request.contextPath}/book/del/${book.getBookID()}">删除</a>
                        </td>
                    </tr>
                </c:forEach>
                </tbody>
            </table>
        </div>
    </div>
</div>

8.4 upodateBook.jsp

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>修改信息</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">

    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>修改信息</small>
                </h1>
            </div>
        </div>
    </div>

    <form action="${pageContext.request.contextPath}/book/updateBook" method="post">
        <input type="hidden" name="bookID" value="${book.getBookID()}"/>
        书籍名称：<input type="text" name="bookName" value="${book.getBookName()}"/>
        书籍数量：<input type="text" name="bookCounts" value="${book.getBookCounts()}"/>
        书籍详情：<input type="text" name="detail" value="${book.getDetail() }"/>
        <input type="submit" value="提交"/>
    </form>

</div>

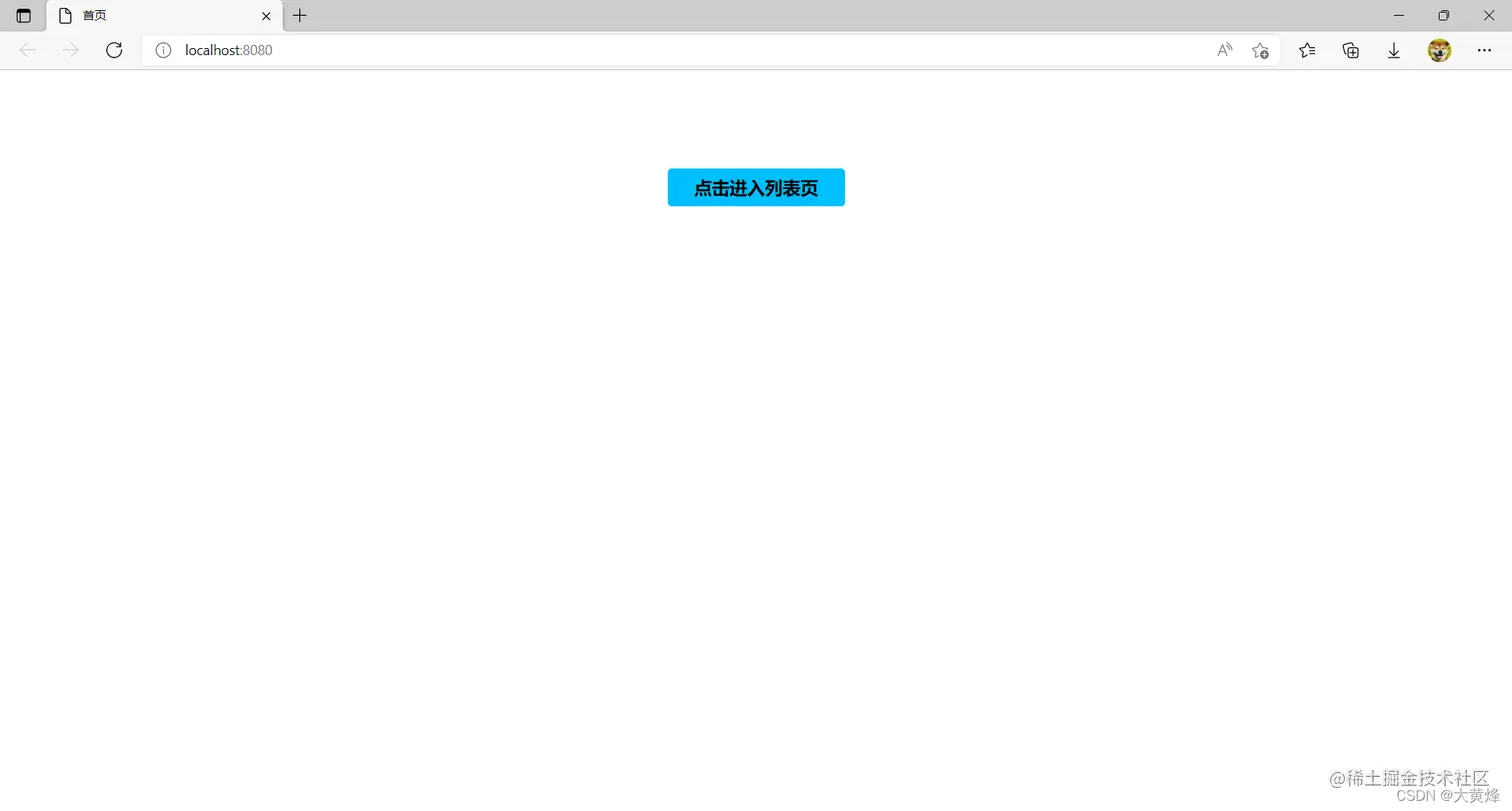

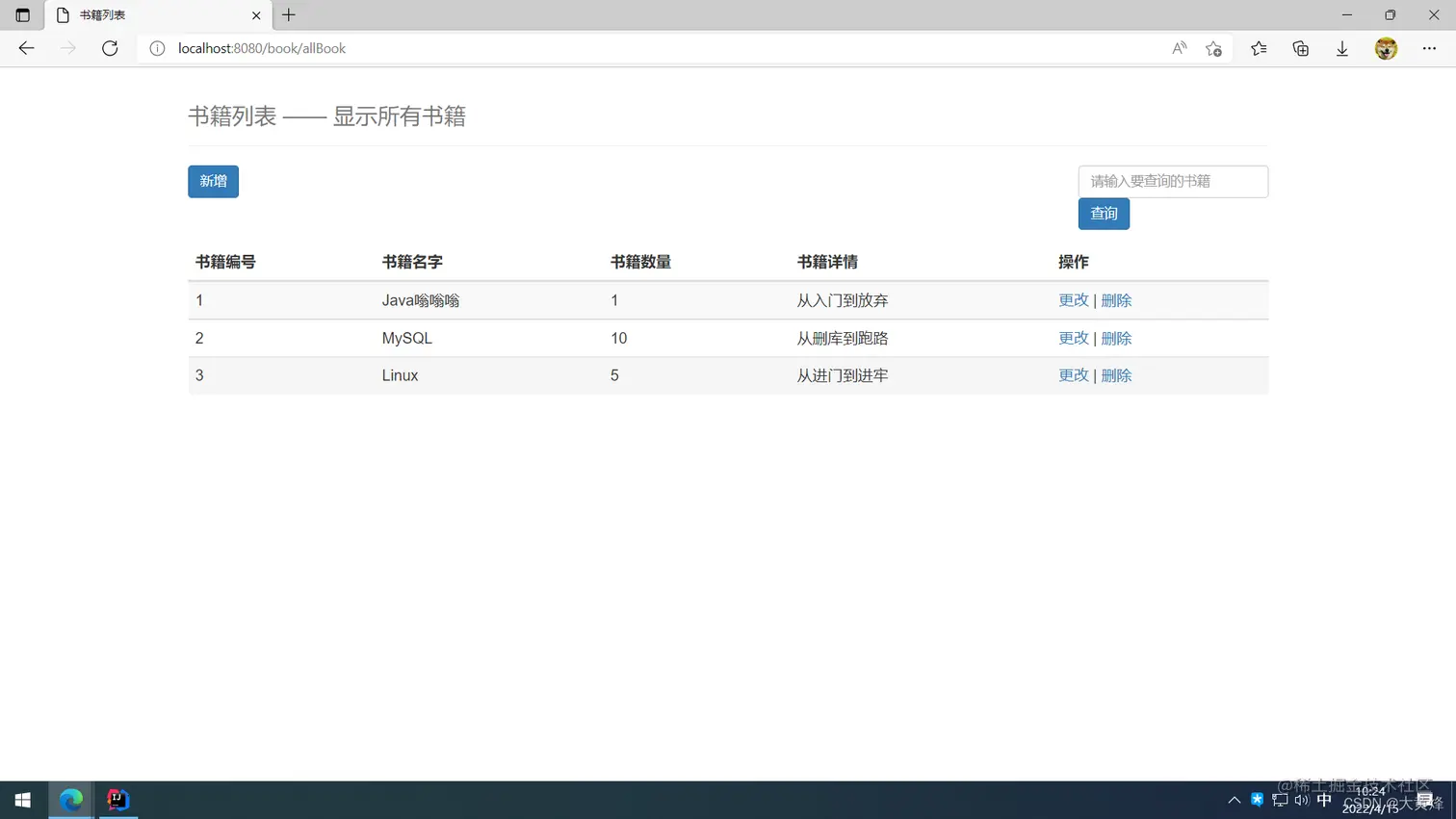

九、运行截图

在这里插入图片描述 在这里插入图片描述

十、 源码地址

gitee.com/hou156/SSM_…

avatar
文章
阅读
粉丝
