vue3项目初始化——简易版通过webpack工程化实现对vue3+typescript的项目搭建，分析@vue/cli

webpack系列，非vite系列，非官方系列此次记录主要解决的问题是：针对.vue文件解析失败本次实现的代码仓库：gitee.com/tipsyspirit…

1. 工程化基础

工程化认知框架

vue3工程化的需求：

1.整体框架 —— webpack & webpack-cli & webpack-dev-server
2.处理html，自动生成一个html5文件同时引入webpack生成的bundle文件——html-webpack-plugin
3.处理css —— style-loader & css-loader
- 3.1处理sass/scss[可选] —— sass-loader & sass
- 3.2处理less[可选] —— less-loader & less
- 3.3处理postcss[可选] —— postcss & postcss-loader
- 3.4处理stylus[可选] —— stylus-loader & stylus
4.处理文件/图片[可选] —— file-loader & url-loader
5.处理typescript 和高级js语法
- 5.1使用babel —— babel-loader & @babel/core & @babel/preset-env
  - 5.1.1通过babel处理typescript(推荐)[可选] —— @babel/preset-typescript & typescript
  - 5.1.2第三方模块导入，支持require和import —— babel-plugin-module-resolver
  - 5.1.3不通过babel处理typescript(和5.1.1互斥)[可选] —— ts-loader & typescript
6.vue模板解析 —— vue-loader

2. 环境搭建

本次实验采用的css是sass，typescript使用的是babel

2.1 安装依赖

安装整体环境： yarn add webpack webpack-cli webpack-dev-server -D
处理html：yarn add html-webpack-plugin -D
处理css：yarn add style-loader css-loader sass-loader sass -D
处理js：yarn add @babel/core @babel/preset-env babel-loader -D
处理ts：yarn add typescript @babel/preset-typescript -D
处理vue：yarn add vue-loader -D
其他基础依赖：yarn add vue

2.2 工程化配置

在根目录下新建 webpack.config.js 用于配置工程化（webpack）

const HtmlWebpackPlugin = require("html-webpack-plugin");
const path = require("path");

const { VueLoaderPlugin } = require("vue-loader")

module.exports = {
  mode: "development",
  entry: path.resolve(__dirname, "main.ts"),
  output: {
    filename: "bundle.js",
    path: path.resolve(__dirname, "dist")
  },
  resolve: {
    extensions: [".ts", ".tsx", ".js", ".vue"]
  },
  module: {
    rules: [
      {
        test: /\.(ts|js)x?$/,
        exclude: /node_modules/,
        use: {
          loader: "babel-loader",
          options: {
            presets: ['@babel/preset-env', '@babel/preset-typescript']
          }
        }
      },
      {
        test: /\.vue$/,
        use: "vue-loader"
      },
      {
        test: /\.(svg|otf|ttf|woff|woff2|eot|gif|png)$/,
        use: "url-loader"
      },
      {
        test: /\.(scss|css)$/,
        use: [
          "style-loader",
          "css-loader",
          "sass-loader"
        ]
      }
    ]
  },
  plugins: [
    new VueLoaderPlugin(),
    new HtmlWebpackPlugin({
      template: path.resolve(__dirname, "index.html")
    })
  ]
}

项目结构调整——在根目录下新增main.ts文件（js入口文件）
项目结构调整——在根目录下新增index.html文件（html容器文件）
项目结构调整——在根目录下新增dist目录（打包输出文件夹）
调整package.json——增加脚本——"dev": "webpack serve --config ./webpack.config.js
```
"scripts": {
  "dev": "webpack serve --config ./webpack.config.js"
}
```

最终的项目结构

vue3template
├─ dist    // 打包输出文件
├─ index.html  // html容器文件
├─ main.ts    // js入口文件
├─ package.json
├─ readme.md
├─ webpack.config.js // webpack配置文件
├─ yarn-error.log
└─ yarn.lock

2.3 环境测试

测试环境

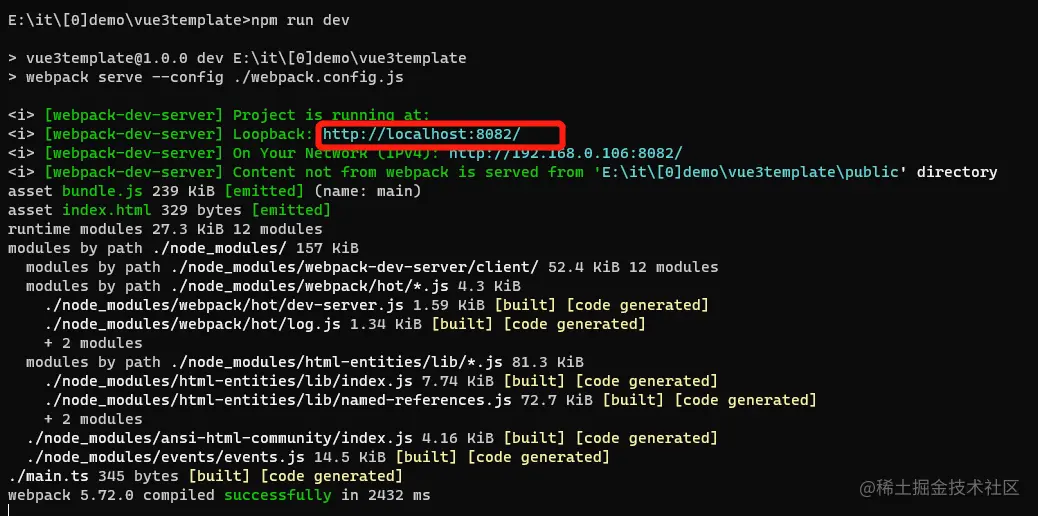

通过在根目录所在的命令行输入 npm run dev

如果命令行窗口无错误则环境正常；也可以通过浏览器验证，即输入webpack服务启动后的地址，默认是"http://localhost:8080/"

测试ts

在main.ts文件中输入测试代码
```
let str: string = "hello world";

console.log(str);
```
如果命令行窗口无错误则环境正常；也可在浏览器控制台查看结果。

测试vue功能[可选]

在main.ts文件中输入测试代码

import { createApp, h } from "vue";

let App = {
  setup() {
    return () => {
      return h("h2", {}, "hello world")
    }
  }
}
let MyApp = createApp(App)
MyApp.mount("#app");

如果命令行窗口无错误则环境正常；也可在浏览器界面查看有无显示。

测试vue文件

新建文件：src/App.vue,代码如下

<template>
  <h2>Hello world</h2>
</template>

<script lang="ts">
import { defineComponent } from "vue";

export default defineComponent({
  setup() {},
});
</script>

在main.ts文件中输入测试代码

import App from "./src/App.vue";
import { createApp, h } from "vue";

let MyApp = createApp(App)
MyApp.mount("#app");

如果命令行窗口无错误则环境正常；也可在浏览器界面查看有无显示。

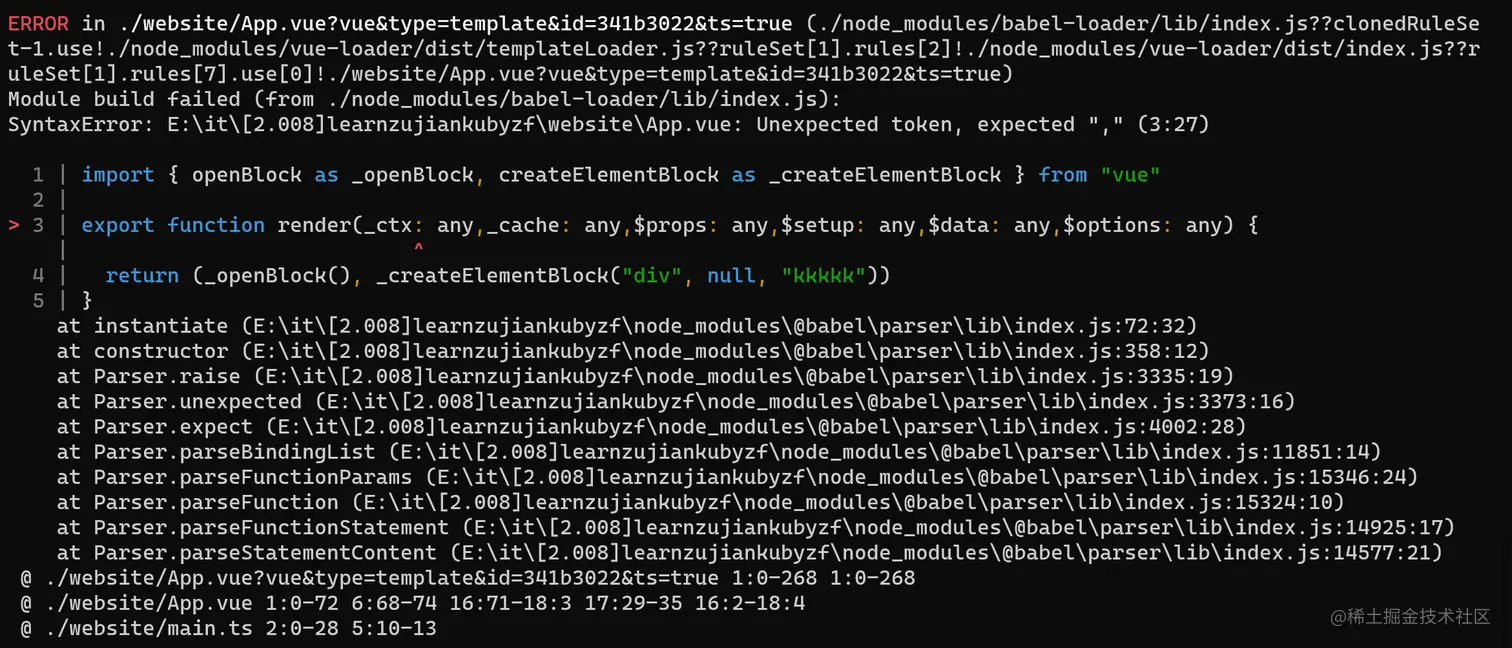

测试结果：异常

3. 分析问题

分析过程见附录1

分析结果：没有vue-template-compiler插件，以及没有对vue文件指定typescript解析

处理方法：

yarn add vue-template-compiler -D

增加typescript配置，在webpack.config.js中配置

{
  test: /\.(ts|js)x?$/,
  exclude: /node_modules/,
  use: {
    loader: "babel-loader",
    options: {
      presets: ['@babel/preset-env', [
        "@babel/preset-typescript",
        {
          "allExtensions": true
        }
  ]]
    }
  }
},

额外问题：typescript中无法加载到App.vue文件，原因是关于vue的ts类型声明文件没有

增加 shims-vue.d.ts文件

/* eslint-disable */
declare module '*.vue' {
  import type { DefineComponent } from 'vue'
  const component: DefineComponent<{}, {}, any>
  export default component
}

附录1

"@vue/cli-plugin-babel": "~5.0.0"

处理babel (5.1)

{
  "dependencies": {
    "@babel/core": "^7.12.16", // √
    "@vue/babel-preset-app": "^5.0.3",
    "@vue/cli-shared-utils": "^5.0.3",
    "babel-loader": "^8.2.2", // √
    "thread-loader": "^3.0.0",
    "webpack": "^5.54.0" // √
  },
  "devDependencies": {
    "@babel/preset-env": "^7.12.16", // √
    "jscodeshift": "^0.13.0"
  }
}

"@vue/cli-plugin-typescript": "~5.0.0"

处理typescript，采用非babel的方式(5.1,5.1.3)

{
  "dependencies": {
    "@babel/core": "^7.12.16", // √
    "@types/webpack-env": "^1.15.2",
    "@vue/cli-shared-utils": "^5.0.3",
    "babel-loader": "^8.2.2", // √
    "fork-ts-checker-webpack-plugin": "^6.4.0",
    "globby": "^11.0.2",
    "thread-loader": "^3.0.0",
    "ts-loader": "^9.2.5", // √
    "webpack": "^5.54.0", // √
    "yorkie": "^2.0.0"
  },
  "devDependencies": {
    "@types/chai": "^4.2.15",
    "@types/jest": "^27.0.1",
    "@types/mocha": "^8.2.1",
    "jscodeshift": "^0.13.0",
    "typescript": "~4.5.5", // √
    "vue-class-component": "^7.2.3",
    "vue-property-decorator": "^9.1.2"
  }
}

"@vue/cli-service": "~5.0.0"

核心处理逻辑包括html,css,js

{
  "dependencies": {
    "@babel/helper-compilation-targets": "^7.12.16",
    "@soda/friendly-errors-webpack-plugin": "^1.8.0",
    "@soda/get-current-script": "^1.0.2",
    "@types/minimist": "^1.2.0",
    "@vue/cli-overlay": "^5.0.3",
    "@vue/cli-plugin-router": "^5.0.3",
    "@vue/cli-plugin-vuex": "^5.0.3",
    "@vue/cli-shared-utils": "^5.0.3",
    "@vue/component-compiler-utils": "^3.3.0",
    "@vue/vue-loader-v15": "npm:vue-loader@^15.9.7",
    "@vue/web-component-wrapper": "^1.3.0",
    "acorn": "^8.0.5",
    "acorn-walk": "^8.0.2",
    "address": "^1.1.2",
    "autoprefixer": "^10.2.4",
    "browserslist": "^4.16.3",
    "case-sensitive-paths-webpack-plugin": "^2.3.0",
    "cli-highlight": "^2.1.10",
    "clipboardy": "^2.3.0",
    "cliui": "^7.0.4",
    "copy-webpack-plugin": "^9.0.1",
    "css-loader": "^6.5.0",  // √ css处理 —— 3
    "css-minimizer-webpack-plugin": "^3.0.2",
    "cssnano": "^5.0.0",
    "debug": "^4.1.1",
    "default-gateway": "^6.0.3",
    "dotenv": "^10.0.0",
    "dotenv-expand": "^5.1.0",
    "fs-extra": "^9.1.0",
    "globby": "^11.0.2",
    "hash-sum": "^2.0.0",
    "html-webpack-plugin": "^5.1.0", // √ html处理 —— 2
    "is-file-esm": "^1.0.0",
    "launch-editor-middleware": "^2.2.1",
    "lodash.defaultsdeep": "^4.6.1",
    "lodash.mapvalues": "^4.6.0",
    "mini-css-extract-plugin": "^2.5.3",
    "minimist": "^1.2.5",
    "module-alias": "^2.2.2",
    "portfinder": "^1.0.26",
    "postcss": "^8.2.6", // √ postcss处理 —— 3.3
    "postcss-loader": "^6.1.1", // √ postcss处理 —— 3.3
    "progress-webpack-plugin": "^1.0.12",
    "ssri": "^8.0.1",
    "terser-webpack-plugin": "^5.1.1",
    "thread-loader": "^3.0.0",
    "vue-loader": "^17.0.0", // √ vue处理 —— 6
    "vue-style-loader": "^4.1.3",
    "webpack": "^5.54.0", // √ webpack整体框架 —— 1
    "webpack-bundle-analyzer": "^4.4.0",
    "webpack-chain": "^6.5.1",
    "webpack-dev-server": "^4.7.3", // √ webpack整体框架 —— 1
    "webpack-merge": "^5.7.3",
    "webpack-virtual-modules": "^0.4.2",
    "whatwg-fetch": "^3.6.2"
  },
  "devDependencies": {
    "cache-loader": "^4.1.0",
    "sass": "^1.32.7", // √ sass处理 —— 3.1
    "sass-loader": "^12.0.0", // √ sass处理 —— 3.1
    "stylus-loader": "^6.1.0", // √ stylus处理 —— 3.4
    "vue": "^2.6.14",
    "vue-router": "^3.5.1",
    "vue-template-compiler": "^2.6.14",
    "vuex": "^3.6.2"
  }
}

"sass": "^1.32.7" —— sass处理 3.1
"sass-loader": "^12.0.0" —— sass处理 3.1
"typescript": "~4.5.5" —— typescript 5.1
