3. mysql集群复制拓扑工具--Orchestrator

面壁人Jelly
748 阅读4分钟

1. 工具简介

官方简介

Orchestrator是一款开源的MySQL复制拓扑管理工具，采用go语言编写，支持MySQL主从复制拓扑关系的调整、支持MySQL主库故障自动切换、手动主从切换等功能。

Orchestrator后台依赖于MySQL或者SQLite存储元数据，能够提供Web界面展示MySQL集群的拓扑关系及实例状态，通过Web界面可更改MySQL实例的部分配置信息，同时也提供命令行和api接口，以便更加灵活的自动化运维管理。

相比于MHA，Orchestrator更加偏重于复制拓扑关系的管理，能够实现MySQL任一复制拓扑关系的调整，并在此基础上，实现MySQL高可用，另外Orchestrator自身可以部署多个节点，通过raft分布式一致性协议，保证自身的高可用。

简而言之, Orchestrator可以帮助我们实现一下几种核心功能:

  1. 监控mysql集群状态
  2. 主库宕机后,自动选择从库提升为主库
  3. 主从切换
  4. 简易的修改mysql集群拓扑结构方式

2. 本次部署思路

  1. 使用docker-compose进行单节点部署
  2. 使用集群外的mysql数据源存储Orchestrator元数据

3. 准备工作

  1. 已完成上一篇文章中部署的一主两从集群集群
  2. 准备集群外的mysql数据库, 用以存储Orchestrator元数据

4. 部署流程

4.1 创建Orchestrator存储库及账户

在集群外的数据库创建orchestrator数据库, 并创建对应权限的账户

create user 'orchestrator'@'%' identified by '123456';
grant all privileges  on orchestrator.*  to "orchestrator"@'%';

4.2 创建集群监控账户

在主库创建用于Orchestrator监控数据库的账户, 从库会自动同步(建议权限给大一些,其他系统也可以使用该账户进行监控)

create user 'monitor'@'%' identified by '123456';
grant all privileges  on *.*  to "monitor"@'%';

4.3 docker-compose配置

docker-compose.yml

version: '3'
services:
    mysql:
        image: "orchestrator"
        container_name: orchestrator
        restart: always
        environment:
            TZ: "Asia/Shanghai"
        volumes:
            - "./conf.json:/etc/orchestrator.conf.json"
        ports:
            - "13509:3000"

4.3 Orchestrator配置文件

配置较多， 只对重点配置进行讲解，其他使用默认即可, 完整配置文件会贴在文章末尾

##orchestrator自己使用的数据库配置
"MySQLOrchestratorHost": "10.1.12.12",
"MySQLOrchestratorPort": 13306,
"MySQLOrchestratorDatabase": "orchestrator",
"MySQLOrchestratorUser": "orchestrator",
"MySQLOrchestratorPassword": "123456",

##orchestrator监控目标数据库配置
"MySQLTopologyUser": "monitor",
"MySQLTopologyPassword": "123456",

##解析相关配置, 依据部署环境修改, 此处为不解析HostName
"HostnameResolveMethod": "none",
"MySQLHostnameResolveMethod": "",

##自动恢复规则, 配置为*意思是所有集群都自动恢复
"RecoverMasterClusterFilters": [ "*" ],  "RecoverIntermediateMasterClusterFilters": [ "*" ],

4.4 运行

docker-compose up -d

观察日志无报错即可通过浏览器访问web界面,如 http://ip:port/web/clusters

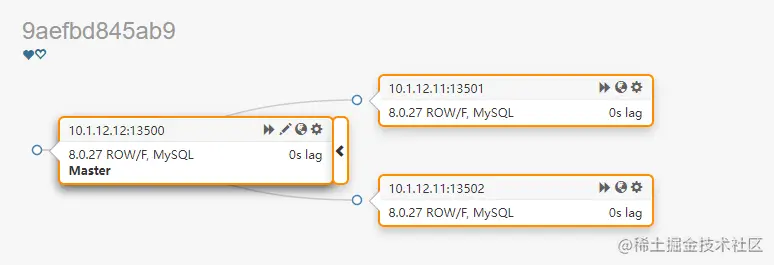

进入页面后, 选择Clusters-->Discover, 输入主库ip,port; 点击Submit即可发现主库, 从库会在获取主库信息后自动获取


5. 测试

可以测试一下场景体验Orchestrator的功能:

  1. 关闭从库1, 观察拓扑
  2. 开启从库1, 观察拓扑
  3. 关闭主库1, 观察是否提升某个从库
  4. 拖动从库, 使从库提升为主库

6. 完整Orchestrator配置

{
  "Debug": true,
  "EnableSyslog": false,
  "ListenAddress": ":3000",
  "MySQLTopologyUser": "monitor",
  "MySQLTopologyPassword": "lz8jYsH@tJXg!1Ek1d2u",
  "MySQLTopologyCredentialsConfigFile": "",
  "MySQLTopologySSLPrivateKeyFile": "",
  "MySQLTopologySSLCertFile": "",
  "MySQLTopologySSLCAFile": "",
  "MySQLTopologySSLSkipVerify": true,
  "MySQLTopologyUseMutualTLS": false,
  "MySQLOrchestratorHost": "10.1.12.12",
  "MySQLOrchestratorPort": 13306,
  "MySQLOrchestratorDatabase": "orchestrator",
  "MySQLOrchestratorUser": "orchestrator",
  "MySQLOrchestratorPassword": "123456",
  "MySQLOrchestratorCredentialsConfigFile": "",
  "MySQLOrchestratorSSLPrivateKeyFile": "",
  "MySQLOrchestratorSSLCertFile": "",
  "MySQLOrchestratorSSLCAFile": "",
  "MySQLOrchestratorSSLSkipVerify": true,
  "MySQLOrchestratorUseMutualTLS": false,
  "MySQLConnectTimeoutSeconds": 1,
  "DefaultInstancePort": 13500,
  "DiscoverByShowSlaveHosts": true,
  "InstancePollSeconds": 5,
  "DiscoveryIgnoreReplicaHostnameFilters": [
    "a_host_i_want_to_ignore[.]example[.]com",
    ".*[.]ignore_all_hosts_from_this_domain[.]example[.]com",
    "a_host_with_extra_port_i_want_to_ignore[.]example[.]com:3307"
  ],
  "UnseenInstanceForgetHours": 240,
  "SnapshotTopologiesIntervalHours": 0,
  "InstanceBulkOperationsWaitTimeoutSeconds": 10,
  "HostnameResolveMethod": "none",
  "MySQLHostnameResolveMethod": "",
  "SkipBinlogServerUnresolveCheck": true,
  "ExpiryHostnameResolvesMinutes": 60,
  "RejectHostnameResolvePattern": "",
  "ReasonableReplicationLagSeconds": 10,
  "ProblemIgnoreHostnameFilters": [],
  "VerifyReplicationFilters": false,
  "ReasonableMaintenanceReplicationLagSeconds": 20,
  "CandidateInstanceExpireMinutes": 60,
  "AuditLogFile": "",
  "AuditToSyslog": false,
  "RemoveTextFromHostnameDisplay": ".mydomain.com:3306",
  "ReadOnly": false,
  "AuthenticationMethod": "",
  "HTTPAuthUser": "",
  "HTTPAuthPassword": "",
  "AuthUserHeader": "",
  "PowerAuthUsers": [
    "*"
  ],
  "ClusterNameToAlias": {
    "127.0.0.1": "test suite"
  },
  "ReplicationLagQuery": "",
  "DetectClusterAliasQuery": "SELECT SUBSTRING_INDEX(@@hostname, '.', 1)",
  "DetectClusterDomainQuery": "",
  "DetectInstanceAliasQuery": "",
  "DetectPromotionRuleQuery": "",
  "DataCenterPattern": "[.]([^.]+)[.][^.]+[.]mydomain[.]com",
  "PhysicalEnvironmentPattern": "[.]([^.]+[.][^.]+)[.]mydomain[.]com",
  "PromotionIgnoreHostnameFilters": [],
  "DetectSemiSyncEnforcedQuery": "",
  "ServeAgentsHttp": false,
  "AgentsServerPort": ":3001",
  "AgentsUseSSL": false,
  "AgentsUseMutualTLS": false,
  "AgentSSLSkipVerify": false,
  "AgentSSLPrivateKeyFile": "",
  "AgentSSLCertFile": "",
  "AgentSSLCAFile": "",
  "AgentSSLValidOUs": [],
  "UseSSL": false,
  "UseMutualTLS": false,
  "SSLSkipVerify": false,
  "SSLPrivateKeyFile": "",
  "SSLCertFile": "",
  "SSLCAFile": "",
  "SSLValidOUs": [],
  "URLPrefix": "",
  "StatusEndpoint": "/api/status",
  "StatusSimpleHealth": true,
  "StatusOUVerify": false,
  "AgentPollMinutes": 60,
  "UnseenAgentForgetHours": 6,
  "StaleSeedFailMinutes": 60,
  "SeedAcceptableBytesDiff": 8192,
  "PseudoGTIDPattern": "",
  "PseudoGTIDPatternIsFixedSubstring": false,
  "PseudoGTIDMonotonicHint": "asc:",
  "DetectPseudoGTIDQuery": "",
  "BinlogEventsChunkSize": 10000,
  "SkipBinlogEventsContaining": [],
  "ReduceReplicationAnalysisCount": true,
  "FailureDetectionPeriodBlockMinutes": 60,
  "FailMasterPromotionOnLagMinutes": 0,
  "RecoveryPeriodBlockSeconds": 3600,
  "RecoveryIgnoreHostnameFilters": [],
  "RecoverMasterClusterFilters": [
    "*"
  ],
  "RecoverIntermediateMasterClusterFilters": [
    "*"
  ],
  "OnFailureDetectionProcesses": [
    "echo 'Detected {failureType} on {failureCluster}. Affected replicas: {countSlaves}' >> /tmp/recovery.log"
  ],
  "PreGracefulTakeoverProcesses": [
    "echo 'Planned takeover about to take place on {failureCluster}. Master will switch to read_only' >> /tmp/recovery.log"
  ],
  "PreFailoverProcesses": [
    "echo 'Will recover from {failureType} on {failureCluster}' >> /tmp/recovery.log"
  ],
  "PostFailoverProcesses": [
    "echo '(for all types) Recovered from {failureType} on {failureCluster}. Failed: {failedHost}:{failedPort}; Successor: {successorHost}:{successorPort}' >> /tmp/recovery.log"
  ],
  "PostUnsuccessfulFailoverProcesses": [],
  "PostMasterFailoverProcesses": [
    "echo 'Recovered from {failureType} on {failureCluster}. Failed: {failedHost}:{failedPort}; Promoted: {successorHost}:{successorPort}' >> /tmp/recovery.log"
  ],
  "PostIntermediateMasterFailoverProcesses": [
    "echo 'Recovered from {failureType} on {failureCluster}. Failed: {failedHost}:{failedPort}; Successor: {successorHost}:{successorPort}' >> /tmp/recovery.log"
  ],
  "PostGracefulTakeoverProcesses": [
    "echo 'Planned takeover complete' >> /tmp/recovery.log"
  ],
  "CoMasterRecoveryMustPromoteOtherCoMaster": true,
  "DetachLostSlavesAfterMasterFailover": true,
  "ApplyMySQLPromotionAfterMasterFailover": true,
  "PreventCrossDataCenterMasterFailover": false,
  "PreventCrossRegionMasterFailover": false,
  "MasterFailoverDetachReplicaMasterHost": false,
  "MasterFailoverLostInstancesDowntimeMinutes": 0,
  "PostponeReplicaRecoveryOnLagMinutes": 0,
  "OSCIgnoreHostnameFilters": [],
  "GraphiteAddr": "",
  "GraphitePath": "",
  "GraphiteConvertHostnameDotsToUnderscores": true,
  "ConsulAddress": "",
  "ConsulAclToken": "",
  "ConsulKVStoreProvider": "consul"
}
