Streaming Deduplication
介绍
在实时流式应用中，最典型的应用场景：网站UV统计。
1:实时统计网站UV，比如每日网站UV；
2:统计最近一段时间（比如一个小时）网站UV，可以设置水位Watermark；
Structured Streaming可以使用deduplication对有无Watermark的流式数据进行去重操作:
1.无 Watermark：对重复记录到达的时间没有限制。查询会保留所有的过去记录作为状态用于去重；
2.有 Watermark：对重复记录到达的时间有限制。查询会根据水印删除旧的状态数据；

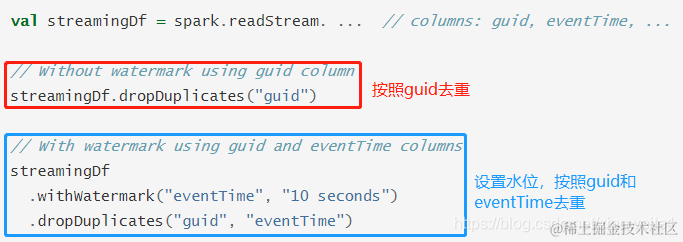

官方提供示例代码如下：
需求
对网站用户日志数据，按照userId和eventType去重统计
数据如下：
{"eventTime": "2016-01-10 10:01:50","eventType": "browse","userID":"1"}
{"eventTime": "2016-01-10 10:01:50","eventType": "click","userID":"1"}
{"eventTime": "2016-01-10 10:01:55","eventType": "browse","userID":"1"}
{"eventTime": "2016-01-10 10:01:55","eventType": "click","userID":"1"}
{"eventTime": "2016-01-10 10:01:50","eventType": "browse","userID":"1"}
{"eventTime": "2016-01-10 10:01:50","eventType": "click","userID":"1"}
{"eventTime": "2016-01-10 10:02:00","eventType": "click","userID":"1"}
{"eventTime": "2016-01-10 10:01:50","eventType": "browse","userID":"1"}
{"eventTime": "2016-01-10 10:01:50","eventType": "click","userID":"1"}
{"eventTime": "2016-01-10 10:01:51","eventType": "click","userID":"1"}
{"eventTime": "2016-01-10 10:01:50","eventType": "browse","userID":"1"}
{"eventTime": "2016-01-10 10:01:50","eventType": "click","userID":"3"}
{"eventTime": "2016-01-10 10:01:51","eventType": "click","userID":"2"}
代码演示
package cn.itcast.structedstreaming
import org.apache.commons.lang3.StringUtils
import org.apache.spark.SparkContext
import org.apache.spark.sql.streaming.{OutputMode, StreamingQuery}
import org.apache.spark.sql.{DataFrame, SparkSession}
object StructuredDeduplication {
def main(args: Array[String]): Unit = {
// 1. 构建SparkSession会话实例对象，设置属性信息
val spark: SparkSession = SparkSession.builder()
.appName(this.getClass.getSimpleName.stripSuffix("$"))
.master("local[*]")
.config("spark.sql.shuffle.partitions", "3")
.getOrCreate()
val sc: SparkContext = spark.sparkContext
sc.setLogLevel("WARN")
import org.apache.spark.sql.functions._
import spark.implicits._
// 1. 从TCP Socket 读取数据
val inputTable: DataFrame = spark.readStream
.format("socket")
.option("host", "node1")
.option("port", 9999)
.load()
// 2. 数据处理分析
val resultTable: DataFrame = inputTable
.as[String]
.filter(StringUtils.isNotBlank(_))
// 样本数据：{“eventTime”: “2016-01-10 10:01:50”,“eventType”: “browse”,“userID”:“1”}
.select(
get_json_object($"value", "$.eventTime").as("event_time"),
get_json_object($"value", "$.eventType").as("event_type"),
get_json_object($"value", "$.userID").as("user_id")
)
// 按照UserId和EventType去重
.dropDuplicates("user_id", "event_type")
.groupBy($"user_id", $"event_type")
.count()
// 3. 设置Streaming应用输出及启动
val query: StreamingQuery = resultTable.writeStream
.outputMode(OutputMode.Complete())
.format("console")
.option("numRows", "10")
.option("truncate", "false")
.start()
query.awaitTermination()
query.stop()
}
}
运行应用结果如下：
