overflow: hidden、position: relative position: absolute的嵌套使用

1,515 阅读3分钟

在我们平时写代码时会不会出现一个这样的问题,父层有设置overflow: hidden、内部元素有设置position: absolute然而却没有预期的脱离文档流显示出来,还是被溢出隐藏了,特别是在引入第三方插件时,让我深思是什么reason?


比如我们看如下代码

.container {
    width: 50%;
    height: 500px;
    margin: 100px auto;
    background-color: orange;
    overflow: hidden;
    position: relative;
}
.tips {
    color: blueviolet;
    width: calc(100% + 100px);
    position: absolute;
    top: 0;
    left: 0;
}
<div class="container">
    <div class="tips">
        我需要超出隐藏1,我需要超出隐藏2,我需要超出隐藏3,我需要超出隐藏4,我需要超出隐藏5,我需要超出隐藏6,我需要超出隐藏7,我需要超出隐藏8,我需要超出隐藏9,我需要超出隐藏10。
    </div>
</div>

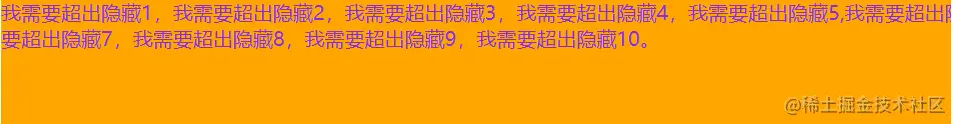

附图


此时的结果是否和你预期的一样呢!

如图所示,我们内部元素并没有全部显示,因为我们的父元素上有一个position: relative属性,他并不会脱离文档,而是占据我们原来的空间,而我们的tips子元素相对于container元素定位,此时我们的tips还在overflow: hidden的可控范围容器内。

接下来,我们再进行改造一下

.container {
    width: 50%;
    height: 100px;
    margin: 100px auto;
    background-color: orange;
    overflow: hidden;
}
.tips {
    color: blueviolet;
    width: calc(100% + 100px);
    line-height: 20px;
    position: absolute;
    top: 0;
    left: 0;
}
.relative {
    position: relative;
}
.absolute {
    position: absolute;
    width: inherit;
}
<div class="container">
    <div class="absolute">
       <div class="relative">
          <div class="tips">
            我需要超出隐藏1,我需要超出隐藏2,我需要超出隐藏3,我需要超出隐藏4,我需要超出隐藏5,我需要超出隐藏6,我需要超出隐藏7,我需要超出隐藏8,我需要超出隐藏9,我需要超出隐藏10。
          </div>
      </div>
   </div>
</div>

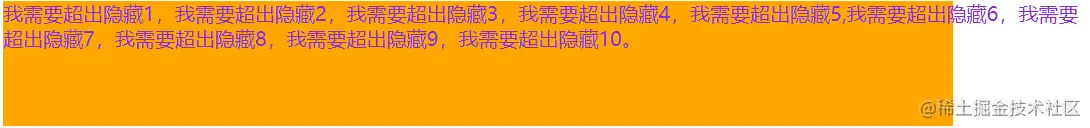

image.png 此时再看,没错,我们利用在外层重新嵌套一层position: absolute使其整体脱离文档,从而逃离了overflow: hidden

使用场景

在我们写代码时,可能会在一个盒子中会使用overflow: hidden解决margin坍塌问题,鼠标经过那个盒子某个地方显示浮层

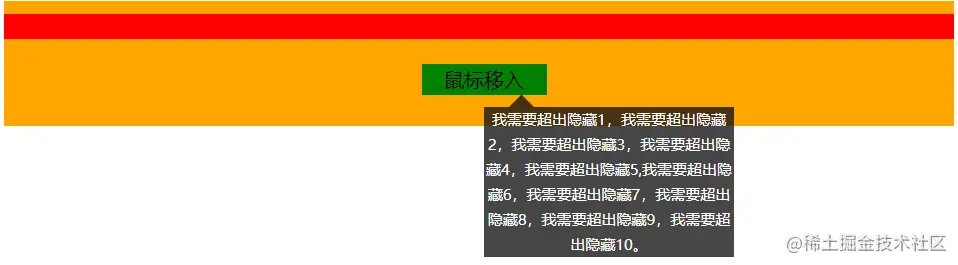

那我们再改造一下

.container {
    width: 50%;
    height: 100px;
    margin: 100px auto;
    background-color: orange;
    overflow: hidden;
}
.tips {
    color: #fff;
    font-size: 12px;
    width: 200px;
    margin: auto;
    line-height: 20px;
    position: absolute;
    top: 35px;
    left: 50px;
    background-color: rgba(24, 22, 22, .8);
    display: none;
}
.tips::before {
    content: '';
    display: inline-block;
    position: absolute;
    top: -20px;
    left: 20px;
    border-top: 10px solid transparent;
    border-bottom: 10px solid rgba(24, 22, 22, .8);
    border-left: 10px solid transparent;
    border-right:  10px solid transparent;
}
.relative {
    position: relative;
    background-color:green;
    text-align: center;
    width: 100px;
    line-height: 25px;
    margin: 20px auto 0;
    cursor: pointer;
}
.relative:hover .tips {
    display: block;
}
.absolute {
    position: absolute;
    width: inherit;
}
.content {
    width: 100%;
    height: 20px;
    background-color: red;
    margin-top: 10px;
}
<div class="container">
    <div class="content"></div>
    <div class="absolute">
        <div class="relative">
            鼠标移入
            <div class="tips">
                我需要超出隐藏1,我需要超出隐藏2,我需要超出隐藏3,我需要超出隐藏4,我需要超出隐藏5,我需要超出隐藏6,我需要超出隐藏7,我需要超出隐藏8,我需要超出隐藏9,我需要超出隐藏10。
            </div>
        </div>
    </div>
</div>


总结

  • overflow: hidden有内容溢出来,后面元素紧挨着的属性是absolute
  • overflow: hidden没有内容溢出来,在需要使用定位元素前先使用的是relative

第一次记录一下~ ~ ~
