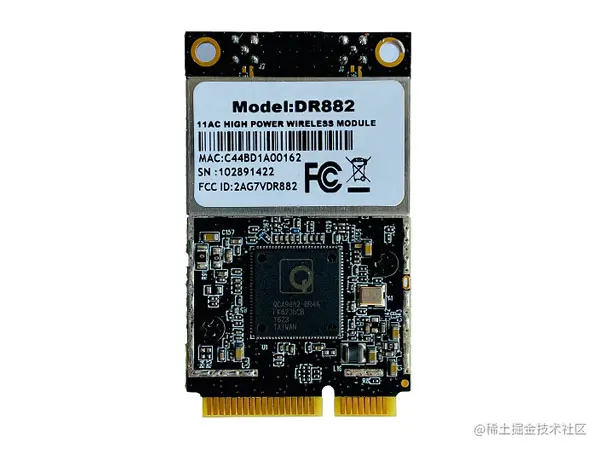

QCN9074/QCN9024/QCN9072/QCA9882/QCA9880/QCN6024/QCA9531 QCA9882 Radio card 802.11AC/AN wifi 2x 2 5G High power wallys Featuring with industrial-grade Atheros’s [QCA9882] chipset
Integrated with 2x 2 5G high power Radio Card
4.940GHz to 5.825GHz Frequency Range
2 x 5G MMCX Connectors
20MHz/40MHz/80MHz Bandwidth
Support [802. 11AC/AN]
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
-
****Absolute Maximum Rating -
\
-
Parameter**** Rating**** Unit**** Supply Voltage 3.3V(MINIPCIE) V Operating Temperature Range -40 to +60 ºC Storage Temperature Range -65 to +105 ºC Operating Humidity Range 5 to +95 (non-condensing) % Storage Humidity Range 0 to +90 (non-condensing) % -
\
-
Hardware Specifications -
\
-
Symbol**** Parameter**** CPU QCA9882 Antenna Connector 2 x 5G MMCX connectors ROHS Compliance YES Dimension 50mm x 30mm x 16mm -
\
-
****Radio TX ****Specifications -
\
-
Operating Mode Data Rate Power Tolerance 1 Chain 2 Chains 802.11a 6 Mbps 25dBm 28dbm ±2dB 54 Mbps 21dBm 24dbm ±2dB 802.11n HT20 MCS0, MCS8 25dBm 28dbm ±2dB MCS7, MCS15 20dBm 23dbm ±2dB 802.11n HT40 MCS0, MCS8 25dBm 28dbm ±2dB MCS7, MCS15 20dBm 23dbm ±2dB 802.11ac MCS0, MCS10,MCS20 25dBm 28dbm ±2dB MCS9,MCS19,MCS29 17dBm 20dbm ±2dB -
\
-
****Radio RX ****Specifications -
\
-
Operating Mode**** Data Rate**** Sensitivity**** 802.11a 6 Mbps -96dBm 54 Mbps -78dBm 802.11n HT20 MCS0, MCS8 -92dBm MCS7, MCS15 -73dBm 802.11n HT40 MCS0, MCS8 -90dBm MCS7, MCS15 -70dBm
