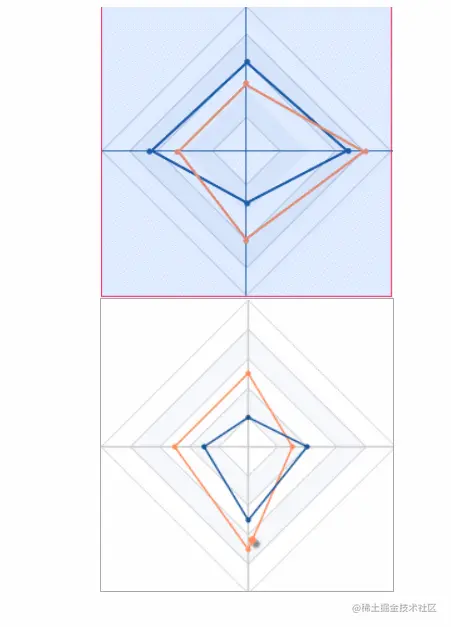

Canvas实现雷达图效果Canvas-雷达图效果.gif 代码地址：gitee.com/zyjun/design/ra


一、使用Canvas实现原理

这里最难的就是坐标系旋转后的坐标使用。其他就是利用数学公式等计算一些数据。

还有就是一步一步的调试，最终才能实现想要的效果。

如果光看已经完成的代码可能体会不到具体的逻辑关系，实现了效果后就是对代码的不断优化。

绘制图形部分代码

painting() {
    this.ctx.restore()
    this.ctx.clearRect(0, 0, this.canvasInfo.width, this.canvasInfo.height)
    this.ctx.save()
    this.ctx.translate(this.centerX, this.centerX)
    this.ctx.rotate(45 * Math.PI / 180)
    this.ctx.lineWidth = 0.7;
    this.ctx.strokeStyle = "#CACACA";
    this.strokeRect(1, 1)
    this.strokeFillRect(4 / 5, 4 / 5, "#F6F8FC")
    this.strokeFillRect(3 / 5, 3 / 5, "#FFFFFF")
    this.strokeFillRect(2 / 5, 2 / 5, "#F6F8FC")
    this.strokeFillRect(1 / 5, 1 / 5, "#FFFFFF")
    this.strokeLine(-this.outX, -this.outX, this.outX, this.outX)
    this.strokeLine(-this.outX, this.outX, this.outX, -this.outX)
    let pData = this.strokeValueLine(0.5, 0.3, 0.7, 0.5, "#FF8E5E")
    this.strokeValueLine(0.2, 0.4, 0.5, 0.3, "#195497")
    this.movePointProcess(pData)
    this.movePoint(this.curStepLine)
    return this
  }

1.将画布中心点作为坐标中心
2.将画布旋转45°
3.绘制最外面的边框
4.绘制里面的带颜色的正方形
5.绘制两个坐标轴线
6.绘制数值线圈⚪及线条
7.使用timer执行移动点逻辑

将雷达图四个点坐标转换成路径坐标

movePointProcess({p1, p2, p3, p4}) {
  let lines = [{s: p1, e: p2}, {s: p2, e: p3}, {s: p3, e: p4}, {s: p4, e: p1}]
  let linesSteps = []
  for (let i = 0; i < lines.length; i++) {
    let {s, e} = lines[i]
    let distance = this.getDistanceLine(s, e)//获取开始点和结束点的直线距离
    let stepNum = Math.floor(distance / 1)//将距离除以单步距离得到对应的总步数
    let xSpan, ySpan
    xSpan = this.getDistanceAxis(s.x, e.x) / stepNum//获取开始点和结束点在x轴上的距离-除以总步数-得到每一步对应的x轴距离
    ySpan = this.getDistanceAxis(s.y, e.y) / stepNum//获取开始点和结束点在y轴上的距离-除以总步数-得到每一步对应的y轴距离
    linesSteps.push({s, e, xSpan, ySpan, stepNum})
  }
  this.linesSteps = linesSteps
}

绘制移动的点

movePoint({s, e, xSpan, ySpan, stepNum}) {
  this.ctx.save()
  this.curStep.step += 1
  this.ctx.fillStyle = "#FF8E5E"
  this.ctx.shadowOffsetX = 3
  this.ctx.shadowOffsetY = 3
  this.ctx.shadowColor = 'rgba(100, 100, 100, 0.8)'
  this.ctx.shadowBlur = 2
  this.ctx.beginPath()

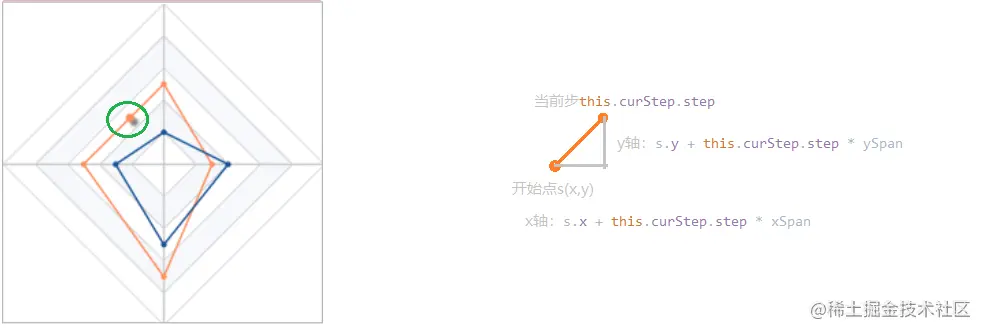

  let potX = e.x > s.x ? s.x + this.curStep.step * xSpan : s.x - this.curStep.step * xSpan
  let potY = e.y > s.y ? s.y + this.curStep.step * ySpan : s.y - this.curStep.step * ySpan
  this.ctx.arc(potX, potY, 3, 0, 2 * Math.PI)
  this.ctx.closePath();
  this.ctx.fill()
  this.ctx.restore()
}

开启定时移动逻辑

startTimer() {
  if (this.curStepLine.stepNum === 0) this.curStepLine = this.linesSteps[0]
  console.log(this.linesSteps, this.curStepLine)
  this.moveTimer = setInterval(() => {
    // debugger
    if (this.curStep.step >= this.curStepLine.stepNum) {//如果走到线条最后，开始走下一条线路
      if (this.curStep.lineIndex == 3) this.curStep.lineIndex = 0
      else this.curStep.lineIndex += 1
      this.curStep.step = 0
      this.curStepLine = this.linesSteps[this.curStep.lineIndex]
    }
    this.painting()
  }, 30)
}
