粒子系统是3D世界里最常用的系统，这里使用threejs做了一个烟雾粒子系统，源码里有详细的使用过程和说明，也可以在线实时查看动态效果，供感兴趣的小伙伴们学习和参考，有需要的可以去仓库拉源码
喜欢的同学给个星星吧 (^_−)☆
动态演示：
手机，pc浏览器访问(http://47.110.129.207/me-smart-ui/)
点击查看threejs动效部分即可
项目地址：
项目代码中有详细的使用过程和说明
https: //gitee.com/superzay/threejs-animate

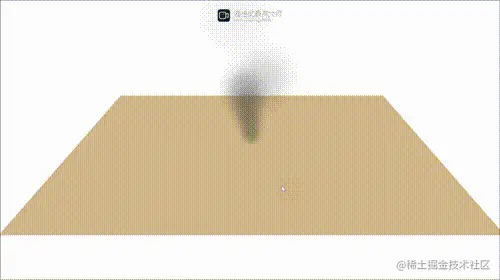

效果图
这里只贴一张静态图了，gif搞起来实在有点麻烦，上面的演示中可以看到实时动态效果
完整代码如下：
也可以去仓库拉代码，比较完整
<!DOCTYPE html>
<html>
<head>
<title>threejs</title>
<style>
body {
padding: 0;
margin: 0
}
canvas {
width: 100%;
height: 100%;
background: #fff;
}
</style>
</head>
<body>
</body>
<script type='module'>
import * as THREE from 'https://cdn.skypack.dev/three@v0.129.0';
import { OrbitControls } from 'https://cdn.skypack.dev/three@v0.129.0/examples/jsm/controls/OrbitControls.js';
// 喜欢的同学给个星星吧 (^_−)☆
(async function () {
//创建渲染器
var renderer = new THREE.WebGLRenderer();
renderer.setSize(window.innerWidth, window.innerHeight);
renderer.shadowMap.enabled = true;
renderer.setClearColor('#fff', 1);
document.body.appendChild(renderer.domElement);
//创建场景
var scene = new THREE.Scene();
//创建相机
var camera = new THREE.PerspectiveCamera(75, window.innerWidth / window.innerHeight, 0.1, 100000);
camera.position.z = 2300; //设置相机位置
camera.position.y = 2300; //设置相机位置
//camera.lookAt(new )
scene.add(camera)
// 添加点光源
let light1 = new THREE.PointLight('#fff');
light1.position.set(0, 1160, 22160);
// scene.add(light1)
// 添加环境光
let ambient = new THREE.AmbientLight('#fff', 0.5);
scene.add(ambient)
// 添加辅助线
let axisHelper = new THREE.AxisHelper(500);
scene.add(axisHelper);
// 创建控制器
let controls = new OrbitControls(camera, renderer.domElement)
// 渲染函数
function render() {
controls.update() // Update controls
// 渲染场景
renderer.render(scene, camera);
requestAnimationFrame(render)
}
requestAnimationFrame(render)// 发起渲染
// 加载纹理图
const promiseStar = new Promise((resolve, reject) => {
new THREE.TextureLoader().load("http://182.43.179.137:81/public/images/texture-smoke.png", function (texture) {
resolve(texture)
});
})
const [state, textureStar, err] = await promiseStar.then(rs => [true, rs, null], err => [false, null, err])
if (!state) return
// 先创建一个空的缓冲几何体
const geometry = new THREE.BufferGeometry();
geometry.setAttribute('position', new THREE.BufferAttribute(new Float32Array([]), 3)); // 一个顶点由3个坐标构成
geometry.setAttribute('a_opacity', new THREE.BufferAttribute(new Float32Array([]), 1)); // 点的透明度，用1个浮点数表示
geometry.setAttribute('a_size', new THREE.BufferAttribute(new Float32Array([]), 1)); // 点的初始大小，用1个浮点数表示
geometry.setAttribute('a_scale', new THREE.BufferAttribute(new Float32Array([]), 1)); // 点的放大量，用1个浮点数表示
// 创建材质
const material = new THREE.PointsMaterial({
color: '#666',
map: textureStar, // 纹理图
transparent: true,// 开启透明度
depthWrite: false, // 禁止深度写入
});
// 修正着色器
material.onBeforeCompile = function (shader) {
const vertexShader_attribute = `
attribute float a_opacity;
attribute float a_size;
attribute float a_scale;
varying float v_opacity;
void main() {
v_opacity = a_opacity;
`
const vertexShader_size = `
gl_PointSize = a_size * a_scale;
`
shader.vertexShader = shader.vertexShader.replace('void main() {', vertexShader_attribute)
shader.vertexShader = shader.vertexShader.replace('gl_PointSize = size;', vertexShader_size)
const fragmentShader_varying = `
varying float v_opacity;
void main() {
`
const fragmentShader_opacity = `
gl_FragColor = vec4( outgoingLight, diffuseColor.a * v_opacity );
`
shader.fragmentShader = shader.fragmentShader.replace('void main() {', fragmentShader_varying)
shader.fragmentShader = shader.fragmentShader.replace('gl_FragColor = vec4( outgoingLight, diffuseColor.a );', fragmentShader_opacity)
}
// 创建点，并添加进场景
const points = new THREE.Points(geometry, material);
scene.add(points);
// 同时在场景中添加一个平面，做参考面
const planeGeometry = new THREE.PlaneGeometry(6000, 3000)
const planeMaterial = new THREE.MeshBasicMaterial({
color: '#D2B48C',
side: THREE.DoubleSide
})
const plane = new THREE.Mesh(planeGeometry, planeMaterial)
plane.rotateX(Math.PI / 180 * -90)
scene.add(plane) // 添加平面
// 定义Partical类
class Partical {
constructor(range = 10, center = { x: 0, y: 0, z: 0 }) {
this.range = range; // 粒子的分布半径
this.center = center // 粒子的分布中心
this.life = 5000; // 粒子的存活时间，毫秒
this.createTime = Date.now(); // 粒子创建时间
this.updateTime = Date.now(); // 上次更新时间
this.size = 500 // 粒子大小
// 粒子透明度，及系数
this.opacityFactor = 0.4
this.opacity = 1 * this.opacityFactor
// 粒子放大量，及放大系数
this.scaleFactor = 2
this.scale = 1 + this.scaleFactor * (this.updateTime - this.createTime) / this.life // 初始1，到达生命周期时为3
// 粒子位置
this.position = {
x: Math.random() * 2 * this.range + this.center.x - this.range,
y: this.center.y,
z: Math.random() * 2 * this.range + this.center.z - this.range,
}
// 水平方向的扩散
let speedAround = Math.random() * 40
if (speedAround < 20) speedAround -= 50
if (speedAround > 20) speedAround += 10
// 粒子的扩散速度
this.speed = {
x: speedAround,
y: Math.random() * 100 + 300,
z: speedAround,
}
}
// 更新粒子
update() {
const now = Date.now()
const time = now - this.updateTime
// 更新位置
this.position.x += this.speed.x * time / 1000
this.position.y += this.speed.y * time / 1000
this.position.z += this.speed.z * time / 1000
// 计算粒子透明度
this.opacity = 1 - (now - this.createTime) / this.life
this.opacity *= this.opacityFactor
if (this.opacity < 0) this.opacity = 0
// 计算放大量
this.scale = 1 + this.scaleFactor * (now - this.createTime) / this.life
if (this.scale > 1 + this.scaleFactor) this.scale = 1 + this.scaleFactor
// 重置更新时间
this.updateTime = now
}
}
// 创建粒子
let particals = []
setInterval(() => {
particals.push(new Partical(10, { x: 0, y: 100, z: 0 }))
}, 500)
//particals.push(new Partical(10, { x: 0, y: 100, z: 0 }))
// 校验粒子，并更新粒子位置等数据
setInterval(() => {
particals = particals.filter(partical => {
partical.update()
if (partical.updateTime - partical.createTime > partical.life) {
return false
} else {
return true
}
})
if (!particals.length) return
// 遍历粒子,收集属性
const positionList = []
const opacityList = []
const scaleList = []
const sizeList = []
particals.forEach(partical => {
const { x, y, z } = partical.position
positionList.push(x, y, z)
opacityList.push(partical.opacity)
scaleList.push(partical.scale)
sizeList.push(partical.size)
})
// 粒子属性写入
geometry.setAttribute('position', new THREE.BufferAttribute(new Float32Array(positionList), 3));
geometry.setAttribute('a_opacity', new THREE.BufferAttribute(new Float32Array(opacityList), 1));
geometry.setAttribute('a_scale', new THREE.BufferAttribute(new Float32Array(scaleList), 1));
geometry.setAttribute('a_size', new THREE.BufferAttribute(new Float32Array(sizeList), 1));
}, 20)
})()
</script>
</html>
