粒子系统是3D世界里最常用的系统，这里使用threejs做了一个星空的粒子系统，源码里有详细的使用过程和说明，也可以在线实时查看动态效果，供感兴趣的小伙伴们学习和参考，有需要的可以去仓库拉源码
喜欢的同学给个星星吧 (^_−)☆
动态演示：
手机，pc浏览器访问(http://47.110.129.207/me-smart-ui/)
点击查看threejs动效部分即可
项目地址：
项目代码中有详细的使用过程和说明
https: //gitee.com/superzay/threejs-animate

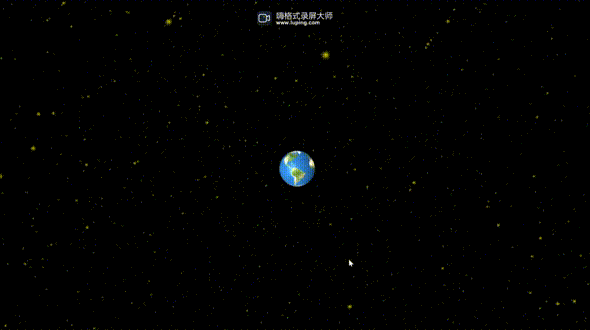

效果图
这里只贴一张静态图了，gif搞起来实在有点麻烦，上面的演示中可以看到实时动态效果
完整代码如下：
也可以去仓库拉代码，比较完整
<!DOCTYPE html>
<html>
<head>
<title>threejs</title>
<style>
body {
padding: 0;
margin: 0
}
canvas {
width: 100%;
height: 100%;
background: #fff;
}
</style>
</head>
<body>
</body>
<script type='module'>
import * as THREE from 'https://cdn.skypack.dev/three@v0.129.0';
import { OrbitControls } from 'https://cdn.skypack.dev/three@v0.129.0/examples/jsm/controls/OrbitControls.js';
// 喜欢的同学给个星星吧 (^_−)☆
(async function () {
//创建渲染器
var renderer = new THREE.WebGLRenderer();
renderer.setSize(window.innerWidth, window.innerHeight);
renderer.shadowMap.enabled = true;
renderer.setClearColor('#000', 1);
document.body.appendChild(renderer.domElement);
//创建场景
var scene = new THREE.Scene();
//创建相机
var camera = new THREE.PerspectiveCamera(75, window.innerWidth / window.innerHeight, 0.1, 100000);
camera.position.z = 1000; //设置相机位置
//camera.lookAt(new )
scene.add(camera)
// 添加点光源
let light1 = new THREE.PointLight('#fff');
light1.position.set(0, 1160, 22160);
// scene.add(light1)
// 添加环境光
let ambient = new THREE.AmbientLight('#fff', 1);
scene.add(ambient)
// 添加辅助线
let axisHelper = new THREE.AxisHelper(500);
//scene.add(axisHelper);
// 创建控制器
let controls = new OrbitControls(camera, renderer.domElement)
//渲染函数
function render() {
controls.update() // Update controls
//渲染场景
renderer.render(scene, camera);
requestAnimationFrame(render)
}
//发起渲染
requestAnimationFrame(render)
// 加载纹理图
const promiseStar = new Promise((resolve, reject) => {
new THREE.TextureLoader().load("http://182.43.179.137:81/public/images/texture-smoke.png", function (texture) {
resolve(texture)
});
})
const promiseEarth = new Promise((resolve, reject) => {
new THREE.TextureLoader().load("http://182.43.179.137:81/public/images/texture-earth.png", function (texture) {
resolve(texture)
});
})
const [state, [textureStar, textureEarth], err] = await Promise.all([promiseStar, promiseEarth]).then(rs => [true, rs, null], err => [false, null, err])
if (!state) return
// 定义Point类
class Point {
constructor() {
this.range = 3000; // 分布半径
this.center = { // 分布中心
x: 0,
y: 0,
z: 0,
}
this.position = { // 粒子位置
x: Math.random() * 2 * this.range + this.center.x - this.range,
y: Math.random() * 2 * this.range + this.center.y - this.range,
z: Math.random() * 2 * this.range + this.center.z - this.range
};
this.speed = { // 粒子移动速度
x: Math.random() * 10 - 5,
y: Math.random() * 10 - 5,
z: Math.random() * 10 - 5,
}
this.color = '#aaa';// 粒子颜色
this.createTime = Date.now(); // 粒子创建时间
this.updateTime = Date.now(); // 上次更新时间
}
// 更新粒子位置
updatePosition() {
const time = Date.now() - this.updateTime
this.updateTime = Date.now()
this.position.x += this.speed.x * time / 1000
this.position.y += this.speed.y * time / 1000
this.position.z += this.speed.z * time / 1000
}
}
// 批量创建粒子
const vertices = []
for (let i = 0; i < (window.innerWidth >1200 ? 10000 : 2000); i++) {
vertices.push(new Point())
}
// 先创建一个空的缓冲几何体
const geometry = new THREE.BufferGeometry();
geometry.setAttribute('position', new THREE.BufferAttribute(new Float32Array([]), 3)); // 一个顶点由3个坐标构成
// 创建材质
const material = new THREE.PointsMaterial({
color: '#ffff00',
size: 15,
map: textureStar, // 纹理图
transparent: true,// 开启透明度
depthWrite: false,
});
// 创建点，并添加进场景
const points = new THREE.Points(geometry, material);
scene.add(points);
// 不间断更新粒子位置
setInterval(() => {
const list = []
vertices.forEach(point => {
point.updatePosition()
const { x, y, z } = point.position
list.push(x, y, z)
})
// 粒子位置更新入几何体
geometry.setAttribute('position', new THREE.BufferAttribute(new Float32Array(list), 3));
}, 50)
// 地球
const earthGeometry = new THREE.SphereGeometry(80, 100, 100)
const earthMaterial = new THREE.MeshPhongMaterial({
map: textureEarth
})
const earth = new THREE.Mesh(earthGeometry, earthMaterial)
scene.add(earth)
})()
</script>
</html>
