IPQ4019/IPQ4029 5G-4G-LTE OpenWrt 2.4/5G dual bands QSDK-firmware Description

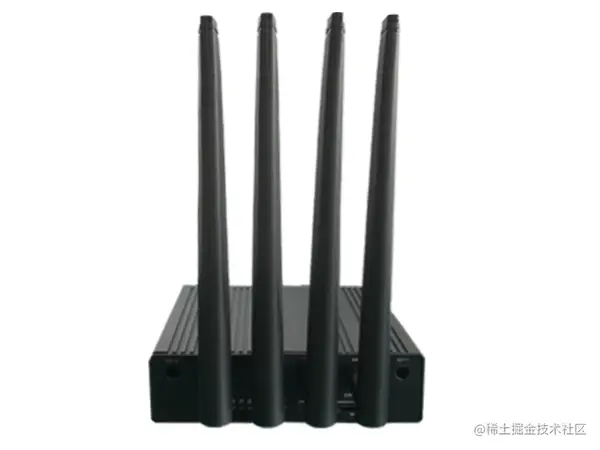

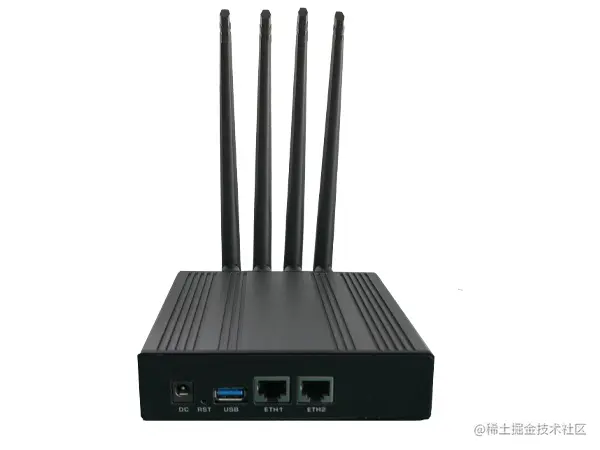

DR-AP40X9-A is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR40X9(IPQ4019/IPQ4029) Board;2 x 2.4G&5G dipole Antennas; 1 x PSU(DC power or PoE);
1 x Enclosure.
****Dipole antenna
■ 2 x 2.4G&5G Antenna
■ 5dBi 2.4GHz/5Ghz
■ SMA Plug interface
■ Plastic rod of black
■ RoHS compliance
Enclosure
■ Dimension: 132x 119 x 34 mm
■ Aluminum alloy material
■ Support Wallys[DR40X9
-
Absolute Maximum Rating -
\
-
Parameter**** Rating**** Unit**** Supply Voltage 24V~48 V Operating Temperature Range -40 to +70 ºC Storage Temperature Range -45 to +105 ºC Operating Humidity Range 5 to +95 (non-condensing) % Storage Humidity Range 0 to +90 (non-condensing) % -
\
-
****Hardware Specifications -
\
-
Symbol**** Parameter**** CPU [IPQ4029/IPQ4019]（Quad core ARM Cortex A7 at 716.8 MHz） Antenna Connector 2 x 5G MMCX connectors;2x2.4G MMCX 10/100/1000Mbps Gigabit Ethernet ****2xRJ45 SFP connector 1xSFP fiber module connector (optional) 3G/4G connector 1xminipcie 3G/4G connector support with two sim card USB connector 1xUSB 3.0 connector POE 24V~48V passive POE DC Jack 24V~48V power supply ROHS Compliance YES Dimension 115mm x 105mm x 16mm Max Power 48.1V x 0.180A= 8.658W Nor Flash 2MB~32MB Nand Flash 128MB DDR 256MB~512MB -
\
-
****Radio TX Specifications(5180MHz-5825MHz) -
\
-
Operating Mode Data Rate Power Tolerance 1 Chain**** 2 Chains**** 802.11a 6 Mbps 27dBm 30dbm ±2dB 54 Mbps 23dBm 26dbm ±2dB 802.11n HT20 MCS0, MCS8 26dBm 29dbm ±2dB MCS7, MCS15 22dBm 25dbm ±2dB 802.11n HT40 MCS0, MCS8 25dBm 28dbm ±2dB MCS7, MCS15 21dBm 24dbm ±2dB 802.11ac MCS0, MCS10,MCS20 25dBm 28dbm ±2dB MCS9,MCS19,MCS29 19dBm 22dbm ±2dB -
\
-
****Radio RX Specifications(5180MHz-5825MHz) -
\
-
Operating Mode**** Data Rate Sensitivity 802.11a 6 Mbps -96dBm 54 Mbps -78dBm 802.11n HT20 MCS0, MCS8 -93dBm MCS7, MCS15 -73dBm 802.11n HT40 MCS0, MCS8 -90dBm MCS7, MCS15 -70dBm 802.11AC HT40 MCS0, MCS10,MCS20 -90dBm MCS9,MCS19,MCS29 -67dBm 802.11AC HT80 MCS0, MCS10,MCS20 -88dBm MCS9,MCS19,MCS29 -62dBm
- \
