kubernetes简介

Kubernetes 是一个可移植的、可扩展的开源平台，用于管理容器化的工作负载和服务，可促进声明式配置和自动化。 Kubernetes 拥有一个庞大且快速增长的生态系统。Kubernetes 的服务、支持和工具广泛可用。 Kubernetes 为你提供：

  • 服务发现和负载均衡 Kubernetes 可以使用 DNS 名称或自己的 IP 地址公开容器，如果进入容器的流量很大， Kubernetes 可以负载均衡并分配网络流量，从而使部署稳定。
  • 存储编排 Kubernetes 允许你自动挂载你选择的存储系统，例如本地存储、公共云提供商等。
  • 自动部署和回滚 你可以使用 Kubernetes 描述已部署容器的所需状态，它可以以受控的速率将实际状态 更改为期望状态。例如，你可以自动化 Kubernetes 来为你的部署创建新容器， 删除现有容器并将它们的所有资源用于新容器。
  • 自动完成装箱计算 Kubernetes 允许你指定每个容器所需 CPU 和内存（RAM）。 当容器指定了资源请求时，Kubernetes 可以做出更好的决策来管理容器的资源。
  • 自我修复 Kubernetes 重新启动失败的容器、替换容器、杀死不响应用户定义的 运行状况检查的容器，并且在准备好服务之前不将其通告给客户端。
  • 密钥与配置管理 Kubernetes 允许你存储和管理敏感信息，例如密码、OAuth 令牌和 ssh 密钥。 你可以在不重建容器镜像的情况下部署和更新密钥和应用程序配置，也无需在堆栈配置中暴露密钥。

镜像准备

请查看jib打包spring boot项目生成docker镜像，运行一下命令会自动打包镜像

gradle jibDockerBuild

镜像列表

docker images
REPOSITORY                                                 TAG         IMAGE ID       CREATED             SIZE
registry.cn-hangzhou.aliyuncs.com/f-boot/message-service   1.0.0       25ffab8435a9   About an hour ago   310MB
registry.cn-hangzhou.aliyuncs.com/f-boot/message-service   latest      25ffab8435a9   About an hour ago   310MB
registry.cn-hangzhou.aliyuncs.com/f-boot/sys-service       1.0.0       4a7d54e1d122   About an hour ago   330MB
registry.cn-hangzhou.aliyuncs.com/f-boot/sys-service       latest      4a7d54e1d122   About an hour ago   330MB
registry.cn-hangzhou.aliyuncs.com/f-boot/file-service      1.0.0       0df8ce1486c1   About an hour ago   314MB
registry.cn-hangzhou.aliyuncs.com/f-boot/file-service      latest      0df8ce1486c1   About an hour ago   314MB
registry.cn-hangzhou.aliyuncs.com/f-boot/gateway           1.0.0       bffc69dc5bcc   About an hour ago   320MB
registry.cn-hangzhou.aliyuncs.com/f-boot/gateway           latest      bffc69dc5bcc   About an hour ago   320MB

gateway是网关服务需要暴露外网访问，file、sys、message是具体的微服务

部署中间件

  • nacos.yaml
---
apiVersion: v1
kind: Service
metadata:
  name: nacos
  namespace: feng
  labels:
    app: nacos
spec:
  selector:
    app: nacos
  type: NodePort
  ports:
    - name: http
      protocol: TCP
      port: 8848
      targetPort: 8848
      nodePort: 30848
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nacos
  namespace: feng
  labels:
    app: nacos
spec:
  selector:
    matchLabels:
      app: nacos
  revisionHistoryLimit: 5
  replicas: 1
  progressDeadlineSeconds: 60
  template:
    metadata:
      labels:
        app: nacos
    spec:
      terminationGracePeriodSeconds: 5
      containers:
        - name: nacos
          image: nacos/nacos-server:v2.0.4
          imagePullPolicy: IfNotPresent
          ports:
            - name: nacos
              containerPort: 8848
              protocol: TCP
          resources:
            limits:
              memory: 1Gi
              cpu: 500m
          envFrom:
            - configMapRef:
                name: nacos-server-env
            - secretRef:
                name: nacos-server-secret

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: nacos-server-env
  namespace: feng
data:
  # 类属性键；每一个键都映射到一个简单的值
  MODE: standalone
  SPRING_DATASOURCE_PLATFORM: mysql
  MYSQL_SERVICE_HOST: 192.168.137.1
  # 数字要用双引号
  MYSQL_SERVICE_PORT: "13306"
  MYSQL_SERVICE_DB_NAME: nacos
  MYSQL_SERVICE_DB_PARAM: characterEncoding=utf8&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=Asia/Shanghai&allowPublicKeyRetrieval=true
  JVM_XMS: 512m
  JVM_XMX: 512m
  JVM_XMN: 128m
  JVM_MS: 128m
  JVM_MMS: 128m
  # bool要用双引号
  NACOS_AUTH_CACHE_ENABLE: "true"

immutable: true

---
apiVersion: v1
kind: Secret
metadata:
  name: nacos-server-secret
  namespace: feng
type: Opaque
data:
  # echo -n 'nacos' | base64
  MYSQL_SERVICE_USER: bmFjb3M=
  MYSQL_SERVICE_PASSWORD: bmFjb3M=
  • redis.yaml
---
# 外网访问
apiVersion: v1
kind: Service
metadata:
  name: redis-node
  namespace: feng
  labels:
    app: redis
spec:
  selector:
    app: redis
  type: NodePort
  ports:
    - name: node
      protocol: TCP
      port: 6379
      targetPort: 6379
      nodePort: 30379
---
#内部无头服务
apiVersion: v1
kind: Service
metadata:
  name: redis
  namespace: feng
  labels:
    app: redis
spec:
  selector:
    app: redis
  clusterIP: None
  ports:
    - name: redis
      protocol: TCP
      port: 6379
      targetPort: 6379
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: redis
  namespace: feng
  labels:
    app: redis
spec:
  selector:
    matchLabels:
      app: redis
  revisionHistoryLimit: 5
  updateStrategy:
    type: RollingUpdate
  podManagementPolicy: OrderedReady
  serviceName: redis
  replicas: 1
  template:
    metadata:
      labels:
        app: redis
    spec:
      terminationGracePeriodSeconds: 10
      containers:
        - name: redis
          image: redis:6.2.6
          imagePullPolicy: IfNotPresent
          ports:
            - name: redis
              containerPort: 6379
              protocol: TCP
          command:
            - redis-server
            - "/redis/redis.conf"
          resources:
            limits:
              memory: 128Mi
              cpu: 500m
          volumeMounts:
            - name: redis-data
              mountPath: /data
            - name: config
              mountPath: /redis
      volumes:
        - name: config
          configMap:
            name: redis-conf
            items:
              - key: redis-conf
                path: redis.conf
  volumeClaimTemplates:
  - metadata:
      name: redis-data
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: nfs-storage
      resources:
        requests:
          storage: 1Gi

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: redis-conf
  namespace: feng
data:
  redis-conf: |
    protected-mode no
    maxmemory-policy allkeys-lru
    save 3600 1
    save 300 100
    save 60 10000
    requirepass 9RhbxfQaHo8cs2gE
    maxmemory 64mb
    maxmemory-policy volatile-lru
    appendonly yes

configMap、Secret

---
apiVersion: v1
kind: Secret
metadata:
  name: nacos
  namespace: feng
type: Opaque
data:
  # echo -n 'nacos' | base64
  username: bmFjb3M=
  password: bmFjb3M=
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: nacos
  namespace: feng
data:
  # 类属性键；每一个键都映射到一个简单的值
  serverAddr: nacos:8848
  namespace: pro
  group: f

immutable: true

网关gateway

这里使用NodePort，也可以使用ingress-nginx

---
apiVersion: v1
kind: Service
metadata:
  name: gateway
  namespace: feng
  labels:
    app: gateway
spec:
  type: NodePort
  selector:
    app: gateway
  ports:
    - name: http
      protocol: TCP
      # 默认情况下，为了方便起见，`targetPort` 被设置为与 `port` 字段相同的值。
      port: 8000
      targetPort: 8000
      # 默认情况下，为了方便起见，Kubernetes 控制平面会从某个范围内分配一个端口号（默认：30000-32767）
      nodePort: 30800
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: gateway
  namespace: feng
  labels:
    app: gateway
spec:
  selector:
    matchLabels:
      app: gateway
  # deploy 升级最大记录数由 revisionHistoryLimit 定义，默认值为 10。
  revisionHistoryLimit: 10
  replicas: 1
  # deploy 升级过程中的最大时间由 progressDeadlineSeconds 来定义。
  # 如果升级过程被暂停了，该时间也会同步暂停，时间不会一直增长。
  progressDeadlineSeconds: 300
  strategy:
    type: RollingUpdate
    rollingUpdate:
      # 和期望ready的副本数比，不可用副本数最大比例（或最大值），这个值越小，越能保证服务稳定，更新越平滑；
      maxUnavailable: 0
      # 和期望ready的副本数比，超过期望副本数最大比例（或最大值），这个值调的越大，副本更新速度越快。
      maxSurge: 1
  template:
    metadata:
      labels:
        app: gateway
    spec:
      # 可以定义优雅关闭的宽限期，即在收到停止请求后，
      # 有多少时间来进行资源释放或者做其它操作，如果到了最大时间还没有停止，会被强制结束。
      terminationGracePeriodSeconds: 30
      containers:
        - name: gateway
          image: registry.cn-hangzhou.aliyuncs.com/f-boot/gateway:1.0.0
          imagePullPolicy: IfNotPresent
          ports:
            - name: gateway
              containerPort: 8000
              protocol: TCP
          resources:
            limits:
              memory: 1024Mi
              cpu: '1'
          envFrom:
            - configMapRef:
                name: boot-env
            - secretRef:
                name: boot-secret
          volumeMounts:
            - name: gateway-log
              mountPath: /logs
            - name: datetime
              mountPath: /etc/localtime
              readOnly: true
      volumes:
        - name: gateway-log
          persistentVolumeClaim:
            claimName: gateway-log
        - name: datetime
          hostPath:
            path: /etc/localtime
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: gateway-log
  namespace: feng
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi
  storageClassName: nfs-storage

系统服务（其它服务都是差不多）

---
apiVersion: v1
kind: Service
metadata:
  name: sys
  namespace: feng
  labels:
    app: sys
spec:
  selector:
    app: sys
  ports:
    - name: http
      protocol: TCP
      port: 18080
      targetPort: 18080
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: sys
  namespace: feng
  labels:
    app: sys
spec:
  selector:
    matchLabels:
      app: sys
  revisionHistoryLimit: 10
  replicas: 1
  progressDeadlineSeconds: 300
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
      maxSurge: 1
  template:
    metadata:
      labels:
        app: sys
    spec:
      terminationGracePeriodSeconds: 30
      containers:
        - name: sys
          image: registry.cn-hangzhou.aliyuncs.com/f-boot/sys-service:1.0.0
          imagePullPolicy: IfNotPresent
          ports:
            - name: sys
              containerPort: 18080
              protocol: TCP
          resources:
            limits:
              memory: 1024Mi
              cpu: '1'
          env:
            - name: PROFILE
              value: pro
            # 指定时区
            - name: TZ
              value: Asia/Shanghai
            - name: NACOS_USERNAME
              valueFrom:
                secretKeyRef:
                  name: nacos
                  key: username
            - name: NACOS_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: nacos
                  key: password
            - name: NACOS_SERVER_ADDR
              valueFrom:
                configMapKeyRef:
                  name: nacos
                  key: serverAddr
            - name: NACOS_NAMESPACE
              valueFrom:
                configMapKeyRef:
                  name: nacos
                  key: namespace
            - name: NACOS_GROUP
              valueFrom:
                configMapKeyRef:
                  name: nacos
                  key: group
          volumeMounts:
            - name: sys-log
              mountPath: /logs
            - name: datetime
              mountPath: /etc/localtime
              readOnly: true
      volumes:
        - name: sys-log
          persistentVolumeClaim:
            claimName: sys-log
        - name: datetime
          hostPath:
            path: /etc/localtime

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: sys-log
  namespace: feng
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
  storageClassName: nfs-storage

部署结果

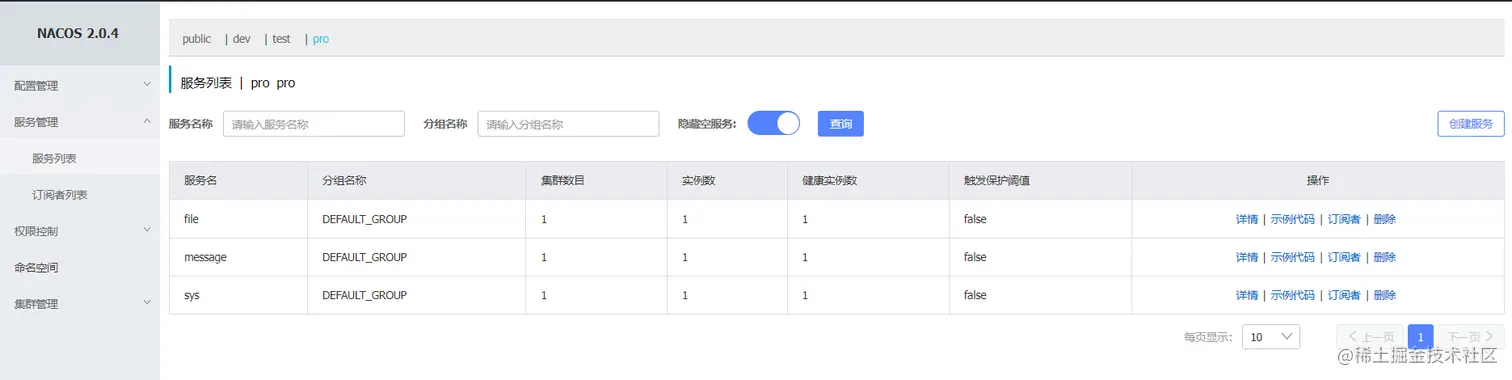

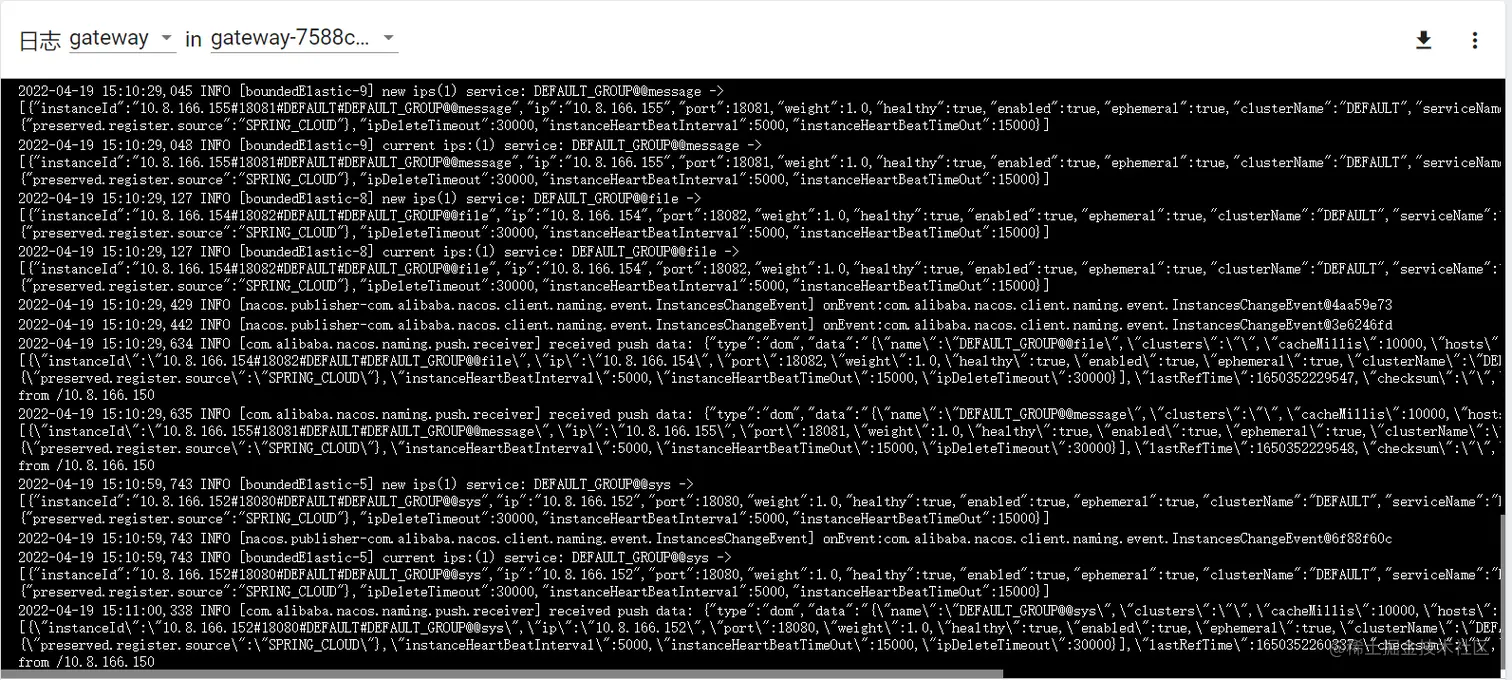

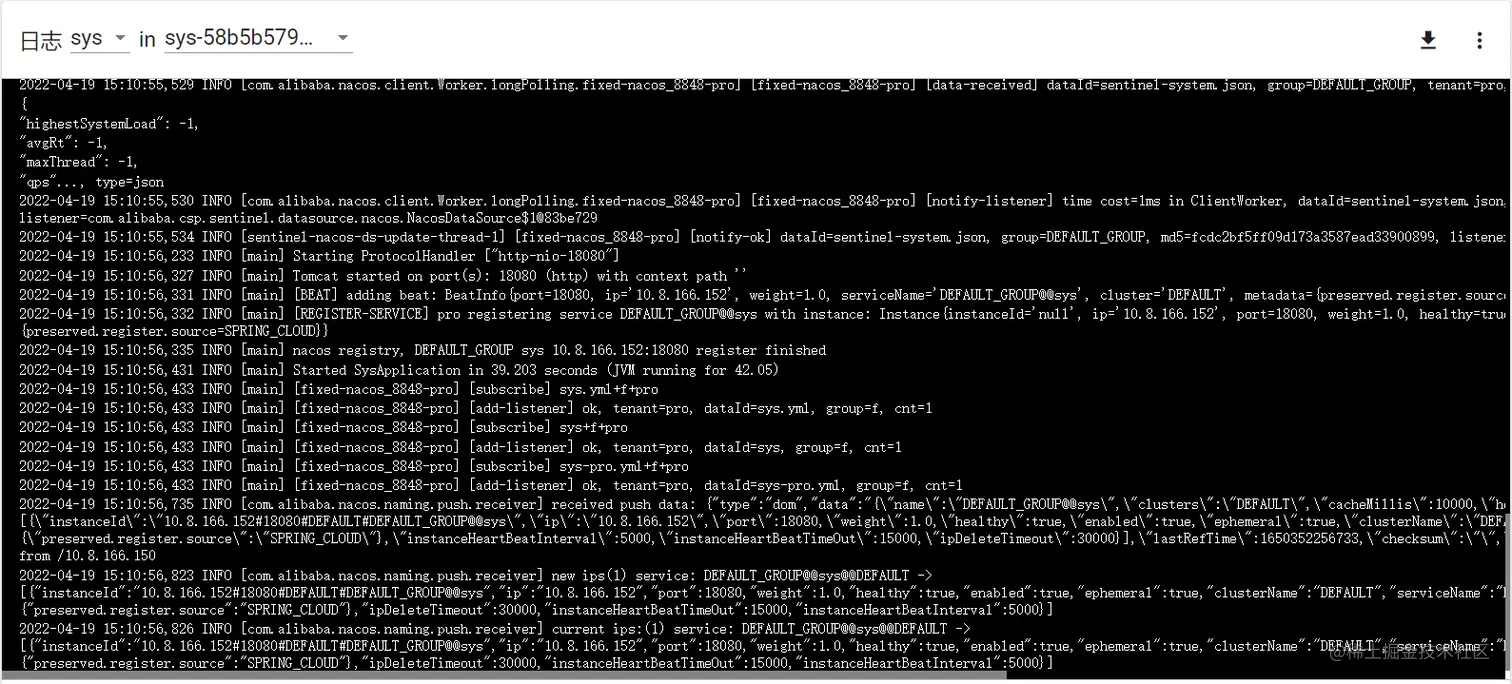

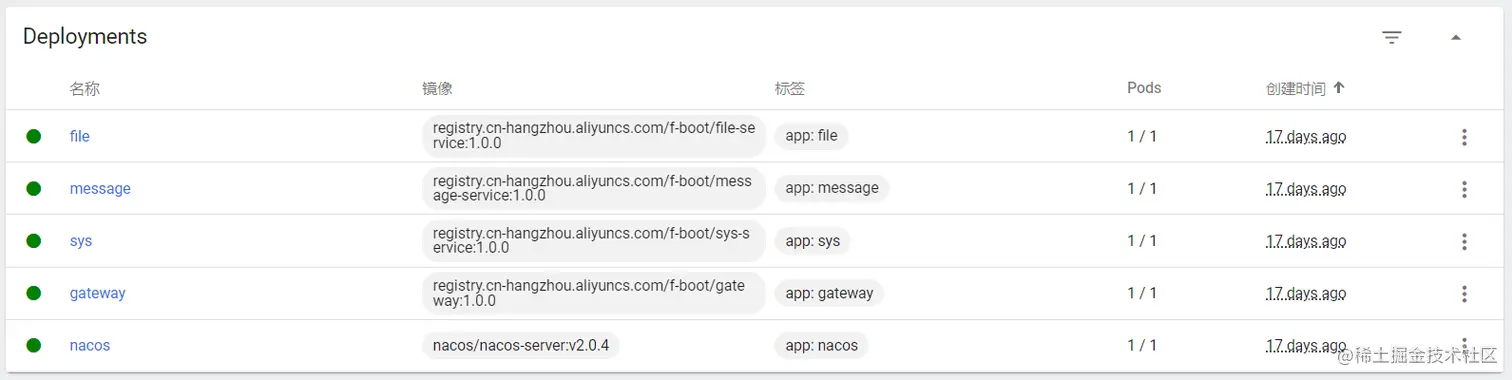

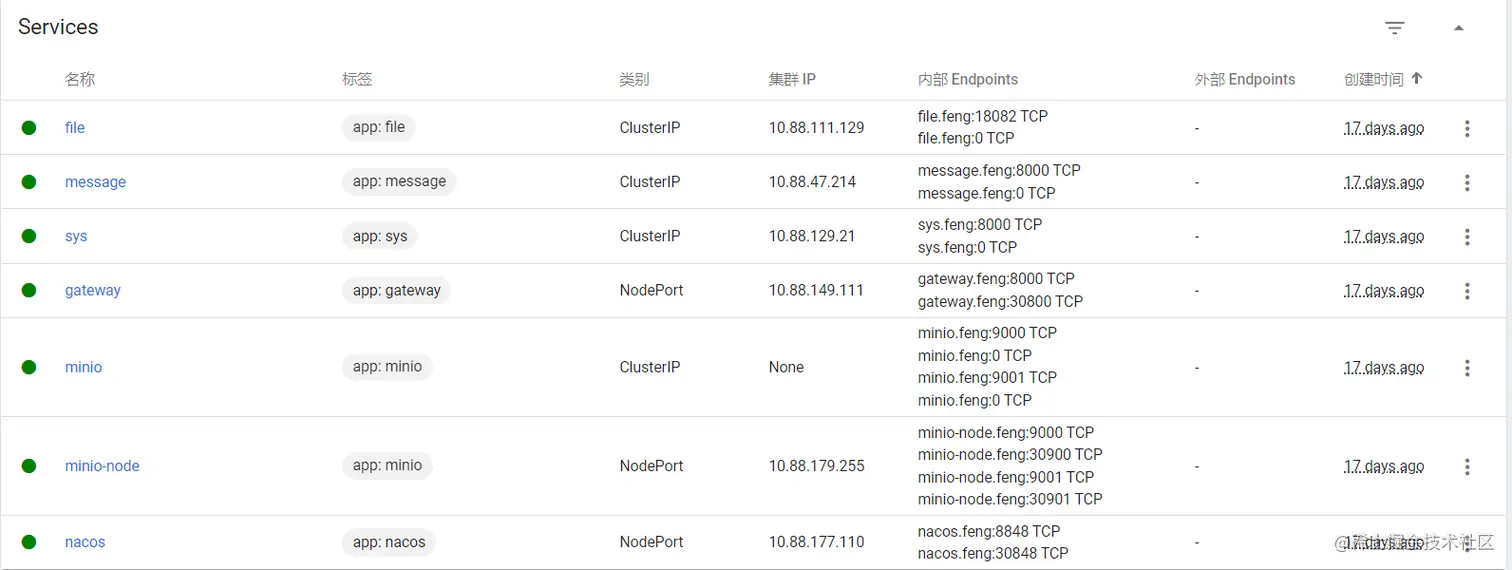

8~RFJFH_N1%T2A~R2FI@J.png service.png log (2).png sysLog.png nacos.png

运行前端项目验证

可以正常访问 home (2).png
