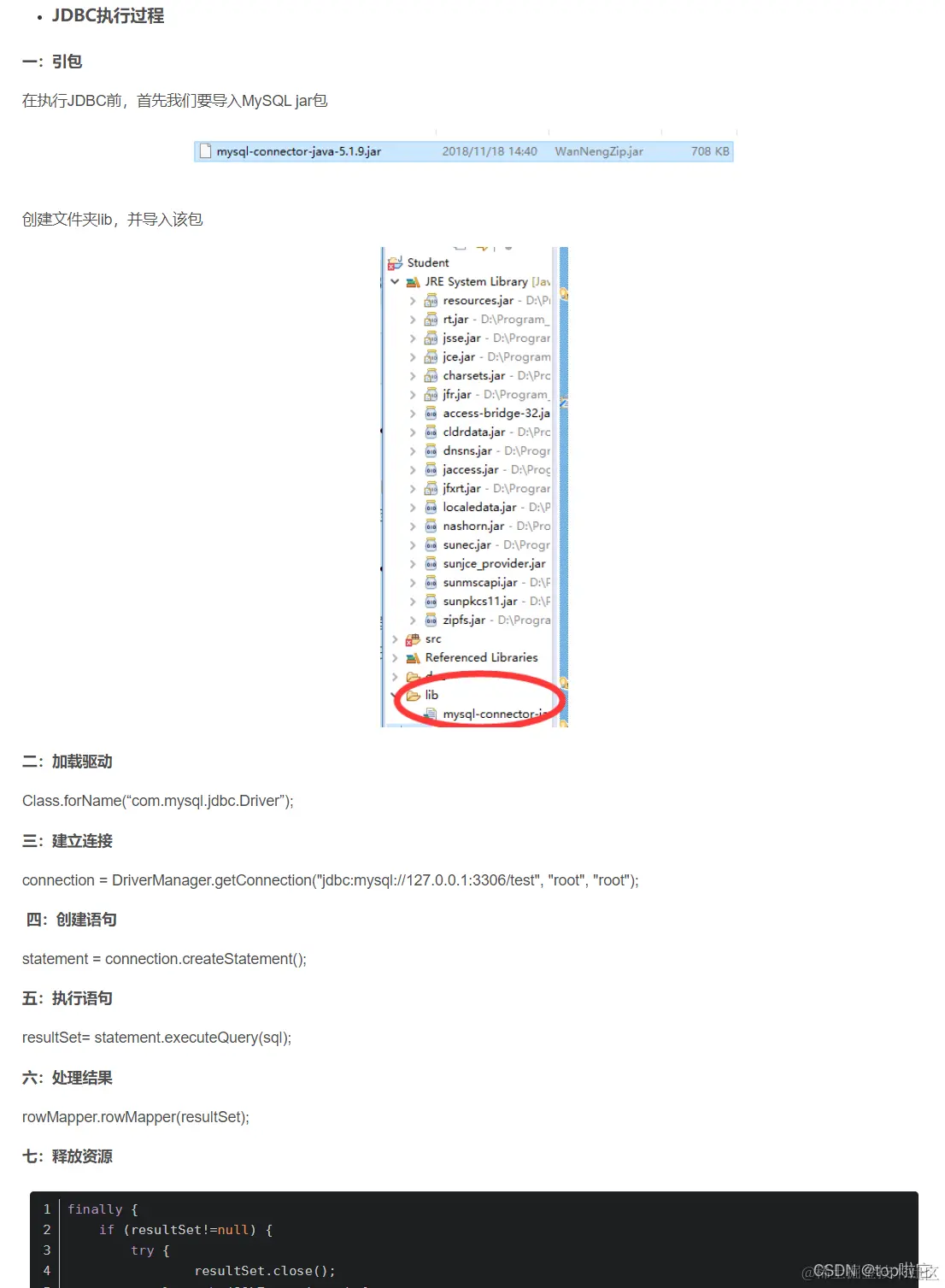

JDBC执行流程

blog.csdn.net/YJT180/arti… 在这里插入图片描述

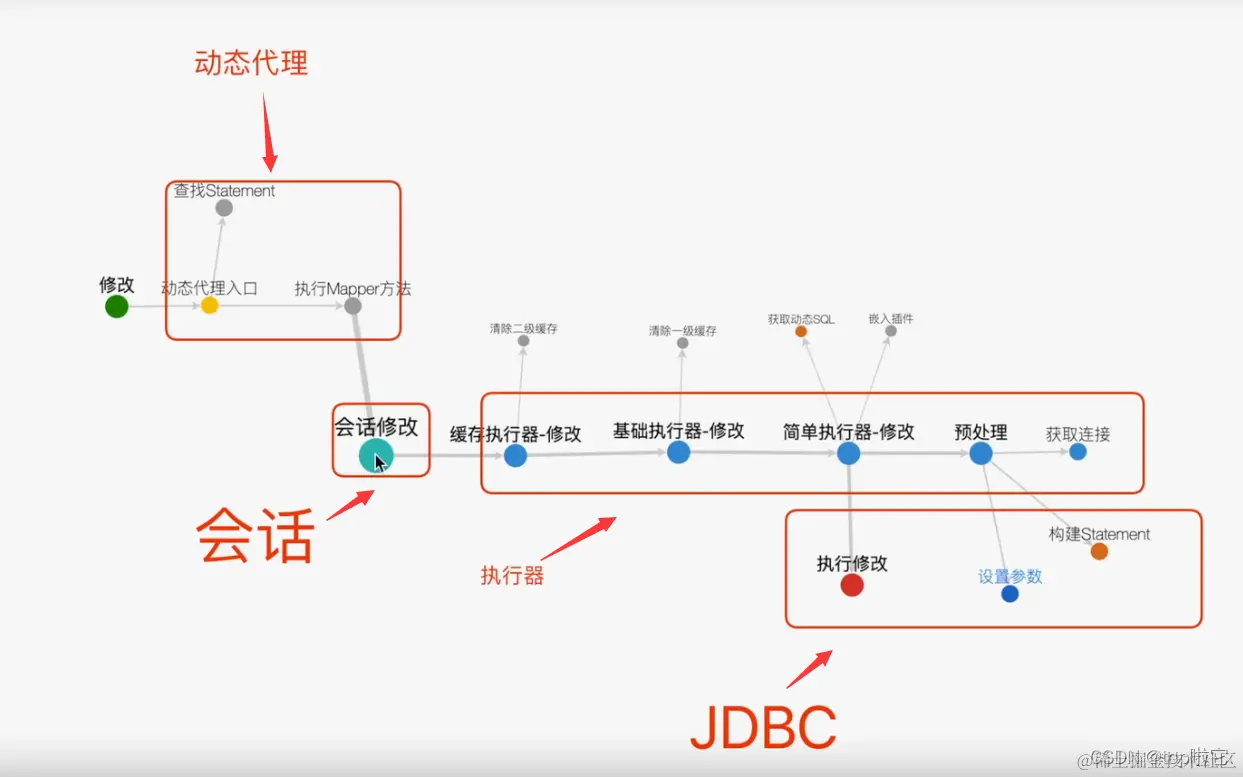

Mybatis执行流程

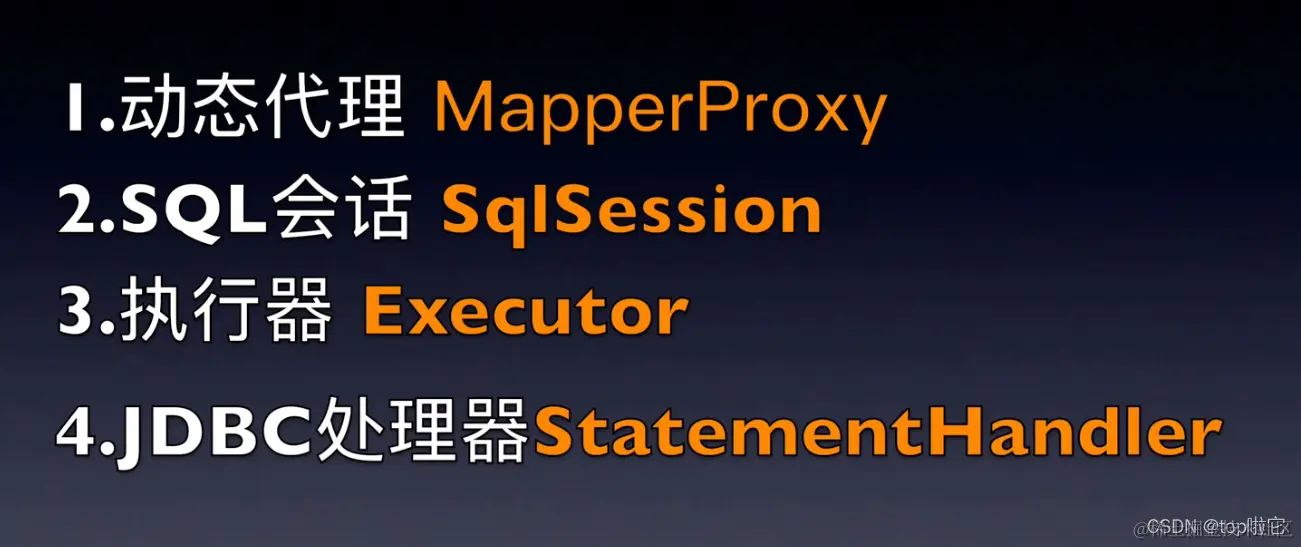

在这里插入图片描述详细来看就是

首先学习会话和执行器两部分

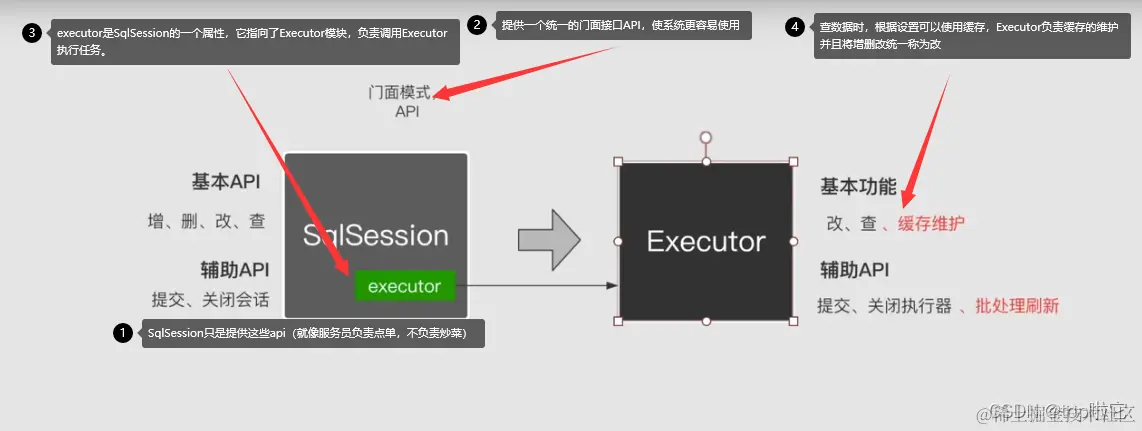

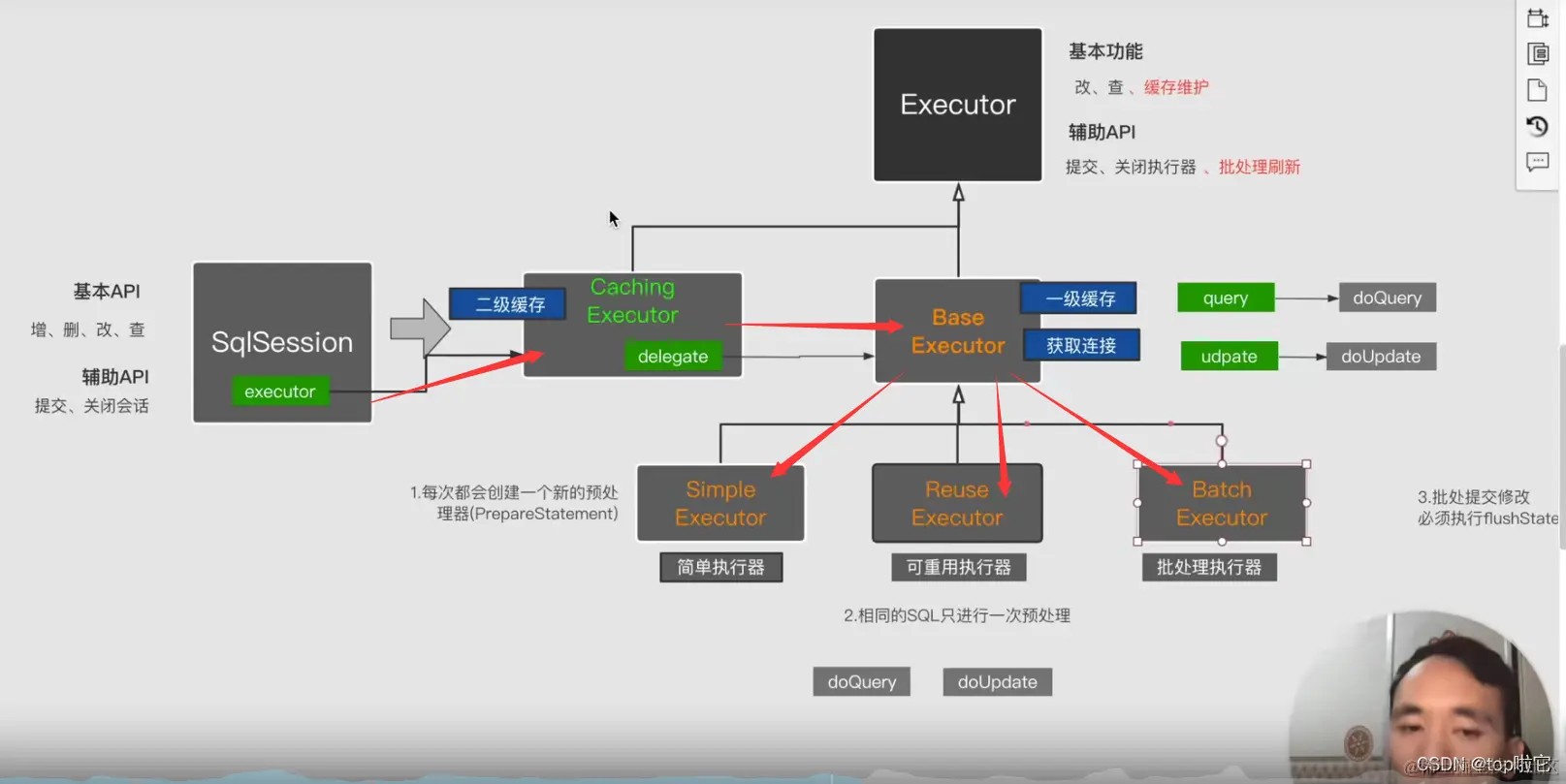

Mybatis核心执行组件——会话（SqlSession）

在这里插入图片描述

首先先看Executor最简单的实现——SimpleExecutor

先引入Mybatis

        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.1</version>
        </dependency>

package com.example.xuexitongtwo;

import org.apache.ibatis.executor.SimpleExecutor;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.RowBounds;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.apache.ibatis.transaction.jdbc.JdbcTransaction;
import org.junit.Before;
import org.junit.jupiter.api.Test;
import org.junit.runner.RunWith;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

import java.io.IOException;
import java.io.InputStream;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.SQLException;
import java.util.List;

@RunWith(SpringRunner.class)
@SpringBootTest
class XuexitongtwoApplicationTests {

    private JdbcTransaction jdbcTransaction;
    private Configuration configuration;
    private Connection connection;
    @Test
    public void test1() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory build = factoryBuilder.build(is);
        configuration = build.getConfiguration();
        connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/xuexitong?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC","root","root");
        jdbcTransaction = new JdbcTransaction(connection);
        SimpleExecutor executor = new SimpleExecutor(configuration,jdbcTransaction);
        MappedStatement ms = configuration.getMappedStatement("com.example.xuexitongtwo.mapper.TestMapper.selectIdByUsername");
        // 之所以需要再传一次参数名，是因为没有使用executor.query
        List<Object> es = executor.doQuery(ms, "a1", RowBounds.DEFAULT,
                SimpleExecutor.NO_RESULT_HANDLER ,ms.getBoundSql("a1"));
        executor.doQuery(ms, "a1", RowBounds.DEFAULT,
                SimpleExecutor.NO_RESULT_HANDLER ,ms.getBoundSql("a1"));
        System.out.println("id:"+es.get(0));
    }
}

在这里插入图片描述

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
    PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
    "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<environments default="development">
    <environment id="development">
        <transactionManager type="JDBC"/>
        <dataSource type="POOLED">
            <property name="driver" value="${spring.datasource.driver-class-name}"></property>
            <property name="url" value="${spring.datasource.url}"></property>
            <property name="username" value="${spring.datasource.username}"></property>
            <property name="password" value="${spring.datasource.password}"></property>
        </dataSource>
    </environment>
</environments>
<mappers>
    <mapper resource="mapper/testmapper.xml"/>
</mappers>
</configuration>

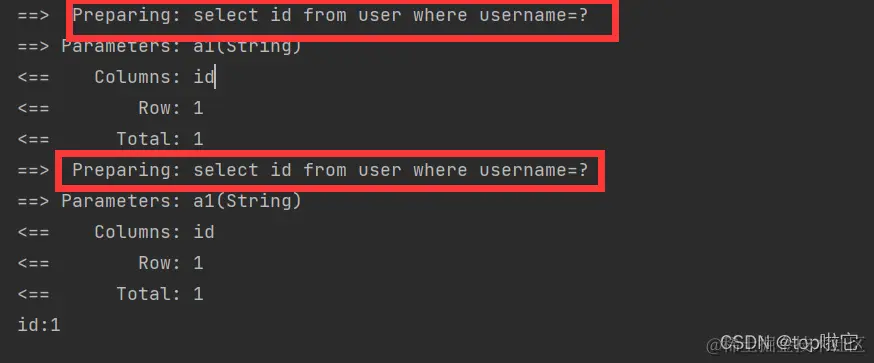

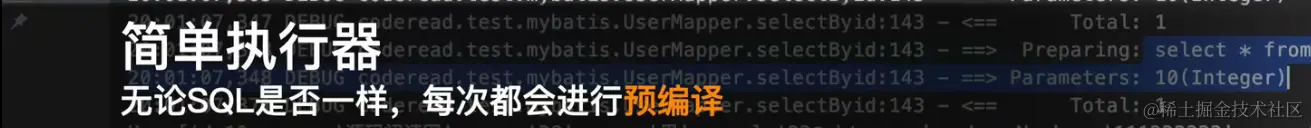

运行测试类后输出：在这里插入图片描述可以看到一共预编译了两次。因为我使用的是SimpleExecutor 如果我没有执行两次，而是执行两百次，那么每一次都要进行预处理，是非常耗时并且浪费性能的。

那么可以使用下面的可重用执行器

可重用执行器——ReuseExecutor

simple每次调用都会创建一个preparestatement，然后去预编译。而resue使用了一个map来存statement，每次调用，直接从map里找，找到了就复用，不用再去编译sql。 ReuseExecutor代码如下：

//    可重用执行器
    @Test
    public void test2() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory build = factoryBuilder.build(is);
        configuration = build.getConfiguration();
        connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/xuexitong?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC","root","root");
        jdbcTransaction = new JdbcTransaction(connection);
        ReuseExecutor executor = new ReuseExecutor(configuration,jdbcTransaction);
        MappedStatement ms = configuration.getMappedStatement("com.example.xuexitongtwo.mapper.TestMapper.selectIdByUsername");
        // 之所以需要再传一次参数名，是因为没有使用executor.query
        List<Object> es = executor.doQuery(ms, "a1", RowBounds.DEFAULT,
                SimpleExecutor.NO_RESULT_HANDLER ,ms.getBoundSql("a1"));
        executor.doQuery(ms, "a1", RowBounds.DEFAULT,
                SimpleExecutor.NO_RESULT_HANDLER ,ms.getBoundSql("a1"));
        System.out.println("id:"+es.get(0));
    }

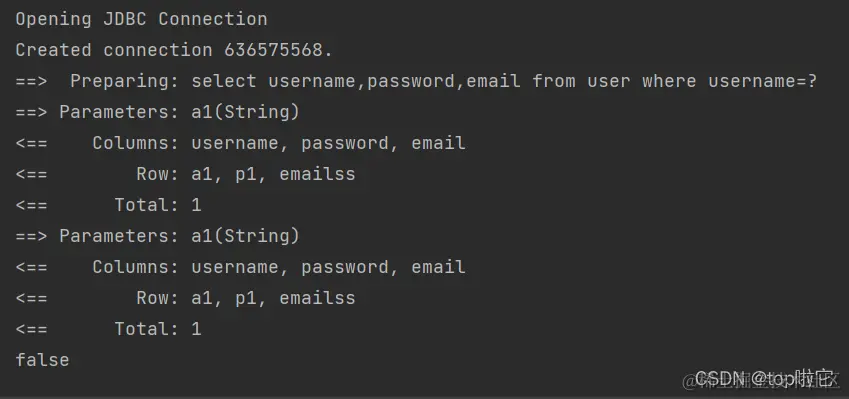

输出如下：在这里插入图片描述可见，只预编译了一次。

如果要执行大量的修改操作，如果要执行一万条修改操作，一条一条的执行的话，就要执行一万次，有没有其他方法呢？怎么做？这里就引出了批处理执行器——BatchExecutor（比如说：先处理一百条，处理完后在执行一百条）

批处理执行器——BatchExecutor

    @Test
    public void test3() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory build = factoryBuilder.build(is);
        configuration = build.getConfiguration();
        connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/xuexitong?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC","root","root");
        jdbcTransaction = new JdbcTransaction(connection);
        BatchExecutor executor = new BatchExecutor(configuration,jdbcTransaction);
                MappedStatement ms = configuration.getMappedStatement("com.example.xuexitongtwo.mapper.TestMapper.selectIdByUsername");
        // 之所以需要再传一次参数名，是因为没有使用executor.query
        List<Object> es = executor.doQuery(ms, "a1", RowBounds.DEFAULT,
                SimpleExecutor.NO_RESULT_HANDLER ,ms.getBoundSql("a1"));
        executor.doQuery(ms, "a1", RowBounds.DEFAULT,
                SimpleExecutor.NO_RESULT_HANDLER ,ms.getBoundSql("a1"));
        System.out.println("id:"+es.get(0));
    }

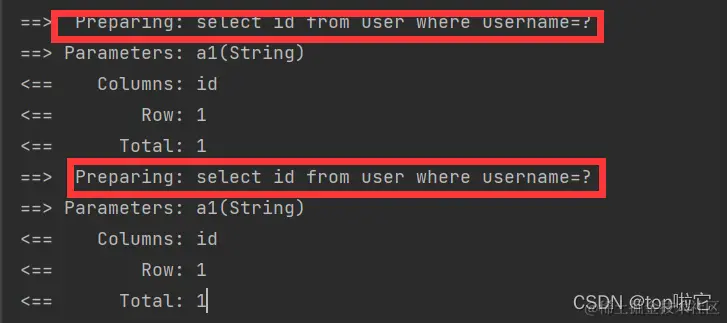

在这里插入图片描述可以看到，预编译了两次，明明使用了批处理执行器，那为什么出现了两次呢？这是因为BatchExecutor仅在进行改操作时才会进行批处理。

下面进行修改操作

@CacheNamespace(blocking = true)
public interface TestMapper {

    public Integer selectIdByUsername(String username);

    @Update("update user set email=#{arg1} where username=#{arg0}")
    int setEmail(String username,String email);
}

    @Test
    public void test3() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory build = factoryBuilder.build(is);
        configuration = build.getConfiguration();
        connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/xuexitong?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC","root","root");
        jdbcTransaction = new JdbcTransaction(connection);
        BatchExecutor executor = new BatchExecutor(configuration,jdbcTransaction);
        MappedStatement ms = configuration.getMappedStatement("com.example.xuexitongtwo.mapper.TestMapper.setEmail");
        Map param = new HashMap();
        param.put("arg0","a1");
        param.put("arg1","emailss");
        executor.doUpdate(ms,param);
        executor.doUpdate(ms,param);
    }

之后查看数据库，发现并没有修改数据。因为批处理操作需要手动刷新。代码如下：

    @Test
    public void test3() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory build = factoryBuilder.build(is);
        configuration = build.getConfiguration();
        connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/xuexitong?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC","root","root");
        jdbcTransaction = new JdbcTransaction(connection);
        BatchExecutor executor = new BatchExecutor(configuration,jdbcTransaction);
        MappedStatement ms = configuration.getMappedStatement("com.example.xuexitongtwo.mapper.TestMapper.setEmail");
        Map param = new HashMap();
        param.put("arg0","a1");
        param.put("arg1","emailss");
        executor.doUpdate(ms,param);
        executor.doUpdate(ms,param);
        executor.doFlushStatements(false);//执行刷新
    }

数据库数据被修改在这里插入图片描述执行了一次预处理，两次数据填充

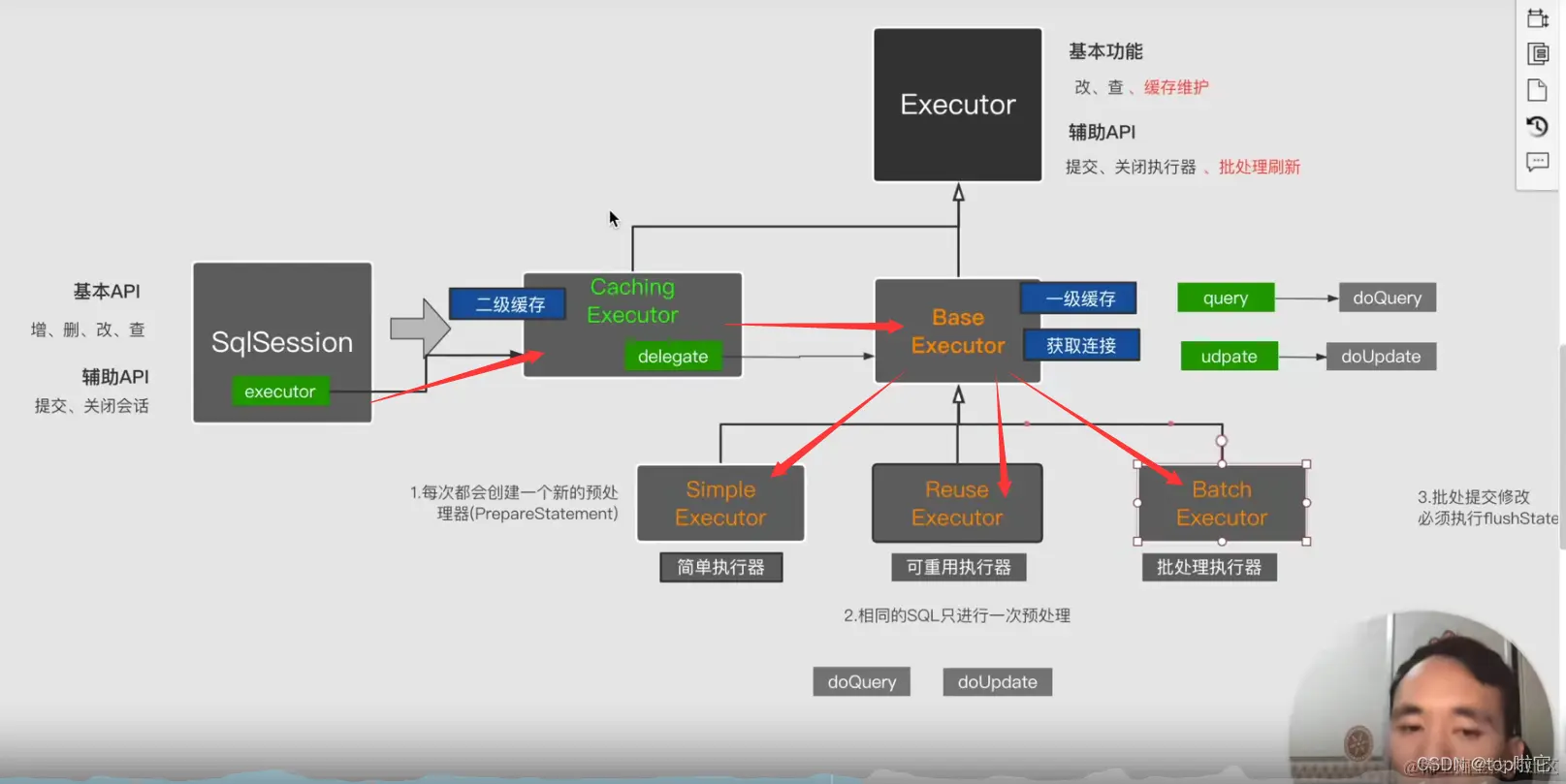

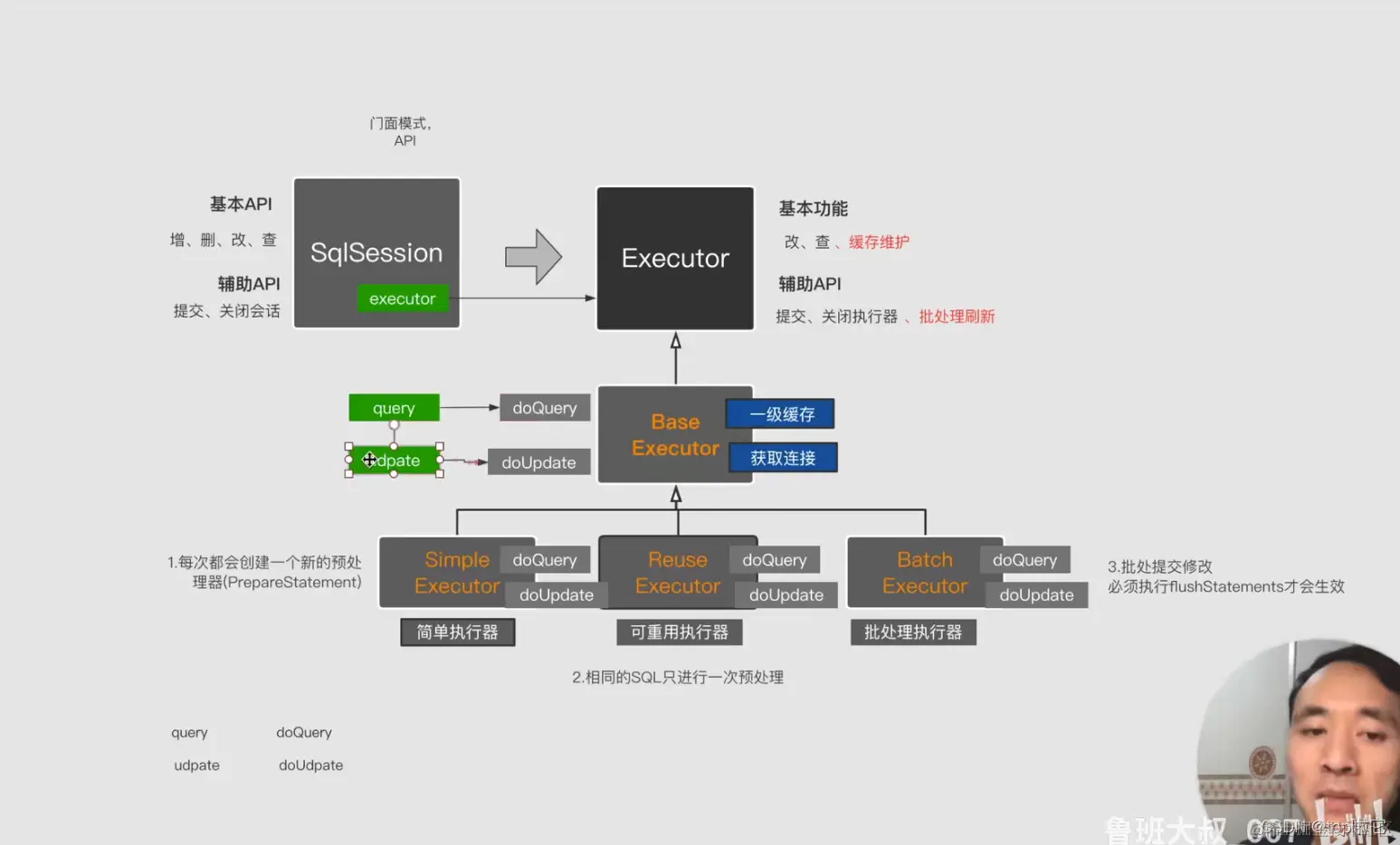

在这里插入图片描述不是说Executor中会用到到缓存吗？我发现里面并没有使用到缓存。下面看因为要在SimpleExecutor和ReuseExecutor和BatchExecutor中都使用缓存，所以给他们继承了同一个父类BaseExecutor 在BaseExecutor中实现了一级缓存，以及获取连接的方法。因为上面我都是直接调用的这三个实现类，所以没有使用到缓存。在BaseExecutor中实现了两个方法query和update 在这里插入图片描述在query中调用了抽象方法doQuery 在update中调用了抽象方法doUpdate 如下：

在这里插入图片描述 doQuery和doUpdate需要在SimpleExecutor和ReuseExecutor和BatchExecutor中实现。

执行query方法

    @Test
    public void test4() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory build = factoryBuilder.build(is);
        configuration = build.getConfiguration();
        connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/xuexitong?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC","root","root");
        jdbcTransaction = new JdbcTransaction(connection);
        Executor executor = new SimpleExecutor(configuration,jdbcTransaction);
        MappedStatement ms = configuration.getMappedStatement("com.example.xuexitongtwo.mapper.TestMapper.selectIdByUsername");
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
    }

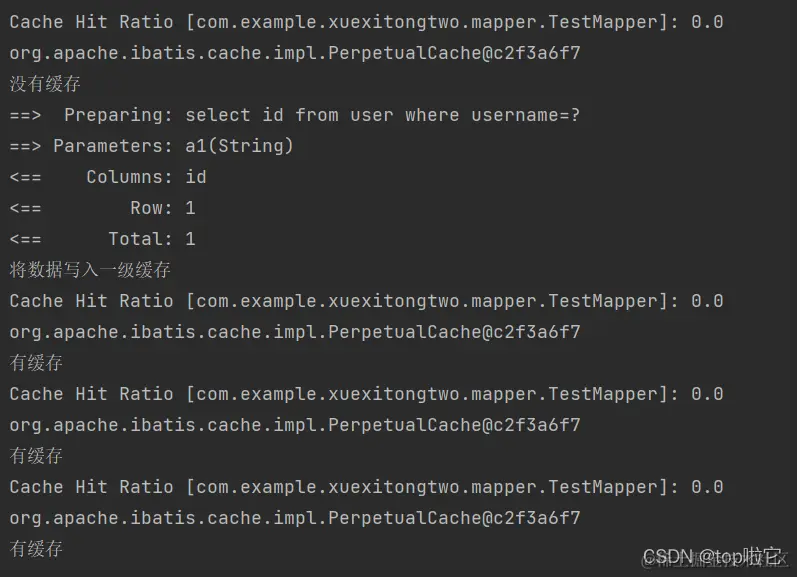

运行结果在这里插入图片描述可以发现在使用的是SimpleExecutor执行器的情况下，因为使用到了一级缓存，所以只预编译了一次。并且也只进行了一次调用。我看下ReuseExecutor，发现执行结果也是这样。因为第二次调用会走缓存的逻辑。

    @Test
    public void test4() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory build = factoryBuilder.build(is);
        configuration = build.getConfiguration();
        connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/xuexitong?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC","root","root");
        jdbcTransaction = new JdbcTransaction(connection);
        Executor executor = new ReuseExecutor(configuration,jdbcTransaction);
        MappedStatement ms = configuration.getMappedStatement("com.example.xuexitongtwo.mapper.TestMapper.selectIdByUsername");
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
    }

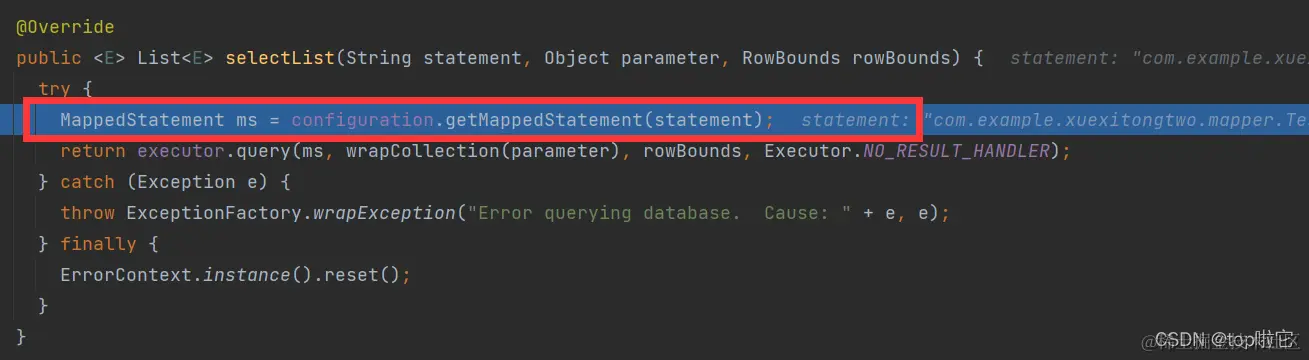

在这里插入图片描述下面进行调试。

1、

executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);

2、

  @Override
  public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
    BoundSql boundSql = ms.getBoundSql(parameter);
    CacheKey key = createCacheKey(ms, parameter, rowBounds, boundSql);
    return query(ms, parameter, rowBounds, resultHandler, key, boundSql);
 }

3、

  @Override
  public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    ErrorContext.instance().resource(ms.getResource()).activity("executing a query").object(ms.getId());
    if (closed) {
      throw new ExecutorException("Executor was closed.");
    }
    if (queryStack == 0 && ms.isFlushCacheRequired()) {
      clearLocalCache();
    }
    List<E> list;
    try {
      queryStack++;
      list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;//从缓存中获取到数据
      if (list != null) {
        handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
      } else {
        list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);//如果没有缓存的话，会调用相应的数据库。
      }
    } finally {
      queryStack--;
    }
    if (queryStack == 0) {
      for (DeferredLoad deferredLoad : deferredLoads) {
        deferredLoad.load();
      }
      // issue #601
      deferredLoads.clear();
      if (configuration.getLocalCacheScope() == LocalCacheScope.STATEMENT) {
        // issue #482
        clearLocalCache();
      }
    }
    return list;
  }

调用数据库的方法：queryFromDatabase

  private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    List<E> list;
    localCache.putObject(key, EXECUTION_PLACEHOLDER);
    try {
      list = doQuery(ms, parameter, rowBounds, resultHandler, boundSql);//这个doQuery实际上就是BaseExecutor的子类所实现的方法。
    } finally {
      localCache.removeObject(key);
    }
    localCache.putObject(key, list);//写入缓存
    if (ms.getStatementType() == StatementType.CALLABLE) {
      localOutputParameterCache.putObject(key, parameter);
    }
    return list;
  }

doQuery方法

  @Override
  public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
    Configuration configuration = ms.getConfiguration();
    StatementHandler handler = configuration.newStatementHandler(wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
    Statement stmt = prepareStatement(handler, ms.getStatementLog());
    return handler.<E>query(stmt, resultHandler);
  }

上面这个过程需要亲自debug一下。

CachingExecutor——二级缓存

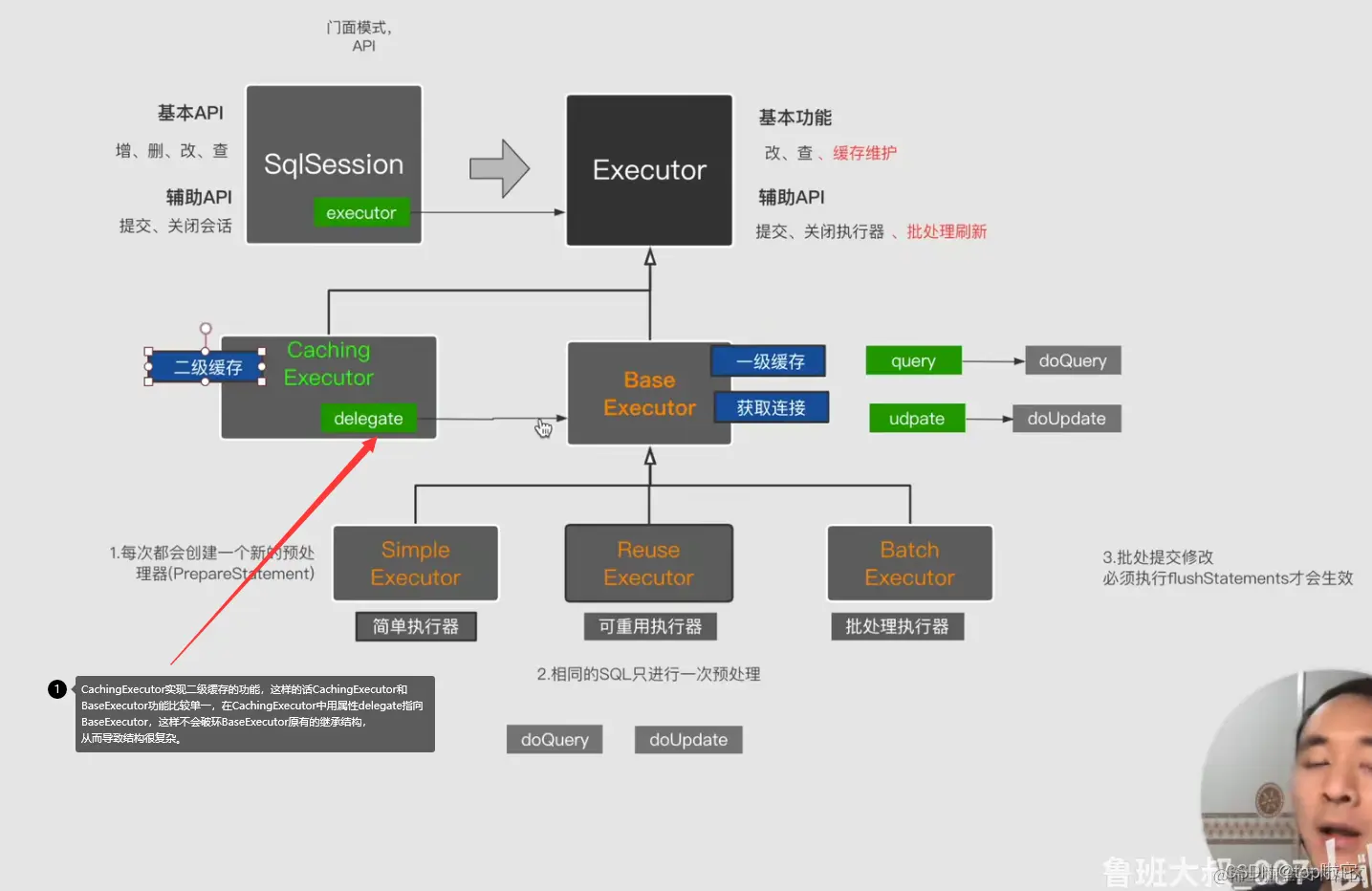

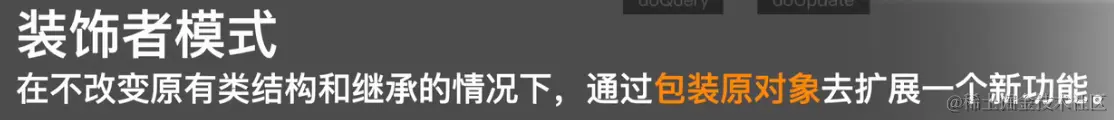

在这里插入图片描述

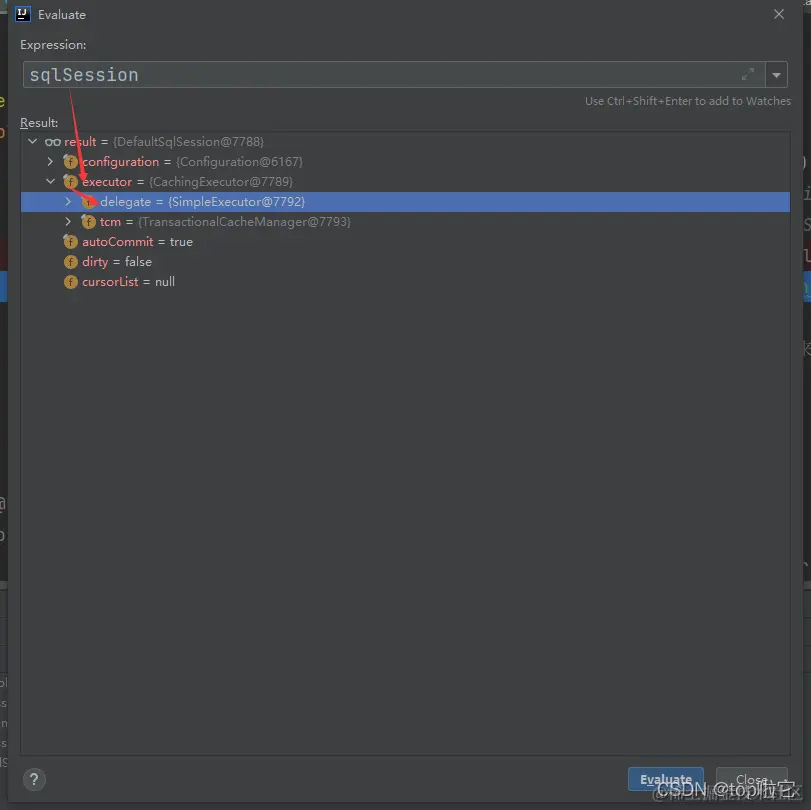

上面提到的delegate属性：源码如下：在这里插入图片描述

在这里插入图片描述梳理一下：


一级缓存	在BaseExecutor中实现
二级缓存	在CachingExecutor中实现

首先，先开启二级缓存 mapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.example.xuexitongtwo.mapper.TestMapper">
    <cache></cache>
    <select id="selectIdByUsername" resultType="java.lang.Integer" useCache="true">
        select id from user where username=#{username}
    </select>
</mapper>

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
    PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
    "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <settings>
        <setting name="cacheEnabled" value="true"/>
    </settings>
<environments default="development">
    <environment id="development">
        <transactionManager type="JDBC"/>
        <dataSource type="POOLED">
            <property name="driver" value="${spring.datasource.driver-class-name}"></property>
            <property name="url" value="${spring.datasource.url}"></property>
            <property name="username" value="${spring.datasource.username}"></property>
            <property name="password" value="${spring.datasource.password}"></property>
        </dataSource>
    </environment>
</environments>
<mappers>
    <mapper resource="mapper/testmapper.xml"/>
</mappers>
</configuration>

ok,现在已经开启了二级缓存

    @Test
    public void test5() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory build = factoryBuilder.build(is);
        configuration = build.getConfiguration();
        connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/xuexitong?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC","root","root");
        jdbcTransaction = new JdbcTransaction(connection);
        Executor reuseexecutor = new ReuseExecutor(configuration,jdbcTransaction);
        Executor executor = new CachingExecutor(reuseexecutor);
        MappedStatement ms = configuration.getMappedStatement("com.example.xuexitongtwo.mapper.TestMapper.selectIdByUsername");
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
        executor.commit(true);
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);

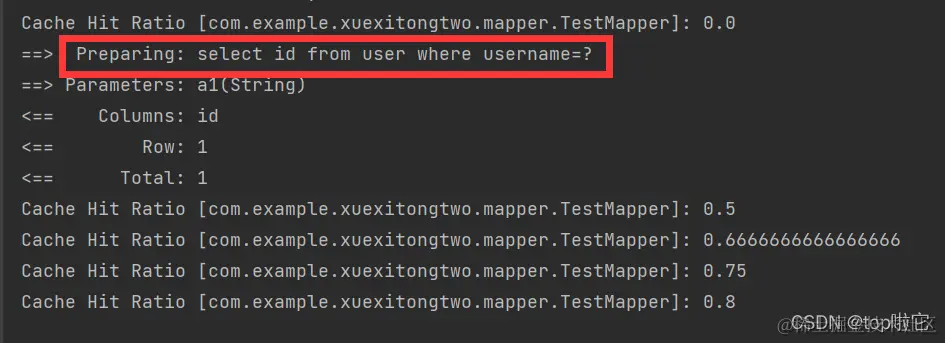

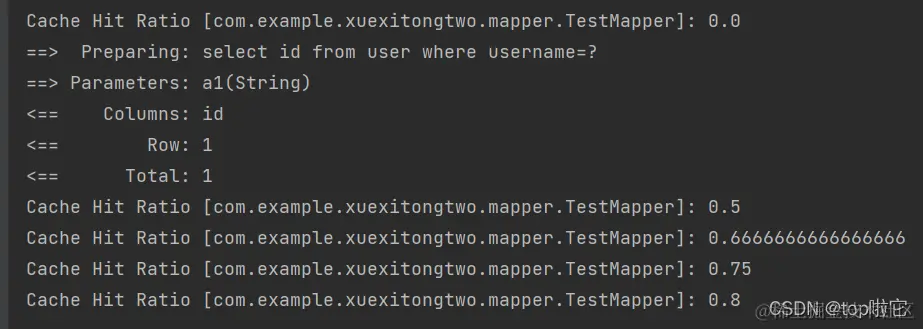

在这里插入图片描述 tips：二级缓存需要提交后才生效。而且二级缓存是多个线程共享的。

    @Test
    public void test5() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory build = factoryBuilder.build(is);
        configuration = build.getConfiguration();
        connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/xuexitong?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC","root","root");
        jdbcTransaction = new JdbcTransaction(connection);
        Executor reuseexecutor = new ReuseExecutor(configuration,jdbcTransaction);
        Executor executor = new CachingExecutor(reuseexecutor);
        MappedStatement ms = configuration.getMappedStatement("com.example.xuexitongtwo.mapper.TestMapper.selectIdByUsername");
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
        executor.commit(true);
        new Thread(new Runnable() {
            @SneakyThrows
            @Override
            public void run() {
                executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
                executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
                executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
                executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
            }
        }).start();
    }

上面我开了一个新线程来执行查询操作。在这里插入图片描述可以看到，结果没有任何改变。

如果我不使用二级缓存呢？一级缓存可以实现这种跨线程操作缓存的功能吗？输出结果如下在这里插入图片描述可以看到多个线程也是可以使用一个一级缓存的。那不就是说一级缓存也是可以解决跨线程的缓存功能吗？这里先挖一个坑。我查看了一下缓存的key 只要上面的数据一样，就可以访问到缓存。

SqlSession会话调用过程

在这里插入图片描述上面的红线，表示了执行的过程。

平时业务开发的时候，并不会自己调用执行器，上面使用执行器，是为了方便大家理解执行器内部的实现。

    @Test
    public void test6() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory factory = factoryBuilder.build(is);
        SqlSession sqlSession = factory.openSession(true);//开启一个SqlSession，默认自动提交
        List<Object> list = sqlSession.selectList("com.example.xuexitongtwo.mapper.TestMapper.selectIdByUsername", "a1");
        System.out.println(list.get(0));
        //
    }

使用这种方法和上面我手动构造的执行器相比其实是一样的，就好比通过服务员点单和通过厨师来点单效果是一样的。服务员（开启Sqlsession）方便些。在这里插入图片描述可以看到并没有什么改变。

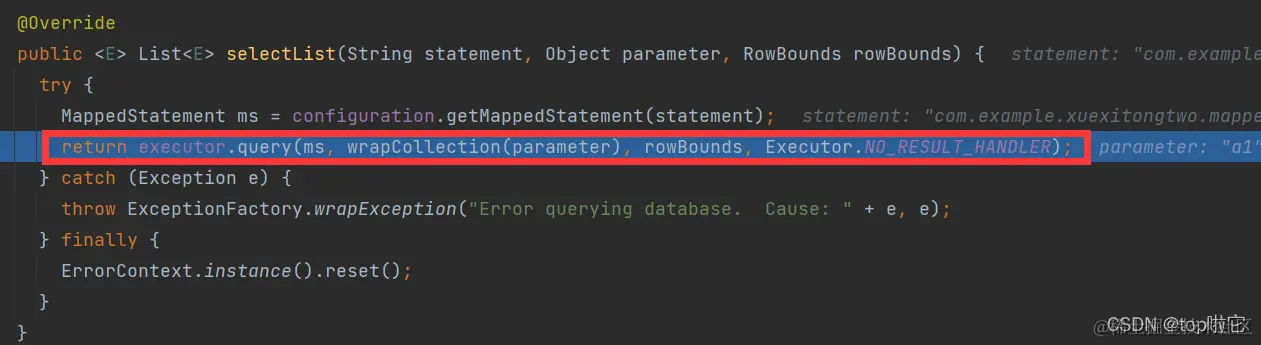

下面再来看看SqlSession的执行过程在这里插入图片描述 debug看一下SqlSession的结构可以看到SqlSession中的executor属性指向了CachingExecutor，CachingExecutor指向了SimpleExecutor（继承了BaseExecutor）。可以证明，SqlSession的执行过程跟我上面贴的图是一样的。继续debug 上面我用红线框住的一行代码，在自定义执行器中也使用到了。可以翻到上面查看一下。在这里插入图片描述这一行代码不就是我上面写的CachingExecutor.query()吗？给你们查看一下这个executor是什么。可以看到，就是CacheingExecutor。在这里Sqlsession调用了CachingExecutor，看到这是不是觉得上面学的知识联系起来了。下面的就没必要继续debug了。

作业：将一级缓存移出来，跟二级缓存一样用装饰器模式实现。答案：

    @Test
    public void test7() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory build = factoryBuilder.build(is);
        configuration = build.getConfiguration();
        connection = DriverManager.getConnection("jdbc:mysql://localhost:3306/xuexitong?useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC","root","root");
        jdbcTransaction = new JdbcTransaction(connection);
        Executor first = new FirstExecutor(configuration,jdbcTransaction);
        Executor executor = new CachingExecutor(first);
        MappedStatement ms = configuration.getMappedStatement("com.example.xuexitongtwo.mapper.TestMapper.selectIdByUsername");
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
//        executor.commit(true);
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
        executor.query(ms,"a1",RowBounds.DEFAULT,Executor.NO_RESULT_HANDLER);
    }

FirstExecutor

package com.example.xuexitongtwo.MyExecutor;

import org.apache.ibatis.cache.CacheKey;
import org.apache.ibatis.cache.impl.PerpetualCache;
import org.apache.ibatis.cursor.Cursor;
import org.apache.ibatis.executor.*;
import org.apache.ibatis.mapping.*;
import org.apache.ibatis.reflection.MetaObject;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.LocalCacheScope;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;
import org.apache.ibatis.transaction.Transaction;
import org.apache.ibatis.type.TypeHandlerRegistry;

import java.sql.SQLException;
import java.util.List;

import static org.apache.ibatis.executor.ExecutionPlaceholder.EXECUTION_PLACEHOLDER;

public class FirstExecutor implements Executor{
    protected Configuration configuration;
    protected Transaction transaction;
    protected SimpleExecutor delegate;
    protected PerpetualCache localCache;

    public FirstExecutor(Configuration configuration, Transaction transaction) {
        this.configuration = configuration;
        this.transaction = transaction;
        this.delegate = new SimpleExecutor(configuration,transaction);
        this.localCache = new PerpetualCache("LocalCache");;
    }

    public FirstExecutor(SimpleExecutor delegate) {
        this.delegate = delegate;
        this.localCache = new PerpetualCache("LocalCache");
    }

    @SuppressWarnings("unchecked")
    @Override
    public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
        List<E> list;
        System.out.println(localCache);
        list = resultHandler == null ? (List<E>) localCache.getObject(key) : null;
        if (list == null){
            System.out.println("没有缓存");
            list = queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
        }else System.out.println("有缓存");
        return list;
    }


    private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
        List<E> list;
        localCache.putObject(key, EXECUTION_PLACEHOLDER);
        try {
            list = delegate.doQuery(ms, parameter, rowBounds, resultHandler, boundSql);//将这个改造成selegate调用doQuery，比如simpleExecutor
        } finally {
            localCache.removeObject(key);
        }
        System.out.println("将数据写入一级缓存");
        localCache.putObject(key, list);
        return list;
    }

    @Override
    public CacheKey createCacheKey(MappedStatement ms, Object parameterObject, RowBounds rowBounds, BoundSql boundSql) {
        CacheKey cacheKey = new CacheKey();
        cacheKey.update(ms.getId());
        cacheKey.update(rowBounds.getOffset());
        cacheKey.update(rowBounds.getLimit());
        cacheKey.update(boundSql.getSql());
        List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
        TypeHandlerRegistry typeHandlerRegistry = ms.getConfiguration().getTypeHandlerRegistry();
        // mimic DefaultParameterHandler logic
        for (ParameterMapping parameterMapping : parameterMappings) {
            if (parameterMapping.getMode() != ParameterMode.OUT) {
                Object value;
                String propertyName = parameterMapping.getProperty();
                if (boundSql.hasAdditionalParameter(propertyName)) {
                    value = boundSql.getAdditionalParameter(propertyName);
                } else if (parameterObject == null) {
                    value = null;
                } else if (typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
                    value = parameterObject;
                } else {
                    MetaObject metaObject = configuration.newMetaObject(parameterObject);
                    value = metaObject.getValue(propertyName);
                }
                cacheKey.update(value);
            }
        }
        if (configuration.getEnvironment() != null) {
            // issue #176
            cacheKey.update(configuration.getEnvironment().getId());
        }
        return cacheKey;
    }

    @Override
    public int update(MappedStatement ms, Object parameter) throws SQLException {
        return 0;
    }

    @Override
    public <E> List<E> query(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {
        return null;
    }

    @Override
    public <E> Cursor<E> queryCursor(MappedStatement ms, Object parameter, RowBounds rowBounds) throws SQLException {
        return null;
    }

    @Override
    public List<BatchResult> flushStatements() throws SQLException {
        return null;
    }

    @Override
    public void commit(boolean required) throws SQLException {

    }

    @Override
    public void rollback(boolean required) throws SQLException {

    }


    @Override
    public boolean isCached(MappedStatement ms, CacheKey key) {
        return false;
    }

    @Override
    public void clearLocalCache() {

    }

    @Override
    public void deferLoad(MappedStatement ms, MetaObject resultObject, String property, CacheKey key, Class<?> targetType) {

    }

    @Override
    public Transaction getTransaction() {
        return null;
    }

    @Override
    public void close(boolean forceRollback) {

    }

    @Override
    public boolean isClosed() {
        return false;
    }

    @Override
    public void setExecutorWrapper(Executor executor) {

    }
}

输出结果：在这里插入图片描述

一级缓存的命中场景

在平时的业务开发中，我都是调用mapper中的方法来操作数据库的。并不是像上面那样直接操作执行器。 TestMapper

@Mapper
public interface TestMapper {

    public Integer selectIdByUsername(String username);

    @Select("select username,password,email from user where username=#{username}")
    public User selectUserByUsername(String username);

    @Update("update user set email=#{arg1} where username=#{arg0}")
    int setEmail(String username,String email);
}

我新增了selectUserByUsername方法，因为Integer存在常量池，体现不出来缓存的效果，因为Integer会缓存-128到127的数据。无论是否使用到了缓存，只要输出结果在这个范围里面，a1==a2都返回true。源码如下。在这里插入图片描述

    @Test
    public void test8() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory factory = factoryBuilder.build(is);
        SqlSession sqlSession = factory.openSession(true);//开启一个SqlSession，默认自动提交
        TestMapper mapper = sqlSession.getMapper(TestMapper.class);
        User a1 = mapper.selectUserByUsername("a1");
        User a2 = mapper.selectUserByUsername("a1");
        System.out.println(a1==a2);
    }

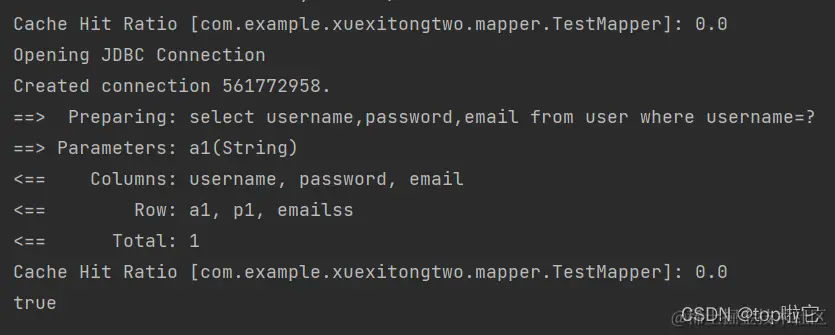

输出结果：在这里插入图片描述可见返回了true。就说明第二次查询命中了一级缓存。

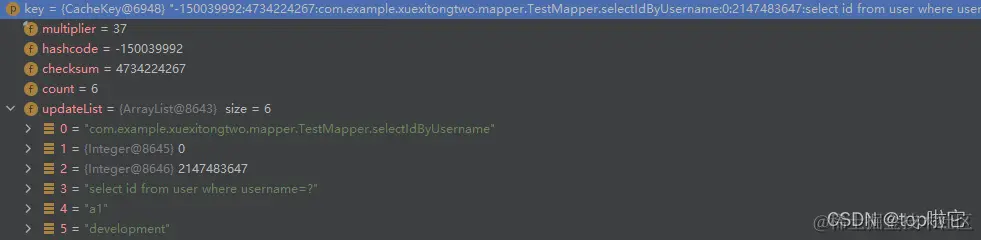

如果我调用一个除了方法名不一样，其他执行逻辑都一样的mapper中的方法，会命中缓存吗？答案是不会，我在上面debug时已经展示过key了在这里插入图片描述 key的组成包括了mapper中的方法名，所以说方法名（statementID）不一致，是无法命中缓存的。我画线的就可以叫做StatementID。

那么如果我是用一个新的SqlSession会命中缓存吗？

    @Test
    public void test9() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory factory = factoryBuilder.build(is);
        SqlSession sqlSession = factory.openSession(true);//开启一个SqlSession，默认自动提交
        TestMapper mapper = sqlSession.getMapper(TestMapper.class);
        User a1 = mapper.selectUserByUsername("a1");
        User a2 = factory.openSession(true).getMapper(TestMapper.class).selectUserByUsername("a1");
        System.out.println(a1==a2);
    }

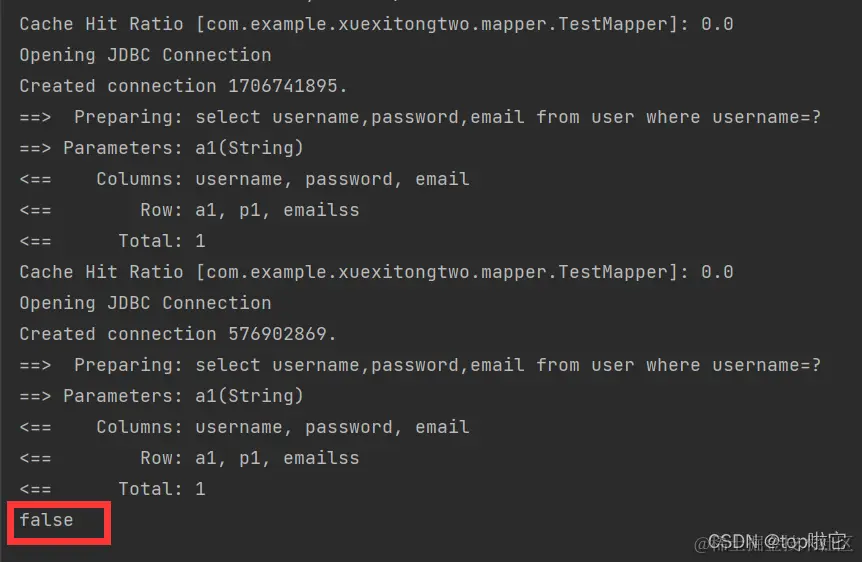

输出如下：在这里插入图片描述

可见并没有命中缓存。

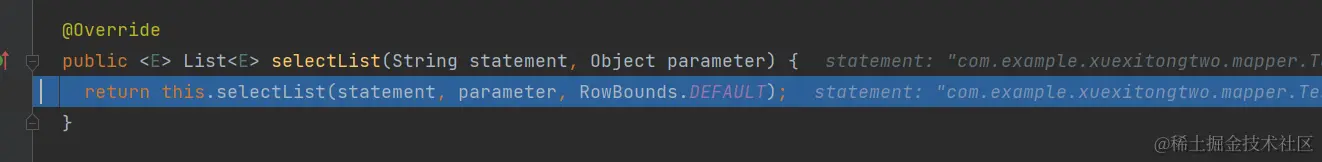

如果不走动态代理的话，会命中缓存吗？（我上面写的mapper.selectUserByUsername("a1");其实底层对这个方法进行了增强）

    @Test
    public void test9() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory factory = factoryBuilder.build(is);
        SqlSession sqlSession = factory.openSession(true);//开启一个SqlSession，默认自动提交
        TestMapper mapper = sqlSession.getMapper(TestMapper.class);
        User a1 = mapper.selectUserByUsername("a1");
        User a2 = sqlSession.selectOne("com.example.xuexitongtwo.mapper.TestMapper.selectUserByUsername","a1");
        List<User> a3 = sqlSession.selectList("com.example.xuexitongtwo.mapper.TestMapper.selectUserByUsername", "a1", RowBounds.DEFAULT);
        List<User> a4 = sqlSession.selectList("com.example.xuexitongtwo.mapper.TestMapper.selectUserByUsername", "a1", new RowBounds(0,10));
//        User a2 = factory.openSession(true).getMapper(TestMapper.class).selectUserByUsername("a1");
        System.out.println(a1==a2);
        System.out.println(a1==a3.get(0));
        System.out.println(a1==a4.get(0));
    }

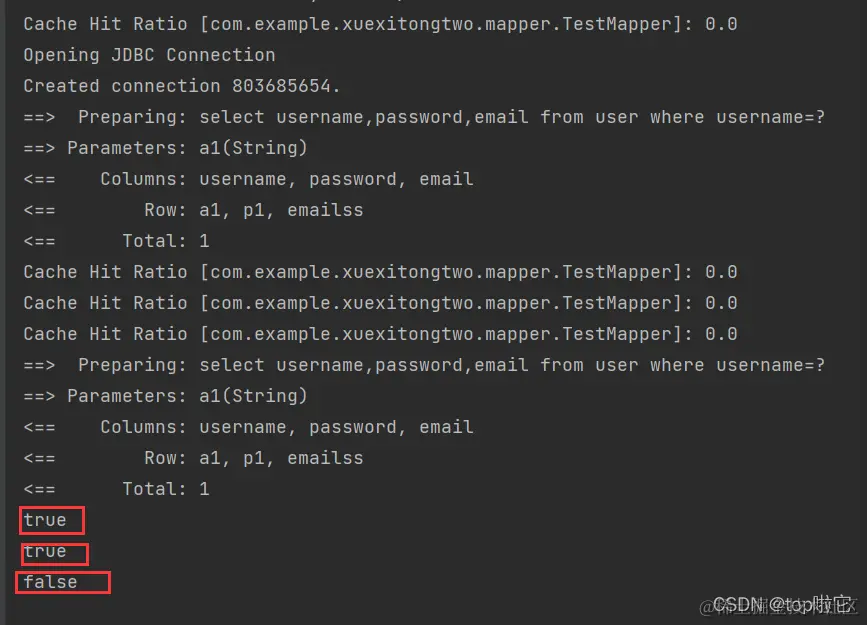

输出结果：在这里插入图片描述之所以a1==a3返回true是因为，在a1执行的时候会默认给他加一个RowBounds.DEFAULT。默认取出一条数据。

所以说，要想命中一级缓存，有以下4个条件：
1、sql和参数必须相同
2、必须是相同的statementID
3、sqlSession必须一样（会话级缓存）
4、RowBounds返回行范围必须相同

清空一级缓存试试

    @Test
    public void test10() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory factory = factoryBuilder.build(is);
        SqlSession sqlSession = factory.openSession(ExecutorType.REUSE,true);//开启一个SqlSession，默认自动提交,并将执行器改为ReuseExecutor
        TestMapper mapper = sqlSession.getMapper(TestMapper.class);
        User a1 = mapper.selectUserByUsername("a1");
        sqlSession.clearCache();
        User a2 = mapper.selectUserByUsername("a1");
        System.out.println(a1==a2);
    }

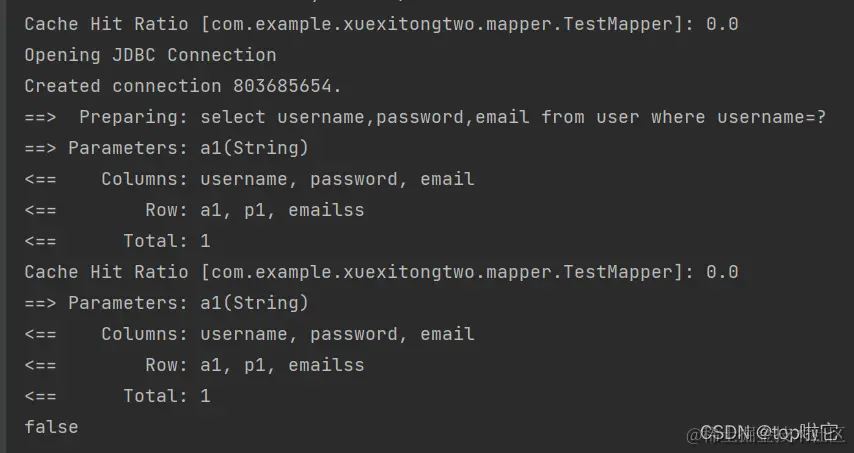

输出结果：在这里插入图片描述可见，预编译了一次，执行了两次，因为我使用了可重用执行器（ReuseExecutor）并且清空了缓存。 sqlsession的默认执行器是SimpleExecutor，我在代码中写了

SqlSession sqlSession = factory.openSession(ExecutorType.REUSE,true);

还有一种方法，可以改变全局sqlsession的默认执行器配置。修改mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
    PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
    "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <settings>
        <setting name="cacheEnabled" value="true"/>
        <!--        这里-->
        <setting name="defaultExecutorType" value="REUSE"/>
    </settings>
<environments default="development">
    <environment id="development">
        <transactionManager type="JDBC"/>
        <dataSource type="POOLED">
            <property name="driver" value="com.mysql.jdbc.Driver"></property>
            <property name="url" value="jdbc:mysql://localhost:3306/xuexitong?useUnicode=true&amp;characterEncoding=utf-8&amp;serverTimezone=UTC"></property>
            <property name="username" value="root"></property>
            <property name="password" value="root"></property>
        </dataSource>
    </environment>
</environments>
<mappers>
    <mapper resource="mapper/testmapper.xml"/>
</mappers>
</configuration>

下面我在执行一次。

    @Test
    public void test10() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory factory = factoryBuilder.build(is);
        SqlSession sqlSession = factory.openSession(true);//开启一个SqlSession，默认自动提交,并将执行器改为ReuseExecutor
        TestMapper mapper = sqlSession.getMapper(TestMapper.class);
        User a1 = mapper.selectUserByUsername("a1");
        sqlSession.clearCache();
        User a2 = mapper.selectUserByUsername("a1");
        System.out.println(a1==a2);
    }

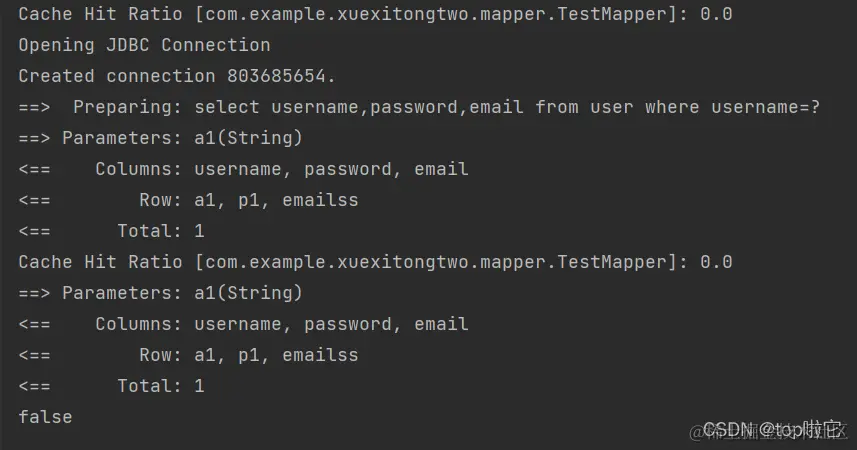

输出如下：在这里插入图片描述效果一样。

我也可以在mapper中设置清空缓存

package com.example.xuexitongtwo.mapper;

import com.example.xuexitongtwo.encity.User;
import org.apache.ibatis.annotations.*;

//@CacheNamespace(blocking = true)
@Mapper
public interface TestMapper {

    public Integer selectIdByUsername(String username);

    @Select("select username,password,email from user where username=#{username}")
    @Options(flushCache = Options.FlushCachePolicy.TRUE)
    public User selectUserByUsername(String username);

    @Update("update user set email=#{arg1} where username=#{arg0}")
    int setEmail(String username,String email);
}

执行测试代码：

    @Test
    public void test10() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory factory = factoryBuilder.build(is);
        SqlSession sqlSession = factory.openSession(true);//开启一个SqlSession，默认自动提交,并将执行器改为ReuseExecutor
        TestMapper mapper = sqlSession.getMapper(TestMapper.class);
        User a1 = mapper.selectUserByUsername("a1");
//        sqlSession.clearCache();
        User a2 = mapper.selectUserByUsername("a1");
        System.out.println(a1==a2);
    }

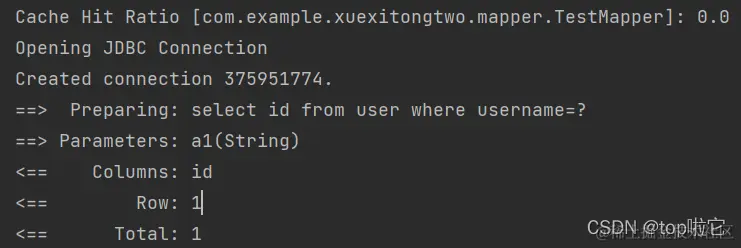

输出如下：在这里插入图片描述这是因为每执行一次缓存都会被清空，调用了

User a1 = mapper.selectUserByUsername("a1");

就相当于调用

sqlSession.clearCache();

下面我将mapper中的代码去掉

@Options(flushCache = Options.FlushCachePolicy.TRUE)

然后执行测试方法

    @Test
    public void test10() throws SQLException, IOException {
        SqlSessionFactoryBuilder factoryBuilder = new SqlSessionFactoryBuilder();
        InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
        SqlSessionFactory factory = factoryBuilder.build(is);
        SqlSession sqlSession = factory.openSession(true);//开启一个SqlSession，默认自动提交,并将执行器改为ReuseExecutor
        TestMapper mapper = sqlSession.getMapper(TestMapper.class);
        User a1 = mapper.selectUserByUsername("a1");
//        sqlSession.clearCache();
        mapper.setEmail("a2","saasasa");
        User a2 = mapper.selectUserByUsername("a1");
        System.out.println(a1==a2);
    }

里面的代码

mapper.setEmail("a2","saasasa");

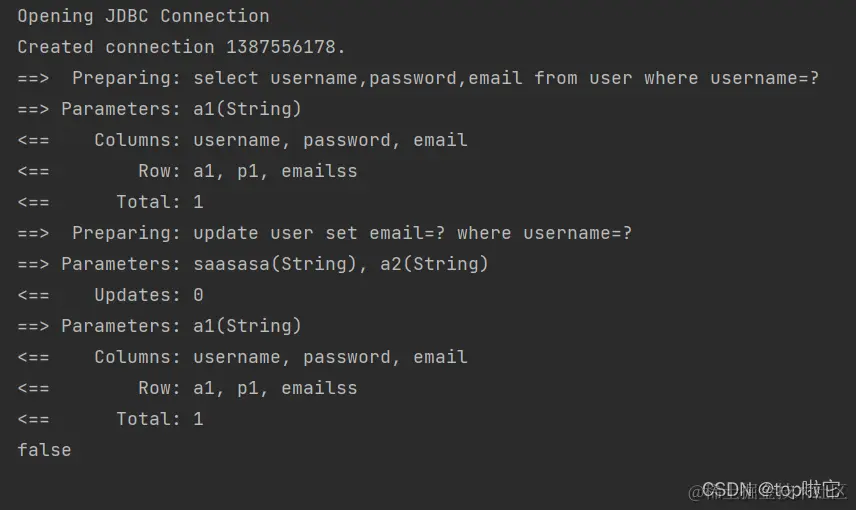

是一个改操作，为了保证数据的一致性，也需要清空一次缓存，只要是@Update操作都会清空，哪怕我在@Update里面写了select 在这里插入图片描述

一级缓存的作用域

letianwin.blog.csdn.net/article/det… 这篇文章字太多了，卡的一批。
