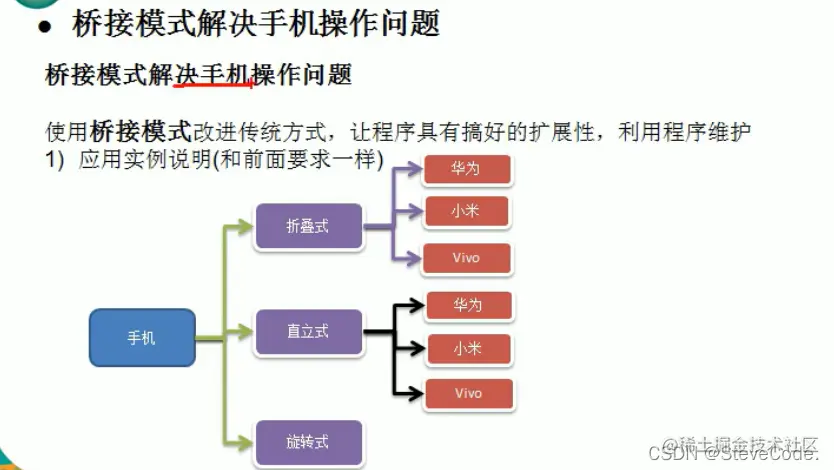

桥接模式-结构化

代码分享

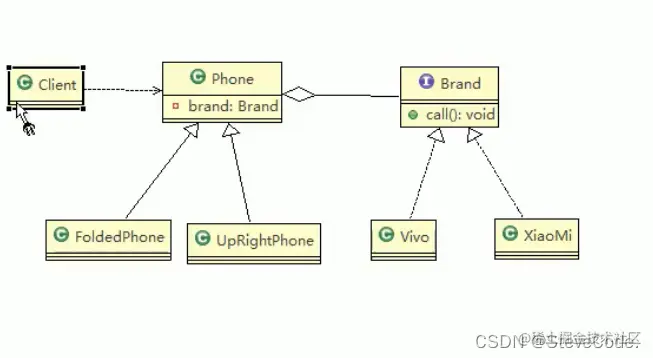

类图

/*******************************************************************************
 * Package: com.example.demo.bridg
 * Type:    Brand
 * Date:    2022-03-12 20:47
 *
 * Copyright (c) 2022 HUANENG GUICHENG TRUST CORP.,LTD All Rights Reserved.
 *
 * You may not use this file except in compliance with the License.
 *******************************************************************************/
package com.example.demo.bridg;

/**
 * 功能描述：为手机品牌做的接口
 *
 * @author Songxianyang
 * @date 2022-03-12 20:47
 */
public interface Brand {
    /**
     * 打电话
     */
    void call();

    /**
     * 上网
     */
    void net();
}

/*******************************************************************************
 * Package: com.example.demo.bridg
 * Type:    Flat
 * Date:    2022-03-12 20:55
 *
 * Copyright (c) 2022 HUANENG GUICHENG TRUST CORP.,LTD All Rights Reserved.
 *
 * You may not use this file except in compliance with the License.
 *******************************************************************************/
package com.example.demo.bridg;

/**
 * 功能描述：平板 手机
 *
 * @author Songxianyang
 * @date 2022-03-12 20:55
 */
public class FlatPhone extends StylePhone {
    private String name = "平板:";

    public FlatPhone(Brand brand) {
        super(brand);
    }

    @Override
    public void call() {
        System.out.println(name);
        super.call();
    }

    @Override
    protected void net() {
        System.out.println(name);

        super.net();
    }
}

/*******************************************************************************
 * Package: com.example.demo.bridg
 * Type:    FlipPhone
 * Date:    2022-03-12 20:55
 *
 * Copyright (c) 2022 HUANENG GUICHENG TRUST CORP.,LTD All Rights Reserved.
 *
 * You may not use this file except in compliance with the License.
 *******************************************************************************/
package com.example.demo.bridg;

/**
 * 功能描述：翻盖 手机
 *
 * @author Songxianyang
 * @date 2022-03-12 20:55
 */
public class FlipPhone extends StylePhone {
    private String name = "翻盖:";

    public FlipPhone(Brand brand) {
        super(brand);
    }

    @Override
    public void call() {
        System.out.println(name);
        super.call();
    }

    @Override
    protected void net() {
        System.out.println(name);
        super.net();
    }
}

/*******************************************************************************
 * Package: com.example.demo.bridg
 * Type:    XiaoMPhone
 * Date:    2022-03-12 20:49
 *
 * Copyright (c) 2022 HUANENG GUICHENG TRUST CORP.,LTD All Rights Reserved.
 *
 * You may not use this file except in compliance with the License.
 *******************************************************************************/
package com.example.demo.bridg;

/**
 * 功能描述：小米手机
 *
 * @author Songxianyang
 * @date 2022-03-12 20:49
 */
public class HuaweiPhone implements Brand {
    @Override
    public void call() {
        System.out.println("Huawei手机打电话");
    }

    @Override
    public void net() {
        System.out.println("Huawei手机上网");
    }
}

/*******************************************************************************
 * Package: com.example.demo.bridg
 * Type:    StylePhone
 * Date:    2022-03-12 20:53
 *
 * Copyright (c) 2022 HUANENG GUICHENG TRUST CORP.,LTD All Rights Reserved.
 *
 * You may not use this file except in compliance with the License.
 *******************************************************************************/
package com.example.demo.bridg;

/**
 * 功能描述：手机样式
 *
 * @author Songxianyang
 * @date 2022-03-12 20:53
 */
public abstract class StylePhone {

    private Brand brand;

    public StylePhone(Brand brand) {
        this.brand = brand;
    }


     // 开始搭桥


    protected void call(){
        brand.call();
    }



    protected void net() {
        brand.net();
    }
}

/*******************************************************************************
 * Package: com.example.demo.bridg
 * Type:    Test
 * Date:    2022-03-12 20:51
 *
 * Copyright (c) 2022 HUANENG GUICHENG TRUST CORP.,LTD All Rights Reserved.
 *
 * You may not use this file except in compliance with the License.
 *******************************************************************************/
package com.example.demo.bridg;

/**
 * 功能描述：桥接模式   ： 抽象类与接口分开
 *
 * @author Songxianyang
 * @date 2022-03-12 20:51
 */

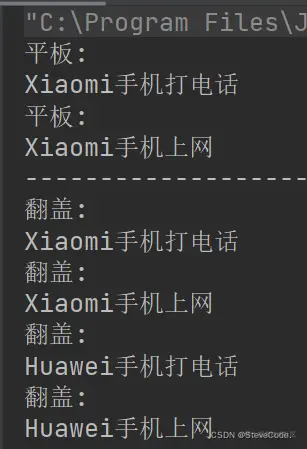

public class Test {
    public static void main(String[] args) {
        StylePhone flatPhone = new FlatPhone(new XiaoMiPhone());
        flatPhone.call();
        flatPhone.net();
        System.out.println("----------------------");
        StylePhone flipPhone = new FlipPhone(new XiaoMiPhone());
        flipPhone.call();
        flipPhone.net();
        System.out.println("-----------------");
        StylePhone huawei = new FlipPhone(new HuaweiPhone());
        huawei.call();
        huawei.net();
    }
}

/*******************************************************************************
 * Package: com.example.demo.bridg
 * Type:    XiaoMPhone
 * Date:    2022-03-12 20:49
 *
 * Copyright (c) 2022 HUANENG GUICHENG TRUST CORP.,LTD All Rights Reserved.
 *
 * You may not use this file except in compliance with the License.
 *******************************************************************************/
package com.example.demo.bridg;

/**
 * 功能描述：小米手机
 *
 * @author Songxianyang
 * @date 2022-03-12 20:49
 */
public class XiaoMiPhone implements Brand{
    @Override
    public void call() {
        System.out.println("Xiaomi手机打电话");
    }

    @Override
    public void net() {
        System.out.println("Xiaomi手机上网");
    }
}

jdbc源码分析

没有分析明白

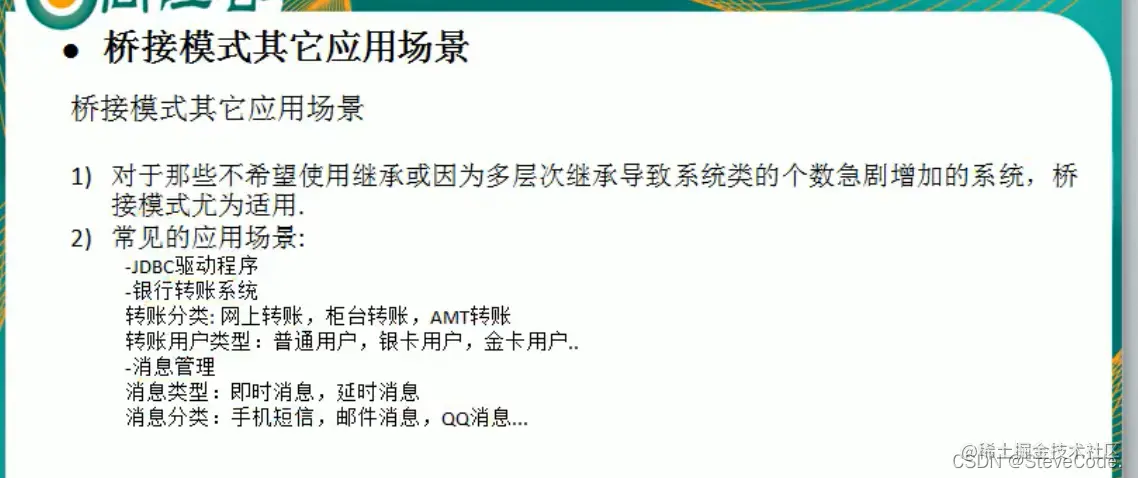

桥接总结
