Glimpse Sensor（类似于patch embedding）
Glimpse Sensor提取图像输入。
是前一个时间传过来的位置信息，
是输入数据。当位置信息
传入
时， 将会对
的
位置进行采样。

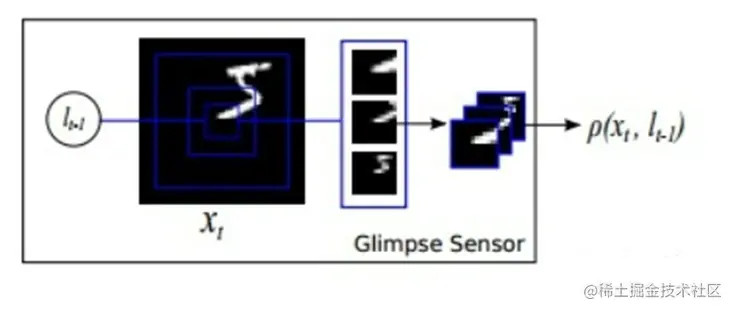

提取以位置信息为中心，长宽为w 的倍数，共3个patchs图像区域，并把提取的图像区域归一化到w*w大小，拼接起来得到输入
。这样就把不同层次的信息组合了起来。过程如下图所示:
代码
class Retina:
"""A visual retina.
Extracts a foveated glimpse `phi` around location `l`
from an image `x`.
Concretely, encodes the region around `l` at a
high-resolution but uses a progressively lower
resolution for pixels further from `l`, resulting
in a compressed representation of the original
image `x`.
Args:
x: a 4D Tensor of shape (B, H, W, C). The minibatch
of images.
l: a 2D Tensor of shape (B, 2). Contains normalized
coordinates in the range [-1, 1].
g: size of the first square patch.
k: number of patches to extract in the glimpse.
s: scaling factor that controls the size of
successive patches.
Returns:
phi: a 5D tensor of shape (B, k, g, g, C). The
foveated glimpse of the image.
"""
def __init__(self, g, k, s):
self.g = g
self.k = k
self.s = s
def foveate(self, x, l):
"""Extract `k` square patches of size `g`, centered
at location `l`. The initial patch is a square of
size `g`, and each subsequent patch is a square
whose side is `s` times the size of the previous
patch.
The `k` patches are finally resized to (g, g) and
concatenated into a tensor of shape (B, k, g, g, C).
"""
phi = []
size = self.g # patch_size
# extract k patches of increasing size
for i in range(self.k): # 循环patch__num # 相当于获取了每张图片的patch__num=3个patch， 此时k=1
phi.append(self.extract_patch(x, l, size)) # （128， 1， 8， 8）# 每张图片的一个scale的patch
size = int(self.s * size) # 变化scale
# resize the patches to squares of size g 通过平均池化将所有的图片大小规范到 统一大小， 这样如果把patch看作一个通道， 那么既有整体的也有局部的信息。
for i in range(1, len(phi)):
k = phi[i].shape[-1] // self.g
phi[i] = F.avg_pool2d(phi[i], k)
# concatenate into a single tensor and flatten
phi = torch.cat(phi, 1)
phi = phi.view(phi.shape[0], -1)
return phi
def extract_patch(self, x, l, size):
"""Extract a single patch for each image in `x`.
Args:
x: a 4D Tensor of shape (B, H, W, C). The minibatch
of images.
l: a 2D Tensor of shape (B, 2).
size: a scalar defining the size of the extracted patch.
Returns:
patch: a 4D Tensor of shape (B, size, size, C)
"""
B, C, H, W = x.shape
start = self.denormalize(H, l) # 将【-1， 1】区间的坐标变换【0， T】区间的坐标
end = start + size # 坐标是patch左上角一个点（x, y） + patch_size = patch右下角坐标
# pad with zeros
x = F.pad(x, (size // 2, size // 2, size // 2, size // 2)) # 填充patch大小的0，为了能够取到图片左上角像素点
# loop through mini-batch and extract patches
patch = []
for i in range(B): # 循环图片个数
patch.append(x[i, :, start[i, 1] : end[i, 1], start[i, 0] : end[i, 0]])
return torch.stack(patch)
# 坐标区间映射从[-1, 1]区间， 映射到[0, T=(图片的w and h)]
def denormalize(self, T, coords):
"""Convert coordinates in the range [-1, 1] to
coordinates in the range [0, T] where `T` is
the size of the image.
"""
return (0.5 * ((coords + 1.0) * T)).long() # coords + 1.0 --【0-2】--【0-2T】， 所以最后 * 0.5
class GlimpseNetwork(nn.Module):
"""The glimpse network.
Combines the "what" and the "where" into a glimpse
feature vector `g_t`.
- "what": glimpse extracted from the retina. 视网膜的那一撇， 就深深的印在我的脑海。
- "where": location tuple where glimpse was extracted. 那一撇的位置在哪里尼。
Concretely, feeds the output of the retina `phi` to
a fc layer and the glimpse location vector `l_t_prev`
to a fc layer. Finally, these outputs are fed each
through a fc layer and their sum is rectified.
In other words:
`g_t = relu( fc( fc(l) ) + fc( fc(phi) ) )`
Args:
h_g: hidden layer size of the fc layer for `phi`.
h_l: hidden layer size of the fc layer for `l`.
g: size of the square patches in the glimpses extracted g=patch_size
by the retina.
k: number of patches to extract per glimpse. k=patch_num
s: scaling factor that controls the size of successive patches. s=patch_scale
c: number of channels in each image. c=channels
x: a 4D Tensor of shape (B, H, W, C). The minibatch
of images.
l_t_prev: a 2D tensor of shape (B, 2). Contains the glimpse 坐标（位置）向量
coordinates [x, y] for the previous timestep `t-1`.
Returns:
g_t: a 2D tensor of shape (B, hidden_size).
The glimpse representation returned by
the glimpse network for the current
timestep `t`.
"""
def __init__(self, h_g, h_l, g, k, s, c):
super().__init__()
self.retina = Retina(g, k, s) # （patch_size, patch_num, patch_scale）
# glimpse layer
D_in = k * g * g * c
self.fc1 = nn.Linear(D_in, h_g)
# location layer
D_in = 2
self.fc2 = nn.Linear(D_in, h_l)
self.fc3 = nn.Linear(h_g, h_g + h_l)
self.fc4 = nn.Linear(h_l, h_g + h_l)
def forward(self, x, l_t_prev):
# generate glimpse phi from image x
phi = self.retina.foveate(x, l_t_prev) # 输入x， 和位置向量, 返回：一张图片只取一个patch
# torch.Size([128, 64]) 64 = 8 * 8 =patch_size * patch_size
# flatten location vector 展平位置向量
l_t_prev = l_t_prev.view(l_t_prev.size(0), -1)
# feed phi and l to respective fc layers feed patch and location vector
phi_out = F.relu(self.fc1(phi)) # (8 * 8 - 128)
l_out = F.relu(self.fc2(l_t_prev)) # (2-128)
what = self.fc3(phi_out) # (128-256)
where = self.fc4(l_out) # (128-256)
# feed to fc layer
g_t = F.relu(what + where)
return g_t
代码释义
主代码：GlimpseNetwork
init(self, h_g, h_l, g, k, s, c):
主要参数理解：
g = patch_size 每一个小patch的w 和 h， w=h
k = patch_num 一张图片要抽取多少个patch
s = patch_scale 如果一张图片要抽取多个patch， 那么抽取patch_size是由原patch_size * patch_scale确定。如下图，三个patch。
c = channels 通道数
self.retina = Retina(g, k, s) # （patch_size, patch_num, patch_scale） 相当于transformer中的patch_embedding
主要代码是：extract_patch()方法
该方法通过patch的左上角和右下角的坐标截取一张图片的patch。返回每个图片的一个patch
foveate方法：调用extract_patch()，然后返回每张图片的多个patch
后面的主要是对patch展开向量通过一系列全连接之后将位置信息和patch信息相加。
返回的是每一张图片的location + patch的向量。
思考
让我有所收获的是patch_embedding的方法，
该方法既获取图片的全局信息，也获取了图片的局部信息。也可以理解为获取了不同目标大小的注意框框， 这样就能够考虑到目标大小的问题。
