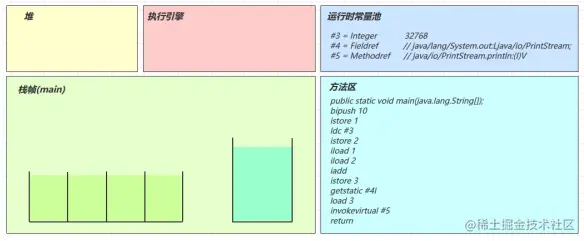

图解方法执行流程

a.原始 java 代码

/**
* 演示 字节码指令 和 操作数栈、常量池的关系
*/
public class Demo3_1 {
    public static void main(String[] args) {
        int a = 10;
        int b = Short.MAX_VALUE + 1;
        int c = a + b;
        System.out.println(c);
    }
}

b.编译后的字节码文件

[root@localhost ~]# javap -v Demo3_1.class
Classfile /root/Demo3_1.class
Last modified Jul 7, 2019; size 665 bytes
MD5 checksum a2c29a22421e218d4924d31e6990cfc5
Compiled from "Demo3_1.java"
public class cn.itcast.jvm.t3.bytecode.Demo3_1
minor version: 0
major version: 52
flags: ACC_PUBLIC, ACC_SUPER

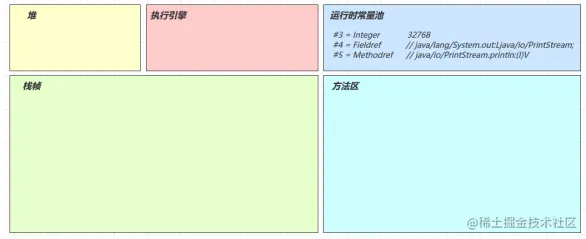

Constant pool:
#1 = Methodref #7.#26 // java/lang/Object."<init>":()V
#2 = Class #27 // java/lang/Short
#3 = Integer 32768
#4 = Fieldref #28.#29 //
java/lang/System.out:Ljava/io/PrintStream;
#5 = Methodref #30.#31 // java/io/PrintStream.println:(I)V
#6 = Class #32 // cn/itcast/jvm/t3/bytecode/Demo3_1
#7 = Class #33 // java/lang/Object
#8 = Utf8 <init>
#9 = Utf8 ()V
#10 = Utf8 Code
#11 = Utf8 LineNumberTable
#12 = Utf8 LocalVariableTable
#13 = Utf8 this
#14 = Utf8 Lcn/itcast/jvm/t3/bytecode/Demo3_1;
#15 = Utf8 main
#16 = Utf8 ([Ljava/lang/String;)V
#17 = Utf8 args
#18 = Utf8 [Ljava/lang/String;
#19 = Utf8 a
#20 = Utf8 I
#21 = Utf8 b
#22 = Utf8 c
#23 = Utf8 MethodParameters
#24 = Utf8 SourceFile
#25 = Utf8 Demo3_1.java
#26 = NameAndType #8:#9 // "<init>":()V
#27 = Utf8 java/lang/Short
#28 = Class #34 // java/lang/System
#29 = NameAndType #35:#36 // out:Ljava/io/PrintStream;
#30 = Class #37 // java/io/PrintStream
#31 = NameAndType #38:#39 // println:(I)V
#32 = Utf8 cn/itcast/jvm/t3/bytecode/Demo3_1
#33 = Utf8 java/lang/Object
#34 = Utf8 java/lang/System
#35 = Utf8 out
#36 = Utf8 Ljava/io/PrintStream;
#37 = Utf8 java/io/PrintStream
#38 = Utf8 println
#39 = Utf8 (I)V
{
public cn.itcast.jvm.t3.bytecode.Demo3_1();
descriptor: ()V
flags: ACC_PUBLIC
Code:
stack=1, locals=1, args_size=1
0: aload_0
1: invokespecial #1 // Method java/lang/Object."
<init>":()V
4: return
LineNumberTable:
line 6: 0
LocalVariableTable:
Start Length Slot Name Signature
0 5 0 this Lcn/itcast/jvm/t3/bytecode/Demo3_1;

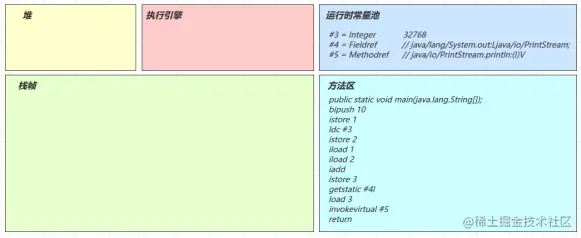

public static void main(java.lang.String[]);
descriptor: ([Ljava/lang/String;)V
flags: ACC_PUBLIC, ACC_STATIC
Code:
stack=2, locals=4, args_size=1

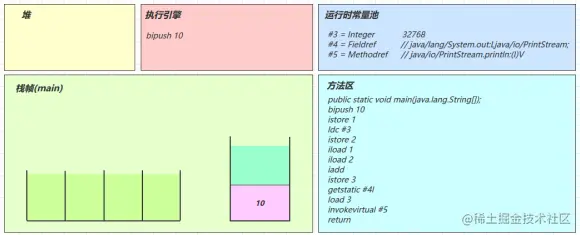

0: bipush 10

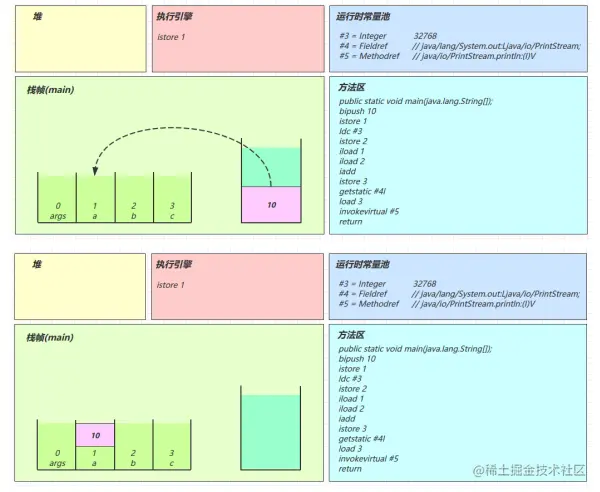

2: istore_1
3: ldc #3 // int 32768
5: istore_2

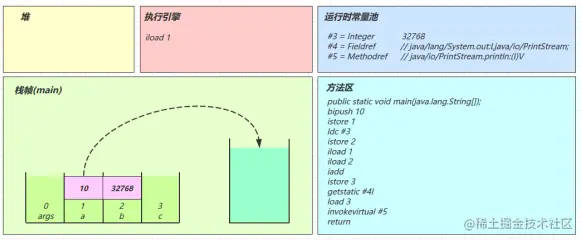

6: iload_1
7: iload_2

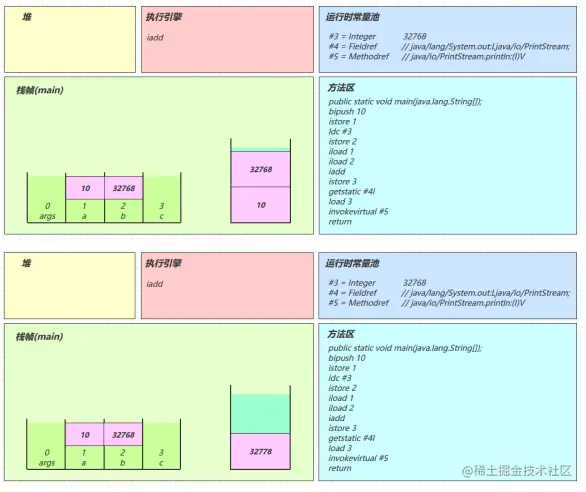

8: iadd

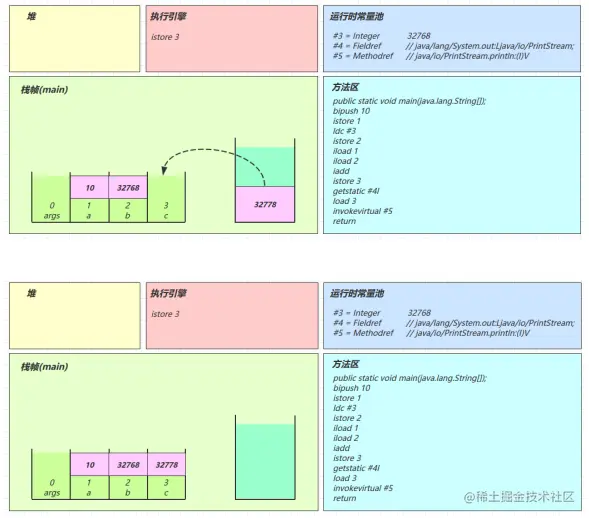

9: istore_3

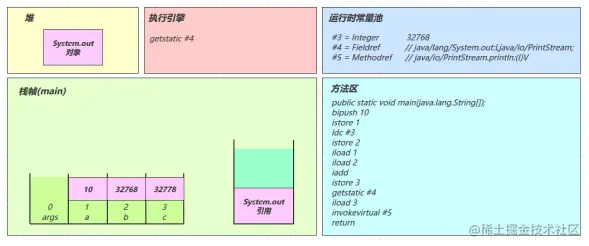

10: getstatic #4 // Field
java/lang/System.out:Ljava/io/PrintStream;

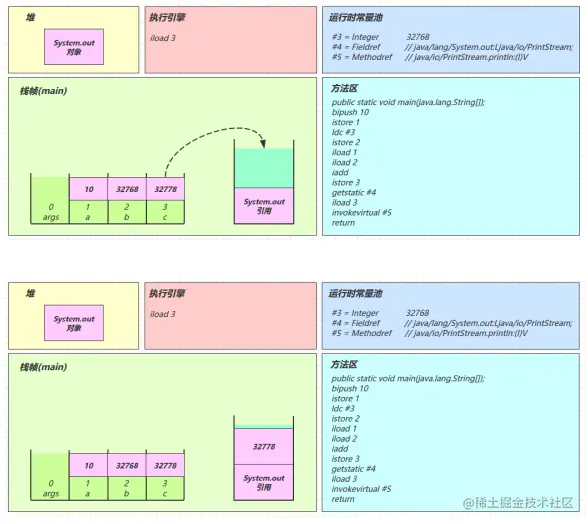

13: iload_3

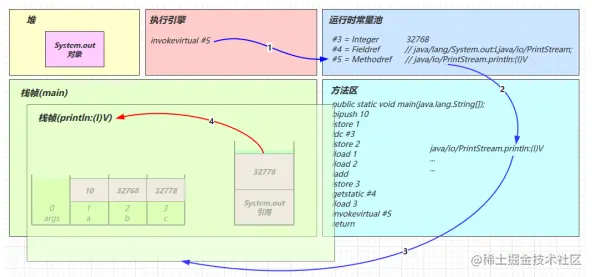

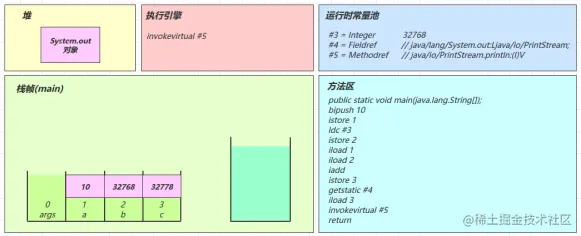

14: invokevirtual #5 // Method
java/io/PrintStream.println:(I)V
17: return
LineNumberTable:
line 8: 0
line 9: 3
line 10: 6
line 11: 10
line 12: 17
LocalVariableTable:
Start Length Slot Name Signature
0 18 0 args [Ljava/lang/String;
3 15 1 a I
6 12 2 b I
10 8 3 c I
MethodParameters:
Name Flags
args
}
