iOS底层原理(37) - Runloop

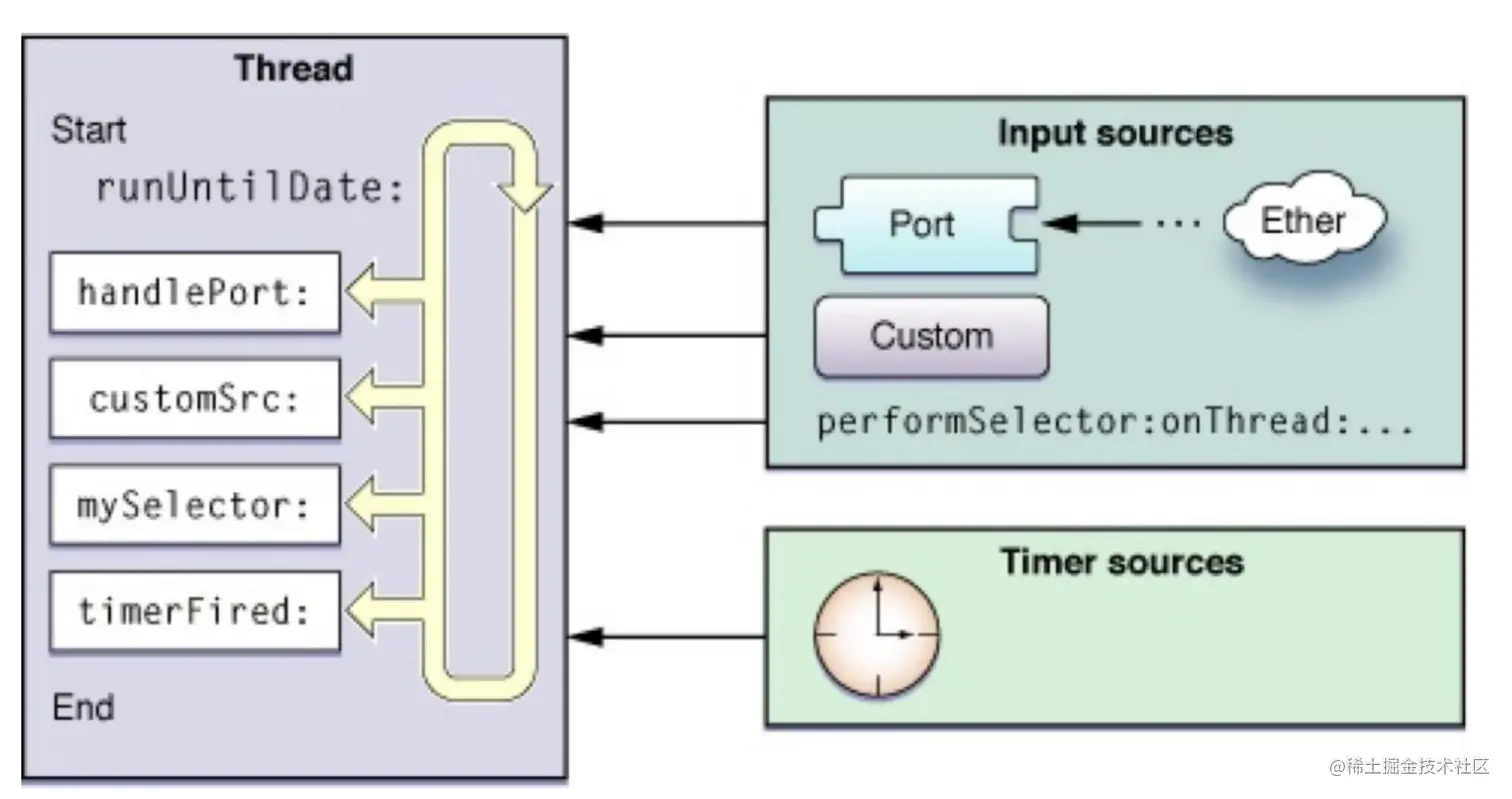

Runloop的作用

• 保持程序的持续运行
• 处理App中的各种事件(触摸、定时器、performSelector)
• 节省cpu资源、提高给程序的性能(有事件就处理，没有就休眠)

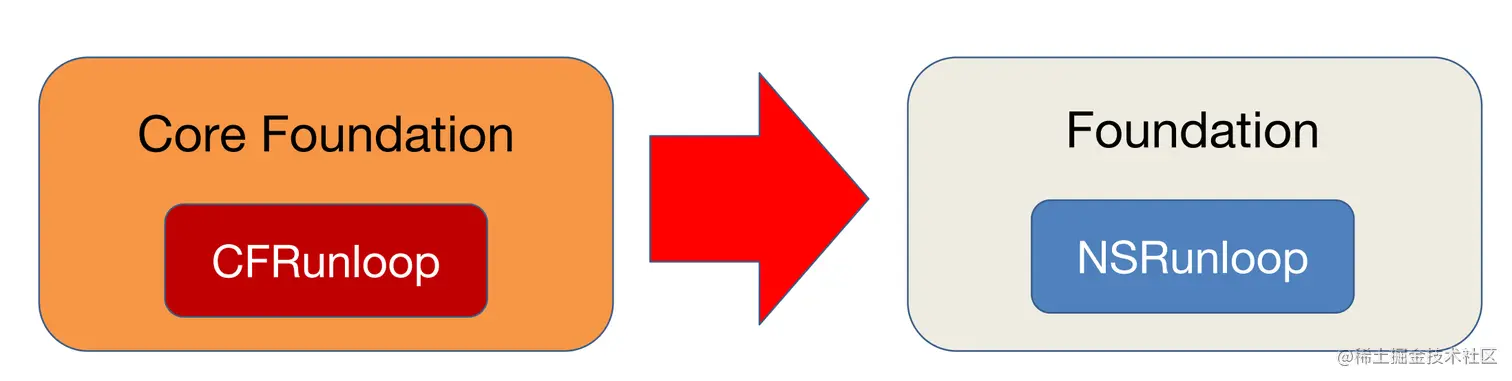

Runloop的结构

__CFRunLoop

struct __CFRunLoop {
    CFRuntimeBase _base;
    pthread_mutex_t _lock;            /* locked for accessing mode list */
    __CFPort _wakeUpPort;            // used for CFRunLoopWakeUp
    Boolean _unused;
    volatile _per_run_data *_perRunData;              // reset for runs of the run loop
    pthread_t _pthread;
    uint32_t _winthread;
    CFMutableSetRef _commonModes;
    CFMutableSetRef _commonModeItems;
    CFRunLoopModeRef _currentMode;
    CFMutableSetRef _modes;
    struct _block_item *_blocks_head;
    struct _block_item *_blocks_tail;
    CFTypeRef _counterpart;
};

__CFRunLoopMode

struct __CFRunLoopMode {
    CFRuntimeBase _base;
    pthread_mutex_t _lock;    /* must have the run loop locked before locking this */
    CFStringRef _name;
    Boolean _stopped;
    char _padding[3];
    CFMutableSetRef _sources0;
    CFMutableSetRef _sources1;
    CFMutableArrayRef _observers;
    CFMutableArrayRef _timers;
    CFMutableDictionaryRef _portToV1SourceMap;
    __CFPortSet _portSet;
    CFIndex _observerMask;
#if USE_DISPATCH_SOURCE_FOR_TIMERS
    dispatch_source_t _timerSource;
    dispatch_queue_t _queue;
    Boolean _timerFired; // set to true by the source when a timer has fired
    Boolean _dispatchTimerArmed;
#endif
#if USE_MK_TIMER_TOO
    mach_port_t _timerPort;
    Boolean _mkTimerArmed;
#endif
#if DEPLOYMENT_TARGET_WINDOWS
    DWORD _msgQMask;
    void (*_msgPump)(void);
#endif
    uint64_t _timerSoftDeadline; /* TSR */
    uint64_t _timerHardDeadline; /* TSR */
};

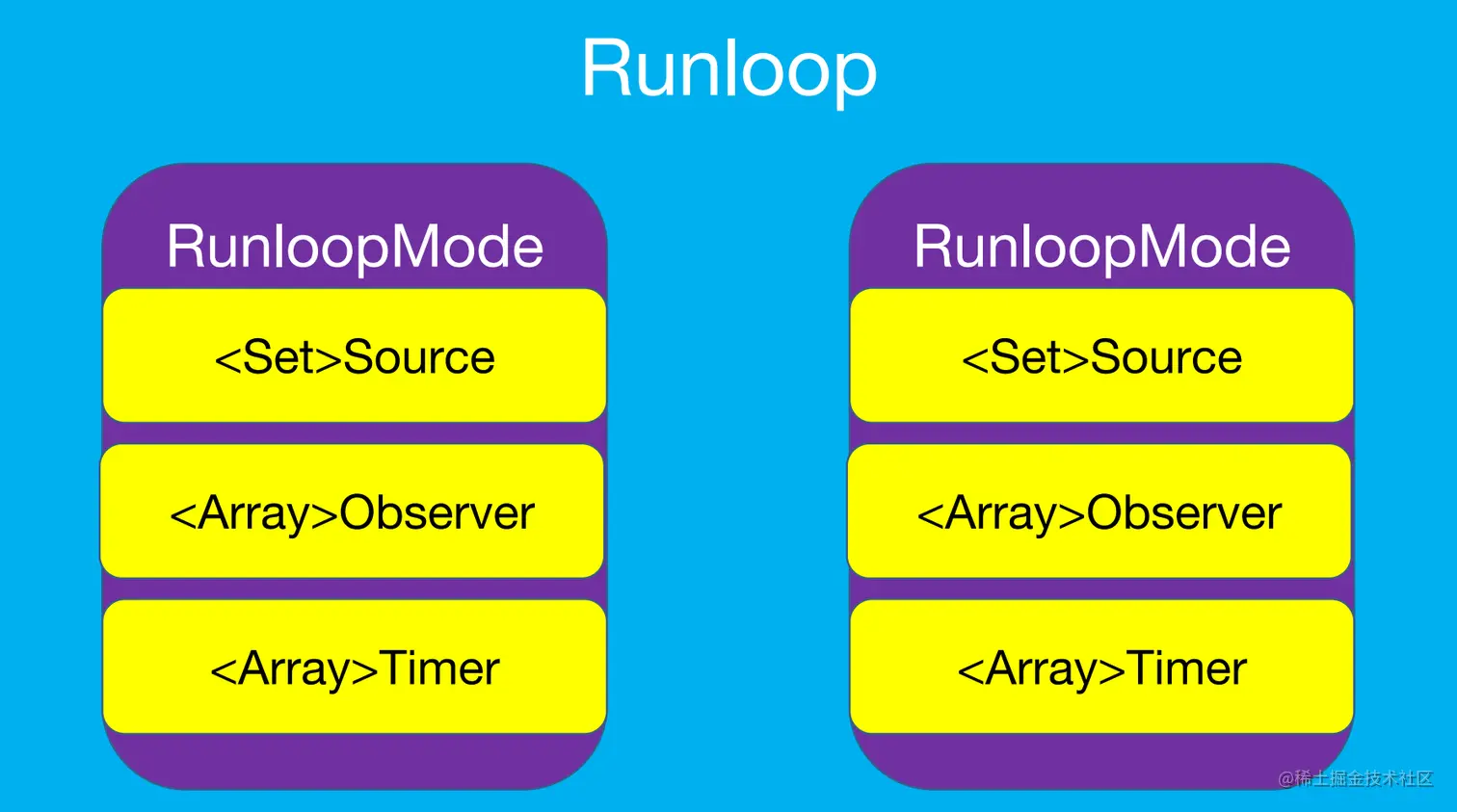

Runloop的Item

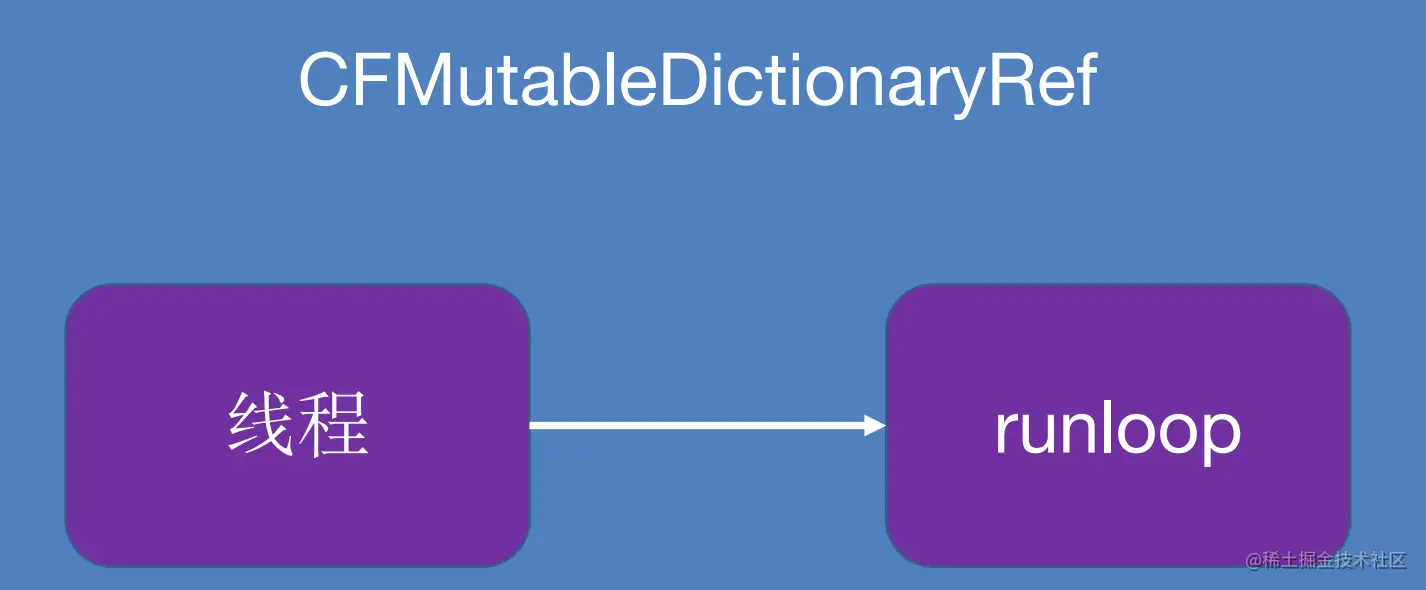

线程和runloop的对应关系

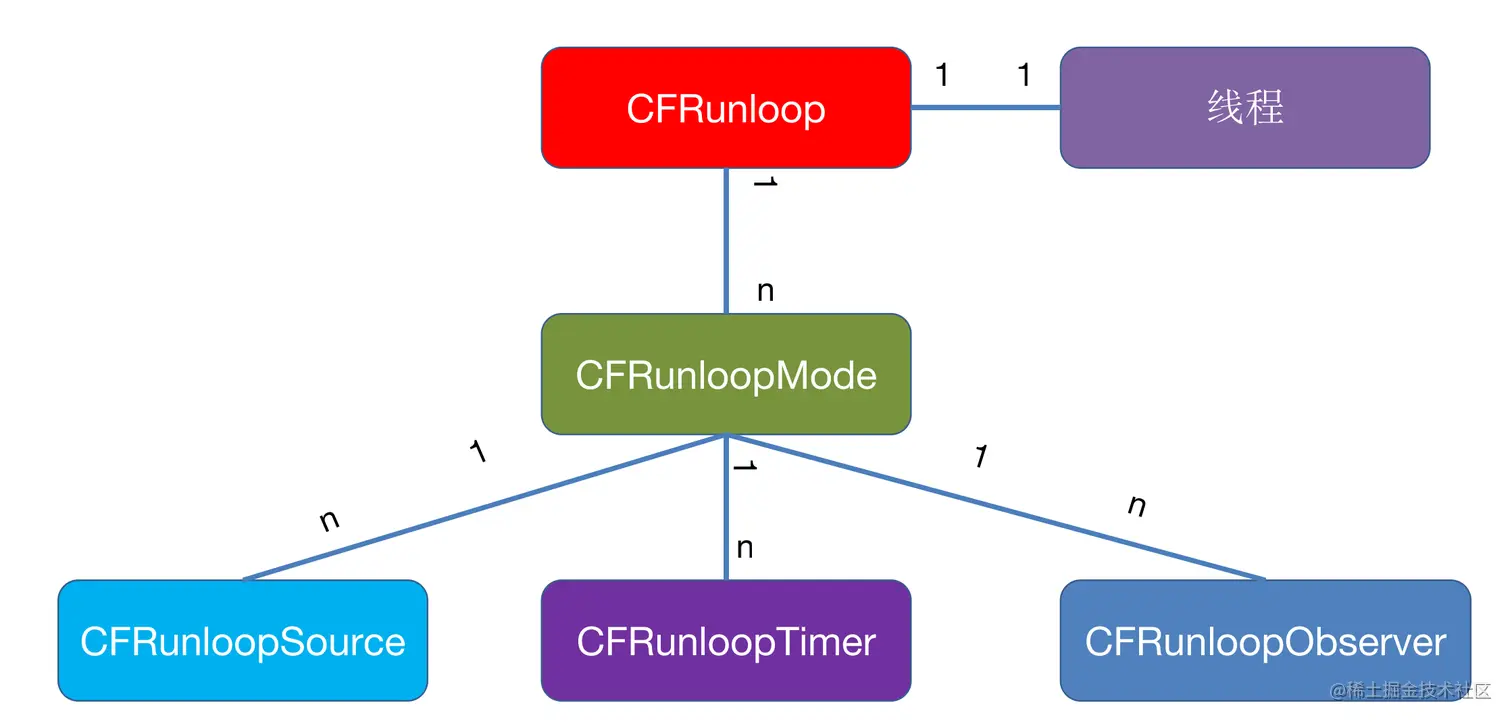

Runloop的结构

Runloop的原理

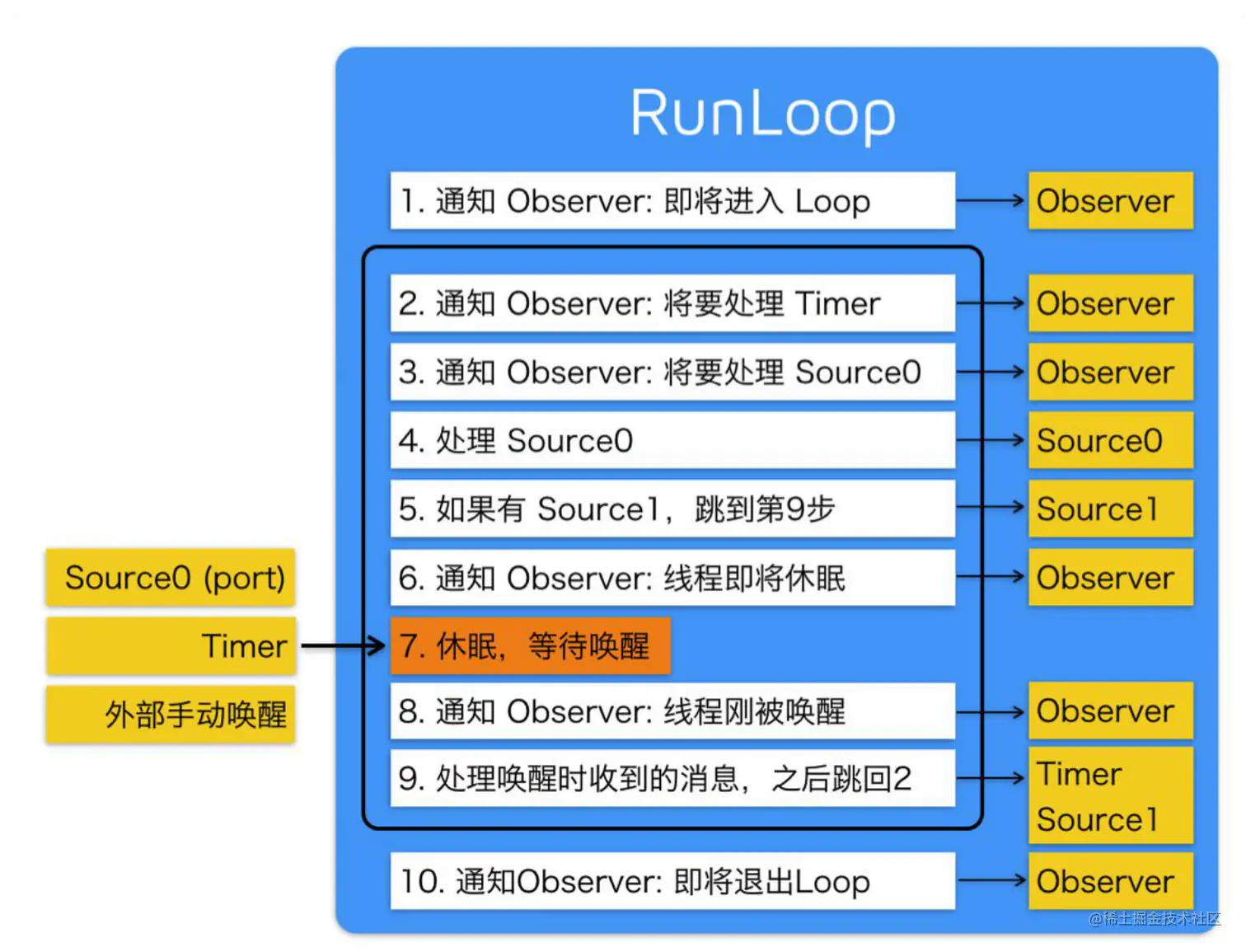

Runloop内部执行过程

SInt32 CFRunLoopRunSpecific(CFRunLoopRef rl, CFStringRef modeName, CFTimeInterval seconds, Boolean returnAfterSourceHandled) {     /* DOES CALLOUT */
    CHECK_FOR_FORK();
    if (__CFRunLoopIsDeallocating(rl)) return kCFRunLoopRunFinished;
    __CFRunLoopLock(rl);

    /// 首先根据modeName找到对应mode
    CFRunLoopModeRef currentMode = __CFRunLoopFindMode(rl, modeName, false);

    /// 通知 Observers: RunLoop 即将进入 loop。
    __CFRunLoopDoObservers(rl, currentMode, kCFRunLoopEntry);

    /// 内部函数，进入loop
    result = __CFRunLoopRun(rl, currentMode, seconds, returnAfterSourceHandled, previousMode);

    /// 通知 Observers: RunLoop 即将退出。
    __CFRunLoopDoObservers(rl, currentMode, kCFRunLoopExit);

    return result;
}

/// 核心函数
static int32_t __CFRunLoopRun(CFRunLoopRef rl, CFRunLoopModeRef rlm, CFTimeInterval seconds, Boolean stopAfterHandle, CFRunLoopModeRef previousMode) {

    int32_t retVal = 0;

    do {  // itmes do

        /// 通知 Observers: 即将处理timer事件
        __CFRunLoopDoObservers(rl, rlm, kCFRunLoopBeforeTimers);

        /// 通知 Observers: 即将处理Source事件
        __CFRunLoopDoObservers(rl, rlm, kCFRunLoopBeforeSources)

        /// 处理Blocks
        __CFRunLoopDoBlocks(rl, rlm);

        /// 处理sources0
        Boolean sourceHandledThisLoop = __CFRunLoopDoSources0(rl, rlm, stopAfterHandle);

        /// 处理sources0返回为YES
        if (sourceHandledThisLoop) {
            /// 处理Blocks
            __CFRunLoopDoBlocks(rl, rlm);
        }


        /// 判断有无端口消息(Source1)
        if (__CFRunLoopServiceMachPort(dispatchPort, &msg, sizeof(msg_buffer), &livePort, 0, &voucherState, NULL)) {
            /// 处理消息
            goto handle_msg;
        }

        /// 通知 Observers: 即将进入休眠
        __CFRunLoopDoObservers(rl, rlm, kCFRunLoopBeforeWaiting);
        __CFRunLoopSetSleeping(rl);

        /// 等待被唤醒
        __CFRunLoopServiceMachPort(waitSet, &msg, sizeof(msg_buffer), &livePort, poll ? 0 : TIMEOUT_INFINITY, &voucherState, &voucherCopy);


        // user callouts now OK again
        __CFRunLoopUnsetSleeping(rl);

        /// 通知 Observers: 被唤醒，结束休眠
        __CFRunLoopDoObservers(rl, rlm, kCFRunLoopAfterWaiting);

    handle_msg:
        if (被Timer唤醒) {
            /// 处理Timers
            __CFRunLoopDoTimers(rl, rlm, mach_absolute_time())；
        } else if (被GCD唤醒) {
            /// 处理gcd
            __CFRUNLOOP_IS_SERVICING_THE_MAIN_DISPATCH_QUEUE__(msg);
        } else if (被Source1唤醒) {
            /// 被Source1唤醒，处理Source1
            __CFRunLoopDoSource1(rl, rlm, rls, msg, msg->msgh_size, &reply)
        }

        /// 处理block
        __CFRunLoopDoBlocks(rl, rlm);


        if (sourceHandledThisLoop && stopAfterHandle) {
            retVal = kCFRunLoopRunHandledSource;
        } else if (timeout_context->termTSR < mach_absolute_time()) {
            retVal = kCFRunLoopRunTimedOut;
        } else if (__CFRunLoopIsStopped(rl)) {
            __CFRunLoopUnsetStopped(rl);
            retVal = kCFRunLoopRunStopped;
        } else if (rlm->_stopped) {
            rlm->_stopped = false;
            retVal = kCFRunLoopRunStopped;
        } else if (__CFRunLoopModeIsEmpty(rl, rlm, previousMode)) {
            retVal = kCFRunLoopRunFinished;
        }

    } while (0 == retVal);

    return retVal;
}

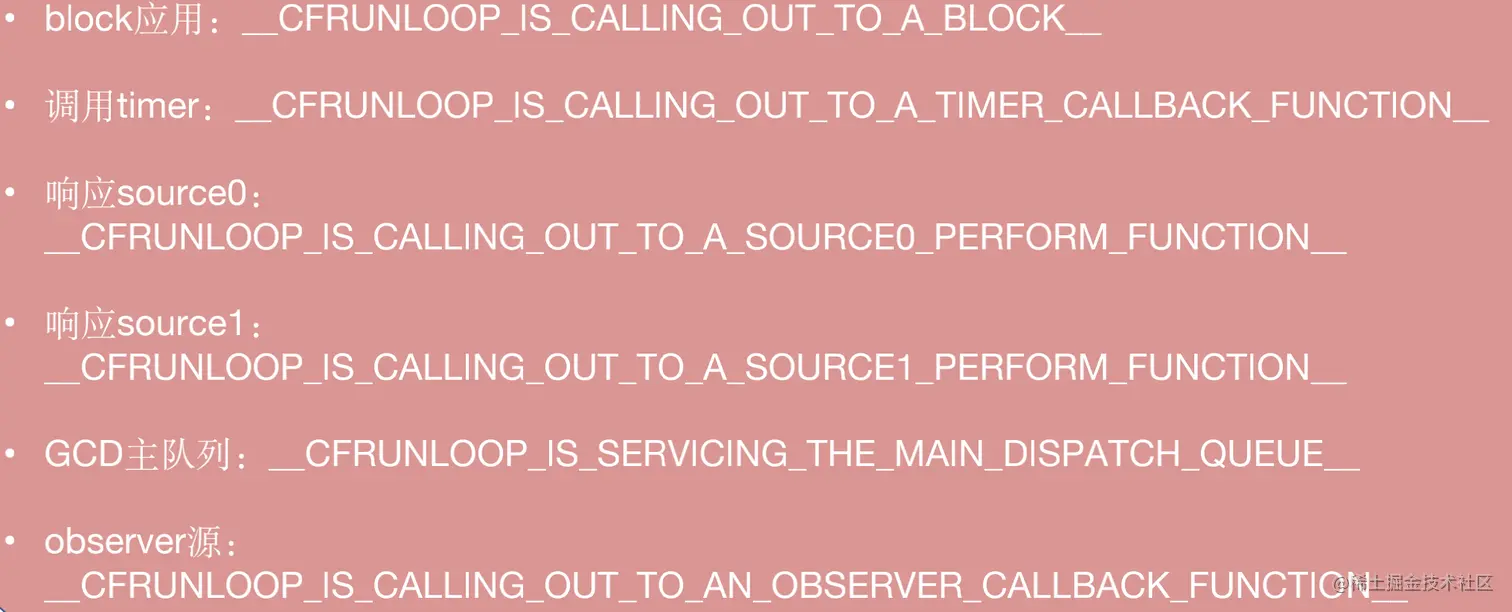

// main  dispatch queue
__CFRUNLOOP_IS_SERVICING_THE_MAIN_DISPATCH_QUEUE__

// __CFRunLoopDoObservers
__CFRUNLOOP_IS_CALLING_OUT_TO_AN_OBSERVER_CALLBACK_FUNCTION__

// __CFRunLoopDoBlocks
__CFRUNLOOP_IS_CALLING_OUT_TO_A_BLOCK__

// __CFRunLoopDoSources0
__CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE0_PERFORM_FUNCTION__

// __CFRunLoopDoSource1
__CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE1_PERFORM_FUNCTION__

// __CFRunLoopDoTimers
__CFRUNLOOP_IS_CALLING_OUT_TO_A_TIMER_CALLBACK_FUNCTION__

资料：Runloop源码
