概述
一站式解决pc端图片预览以及下载
使用环境以及前提条件
vue2.x pc端图片预览 基于element UI
组件目录
image-viewer.vue 文件源码
可以复制使用
<template>
<transition name="viewer-fade">
<div class="el-image-viewer__wrapper" :style="{ 'z-index': zIndex }">
<div class="el-image-viewer__mask"></div>
<!-- CLOSE -->
<span class="el-image-viewer__btn el-image-viewer__close" @click="hide">
<i class="el-icon-circle-close" style="color: #fff"></i>
</span>
<!-- ARROW -->
<template v-if="!isSingle">
<span
class="el-image-viewer__btn el-image-viewer__prev"
:class="{ 'is-disabled': !infinite && isFirst }"
@click="prev">
<i class="el-icon-arrow-left"/>
</span>
<span
class="el-image-viewer__btn el-image-viewer__next"
:class="{ 'is-disabled': !infinite && isLast }"
@click="next">
<i class="el-icon-arrow-right"/>
</span>
</template>
<!-- ACTIONS -->
<div class="el-image-viewer__btn el-image-viewer__actions">
<div class="el-image-viewer__actions__inner">
<i class="el-icon-zoom-out" @click="handleActions('zoomOut')"></i>
<i class="el-icon-zoom-in" @click="handleActions('zoomIn')"></i>
<i class="el-image-viewer__actions__divider"></i>
<i :class="mode.icon" @click="toggleMode"></i>
<i class="el-image-viewer__actions__divider"></i>
<i class="el-icon-refresh-left" @click="handleActions('anticlocelise')"></i>
<i class="el-icon-refresh-right" @click="handleActions('clocelise')"></i>
<i class="el-icon-bottom" @click="handleActions('down')"></i>
</div>
</div>
<!-- CANVAS -->
<div class="el-image-viewer__canvas">
<img
v-for="(url, i) in urlList"
v-if="i === index"
ref="img"
class="el-image-viewer__img"
:key="url"
:src="currentImg"
:style="imgStyle"
@load="handleImgLoad"
@error="handleImgError"
@mousedown="handleMouseDown"
/>
</div>
</div>
</transition>
</template>
<script>
import { on, off } from './dom';
import { rafThrottle, isFirefox } from './util';
const Mode = {
CONTAIN: {
name: 'contain',
icon: 'el-icon-full-screen'
},
ORIGINAL: {
name: 'original',
icon: 'el-icon-c-scale-to-original'
}
};
const mousewheelEventName = isFirefox() ? 'DOMMouseScroll' : 'mousewheel';
export default {
name: 'elImageViewer',
props: {
urlList: {
type: Array,
default: () => []
},
zIndex: {
type: Number,
default: 2000
},
onSwitch: {
type: Function,
default: () => {}
},
onClose: {
type: Function,
default: () => {}
}
},
data() {
return {
index: 0,
isShow: false,
infinite: true,
loading: false,
mode: Mode.CONTAIN,
transform: {
scale: 1,
deg: 0,
offsetX: 0,
offsetY: 0,
enableTransition: false
}
};
},
computed: {
isSingle() {
return this.urlList.length <= 1;
},
isFirst() {
return this.index === 0;
},
isLast() {
return this.index === this.urlList.length - 1;
},
currentImg() {
return this.urlList[this.index];
},
imgStyle() {
const { scale, deg, offsetX, offsetY, enableTransition } = this.transform;
const style = {
transform: `scale(${scale}) rotate(${deg}deg)`,
transition: enableTransition ? 'transform .3s' : '',
'margin-left': `${offsetX}px`,
'margin-top': `${offsetY}px`
};
if (this.mode === Mode.CONTAIN) {
style.maxWidth = style.maxHeight = '100%';
}
return style;
}
},
watch: {
index: {
handler: function(val) {
this.reset();
this.onSwitch(val);
}
},
currentImg(val) {
this.$nextTick(_ => {
const $img = this.$refs.img[0];
if (!$img.complete) {
this.loading = true;
}
});
}
},
methods: {
hide() {
this.deviceSupportUninstall();
this.onClose();
},
downloadFile(url, filename) {
let that = this
url=url+`?${Math.random()}`
this.getBlob(url, function(blob) {
that.saveAs(blob, filename);
})
},
getBlob(url,cb) {
var xhr = new XMLHttpRequest();
xhr.open('GET', url, true);
xhr.responseType = 'blob';
xhr.onload = function() {
if (xhr.status === 200) {
cb(xhr.response);
}
};
xhr.send();
},
saveAs(blob, filename) {
if (window.navigator.msSaveOrOpenBlob) {
navigator.msSaveBlob(blob, filename);
} else {
var link = document.createElement('a');
var body = document.querySelector('body');
link.href = window.URL.createObjectURL(blob);
link.download = filename;
// fix Firefox
link.style.display = 'none';
body.appendChild(link);
link.click();
body.removeChild(link);
window.URL.revokeObjectURL(link.href);
}
},
deviceSupportInstall() {
this._keyDownHandler = rafThrottle(e => {
const keyCode = e.keyCode;
switch (keyCode) {
// ESC
case 27:
this.hide();
break;
// SPACE
case 32:
this.toggleMode();
break;
// LEFT_ARROW
case 37:
this.prev();
break;
// UP_ARROW
case 38:
this.handleActions('zoomIn');
break;
// RIGHT_ARROW
case 39:
this.next();
break;
// DOWN_ARROW
case 40:
this.handleActions('zoomOut');
break;
}
});
on(document, 'keydown', this._keyDownHandler);
},
deviceSupportUninstall() {
off(document, 'keydown', this._keyDownHandler);
this._keyDownHandler = null;
},
handleImgLoad(e) {
this.loading = false;
},
handleImgError(e) {
this.loading = false;
e.target.alt = '加载失败';
},
handleMouseDown(e) {
if (this.loading || e.button !== 0) return;
const { offsetX, offsetY } = this.transform;
const startX = e.pageX;
const startY = e.pageY;
this._dragHandler = rafThrottle(ev => {
this.transform.offsetX = offsetX + ev.pageX - startX;
this.transform.offsetY = offsetY + ev.pageY - startY;
});
on(document, 'mousemove', this._dragHandler);
on(document, 'mouseup', ev => {
off(document, 'mousemove', this._dragHandler);
e.preventDefault();
})
},
reset() {
this.transform = {
scale: 1,
deg: 0,
offsetX: 0,
offsetY: 0,
enableTransition: false
};
},
toggleMode() {
if (this.loading) return;
const modeNames = Object.keys(Mode);
const modeValues = Object.values(Mode);
const index = modeValues.indexOf(this.mode);
const nextIndex = (index + 1) % modeNames.length;
this.mode = Mode[modeNames[nextIndex]];
this.reset();
},
prev() {
if (this.isFirst && !this.infinite) return;
const len = this.urlList.length;
this.index = (this.index - 1 + len) % len;
},
next() {
if (this.isLast && !this.infinite) return;
const len = this.urlList.length;
this.index = (this.index + 1) % len;
},
handleActions(action, options = {}) {
if (this.loading) return;
const { zoomRate, rotateDeg, enableTransition } = Object.assign({
zoomRate: 0.2,
rotateDeg: 90,
enableTransition: true,
}, {options});
const { transform } = this;
switch (action) {
case 'zoomOut':
if (transform.scale > 0.2) {
transform.scale = parseFloat((transform.scale - zoomRate).toFixed(3));
}
break;
case 'zoomIn':
transform.scale = parseFloat((transform.scale + zoomRate).toFixed(3));
break;
case 'clocelise':
transform.deg += rotateDeg;
break;
case 'anticlocelise':
transform.deg -= rotateDeg;
break;
case 'down':
const fileName =this.currentImg.split('.').slice(-2)[0].split('/').slice(-1)[0].split('_')[0];
this.downloadFile(this.currentImg,fileName)
}
transform.enableTransition = enableTransition;
}
},
mounted() {
this.deviceSupportInstall();
}
};
</script>
其他结构源码
dom.js 源码
import Vue from 'vue';
const isServer = Vue.prototype.$isServer;
/* istanbul ignore next */
export const on = (function() {
if (!isServer && document.addEventListener) {
return function(element, event, handler) {
if (element && event && handler) {
element.addEventListener(event, handler, false);
}
};
} else {
return function(element, event, handler) {
if (element && event && handler) {
element.attachEvent('on' + event, handler);
}
};
}
})();
/* istanbul ignore next */
export const off = (function() {
if (!isServer && document.removeEventListener) {
return function(element, event, handler) {
if (element && event) {
element.removeEventListener(event, handler, false);
}
};
} else {
return function(element, event, handler) {
if (element && event) {
element.detachEvent('on' + event, handler);
}
};
}
})();
util.js 源码
import Vue from 'vue';
export const isFirefox = function() {
return !Vue.prototype.$isServer && !!window.navigator.userAgent.match(/firefox/i);
};
export function rafThrottle(fn) {
let locked = false;
return function(...args) {
if (locked) return;
locked = true;
window.requestAnimationFrame(_ => {
fn.apply(this, args);
locked = false;
});
};
}
使用效果
总结

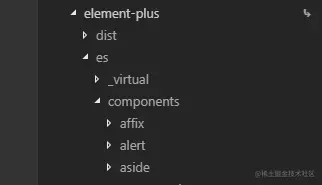

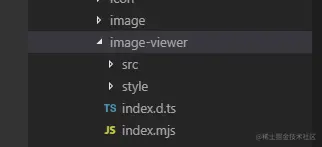

生长在一个日新月异的年代，vue已经迎来了vue3.x , element UI 也已经更新到了 element Plus 我们的图片预览肯定也要更新 同样的可以 可以根据项目中的 node_modules中的中 element-plus 的 image-viewer组件进行修改
