Sequelize 中的一对一、一对多、多对多

琉易
747 阅读4分钟

本篇文章于 2021-09-21 初次写在我的个人小站，链接：liuxianyu.cn/article/seq…

  最近做了写公司中的基建工作，其中涉及到了 node 项目中使用 sequelize，同时有多对多的关系需要处理，便写了个关于 sequelize 处理多对多关系的练手示例，liuxy0551/sequelize-association，目前仅涉及查询，create 和 update 暂未进行。

  sql 语句 点此查看。

一、一对一

  一对一的举例是：一个中国公民 (Chinese) 只有一个身份证号 (IDNumber) ，具体实现如下：

const models = initModels(sequelize)
const { Chinese, IDNumber } = models

// 建立关系
Chinese.hasOne(IDNumber, { foreignKey: 'id', sourceKey: 'IDNumberId', as: 'IDNumberInfo' })
IDNumber.belongsTo(Chinese, { foreignKey: 'id', targetKey: 'IDNumberId' })

// service 层实现
async getChinese (ctx) {
    try {
        const { offset, limit, page, pageSize } = getPage(ctx.query)
        const { count, rows } = await DB.Chinese.findAndCountAll({
            where: getWhere(),
            attributes: {
                exclude: getExclude(),
            },
            include: [
                {
                    model: DB.IDNumber,
                    as: "IDNumberInfo",
                    required: false,
                    where: getWhere(),
                    attributes: {
                        exclude: getExclude(),
                    },
                },
            ],
            offset,
            limit,
        })
        return setCtxBody(200, rows, '成功', { total: count, page, pageSize })
    } catch (error) {
        return setCtxBody(500, error, '系统错误')
    }
}

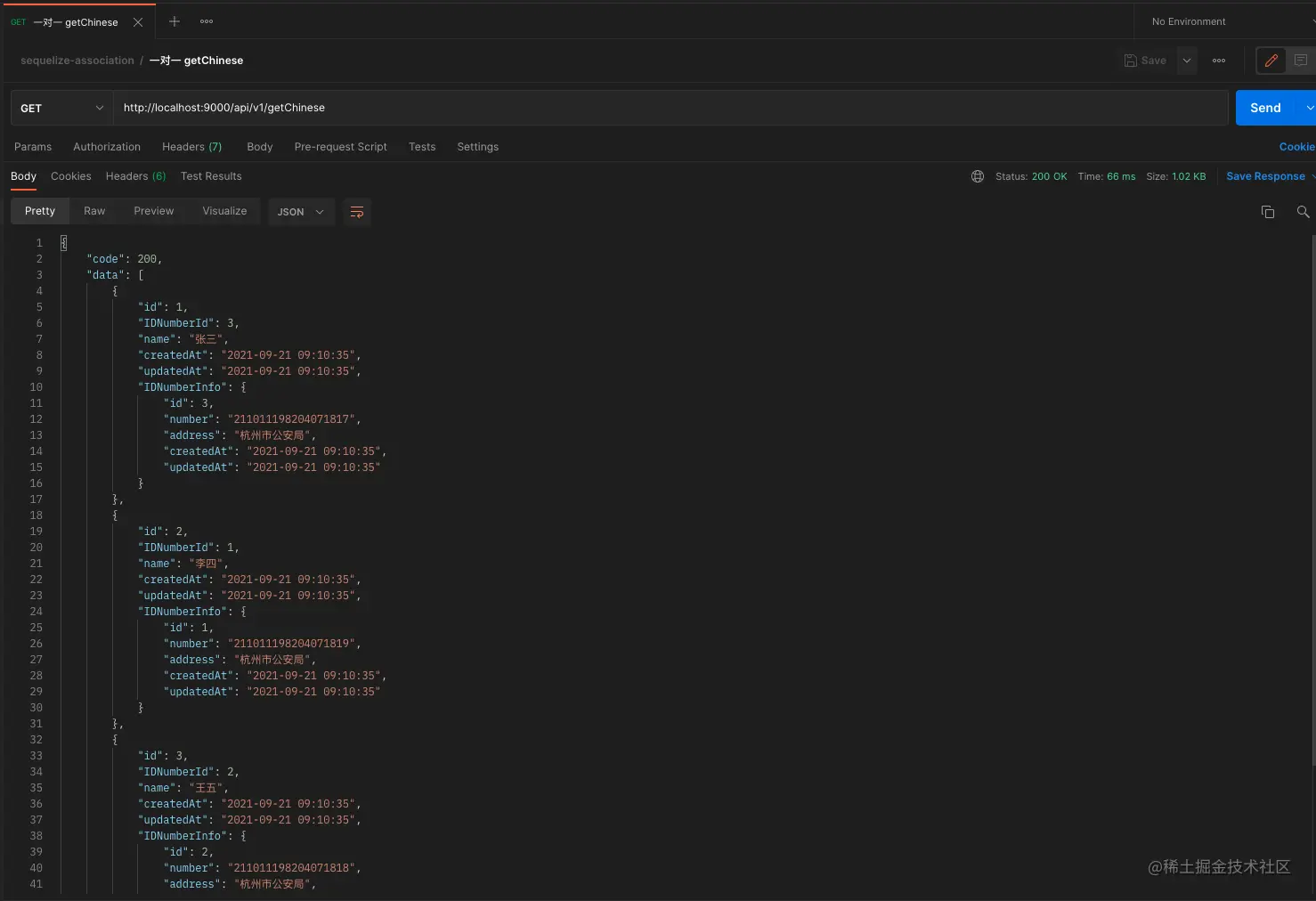

  接口返回的结果如下：

  sequelize 自动生成的 sql 语句如下：

SELECT
	`Chinese`.`id`,
	`Chinese`.`IDNumberId`,
	`Chinese`.`name`,
	`Chinese`.`createdAt`,
	`Chinese`.`updatedAt`,
	`IDNumberInfo`.`id` AS `IDNumberInfo.id`,
	`IDNumberInfo`.`number` AS `IDNumberInfo.number`,
	`IDNumberInfo`.`address` AS `IDNumberInfo.address`,
	`IDNumberInfo`.`createdAt` AS `IDNumberInfo.createdAt`,
	`IDNumberInfo`.`updatedAt` AS `IDNumberInfo.updatedAt`
FROM
	`Chinese` AS `Chinese`
	LEFT OUTER JOIN `IDNumber` AS `IDNumberInfo` ON `Chinese`.`IDNumberId` = `IDNumberInfo`.`id`
	AND `IDNumberInfo`.`isDeleted` = 0
WHERE
	`Chinese`.`isDeleted` = 0
	LIMIT 0,
	10;

二、一对多

  一对多的举例是：一个省份 (Province) 有多个市 (City)，具体实现如下：

const models = initModels(sequelize)
const { Province, City } = models

// 建立关系
Province.hasMany(City, { as: 'cityList' })
City.belongsTo(Province, { foreignKey: 'id' })

// service 层实现
async getProvinceList (ctx) {
    try {
        const { offset, limit, page, pageSize } = getPage(ctx.query)
        const { count, rows } = await DB.Province.findAndCountAll({
            where: getWhere(),
            attributes: {
                exclude: getExclude(),
            },
            include: [
                {
                    model: DB.City,
                    as: 'cityList',
                    required: false,
                    where: getWhere(),
                    attributes: {
                        exclude: getExclude(['ProvinceId']),
                    },
                }
            ],
            offset,
            limit,
        })
        return setCtxBody(200, rows, '成功', { total: count, page, pageSize })
    } catch (error) {
        return setCtxBody(500, error, '系统错误')
    }
}

  接口返回的结果如下：

  sequelize 自动生成的 sql 语句如下：

SELECT
	`Province`.*,
	`cityList`.`id` AS `cityList.id`,
	`cityList`.`provinceId` AS `cityList.provinceId`,
	`cityList`.`name` AS `cityList.name`,
	`cityList`.`createdAt` AS `cityList.createdAt`,
	`cityList`.`updatedAt` AS `cityList.updatedAt`
FROM
	(
	SELECT
		`Province`.`id`,
		`Province`.`name`,
		`Province`.`createdAt`,
		`Province`.`updatedAt`
	FROM
		`Province` AS `Province`
	WHERE
		`Province`.`isDeleted` = 0
		LIMIT 0,
		10
	) AS `Province`
	LEFT OUTER JOIN `City` AS `cityList` ON `Province`.`id` = `cityList`.`ProvinceId`
	AND `cityList`.`isDeleted` = 0;

三、多对多

  多对多的举例是：一部电影 (Movie) 有多个演员 (Actor), 一个演员 (Actor) 参演多部电影 (Movie)，具体实现如下：

const models = initModels(sequelize)
const { Movie, Actor, MovieActor } = models

// 建立关系
Movie.belongsToMany(Actor, { through: MovieActor, as: 'actorList' })
Actor.belongsToMany(Movie, { through: MovieActor, as: 'movieList' })

// service 层实现
async getMovieListWithActors (ctx) {
    try {
        const { offset, limit, page, pageSize } = getPage(ctx.query)
        const { count, rows } = await DB.Movie.findAndCountAll({
            where: getWhere(),
            attributes: {
                exclude: getExclude()
            },
            include: [
                {
                    model: DB.Actor,
                    as: 'actorList',
                    required: false,
                    where: getWhere(),
                    attributes: {
                        exclude: getExclude(),
                    },
                    through: { attributes: [] }
                }
            ],
            offset,
            limit,
        })
        return setCtxBody(200, rows, '成功', { total: count, page, pageSize })
    } catch (error) {
        return setCtxBody(500, error, '系统错误')
    }
}

async getActorListWithMovies (ctx) {
    try {
        const { offset, limit, page, pageSize } = getPage(ctx.query)
        const { count, rows } = await DB.Actor.findAndCountAll({
            where: getWhere(),
            attributes: {
                exclude: getExclude()
            },
            include: [
                {
                    model: DB.Movie,
                    as: 'movieList',
                    required: false,
                    where: getWhere(),
                    attributes: {
                        exclude: getExclude(['MovieActor']),
                    },
                    through: { attributes: [] }
                }
            ],
            offset,
            limit,
        })
        return setCtxBody(200, rows, '成功', { total: count, page, pageSize })
    } catch (error) {
        return setCtxBody(500, error, '系统错误')
    }
}

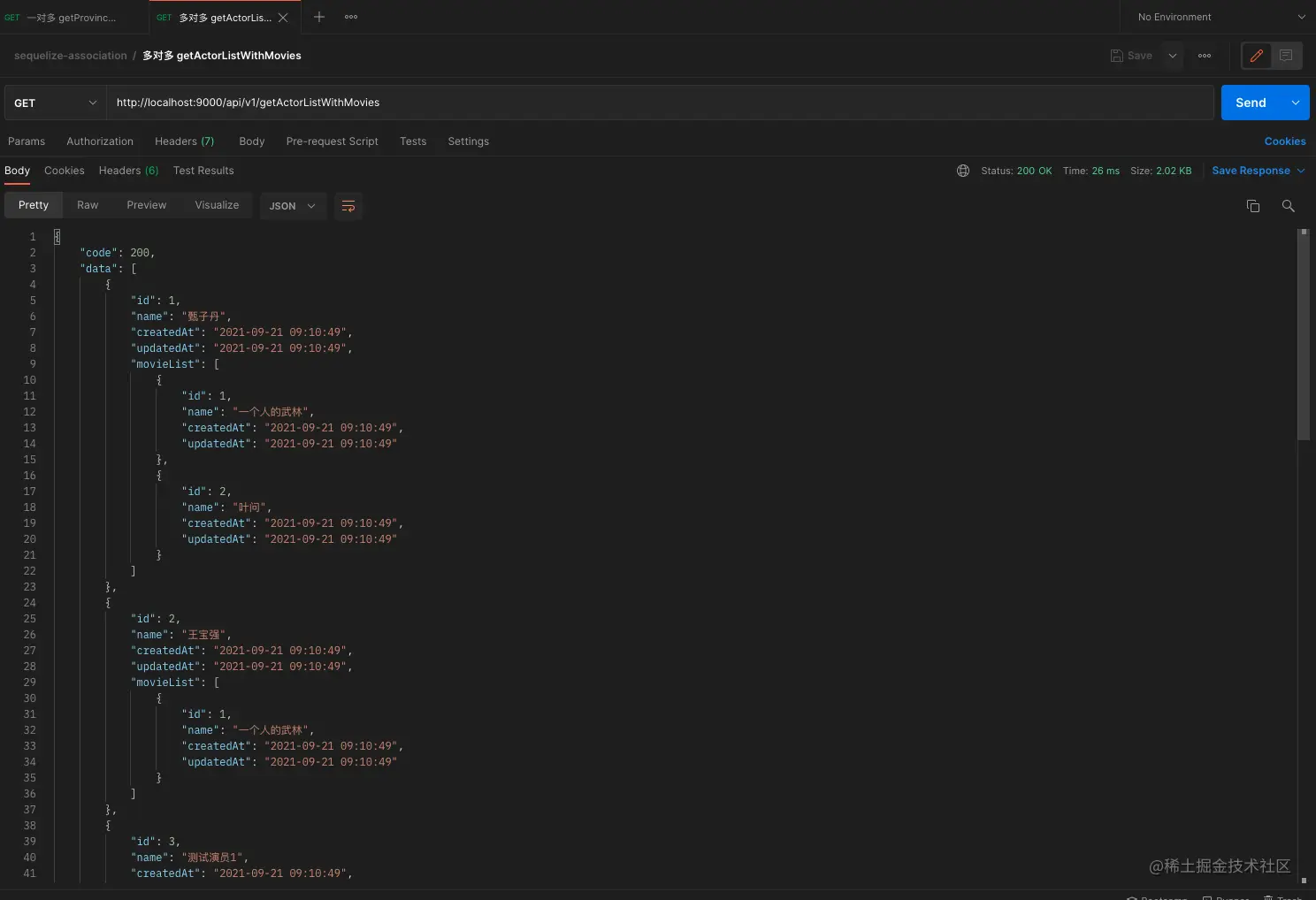

  接口返回的结果如下：

  sequelize 自动生成的 sql 语句如下：

-- 多对多 getActorListWithMovies
SELECT
	`Actor`.*,
	`movieList`.`id` AS `movieList.id`,
	`movieList`.`name` AS `movieList.name`,
	`movieList`.`createdAt` AS `movieList.createdAt`,
	`movieList`.`updatedAt` AS `movieList.updatedAt`
FROM
	(
	SELECT
		`Actor`.`id`,
		`Actor`.`name`,
		`Actor`.`createdAt`,
		`Actor`.`updatedAt`
	FROM
		`Actor` AS `Actor`
	WHERE
		`Actor`.`isDeleted` = 0
		LIMIT 0,
		10
	) AS `Actor`
	LEFT OUTER JOIN (
		`MovieActor` AS `movieList->MovieActor`
		INNER JOIN `Movie` AS `movieList` ON `movieList`.`id` = `movieList->MovieActor`.`MovieId`
	) ON `Actor`.`id` = `movieList->MovieActor`.`ActorId`
	AND `movieList`.`isDeleted` = 0;

-- 多对多 getMovieListWithActors
SELECT
	`Movie`.*,
	`actorList`.`id` AS `actorList.id`,
	`actorList`.`name` AS `actorList.name`,
	`actorList`.`createdAt` AS `actorList.createdAt`,
	`actorList`.`updatedAt` AS `actorList.updatedAt`
FROM
	(
	SELECT
		`Movie`.`id`,
		`Movie`.`name`,
		`Movie`.`createdAt`,
		`Movie`.`updatedAt`
	FROM
		`Movie` AS `Movie`
	WHERE
		`Movie`.`isDeleted` = 0
		LIMIT 0,
		10
	) AS `Movie`
	LEFT OUTER JOIN (
		`MovieActor` AS `actorList->MovieActor`
		INNER JOIN `Actor` AS `actorList` ON `actorList`.`id` = `actorList->MovieActor`.`ActorId`
	) ON `Movie`.`id` = `actorList->MovieActor`.`MovieId`
	AND `actorList`.`isDeleted` = 0;

四、注意事项

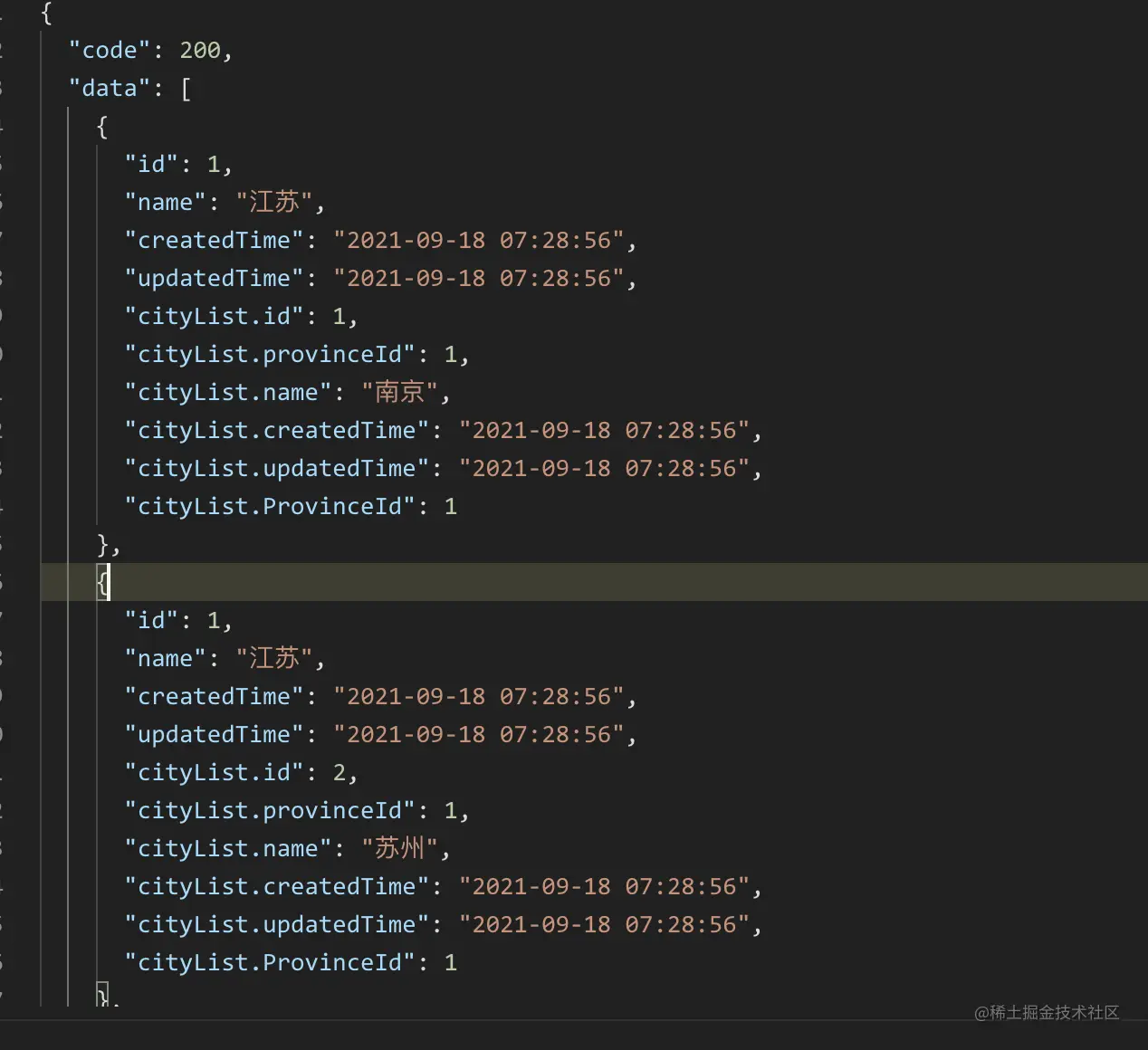

  1、在使用关联关系进行查询时，请求参数中不要使用 raw: true，raw 默认为 false，此时 sequelize 会自动拼接一些参数，设为 true 的话，会丢失参数导致数据结构错乱，如下图：

  2、一对多时会出现返回的结果包含了大驼峰写法的关联 id 及值，可通过 include attributes exclude 将该字段过滤；

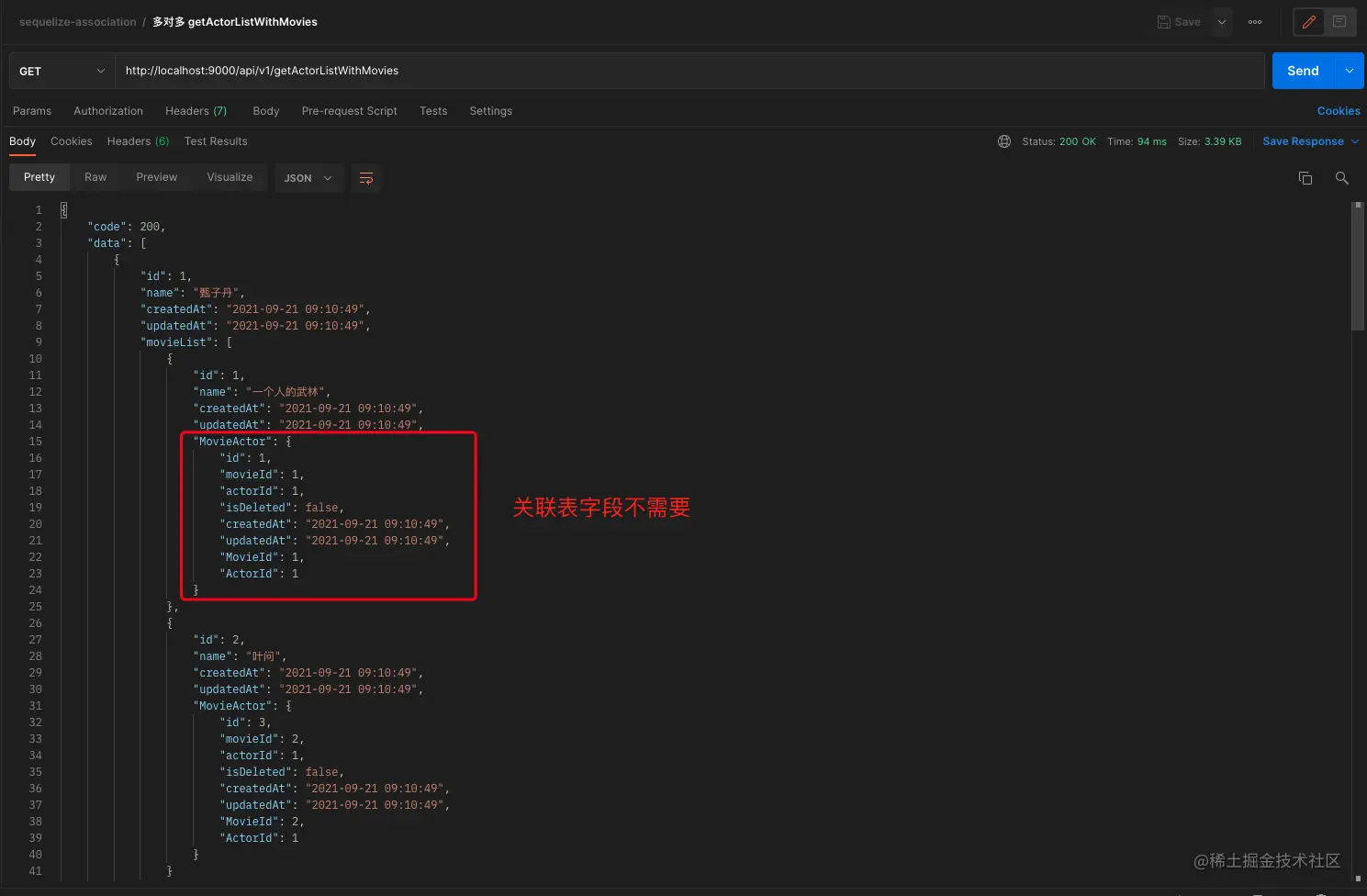

  3、多对多时，一般不需要展示关联表的字段，可通过 include through attributes 将关联表字段过滤，如下：

const { count, rows } = await DB.Actor.findAndCountAll({
    ...
    include: [
        {
            ...
            through: { attributes: [] }
        }
    ]
})

  4、建立关联关系时，可在 app/utils/mysql/db.js 中进行，引入的 initModels 中导出了所有 model 层，可参考：app/utils/mysql/db.js。

  5、多对多的关联查询可以分解为以下四条 sql 进行，在数据量大的时候能减少查询时间，也是简化 sql 语句的方法：

  • 查询电影表的总数量 total
  • 查询电影表前十条数据
  • 拿着上述十条数据去关联表查询关联数据，对关联的演员信息进行去重
  • 拿着上述去重后的演员信息在演员表中查询，由代码拼装数据再从接口返回

五、占坑文章

  1、预先加载，参考 Sequelize 中文文档 - 预先加载

六、参考文章

  练习过程中较多的参考了以下文章中提到的内容，在此感谢：

[1] Sequelize 中文文档 - 关联
[2] Sequelize 英文官网 Many-To-Many relationships
